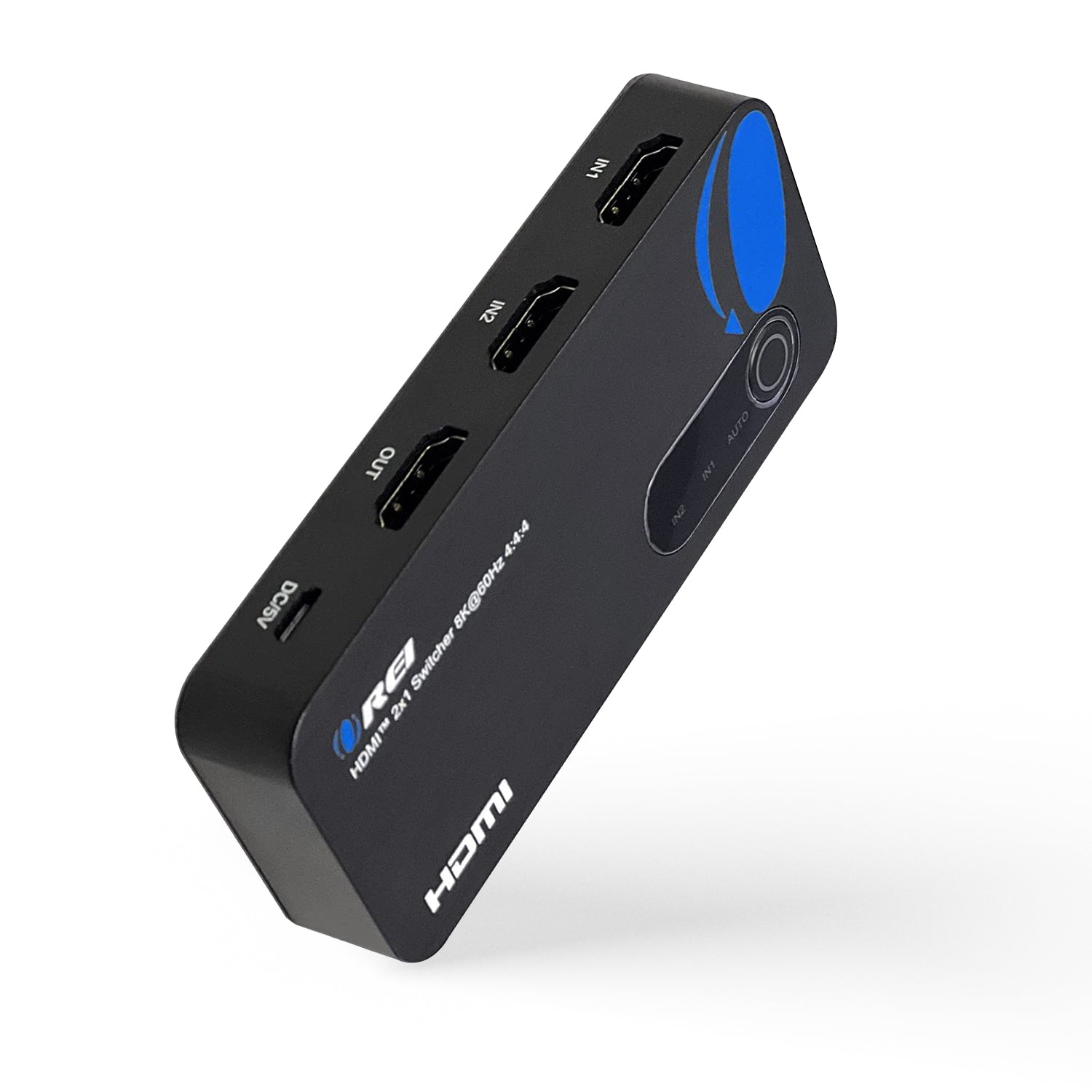

8K 2x1 HDMI Switch for Gaming consoles such as PS5 & Xbox (BK-21S)

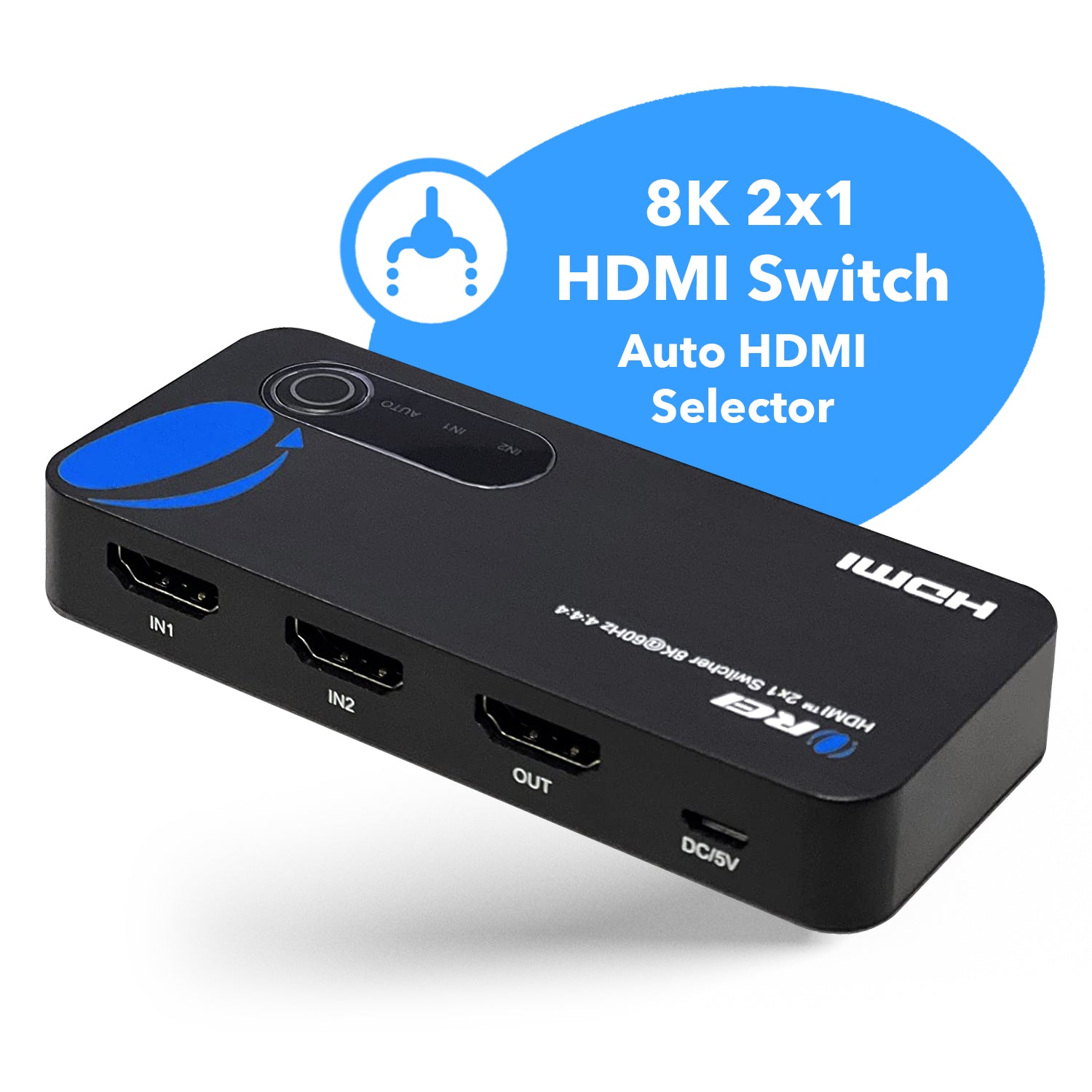

OREI BK-21S: 8K 2x1 HDMI Switch

• HDMI 2 input to 1 output Switcher
• HDMI Stylish switches with manual port switching/automatic port switching
• Support high definition resolution 8K@60Hz 4:4:4, 4K@120Hz and 1080P@240Hz
• Support 1200MHz/12Gbps per channel bandwidth (48Gbps all channels)
• 12bit per channel (36bit all channels)
• Support HDCP 2.3, and back compatible with the HDCP2.2 and HDCP1.4
• High Dynamic Range (HDR) video pass-through, such as HDR10/HDR10+/Dolby vision
• Support VRR (Variable Refresh Rate), ALLM (Auto Low-latency Mode), and QFT (Quick Frame Transport) function
• Built-in Equalizer, Retiming and Driver
• Support Consumer Electronics Control

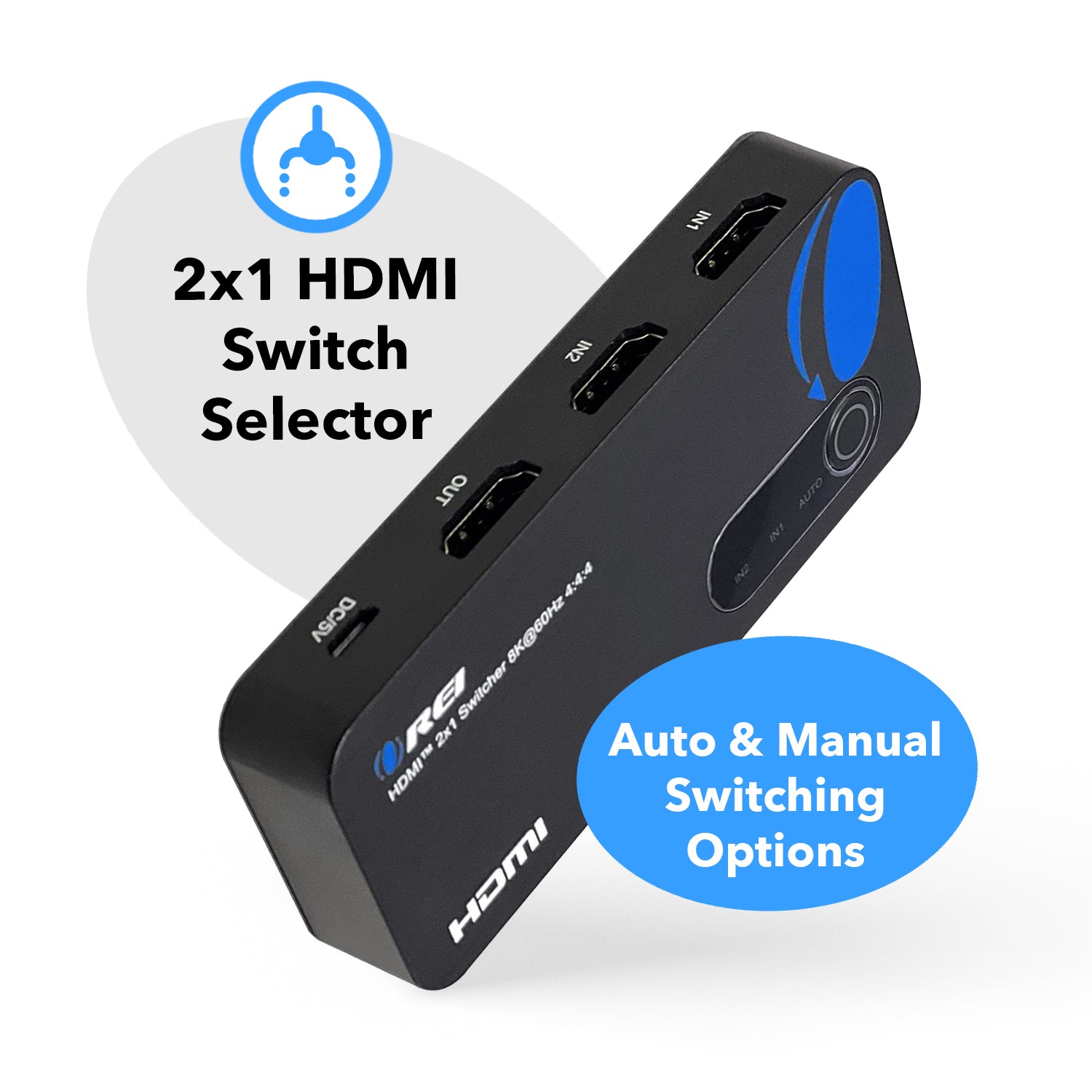

• Automatic switching (smart function) or manual switching
• Support uncompressed audio such as LPCM

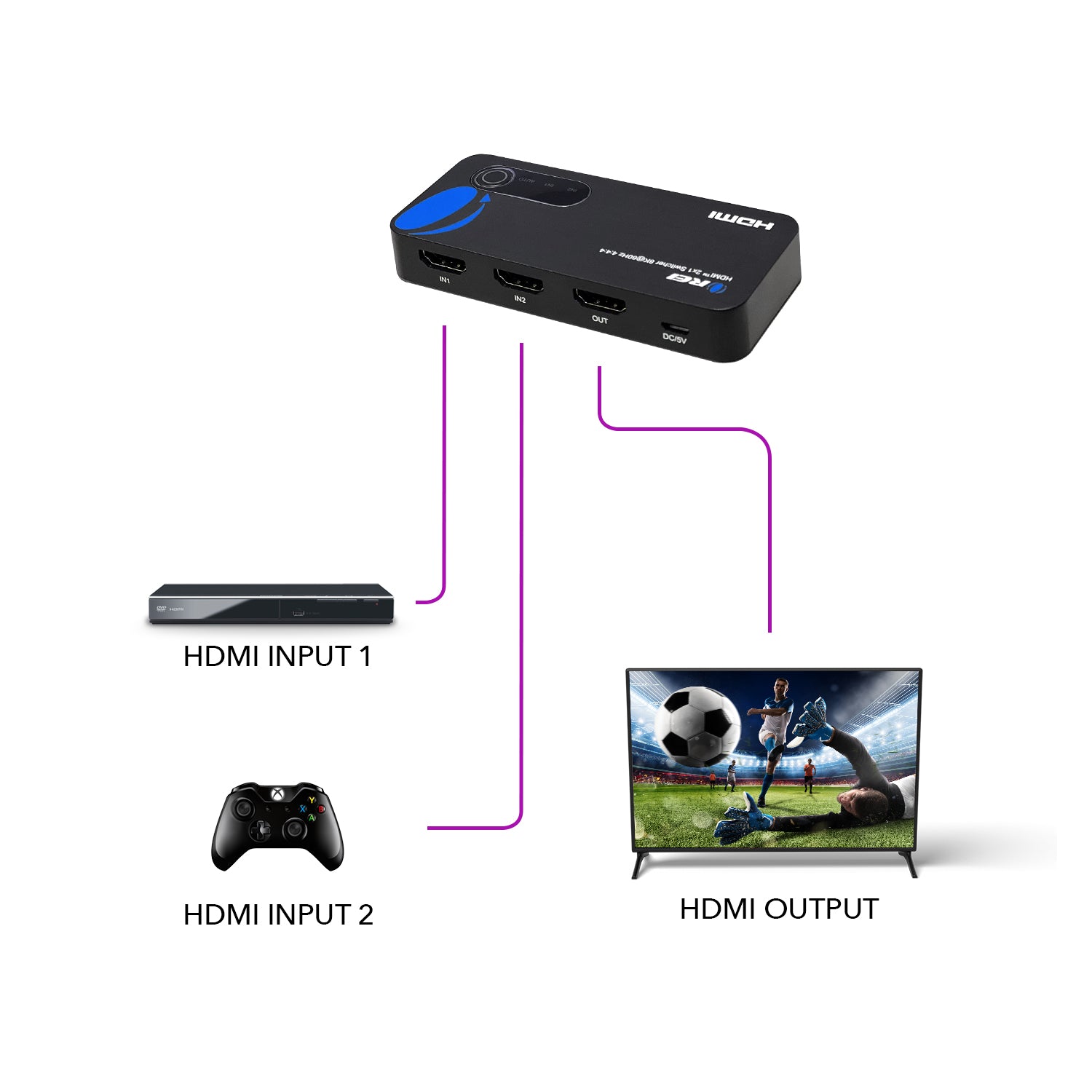

The OREI BK-21S 2 port HDMI Switch Supports 8K@60Hz (7680x4320p@60Hz). The switch features two independent inputs that each support 8K resolution and 7.1 surround sound audio.

8K is supported by the latest A/V devices and delivers four times the resolution of 4K. Plus, because the switch is backward compatible with Ultra HD 4K and high-definition 1080p, you can rest assured any video source will look great in your digital signage application. Enjoy hassle-free operation with two different switching modes:

1. Manual Port Switching: Enables you to manually select your HDMI Source with easy-to-use panel button

2. Automatic Port Switching: Enables your most recently activated video source to be displayed automatically
