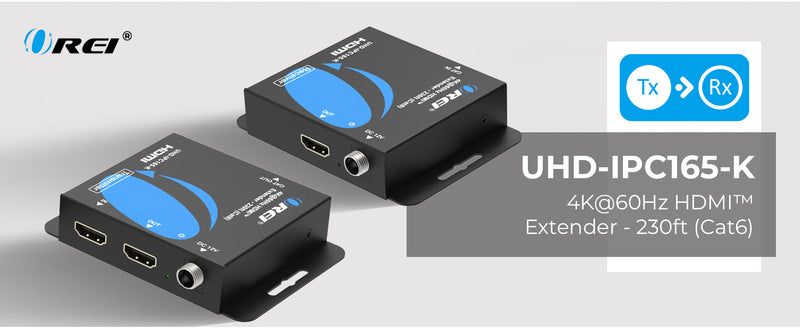

4K@60hz HDMI™ Extender - 230ft (cat6)-UHD-IPC165-K
-
HDMI Matrix extender over ethernet up to 230 feet
-
Video resolutions up to 4K@30Hz 4:4:4
-

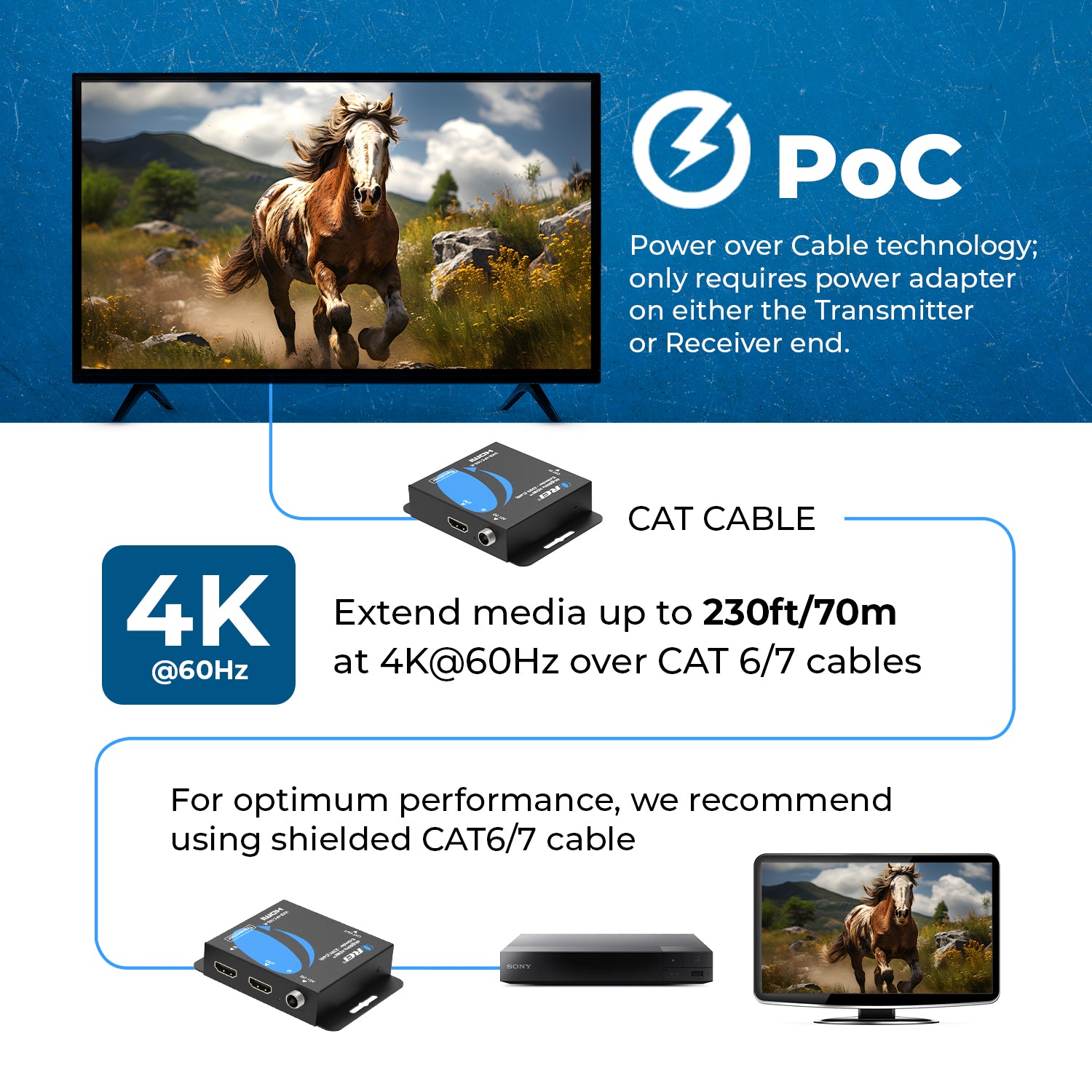

With Audio extraction Bi-directional IR & Uni-directional Power over cable
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
4K@60Hz Transmission Over Long Distances
The OREI UHD-IPC165-K extends uncompressed 4K@60Hz HDMI signals using a single CAT6/6a/7 cable, ensuring reliable performance for residential and commercial AV applications. With full HDMI 2.0 and HDCP 2.2 compliance, it maintains proper compatibility with modern source devices, displays, and protected content formats. The system delivers stable, high-quality video suitable for control rooms, conference environments, and home installations.

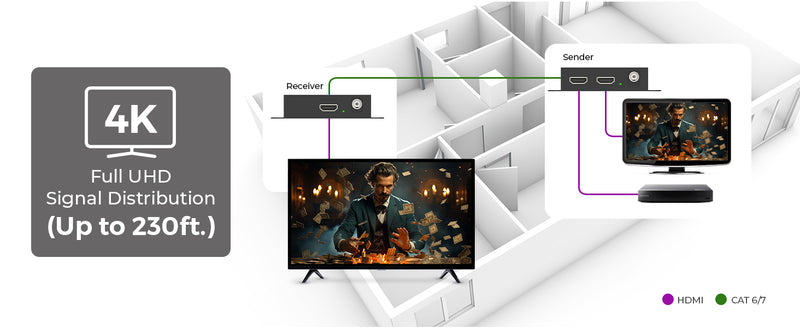

Extended Range Up to 230 Feet via CAT Cable
This extender supports HDMI transmission up to 165 ft (50 m) at 4K@60Hz and up to 230 ft (70 m) at lower resolutions when using shielded CAT6/6a/7 cables. Its 18Gbps bandwidth enables full-quality audio and video without compression artifacts. An integrated HDMI loop output allows a local display connection at the transmitter, making it convenient for monitoring or dual-screen setups.
Integrated Audio and Control Features
The UHD-IPC165-K includes L/R audio extraction at the receiver for direct connection to external audio systems. HDR10 passthrough ensures accurate color and dynamic range reproduction across compatible displays. The built-in uni-directional IR pass-through allows users to control the source device from the remote location, supporting streamlined system operation.
Advanced EDID Management and Simple Installation

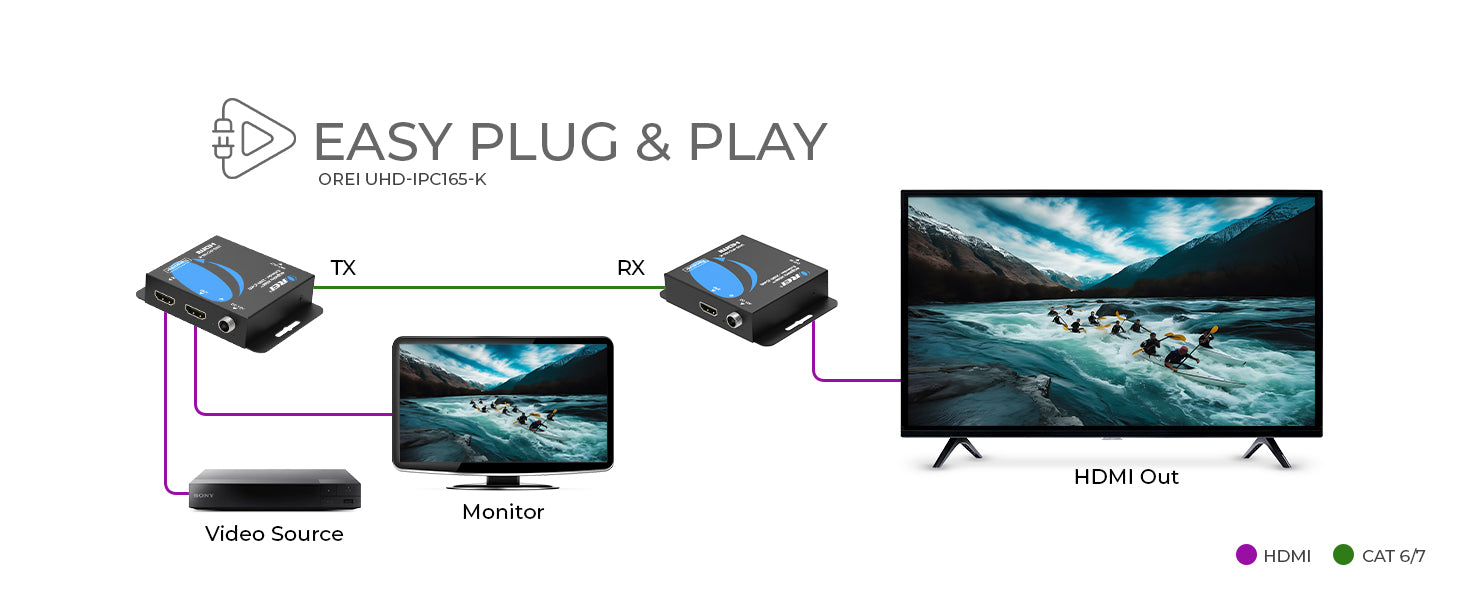

With EDID copy and auto-downscaling, the extender optimizes signal compatibility across different display types. Its compact design and plug-and-play functionality enable fast deployment without special configuration. Engineered for dependable performance, the UHD-IPC165-K is well-suited for classrooms, meeting rooms, retail displays, and general long-distance HDMI extension needs

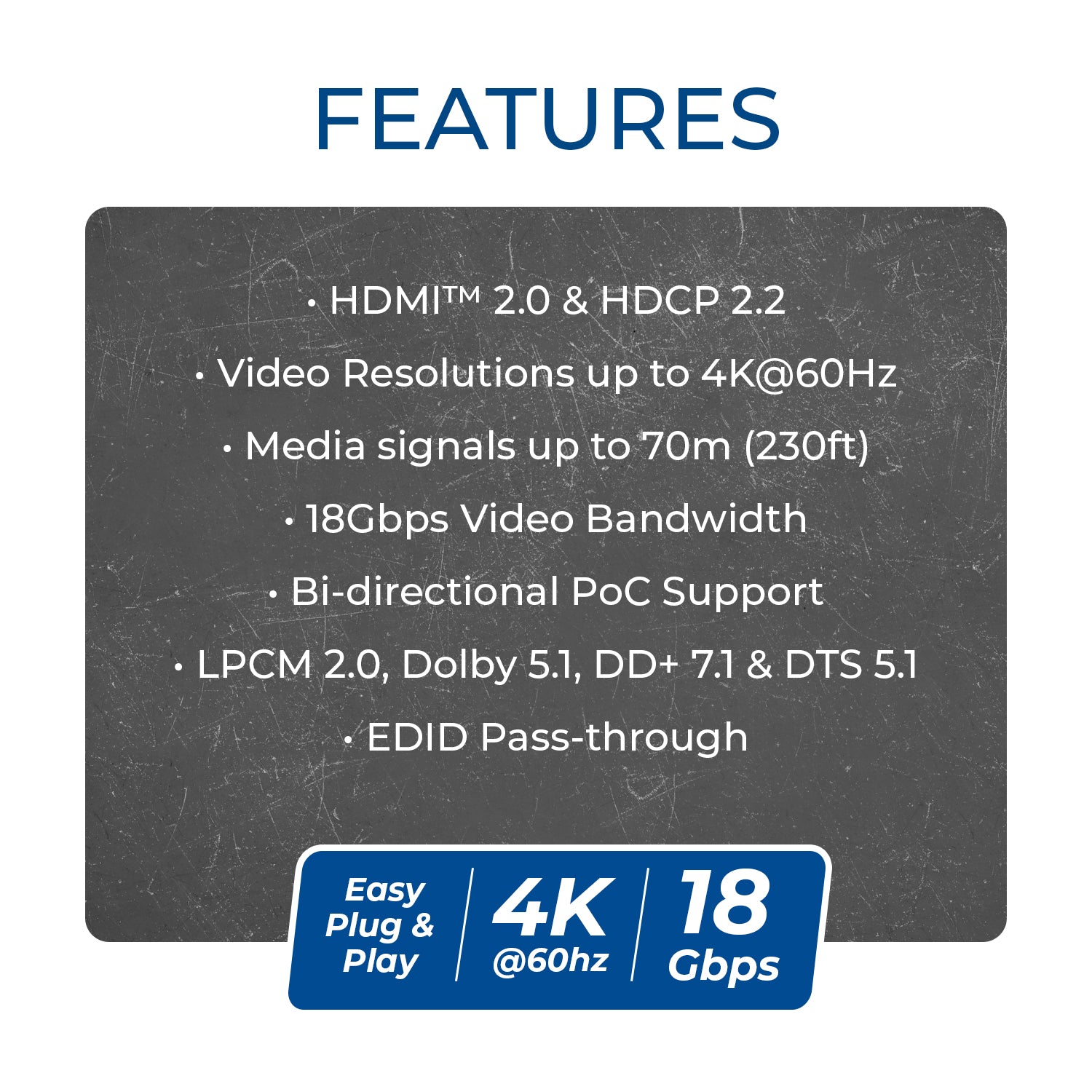

4K Extender over Ethernet up to 165 feet - With Audio Extraction & IR Functionality (UHD-IPC165-K)
-
HDMI 2.0 & HDCP 2.2 Compliant – Ensures compatibility with the latest video and content protection standards.
-
Supports Video Resolutions up to 4K@60Hz – Delivers ultra-high-definition video over long distances.
-
18Gbps Video Bandwidth – Supports uncompressed transmission of high-quality audio and video.
-
Transmission up to 230 ft (70 m) – Extends HDMI up to 165 ft (50 m) at 4K@60Hz and up to 230 ft with shielded CAT6/6a/7 cables.
-

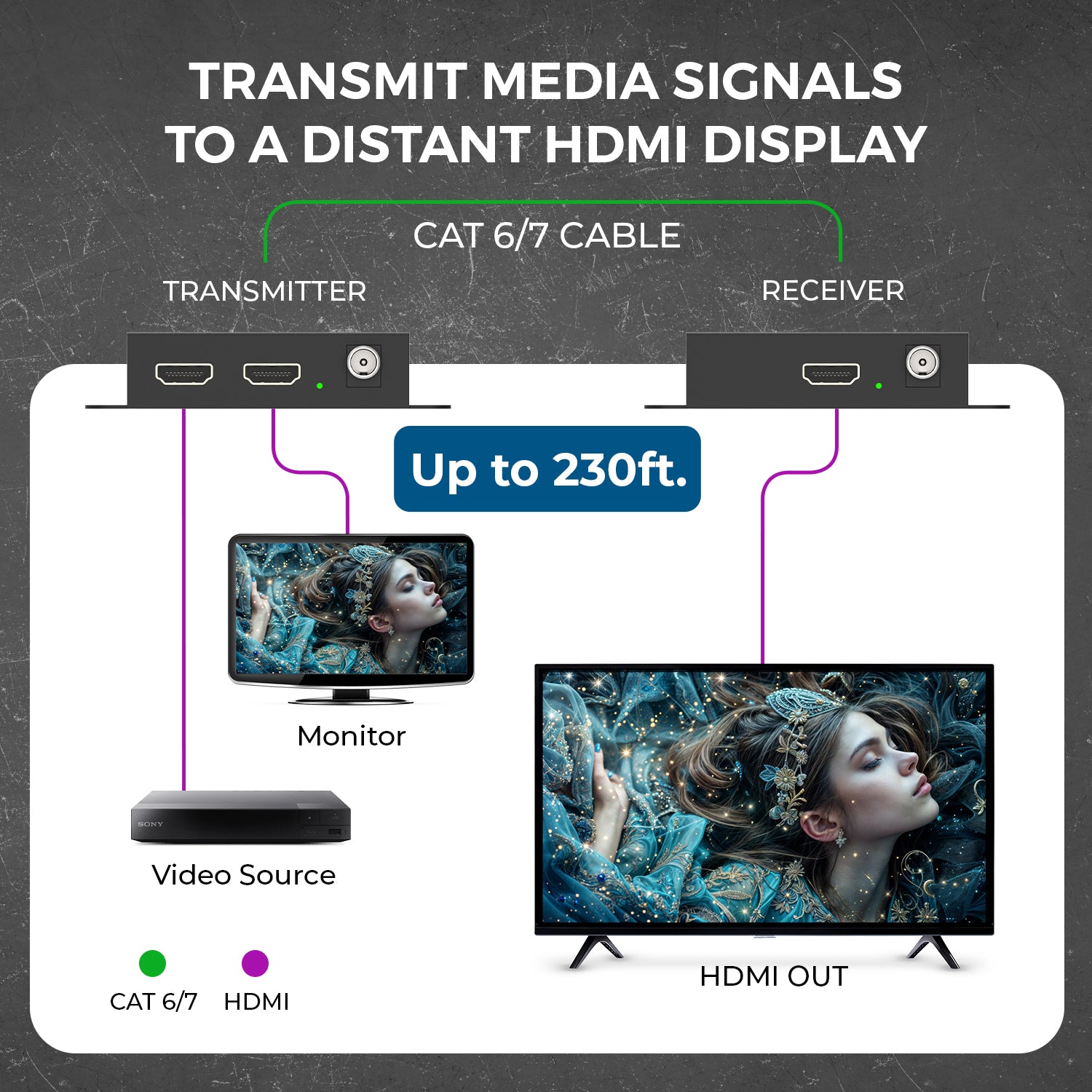

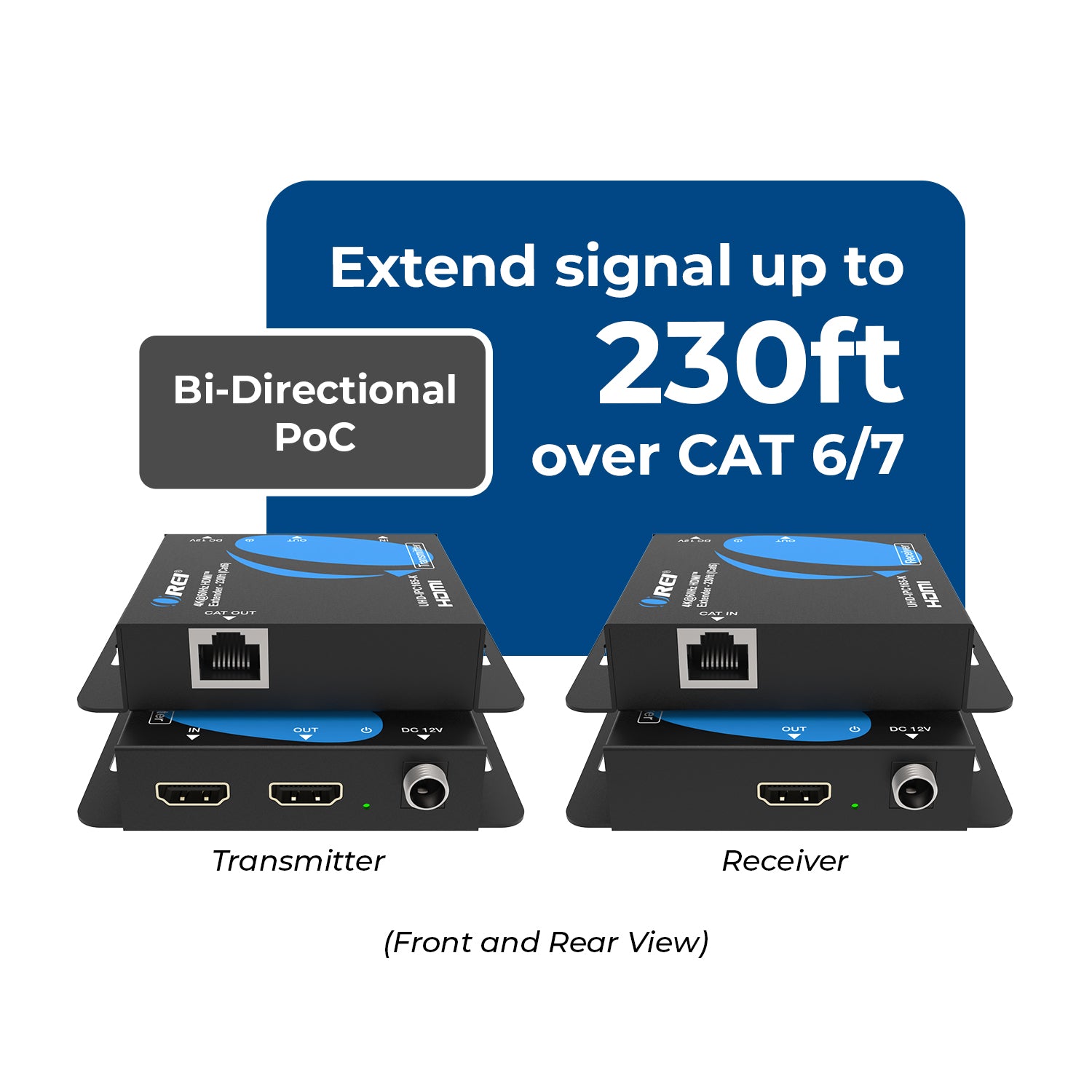

HDMI Loop Output – Allows a local monitor connection at the source end.
-
HDR10 Passthrough – Preserves enhanced dynamic range and color depth.
- Audio Extraction – Enables analog audio output via the L/R port on the receiver.
-
Uni-directional IR Pass-through – Provides control of the source device from the receiver’s location.
-
Advanced EDID Management – Supports EDID copy and auto downscaling for better compatibility.
-

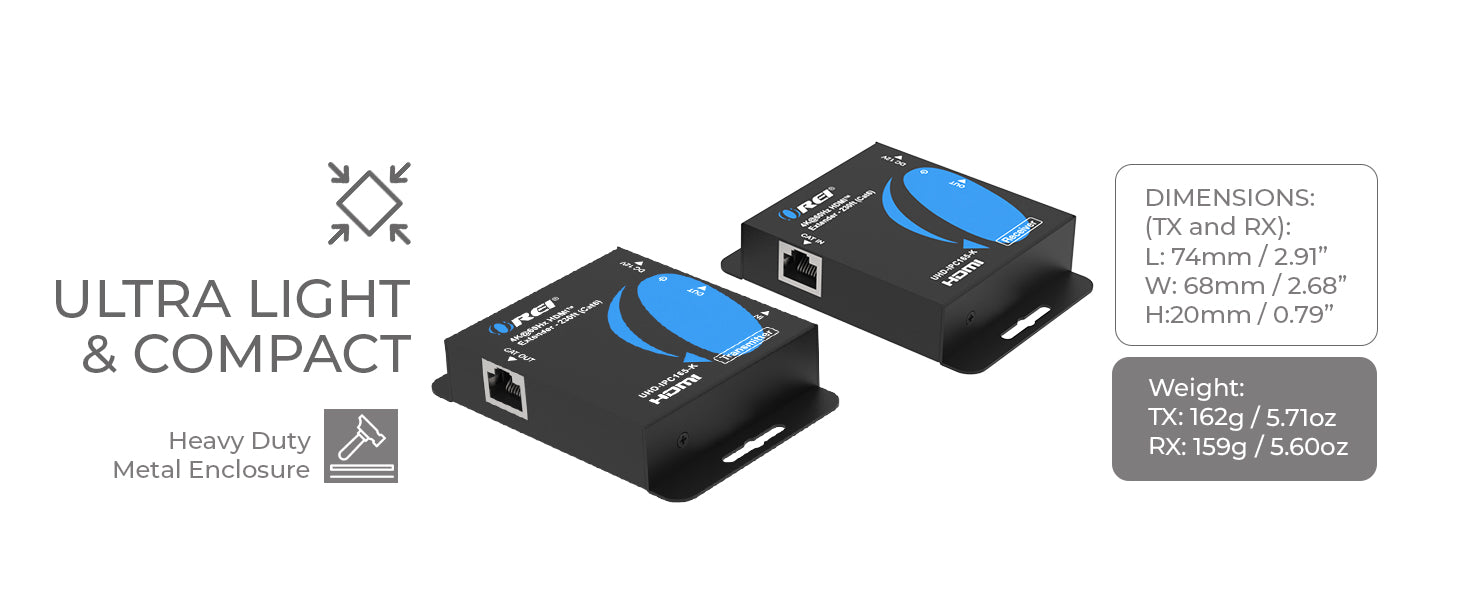

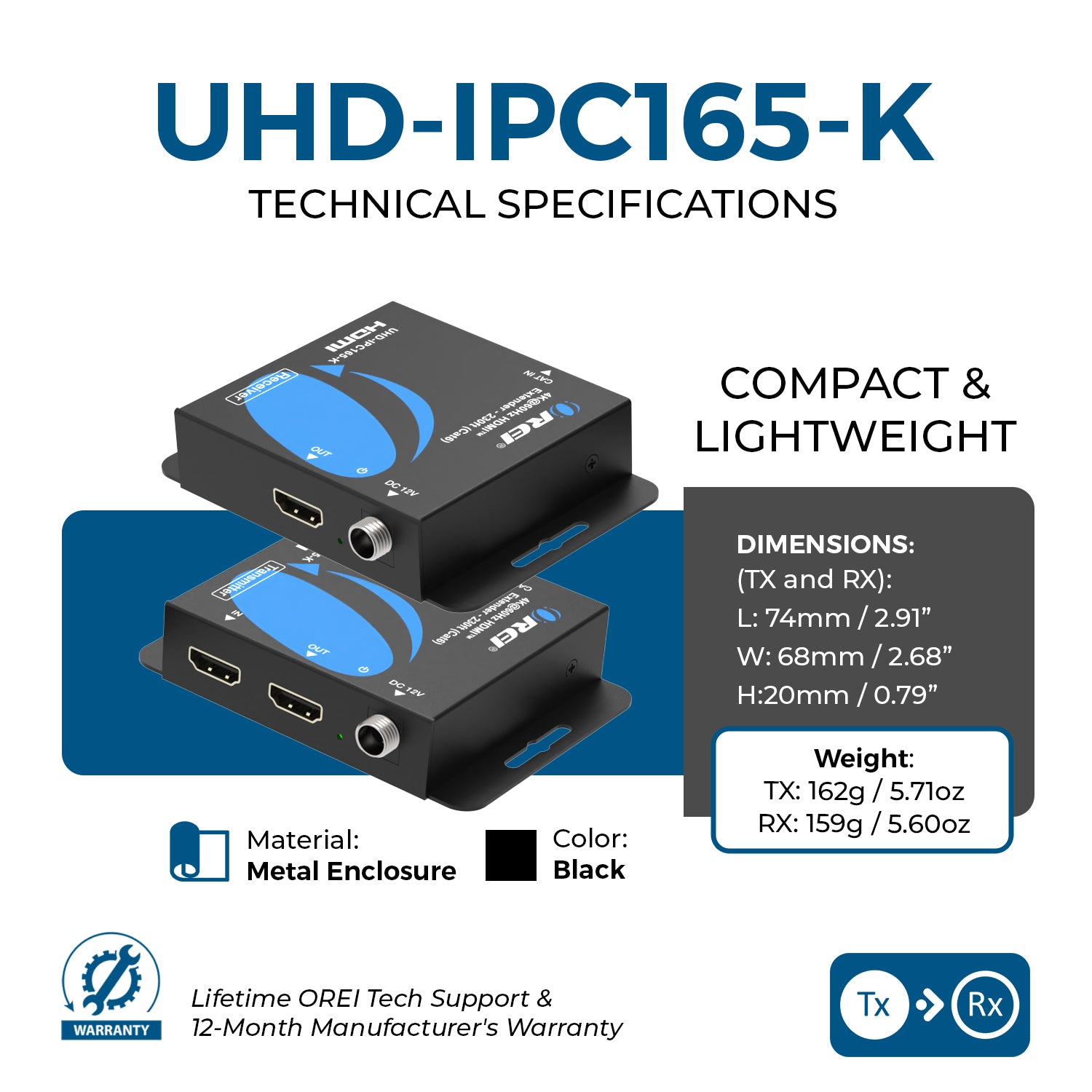

Compact Design – Easy to install with minimal space requirements and simple plug-and-play operation.
The UHD-IPC165-K is a high-performance HDMI extender designed to deliver 4K@60Hz signal transmission over long distances using a single CAT6/6a/7 cable. With support for HDMI 2.0 and HDCP 2.2 standards, it maintains full compatibility with modern video and content protection formats.
It supports distances up to 165 feet (50 meters) for 4K signals, and up to 230 feet (70 meters) with shielded cables at lower resolutions. This extender features an HDMI loop output on the transmitter for a local display, and L/R audio extraction from the receiver. Uni-directional IR pass-through enables control of the source device from the remote display location.
The system also includes EDID management with support for downscaling, ensuring optimal display compatibility. With plug-and-play functionality and a compact design, the UHD-IPC165-K is ideal for both residential and commercial AV installations.
UHD-IPC165-K User Manual Download
