HDMI Compliance: HDMI 1.3
HDCP Compliance: HDCP 1.2
Video Resolutions: 1080p@50/60Hz,1080i@50/60Hz, 720p@50/60Hz, 576p@50Hz, 576i@50Hz, 480p@60Hz, 480i@60Hz
Audio format supported: L/R stereo audio
Maximum transfer rate: 10.2Gbps
Input and Output TMDS signal: 0.7~1.5Vp-p(TMDS)
Input and Output DDC signal: 5Vp-p(TTL)
Input cable length supported: ≤5m (AWG26 HDMI 1.3 cable standard)
Output cable length supported: ≤5m (AWG26 HDMI 1.3 cable standard)
IR Signal: Support IR passback with 20~60kHz frequency
Transmission method: 5G Wireless transmission
Transmission distance: 50 Meters
Latency: ≤200 ms
Electrostatic protection of the whole machine:
- 1a Contact discharge level 3
- 1b Air discharge level3
- Standard:IEC61000-4-2
Working Temperature: 0~40°C
Storage Temperature: -20~70°C
Humidity (no condensation): 0~90%
Meantime between failures: >30000 Hours
Dimensions:
- Transmitter:88.90 (W) x 38.99 (D) x 15.17 (H) mm
- Receiver: 131.65 (W) x 95 (D) x 19.90 (H) mm
Material:
- Transmitter: Plastic
- Receiver: Iron alloy material + crystal panel
Weight:
- Transmitter: 30g
- Receiver: 220g
Finishing: Grit Blast
Color: Black
Power Consumption:
- Transmitter: <3W
- Receiver: <5W
Power Supply:
- Transmitter: DC5V/1A
- Receiver: DC5V/2A

Transmitter:
- Input Ports:
  - 1x HDMI female
- Output Ports:
  - 1x HDMI Male
Receiver:
- Output Port:
  - 1x HDMI Male
Supports wireless transmission of HDMI up to 1080p
Supports wireless transmission of 3D HDTV signals over HDMI
Transmitter side includes HDMI pass-through output for simultaneous local viewing
Less than 300ms low latency
Supports IR extender function
HDCP compliant
Room to room HD wireless transmission
Up to 100m Line of Sight long distance transmission
Low power consumption

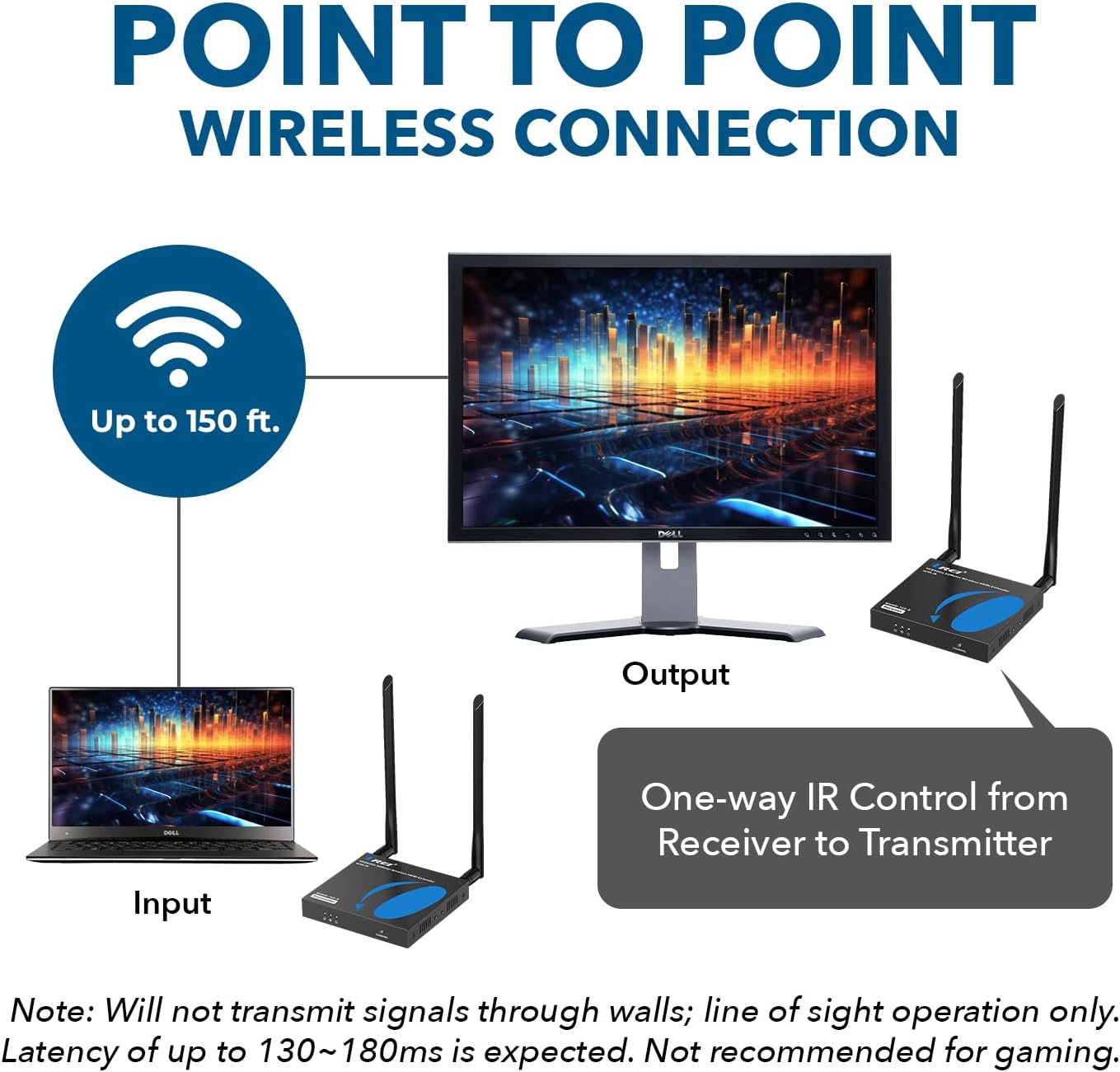

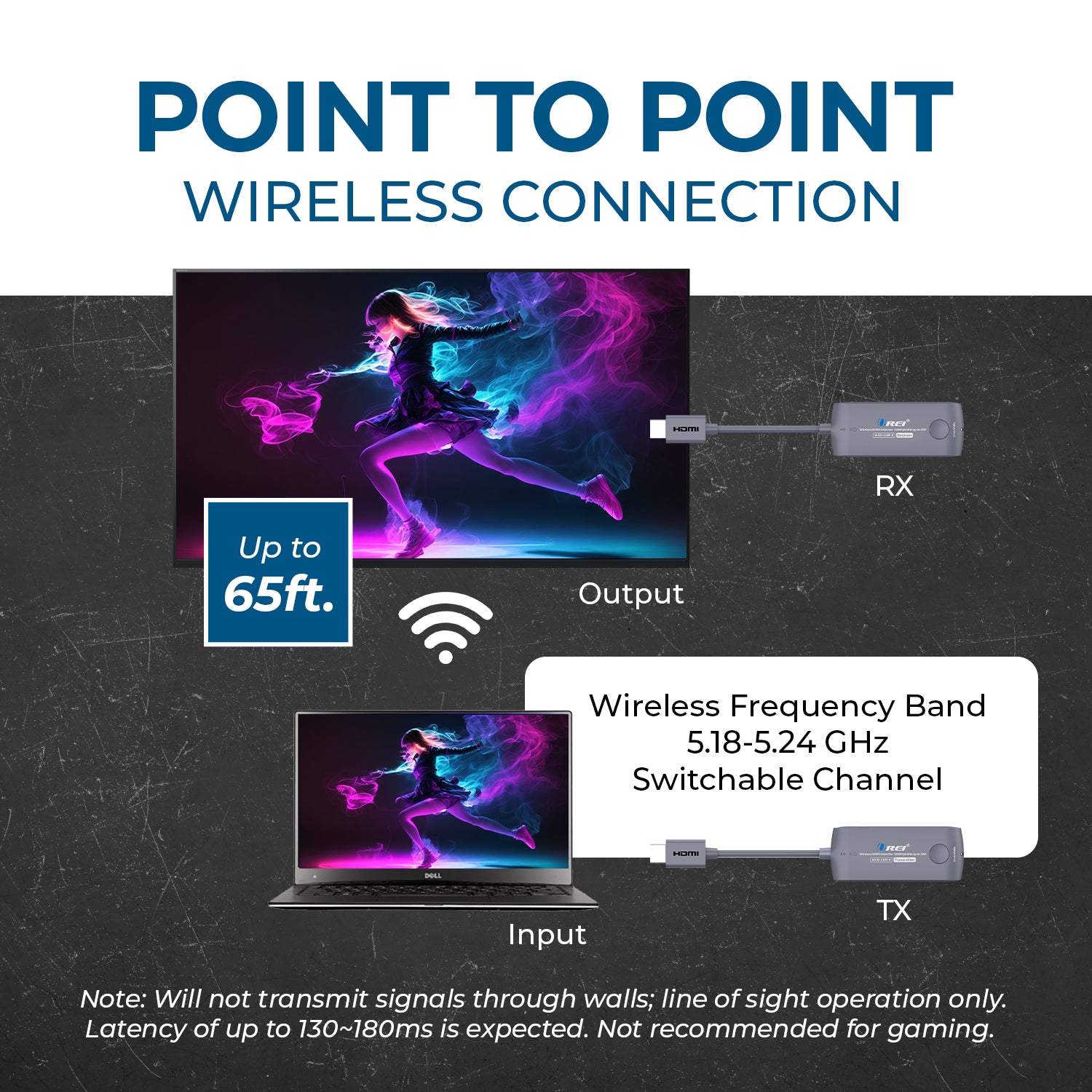

Extend full HD 1080p signal up to 100 feet wirelessly. Will not transmit through walls, direct signal only. Using Channel 128 & 132 on a 5 GHz wireless band
Connect the transmitter to an HDMI camera and the receiver to an HDMI monitor, power the transmitter with a Micro USB cable to the laptop or even a power bank.

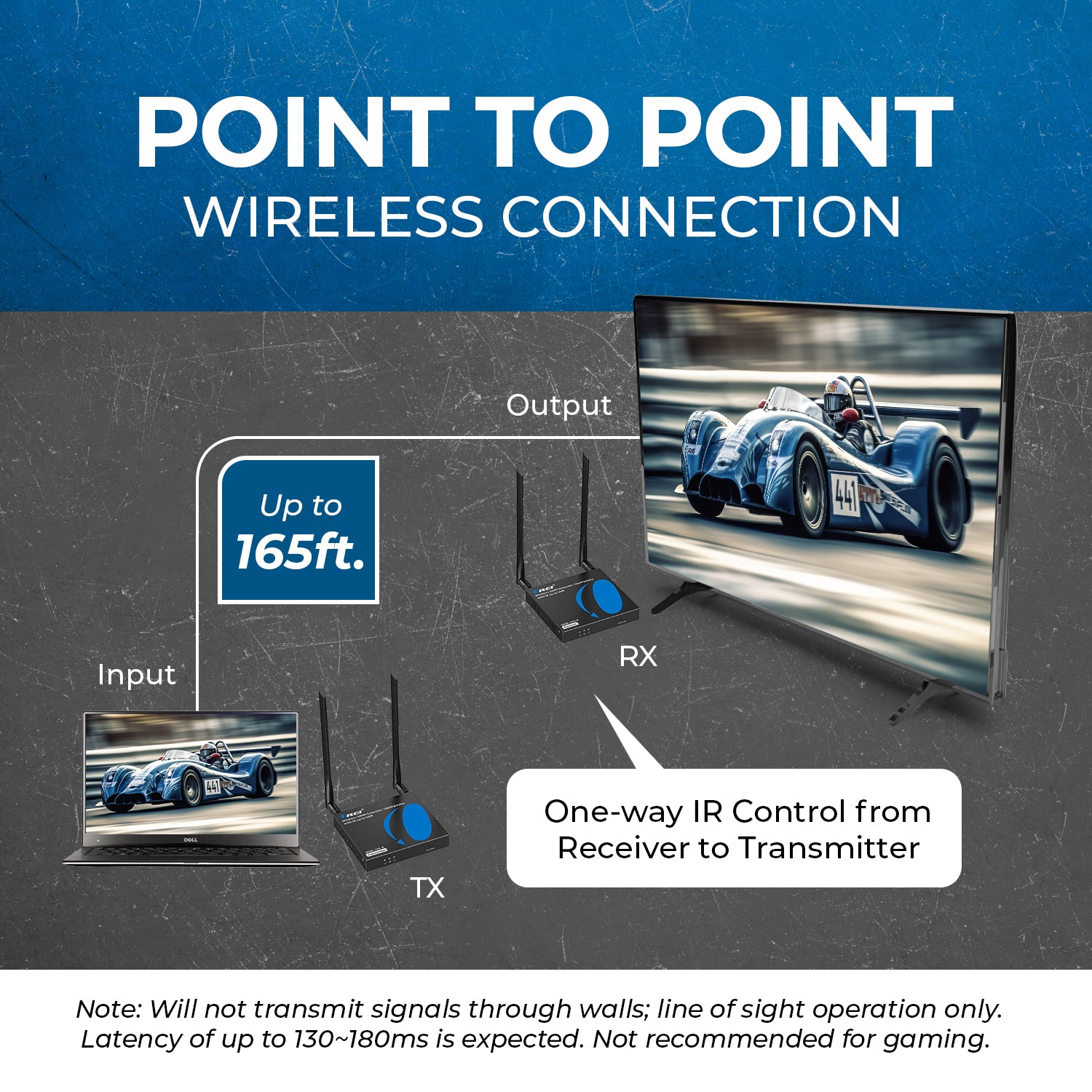

Support point to point wireless Connection, support: HDMI 480i 60Hz, 480p 60Hz, 576i 60Hz, 576 50Hz, 720p 50/60Hz, 1080i 50/60Hz, 1080p 50/60Hz, 20

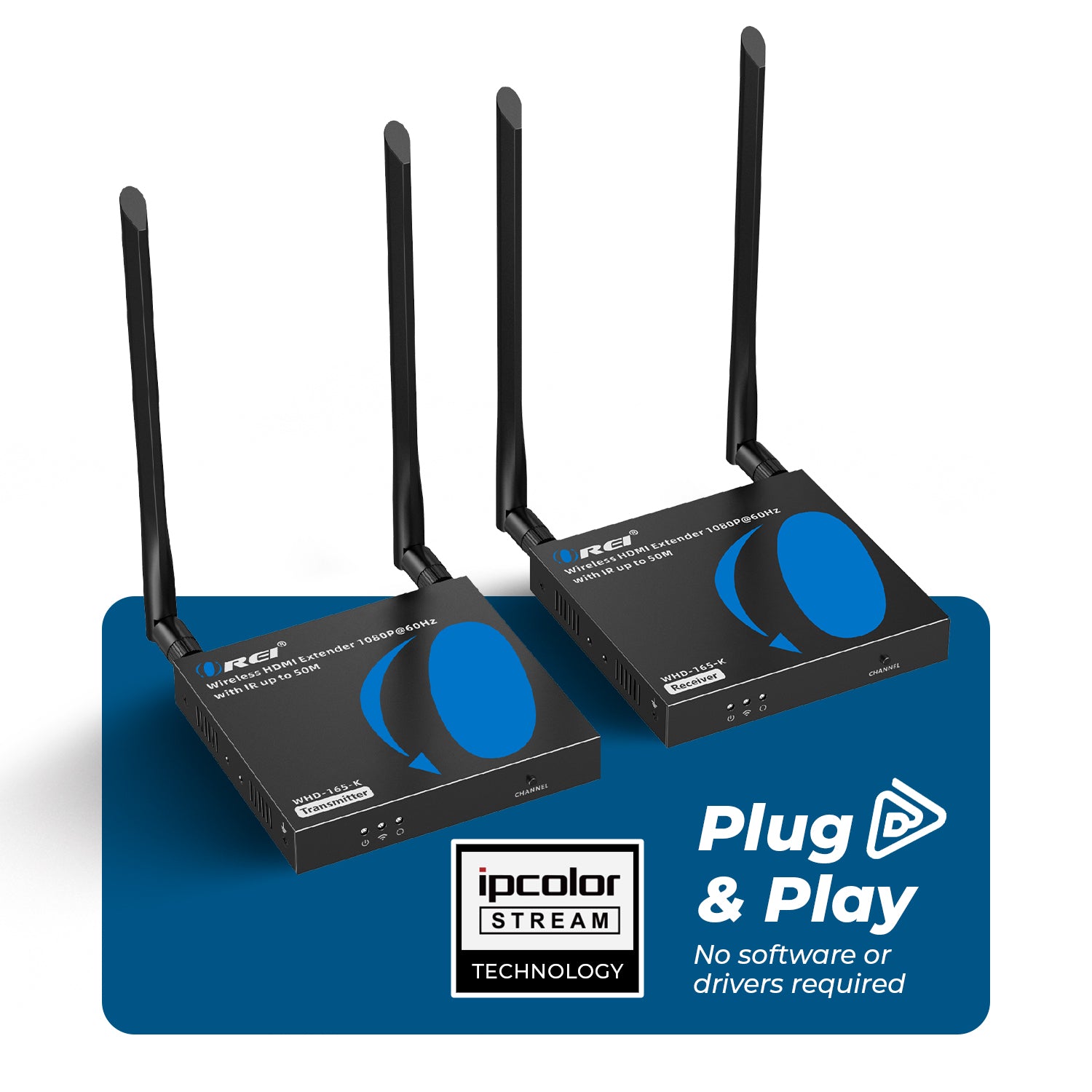

Plug & play setup without any software installation.
Includes: 1 x transmitter, 1 x receiver, 1 x power adapter, 1 x user manual. 1 Year Orei Manufacturer's warranty

Transmitter:
- Input Ports:
  - 1x HDMI Female
- Output Ports:
  - 1x HDMI Male
Receiver:
- Output Ports:
  - 1x HDMI Male
HDMI Compliance: HDMI 1.3
HDCP Compliance: HDCP 1.2
Video Resolutions: 1080p@60Hz
Operation Temperature: 0 - 50°C
Storage temperature: -10 - 70 °C
Relative Humidity: 0 - 90% (no condensation)
Video Bandwidth: 10.2Gbps
Weight:
- Transmitter: 310g
- Receiver: 310g
Power Supply - 5V/2A DC
Power Consumption(Max):
- Transmitter: 7W
- Receiver: 5W
IR Remote Control: Support IR passback with 20-60KHz frequency
Wireless Performance & Interface:
- Transfer Method: 5G Wireless Transmission
- Transmission Distance: 100 Meters
- Latency: Less then or equal to 200ms
Protection Level:
- Electrostatic protection of the whole machine:
  - 1a Contact discharge level 3
  - 1b Air discharge level 3
  - Standard: IEC1000-4-2

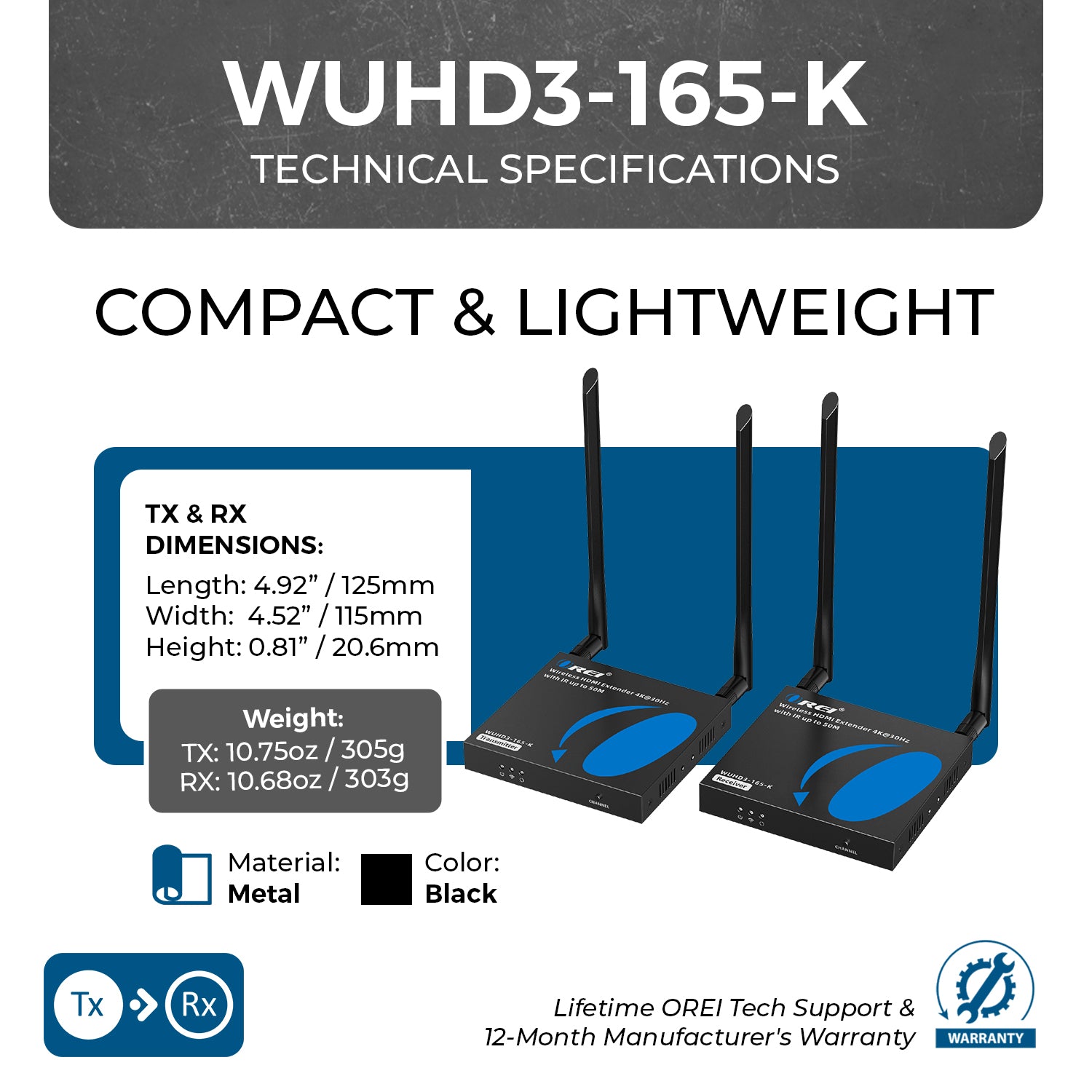

Dimentions : 132mm (W) x 121.4mm (D) x 21.5mm (H)
Material : Iron alloy material + crystal panel
Processing technology : Sandblasting
Finishing : Grit blast

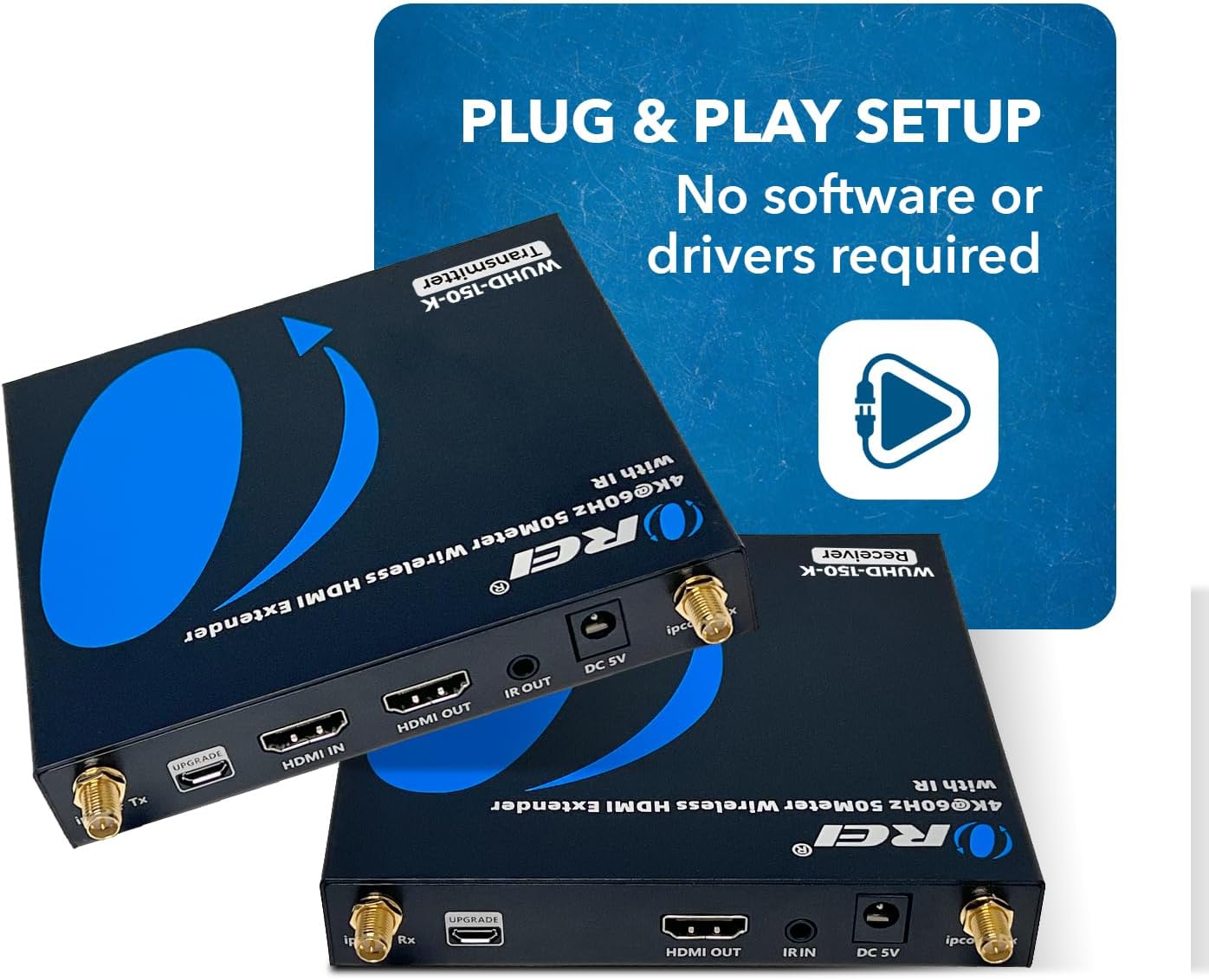

Transmitter
- Inputs:
  - 1x HDMI Type A [19-pin female]
- Outputs:
  - 1x IR OUT [3.5mm Stereo Mini-jack]
  - 2x WiFi OUT [WiFi antenna]
- Control: 1x SERVICE [Micro USB, Update port]
Receiver
- Inputs:
  - 1x IR IN [3.5mm Stereo Mini-jack]
  - 2x WiFi IN [WiFi antenna]
- Outputs:
  - 1x HDMI Type A [19-pin female]
- Control: 1x SERVICE [Micro USB, Update port]
HDMI Compliance: HDMI 1.3
HDCP Compliance: HDCP 1.4
Video Bandwidth: 6.75Gbps
Video Resolution: 1080p,1080i, 720p, 720i, 480p, 480i,1920×1080@60Hz,1920×1200@60Hz(Maximum)
Resolution is 1080p@60Hz if Cable Length for HDMI IN / OUT is 42ft / 15M
Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
Color Depth: 8/10/12-bit (1080p@60Hz)
Operating Temperature: 32 - 104°F / 0 - 40°C
Storage Temperature : -4 - 140°F / -20 - 60°C
ESD Protection:
- Human body model:
  - ±8kV (Air-gap discharge)
  - ±4kV (Contact discharge)
Relative Humidity: 20 - 90% RH (no condensation)
Dimensions: 76 mm [W] x 98 mm [D] x 21 mm [H]
Weight: 100g
Power Supply
- Input: AC100 - 240V 50/60Hz
- Output: 5V/1A DC
Power Consumption:
- Transmitter: 2.25W
- Receiver: 1.8W
Housing: Plastic Enclosure
Colour: Black

Transmitter:
- Input Ports: 1x HDMI Female
Receiver:
- Input Ports: 1x HDMI Female
- Output Ports: 1x HDMI Male
HDMI Compliance: HDMI 1.3
HDCP Compliance: HDCP 1.2
Video Resolutions: Up to 1080P @ 60Hz, 720p @ 50/60 Hz, 576p @ 50Hz, 480p @ 60Hz
Operation Temperature: 32 - 104°F / 0 - 40°C
Storage temperature: -4 - 158°F / -20 - 70°C
Wireless Performance & Interface:
- Input & output TMDS signals: 0.7-1.5Vp-p(TMDS)
- Input & output DDC signals: 5Vp-p(TTL)
- Transmission method: 5G wireless transmission
- Transmission distance: 30 Meters
- Ltency: Less then or equal to 200 ms
Protection Level:
- Electrostatic protection of the whole machine:
  - 1a Contact discharge level 3
  - 1b Air discharge level 3
  - Standard: IEC61000-4-2
Relative Humidity: 0 - 90% RH (no condensation)
Video Bandwidth: 10.2Gbps
Dimensions: 140mm [W] x 65mm [D] x 18mm [H]
- Transmitter: 86.87mm [W] x 38.97mm [D] x 15.15mm [H]
- Receiver: 131.65mm [W] x 95mm [D] x 19.90mm [H]
Weight:
- Transmitter: 20g
- Receiver: 220g
Power Supply:
- Transmitter: Powered by input source through USB Type-C port
- Receiver:DV 5V/2A
Power Consumption(Max):
- Transmitter: 3W
- Receiver: 5W
Housing:
- Transmiiter: Plastic
- Reciver: Iron alloy material, crystal panel
Color: Black
