4K 1-In-10-Out USB-C & HDMI™ Video Wall Controller with Audio Extraction – UHD-19VW
- Dual 4K Input Support (HDMI™ & USB-C)
- 10 HDMI™ Outputs with Multiple Video Wall Layouts
- Image Rotation, Bezel Compensation & Audio Extraction
*Overnight shipping doesn't include Weekends, or any holidays.

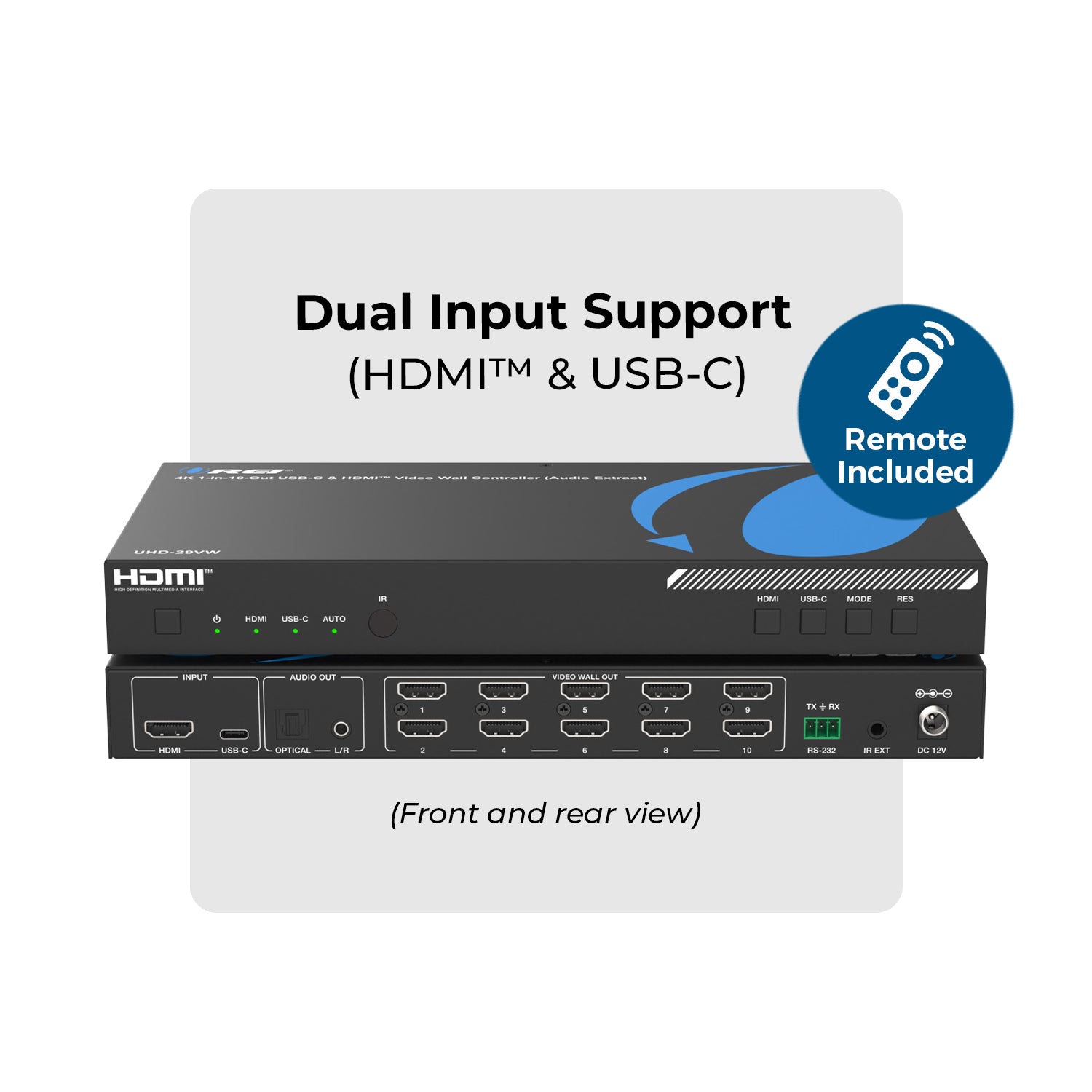

Dual 4K Input Support for Professional AV Systems
The OREI UHD-29VW features both HDMI™ and USB-C inputs, supporting 4K@60Hz signals for compatibility with modern source devices. With HDCP 2.2 and DP 1.2a compliance, it ensures proper operation with current display standards and protected content. This design provides flexibility for commercial installations requiring reliable multi-source processing.

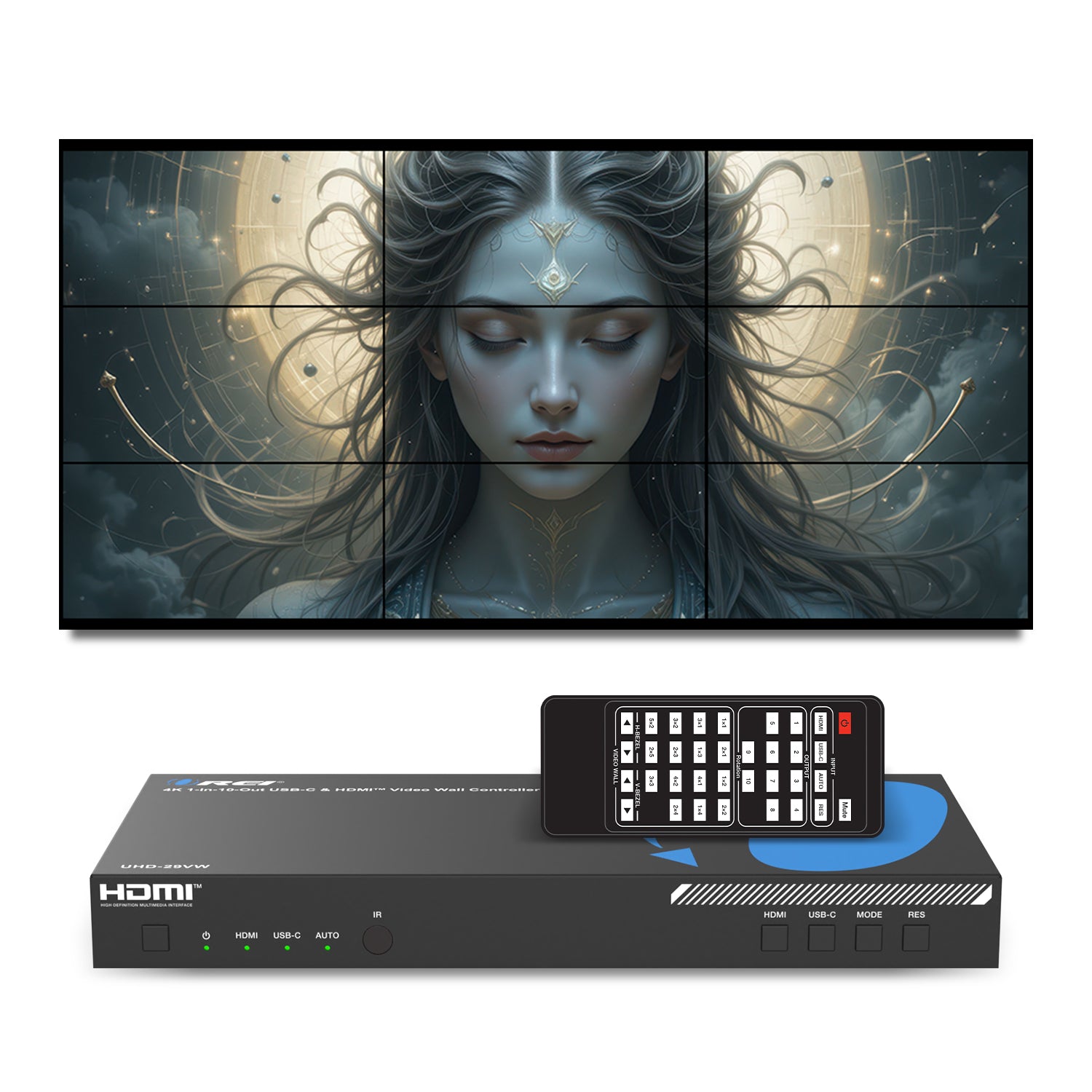

10 Output Channels for Scalable Video Wall Configurations

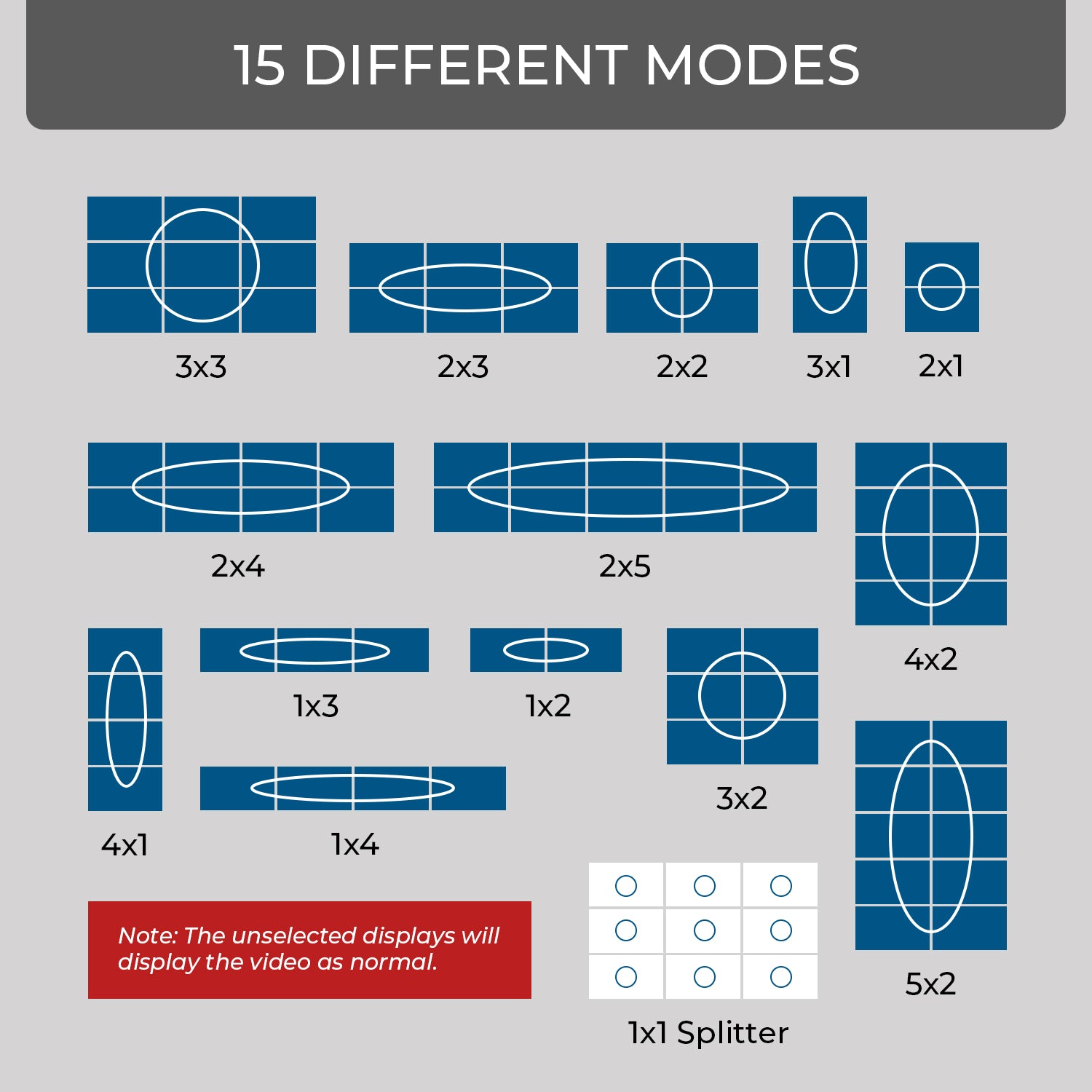

Equipped with 10 HDMI™ outputs, the UHD-29VW supports a wide range of video wall layouts including 2×2, 1×4, 4×1, 1×3, 3×3, 2×4, 2×5, and other multi-screen arrangements. Output resolutions include 4K@30Hz and 1080p@60Hz, enabling stable and consistent performance across all connected displays. This makes the system suitable for digital signage, control rooms, and commercial display matrices.
Advanced Image Processing and Alignment Tools
The controller includes 180° image rotation and bezel compensation, allowing precise alignment across multiple displays. These features help create uniform visual presentation even when screens have varying bezel sizes. Integrated audio extraction via optical SPDIF and L/R analog outputs supports flexible routing to external audio systems.

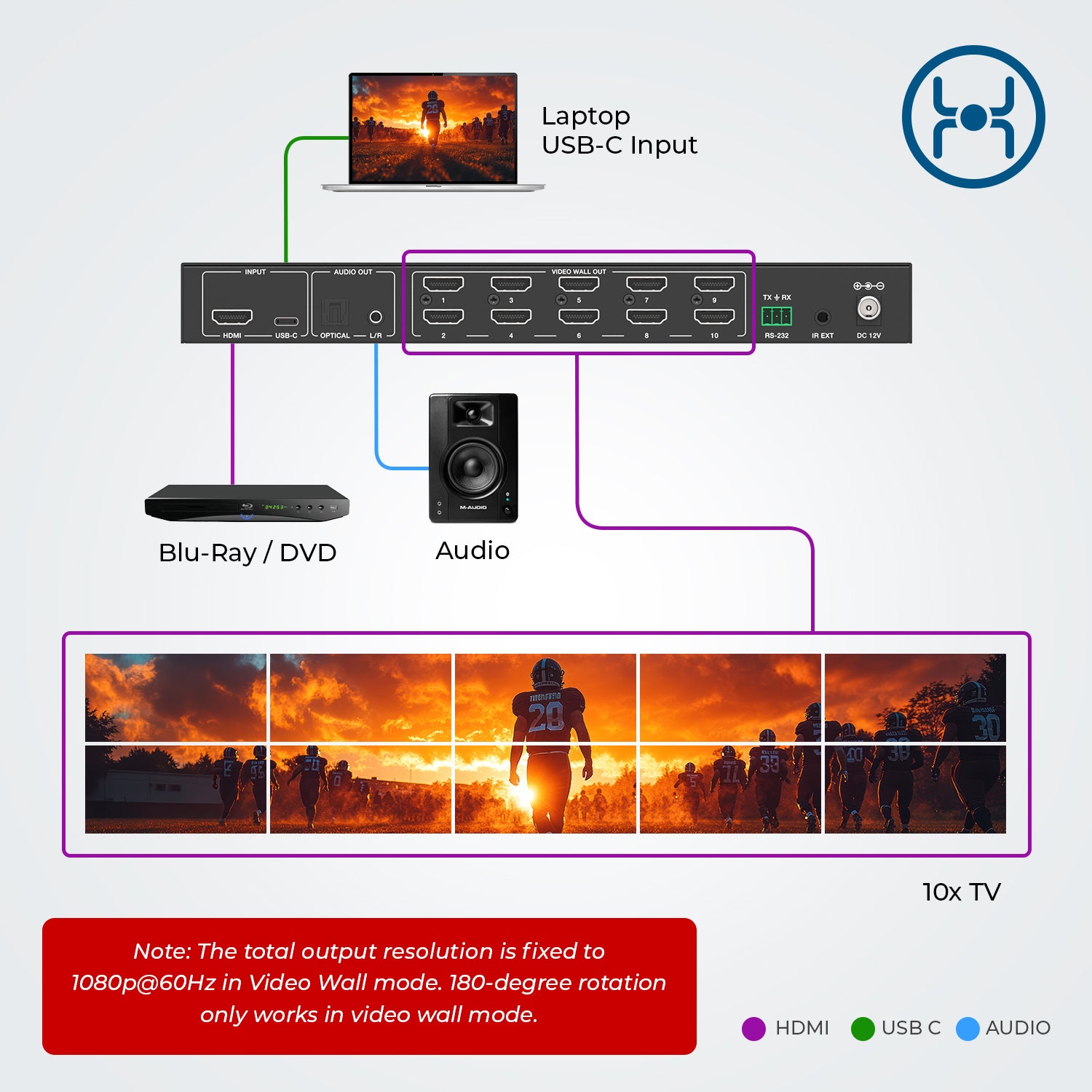

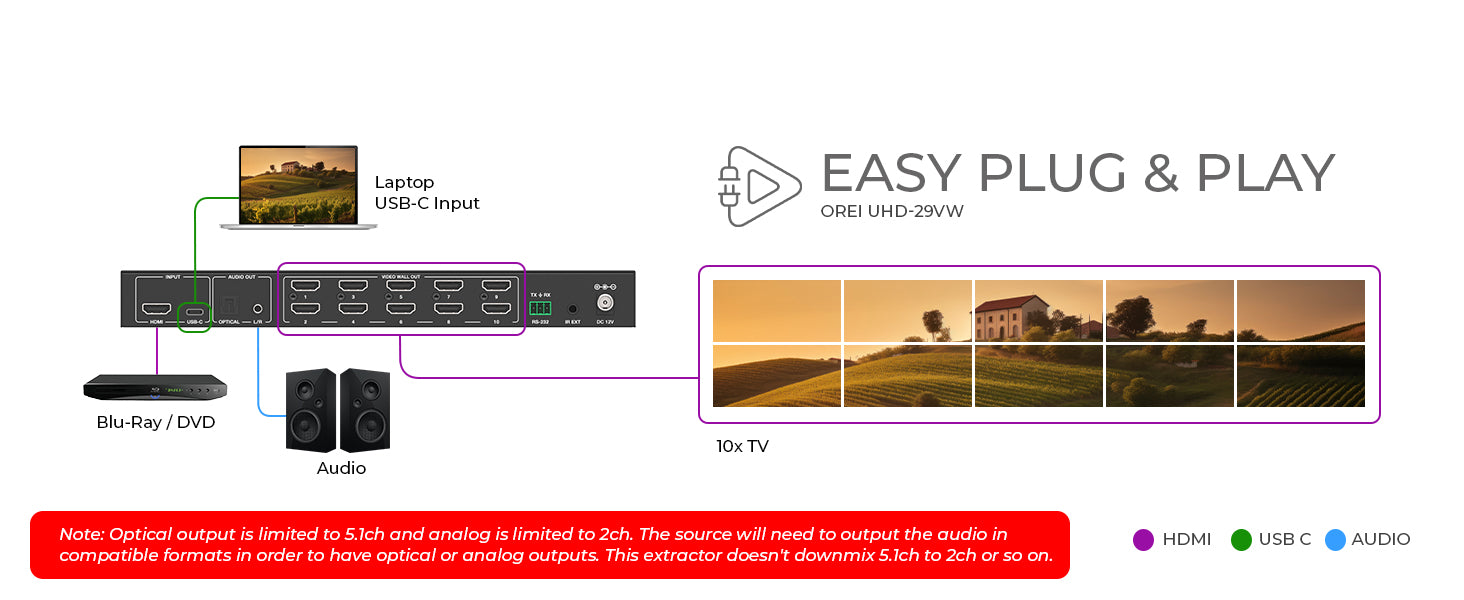

Simple Control and Plug-and-Play Deployment
With straightforward operation through front-panel controls, IR remote, or RS-232 commands, the UHD-29VW integrates easily into professional AV environments. The unit requires no software installation or configuration, enabling fast setup and reliable operation in commercial applications. Its design ensures consistent performance for video walls used in retail spaces, conference facilities, and monitoring environments.
Professional 10-Display Video Wall Controller with USB-C, HDMI™ & Advanced Display Processing
Key Features:
- HDCP 2.2 & DP 1.2a Compliant – Ensures compatibility with the latest content protection and display standards.
- Dual Input Support – Features both HDMI™ and USB-C inputs with support for 4K@60Hz video signals.
- 10 HDMI™ Outputs – Connects to up to 10 displays for flexible multi-screen configurations.
- Multiple Video Wall Modes – Supports layouts including 2x2, 1x4, 4x1, 1x3, 3x3, 2x4, 2x5, and more
- Audio Extraction – Outputs audio via optical SPDIF and L/R analog ports for versatile sound system integration.
- Image Rotation – Supports 180° screen rotation, ideal for bezel-less experience.
- Bezel Compensation – Adjusts for display frame gaps to create seamless video wall alignment.
- Flexible Control Options – Operate via front panel buttons, included IR remote, or RS-232 commands.
- Zero Configuration Required – Plug-and-play operation with no software installation or setup needed.
- Output resolution is limited to 4K@30Hz and 1080p@60Hz.
UHD-19VW is a professional-grade video wall controller designed to route and distribute high-resolution digital content across multi-screen video wall displays. Featuring dual inputs—HDMI™ and USB-C—with support for resolutions up to 4K@60Hz, this device delivers exceptional video clarity and seamless integration

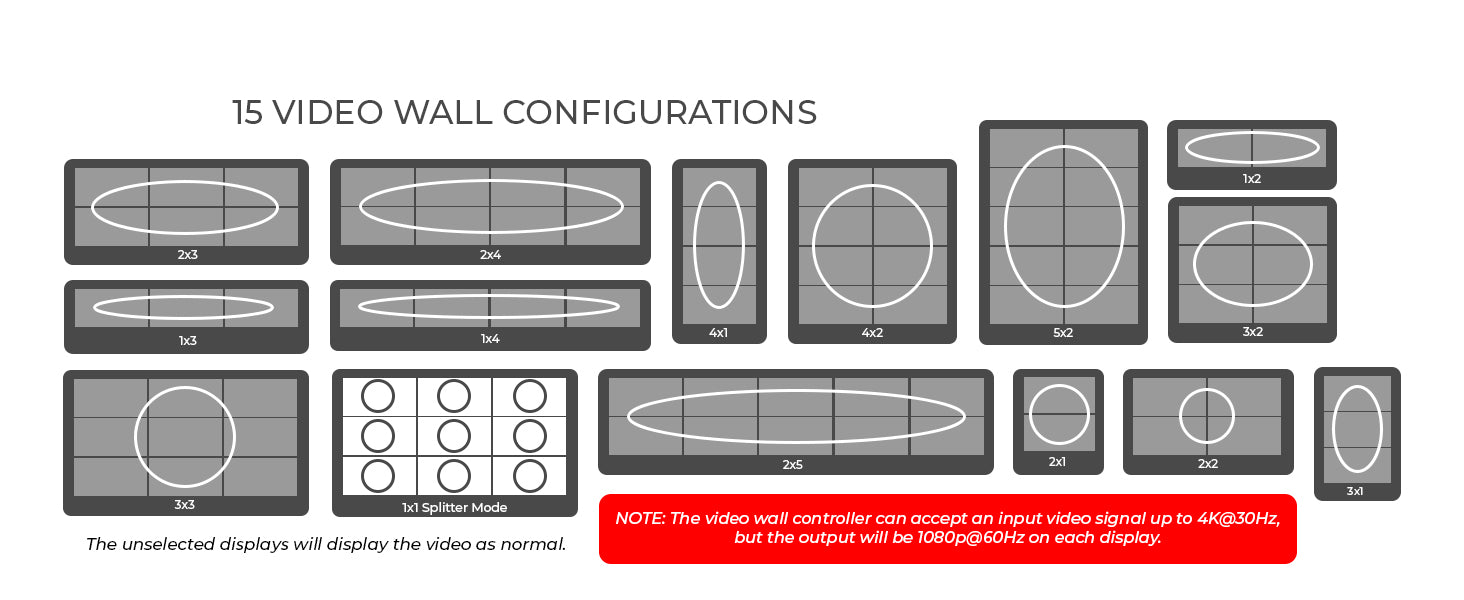

Equipped with 10 HDMI™ outputs, the controller supports a wide range of video wall configurations including 2x1, 3x1, 4x1, 1x2, 1x3, 1x4, 2x2, 3x3, 2x4, and 2x5. It includes optical and 3.5mm analog ports, allowing flexible audio output options for enhanced AV integration. Built-in 180-degree image rotation and bezel compensation ensure optimal display alignment
With simple control via front panel buttons, IR remote, or RS-232 commands, this plug-and-play unit requires no driver installation or software setup—making it ideal for digital signage, commercial installations, and control room environments.
UHD-19VW User Manual Download
