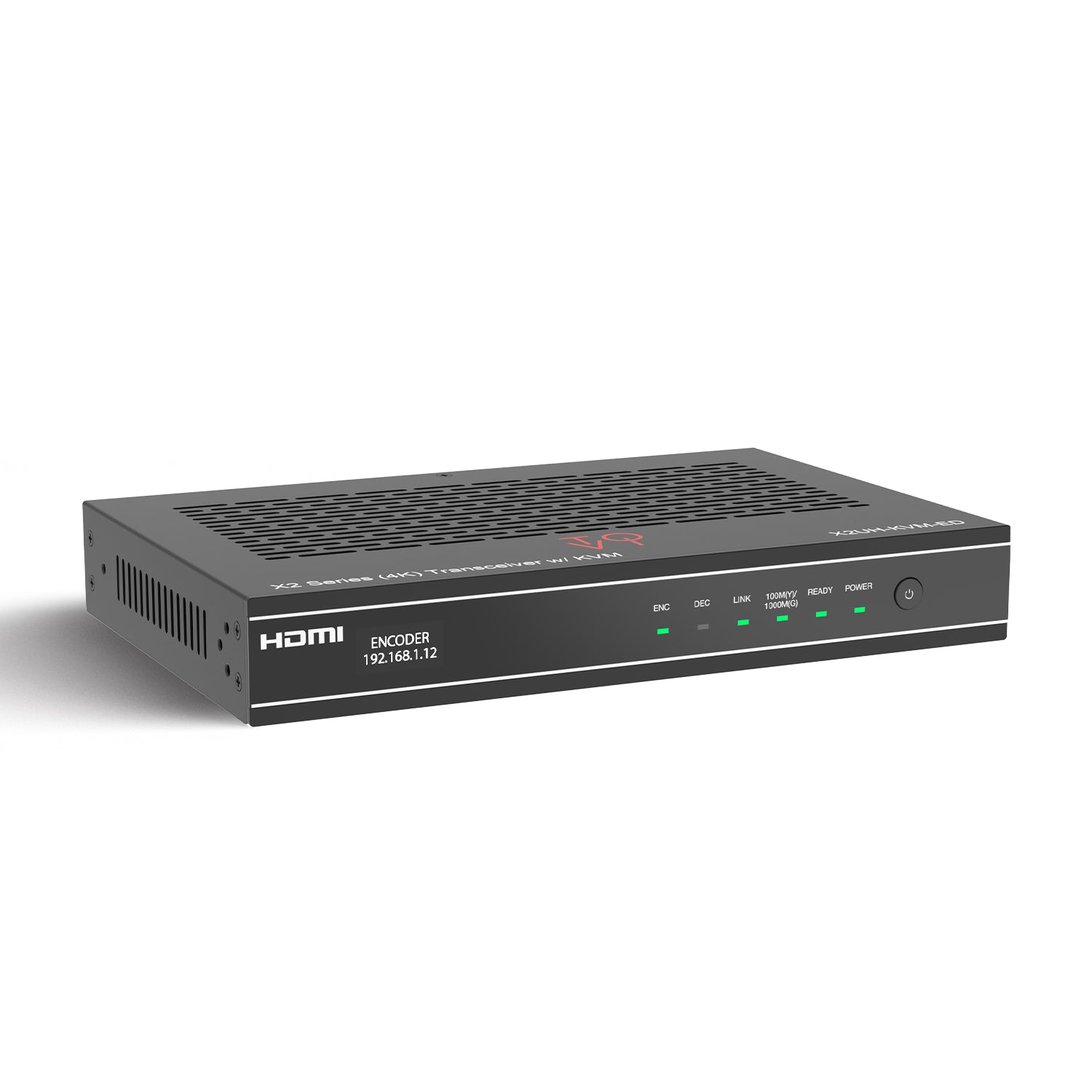

ToVi X2 4K Transceiver (Video Wall, KVM) - X2UH-KVM-ED
- KVM Control Functionality
- Video Resolutions up to 4K@60Hz
- One-to-Many PC Control
- 100m Signal Extension
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
Ultra-HD AV Over IP Transmission
The ToVi X2UH-KVM-ED supports HDMI 2.0b and HDCP 2.2, ensuring compatibility with protected UHD content. It delivers 4K@60Hz video with 18Gbps bandwidth for crystal-clear visuals and LPCM 2.0CH 48kHz audio for high-fidelity sound. Its integrated encoder/decoder design allows operation as either a transmitter or receiver, with flexible Fiber Optic and RJ45 transmission over distances up to 328 ft (100 m).
Advanced Multi-Window and Video Wall Management

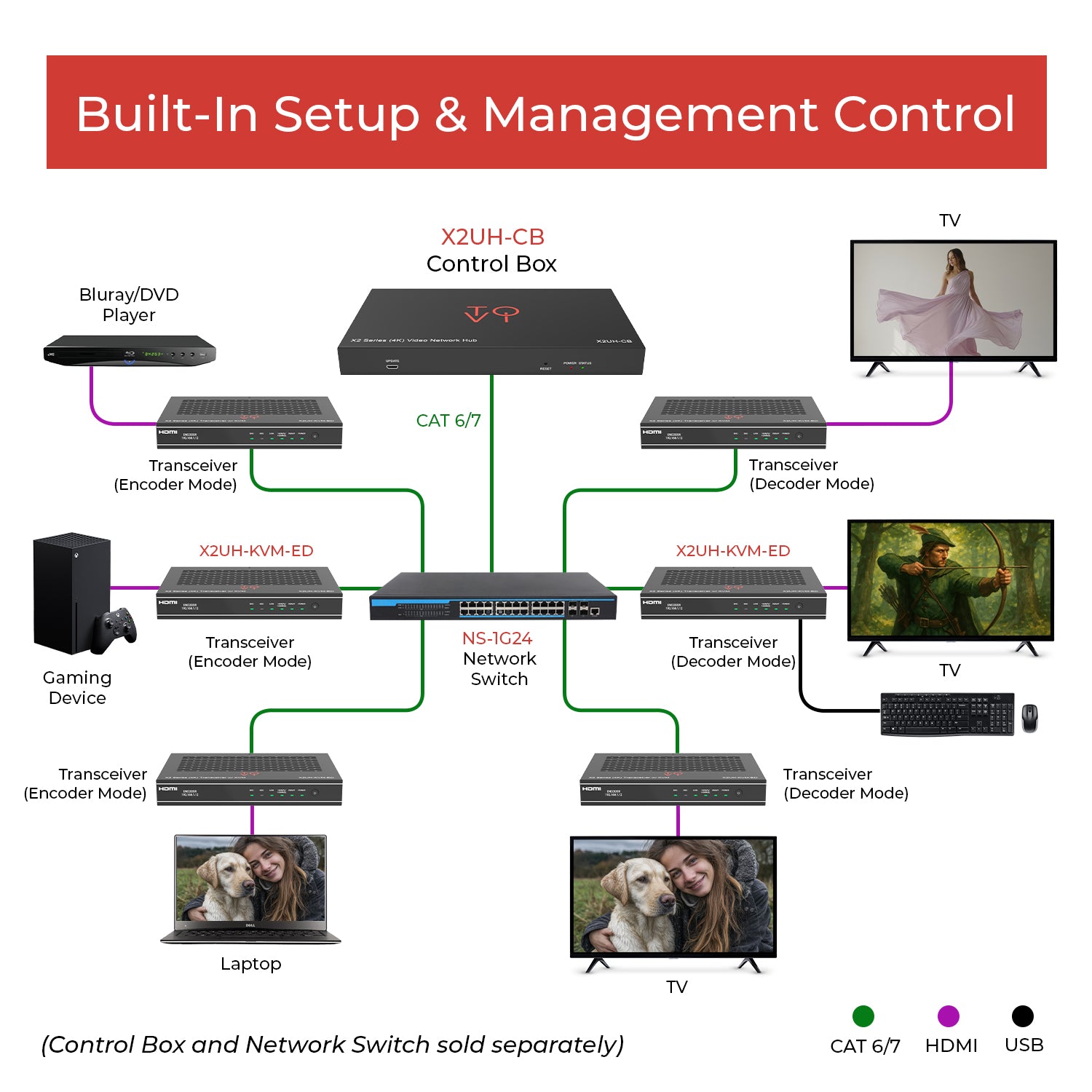

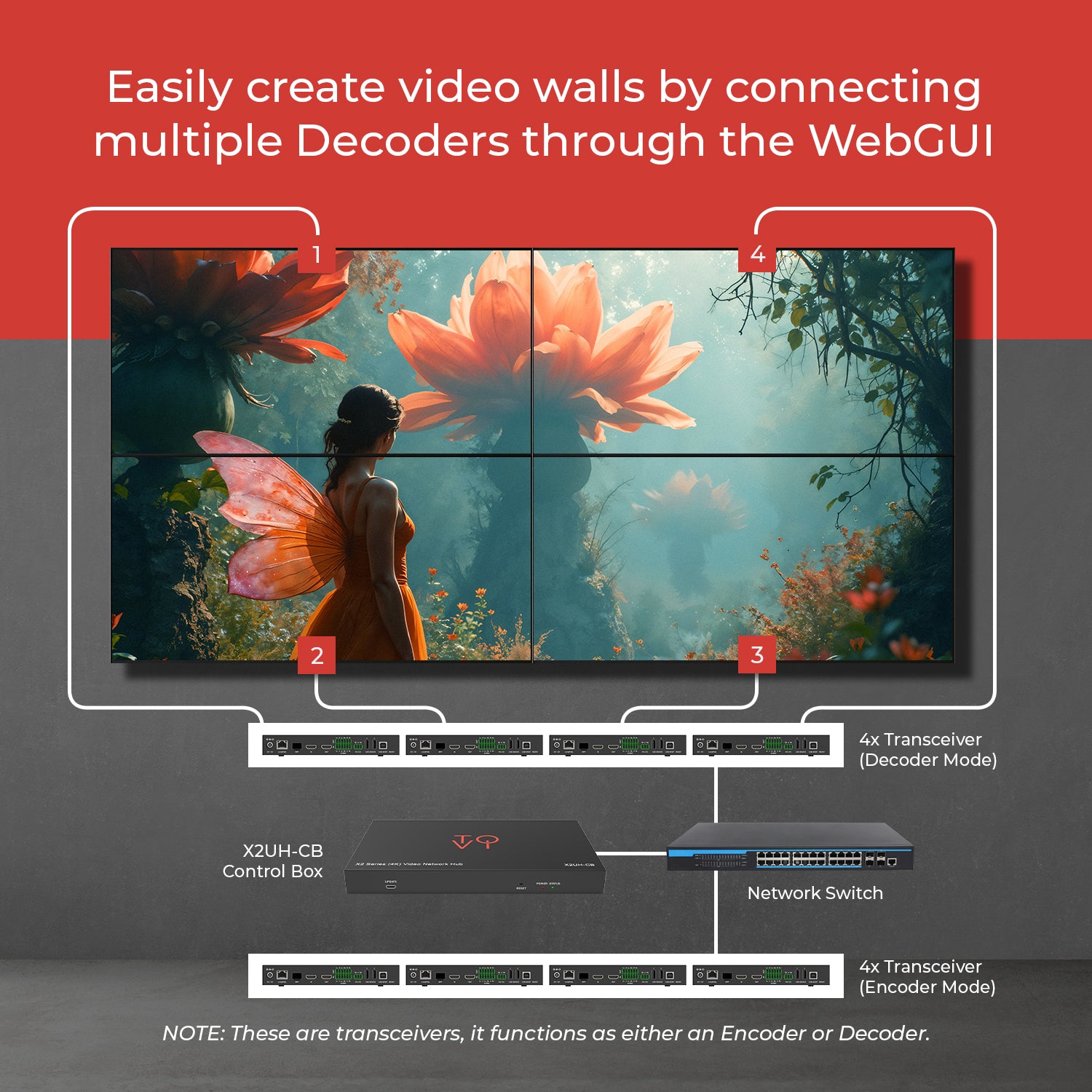

Each decoder supports up to 16 sources with dynamic window roaming, splicing, overlay, and multi-window display. High-definition background images, scrolling text, and character overlays allow creative and informative display setups. Video wall and signal routing over a 1G network support point-to-point extension, multicast, and matrix switching for large-scale AV deployments.
KVM Control and Flexible System Operation
The X2UH-KVM-ED features KVM functionality for one-to-one or one-to-many PC control. H.264/H.265 protocol support enables seamless integration with IP cameras and surveillance systems. Multiple control options—including KVM, mobile app, or X2UH-CB control unit—allow intuitive and centralized management of complex AV-over-IP systems.
Scalable, Secure, and Easy Installation
Standard PoE (802.3af Class 3) simplifies power delivery, while HDMI local loop-out and audio extraction enhance monitoring and audio routing flexibility. Centralized user rights management ensures secure access across all endpoints. Designed for professional environments, the X2UH-KVM-ED provides reliable, scalable, and 24/7 AV-over-IP performance for control rooms, command centers, and digital signage.

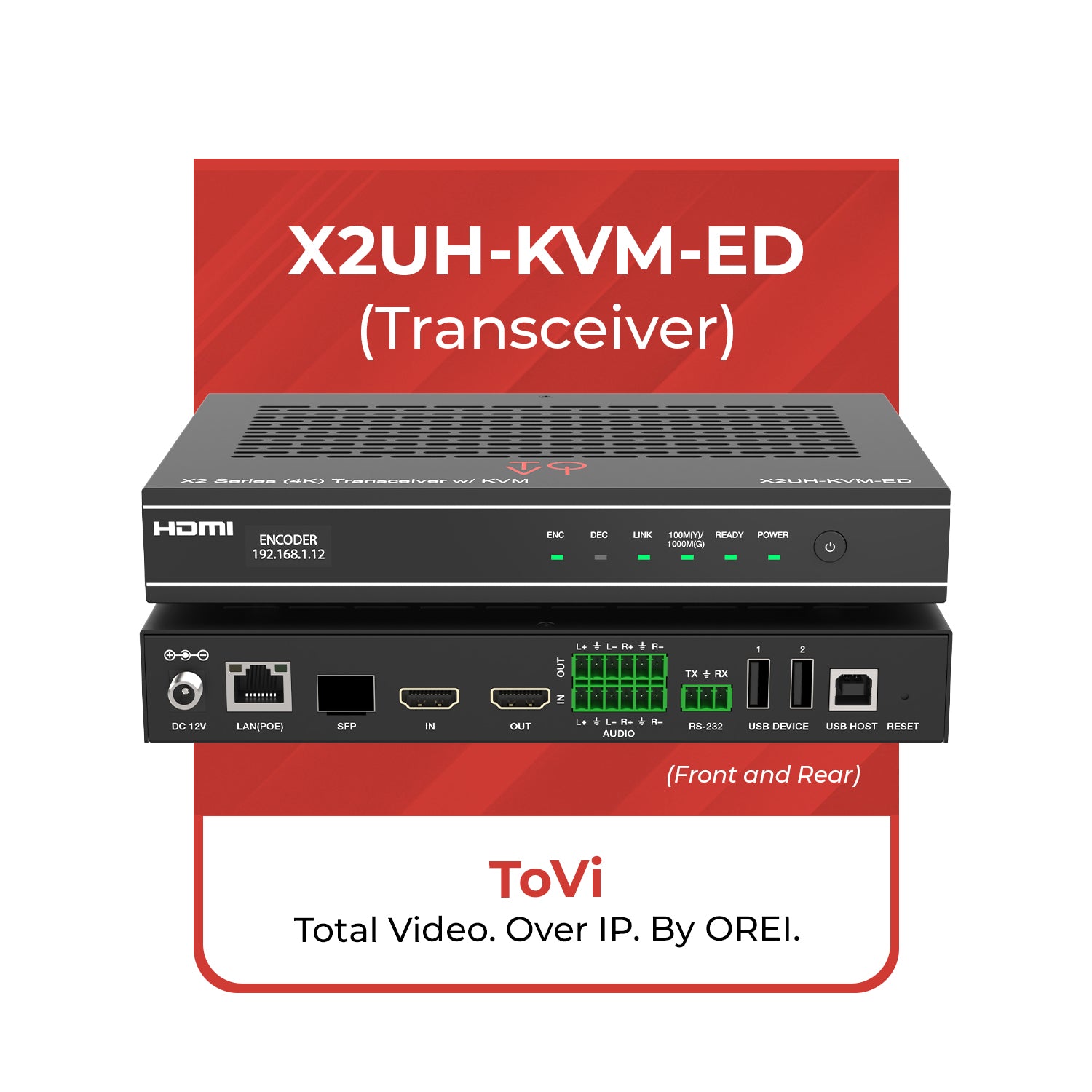

ToVi X2 Series (4K) Transceiver w/ KVM

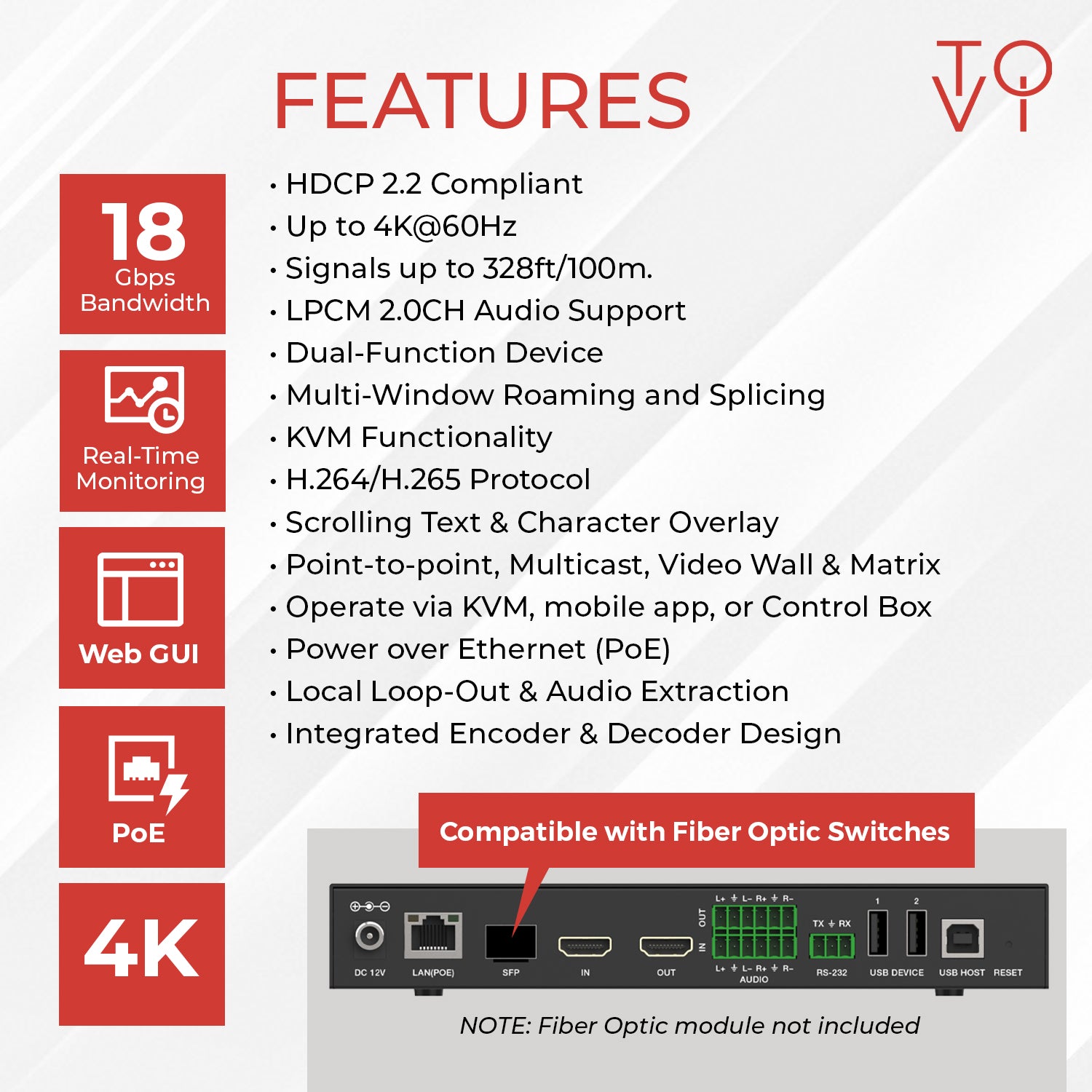

Key Features:
-
HDMI 2.0b & HDCP 2.2 Compliant – Ensures compatibility with protected UHD content.
-
Video Resolutions up to 4K@60Hz – Delivers crystal-clear visuals with 18Gbps bandwidth for uncompromised signal quality.
-
Long distance transmission – Transmit audio/video signals up to 328ft/100m.
-
LPCM 2.0CH Audio Support – Maintains high-fidelity sound at 48kHz sampling.
-

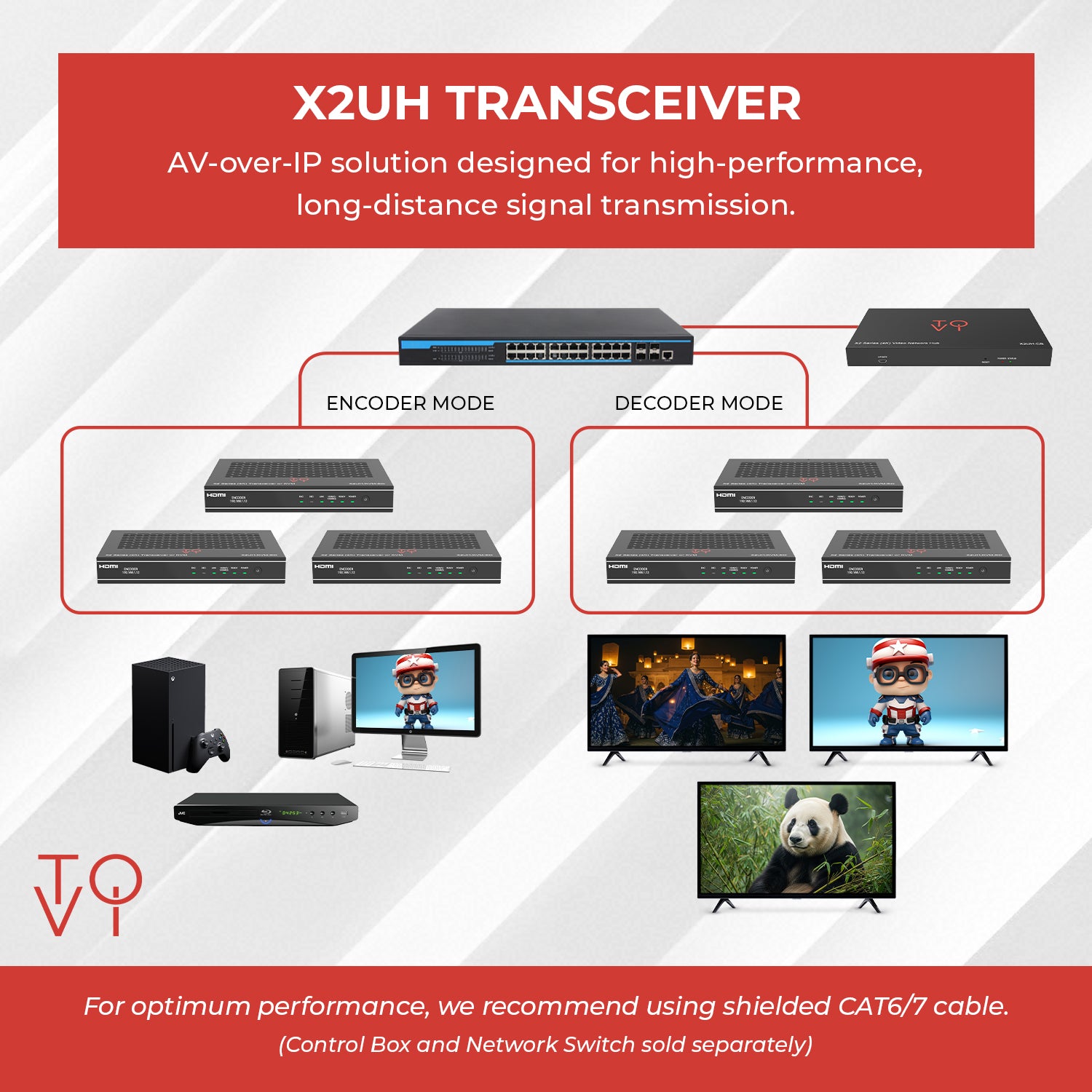

Dual-Function Device – Can be configured as either a transmitter or receiver, switchable based on application needs.
-
Multi-Window Roaming and Splicing – Each decoder supports up to 16 sources with dynamic window management and overlay.
-
KVM Functionality – Enables one-to-one or one-to-many PC control from a single user station.
-
H.264/H.265 Protocol Support – Seamless integration with IP cameras and surveillance systems.
-
Scrolling Text & Character Overlay – Supports on-screen alerts, labels, and dynamic content overlay.
-
Video Wall & Signal Routing Over 1G Network – Facilitates point-to-point extension, multicast, and matrix switching.
-
User Rights Management – Secure access control across all endpoints.
-

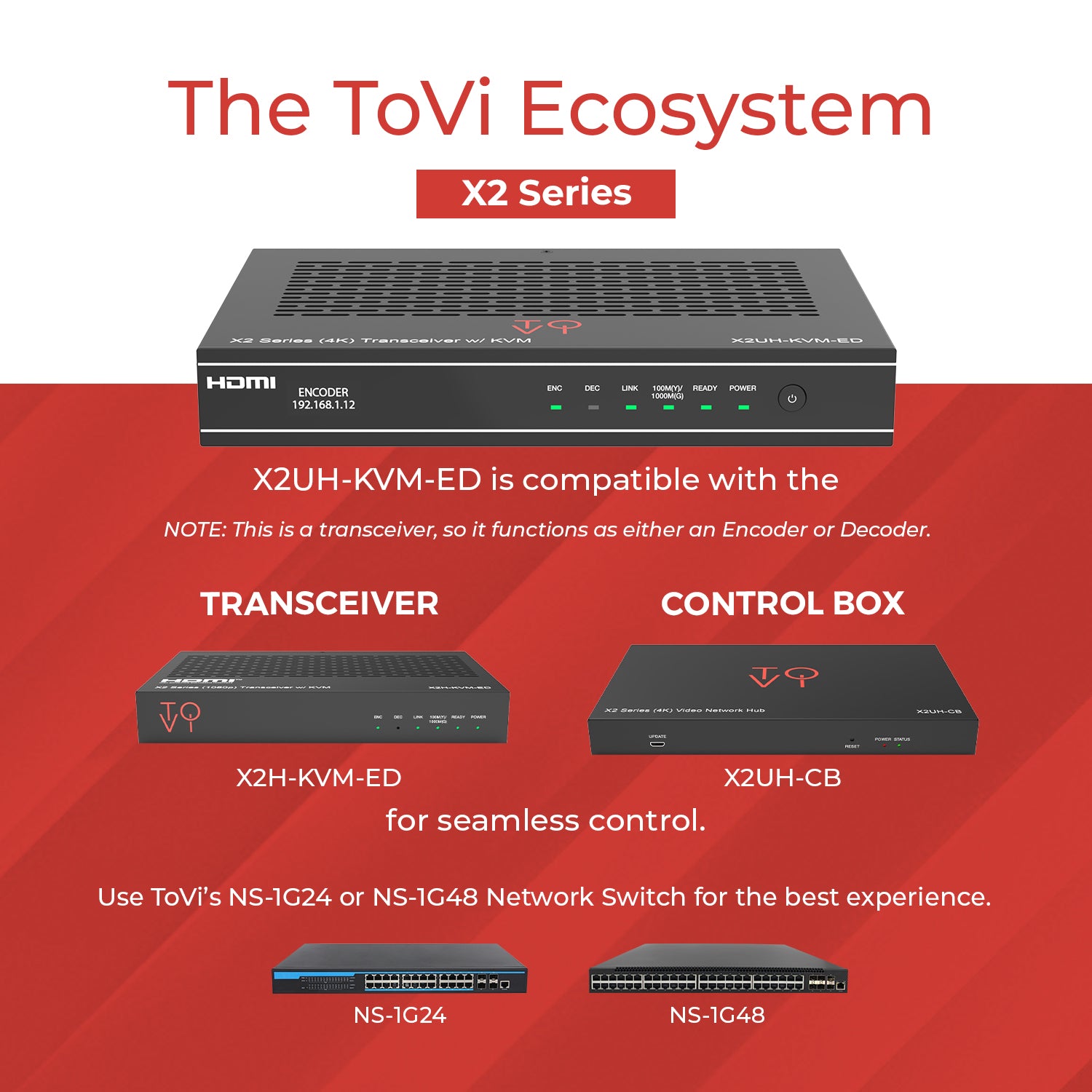

Flexible Control Options – Operate via KVM, mobile app, or supported control servers (X2UH-CB).
-
Standard PoE (802.3af Class 3) – Simplifies power delivery with no need for external adapters.
-
HDMI Local Loop-Out & Audio Extraction – Enhances system flexibility for local monitoring and audio routing.
-
Integrated Encoder & Decoder Design – Compatible with Fiber Optic and RJ45 for flexible transmission.

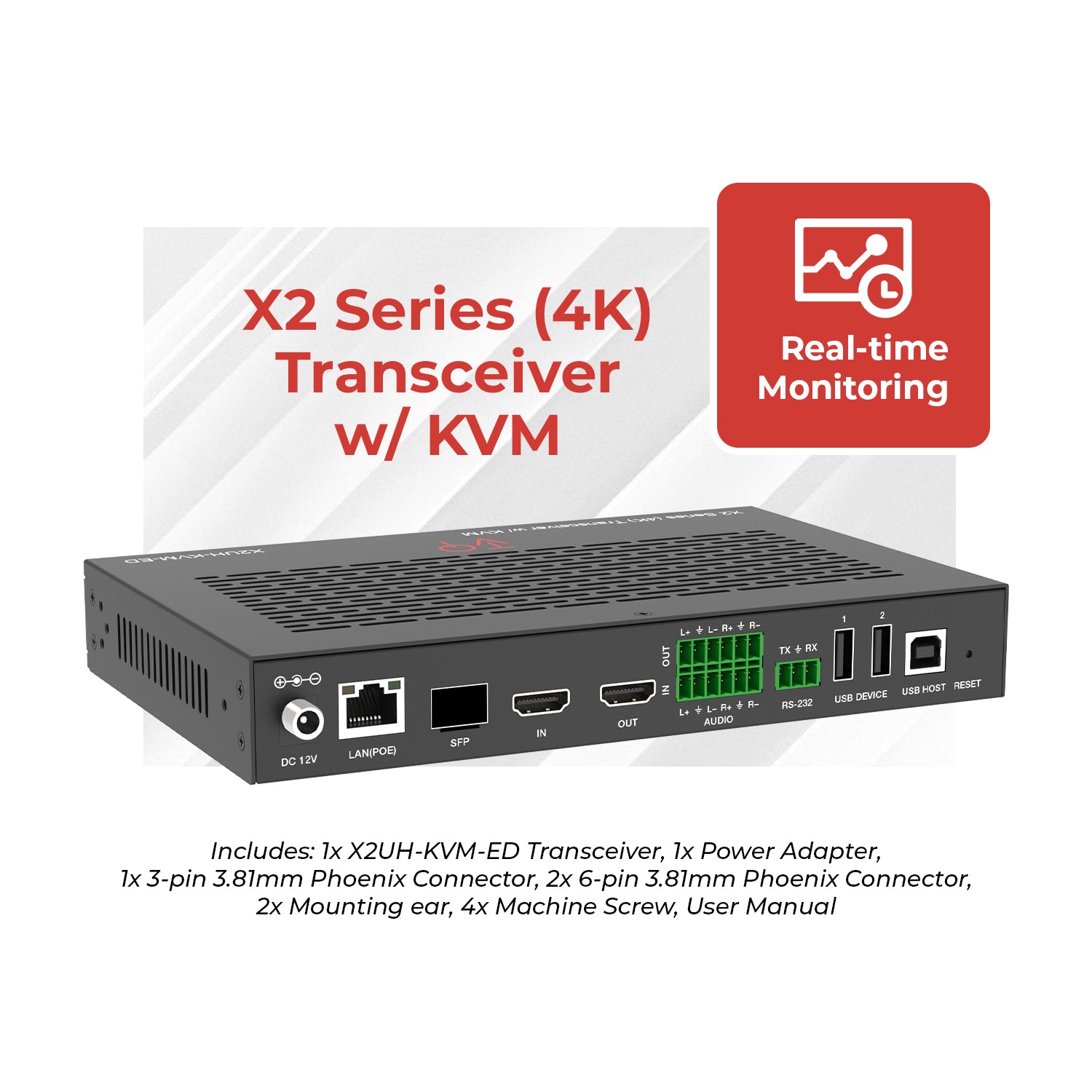

The X2UH-KVM-ED is a high-performance AV-over-IP solution for advanced video distribution, system control, and flexible display management. It supports HDMI 2.0b & HDCP 2.2 and delivers 4K@60Hz video with 18Gbps bandwidth, ensuring ultra-HD quality. With LPCM 2.0CH 48kHz audio, it also features audio routing with 6-pin phoenix analog input and output. The combined encoder/decoder design allows you to configure it as either a transmitter or receiver. It supports both Fiber optic and RJ45 for signal transmission up to 328ft/100m.
Each decoder handles up to 16 signals, allowing window roaming, splicing, overlay, and multi-window display—ideal for control rooms, command centers, and digital signage. The system features KVM seat management for one-to-one or one-to-many PC control.
It supports H.264/H.265 protocols for seamless IPC and camera integration, with point-to-point extension, character overlay, scrolling text, and HD video/image backgrounds. Over a 1G network, it enables distribution, multicast, matrix switching, and video wall setups with centralized user rights management.

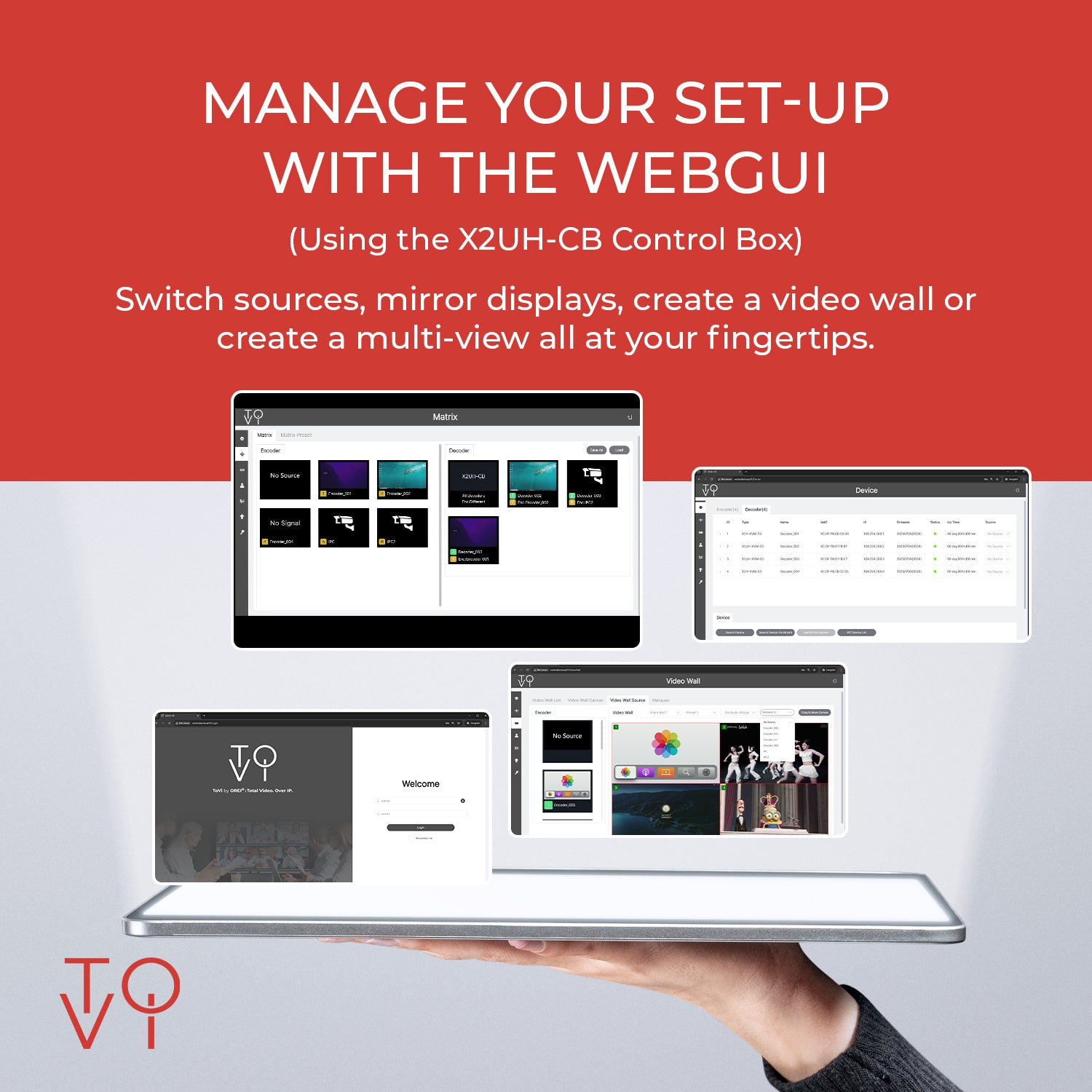

Control is flexible via KVM, mobile app, or control unit (X2UH-CB). Additional features include PoE, HDMI loop-out, and audio extraction, making the X2UH-KVM-ED a complete, scalable AV-over-IP solution.
X2UH-KVM-ED User Manual Download
