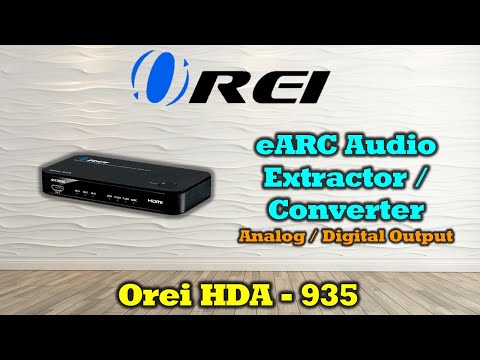

Dual HDMI eARC Audio Extractor 4K@60Hz with Optical Port & 3.5mm jack, 18Gbps bandwidth (HDA-935)

OREI HDA-935: Dual HDMI eARC HDMI Audio Extractor

• Supports Video and audio separation
• Auto eARC Detection when using the TV's app or external devices
• Supports dual HDMI audio interface (HDMI eARC and HDMI Audio)
• Supports 4K@60 & HDR
• Compatible with Dolby Atmos (via HDMI)
• Supports Pixel clock rate up to 600 MHz
• Supports S/PDIF, Stereo 3.5mm audio output
• Supports DTS HD, Dolby TrueHD (via HDMI)
• Supports HDMI 2.0 / 2.1(eARC)
• HDCP 2.3 compliant
• Three modes selection for audio format setting (2Ch/ 5.1Ch/ 7.1Ch)
• Support CEC (Use the TV RC to adjust the Soundbar sound and CEC connecting the device to power ON/OFF)

This audio extractor has two HDMI outputs, one for TV 4K@60Hz/HDR video and audio signals, one for eARC Soundbar. It also has S/PDIF(Optical) and analog 3.5mm stereo interface outputs.

The TV signal can be transmitted back to Soundbar via eARC (enhanced Audio Return Channel) to play high-quality surround sound. Even Non-eARC TV can enjoy the high-quality of eARC audio return for lossless audio up to Atmos.

Build-in eARC automatically detect the source of the signal (TV or external signal).
