Dante® HDMIᵀᴹ Audio Encoder (DXA-HD-TX)

DANTE® DXA-HD-TX: HDMIᵀᴹ AUDIO ENCODER

Key Features:

• HDMI™ to Dante® Audio Conversion – Transmits two-channel HDMITM audio to Dante® digital networks

• Wide HDMI™ Audio Support – PCM 2CH from 32kHz to 192kHz at 24-bit

• Professional Dante® Output – PCM 2CH at 44.1/48/88.2/96kHz with 24-bit depth

• Configurable Latency – Adjustable 1ms, 2ms, or 5ms delay settings

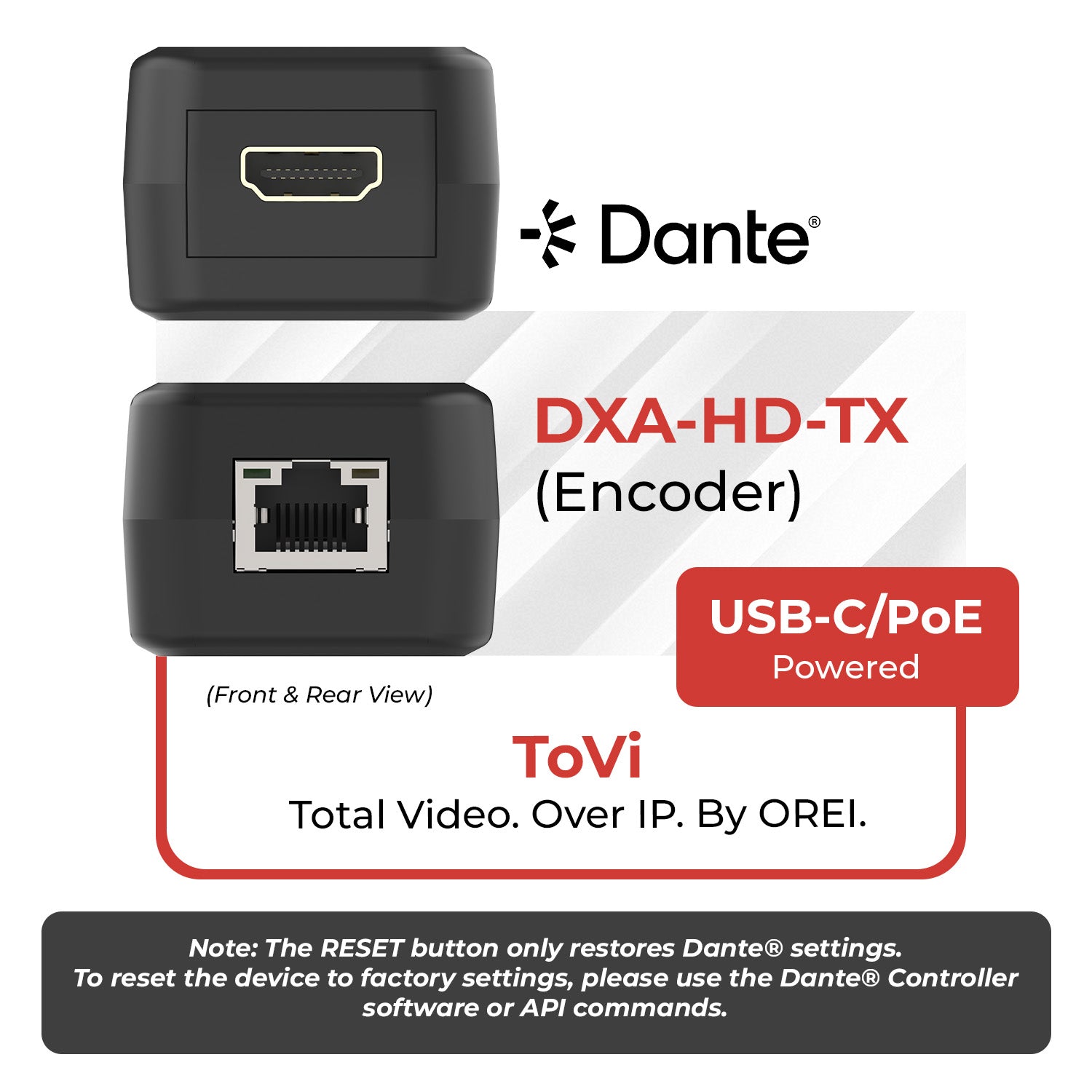

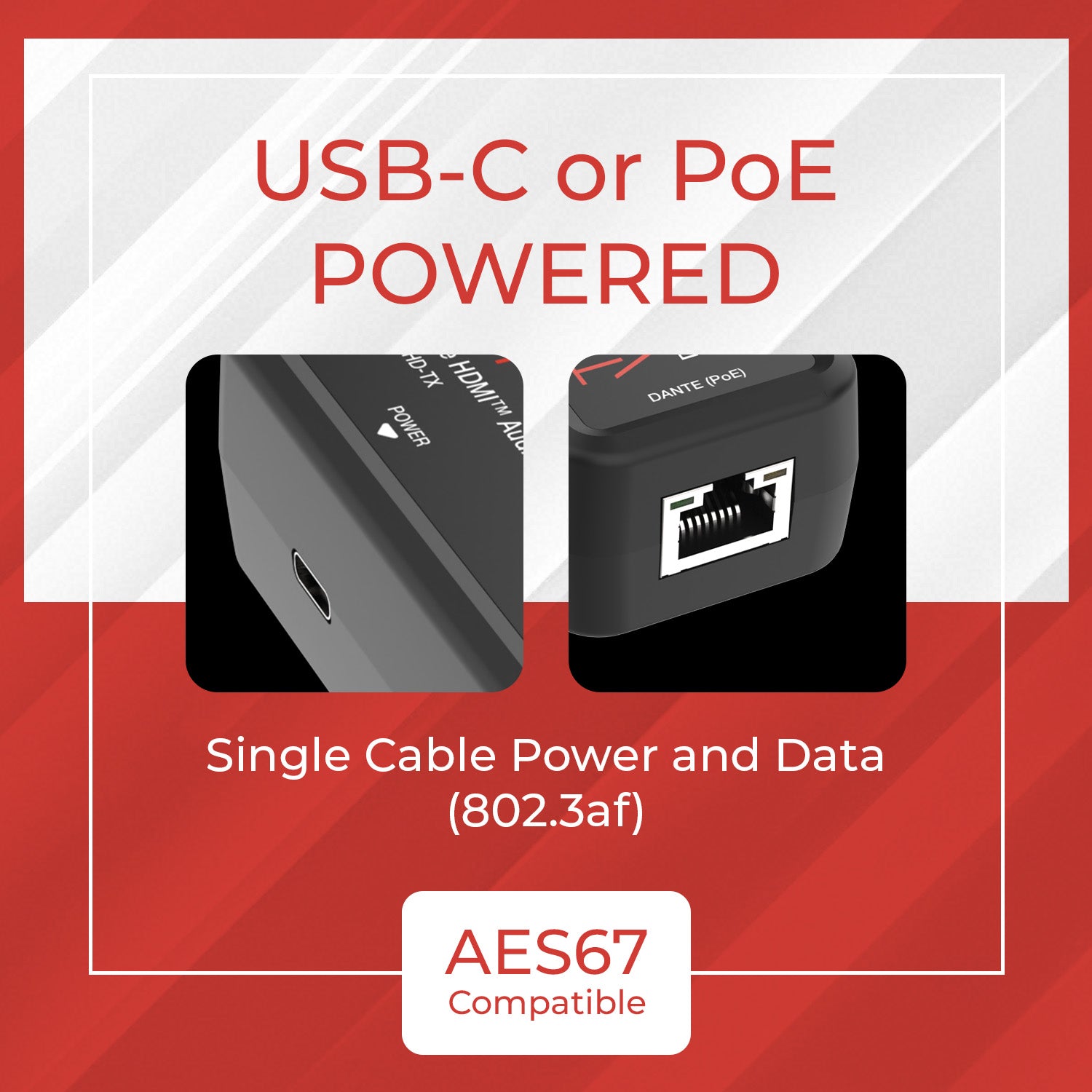

• Dual Power Options – USB-C or PoE (802.3af) operation for installation flexibility

• AES67 Compatibility – Ensures interoperability with standards-based audio networks

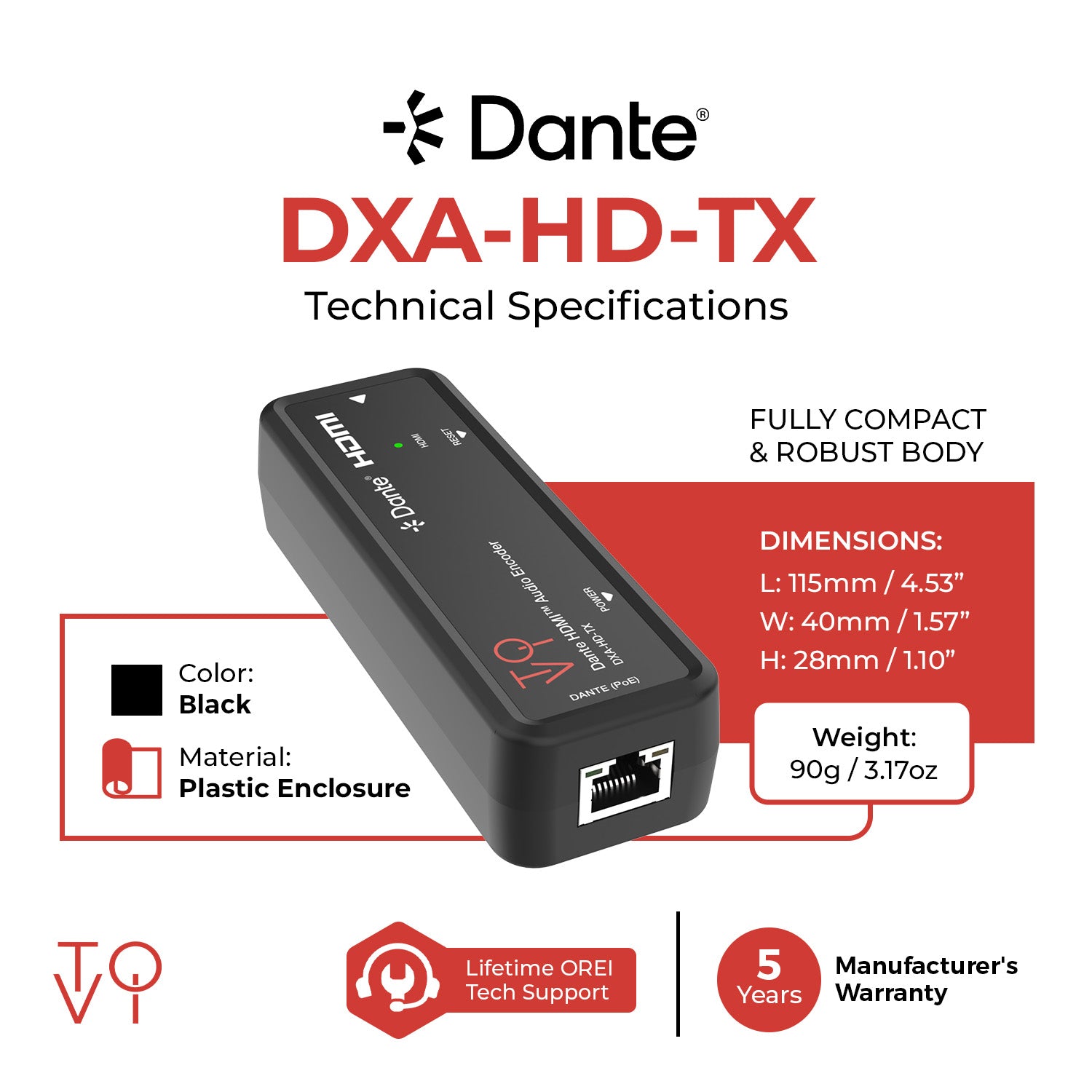

• Compact and Portable – Space-efficient design for mobile or fixed setups

• Pure Digital Transmission – Lossless audio conversion for pristine sound quality

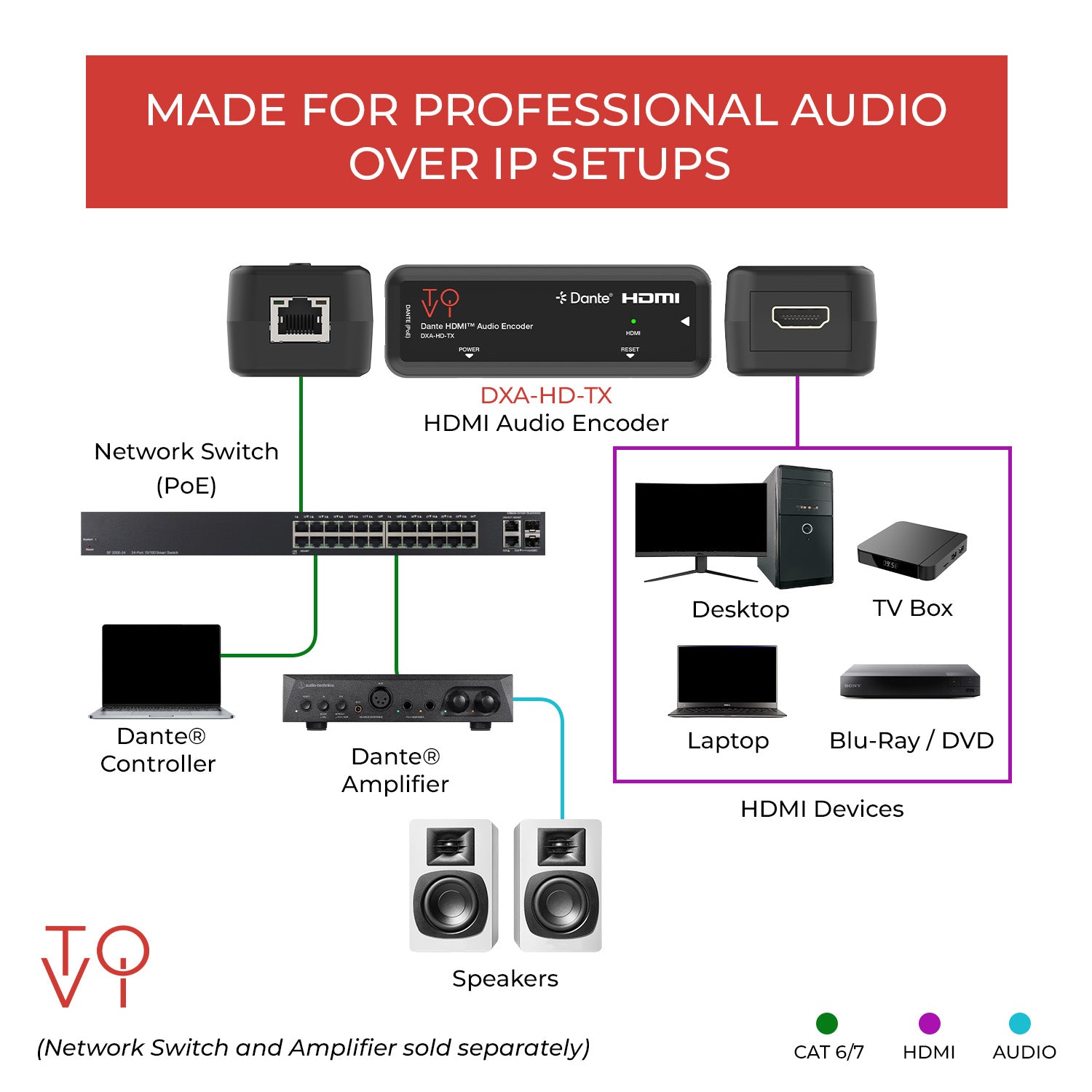

The ToVi DXA-HD-TX is a 2CH Dante® HDMI™ audio transmitter built on the Dante® Ultimo 2×2 platform, designed to integrate HDMI™ audio sources into Dante® networked audio systems. It converts two-channel HDMI™ audio into Dante® 2-channel digital audio, enabling reliable audio distribution over standard IP networks. The adapter supports HDMI 2-channel audio with sampling rates ranging from 32 kHz to 192 kHz at 24-bit depth, while delivering Dante 2-channel audio output at 44.1, 48, 88.2, and 96 kHz, also at 24-bit depth. It features selectable Dante audio latency settings of 1 ms, 2 ms, and 5 ms. With plug-and-play functionality, flexible power options via USB-C or Power over Ethernet (PoE), and a lightweight, portable design, it is well-suited for applications such as recording studios, live events, concerts, art festivals, and broadcast environments.
