4K@30Hz 1x8 HDMI™ Extender Splitter (Loop) - 132ft (cat6) (HD18-EX132-K)
- HDMI 1.4 and HDCP 1.4 compliant
- Video resolutions up to 4K@30Hz
- Advanced EDID
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
Extend 4K Video to Eight Displays Over Ethernet

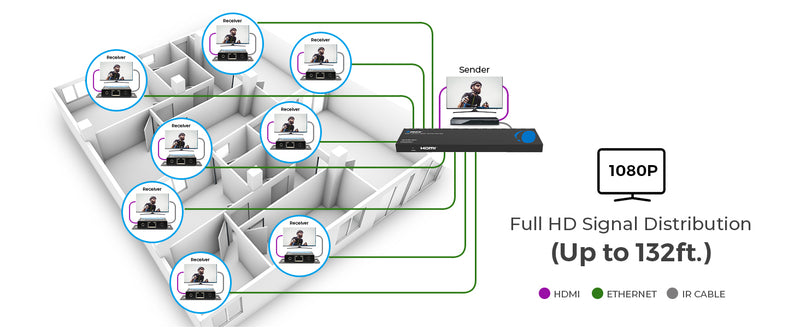

The HD18-EX132-K is a professional-grade HDMI extender splitter that transmits a single HDMI source to up to eight displays over CAT6/7 cables. Supporting 4K@30Hz up to 132 feet and 1080p@60Hz up to 230 feet, this HDMI over CAT6 4K system is perfect for control centers, conference halls, and commercial displays requiring reliable long-distance video distribution.
Crisp 4K Resolution with High-Definition Audio
Deliver stunning 4K visuals at 30Hz with 10.2Gbps video bandwidth, ensuring clean and uninterrupted signal transmission. Fully compatible with LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio, this extender HDMI 4K solution offers an immersive audio-visual experience that suits both high-end residential setups and demanding commercial applications.
Local Monitoring and Remote IR Control

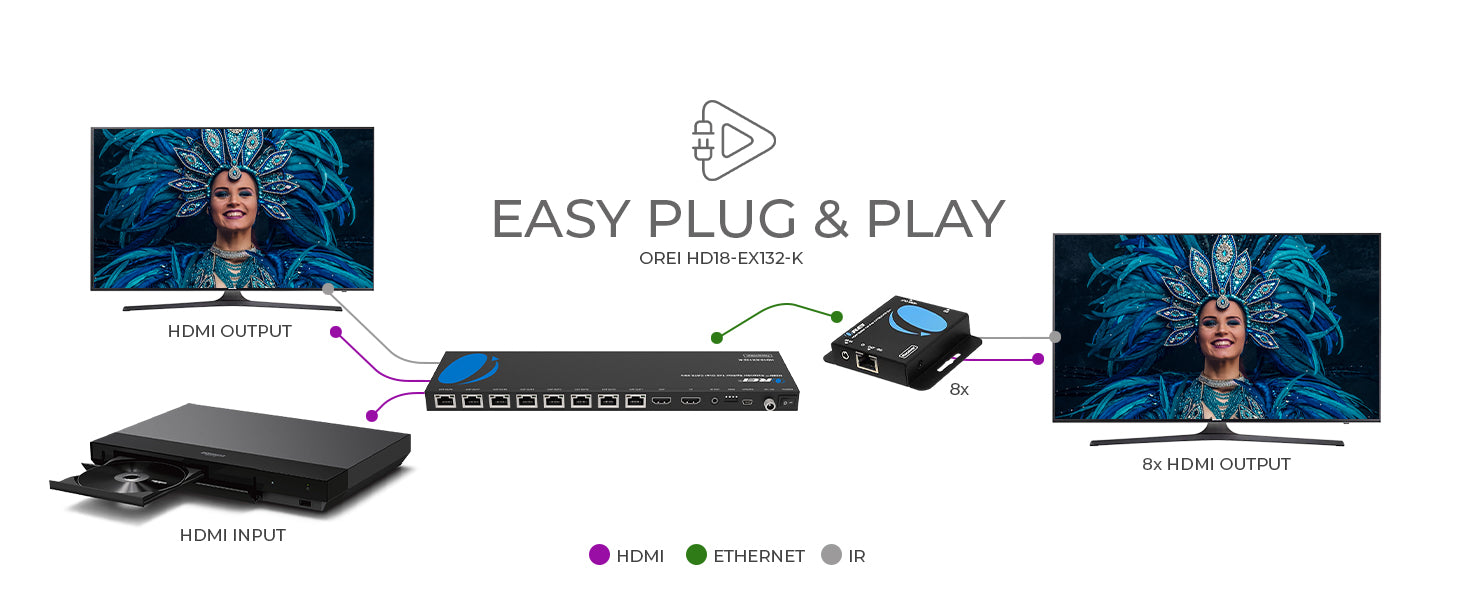

The transmitter includes a convenient HDMI loop output for connecting a local display near the source—ideal for previewing or dual-display needs. Plus, unidirectional IR functionality enables you to control the source device from any receiver location, making this HDMI via Ethernet kit flexible and easy to manage from a distance.
Streamlined Installation with PoC and EDID Management
Power over Cable (PoC) requires just one power adapter at the transmitter, simplifying setup and reducing cable clutter. Advanced EDID management ensures smooth communication between your HDMI source and connected displays, while the rugged metal chassis and plug-and-play design make this HDMI cat extender a dependable choice for long-term use in demanding AV environments.
OREI HD18-EX132-K: 4K@30HZ 1X8 HDMI™ EXTENDER SPLITTER (LOOP) - 132FT (CAT6)
- HDMI 1.4 & HDCP 1.4 Compliant – Ensures compatibility with a wide range of HDMI sources and displays.
- Supports Video Resolutions up to 4K@30Hz – Maintains high-quality video output at extended distances.
- 10.2Gbps Video Bandwidth – Handles HD video signals efficiently without degradation.
- Extends Signal up to 132 Feet – Transmits up to 132 ft at 4K@30Hz and 230 ft at 1080p@60Hz.
- Supports LPCM 7.1, Dolby TrueHD, DTS-HD MA – Delivers high-definition multi-channel audio formats.
- Unidirectional IR Control – Allows remote control of source devices from receiver locations.
- Power Over Cable (PoC) – Requires only one power supply at the transmitter end.
- HDMI Loop Output – Lets you connect a local display directly at the transmitter.
- Advanced EDID Management – Ensures proper communication between source and display.

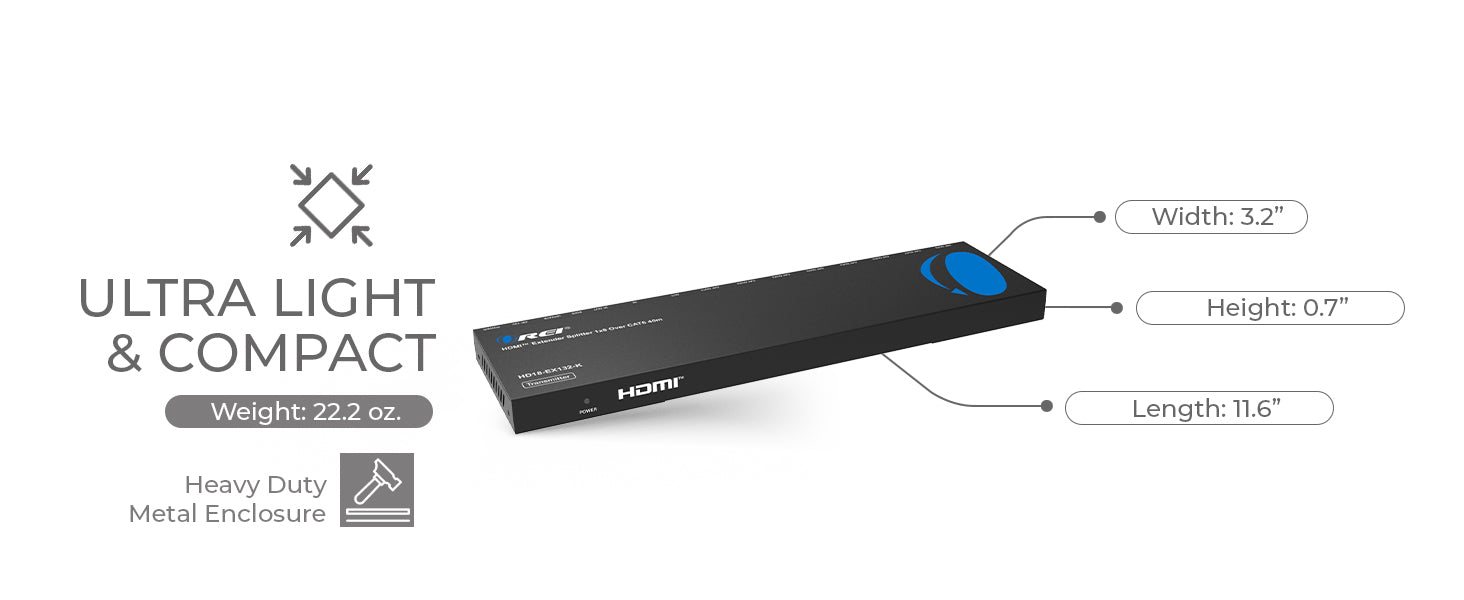

- Durable Metal Build & Plug-and-Play Setup – Ideal for professional and commercial environments.

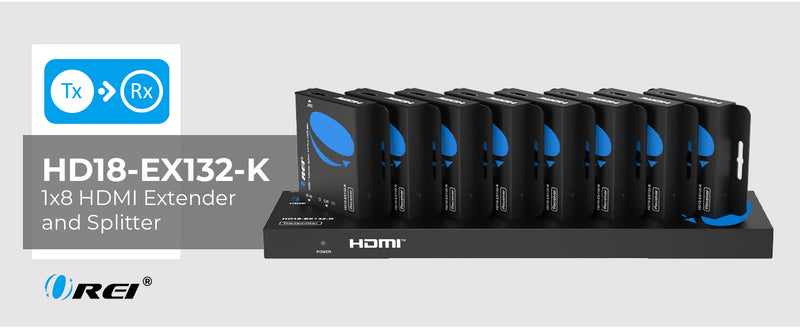

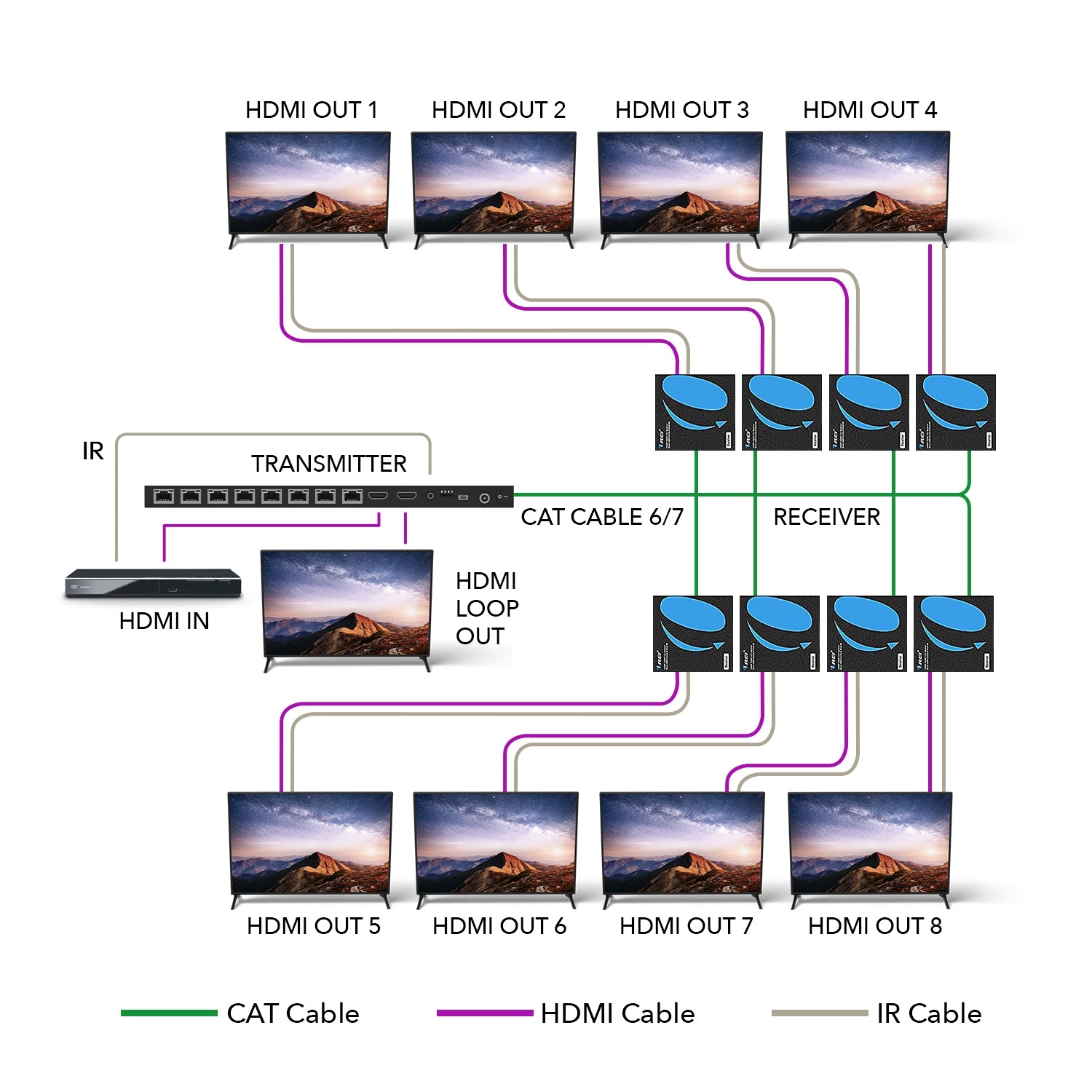

he HD18-EX132-K is an 8-port HDMI Extender Splitter that allows one HDMI source to be extended to eight displays over long distances using CAT6/7 cables. It supports video resolutions up to 4K@30Hz at 132 feet and 1080p@60Hz up to 230 feet, with 10.2Gbps video bandwidth. Fully compliant with HDMI 1.4 and HDCP 1.4 standards, this splitter ensures reliable transmission of both high-definition video and multi-channel audio.
It supports advanced audio formats including LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio. The transmitter features an HDMI loop output for a nearby display and supports Power over Cable (PoC), requiring only one power adapter. It also includes unidirectional IR functionality, enabling control of the source device from the receiver side.
With advanced EDID management and a robust metal housing, the HD18-EX132-K is ideal for residential and commercial AV installations where reliable long-distance video distribution is essential.
HD18-EX132-K-1 User Manual Download
