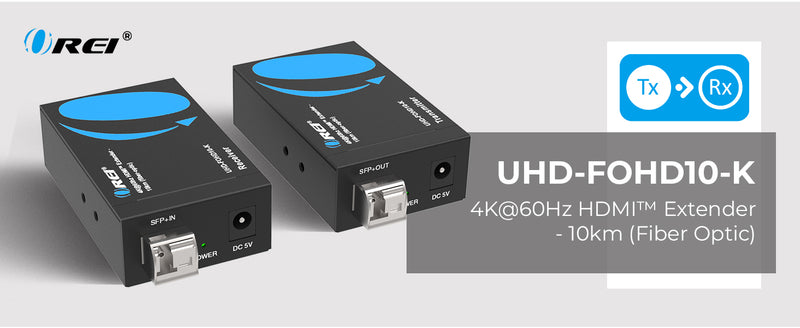

OREI UHD-FOHD10-K: 4K@60HZ HDMI™ EXTENDER - 10KM (FIBER-OPTIC)
Key Features:
- HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz and 2K@60Hz
- Supports any VESA resolution
- 18Gbps video bandwidth
- Extend media signal up to 10Km using single-mode fiber optic cable
- HDR10+, Dolby Vision, and HLG pass-through
- LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio support
- Compact design for easy and flexible installation

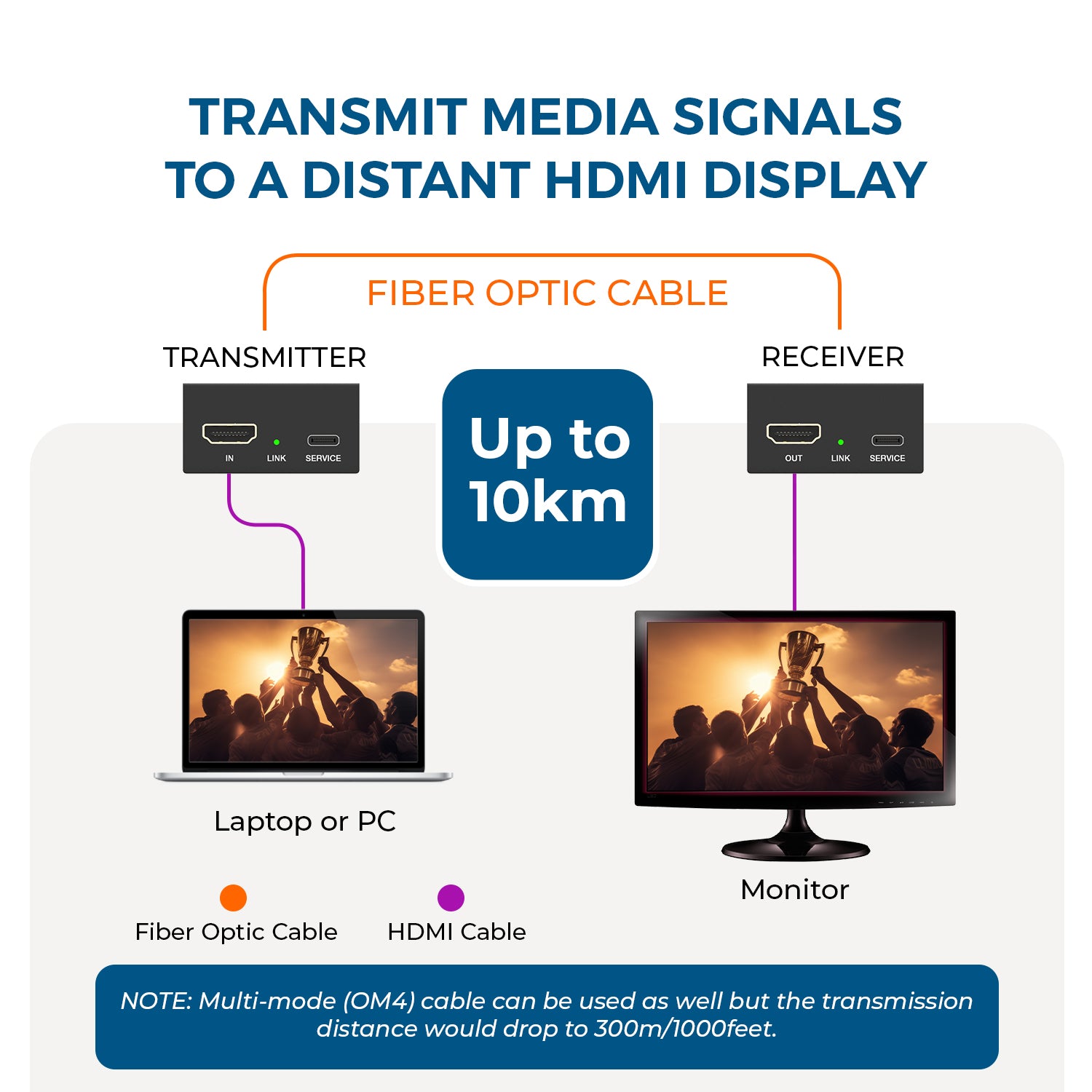

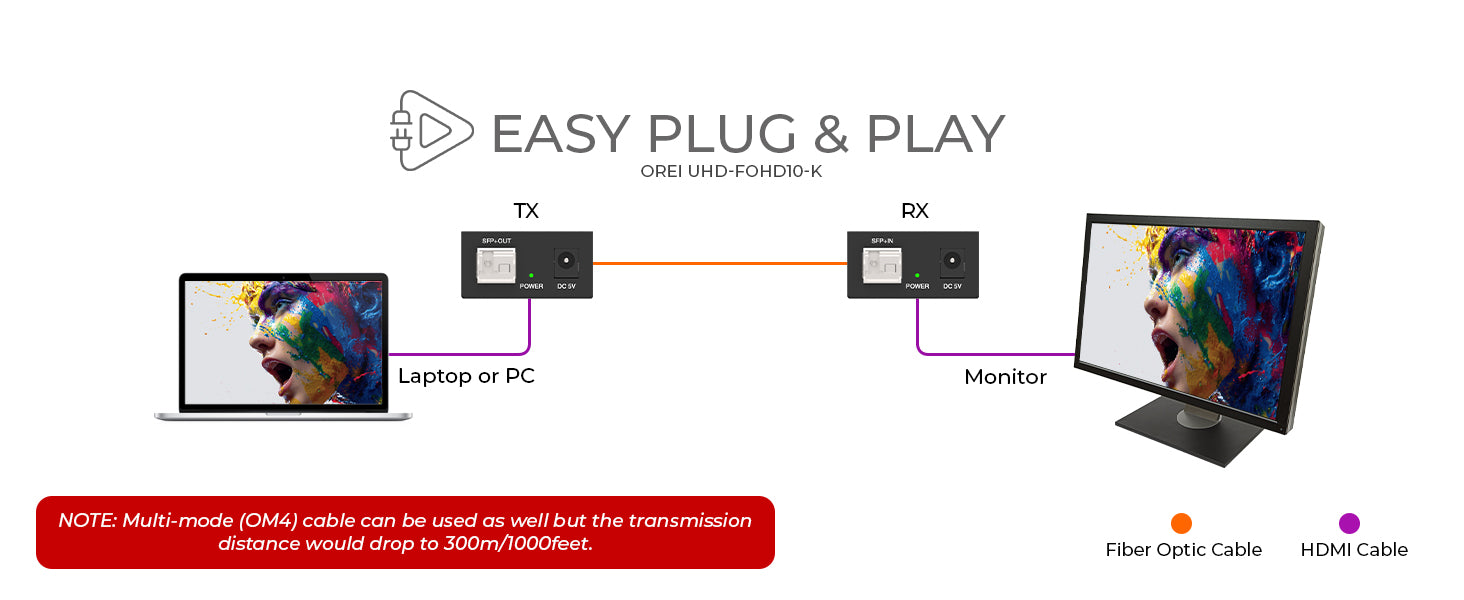

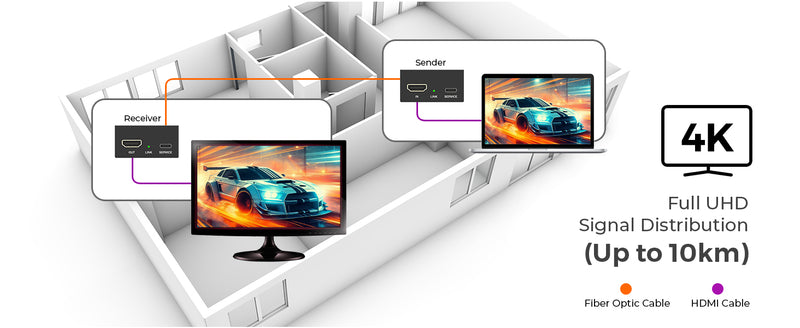

The UHD-FOHD10-K HDMI over Fiber Optic Extender enables transmission of media signals up to 10KM over single-mode fiber optic cable with strong anti-interference. It also supports multi-mode fiber (OM4) extension via SFP modules up to 300m. The device is HDMI 2.0b and HDCP 2.2 compliant. It supports video resolutions up to 4K@60Hz and 2K@60Hz with a bandwidth of 18Gbps. It also supports any VESA resolution and passes through HDR10+, Dolby Vision, and HLG formats. It is compatible with LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio. It features a lightweight and compact design, ideal for flexible installation in both personal and commercial environments.

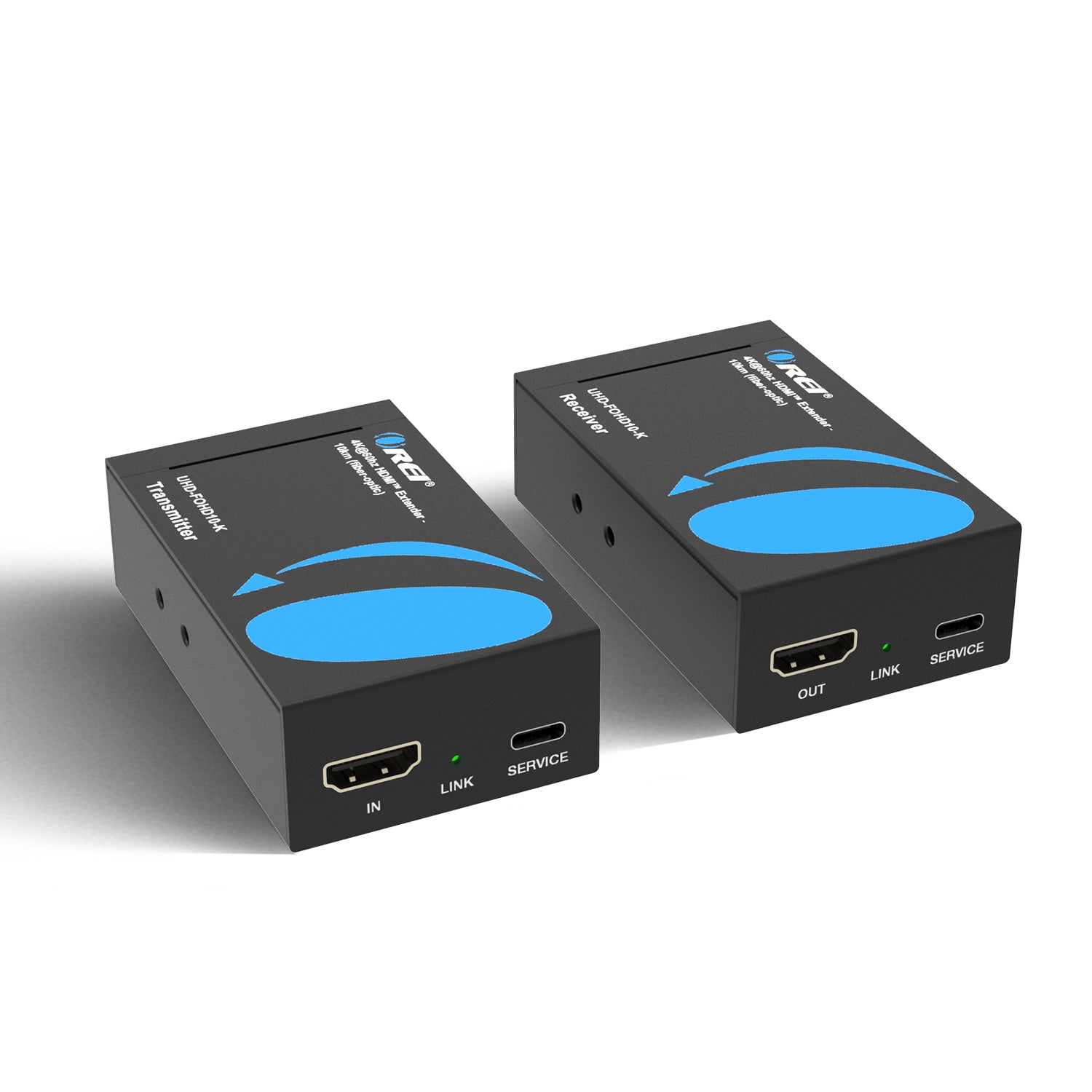

CONNECTIVITY
| Transmitter: |
INPUT: |
1x IN [HDMI Type A, 19-pin female] |
|
|
1x SERVICE [USB-C, update port] |
|
OUTPUT: |
1x SFP+ OUT [LC female] |
| Receiver: |
INPUT: |
1x SFP+ IN [LC female] |
|
|
1x SERVICE [USB-C, update port] |
|
OUTPUT: |
1x OUT [HDMI Type A, 19-pin female] |
PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 2x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| Single mode/Multiple mode Optical fiber: |
We recommend you use Single Mode Fiber Optic cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
18Gbps |
| Input & Output Video Resolution: |
4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, 3840x2160p25, 1920x1200p60RB, 1920x1080p60, 1920x1080p50, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60 Any VESA resolution is supported. |
ADDITIONAL FEATURES
| CEC: |
No |
| ARC: |
No |
| USB KVM: |
No |
| PoC/PoE: |
No |
| IR Control: |
No |
| Downmix: |
No |
| Downscale: |
No |
| Over IP: |
No |
| HDBaseT: |
No |
| USB-C: |
Yes |
LOOP-OUT/LOCAL PORT
| Has loop out port: |
No |
| Number of Loop out ports: |
0 |
AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X |
| HDR: |
HDR10, HDR10+, Dolby Vision, HLG |
COMPLIANCES
| HDMI Compliance |
HDMI 2.0b |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
Transmitter: 3.05W (Max), Receiver: 2.25W (Max) |
|
| Power Supply: |
Input: AC 100 - 240V 50/60Hz |
|
|
Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
|

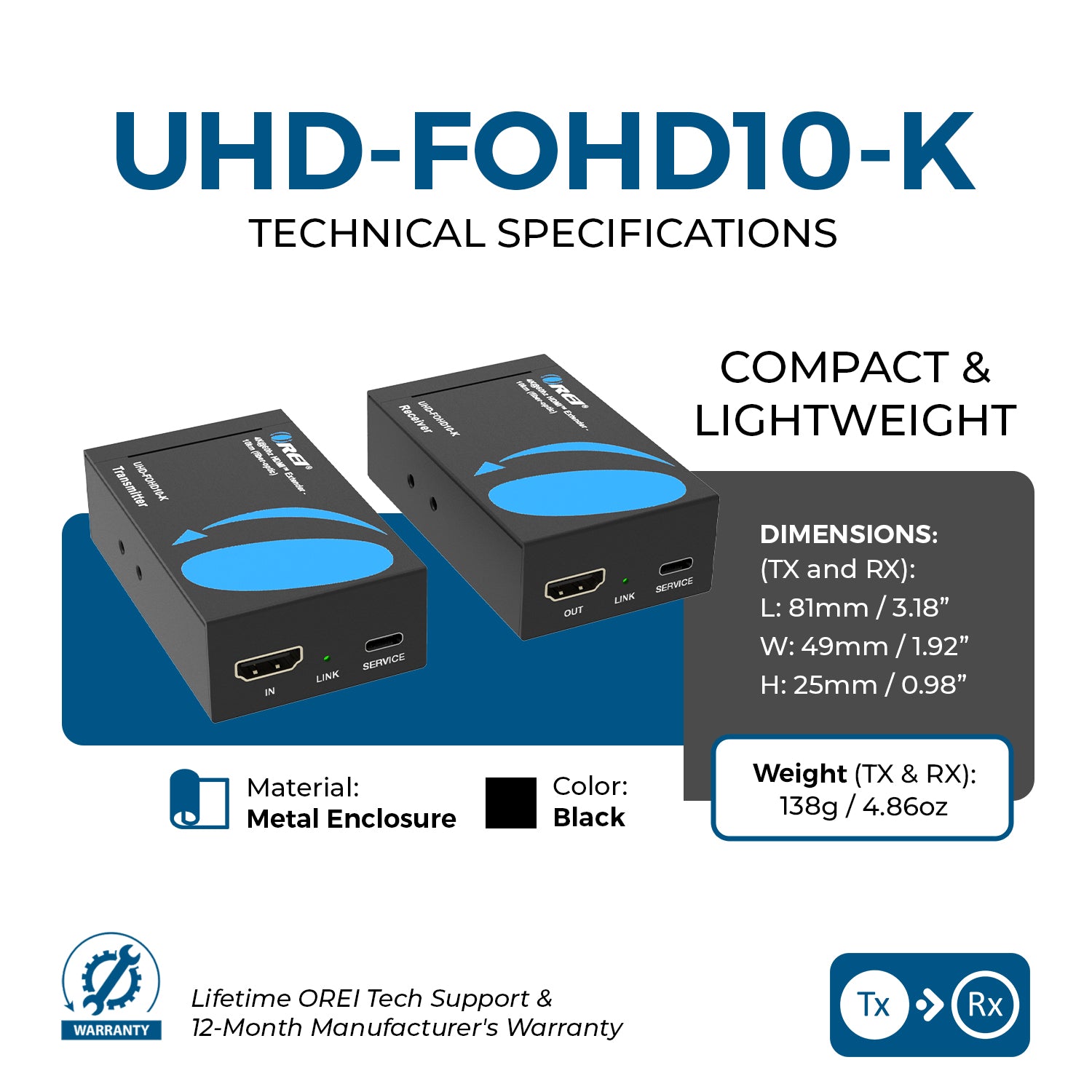

DIMENSIONS & WEIGHT
| Transmitter: |
Length: |
49mm / 1.9in |
|
Width: |
81mm / 3.2in |
|
Height: |
25mm / 0.98in |
|
Weight: |
138g / 0.30lb |
| Receiver: |
Length: |
49mm / 1.9in |
|
Width: |
81mm / 3.2in |
|
Height: |
25mm / 0.98in |
|
Weight: |
138g / 0.30lb |
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
| Operating Temperature: |
32~104°F / 0~40°C |
| Storage Temperature: |
-4~140°F / -20~60°C |
| Operating Humidity: |
20%~80% relative humidity, non-condensing |
| Storage Humidity: |
10%~90% relative humidity, non-condensing |
WARRANTY
| 1-Year Manufacturer's Warranty |
Quick Setup & Installation guide
UHD-FOHD10-K User Manual Download
