17% off

4K@60hz HDMI™ Extender (Over 1G IP, Loop, IR) - 500ft (cat6)-UHD-EXM500-K

$249.00 USD $299.99
SKU: UHD-EXM500-K

  • Video resolutions up to 4K@60Hz
  • Compliance: HDMI 2.0 - HDCP 1.4/2.2
  • One-way IR control

Overnight shipping*:
Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Style
Add To Wishlist
30 Days Return
30 Days Return
1 Year Warranty
1 Year Warranty
Free Shipping in USA
Free shipping in USA
Product Image
View details

1. Crystal-Clear 4K HDMI Over Cat6 with ipcolor STREAM

The UHD-EXM500-K HDMI extender leverages cutting-edge ipcolor STREAM technology to deliver ultra-low latency, high-definition video and audio signals over long distances. Supporting up to 4K@60Hz resolution, it ensures a crisp and vibrant viewing experience for both residential and commercial AV environments.

2. Reliable Long-Distance Performance

Transmit uncompressed HDMI signals up to 500 feet (120 meters) over a single Cat6/6a/7 cable with zero compromise on quality. The transmitter includes an HDMI loop-out for local monitoring, while one-way IR support enables remote control of the source device from the receiver end. With RS-232 control support, the system easily integrates into advanced AV setups.

3. Flexible, Scalable Connectivity

The UHD-EXM500-K supports one-to-one, one-to-many, and switch-based cascade configurations, making it ideal for everything from basic point-to-point applications to complex, distributed AV networks. Whether for a classroom, showroom, digital signage setup, or control system, this HDMI over Ethernet solution scales with your needs.

4. Durable, Upgradeable, and Easy to Install

Built with robust surge, ESD, and lightning protection, this HDMI cat6 extender is designed for long-term reliability. Micro-USB ports allow firmware upgrades to maintain compatibility and unlock new features over time. With a compact, plug-and-play design, installation is quick and straightforward in any AV deployment.

OREI UHD-EXM500-K: 4K HDMI Extender UPTO 500 FT

Key Features:
  • Features ipcolor STREAM technology for high-definition audio/video transmission with low-latency.
  • Video resolutions up to 4K@60Hz.
  • Compatible with Cat5/5e/6 or above network cables. For extending signal up to 120M(500Feet) use CAT6 Round -Shielded cable.
  • Supports one-to-one or one-to-many connections through a network switch.
  • Additional Receivers can be added to the setup via a network switch or through a network switch cascade as well.
  • Features HDMI output on the Transmitter to connect a display at the source.
  • One-way IR transmission (20~60kHz) from the Receiver to the Transmitter: enabling source device control from the Receiver end.
  • The device also supports control through RS-232.
  • Micro USB ports on the device can be used for Firmware upgrades.
  • Lightning protection, surge protection, ESD protection

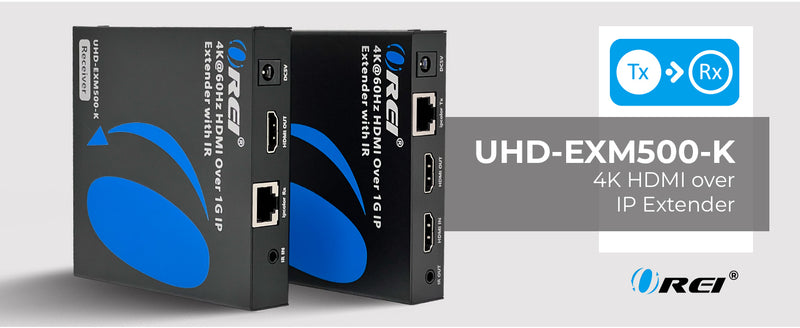

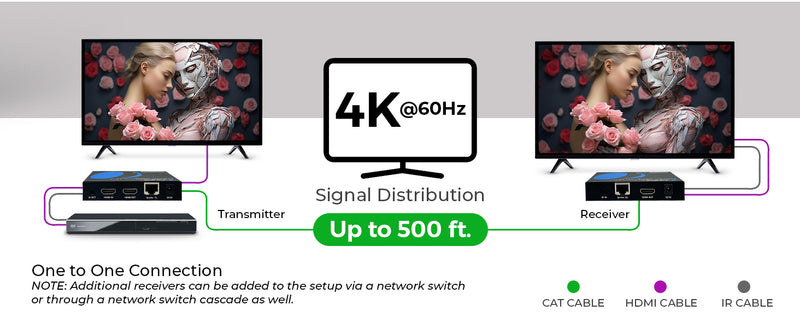

The UHD-EXM500-K consists of a Transmitter and Receiver allowing you to extend HDMI audio/video signal to another location up to 500 Feet away using a CAT6/7 cable. The extender features ipcolor STREAM technology for high-definition and low-latency transmission.

The device supports video resolutions up to 4K@60Hz. It features an HDMI output on the Transmitter to connect a display at the source. The extender can be connected one-toone through a CAT cable or one-to-many via a network switch.

It also work with multiple switch cascades. Features One-way IR transmission from Receiver to the Transmitter; enabling control of the source device from the Receiver end. The device also supports control through RS-232.
