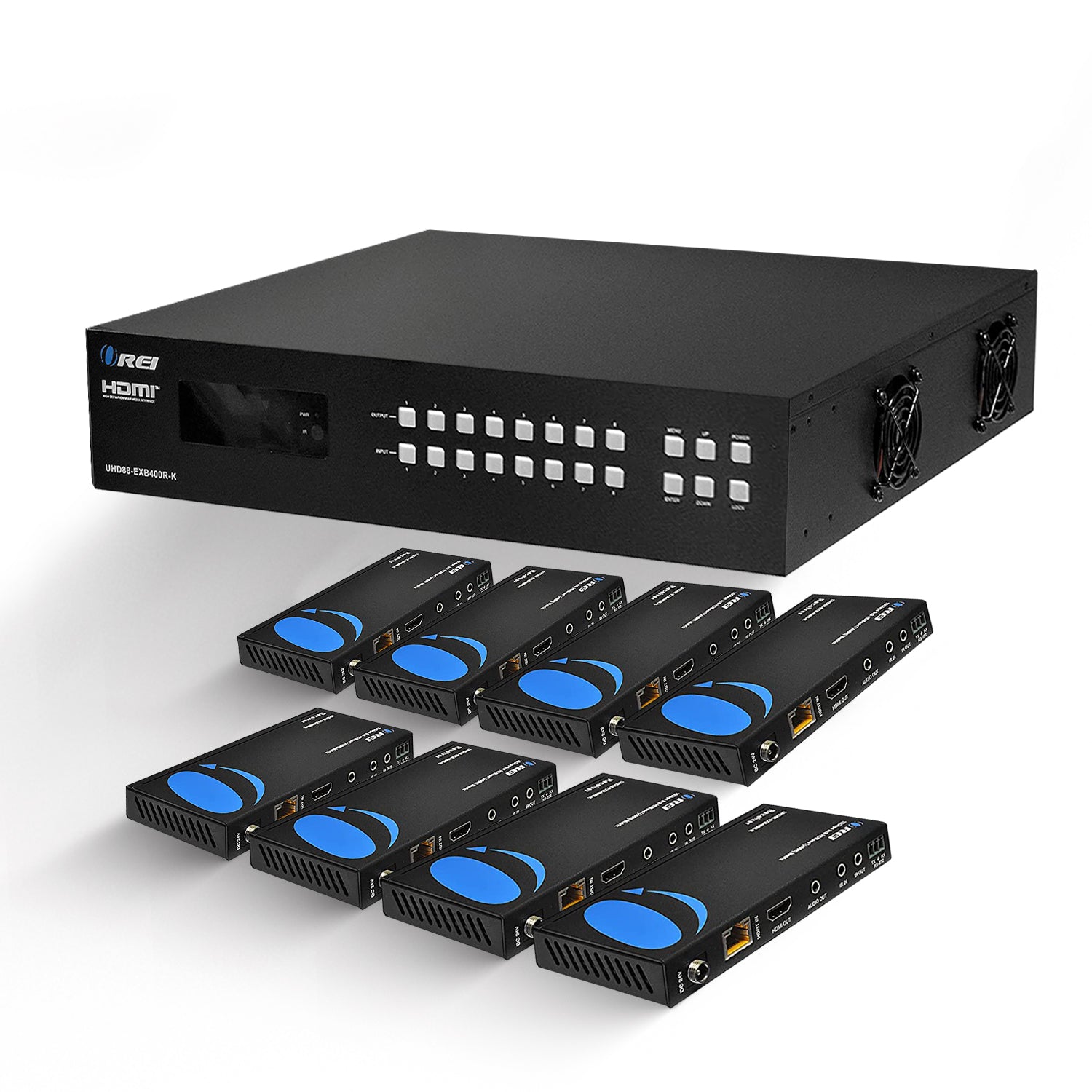

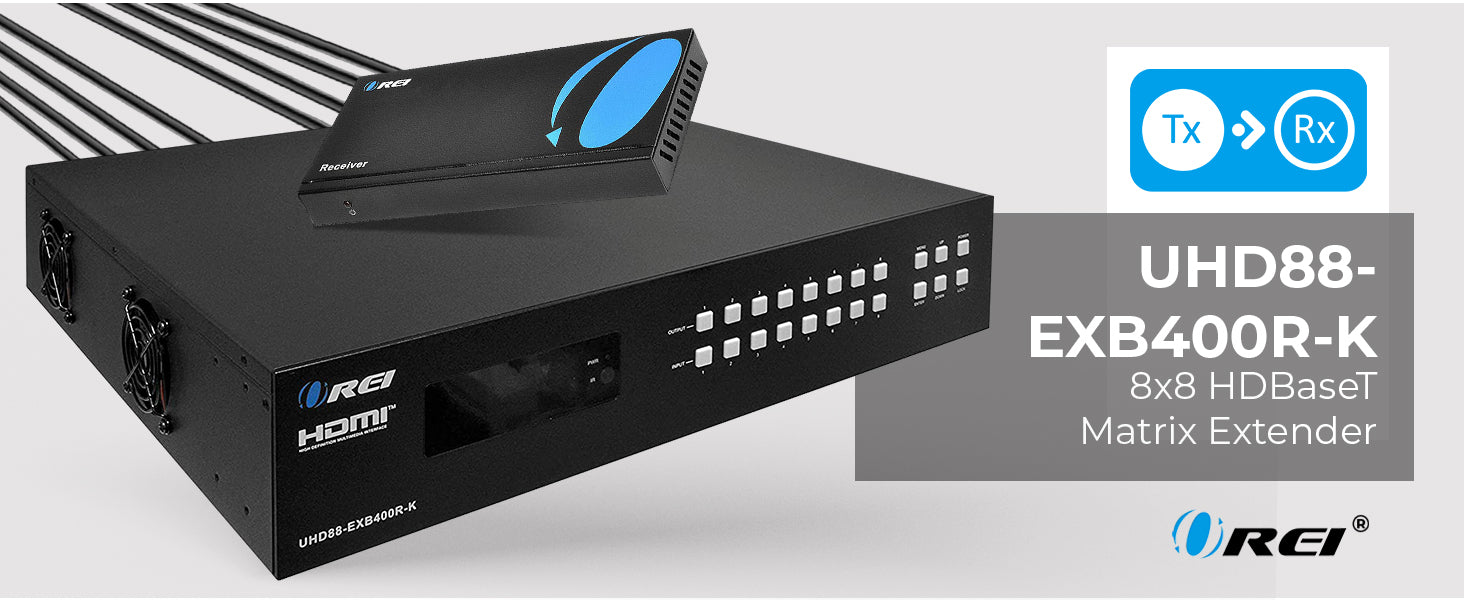

4K HDBaseT 8x8 HDMI™ Extender Matrix (Loop) - 400ft (cat6)-UHD88-EXB400R-K
- 4K 8x8 HDMI Matrix Extender
- Extends media up to 400 feet with resolutions up to 4K@60Hz and 2K@60Hz
- Audio extraction via digital and analog outputs with Bi-directional IR, PoC & Downscale
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability

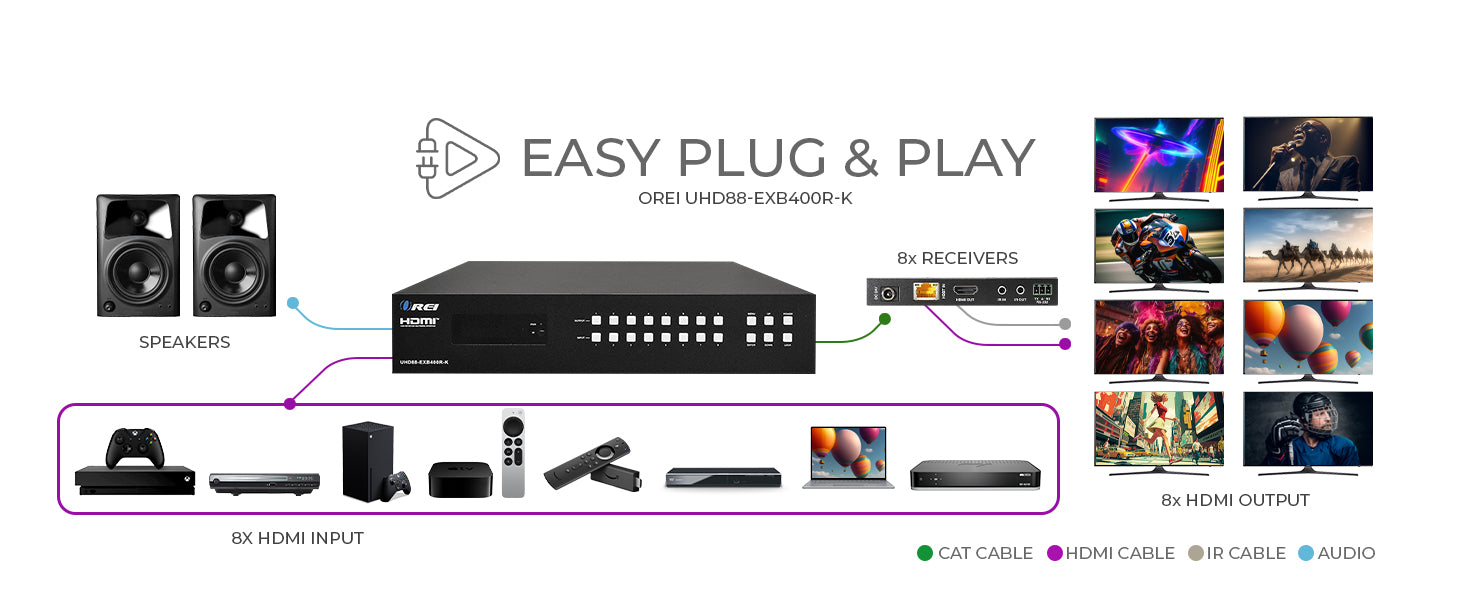

1. High-Performance 8x8 HDMI Matrix with HDBaseT Mirrored Outputs
The 8x8 18Gbps HDMI Matrix with HDBaseT Outputs is a high-performance AV distribution system that connects up to eight HDMI sources to eight mirrored HDMI and HDBaseT outputs simultaneously—supporting up to 16 displays at once. Fully compliant with HDMI 2.0b, HDCP 2.2, and legacy HDCP 1.x standards, it delivers uncompressed video at resolutions up to 4K@60Hz 4:4:4. With a full 18Gbps bandwidth, this matrix switch ensures seamless content transmission with support for Dolby Vision, HDR10+, HDR10, and HLG, delivering lifelike visuals and dynamic color across modern and legacy displays.
2. Optimized Signal Distribution and Long-Distance Extension
Ideal for mixed-resolution environments, this 4K HDMI matrix extender features independent 4K-to-1080p downscaling on each output, allowing you to connect both UHD and Full HD displays without compromise. Its HDBaseT outputs extend signals up to 150 meters (492 feet) at 1080p and 120 meters (394 feet) at 4K via a single CAT5e/6/7 cable, while Power over Cable (PoC) reduces the need for multiple power supplies. This streamlined setup is perfect for commercial applications like video walls, conference centers, classrooms, and large-scale digital signage networks.
3. Advanced Audio Capabilities and Device Compatibility
For complete audio flexibility, the matrix supports 7.1-channel audio pass-through formats including LPCM, Dolby TrueHD, and DTS-HD Master Audio, while offering audio de-embedding through analog RCA and coaxial outputs. The built-in IR matrix enables bi-directional IR routing, allowing remote control of source devices from display zones. Comprehensive EDID management and CEC pass-through further enhance device communication and integration, ensuring reliable signal negotiation across your entire AV setup.
4. Flexible Control Options and Professional-Grade Design
Control is flexible and user-friendly via front panel buttons with OLED display, IR remote, RS-232, LAN, or WebGUI. Designed with a 1U rack-mountable chassis, this HDMI matrix switch is built for 24/7 reliability in demanding environments. Whether you're managing a control room, outfitting a commercial AV installation, or upgrading a 4K matrix extender system, the UHD88-EXB230R-K offers scalable performance, robust feature support, and uncompromising signal quality.

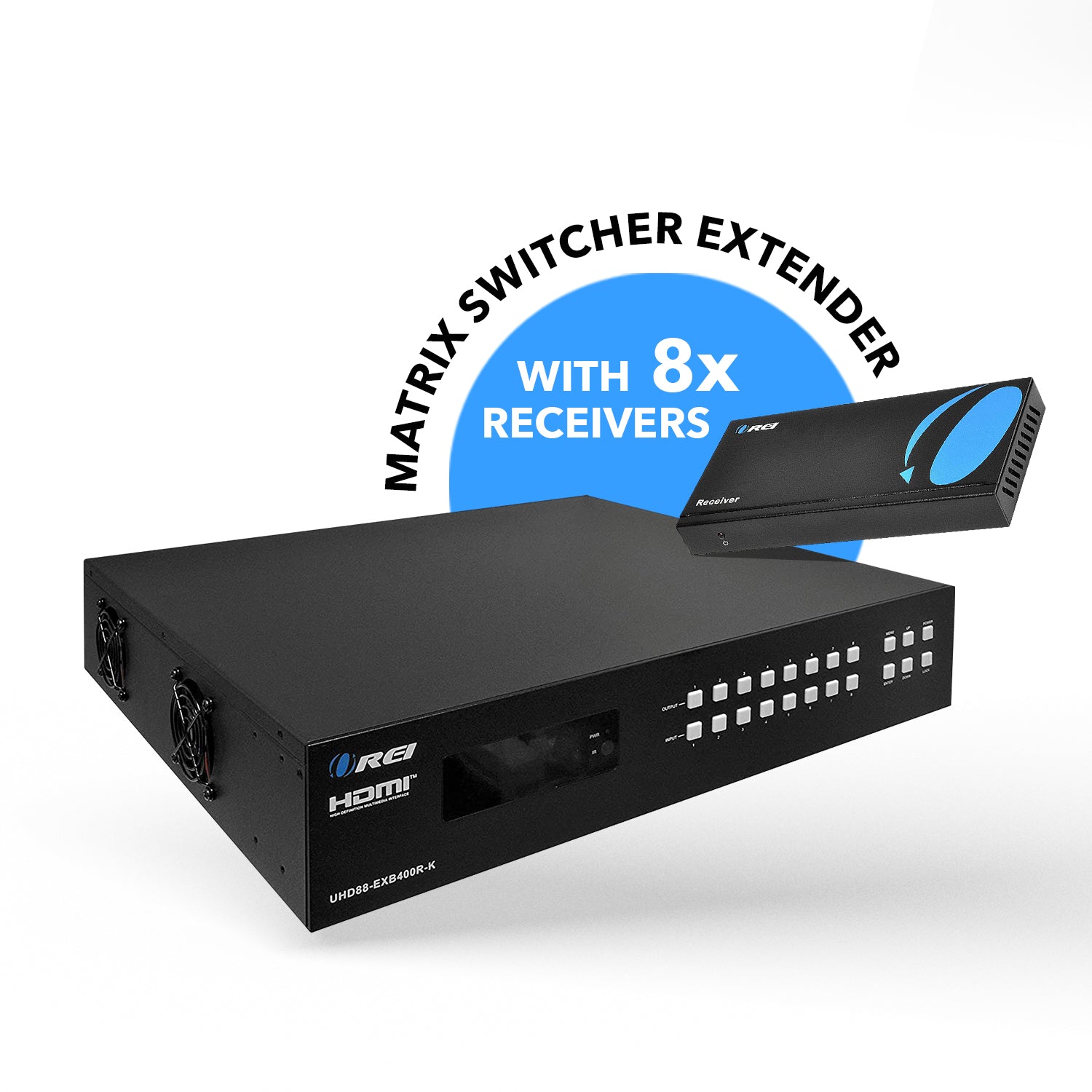

OREI 8x8 4k HDMI Matrix Extender Up To 400 Feet- With Audio Extraction, Bi-directional IR, Power Over Cable & Downscale Feature
-
HDMI 2.0b, HDCP 2.2/1.x Compliant – Compatible with both modern and legacy HDMI devices and content protection standards.
-
8 HDMI Inputs + 8 HDMI & HDBaseT Mirrored Outputs – Simultaneous signal delivery to up to 16 displays for flexible AV distribution.
-
Supports 4K2K@60Hz 4:4:4 on All Ports – Enjoy ultra-high-definition video with full color depth over both HDMI and HDBaseT connections.
-
18Gbps Bandwidth via HDMI & HDBaseT – Delivers uncompressed HDMI and compressed HDBaseT signals for seamless UHD content transmission.
-
Independent 4K→1080p Downscaling for Each Output – Enables optimal display compatibility in mixed-resolution environments.
-
HDR & Advanced Video Formats – Full pass-through support for HDR10, HDR10+, Dolby Vision, and HLG for superior picture quality.
-

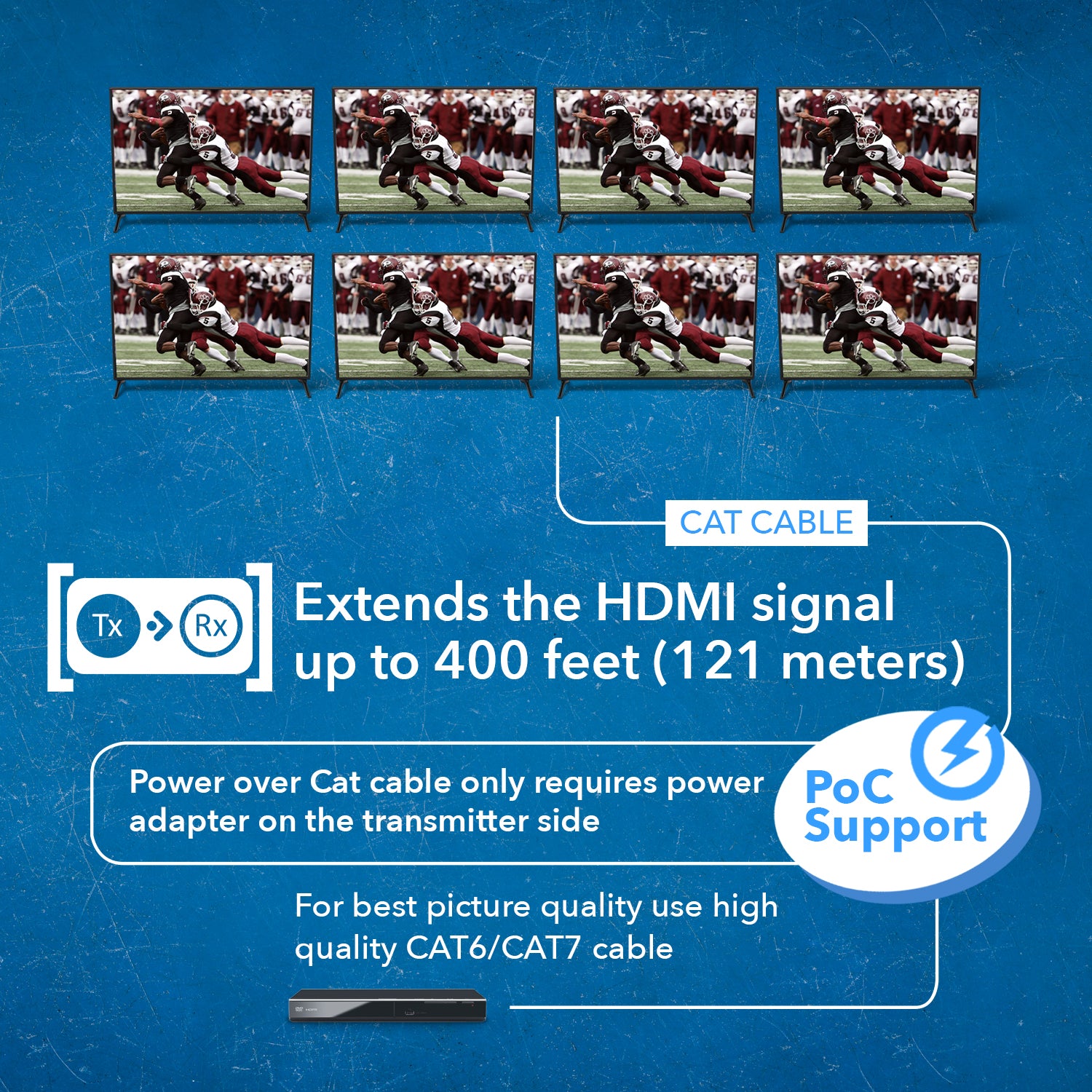

Long-Distance Transmission via HDBaseT – Extend signals up to 150m (492ft) at 1080p or 120m (394ft) at 4K using a single CAT5e/6/7 cable.
-
Audio Features – Supports LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio, and includes audio de-embedding to analog and coaxial outputs.
-
IR Matrix & Bi-Directional IR Routing – Control HDMI sources from remote display zones with flexible, one-to-one IR mapping.
-
Advanced EDID Management & CEC Support – Features AUTO, COPY, STD EDID settings and CEC pass-through for reliable signal negotiation and control.
-
24V PoC on HDBaseT Ports – Simplifies cabling by powering remote receivers directly through the CAT cable.

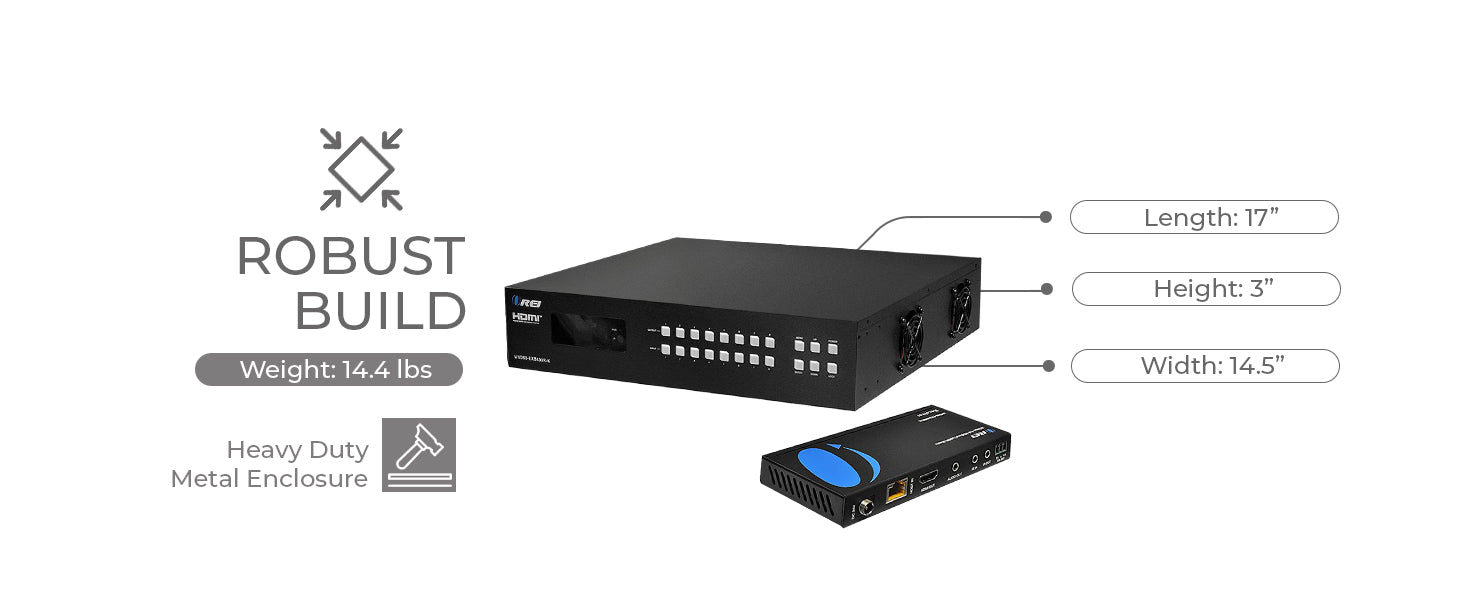

- 1U Rack-Mount Design with OLED Display & Multiple Control Options – Manage via front panel, IR remote, RS-232, LAN, or Web GUI.

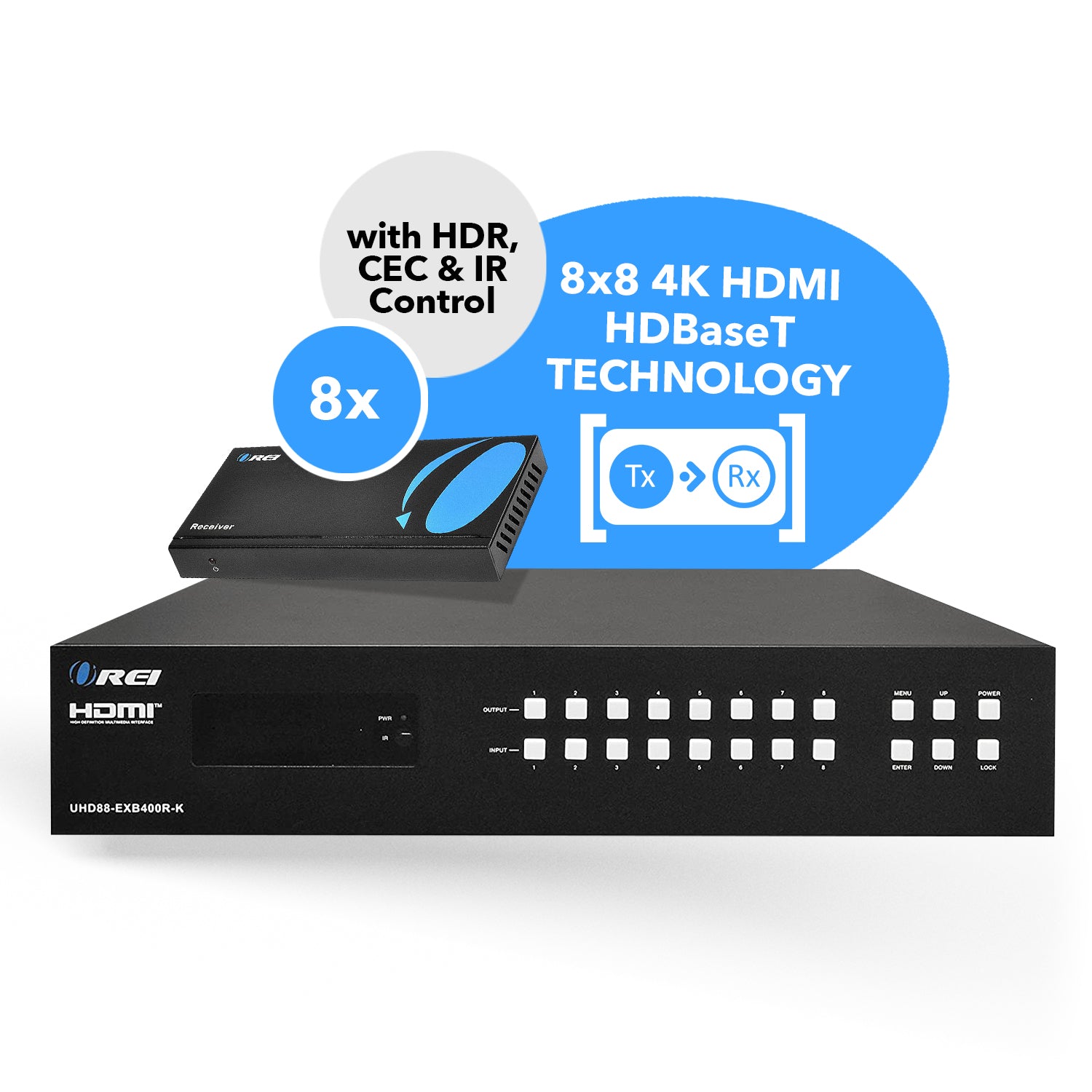

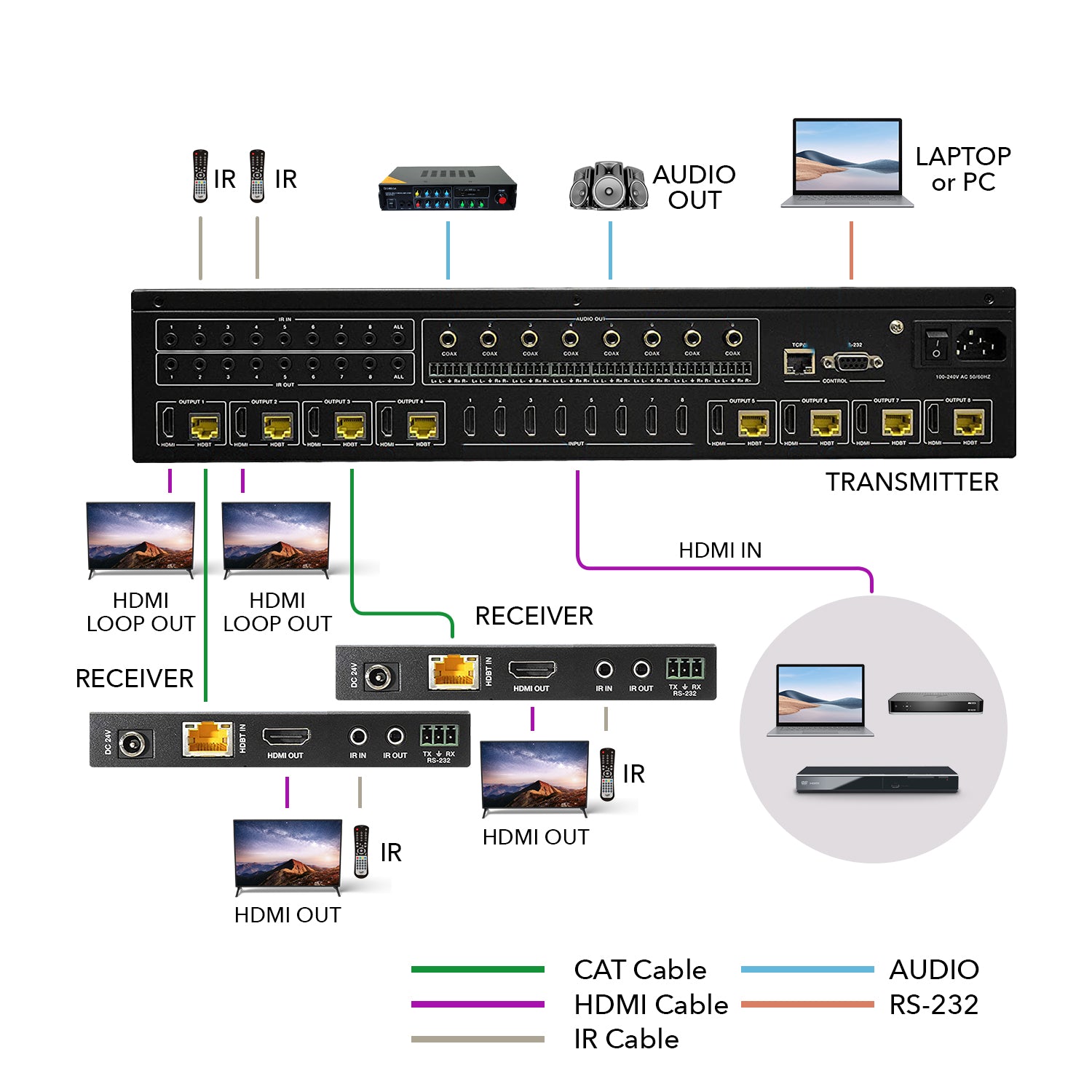

The 8x8 18Gbps HDMI Matrix with HDBaseT Outputs is a professional-grade solution that connects up to 8 HDMI source devices to 8 mirrored HDMI and HDBaseT outputs, enabling simultaneous display on 16 total screens. Designed for high-performance AV distribution, it supports video resolutions up to 4K2K@60Hz 4:4:4 and offers full compatibility with Dolby Vision, HDR10+, and HLG.
Each output channel includes an independent 4K-to-1080p downscaler, making it ideal for environments with mixed display capabilities. The HDBaseT outputs can transmit uncompressed or compressed UHD content over distances up to 150 meters (492 ft) at 1080p or 120 meters (394 ft) at 4K using a single CAT5e/6/7 cable. Built-in PoC (Power over Cable) allows HDBaseT receivers to be powered directly through the cable, reducing clutter and simplifying installation.
In addition to full 7.1CH HD audio pass-through, the unit features audio de-embedding to both analog and coaxial outputs, offering flexible integration with audio systems. The built-in IR matrix allows each display zone to control its assigned source. The EDID and CEC management functions ensure signal integrity and smooth operation across all connected devices.
Installation and control are effortless with a front-panel OLED display, RS-232, LAN, IR remote, and Web GUI access. With its 1U rack-mountable design, this matrix switch is the perfect choice for conference rooms, AV distribution systems, digital signage, and advanced home theater installations.
UHD88-EXB400R-K User Manual Download
UHD88-EXB400R-K Specifications Sheet
UHD88-EXB400R-K RS-232 Commands
UHD88-EXB400R-K IR Codes
UHD88-EXB400R-K Control 4 Driver
