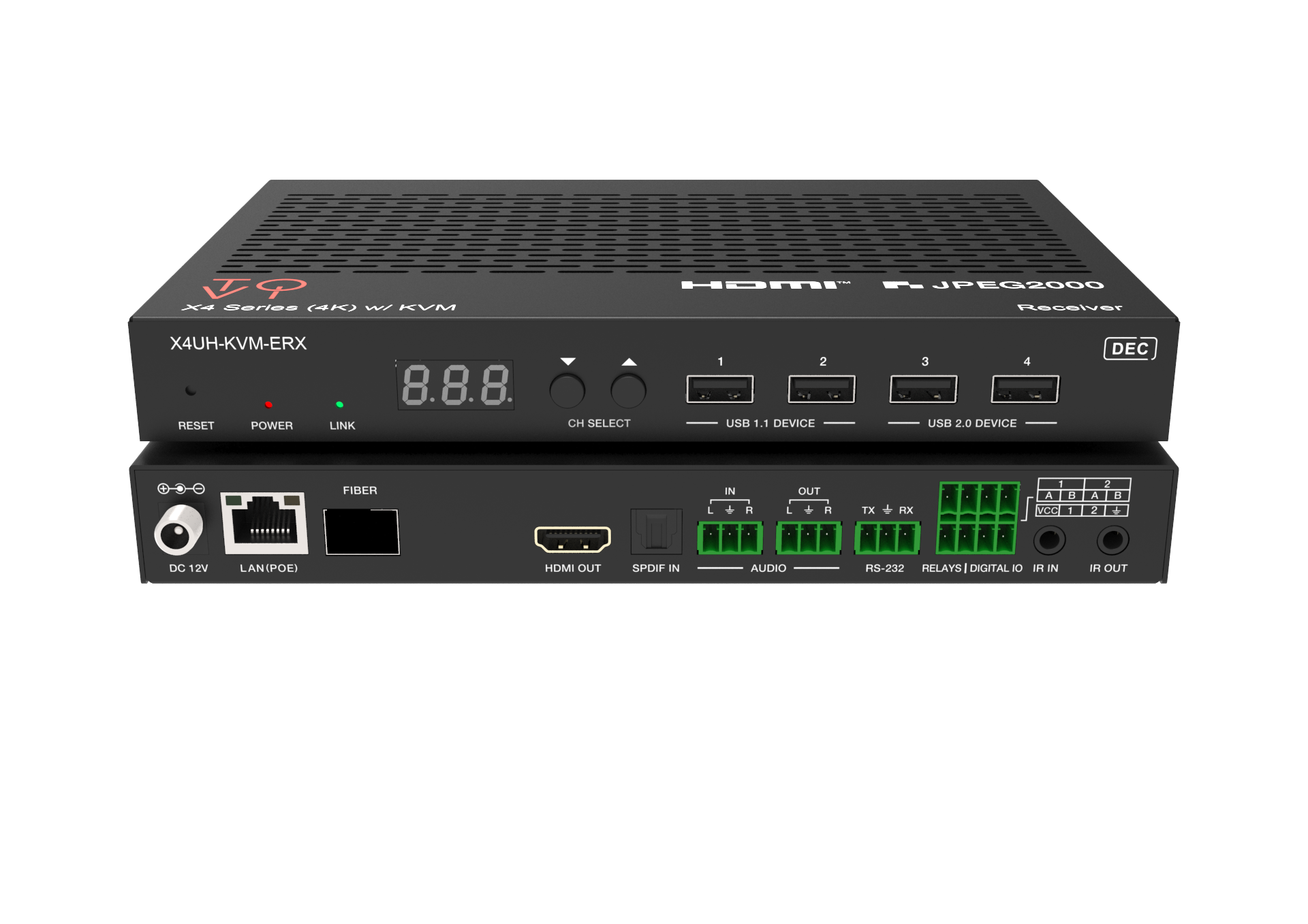

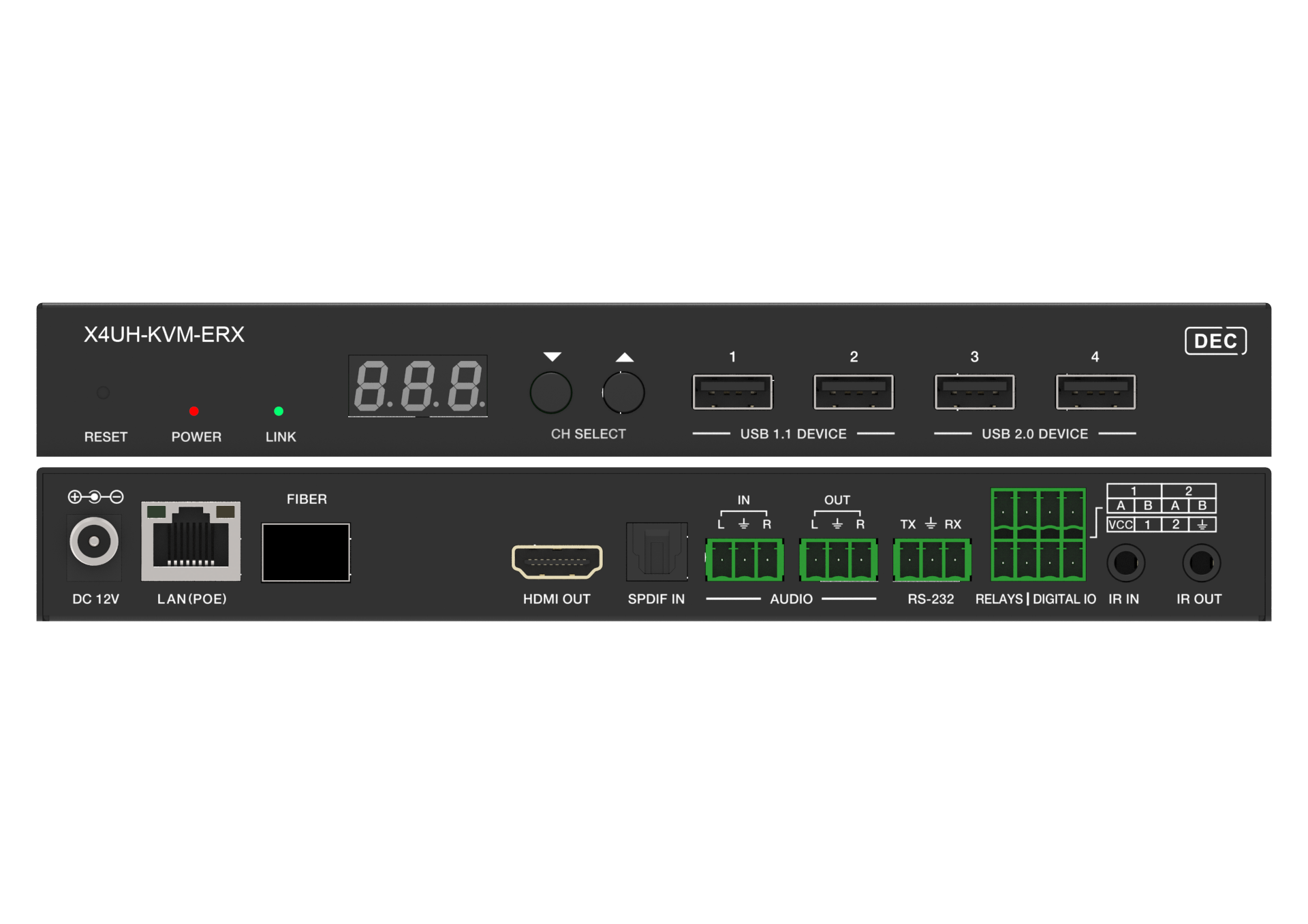

ToVi X4 Series (4K) w/ KVM - Receiver (X4UH-KVM-ERX)

$9,999.99 USD
SKU: X4UH-KVM-ERX

  • HDCP 2.2 Compliant
  • 100m Signal Extension
  • LAN & Fiber Optic Extension Options

Overnight shipping*:
Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Add To Wishlist
30 Days Return
30 Days Return
1 Year Warranty
1 Year Warranty
Free Shipping in USA
Free shipping in USA
View details

ToVi X4 Series (4K) w/ KVM

Key Features:
  •  HDCP 2.2 Compliant with 18Gbps Bandwidth – Supports pristine 4K@60Hz (4:4:4) video transmission in compliance with HDMI 2.0b standards.
  • Long-Distance Extension – Extends AV signals up to 100 meters (328 feet) over CAT6/6A/7 cables.
  • Comprehensive Signal Transmission – Simultaneously transmits video, analog/digital audio, IR, RS-232, CEC, and USB over Ethernet
  • Integrated Copper and Fiber Ports – Offers versatile connectivity options within one compact unit.
  • Audio Return Support – Compatible with ARC/eARC, S/PDIF, and analog audio return for flexible audio management.
  • User-Friendly Channel Configuration – Front panel buttons and LED screen facilitate straightforward setup.
  • Contact Control Ports – Includes 2-channel relay and 2-channel I/O ports for diverse control applications.
  • Advanced Signal Routing – Supports unicast, multicast, point-to-point, matrix switching, and video wall functionality (up to 9x9).
  • Intelligent Video Wall Management – Features video wall class management and MJPEG sub-stream real-time preview.
  • 1G Ethernet with PoE Support – Simplifies installation and power delivery over standard network infrastructure.
  • Robust Control Interfaces – Built-in web interface, Telnet, and SSH for flexible device management. Control is made even easier through the X4UH-CB Network Hub.
  • Wide Audio Format Support – Compatible with LPCM 2.0/5.1/7.1CH, Dolby Digital (Plus, EX, True HD), and DTS (96/24, EX, High Res, HD Master, DSD).
  • Smart Networking Design – Ensures easy, flexible installation for diverse professional AV environments

The X4UH-KVM-ERX is a versatile HDMI extender and AV-over-IP solution designed for high-performance, long-distance signal transmission. Fully compliant with HDCP 2.2 and HDMI 2.0b, it supports 4K@60Hz (4:4:4) video with up to 18Gbps bandwidth, delivering uncompromised ultra-high-definition quality.

It extends AV signals up to 100 meters (328 feet) over CAT6/6A/7 cables, transmitting video, analog and digital audio, IR, RS-232, CEC, and USB data seamlessly over Ethernet.

This compact unit integrates copper and fiber ports, supporting ARC/eARC, S/PDIF, and analog audio return channels for flexible audio routing. Channel configuration is simplified via front panel buttons and an LED display.

The X4UH-KVM includes two relay channels and two I/O ports for contact control, supporting diverse AV control scenarios. It enables unicast, multicast, point-to-point, matrix switching, and scalable video wall deployments up to 9x9 setup. Intelligent video wall class management and real-time MJPEG sub-stream preview enhance monitoring and operational efficiency.

Operating on a 1G Ethernet network with PoE support, the device offers comprehensive control and configuration through a built-in web interface, Telnet, and SSH. Control is made easier using the X4UH-CB to control all your X4UH Series devices on a single network. It supports a broad range of HDMI audio formats, including LPCM 2.0/5.1/7.1, Dolby Digital (Plus, EX, True HD), and DTS (96/24, EX, High Res, HD Master, DSD). The smart networking design ensures easy, flexible installation for commercial AV, broadcast, and professional environments.
