4K@60hz 4x4 HDMITM Matrix Extender (Loop) 230ft (cat6)-UHD48-EX230-K
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability

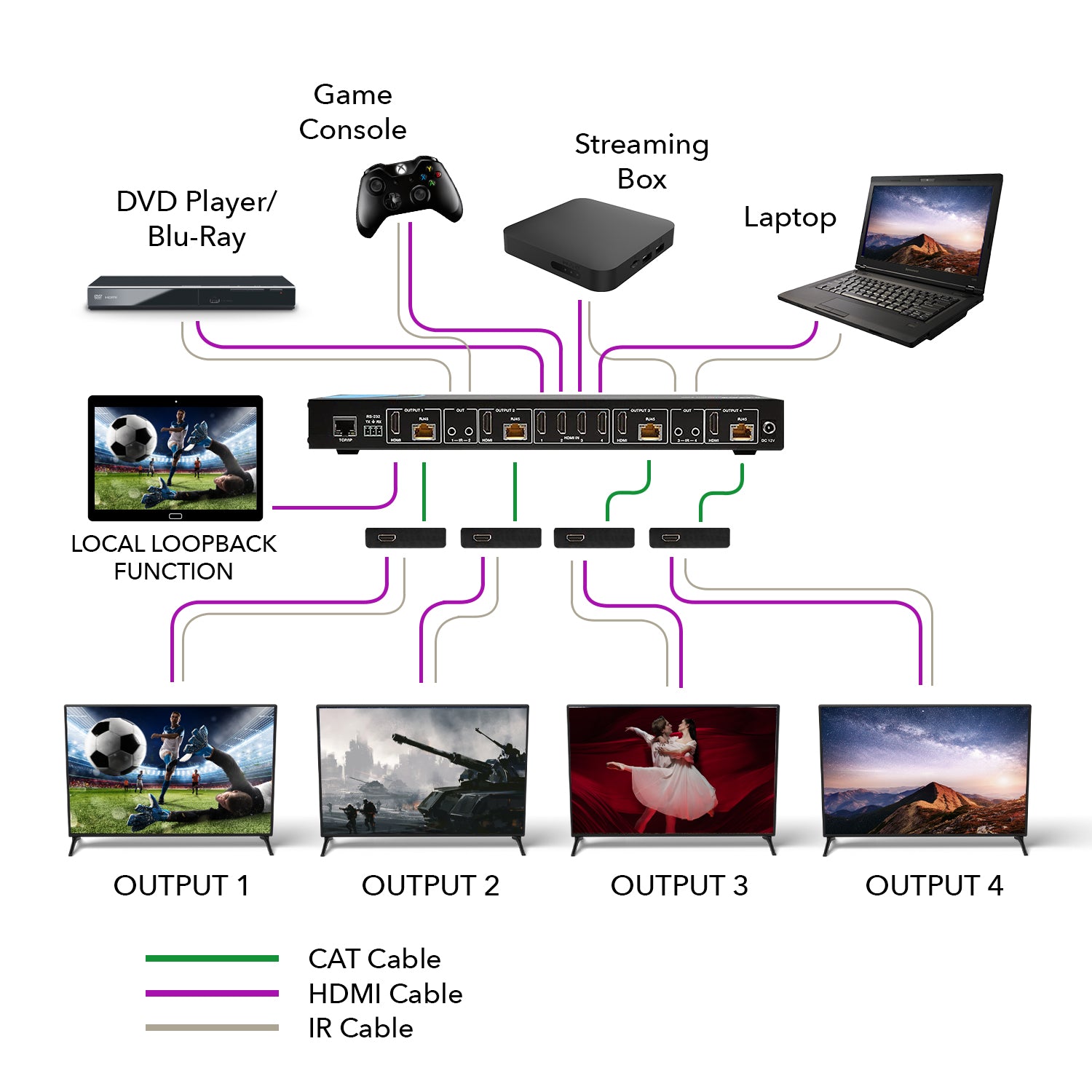

1. Distribute 4K Content Seamlessly Across 8 Displays

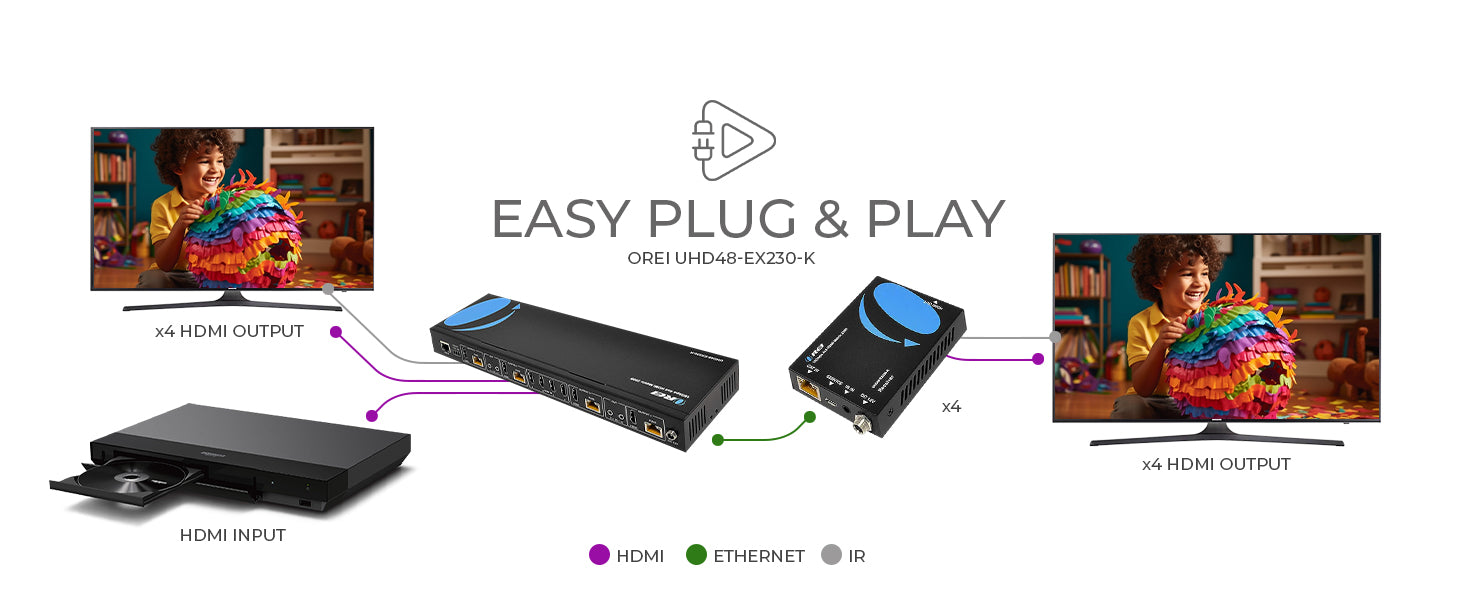

This powerful 4x4 HDMI matrix features four HDMI inputs and eight simultaneous outputs—four HDMI and four mirrored HDBaseT—providing unmatched flexibility for routing video in both residential and commercial AV systems. As a compact 4x4 matrix extender, it enables you to connect up to eight displays to four sources without sacrificing signal quality or system efficiency.
2. Crisp 4K@60Hz Video with Full HDR Support
Supporting resolutions up to 4K2K@60Hz 4:4:4, this HDMI matrix extender delivers stunning ultra-high-definition video with vibrant color and clarity on every port. With pass-through for HDR10, HDR10+, Dolby Vision, and HLG, it ensures dynamic visuals and lifelike contrast on all compatible displays—ideal for home theaters, boardrooms, and digital signage.
3. Reliable Long-Distance Signal Extension via HDBaseT

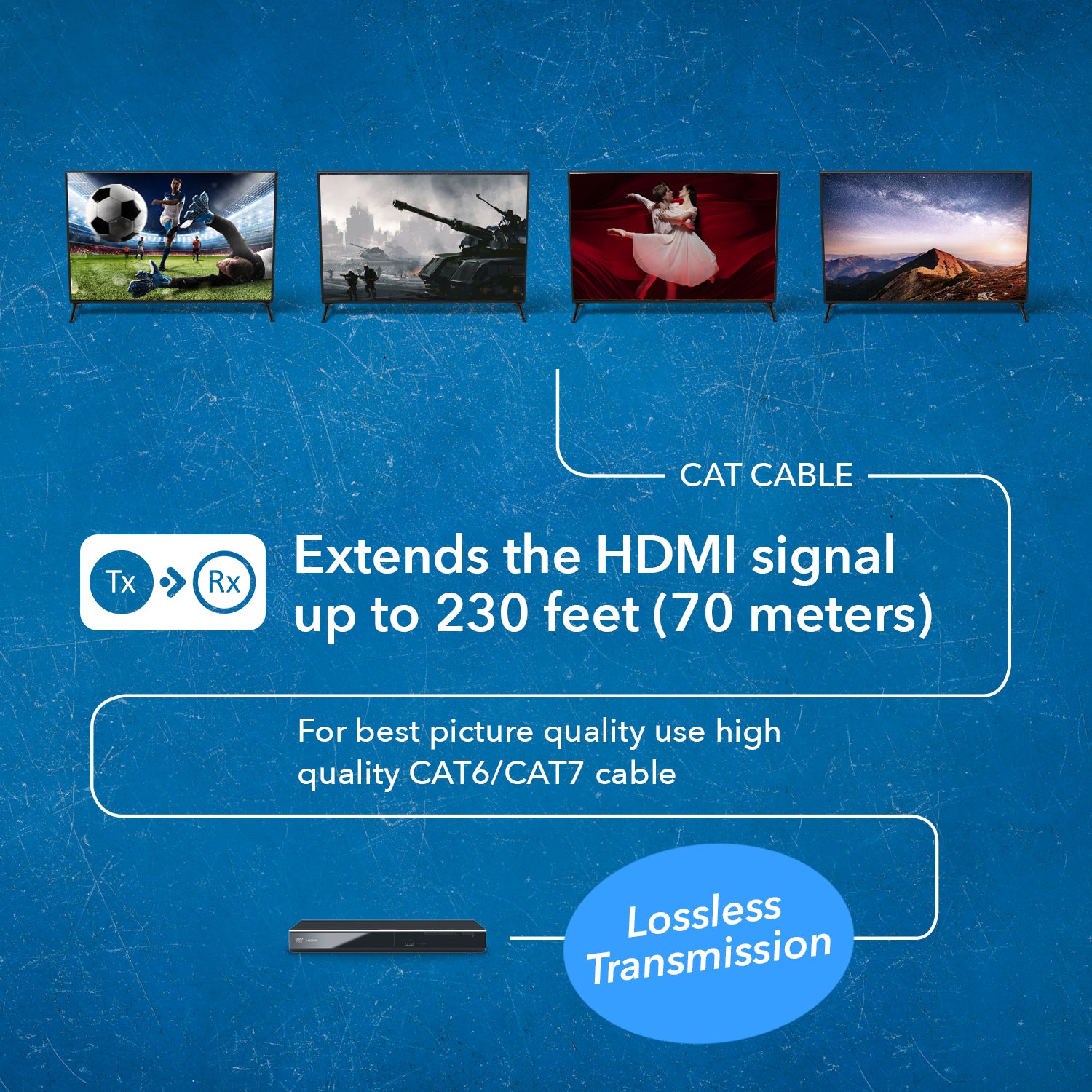

Transmit uncompressed 4K signals up to 230 feet (70 meters) over a single CAT6 cable using the matrix’s HDBaseT outputs. Thanks to Power over Cable (PoC), HDBaseT receivers are powered directly through the same cable—eliminating extra power adapters and simplifying installation in multi-room environments. This is the perfect solution for anyone needing a long-range HDMI extender with minimal cable clutter.
4. Flexible Audio & Smart Control Integration
Enjoy versatile audio routing with built-in audio extraction via analog and coaxial outputs—ideal for connecting to amplifiers or external sound systems. With advanced EDID and CEC control, the matrix ensures seamless device communication and one-touch operation. Whether you're using the IR remote, front panel, LAN, RS-232, or Web GUI, this HDMI matrix with remote puts complete system control at your fingertips.

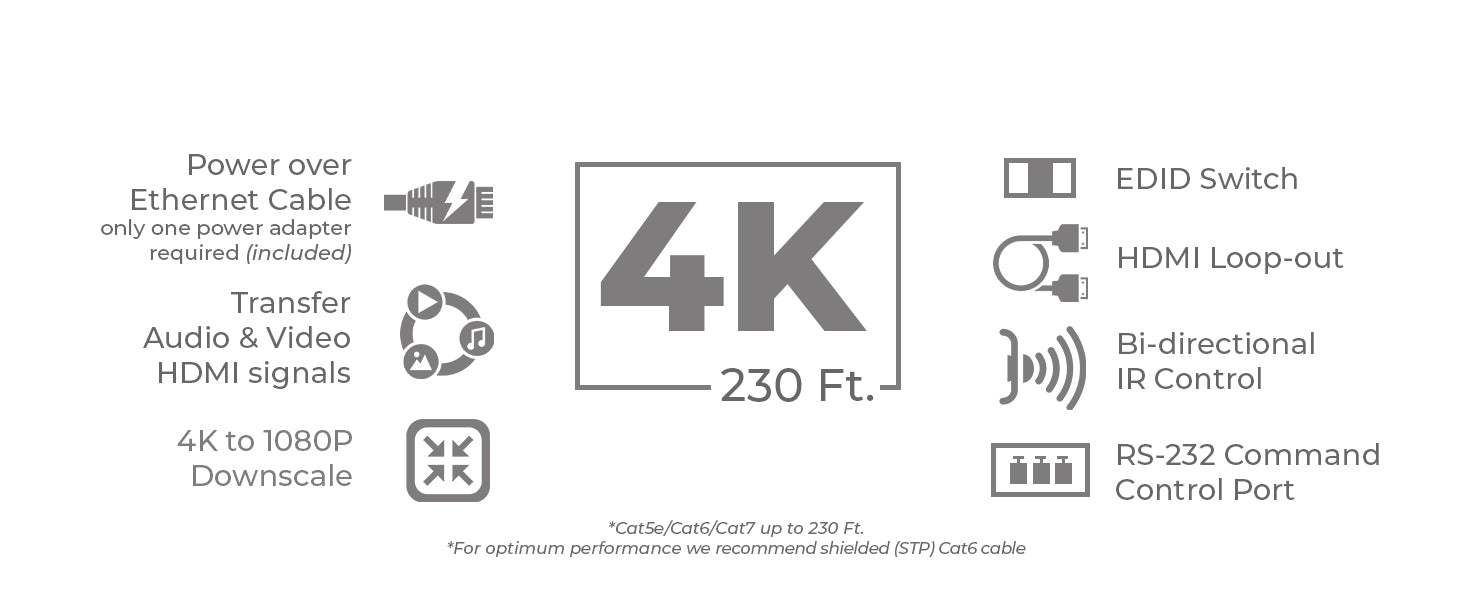

OREI 4x4 4k HDMI Matrix Extender - With Uni-directional IR, Power Over Cable & Downscaling
- HDMI 2.0b & HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz and 2K@60Hz
- Lossless video bandwidth of up to 18Gbps
- 4 HDMI loop outputs & 4 mirrored CAT outputs
- Downscaling support from 4K to 1080P for all output ports
- HDR10+, Dolby Vision & HLG pass-through
- HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
- Advanced EDID management and CEC control
- One-way IR control from Receivers to the Transmitter
- Power over cable technology; only requires power at the Transmitter end
- Control via IR remote, RS-232, WebGUI, LAN, and the buttons on the front panel
- Robust build, perfect for personal and commercial uses.

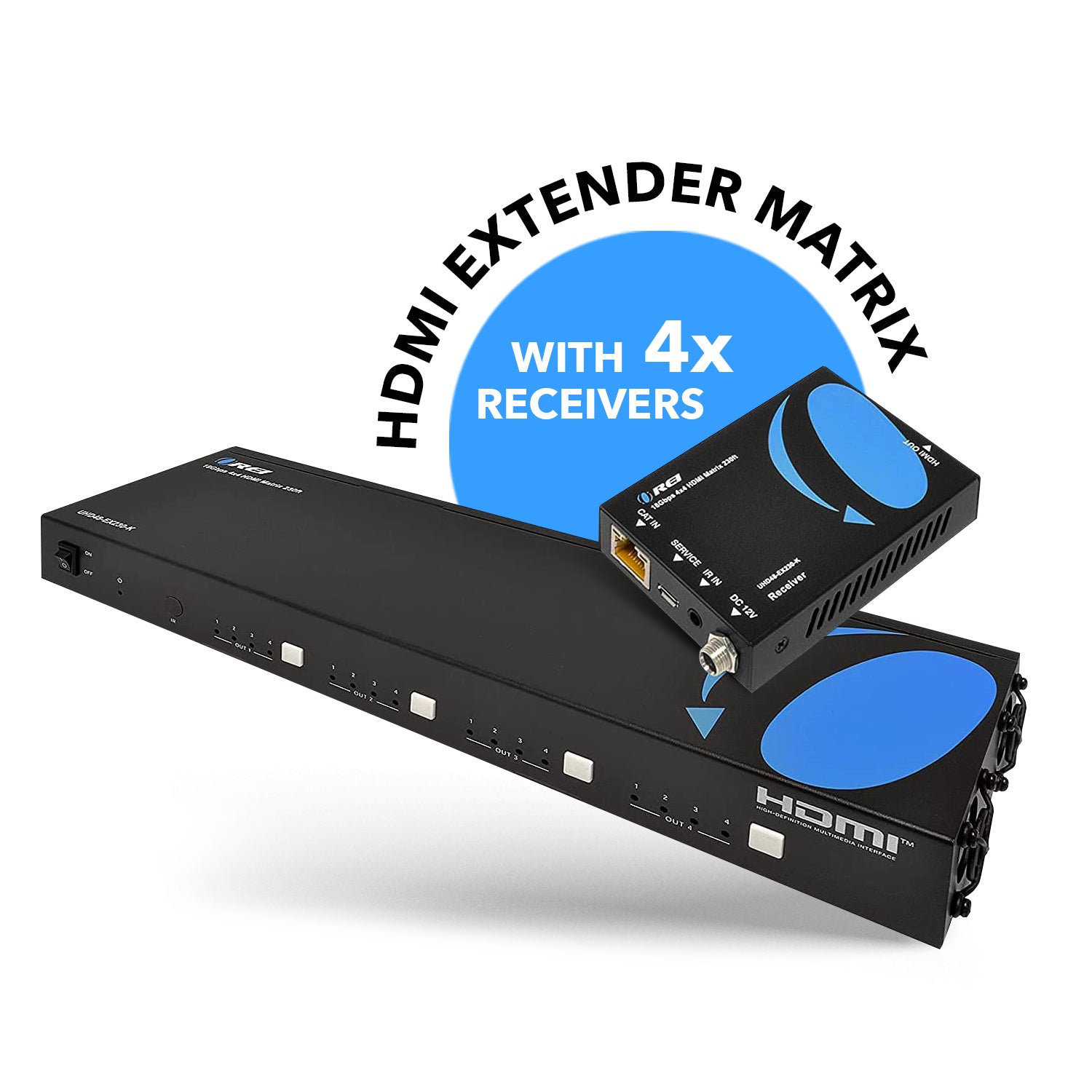

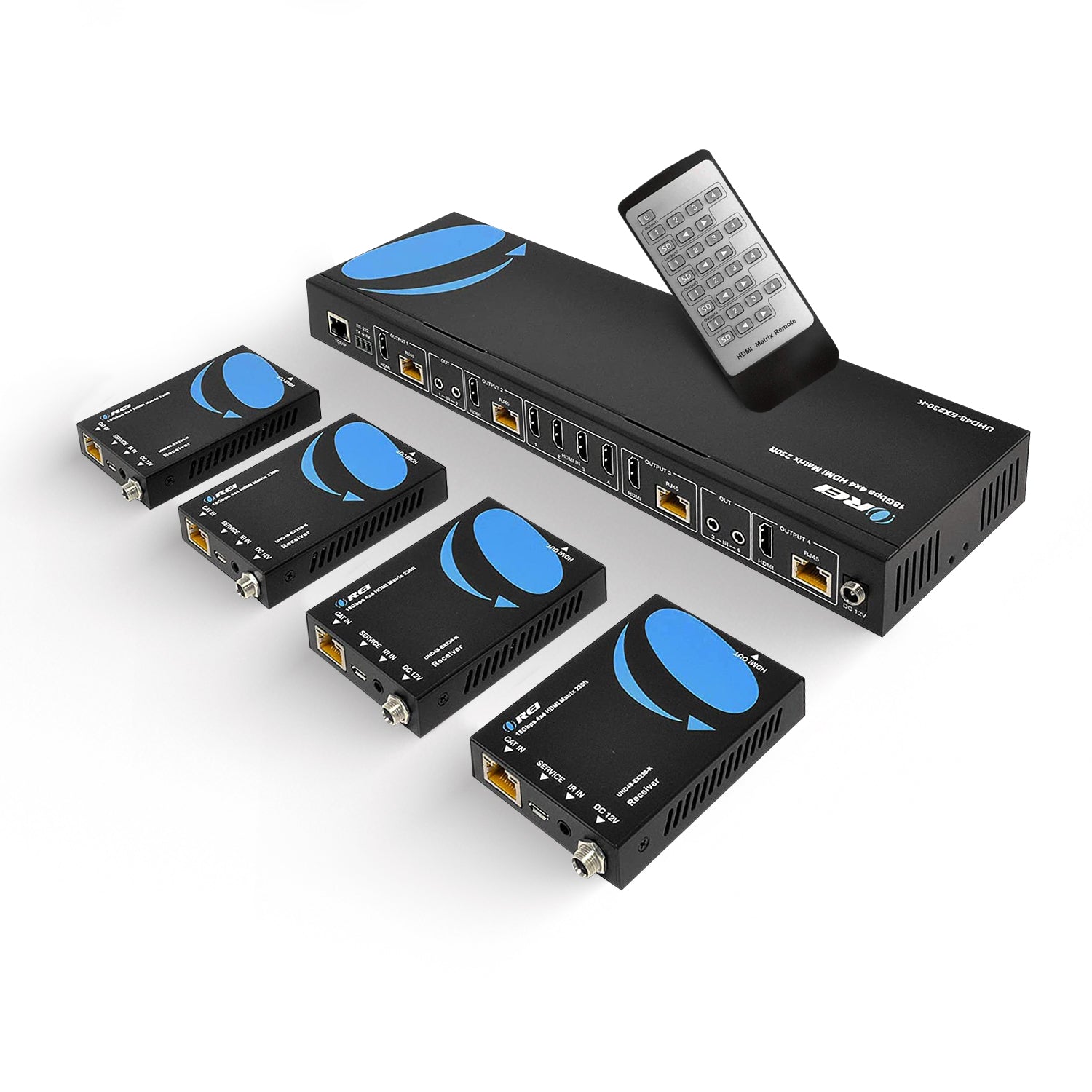

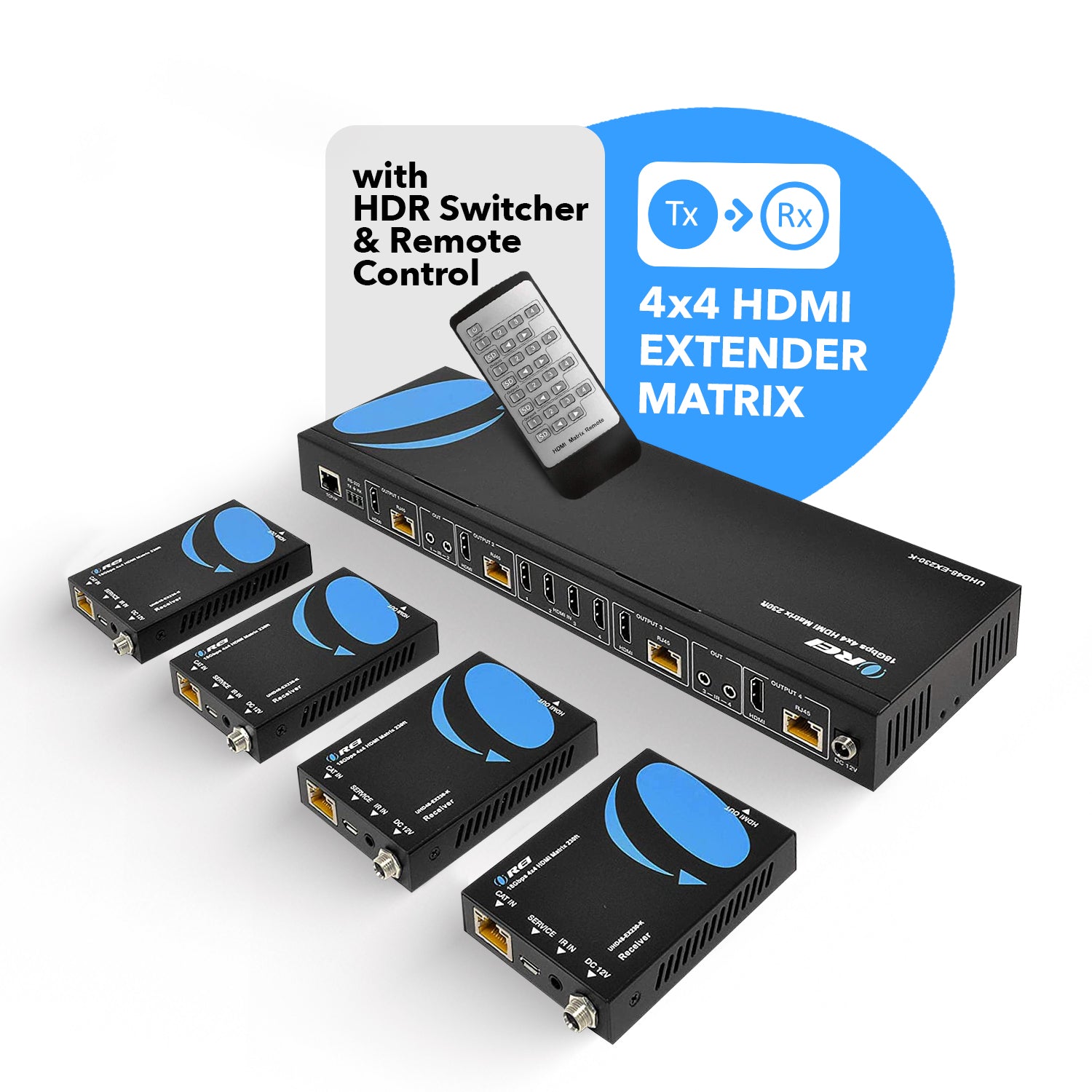

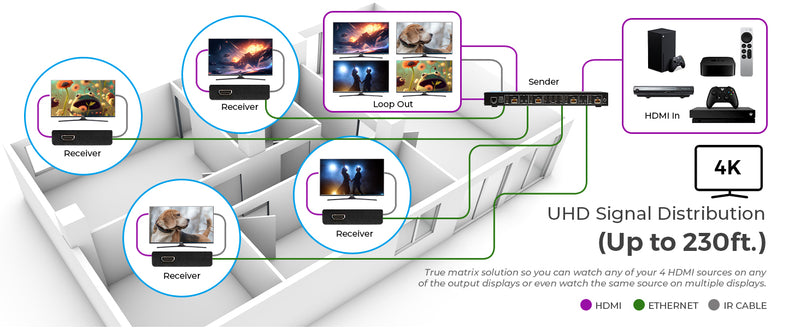

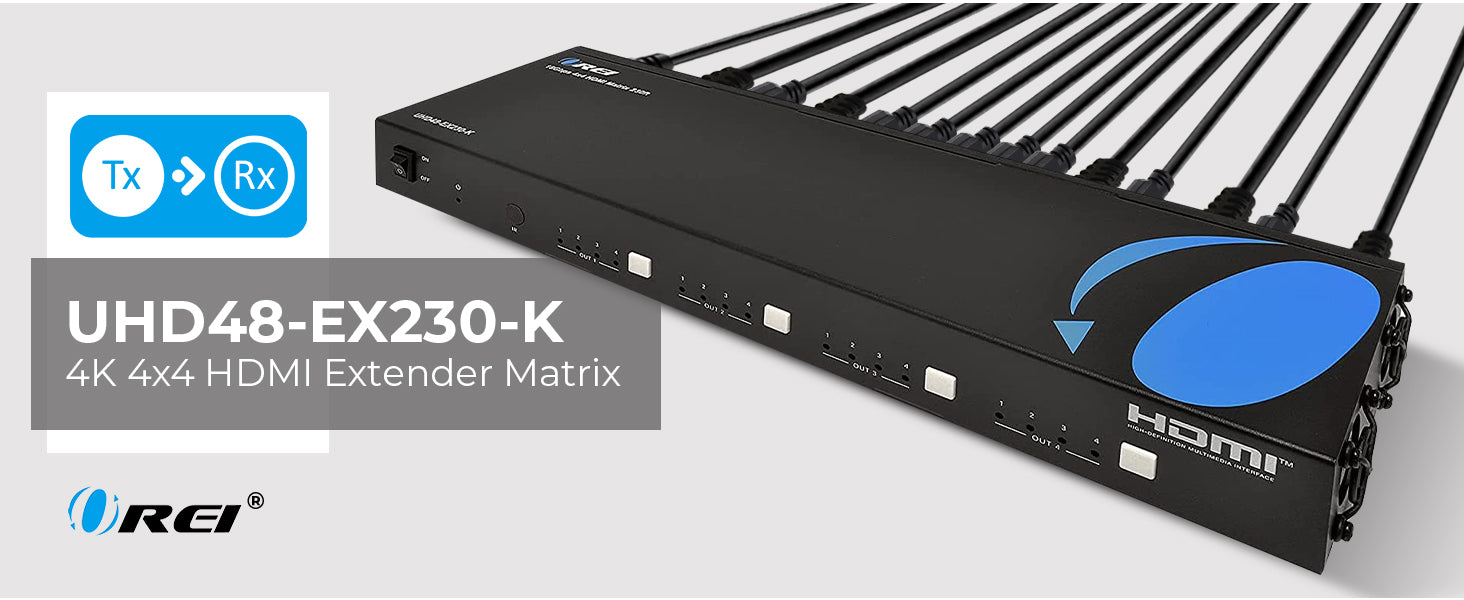

The UHD48-EX230-K is an HDMI Matrix Extender featuring 4 inputs, 4 HDMI loop outputs, and 4 CAT outputs. It can extend all 4 inputs to displays up to 230 feet away from the transmitter. The device is HDMI 1.4 and HDCP 1.4 compliant, supporting video resolutions up to 4K@60Hz and 2K@60Hz and a video bandwidth of 18Gbps, with HDR10+, Dolby Vision, and HLG pass-through. It can downscale the resolution from 4K to 1080p for all outputs. HDMI audio pass-through of up to 7.1 channels of HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio). The device offers advanced EDID management and CEC control. Power over Cable (PoC) functionality allows all receivers and the transmitter unit to be powered through a single power adapter. Control the unit via front panel buttons, IR remote, RS-232, LAN, or the WebGUI interface. Perfect for both personal and commercial use.
UHD48-EX230-K User Manual Download
UHD48-EX230-K Specifications Sheet
UHD48-EX230-K RS-232 Commands
UHD48-EX230-K IR Codes
UHD48-EX230-K Control 4 Driver
UHD48-EX230-K Hex Codes
