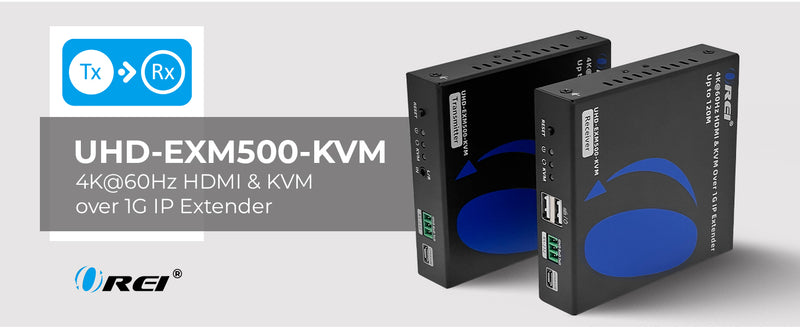

4K@60hz HDMI™ Extender (Over 1G IP, Loop, KVM) - 500ft (cat6)-UHD-EXM500-KVM
-
4K Over IP KVM Extender
-
Extends HDMI and KVM up to 500 feet
-
Control via RS-232 commands
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
1. Professional 4K HDMI & KVM Extender with ipcolor STREAM
The UHD-EXM500-KVM is a high-performance HDMI extender that leverages advanced ipcolor STREAM technology to deliver ultra-low latency, visually lossless 4K@60Hz video and audio over distances up to 500 feet (150 meters). Compatible with HDMI 2.0 and HDCP 2.2 standards, it provides 18Gbps bandwidth for rich, uncompressed AV signals, ideal for commercial applications, control rooms, digital signage, and enterprise-level installations.
2. KVM Over Cat6 with Flexible Connectivity Options

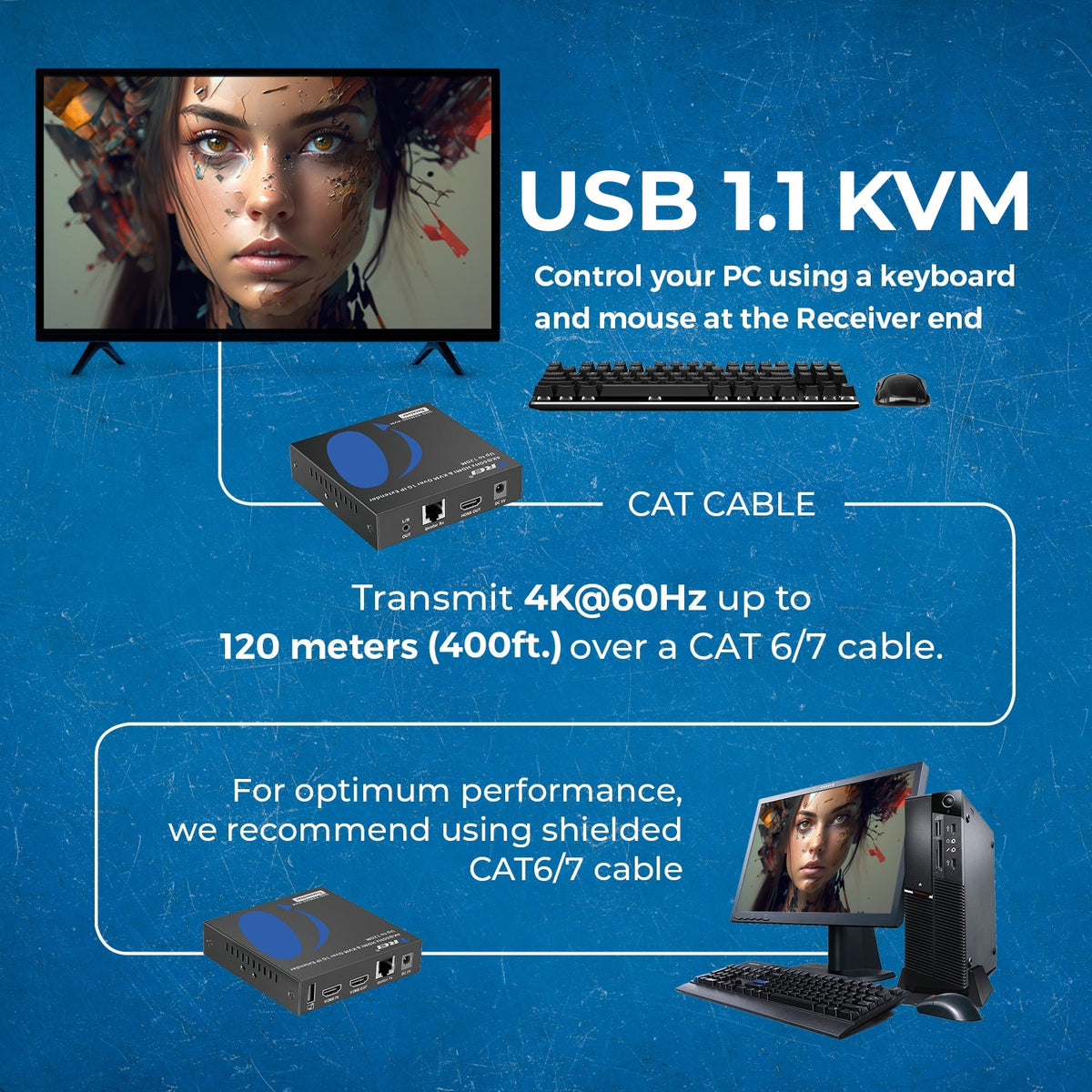

This 4K KVM extender supports USB keyboard and mouse extension, enabling full control of a remote computer from the receiver side. It works over Cat5e/6/6A/7 cables and supports both point-to-point and one-to-many connections via standard Ethernet switches—making it highly adaptable for a wide range of deployment scenarios. HDMI loop-out on the transmitter allows for local monitoring or dual-display setups.
3. Built for Integration and Scalability
The UHD-EXM500-KVM includes RS-232 support for third-party system control integration, micro USB ports for future firmware updates, and compatibility with HDMI over IP configurations. Whether you need to extend HDMI over Cat6 for a single station or scale to multiple receivers across a network, this device offers a reliable and easily scalable solution for high-resolution AV transmission and remote device control.
4. Rugged, Reliable & Ready for Demanding Environments
Built-in lightning, surge, and ESD protection ensure system reliability even in mission-critical installations. This cat 6 HDMI extender is engineered for long-term stability and performance in both residential and commercial settings. Whether you're implementing HDMI over IP, remote KVM control, or a Cat6 extender for high-resolution AV, the UHD-EXM500-KVM delivers uncompromising quality and control.
OREI 4K Over IP KVM Extender Up To 500 Feet- With RS-232
-
HDMI 2.0 and HDCP 2.2 compliant
-
Video resolutions up to 4K@60Hz 4:4:4
-
18 Gbps Video Bandwidth
-
Loop output port on the transmitter to connect a display at the source
-
It extends HDMI & USB KVM signals to up to 500 Feet
-

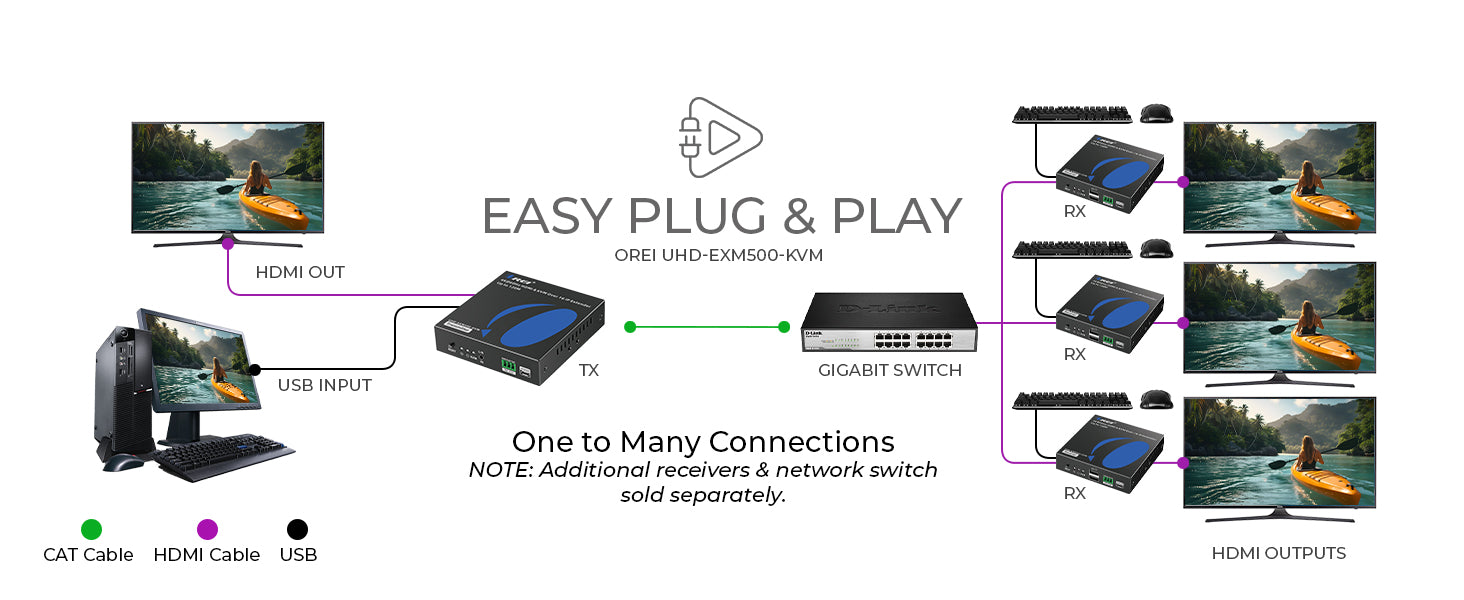

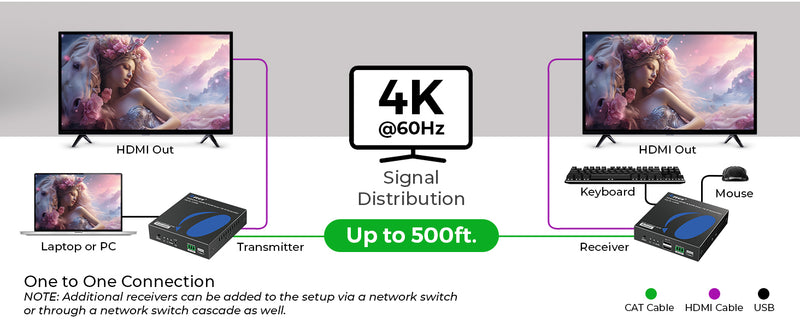

This device can function with one to one or one to many configurations
-
Use a standard network switch for one to many configuration
-
Please note that this device will not work over your existing network switch, it requires a dedicated switch
-

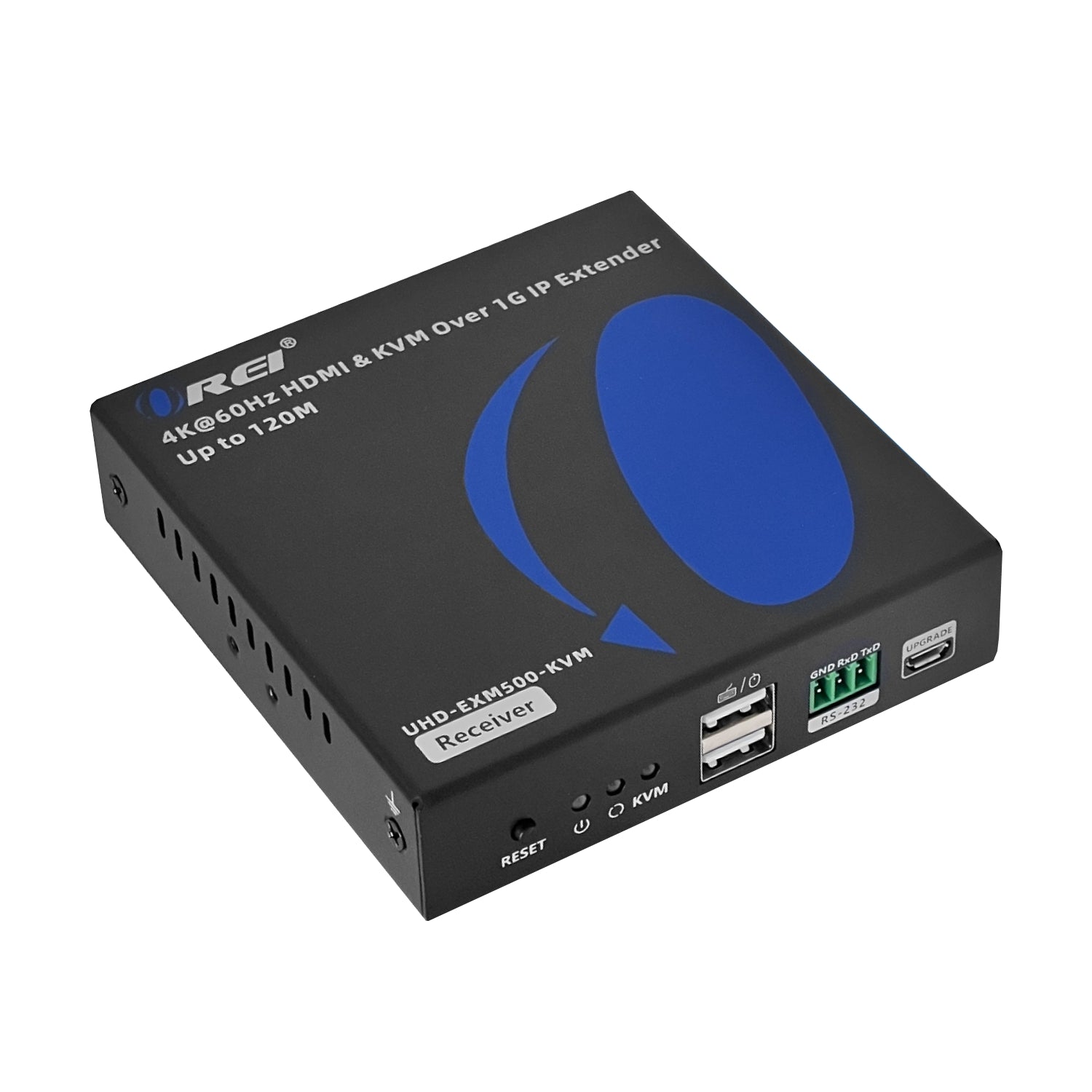

2 USB A ports on the receiver for connecting keyboard-mouse and 1 USB A port on the transmitter for connecting to the host device.
-
RS-232 pass-through for easy control using the RS-232 commands
-

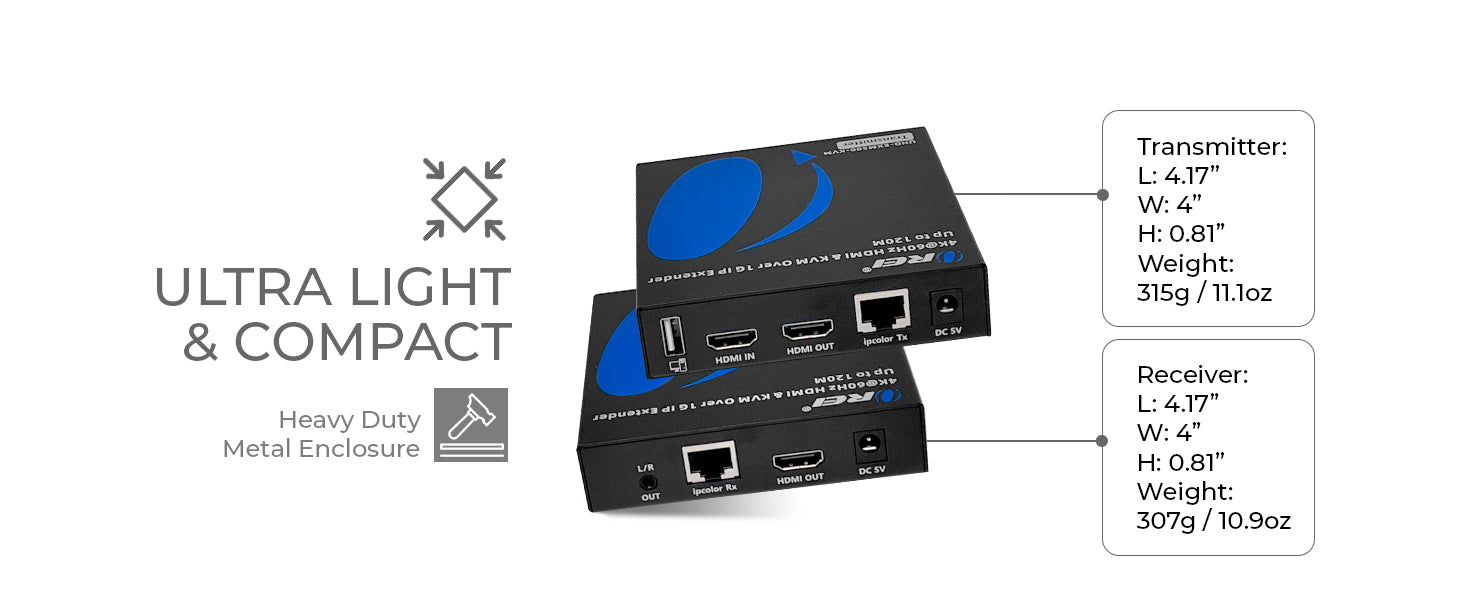

Compact design for easy and flexible installation
-
Perfect for commercial and personal uses.
The UHD-EXM500-KVM is an over IP HDMI and KVM extender that extends HDMI and KVM signals up to 500 feet over a CAT cable. It supports one-to-one and one-to-many configurations using a dedicated network switch. Please note that this device will not work over your existing network switch it requires a dedicated network switch. It is compliant with HDMI 2.0 and HDCP 2.2 standards, with a video bandwidth of up to 18Gbps. It supports video resolutions up to 4K@60Hz 4:4:4. The transmitter has 1 USB 2.0 port for connecting the host, while the receiver has 2 USB 2.0 ports for a keyboard and mouse. The device features an HDMI loop output port to connect a display and a 3.5mm AUX port on the receiver for audio extraction. RS-232 pass-through for easy control via the RS-232 commands. Compact design with an easy installation. Perfect for commercial and personal setups.
UHD-EXM500-KVM User Manual Download
UHD-EXM500-KVM Specifications Sheet
