8K HDMI & KVM Extender over HDBaseT 3.0 up to 330 feet (BK-EXB330EAU-K)

$699.99 USD $999.99

SKU: BK-EXB330EAU-K

KVM and ARC/eARC functionality
4K@120HZ or 8K@30HZ up to 295 feet
HDBaseT 3.0 technology

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Add To Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

View details

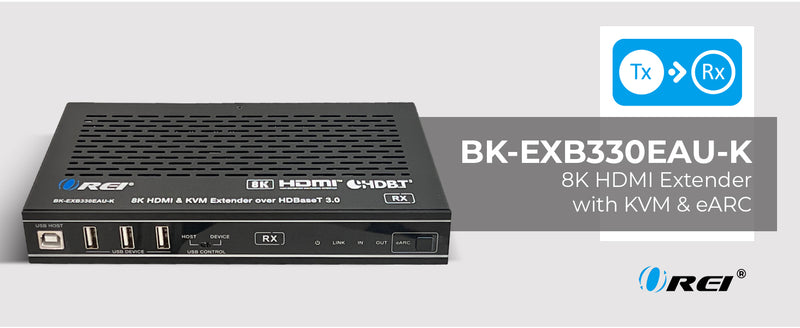

8K HDMI & KVM Extender over HDBaseT 3.0 up to 330 feet (BK-EXB330EAU-K)

1. Next-Generation HDMI 2.1 Extension with HDBaseT 3.0

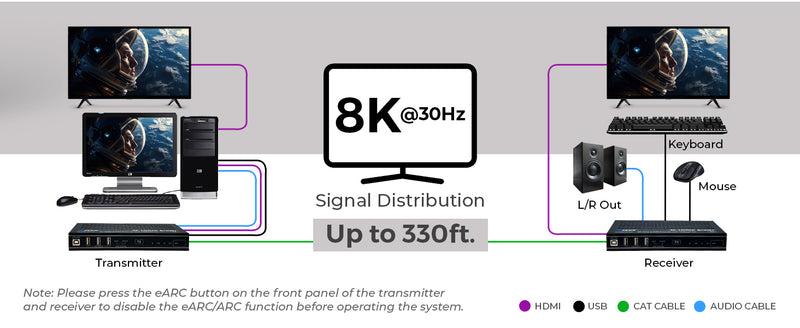

The BK-EXB330EAU-K HDMI Extender is built to meet the demands of high-performance AV environments, supporting resolutions up to 8K@30Hz and 4K@120Hz over a single CAT6A/7 cable. Powered by HDBaseT 3.0, it ensures uncompressed transmission of video, audio, USB, Ethernet, and control signals up to 330 feet (100 meters) with unmatched stability and quality.

2. Immersive Audio & Gaming Optimization

This extender supports ARC/eARC audio return, making it ideal for routing audio from modern TVs to AV receivers over long distances. It’s also built with gamers in mind—featuring support for VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and FVA (Fast V Active), providing smooth, low-latency visuals and high refresh rates for the ultimate gaming experience.

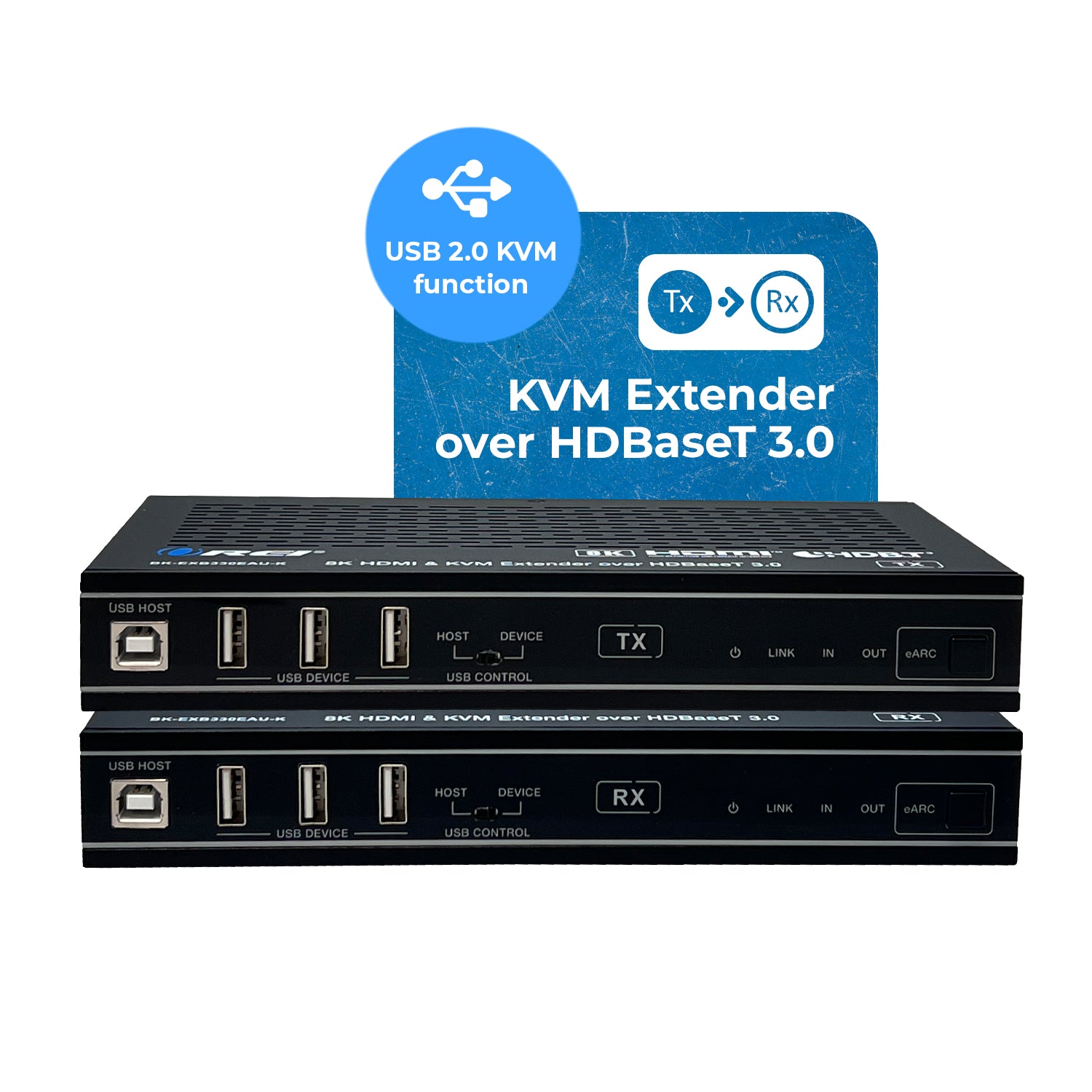

3. Advanced Video Format & KVM Support

Enjoy full compatibility with premium video standards such as HDR10+, Dolby Vision, and HLG pass-through for incredible color accuracy and contrast. With USB 2.0 KVM functionality (up to 350Mbps), users can remotely control connected devices like PCs or media servers using a keyboard and mouse—perfect for both entertainment and control center applications.

4. Intelligent Features & Simplified Installation

Designed for flexibility, the BK-EXB330EAU-K includes bi-directional 24V PoC, requiring only one power adapter for both ends. EDID management via DIP switches allows precise source-display coordination. Whether for home theaters, eSports setups, or professional AV installations, this 8K HDMI extender delivers powerful performance, intuitive control, and effortless integration over Ethernet.

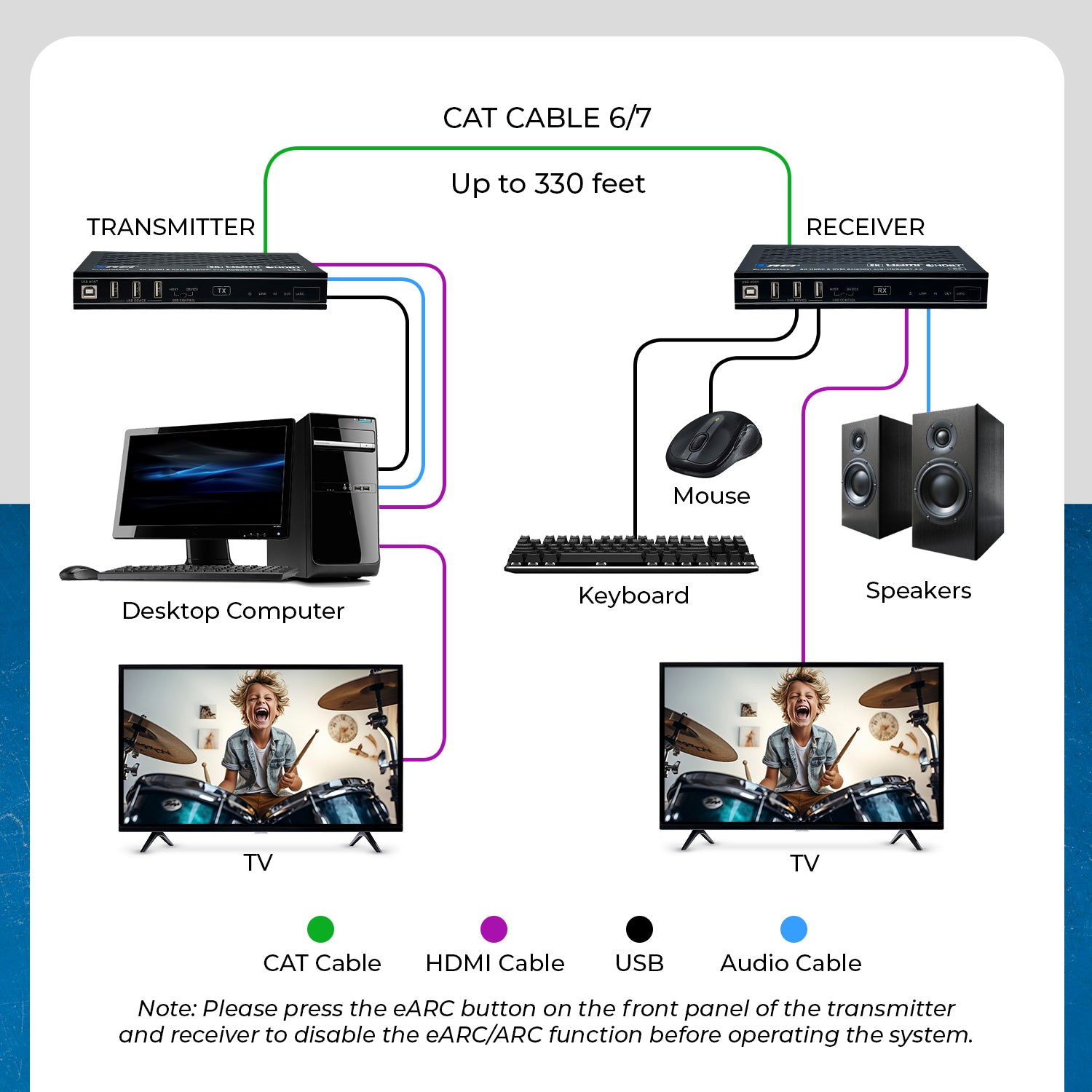

Setup

Compatibility

Dimensions

Includes

BK-EXB330EAU-K: 8K HDMI & KVM Extender over HDBaseT 3.0 up to 330 feet

Key Features:

HDMI 2.1 & HDCP 2.3 compliant
40Gbps FRL & 18Gbps TMDS video bandwidth
Video resolutions up to 8K@30Hz and 4K@120Hz
HDBaseT 3.0 technology
ARC/eARC Audio Extraction
VRR, ALLM, FVA support
HDR10+, Dolby Vision, and HLG pass-through
USB 2.0 KVM function with speeds up to 350Mbps
HDMI audio formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
Advanced EDID management through EDID DIP switch
Bi-directional 24V POC (Power Over Cable) function

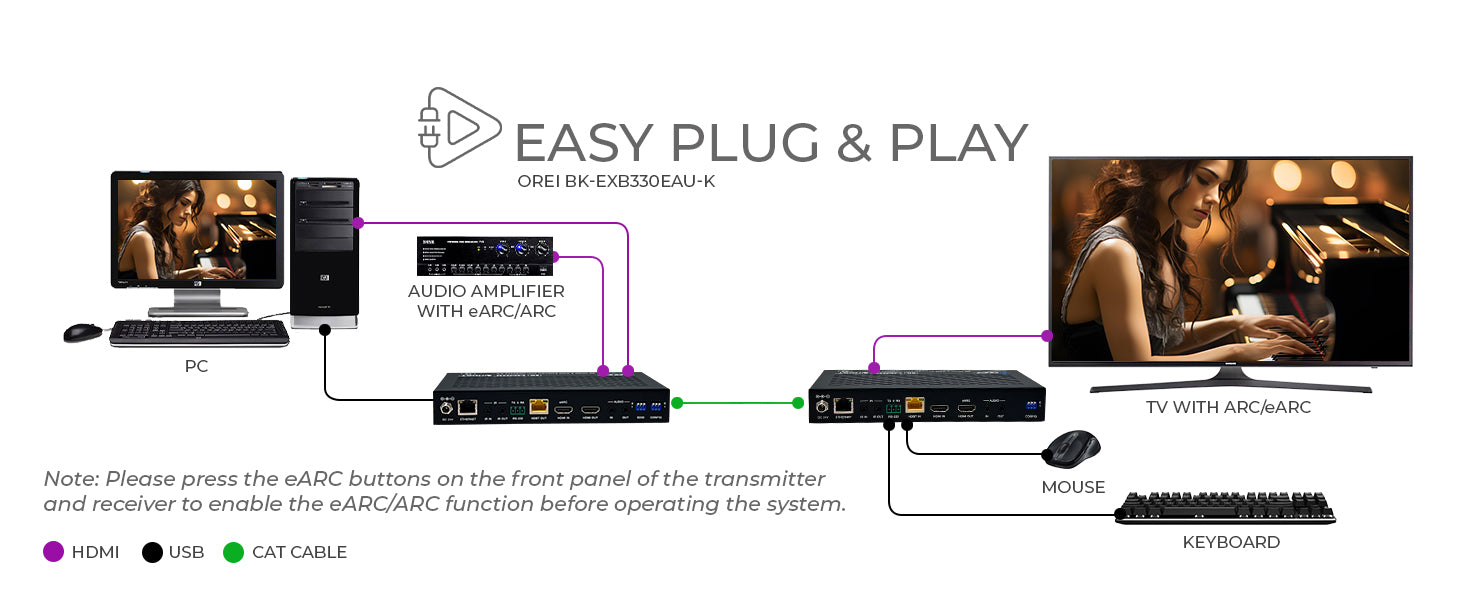

The BK-EXB330EAU-K HDMI extender is a versatile device capable of transmitting uncompressed video, audio, ARC/eARC, RS-232, and USB 2.0 signals up to 295 feet using only a single CAT 6A/7 cable. It supports video resolutions up to 8K@30Hz and 4K@120Hz featuring HDR10+, Dolby Vision, HLG pass-through, and advanced EDID management. With the ARC/eARC function, you can seamlessly connect an eARC-enabled TV with an AVR even if they are far apart. Additionally, it comes with bi-directional IR functionality and 24V Power over cable (PoC) with HDBaseT 3.0 technology, making it a perfect solution for home theater setups.

CONNECTIVITY

Transmitter:	INPUT:	1 × HDMI [Type A, 19-pin female]
		1 × L/R IN [3.5mm Stereo Mini-jack]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
		1 × HDBaseT [RJ45, 8-pin female]
		1 × L/R OUT [3.5mm Stereo Mini-jack]
	CONTROL:	1 × IR IN [3.5mm Stereo Mini-jack]
		1 × IR OUT [3.5mm Stereo Mini-jack]
		1 × RS-232 [3pin phoenix connector]
		1 × USB HOST [USB Type B]
		3 × USB Devices [USB Type A]
		1 × ETHERNET [RJ45]
Receiver:	INPUT:	1 × HDMI [Type A, 19-pin female]
		1 × HDBaseT [RJ45, 8-pin female]
		1 × L/R IN [3.5mm Stereo Mini-jack]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
		1 × L/R OUT [3.5mm Stereo Mini-jack]
	CONTROL:	1 × IR IN [3.5mm Stereo Mini-jack]
		1 × IR OUT [3.5mm Stereo Mini-jack]
		1 × RS-232 [3pin phoenix connector]
		1 × USB HOST [USB Type B]
		3 × USB Devices [USB Type A]
		1 × ETHERNET [RJ45]

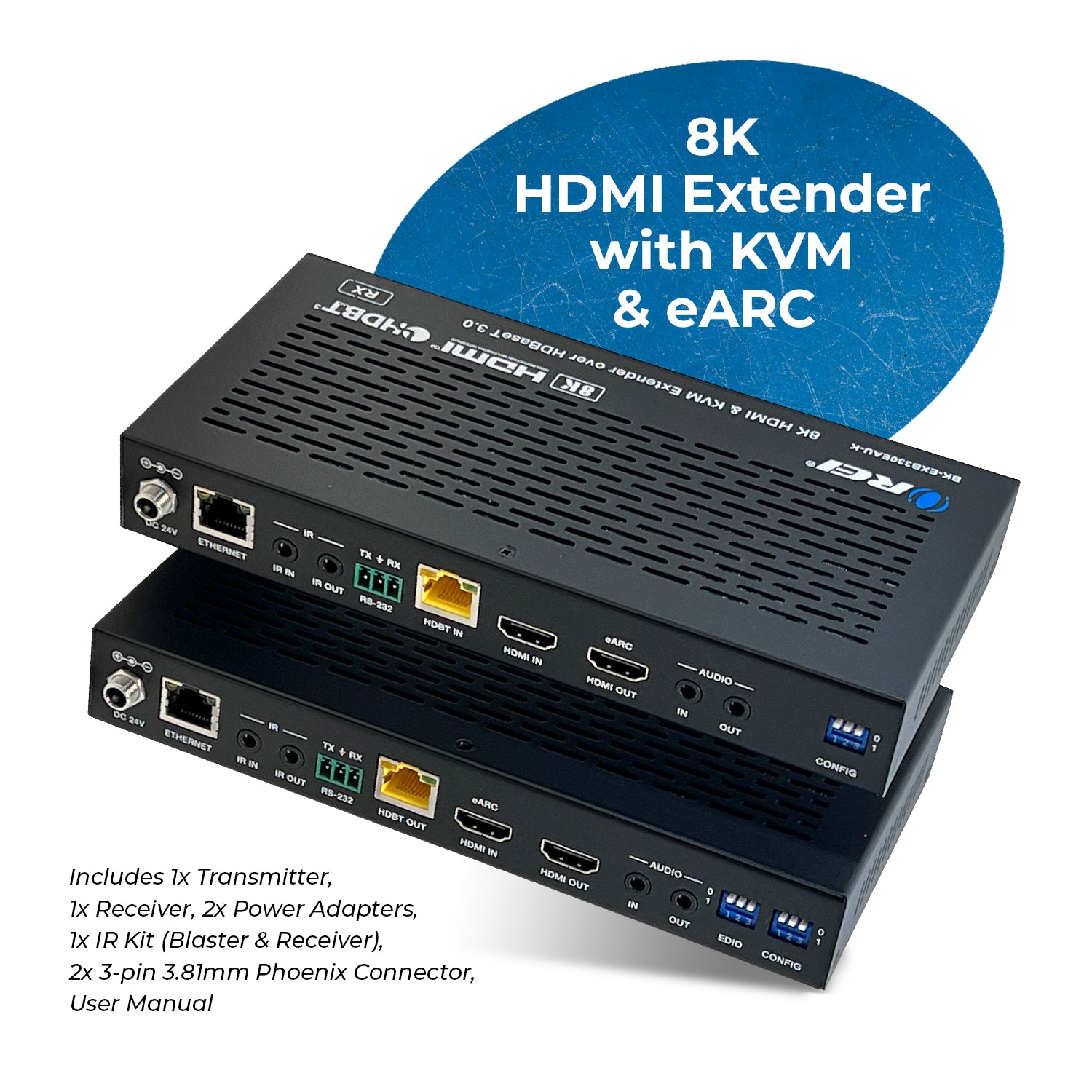

PACKAGE CONTENTS

1x Transmitter

1x Receiver

1x IR Blaster cable

1x IR Receiver cable

2x RS-232 3-pin Phoenix connector

4x Mounting Brackets

8x Screw

8x Rubber feet

1x Power Adapter

User Manual

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@120HZ:	295 Feet
8K@30HZ:	295 Feet

VIDEO OUTPUT

Video Bandwidth:	40Gbps FRL and 18Gbps TMDS
Video Resolutions:	Up to 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit

ADDITIONAL FEATURES

CEC:	No
ARC:	Yes
USB KVM:	Yes
PoC/PoE:	Yes
IR Control:	Yes
Downmix:	No
Downscale:	No
Over IP:	No
HDBaseT:	Yes
RS-232:	Yes

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

AUDIO SUPPORT

HDMI Audio Formats:	LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-HD Master Audio, DSD
3.5mm Analog Audio Formats:	PCM 2CH

COMPLIANCES

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3

POWER

Power Consumption:	20.4W (POC) TX/RX full load: 9.36W/9.84W; TX/RX no-load: 2.46W/3.36W
Power Supply:	Input: AC 100-240V 50/60Hz
	Output: DC 24V/2.7A

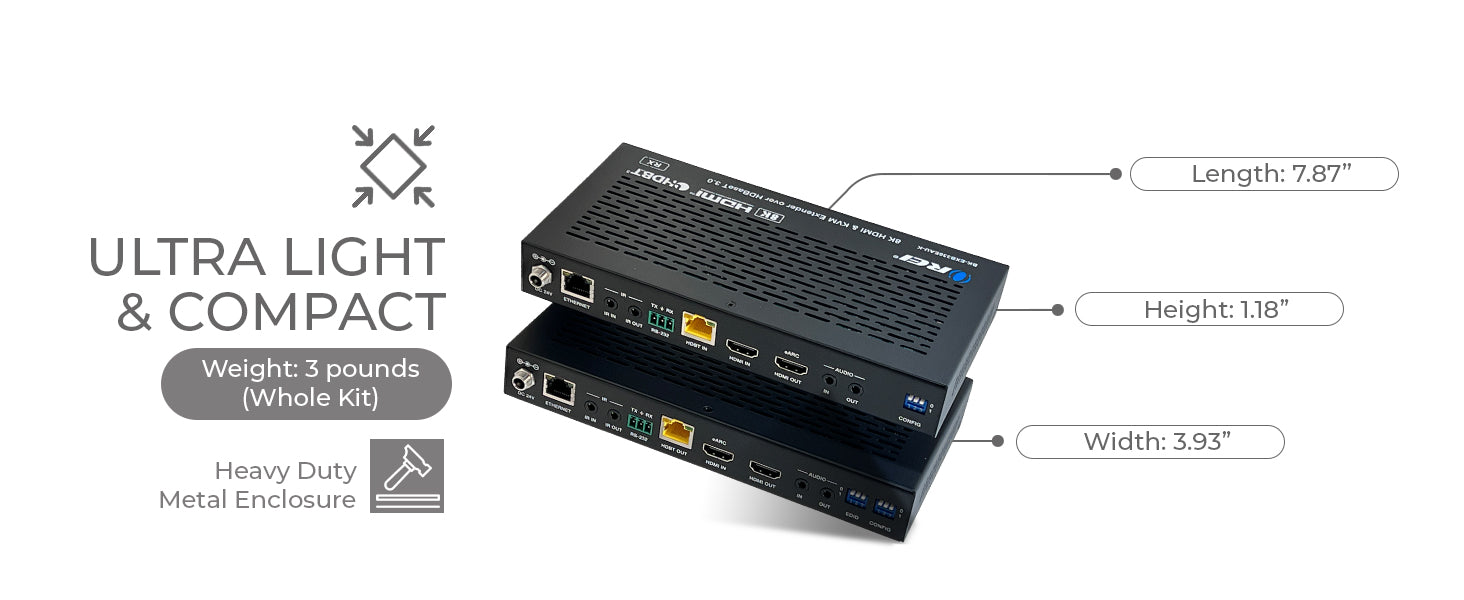

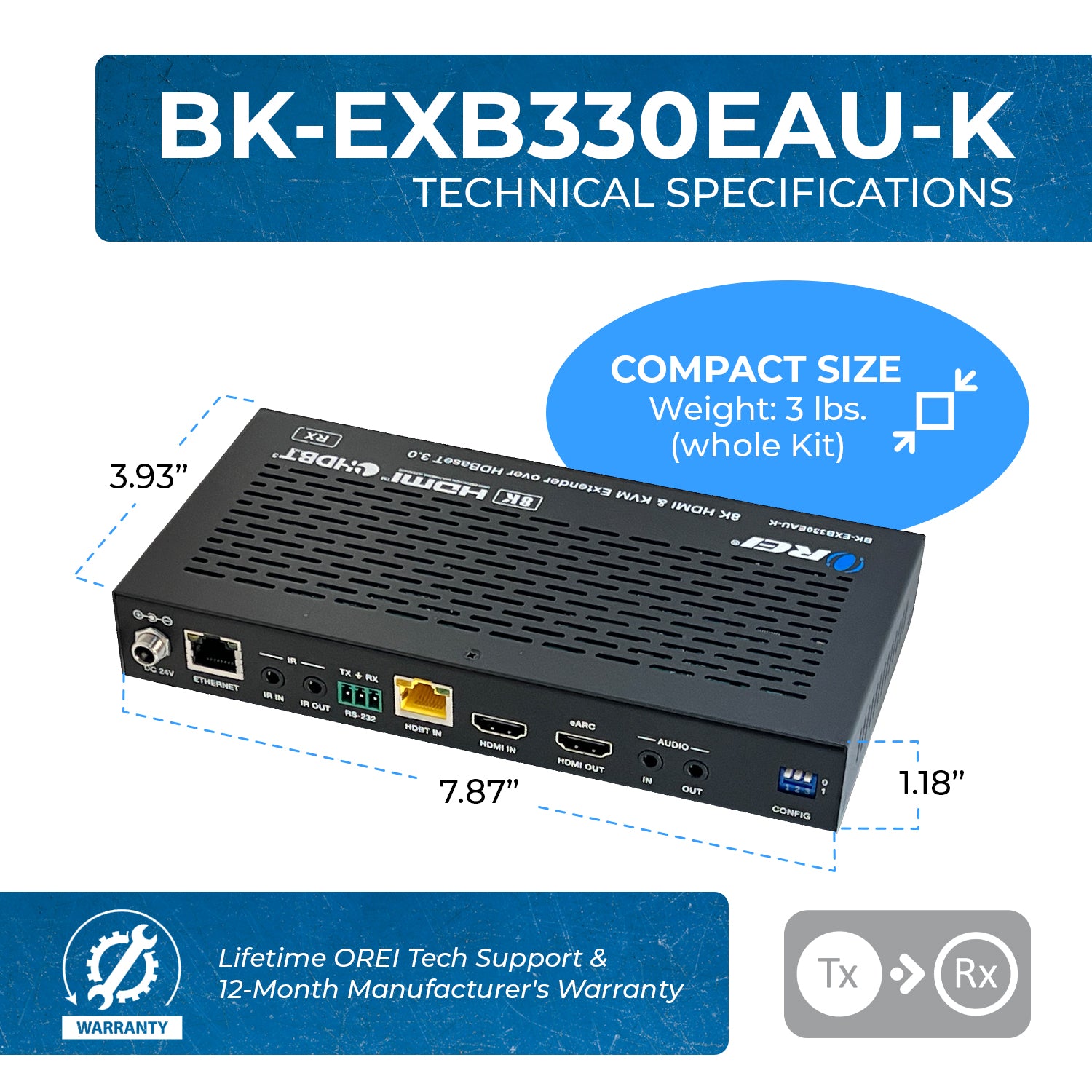

DIMENSIONS & WEIGHT

Transmitter:	Length:	200mm / 7.87in
	Width:	100mm / 3.94in
	Height:	30mm / 1.18in
	Weight:	571g / 20.14oz
Receiver:	Length:	200mm / 7.87in
	Width:	100mm / 3.94in
	Height:	30mm / 1.18in
	Weight:	571g / 20.14oz

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

BK-EXB330EAU-K User Manual Download

BK-EXB330EAU-K Specifications Sheet

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

No, this product doesn't upscale/downscale the video resolutions.

You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

You can upgrade the firmware by connecting the PC & this device via RS-232 cable.

Please note that this product only supports the CEC function between HDMI input & HDMI output 1.

No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.

HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.

In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.

We recommend you using a shielded CAT6 cables for optimum performance.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
