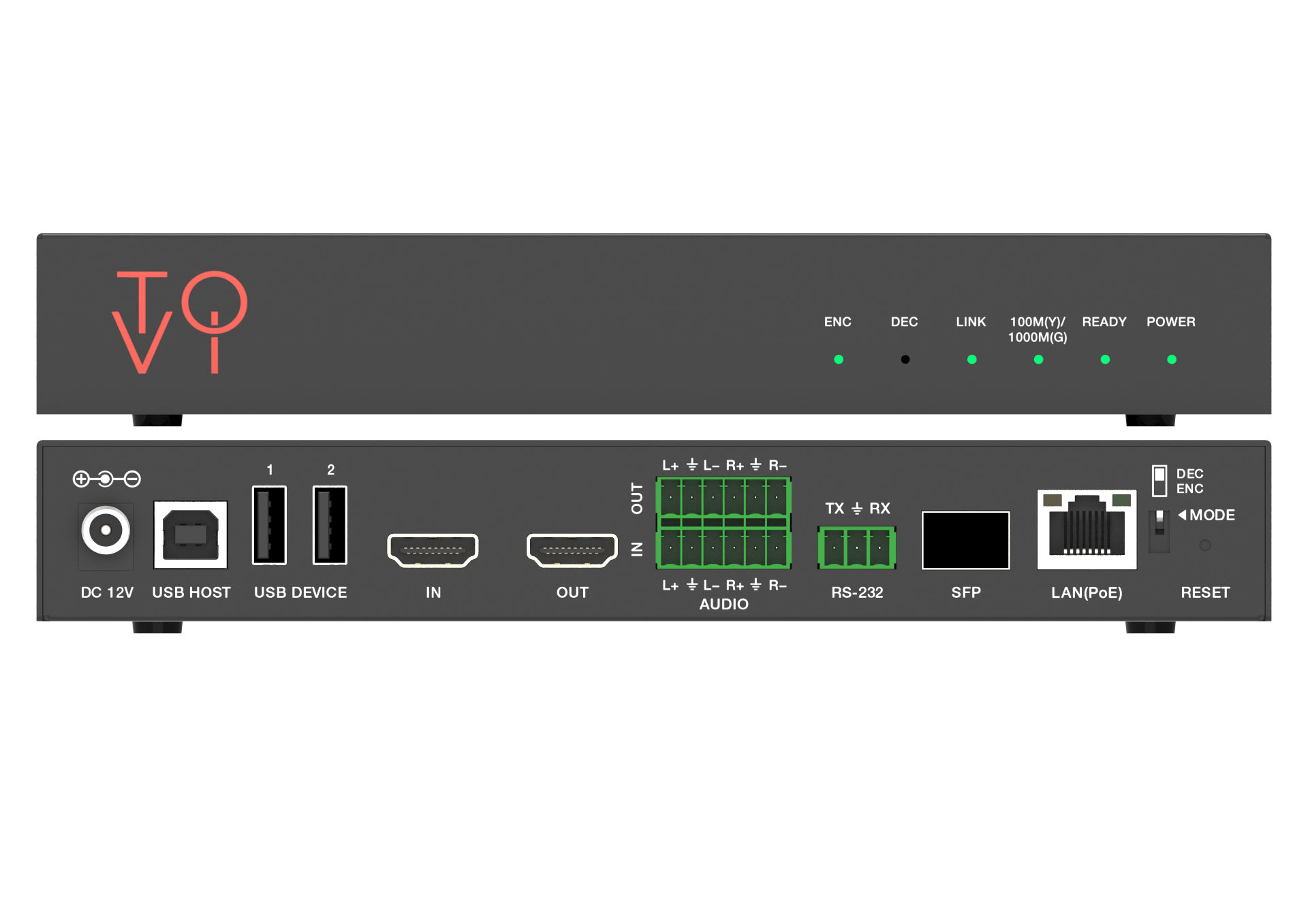

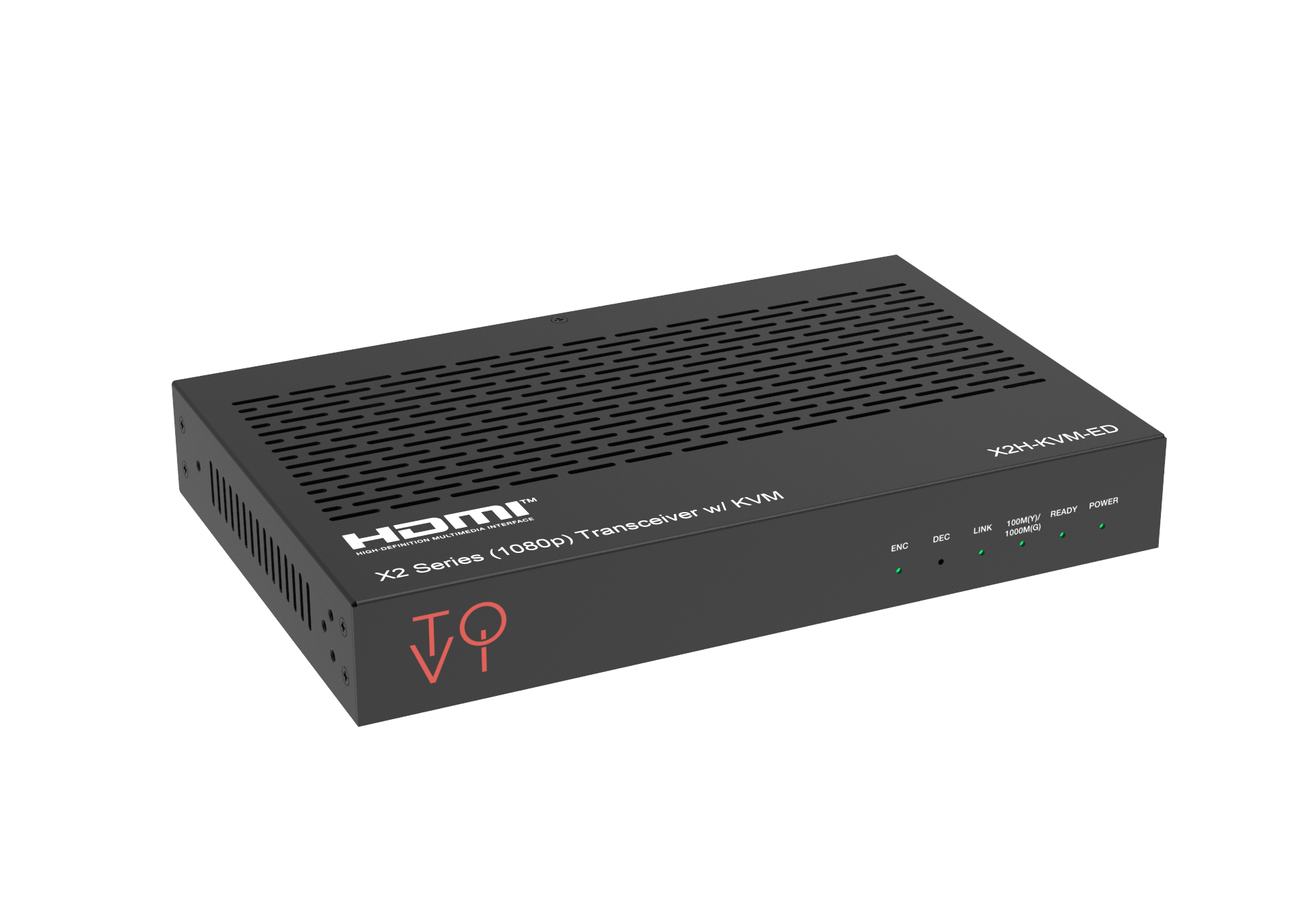

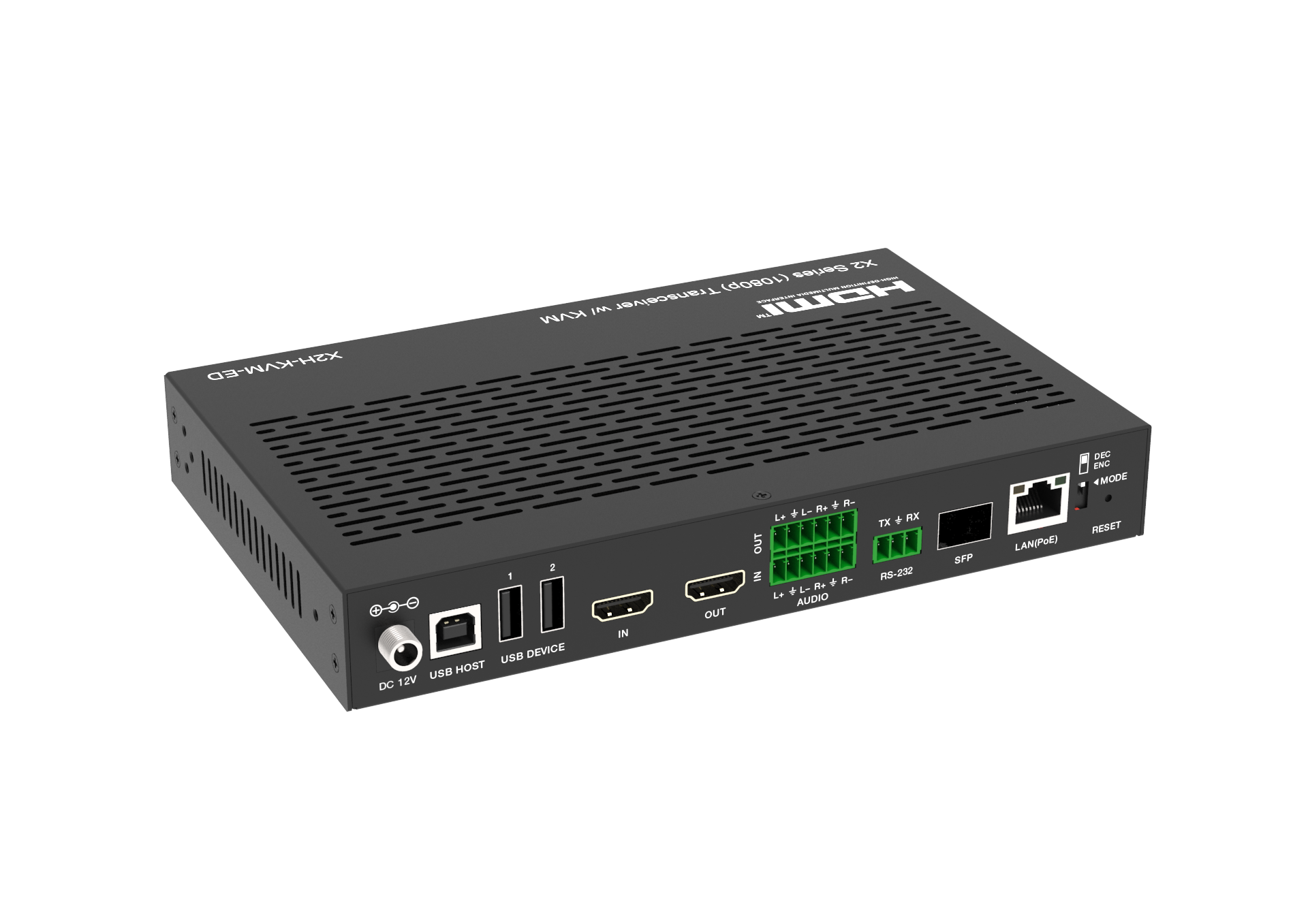

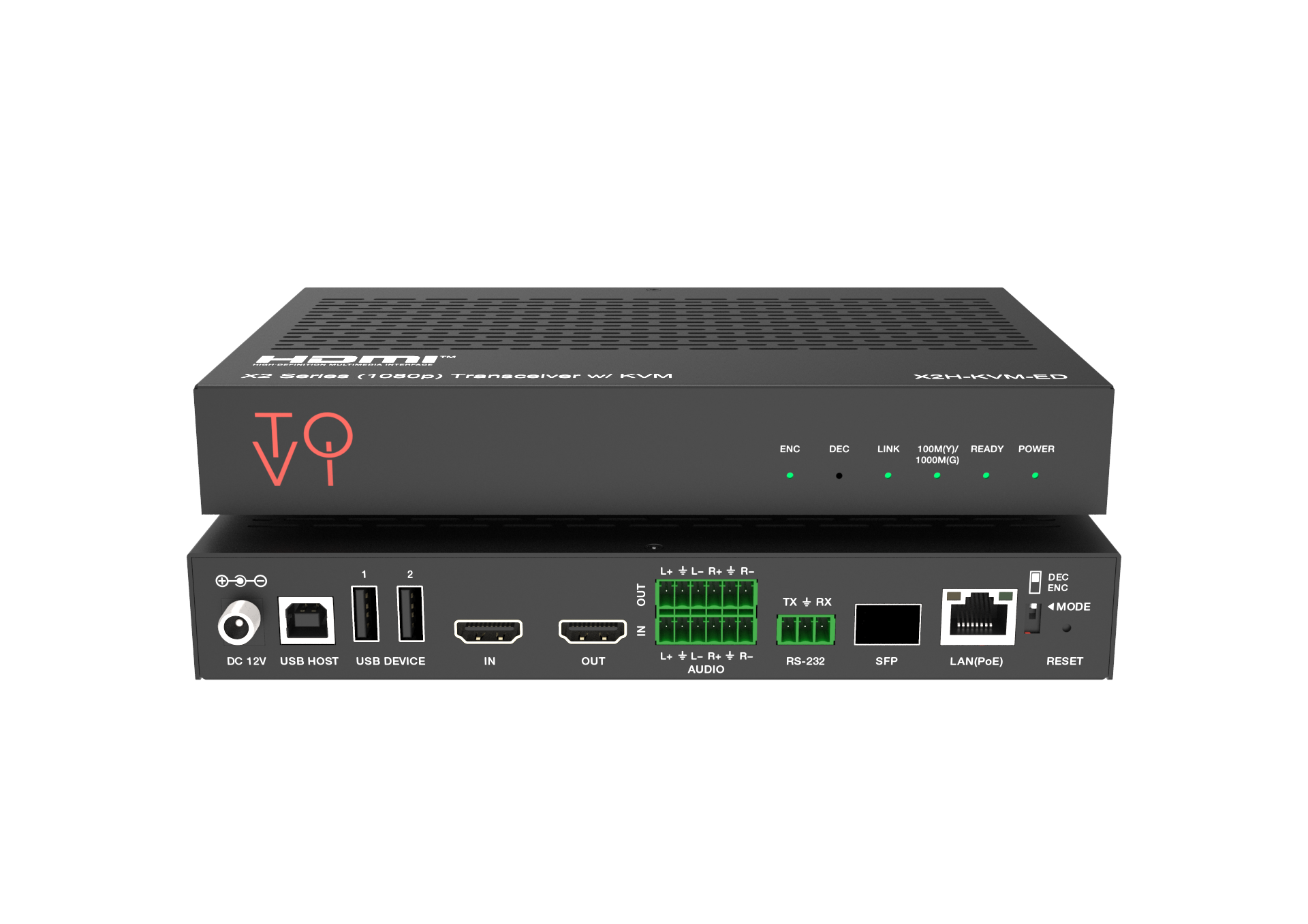

ToVi X2 Series (1080p) Transceiver w/ KVM (X2H-KVM-ED)

ToVi X2 Series (1080p) Transceiver w/ KVM

• HDCP 1.4 Compliant – Ensures compatibility with protected UHD content.
• Video Resolutions up to 4K@30Hz & 1080p@60Hz – Delivers crystal-clear visuals with 4.95Gbps bandwidth for uncompromised signal quality.
• Long distance transmission – Transmit audio/video signals up to 328ft/100m.
• 4:2:2 encoding/decoding – Delivers accurate color restoration for vivid imagery.
• Dual-Function Device – Can be configured as either a transmitter or receiver, switchable based on application needs.
• High-definition background images and multi-screen splicing – Allows flexible, expansive display setups.
• LPCM 2.0CH Audio Support – Maintains high-fidelity sound at 48kHz sampling.
• Multi-Window Roaming and Splicing – Each decoder supports up to 16 sources with dynamic window management and overlay.
• KVM Functionality – Enables one-to-one or one-to-many PC control from a single user station.
• H.264/H.265 Protocol Support – Seamless integration with IP cameras and surveillance systems.
• Scrolling Text & Character Overlay – Supports on-screen alerts, labels, and dynamic content overlay.
• Video Wall & Signal Routing Over 1G Network – Facilitates point-to-point extension, multicast, and matrix switching.
• User Rights Management – Secure access control across all endpoints.
• Flexible Control Options – Operate via KVM, mobile app, or supported control servers (X2UH-CB).
• Standard PoE (802.3af Class 3) – Simplifies power delivery with no need for external adapters.
• HDMI™ Local Loop-Out & Audio Extraction – Enhances system flexibility for local monitoring and audio routing.
• Integrated Encoder & Decoder Design – Compatible with Fiber Optic and RJ45 for flexible transmission.

The X2H-KVM-ED is a high-performance AV-over-IP solution for advanced video distribution, system control, and flexible display management. It supports HDMI 1.4 & HDCP 1.4 and delivers 4K@30Hz & 1080p@60Hz video with 4.95Gbps bandwidth, ensuring ultra-HD quality. With LPCM 2.0CH 48kHz audio, it also features audio routing with 6-pin phoenix Analog input and output. The combined encoder/decoder desig allows you to configure it as either a transmitter or receiver. It supports both Fiber optic and RJ45 for signal transmission up to 328ft/100m.

Each decoder handles up to 16 signals, allowing window roaming, splicing, overlay, and multi-window display—ideal for control rooms, command centers, and digital signage. The system features KVM seat management for oneto-one or one-to-many PC control.

It supports H.264/H.265 protocols for seamless IPC and camera integration, with point-to- oint extension, character overlay, scrolling text, and HD video/image backgrounds. Over a 1G network, it enables distribution, multicast, matrix switching, and video wall setups with centralized user rights management.

Control is flexible via KVM, mobile app, or control unit (X2UH-CB). Additional features include PoE, HDMI™ loop-out, and audio extraction, making the X2H-KVM-ED a complete, scalable AV-over-IP solution.
