4K@60hz 8x8 HDMI™ Matrix (Audio Extract)-UHD-808
- 8 Inputs - 8 output HDMI Matrix switch
- Video resolution up to 4K@60Hz and 2K@60Hz
- Compliance: HDMI 2.0b, HDCP 2.2 and HDCP 1.4
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability

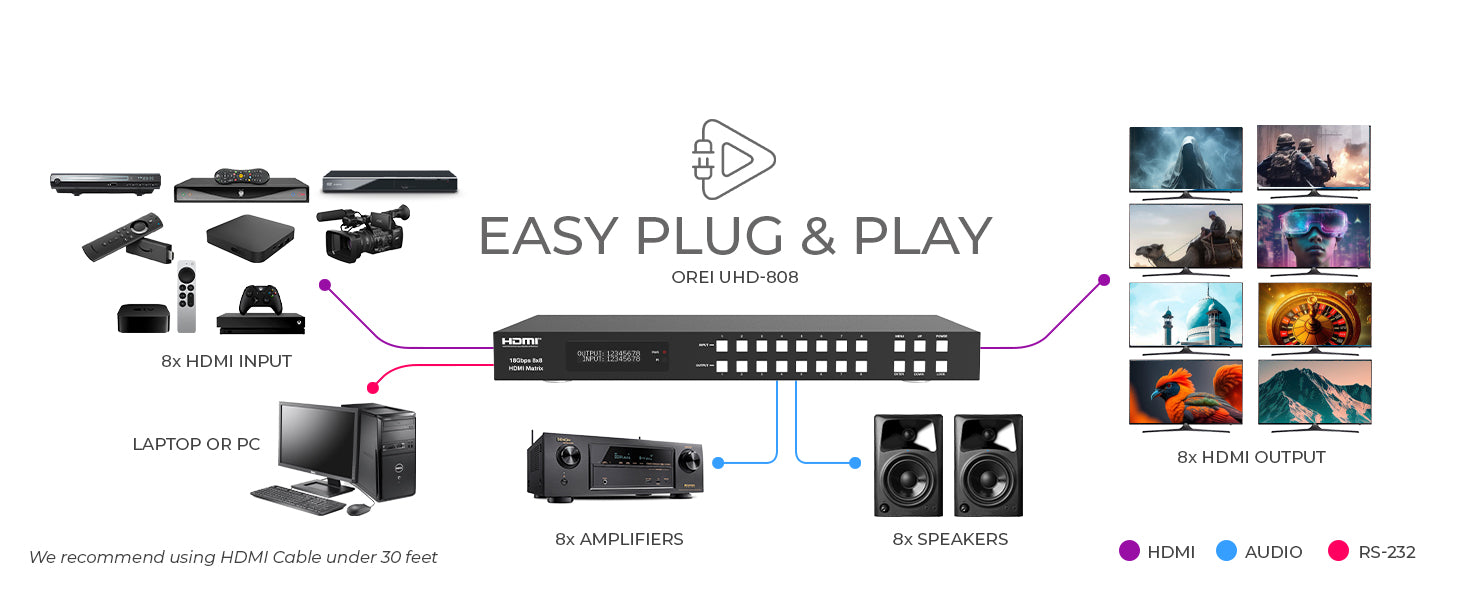

1. Professional 8x8 Switching with Total Signal Control
The OREI UHD-808 is a robust HDMI matrix 8x8 solution, capable of routing video and audio from up to eight HDMI sources to any combination of eight displays. With flexible control options including front panel, IR remote, RS-232, LAN, and Web GUI, this matrix switch is ideal for commercial AV setups, professional control rooms, and advanced home theaters requiring precise signal management.
2. Crisp 4K@60Hz Video with HDR and Dolby Vision
Delivering true 4K performance at 60Hz (YUV 4:4:4), the UHD-808 ensures stunning video clarity with support for Dolby Vision, HDR10+, and HLG formats. Fully compliant with HDMI 2.0b, HDCP 2.2, and HDCP 1.4, this HDMI matrix switcher is compatible with both the latest UHD content and legacy devices. Its full 18Gbps bandwidth maintains uncompressed signal quality across every output.
3. Audio De-Embedding, ARC, and Multichannel Pass-through
Each HDMI output features built-in audio de-embedding, allowing you to extract audio through both analog and coaxial outputs independently. With support for up to 7.1-channel LPCM, Dolby TrueHD, and DTS-HD Master Audio, this switch HDMI matrix provides exceptional sound flexibility. ARC audio extraction via coaxial output is also supported for ARC-enabled displays, streamlining audio routing in complex systems.
4. Independent Downscaling and Smart EDID Management
Easily integrate newer sources with legacy displays using the UHD-808’s independent 4K to 1080p downscaling on each output. Its smart EDID functionality ensures optimal communication between all connected devices, while CEC support allows for simplified device control. Housed in a 1U rack-mountable chassis with an OLED status display, this matrix 8x8 is engineered for seamless installation and professional-grade reliability.

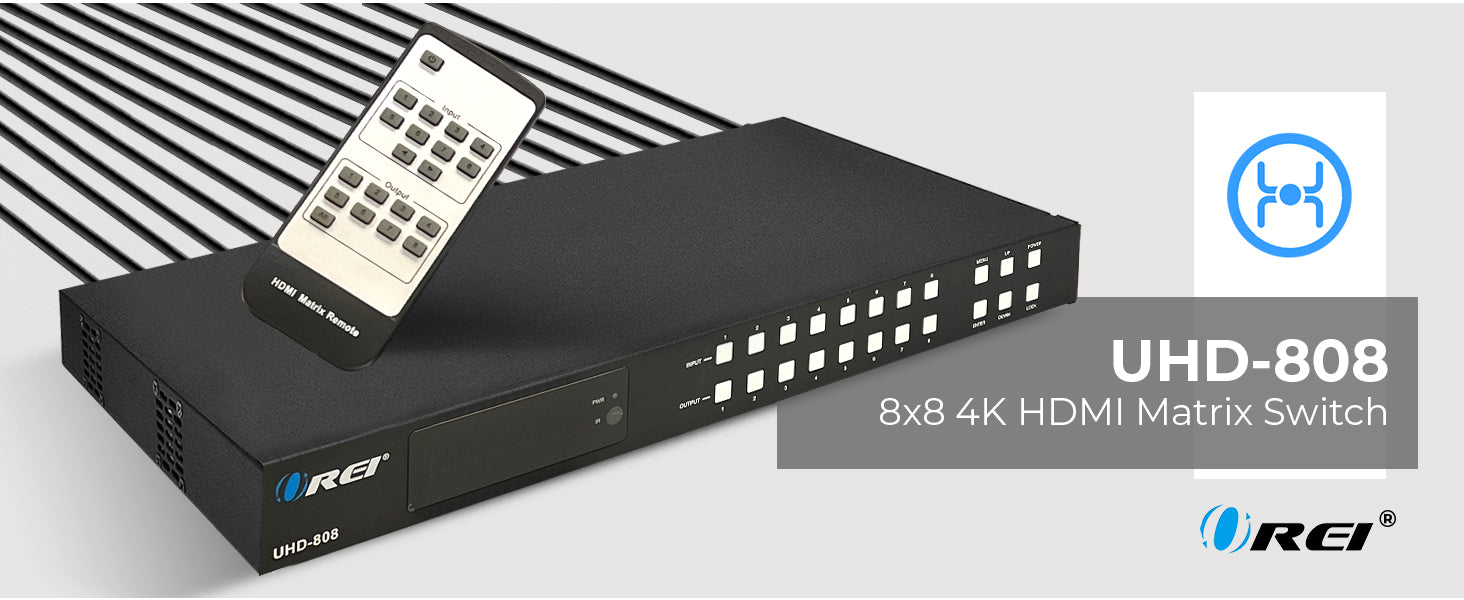

OREI UHD-808: ULTRA HD 8x8 HDMI MATRIX SWITCH
Key Features:
- HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
- Video resolution up to 4K@60Hz and 2K@60Hz on all HDMI ports
- Supports 18Gbps video bandwidth
- Dolby Vision, HDR 10+ and HLG are supported
- Supports 4K->1080P Down Scaler for each output port
- HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
- Audio de-embedded output is supported via analog and coax ports
- ARC, CEC and smart EDID management are supported

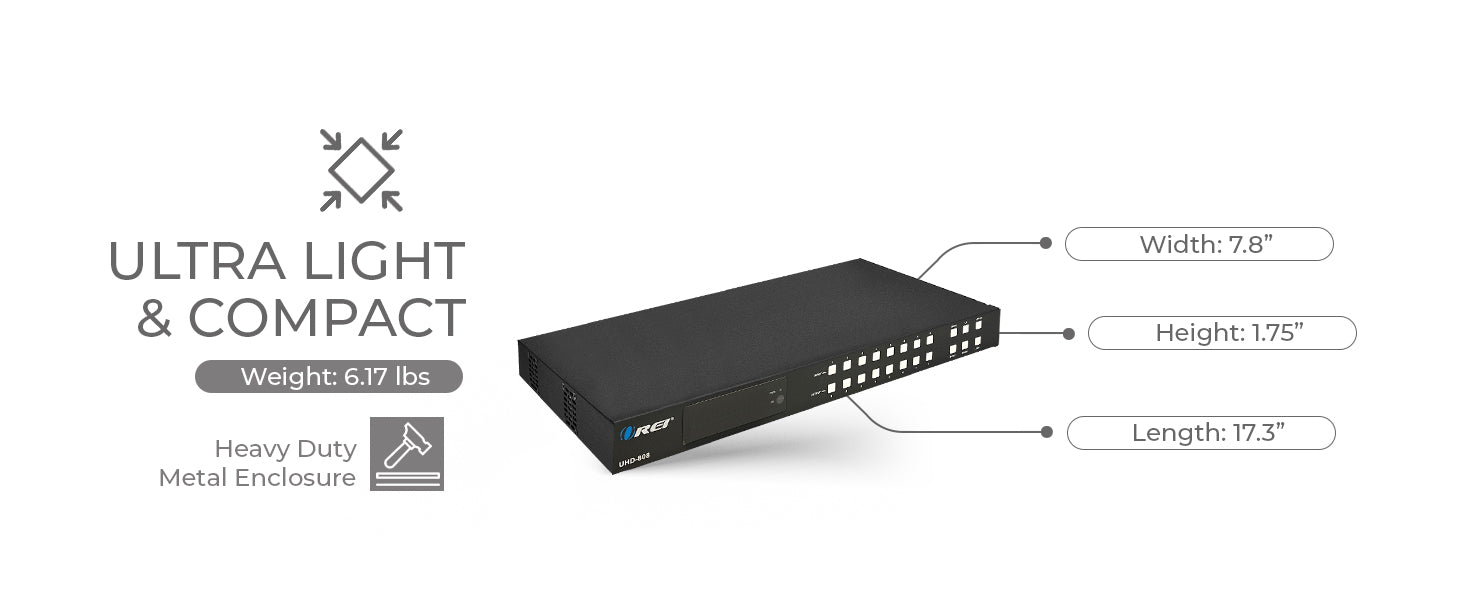

- 1U rack mounted design with front panel OLED display
- Control via front panel buttons, IR remote, RS-232, LAN and Web GUI

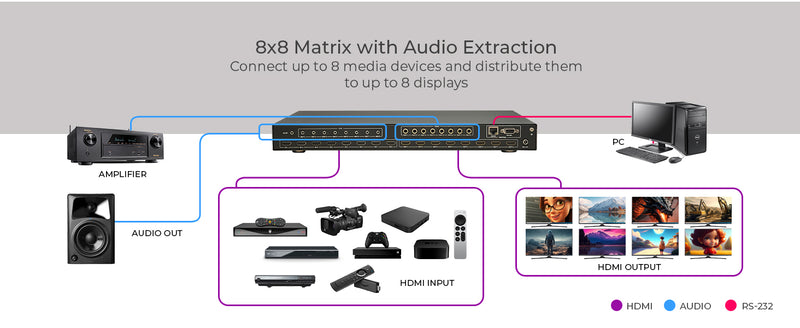

The UHD-808 Matrix supports the transmission of video (up to 4K@60Hz and 2K@60Hz) and multi-channel high resolution digital audio from 8 HDMI sources to 8 HDMI displays. Audio de-embedded to analog and coaxial audio is supported from 8 HDMI output ports.
While HDMI output ARC function is enabled, the ARC audio from HDMI display devices will be extracted to coaxial audio output.
Each HDMI output of this 8x8 HDMI Matrix supports 4K to 1080P downscaler independently. Control is via front panel buttons, IR remote, RS-232, LAN and Web GUI.
