4K@30hz 4-port HDMI™ Seamless Switch w/ Multi Viewer (Audio Extract)-HDS-401MV
- 4 In 1 Out Quad Multiviewer
- 4 different Multiview modes
- Analog output for audio extraction
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability

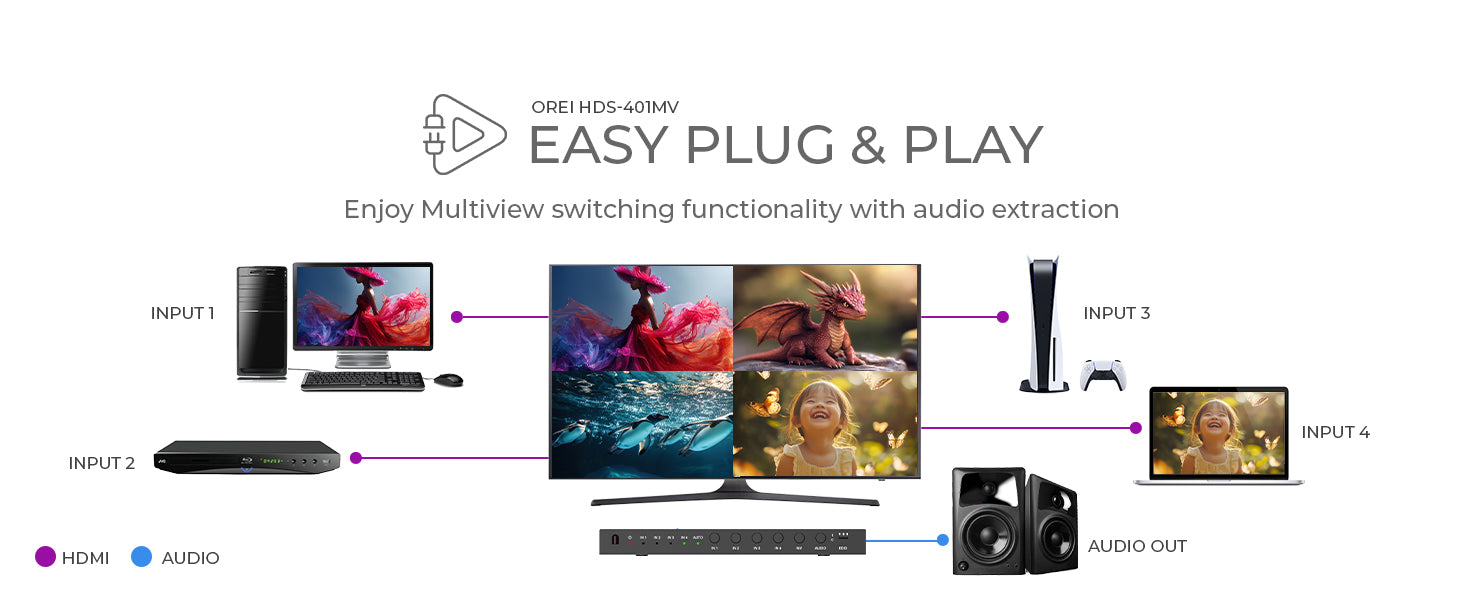

1. Compact Multiviewer with Flexible Display Modes
The HDS-401MV is a powerful yet space-saving HDMI multiviewer that allows you to view up to four HDMI sources on a single screen. With 7 versatile Multiview display modes—including full-screen, dual-view, quad-view, and PiP—it offers the flexibility needed for control rooms, presentations, and real-time monitoring. Whether for professional AV setups or home use, it’s a dynamic tool for managing multiple video inputs with ease.
2. Sharp 4K Video with Seamless Source Switching
Supporting resolutions up to 4K@30Hz and 10.2Gbps video bandwidth, this HDMI switch 4K ensures detailed, high-quality output across all input sources. In single-view mode, it provides seamless switching between sources with no screen blackout—ideal for live environments or quick source changes in a switch HDMI 4K setup. It’s fully HDCP 1.4 compliant, making it compatible with a wide range of media content.
3. Built-In Audio Extraction and Remote Control
The HDS-401MV includes 3.5mm analog audio output for routing sound to external speakers or amplifiers, making it a great choice for users seeking reliable audio extract capability. In Multiview mode, you can easily choose your preferred audio source via the included remote—no need to toggle inputs manually. It’s a well-rounded HDMI switch for TV and commercial audio-visual systems alike.
4. Smart Features for Streamlined Integration

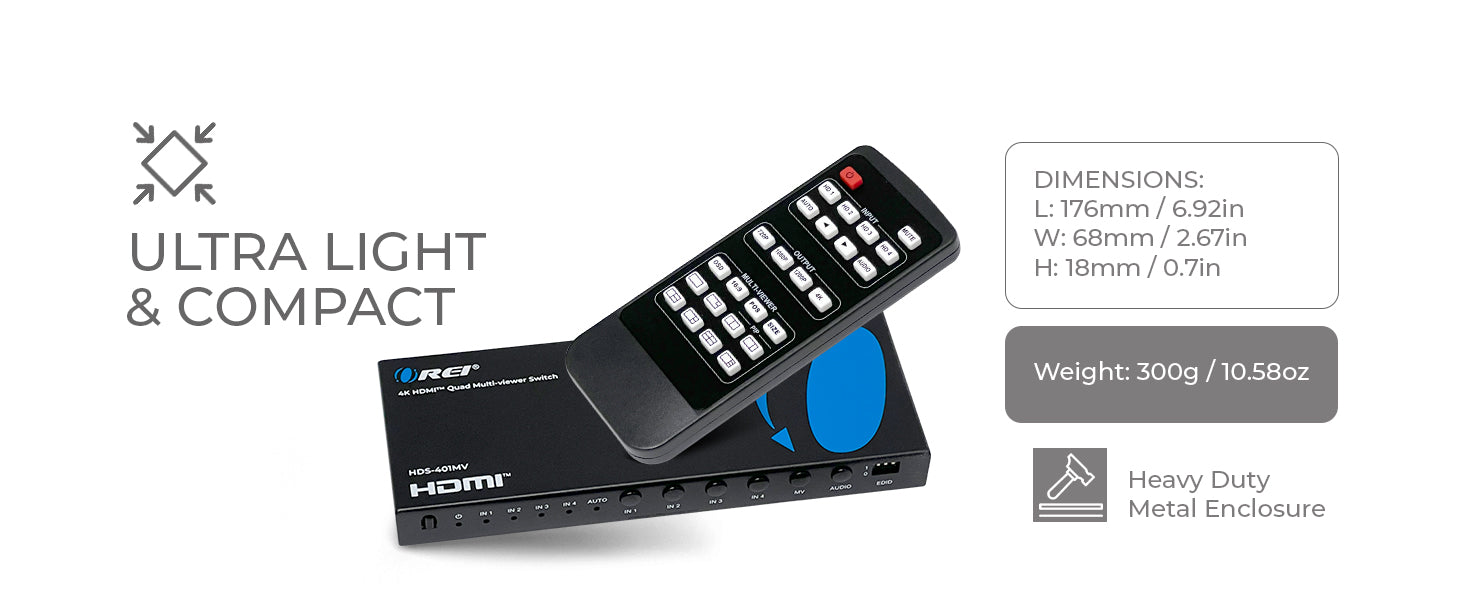

Designed with ease of use in mind, this HDMI switcher supports automatic input detection and RS-232 control, making it ideal for integration with third-party AV systems. Its compact form factor fits cleanly into space-constrained setups while delivering professional-grade performance. Whether for classrooms, security stations, or multimedia hubs, the HDS-401MV is built for flexibility and reliability.

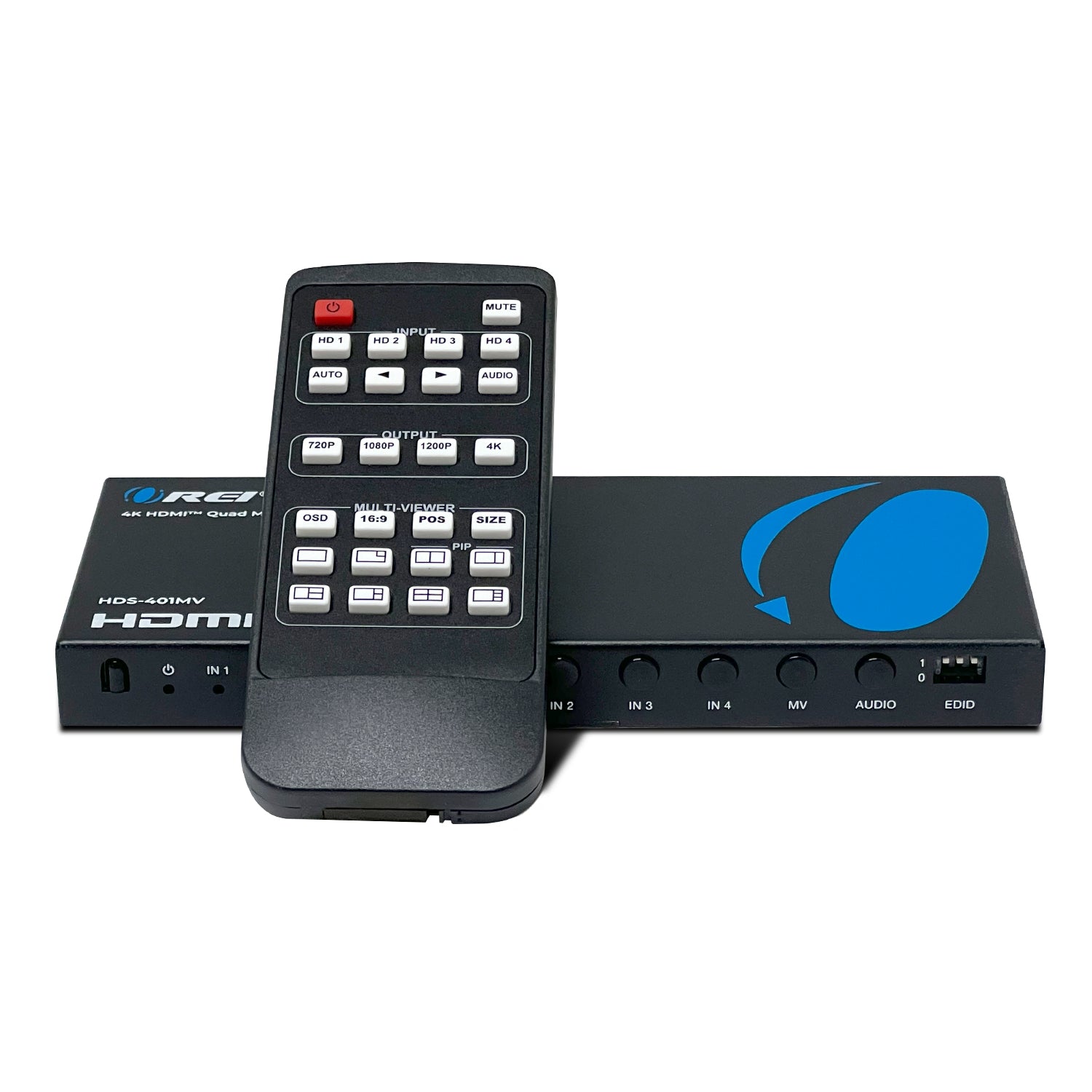

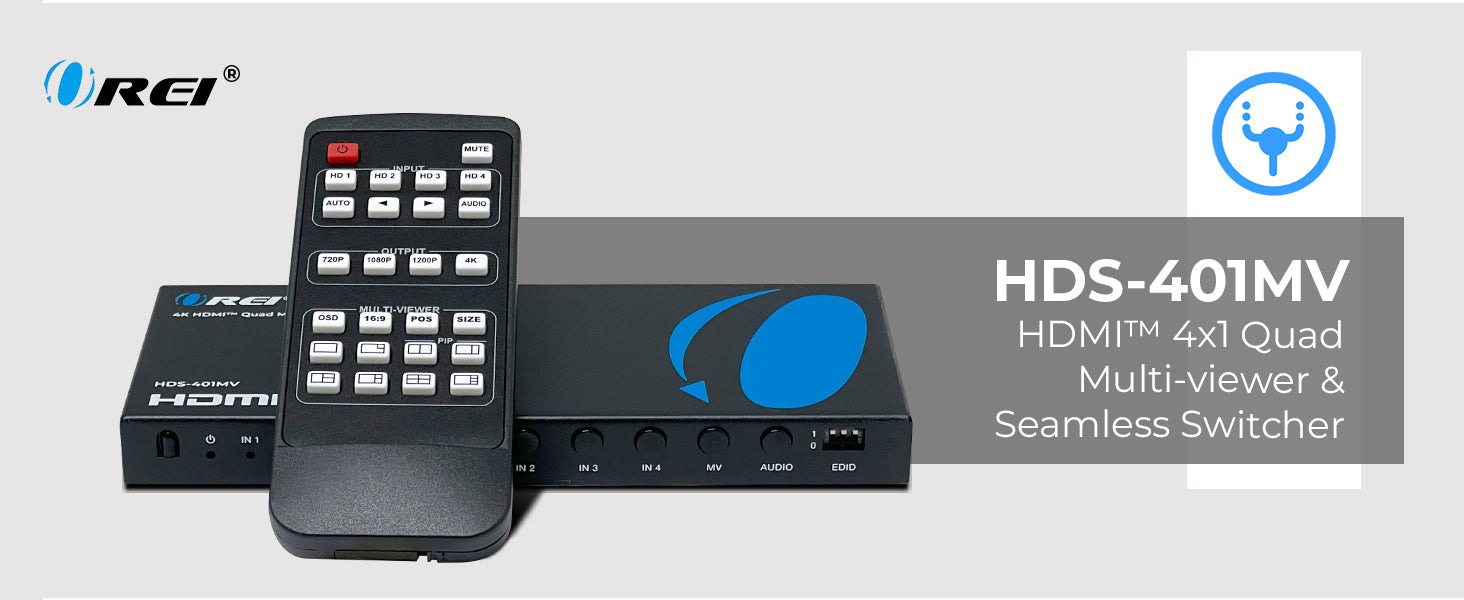

OREI HDS-401MV: 4K HDMI Quad Multi-viewer Switch 4x1 with VGA
Key Features:
- HDMI 1.4 & HDCP 1.4 Compliant
- Video resolution up to 4K@30Hz
- 10.2Gbps video bandwidth
- 4 In 1 Out Quad Multiviewer
- Features a VGA output which can be used simultaneously with HDMI
- VGA output supports up to 1920x1200@60Hz resolution
- Analog 3.5mm stereo output for audio extraction from any one input at a time
- 4 different multiview modes

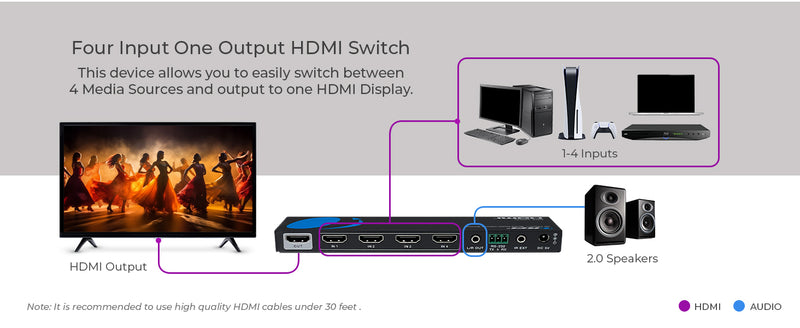

- It can also be used a 4x1 HDMI Switch
- Control via front panel and the IR Remote
The OREI HDS-401MV is a seamless 4x1 quad multi-viewer switch, enabling the simultaneous display of 4 HDMI inputs on a single screen. Supporting resolutions up to 4K@30Hz and compliant with HDMI 1.4b HDCP 1.4 standards, it ensures high-quality viewing experiences. With a VGA output supporting resolutions of up to 1920x1200@60hz, it allows simultaneous usage alongside the HDMI output. Additionally, it features a 3.5mm Analog stereo output for audio extraction from one input at a time. It offers 4 different Multiview modes for different setups. Easily controllable via the front panel buttons and the included remote. Its compact design and plug-and-play setup make it an invaluable addition to both commercial and personal home theatre setups.
HDS-401MV User Manual Download
HDS-401MV Specifications Sheet
HDS-401MV IR Codes
