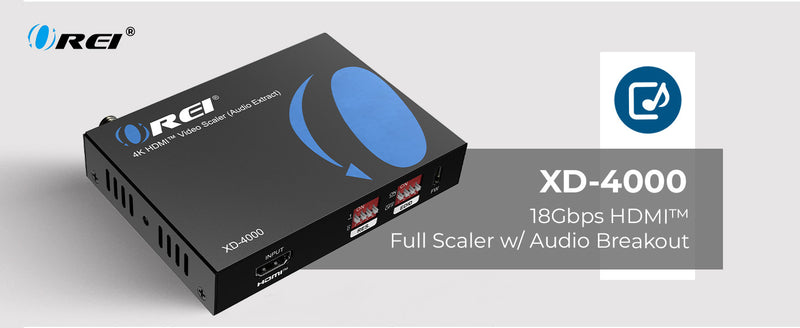

OREI 4K HDMI ™ Video Scaler (Audio Extract) (XD-4000)
- HDCP 2.2 Compliant
- 4K Video Upscaling
- Switchable Output Resolution
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
4K HDMI™ Video Upscaling & Downscaling
The OREI XD-4000 is a professional HDMI™ video scaler designed to adjust video resolutions for compatibility with modern and legacy displays. Supporting upscaling up to 4K@60Hz (4:4:4) and downscaling to 640×480@60Hz, it provides flexible video processing for home theaters, conference rooms, digital signage, and commercial AV installations.
High-Bandwidth Video with HDMI™ 2.0 Support
Supporting HDMI™ 2.0 and HDCP 2.2/1.4, the XD-4000 delivers uncompressed video transmission with up to 18Gbps bandwidth. Its advanced video processing capabilities help maintain consistent image quality across different output resolutions while ensuring compatibility with HDMI™ source devices, displays, and protected content.
Integrated Digital & Analog Audio Extraction
The XD-4000 features built-in HDMI™ audio de-embedding, allowing audio signals to be extracted through both digital and analog audio outputs for flexible integration with external sound systems. This functionality enables convenient connections to compatible amplifiers, speakers, and professional AV equipment while supporting video scaling through the HDMI™ output.

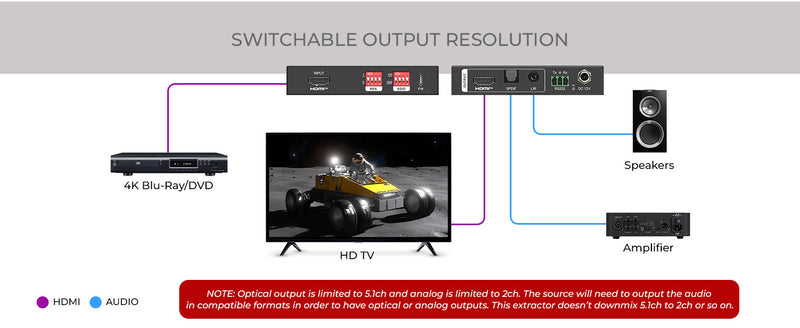

Flexible Resolution Control & EDID Management
Equipped with built-in DIP switches, the XD-4000 allows users to select output resolutions and configure EDID settings without additional software. It also supports HDMI™ CEC pass-through and RS-232 control for integration with professional AV automation systems. Its compact design simplifies installation in residential and commercial AV environments.
OREI XD-4000 4K Video Scaling & Audio Extraction
Key Features:
- HDCP 2.2 Compliant - Compliant with HDMI 2.0 and HDCP 2.2/1.4 for seamless compatibility with modern HDMI sources, displays, and protected content.
- 18Gbps Video Bandwidth – Supports full-bandwidth, uncompressed HDMI video transmission.
- 4K Video Upscaling– Scales video signals up to 4K@60Hz 4:4:4 for enhanced image quality.
- Video Downscaling– Supports output resolutions down to 640×480@60Hz for compatibility with legacy displays.
- Audio Extraction – De-embeds HDMI audio to both digital and analog audio outputs.
- Switchable Output Resolution – Easily select output resolutions using built-in DIP switches.
- CEC Pass-through – Preserves HDMI CEC communication between connected devices.
- Advanced EDID Management–Optimizes compatibility between source devices and displays.
- RS-232 Control – Supports integration with professional AV control and automation systems.
- Compact Design – Space-saving form factor for easy installation in commercial and residential AV environments.
Description:
The XD-4000 is a compact, high-performance video processing solution de signed to scale HDMI video signals while providing flexible audio breakout options. Fully compliant with HDMI 2.0 and HDCP 2.2/1.4, it supports the full 18Gbps bandwidth and delivers output resolutions up to 4K@60Hz 4:4:4, while also supporting downscaling to 640×480@60Hz for compatibility with legacy displays and AV equipment. Featuring integrated audio de-embedding, the XD-4000 extracts HDMI au dio to both digital and analog outputs for seamless integration with external sound systems. Built-in DIP switches allow quick adjustment of output reso lution and EDID settings without software, while RS-232 control enables easy integration into professional AV control systems. With support for CEC pass through and a compact design, the XD-4000 is an ideal solution for confer ence rooms, digital signage, commercial AV installations, and home theater applications
XD-4000 User Manual Download
