Ultra HD 4K Quad Multi Viewer 4x1 HDMI Switch VGA Output (HDS-401MV)

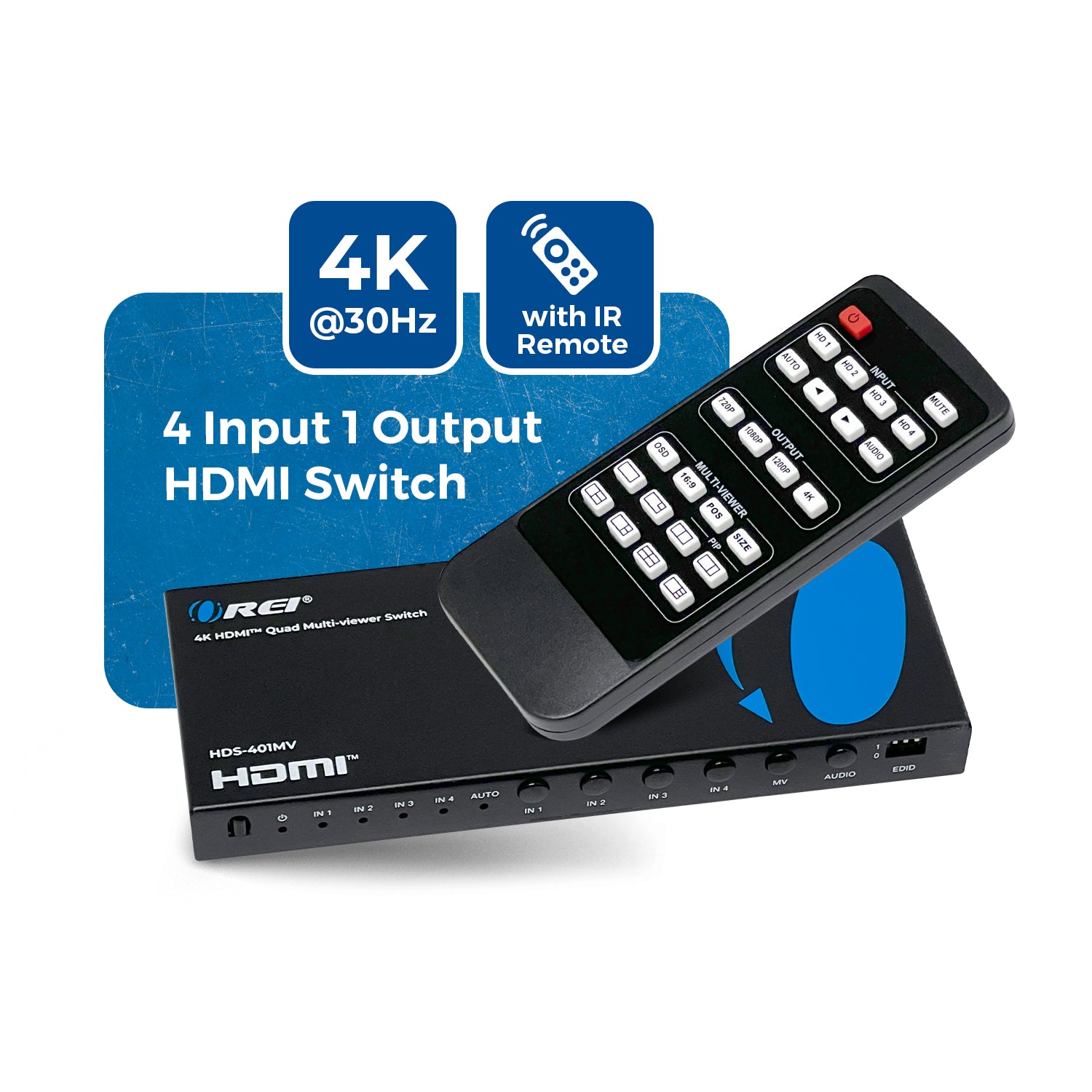

OREI HDS-401MV: Ultra HD 4K 4x1 HDMI Switch

• 5 display modes: 4 in 1 out HDMI switch
• This HDMI switcher designed with 4 Input ports and 1 output port
• Supports 4 HDMI input sources to an HD TV or display with real-time fast seamless switching up to 4K@30Hz

• Supports VGA Output
• This HDMI MultiViewer 4x1 switch is compatible with gaming consoles such as PlayStation, Xbox One, Nintendo, Roku, DVD, blue ray, players Amazon fire TV, cable TV, Chromecast, and so many other HDMI devices
• HDMI supports resolution the maximum up to 3840x2160@30Hz,1920x1080@50/60Hz, 1280x720@50/60Hz, 1920x1200@60Hz
• VGA supports resolution the maximum up to 1920x1200@60Hz.1920x1080@50/60Hz, 1280x720@50/60Hz,1920x1200@60Hz,1024x768@60Hz
• Input resolution can automate recognition(480p~4K30Hz, 800x600~4K30Hz)
• Output resolution can be selected by on-panel button and remote control
• DTS Digital, Dolby Digital, LPCM, Dolby True HD, Master Audio, pass through 2 channel

• All other audio options are supported, integrated Audio converter for simultaneous digital and analog audio output on all audio output channels
• Supports 1/2/4 windows multi-view modes
• Control is via on-panel button and remote control
• Note: If output resolution selects the 4K30Hz, the VGA port will not support

Few sample applications:

OREI HDS-401MV 4x1 quad multi-viewer supports 4 routes HDMI high definition input contents are displayed on 1 HDMI screen and one VGA screen simultaneously. It supports analog audio output that can be selected from different input sources.

Output resolution can be adjusted and supports the maximum up to 4K30Hz. It supports 4 high definition input sources to be displayed on 1 screen, It has 5 Multi-View display modes. Inputs can be switched with the IR remote control, also can be controlled by a built-in button.
