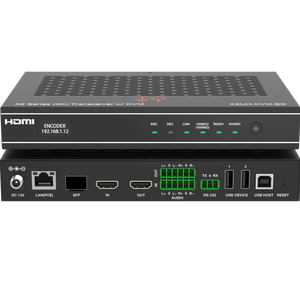

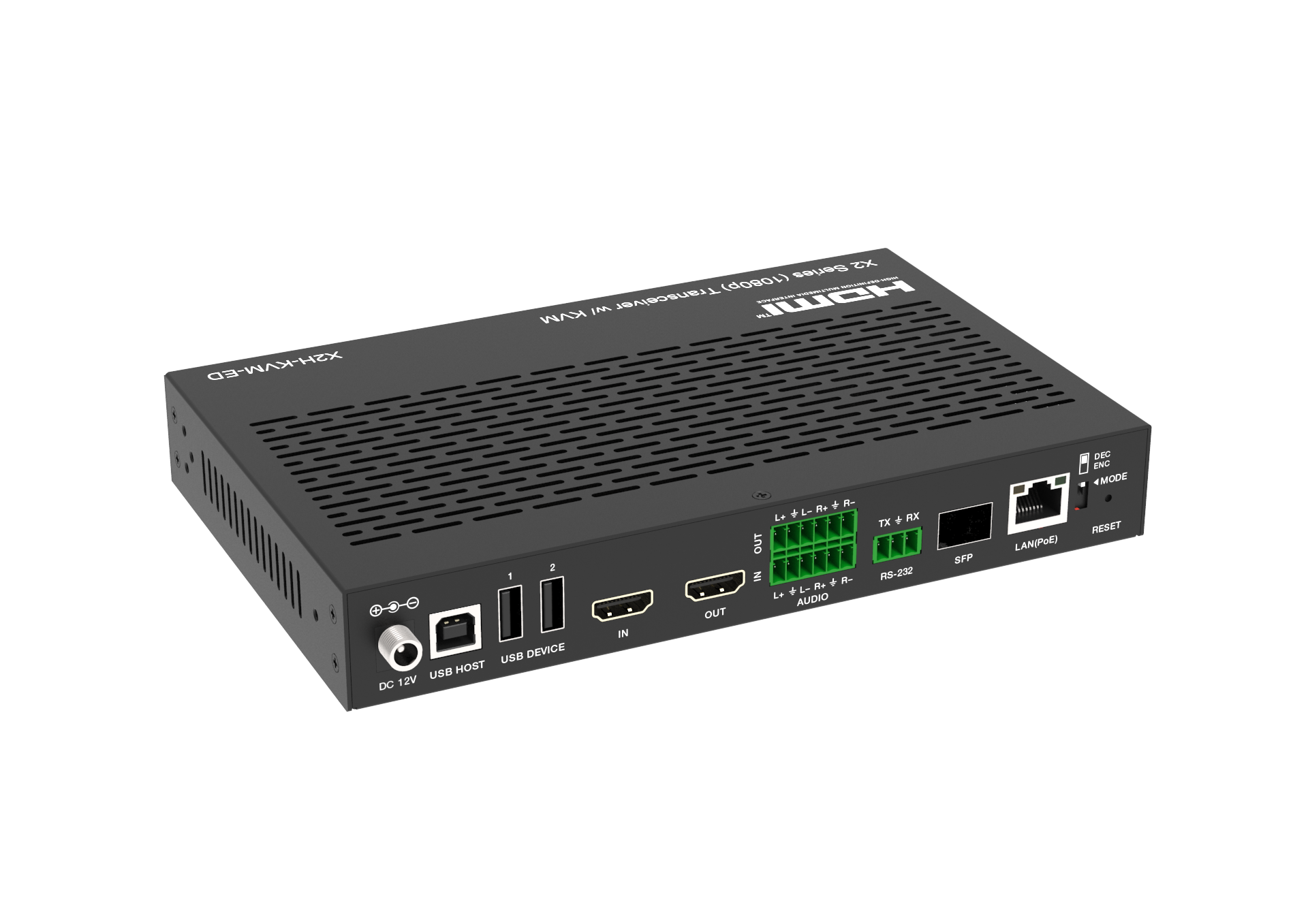

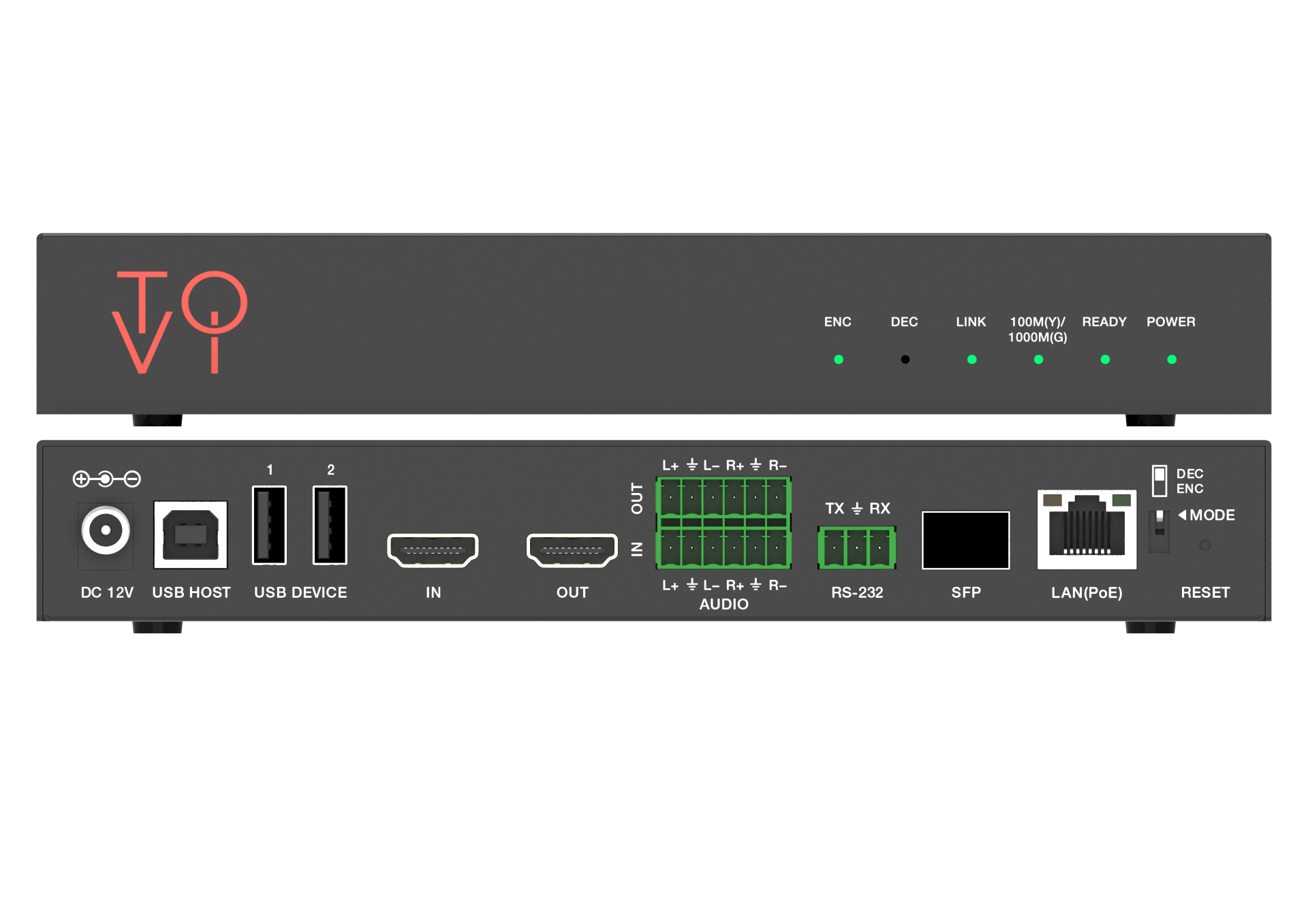

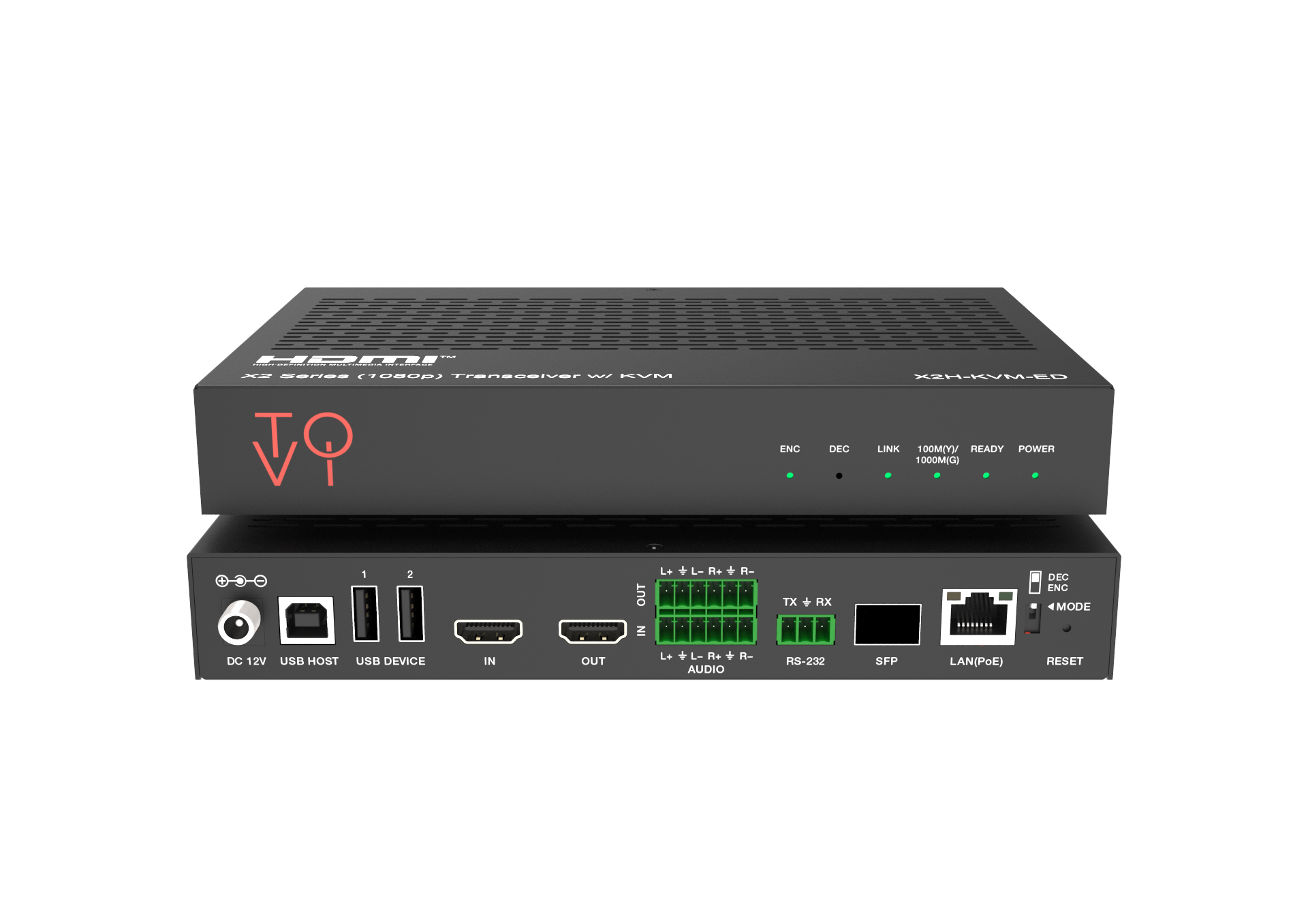

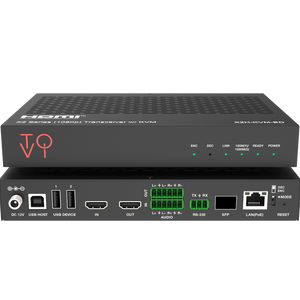

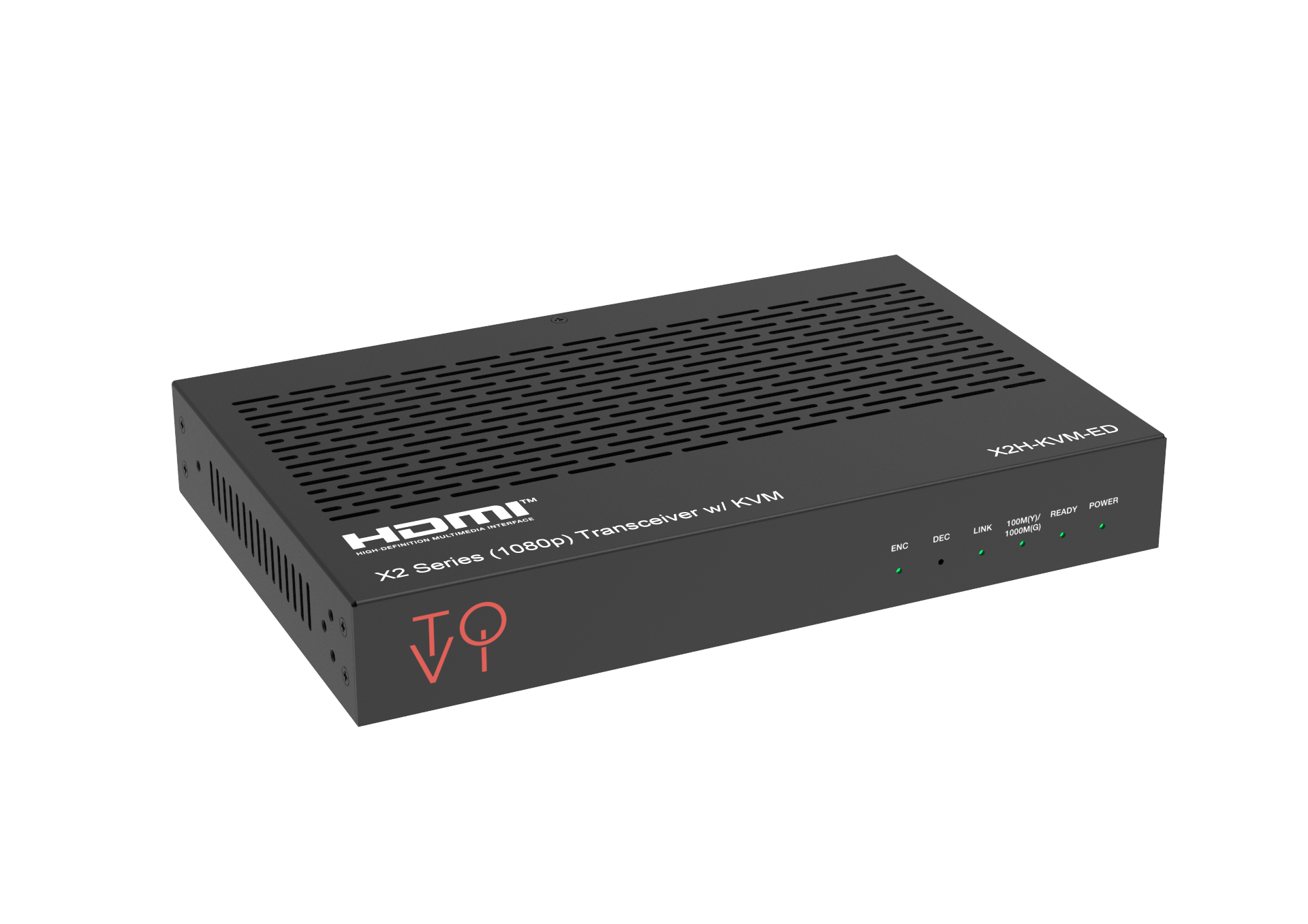

ToVi X2 4K Transceiver (Video Wall, KVM) - X2H-KVM-ED

HDMI 1.4 & HDCP 1.4 Compliant – Ensures compatibility with protected UHD content.

Video Resolutions up to 4K@30Hz & 1080p@60Hz – Delivers crystal-clear visuals with 4.95Gbps bandwidth for uncompromised signal quality.

Long distance transmission – Transmit audio/video signals up to 328ft/100m.

4:2:2 encoding/decoding – Delivers accurate color restoration for vivid imagery.

Dual-Function Device – Can be configured as either a transmitter or receiver, switchable based on application needs.

High-definition background images and multi-screen splicing – Allows flexible, expansive display setups.

LPCM 2.0CH Audio Support – Maintains high-fidelity sound at 48kHz sampling.

Multi-Window Roaming and Splicing – Each decoder supports up to 16 sources with dynamic window management and overlay.

KVM Functionality – Enables one-to-one or one-to-many PC control from a single user station.

H.264/H.265 Protocol Support – Seamless integration with IP cameras and surveillance systems.

Scrolling Text & Character Overlay – Supports on-screen alerts, labels, and dynamic content overlay.

Video Wall & Signal Routing Over 1G Network – Facilitates point-to-point extension, multicast, and matrix switching.

User Rights Management – Secure access control across all endpoints.

Flexible Control Options – Operate via KVM, mobile app, or supported control servers (X2UH-CB).

Standard PoE (802.3af Class 3) – Simplifies power delivery with no need for external adapters.

HDMI Local Loop-Out & Audio Extraction – Enhances system flexibility for local monitoring and audio routing.

Integrated Encoder & Decoder Design – Compatible with Fiber Optic and RJ45 for flexible transmission.
