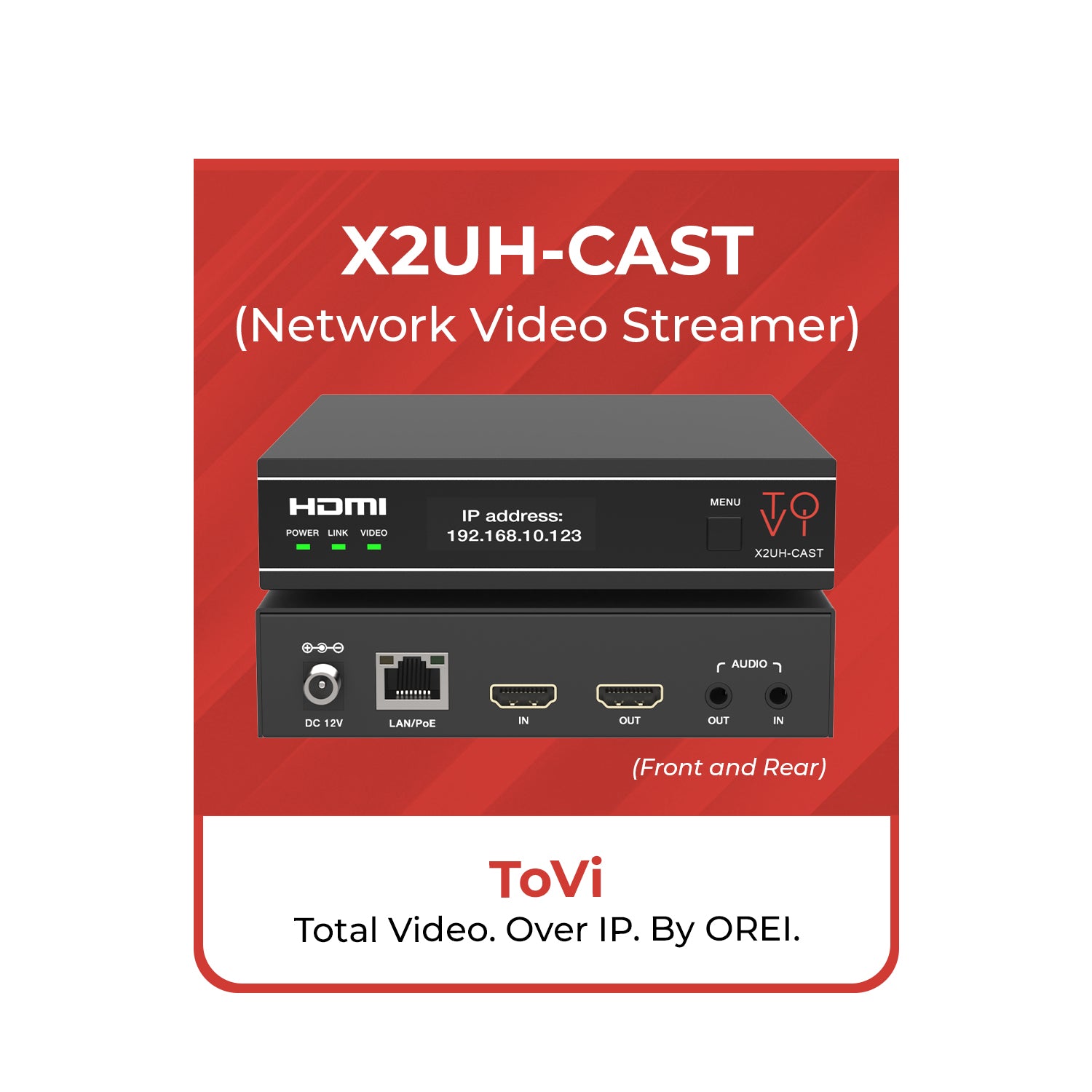

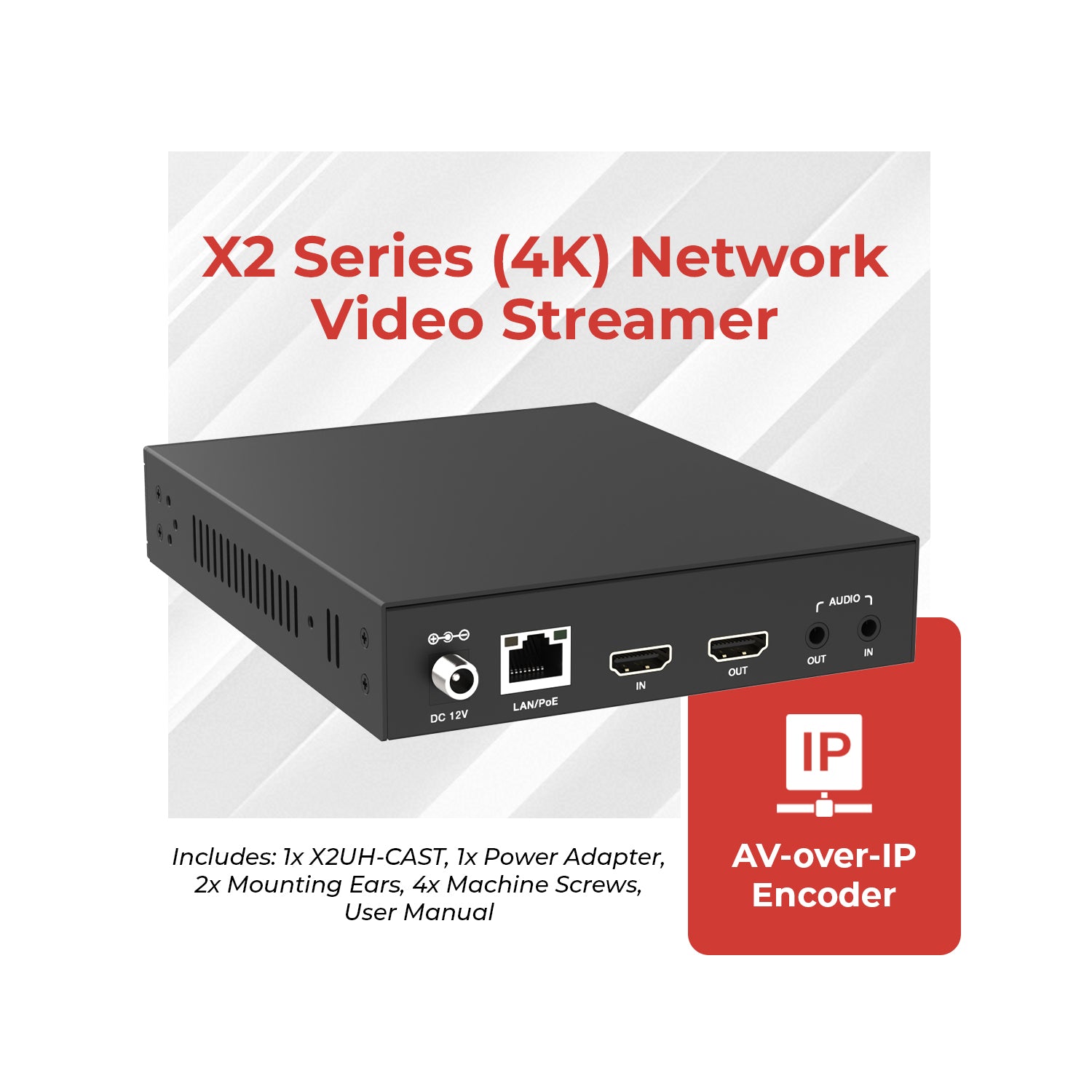

X2 Series (4K) Network Video Streamer - (X2UH-CAST)

Professional AV-over-IP Encoder for 4K Streaming, Distribution & Control

Key Features:

• 4K@60Hz Ultra HD Encoding – Supports H.264/H.265 HEVC with up to 18Gbps video bandwidth (HDMI™ 2.0b).
• Triple Stream Output – 4K@60Hz H.264/H.265 + 1080P@30 H.264 + 720P@5 JPEG.

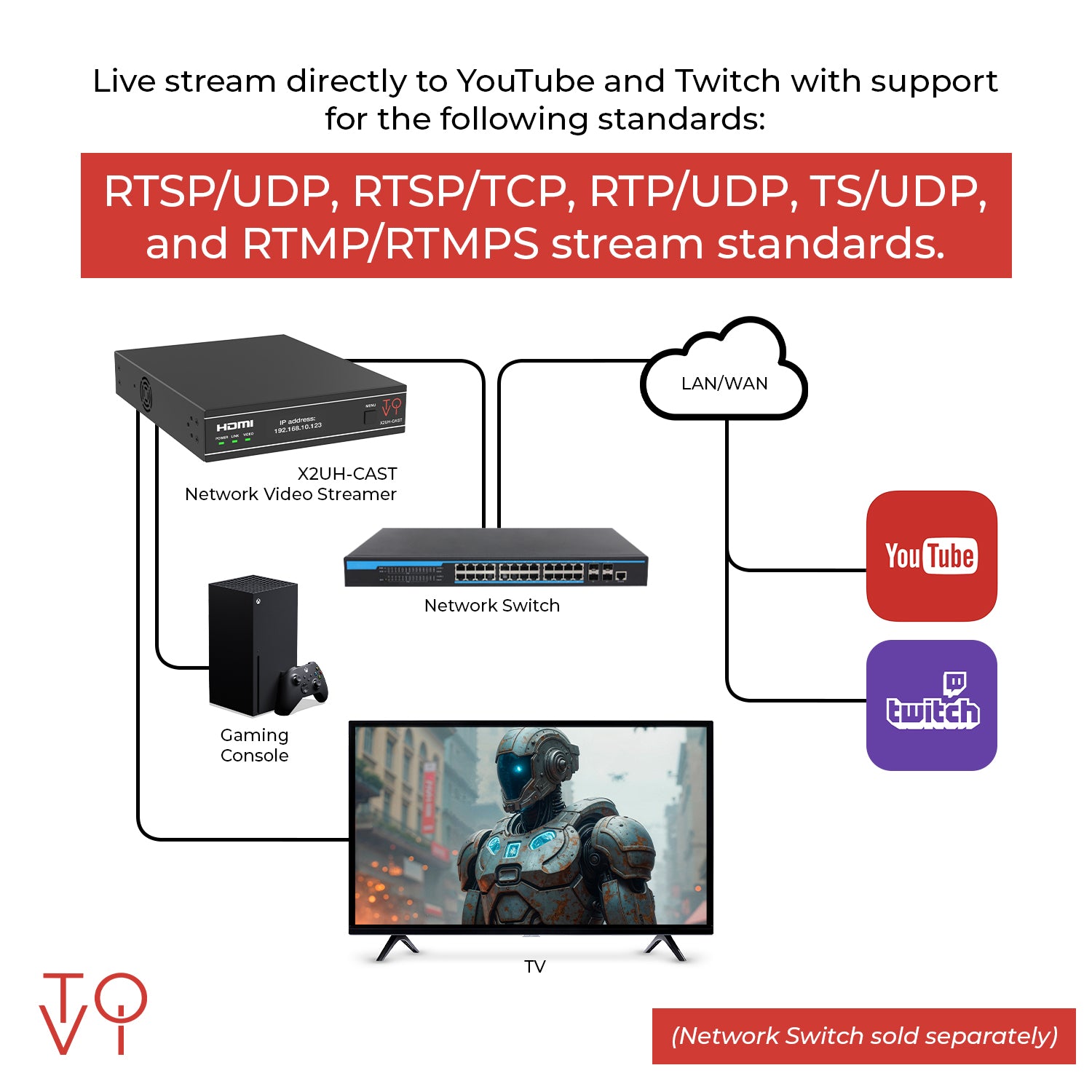

• Streaming Protocols – RTSP/UDP, RTSP/TCP, RTP/UDP, TS/UDP, RTMP/RTMPS.
• Flexible Streaming – Supports unicast, multicast, audio-only stream, and audio delay settings.
• Audio Support – LPCM 2CH (48kHz), analog audio embedding & extraction.

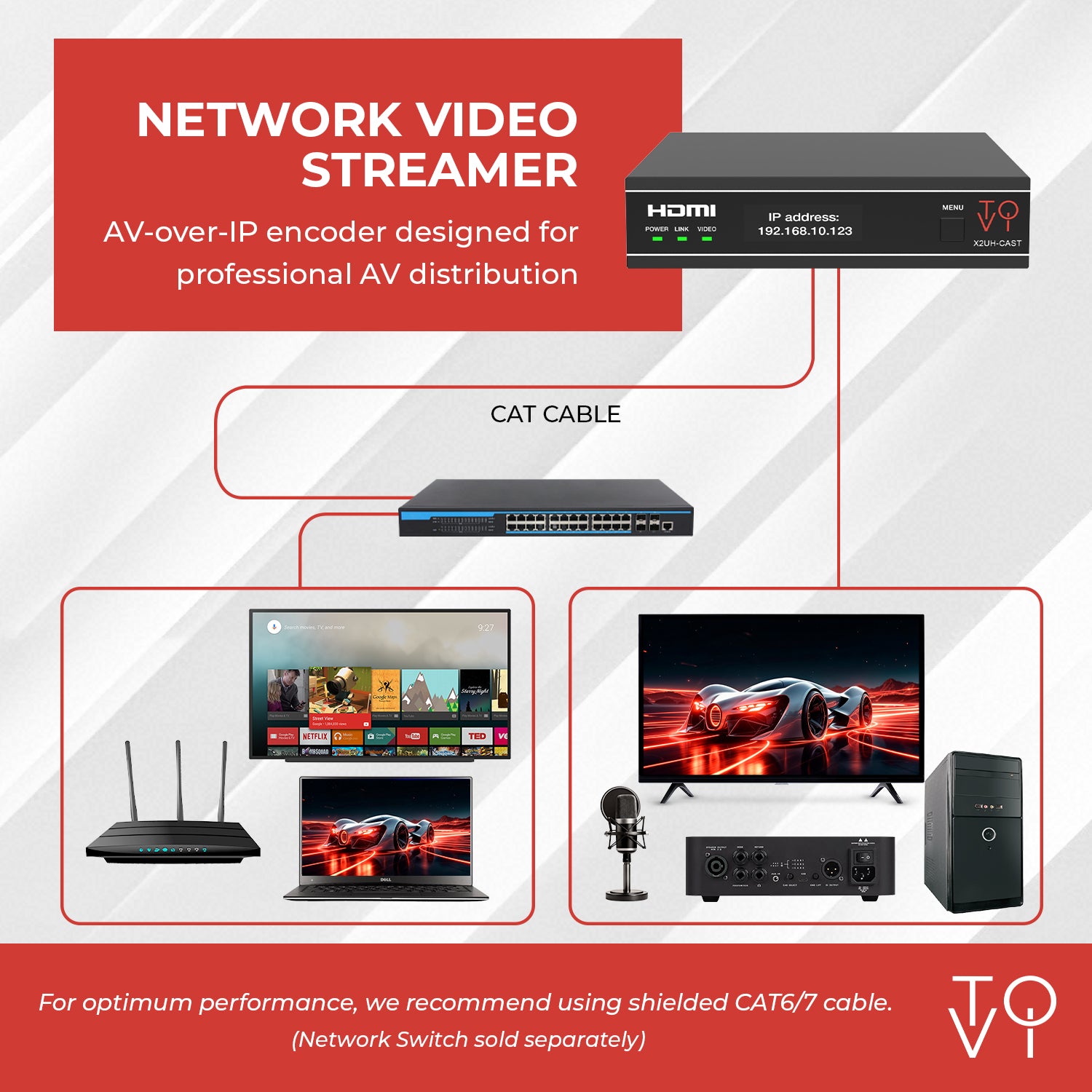

• Signal Extension & Distribution – HDMI™ loop-out, image preview, point-to-point, and one-to-many distribution.
• Advanced Control – Web GUI (HTTP/HTTPS), API via TELNET/SSH/TCP socket, stream control (play/pause/stop).
• Network & Power – 100M/1G Ethernet port with PoE (802.3af) support.
• Management & Security – Device Discovery “SHOW ME” function, EDID configuration, 802.1X protocol.
• Installation Ready – Compatible with 1U/6U V2 rack installation

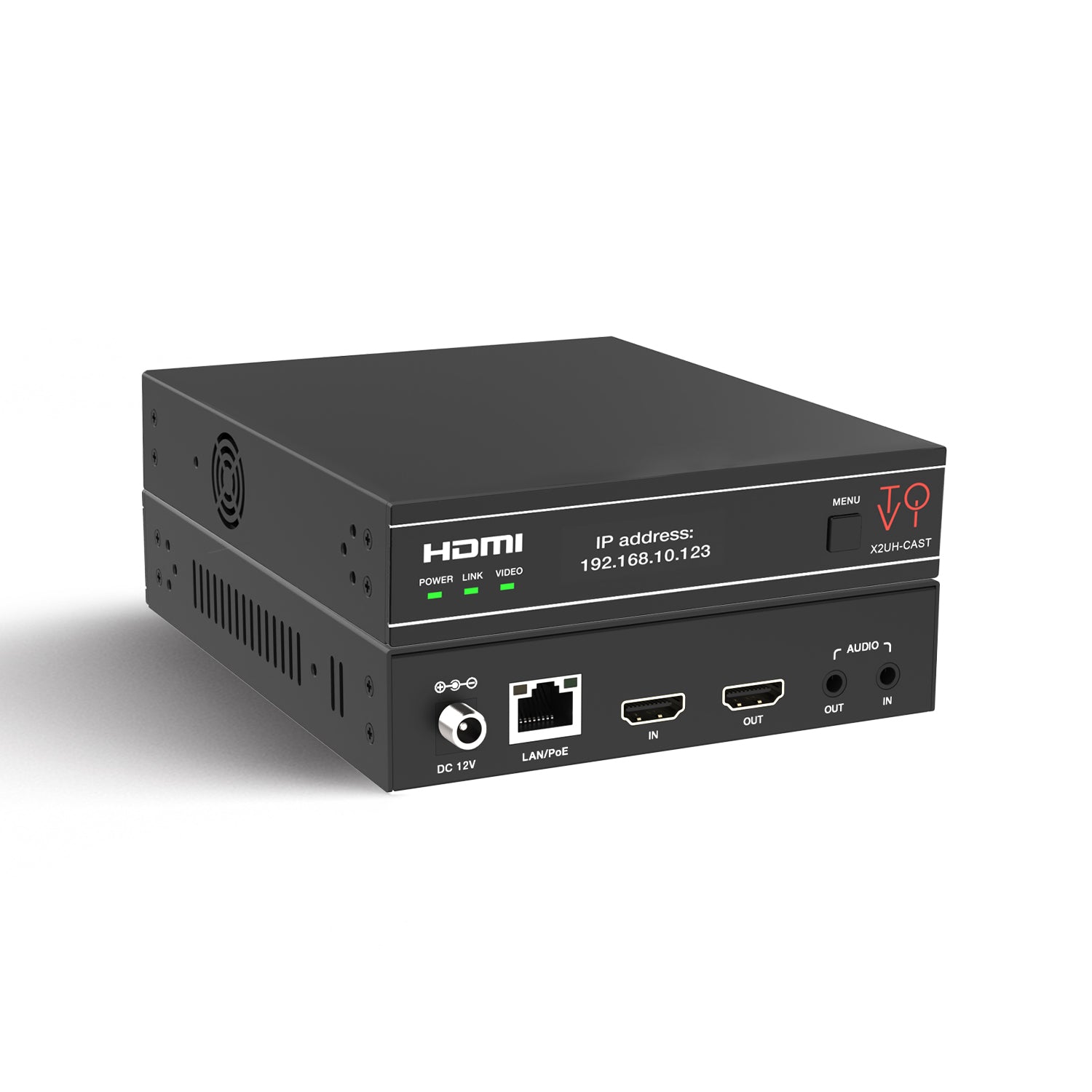

X2UH-CAST is a high-performance AV-over-IP encoder designed for professional AV distribution. Based on H.265/H.264 compression technology, it enables visually lossless 4K@60Hz (4:4:4) video transmission over a 100M/1G Ethernet network. Supporting three simultaneous streams (4K@60Hz H.264/H.265, 1080P@30Hz H.264, and 720P@50Hz JPEG), it ensures maximum flexibility for streaming, preview, and monitoring applications

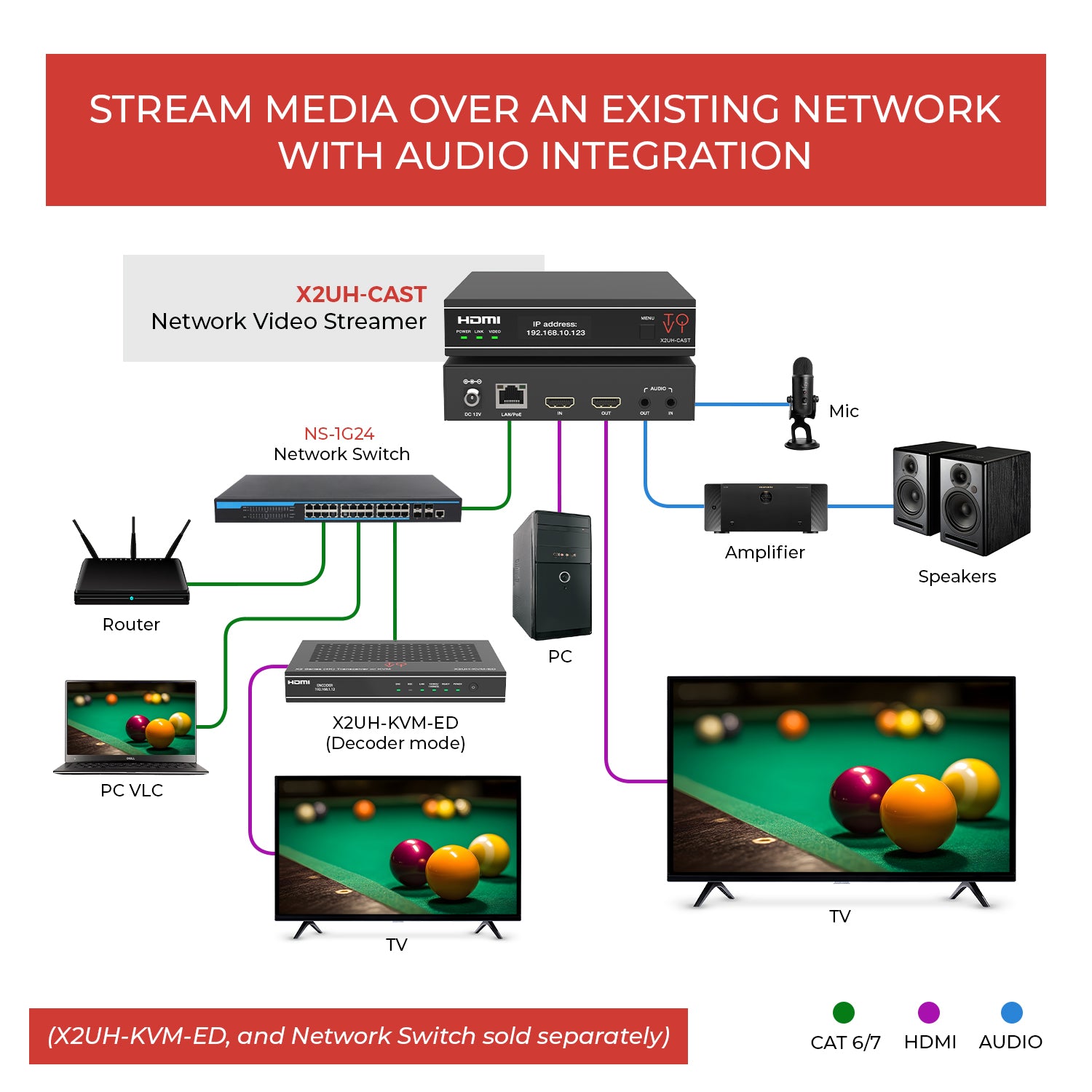

With HDMI™ loop-out, analog audio embedding/extracting, and full compatibility with streaming standards like RTSP, RTP, TS, RTMP/RTMPS, this AV Streamer is a versatile solution for broadcasting, control rooms, and AV-over-IP installations. Its Web GUI offers intuitive setup and management, while advanced API controls allow seamless integration with third-party control systems. Compact and 1U/6U V2 rack-compatible, it supports PoE (802.3af), features an OLED display, and includes advanced functions like device discovery, unicast/multicast streaming, EDID configuration, and security with 802.1X protocol.
