1. Reliable 4K HDMI Over IP Extension
The HDS-EXM400-K is a robust HDMI over IP extender designed to deliver uncompressed 4K@30Hz video and audio signals over long distances using a single CAT6/7 cable. Fully compliant with HDMI 1.4 and HDCP 1.4, it ensures compatibility with both legacy and modern AV equipment, making it ideal for a wide range of installations.
2. Long-Distance Media Transmission with IR Control
Extend HDMI signals up to 120 meters (approx. 400 feet) at 4K@30Hz with zero compression or quality degradation. With 10.2Gbps video bandwidth, this HDMI CAT6 extender supports full 3D video, while the integrated IR passback feature allows one-way control of your source device from the receiver’s side—ideal for AV racks, projectors, or hidden source setups.
3. Scalable Over-IP Distribution Architecture
Built for professional environments, the HDMI over Ethernet 4K system supports one-to-many connections via a standard network switch, allowing for easy expansion across multiple displays. Whether you're setting up digital signage, retail video walls, or educational content delivery, the HDMI IP extender ensures smooth, scalable signal distribution.
4. Compact, Installer-Friendly Design for Versatile Use
Engineered for efficiency, the infrared remote extender features a space-saving, durable housing for easy placement in tight AV cabinets or behind displays. It’s the ideal solution for home theaters, conference rooms, classrooms, and surveillance systems that require flexible, high-performance HDMI extension over long distances.

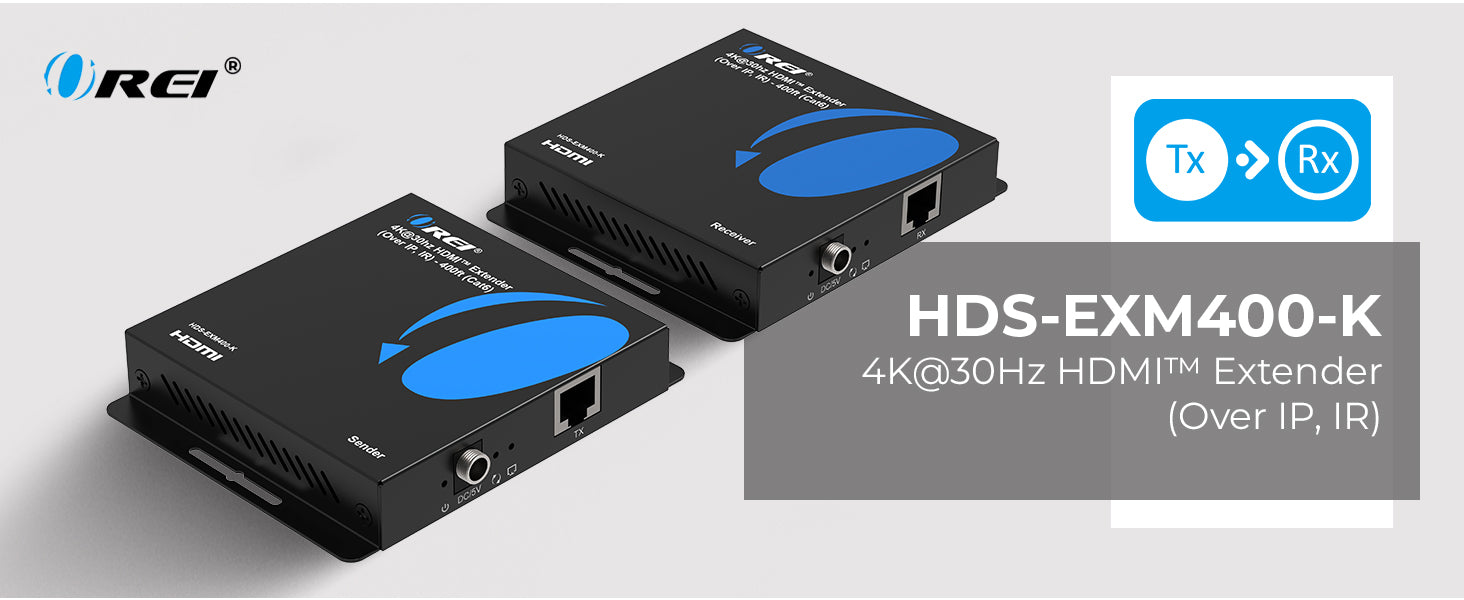

OREI HDS-EXM400-K: HDMI™ Extender Over IP - 400ft (Cat6)
- HDMI 1.4 & HDCP 1.4 Compliant – Ensures compatibility with a broad range of legacy and current HDMI sources and displays.
-
Supports Resolutions up to 4K@30Hz – Delivers crisp Ultra HD video output for enhanced viewing experiences in both home and commercial environments.
-
Video Bandwidth up to 10.2Gbps – Capable of transmitting high-quality video signals without compression or loss of fidelity.
-

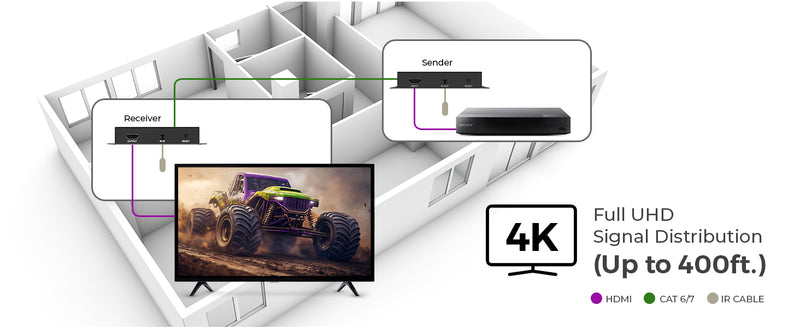

Long-Distance Transmission – Extends HDMI signals up to 120 meters (approx. 400 feet) over a single CAT6/7 cable at 4K@30Hz resolution.
-
3D Video Support – Fully compatible with stereoscopic 3D content for immersive video applications.
-
One-Way IR Control – Allows control of the source device from the Receiver side using IR passback (20-60kHz).
-

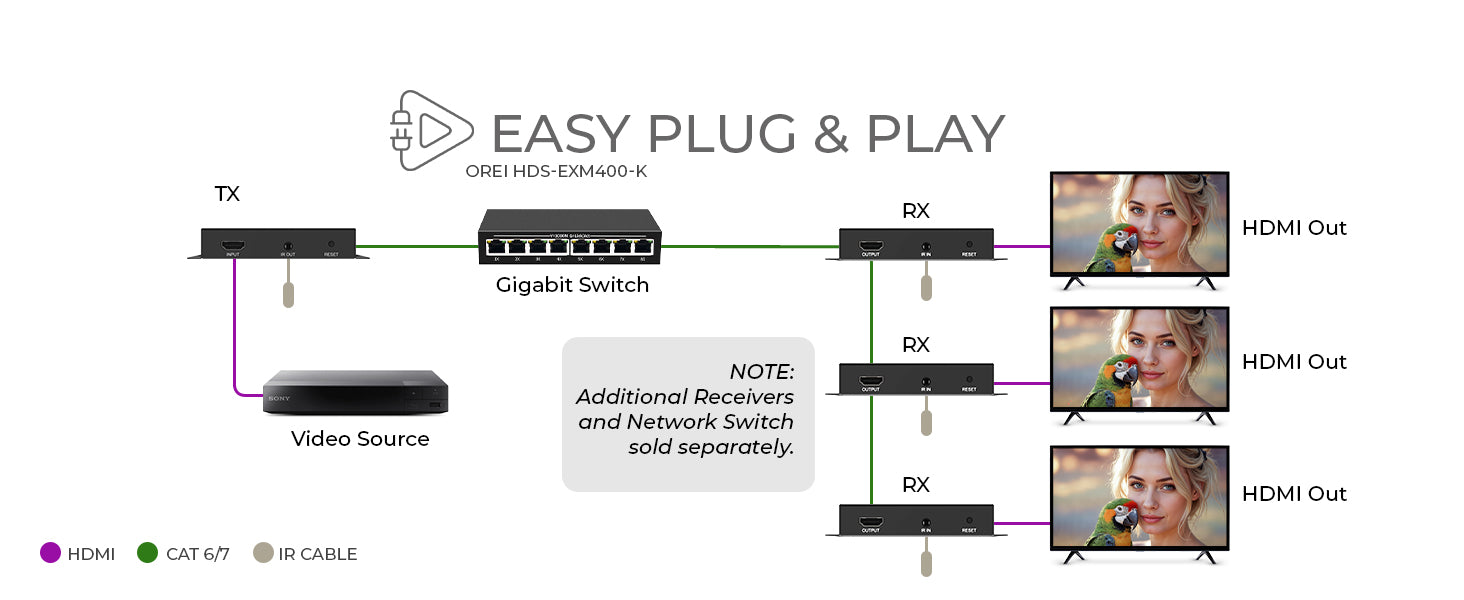

Over IP Distribution – Supports one-to-many connections via a standard network switch, making it ideal for digital signage and multi-display systems.

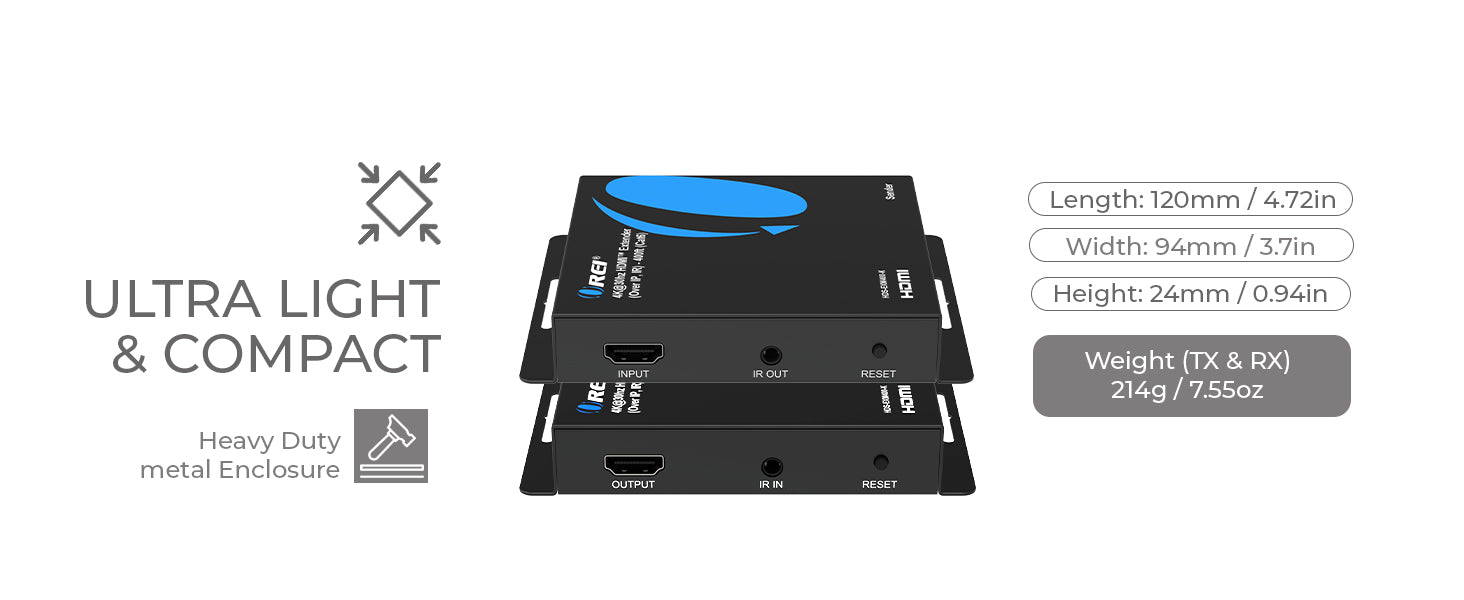

- Compact and Durable Design – Space-saving and built for professional-grade performance in demanding environments.
The HDS-EXM400-K is a high-performance HDMI over Ethernet Extender Kit designed to transmit 4K@30Hz HDMI signals over a single CAT6/7 cable up to 120 meters (400 feet). Compliant with HDMI 1.4 and HDCP 1.4, this system supports 10.2Gbps bandwidth and is fully compatible with 3D video formats, ensuring clear, smooth media delivery.
Ideal for both residential and commercial applications, the unit features one-way IR control, enabling users to control the source device from the Receiver’s location. Its Over IP functionality allows the connection of multiple Receivers to a single Transmitter through a standard network switch, making it a scalable solution for digital signage, classrooms, and surveillance systems.
The HDS-EXM400-K combines reliable transmission, flexible deployment, and a durable, compact housing—making it a go-to solution for professional AV installations that require efficient long-distance media distribution.
[/shortdes]
HDS-EXM400-K User Manual Download
