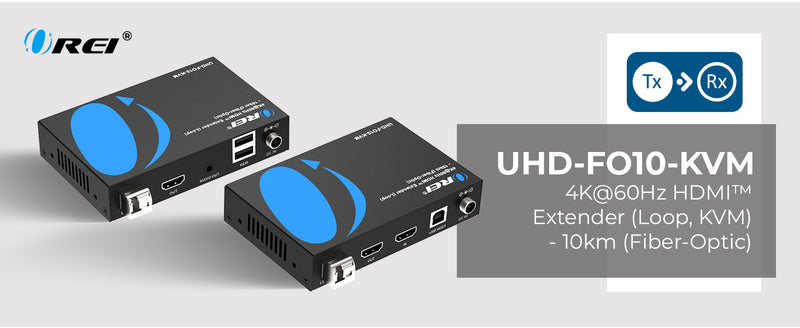

4K@60Hz HDMI™ Extender (Loop) - 10km (Fiber-Optic) - UHD-FO10-KVM
- Extend 4K@60Hz Signals up to 10Km(~33000 ft.)
- HDMI 2.0b and HDCP 2.2 compliant
- EDID Management
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
Ultra-Long-Distance 4K HDMI™ Extension
The UHD-FO10-KVM is a professional-grade HDMI™ extender engineered for ultra-long-distance AV signal transmission. Utilizing single-mode fiber optic technology, it delivers uncompressed HDMI™ signals up to 10km with exceptional stability and clarity. Supporting video resolutions up to 4K@60Hz 4:4:4 with full 18Gbps bandwidth, it ensures sharp visuals, accurate color reproduction, and zero signal degradation. Multi-mode fiber connectivity is supported up to 300m (OM4) when used with compatible SFP modules.
Advanced Video Performance & HDR Support
Designed for modern AV environments, the extender is fully HDCP 2.2 compliant and supports advanced HDR formats including HDR10+, Dolby Vision, and HLG, along with 3D video pass-through. These features maintain high dynamic range, deep contrast, and enhanced brightness across long-distance transmission. It is ideal for professional displays, digital signage, and high-resolution video distribution systems where image integrity is critical.
Comprehensive Audio & USB Transmission
The UHD-FO10-KVM supports a wide range of high-fidelity audio formats such as LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-HD Master Audio, and more. The receiver-side audio de-embedding allows seamless integration with external audio systems. Additionally, USB 1.1 keyboard and mouse transmission enables convenient remote control of connected computers from the receiver end, making it suitable for control rooms and workstation setups.
Professional Design with Smart System Management
Featuring an HDMI loop output on the transmitter for local monitoring and automatic EDID management for stable signal handshakes, the extender ensures smooth and reliable operation. Its compact and lightweight design allows for flexible mounting in professional AV environments such as commercial installations, broadcast facilities, and command centers.
OREI 4K HDMI Extender Balun up to 10 KM
- HDCP 2.2 Compliant – Ensures compatibility with modern content protection standards.
- Video Resolutions up to 4K@60Hz 4:4:4 – Delivers uncompressed, ultra-high-definition video with vibrant color depth and clarity.
- 18Gbps Video Bandwidth – Provides high-speed data transfer for flawless AV signal transmission.

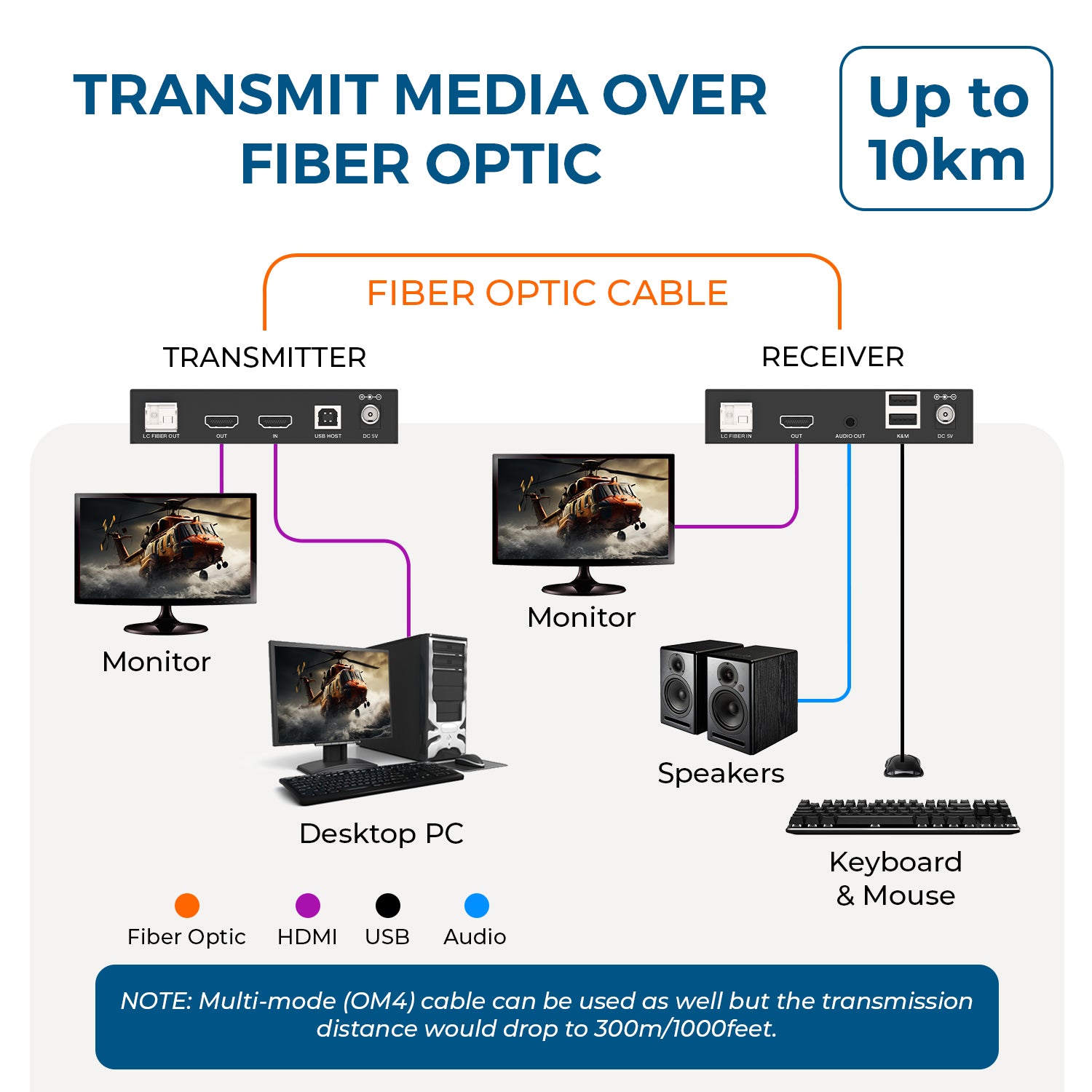

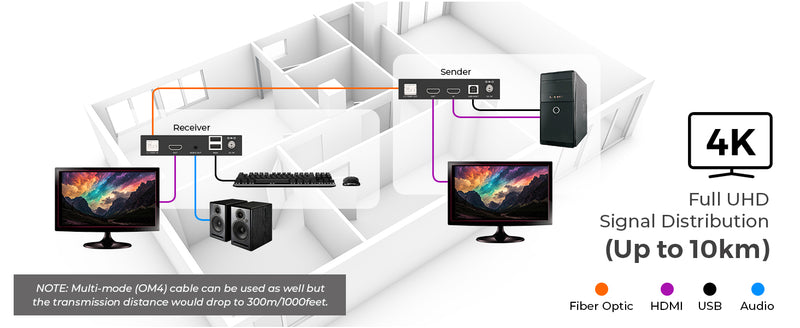

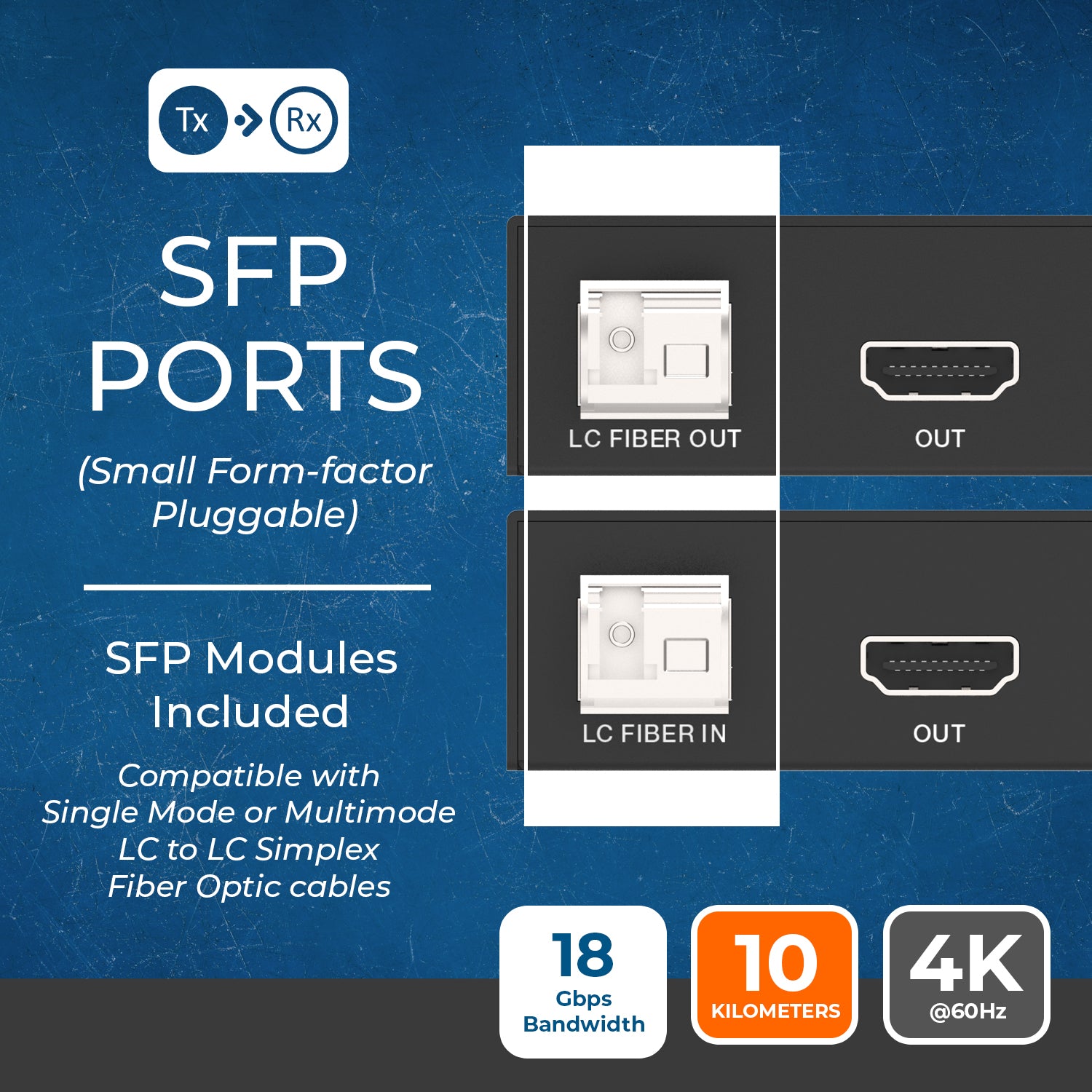

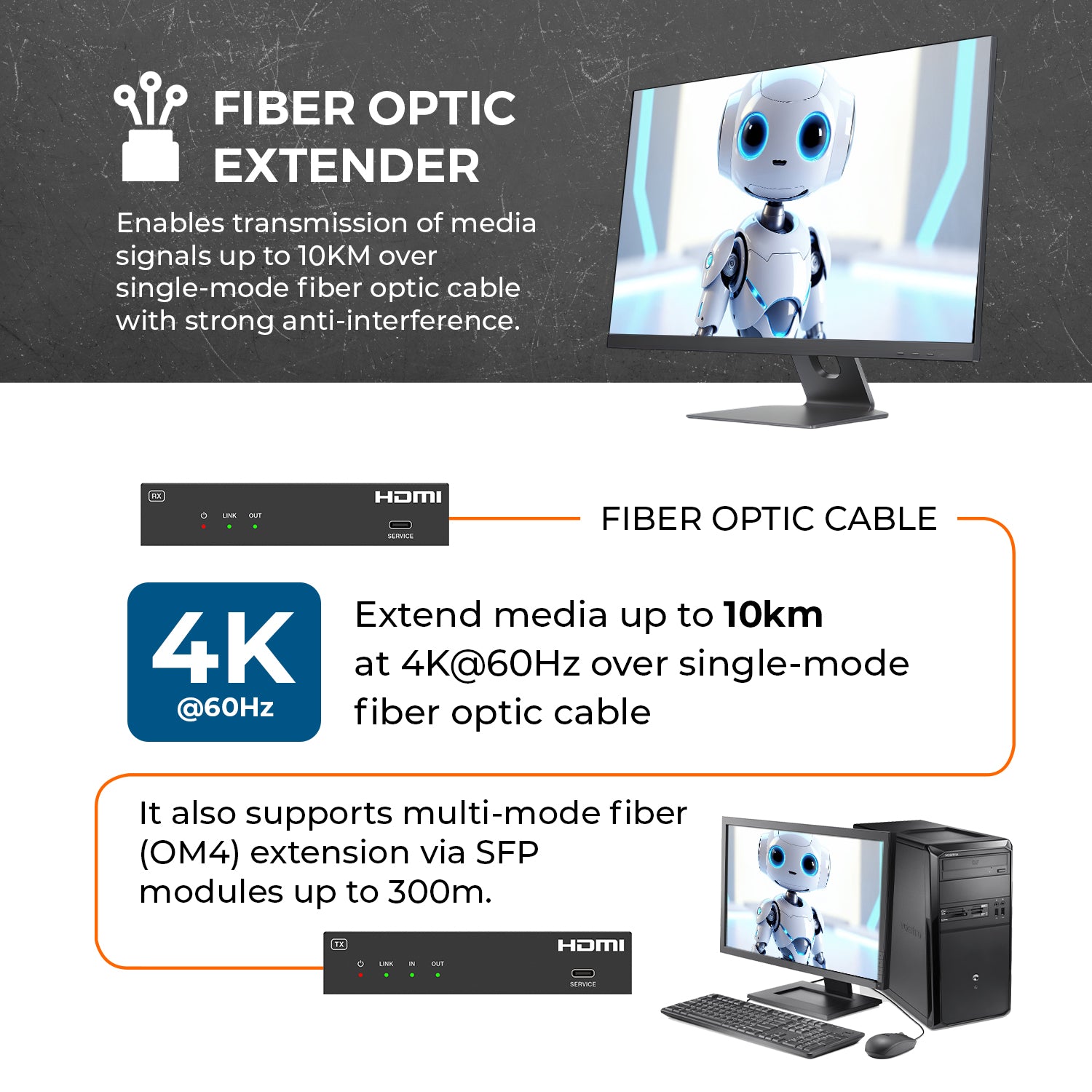

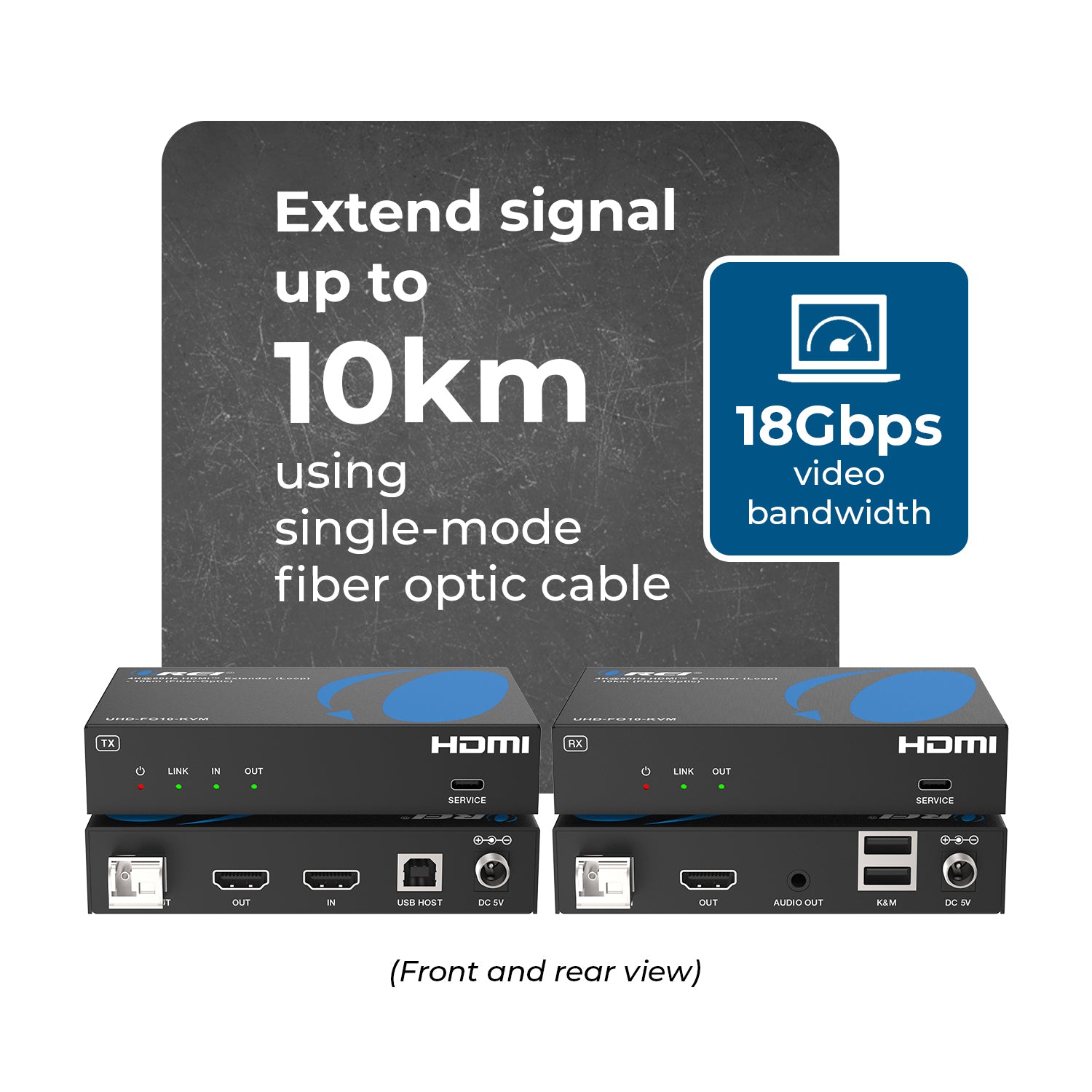

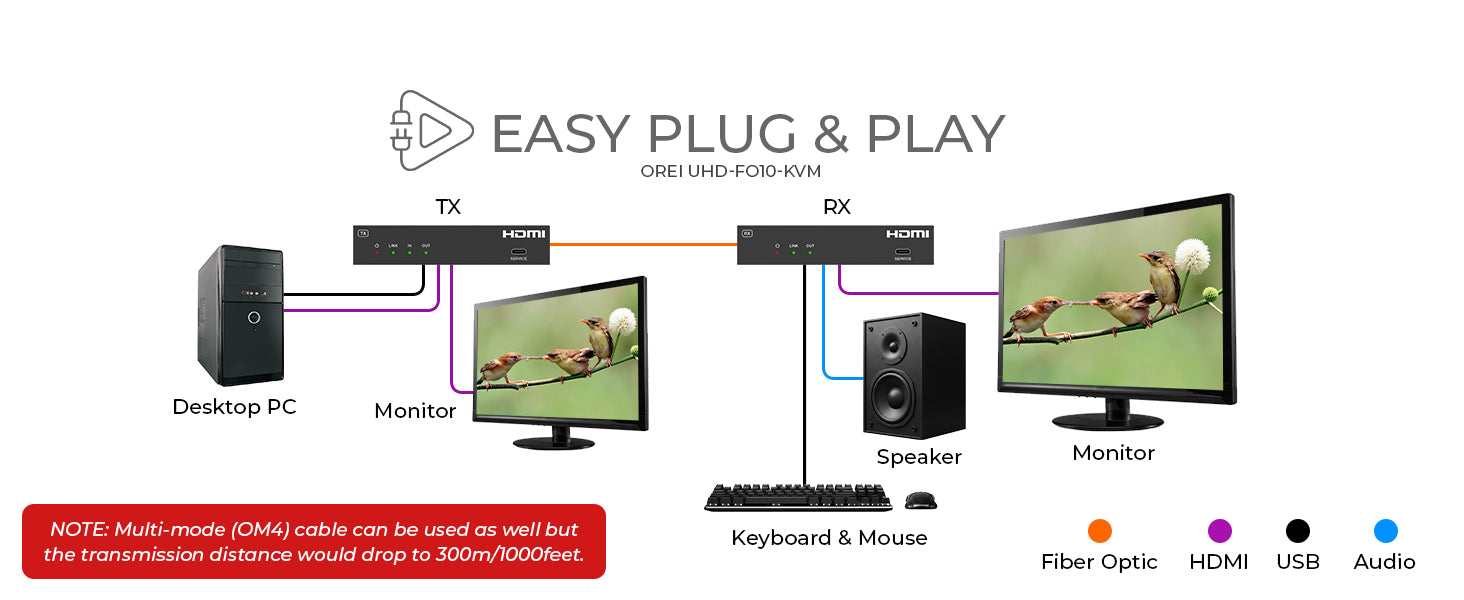

- Ultra-Long-Distance Transmission – Extends HDMI™ signals up to 10km over single-mode fiber cable. Multi-mode fiber supported with SFP modules for distances up to 300m (OM4).
- 3D Video Support – Compatible with 3D content for immersive viewing experience.
- HDR10+, Dolby Vision & HLG Pass-through – Maintains compatibility with advanced high dynamic range formats for lifelike visuals.
- Wide Audio Support – Supports LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD for high-fidelity sound.
- Loop Output on Transmitter – Allows connection of a local display for convenient on-site monitoring.
- Audio De-embedding on Receiver – Provides separate audio output for flexible audio system integration.
- USB 1.1 Keyboard/Mouse Transmission – Enables remote control of source device such as a Computer from the Receiver side.
- Automatic EDID Management – Ensures proper display configuration and stable signal handshakes.

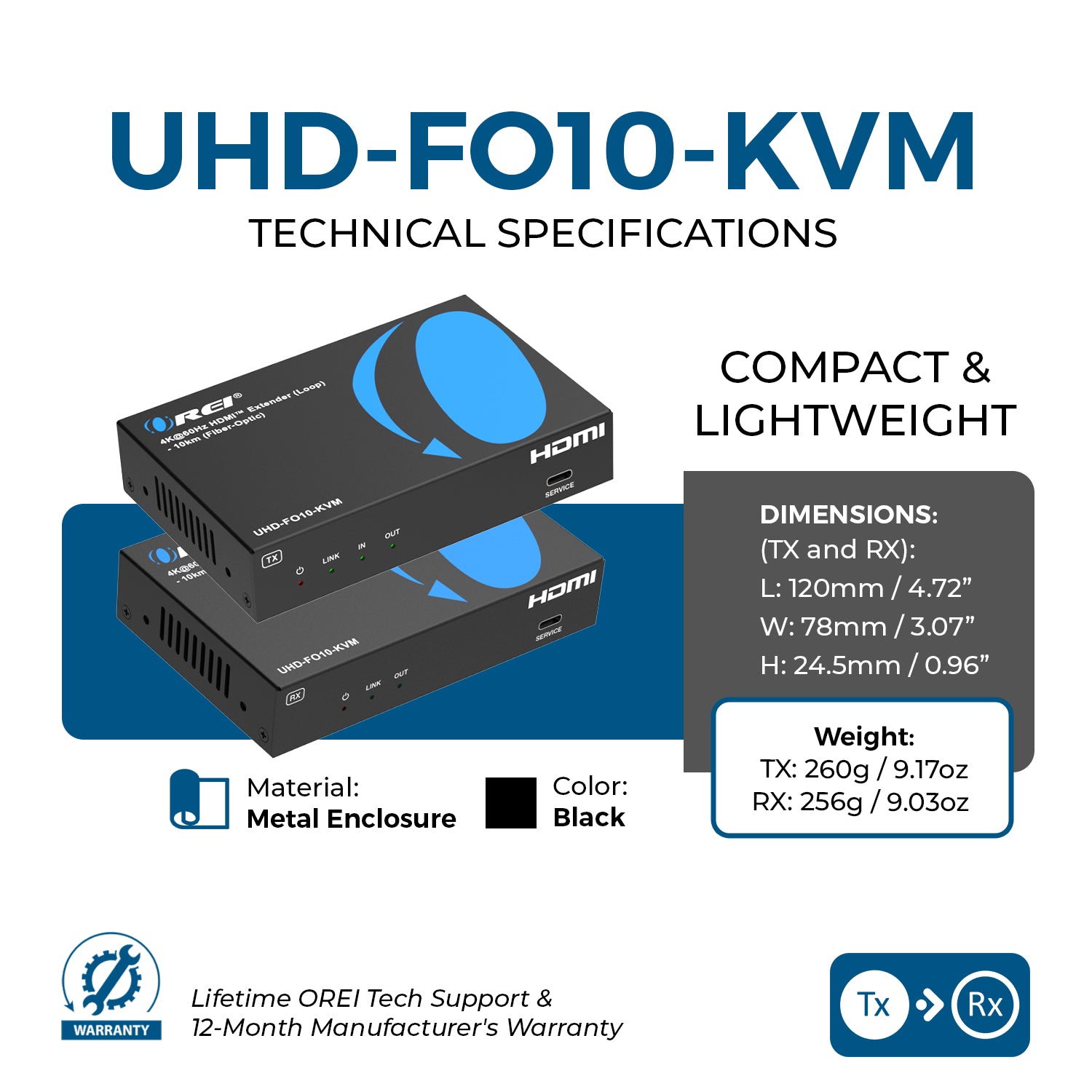

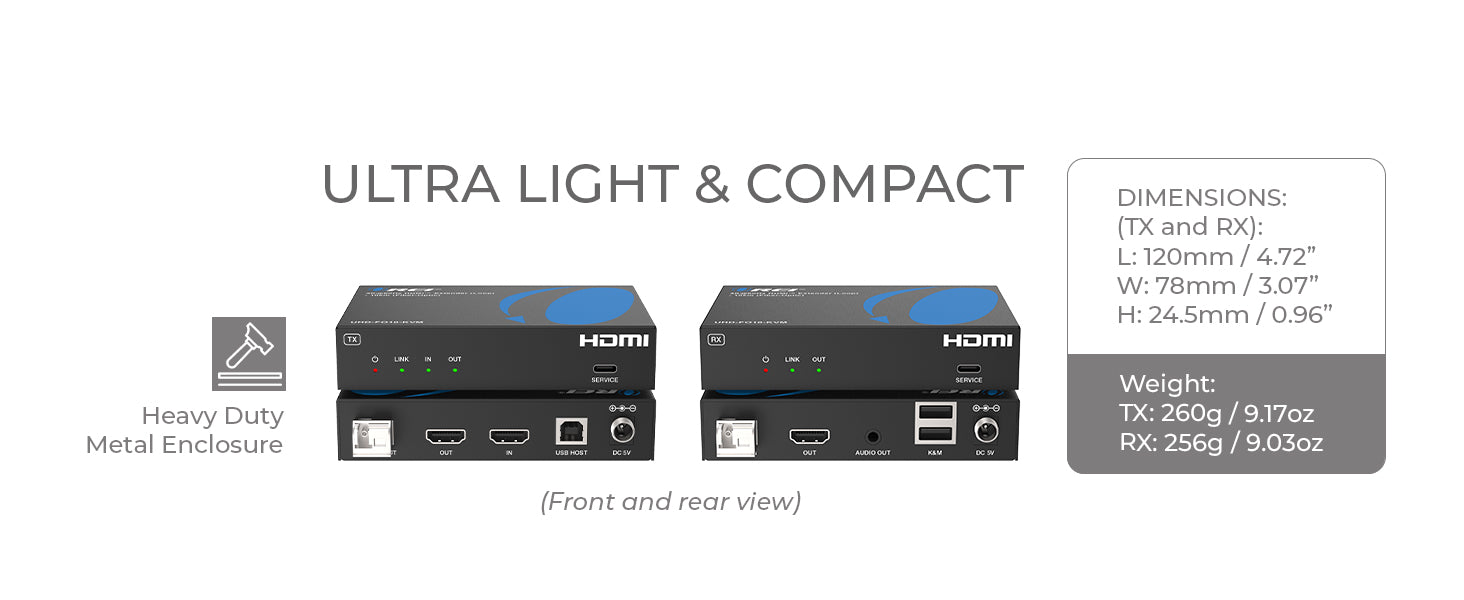

- Compact, Lightweight Design – Ideal for discreet mounting and flexible installation in professional AV environments
UHD-FO10-KVM is a high-performance signal transmission solution designed for ultra-long-distance AV applications. Utilizing single-mode fiber optic technology, it transmits uncompressed HDMI™ signals up to 10km with exceptional stability and clarity.
Supporting video resolutions up to 4K@60Hz 4:4:4, it delivers vivid, high-definition visuals without signal loss. The extender features loop output on the transmitter side for local monitoring and audio de-embedding on the receiver side for flexible audio system integration. It also supports USB 1.1 keyboard and mouse transmission, enabling convenient device control from the Receiver end.
With its robust, compact design, and automatic EDID management, this
extender offers a reliable, feature-rich solution ideal for commercial installations, control centers, and high-end AV environments.

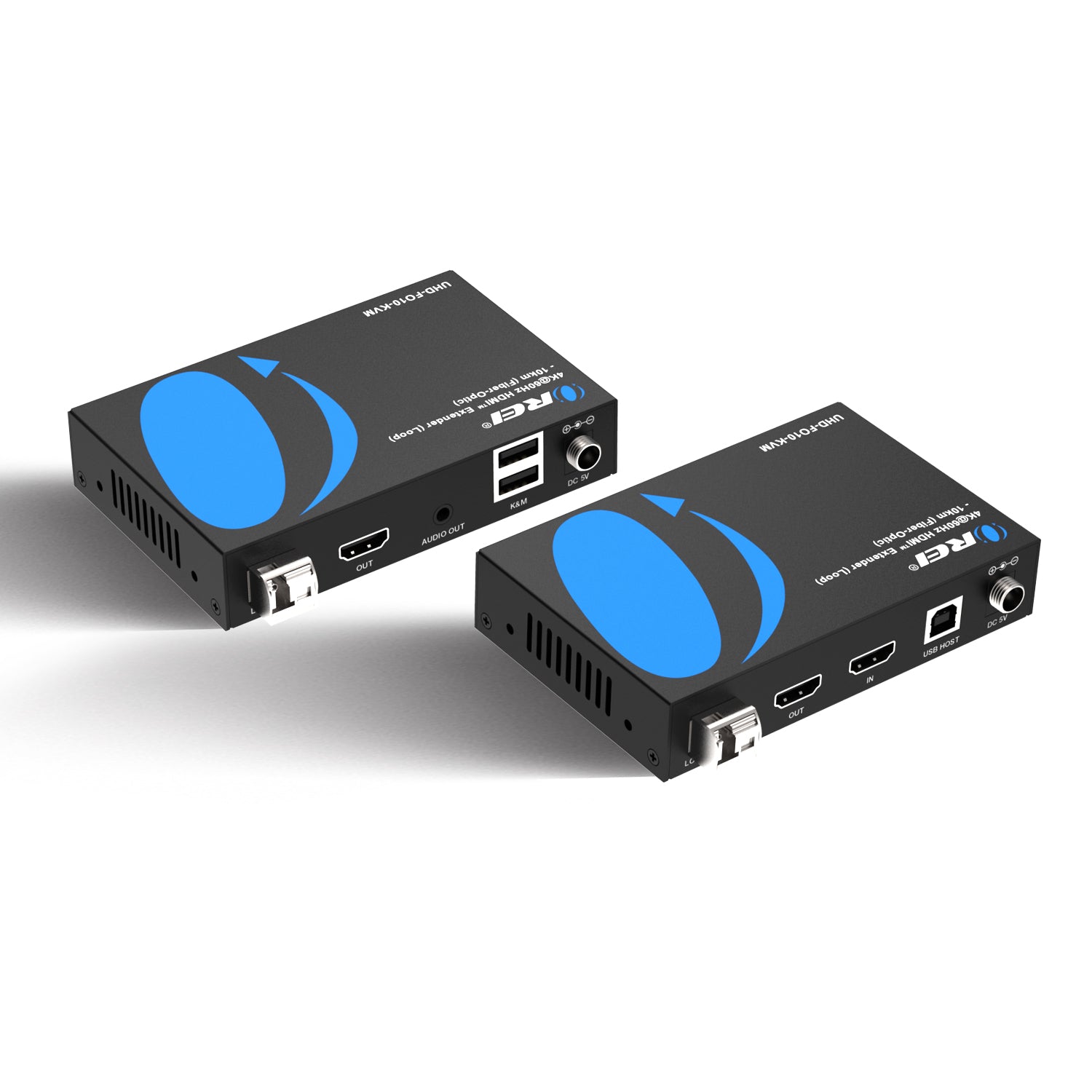

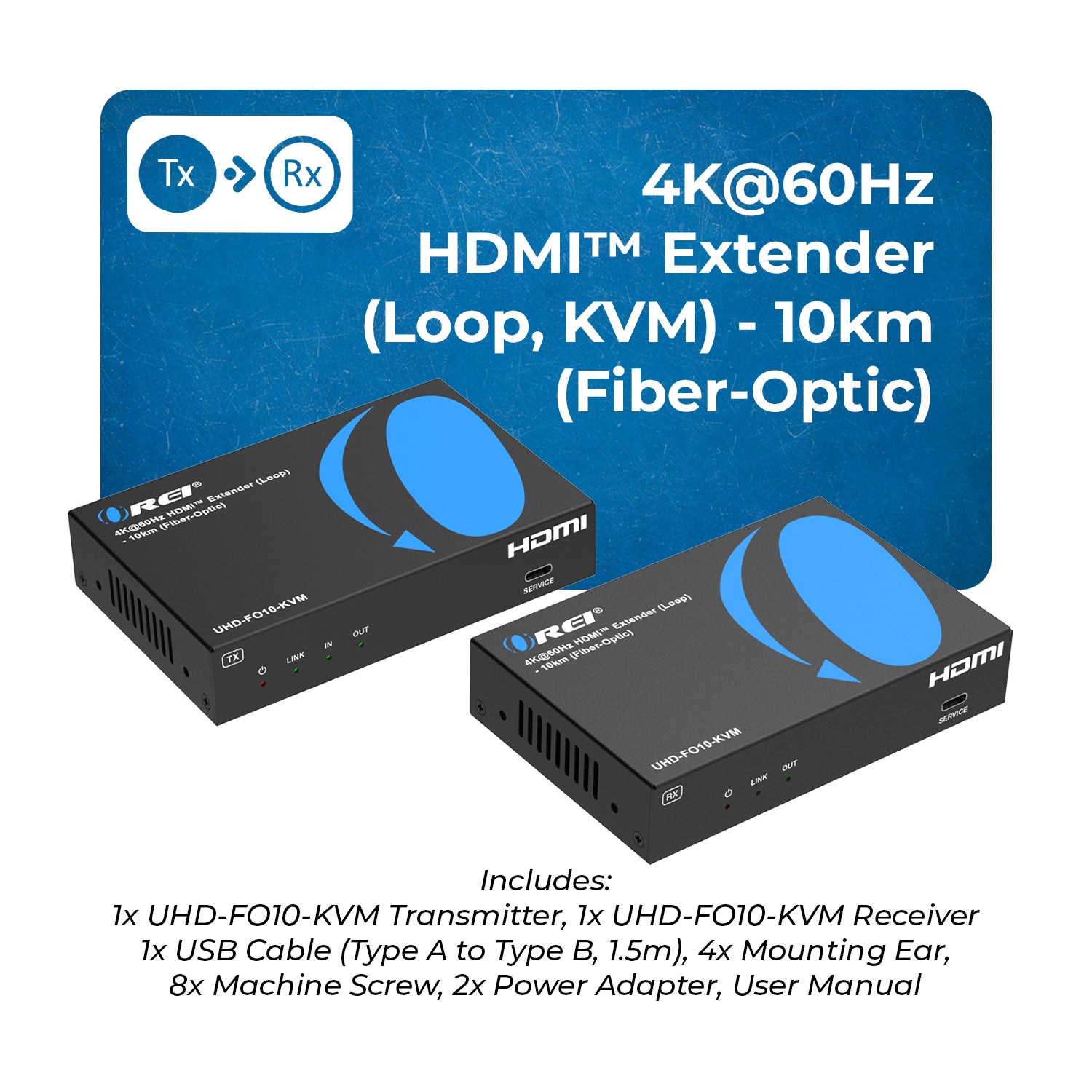

Package Includes UHD-FO10-KVM(Transmitter and Receiver), 1x USB Cable(Type A to Type B, 1.5m), 2x Power Adapter, 4x Mounting Ear, 8x Machine Screw and User Manual.
UHD-FO10-KVM User Manual Download
