4K@60hz HDMI™ Extender (Loop, Bi-IR) - 330ft (coaxial)-CO-UHD330-K
- Supports 4K@60Hz up to 330 Feet
- Supports PCM 48Khz Audio
- Supports Bi-directional IR
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
1. Long-Distance 4K HDMI over Coax Solution
The CO-UHD330-K is a high-performance HDMI 2.0 extender designed to transmit 4K@60Hz signals up to 330 feet (100 meters) using a single RG-6 75 Ohm coaxial cable. With support for HDCP 2.2 and zero compression, it delivers uncompressed, ultra-high-definition video and multi-channel audio without signal degradation, making it ideal for long-distance AV applications.
2. Stable Signal Transmission and Local Display Support
This HDMI signal extender supports digital video and audio transmission over coax, maintaining strong performance across extended distances. The transmitter includes an HDMI loop-out port, allowing you to connect a local monitor at the source. It's fully compatible with HDMI 2.0 sources and supports audio formats up to 5.1 channels, including Dolby Digital and DTS.
3. Built-in EDID and Audio Extraction Capabilities
Advanced EDID management ensures seamless communication between source and display, while built-in audio de-embedding allows you to extract HDMI audio to external speakers or sound systems. Whether you’re setting up a home theater or a commercial AV zone, the CO-UHD330-K delivers professional-grade HDMI extension with flexible integration options.
4. IR Control and Plug-and-Play Installation
The system supports bi-directional IR for remote control of connected devices from either end of the coaxial run. Its compact form factor, rugged construction, and plug-and-play design make installation simple and dependable. Ideal for environments where coaxial cable infrastructure is already in place, this HDMI over coax 4K extender ensures uncompromised performance with minimal setup effort.

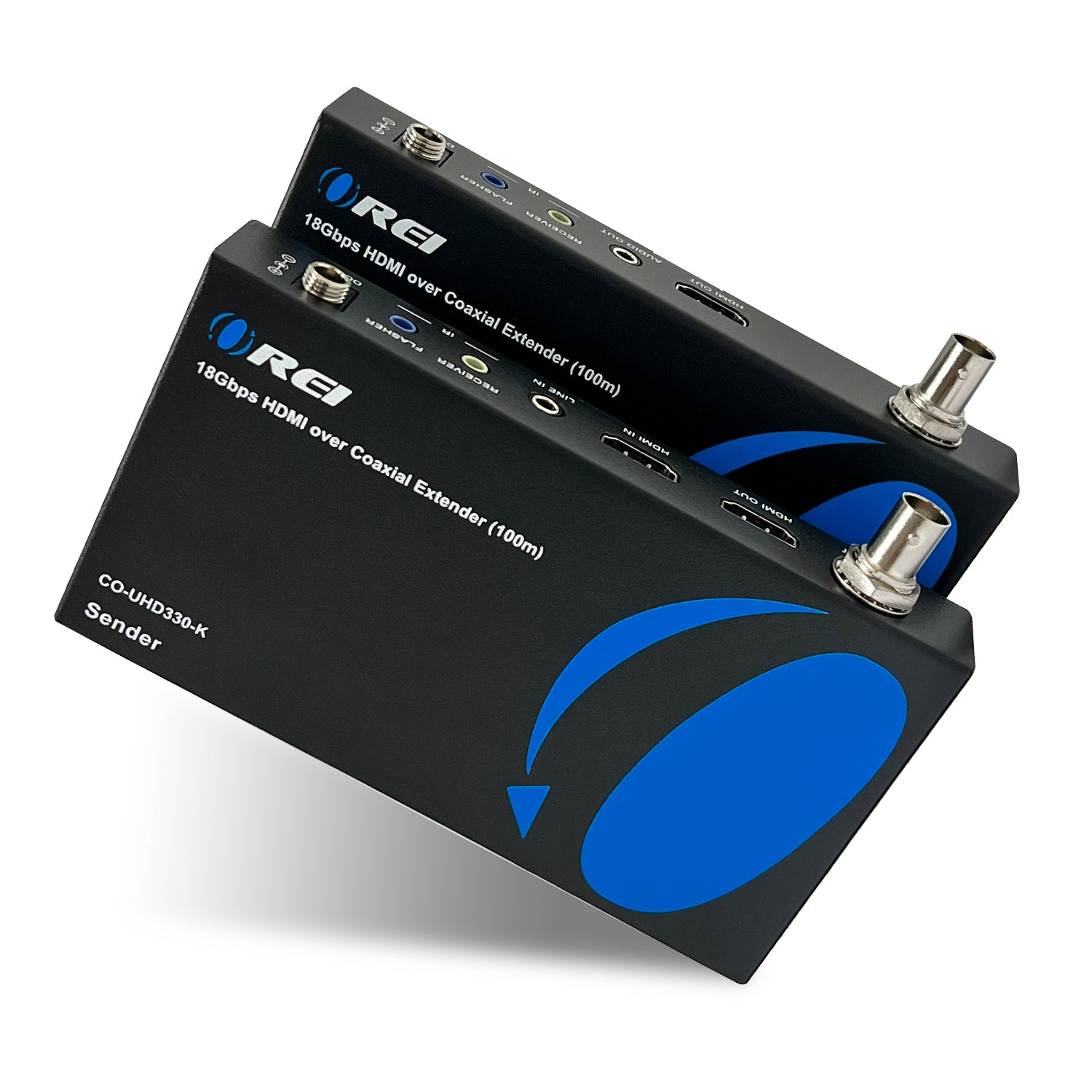

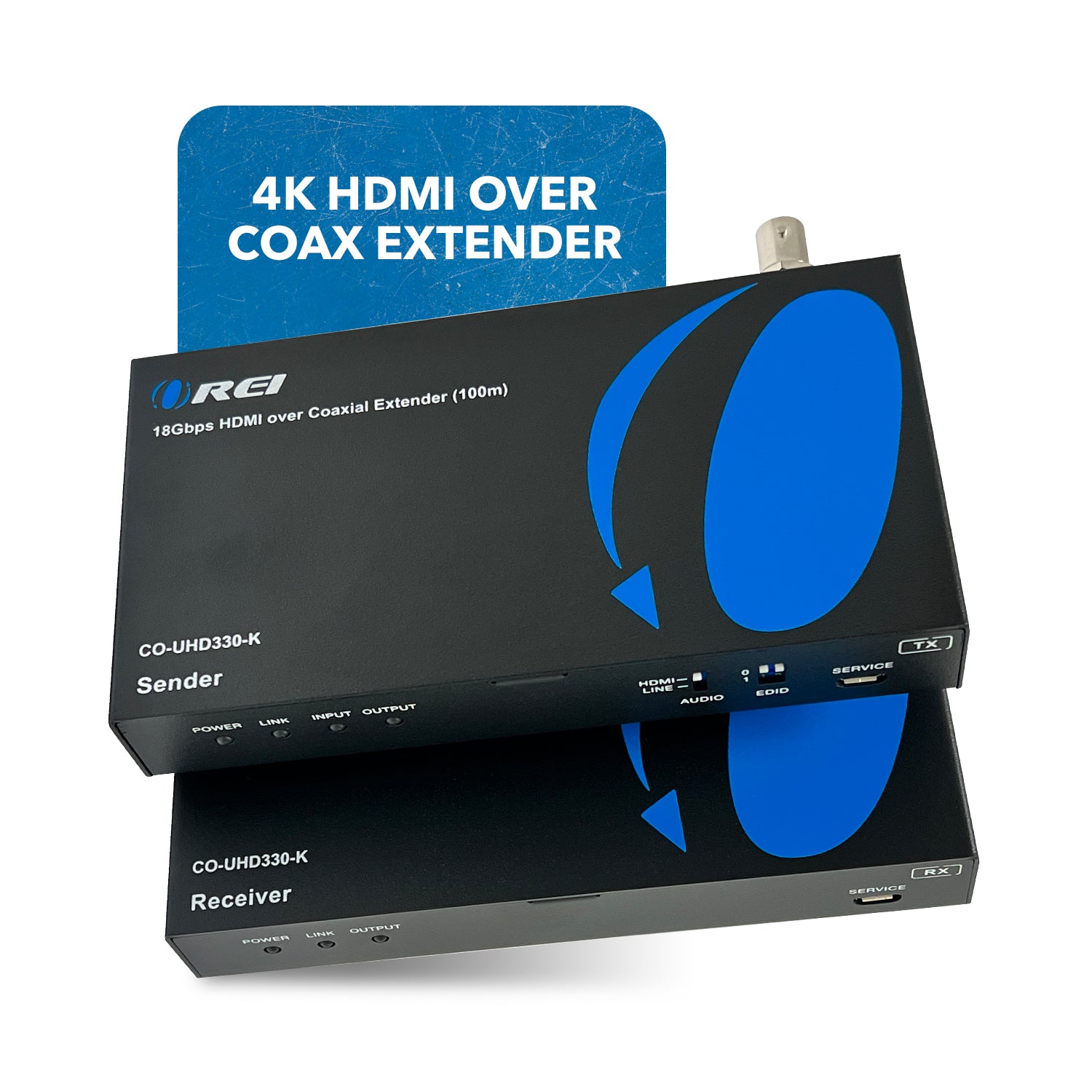

OREI CO-UHD330-K HDMI Over Coaxial Extender up to 330FT
- Flexible extension of high-bandwidth HDMI 2.0
- Transmit 4K@60Hz up and 2K@60Hzto 330 Feet
- Audio and video are transmitted digitally over the 75 Ohm RG-6 Copper Coaxial cable with zero signal loss
- Compliant with HDMI 2.0, HDCP 2.2 standards
- HDMI Out on the Transmitter side to connect a display at the source
- Supports PCM 48KHz audio
- Up to 5.1-channel audio supported including Dolby Digital, DTS, and PCM
- Features advanced EDID management and Audio De-embedding.
- Supports Bi-directional IR
- Easy to set up and operate
Description:
The CO-UHD330-K sends HDMI signals over just one 75 Ohm RG-6 Coaxial cable up to 330 feet. This Extender is HDMI 2.0 and HDCP 2.2 Compliant. Features advanced EDID management and Audio De-embedding. Supports PCM 48Khz Audio. Up to 5.1-channel audio supported including Dolby Digital, DTS, and PCM (does not support Dolby True HD, DTS-HD, or LPCM). Bidirectional IR allows you to control the source device from the remote location and the remote device from the source location.

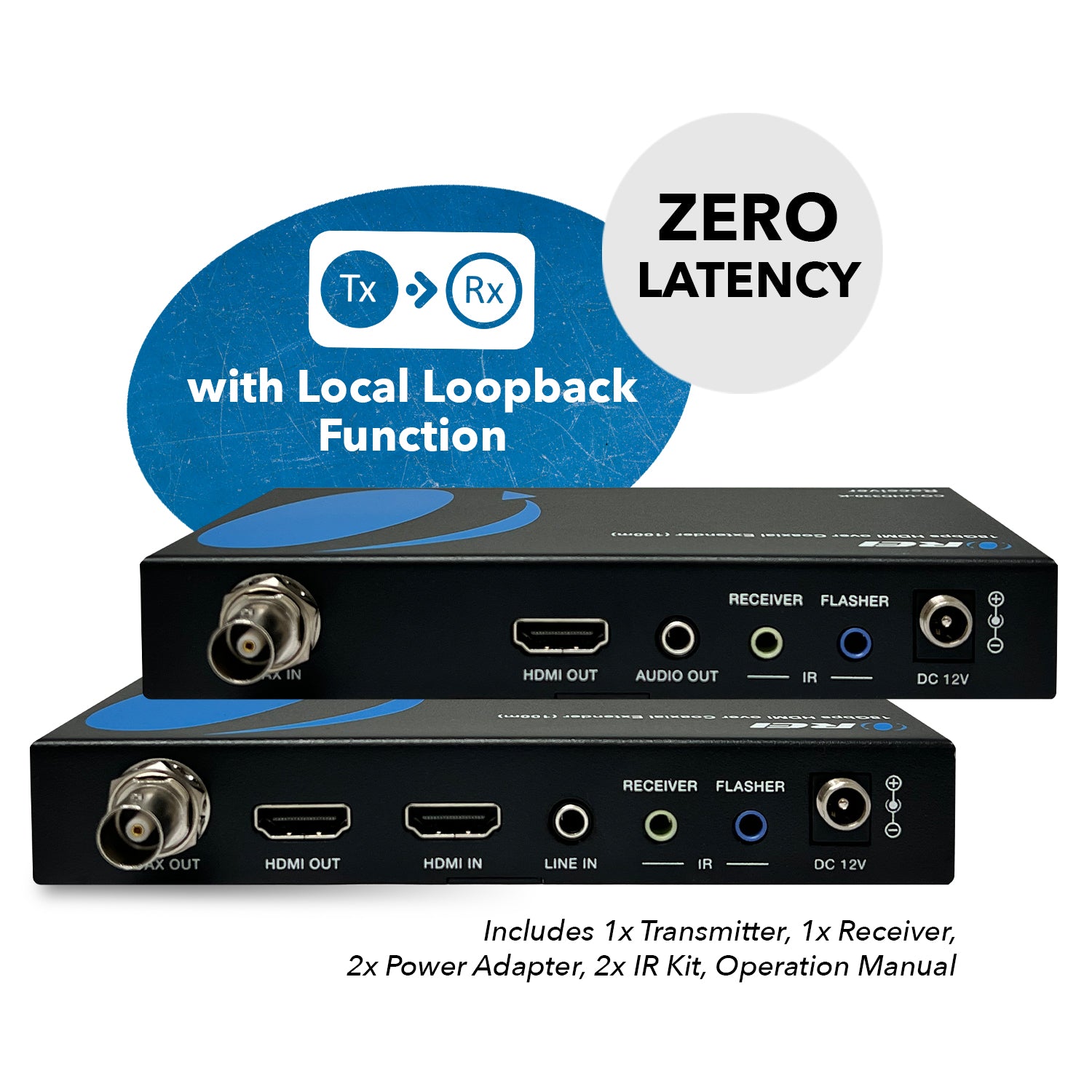

This Extender offers the most convenient solution for HDMI extension over a single coaxial cable with long-distance capability and is the perfect solution for any application. The package includes Orei CO-UHD330-K HDMI Extender (Transmitter & Receiver Units), 1x IR Tx Cable, 1x IR Rx Cable, 2x Power adapters, a Mounting kit & user manual.
CO-UHD330-K User Manual Download
CO-UHD330-K Specifications Sheet
