4K@60hz HDMI™ Extender (Over 1G IP, Loop, IR) - 40km (single fiber-optic)-UHD-FOM40-K
-
HDMI extender over Fiber Optic
-
Resolutions up to 4K@60Hz
-
Over IP One-to-Many operation through a gigabit switch
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
1. Ultra-Long Distance 4K HDMI Over Fiber Extender
The UHD-FOM40-K is a professional HDMI extender engineered to transmit uncompressed 4K@60Hz video and audio over ultra-long distances using single-mode fiber optic cable. Designed for large-scale AV projects, this fiber cable extender supports HDMI 2.0 and HDCP 2.2 standards, delivering high-performance, high-fidelity signals without degradation—even across spans up to 40 kilometers. Ideal for mission-critical environments, it ensures uninterrupted operation for control rooms, data centers, or surveillance systems.
2. Uncompromised Video Quality with ipcolor STREAM
Powered by ipcolor STREAM technology, the UHD-FOM40-K delivers visually lossless video with ultra-low latency. Its 18Gbps bandwidth supports the full range of HDMI 2.0 video formats, including 4K@60Hz, making it an excellent choice for AV professionals who need sharp resolution and smooth playback. With HDMI loop-out on the transmitter, local monitoring near the source is effortless, adding convenience for operators and installers.
3. Flexible Control & Audio Integration
Beyond video transmission, the extender supports RS-232 pass-through and one-way IR control—offering seamless integration with third-party control systems and remote management from the display side. Analog audio input and output ports allow for independent audio signal routing, expanding installation flexibility in live event venues, broadcast stations, and digital signage deployments where HDMI fiber optic extender systems are in high demand.
4. Reliable 24/7 Operation for Commercial Installations
Built for long-term, 24/7 performance, the UHD-FOM40-K features a compact, industrial-grade design suitable for demanding use. Its Micro USB port allows for easy firmware upgrades, ensuring future compatibility and extended product life. Whether you’re deploying HDMI over long distance, building a 4K HDMI over fiber solution, or implementing a high-end infrared remote extender setup, this device delivers stable, professional-grade performance you can count on.

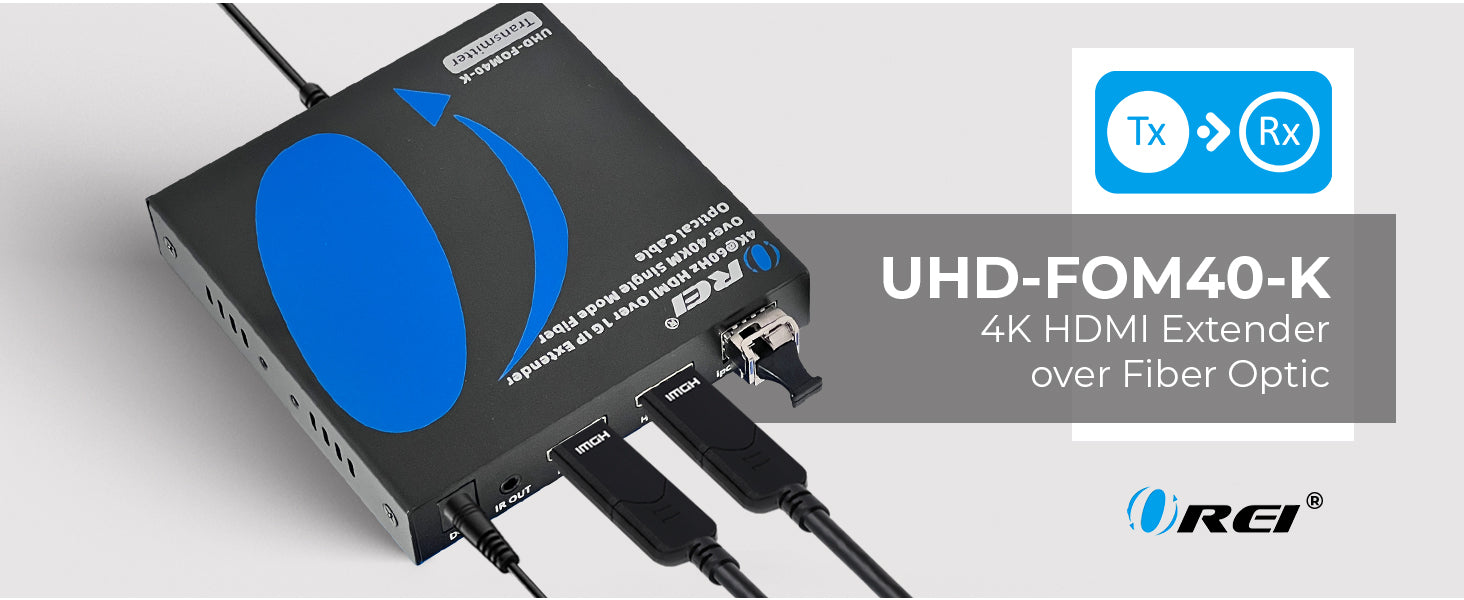

UHD-FOM40-K: 4K@60Hz HDMI Over IP 1G Extender upto 40Km over Fiber Optic
- HDMI 2.0 and HDCP 2.2 compliant.
- Resolutions up to 4K@60Hz
- 18Gbps video bandwidth
- Features ipcolor STREAM technology through which high-definition, and low-latency transmission is achieved.

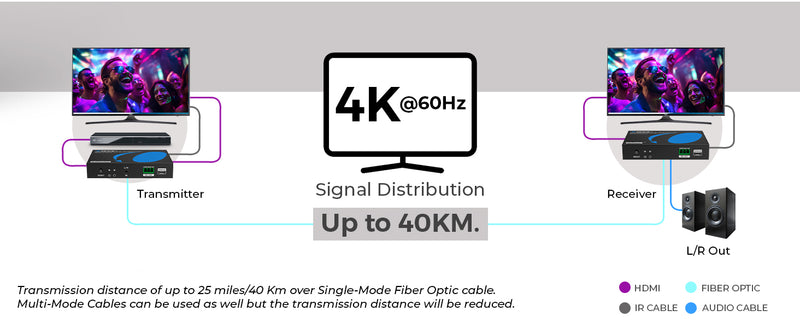

- Extend signals to up to 40Km over a Single Mode Fiber Optic cable
- One-to-one or one-to-many connection through a gigabit switch.
- RS-232 pass-through.
- One-way IR control
- Micro USB port for firmware upgrades.
- Designed for 24-hour steady operation.

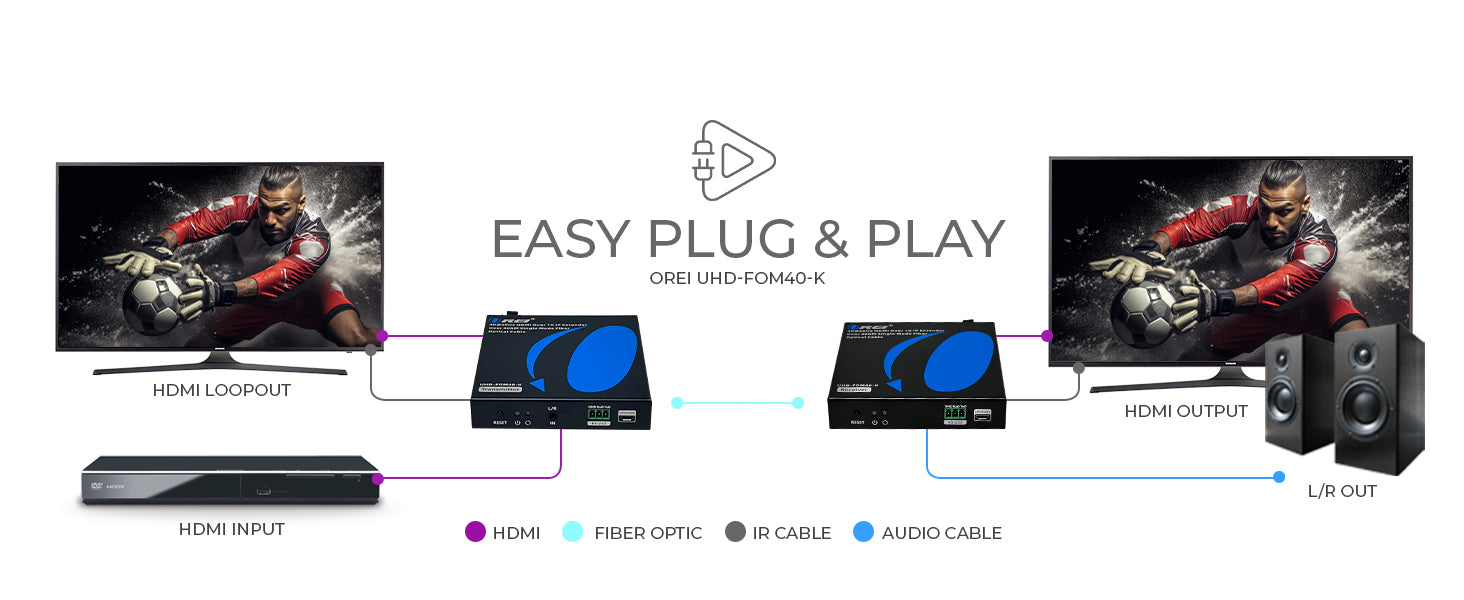

The UHD-FOM40-K offers a comprehensive solution for extending high-definition signals over long distances. It supports up to 4K@60Hz video resolution up to 40Km over a single mode fiber optic cable. It utilizes Ip color STREAM technology to ensure high-definition transmission with minimal latency. The Transmitter features an HDMI loop output to connect a display near the source. It supports both one-to-one and one-to-many connections through a gigabit switch. Additionally, it features IR functionality and RS-232 passthrough. The Transmitter and Receiver feature Analog audio input and output respectively for audio extension as well. It is designed for stable and uninterrupted operation 24 hours a day. This device is perfect for commercial operations.
UHD-FOM40-K User Manual Download
UHD-FOM40-K Specifications Sheet
