4K HDBaseT HDMI™ Extender with Wall Plate (TX) - 230ft (cat6)-UHD-WPE230-K
- Bi-directional IR control
- 4K@60Hz up to 130 feet
- Wall Plate Transmitter
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability

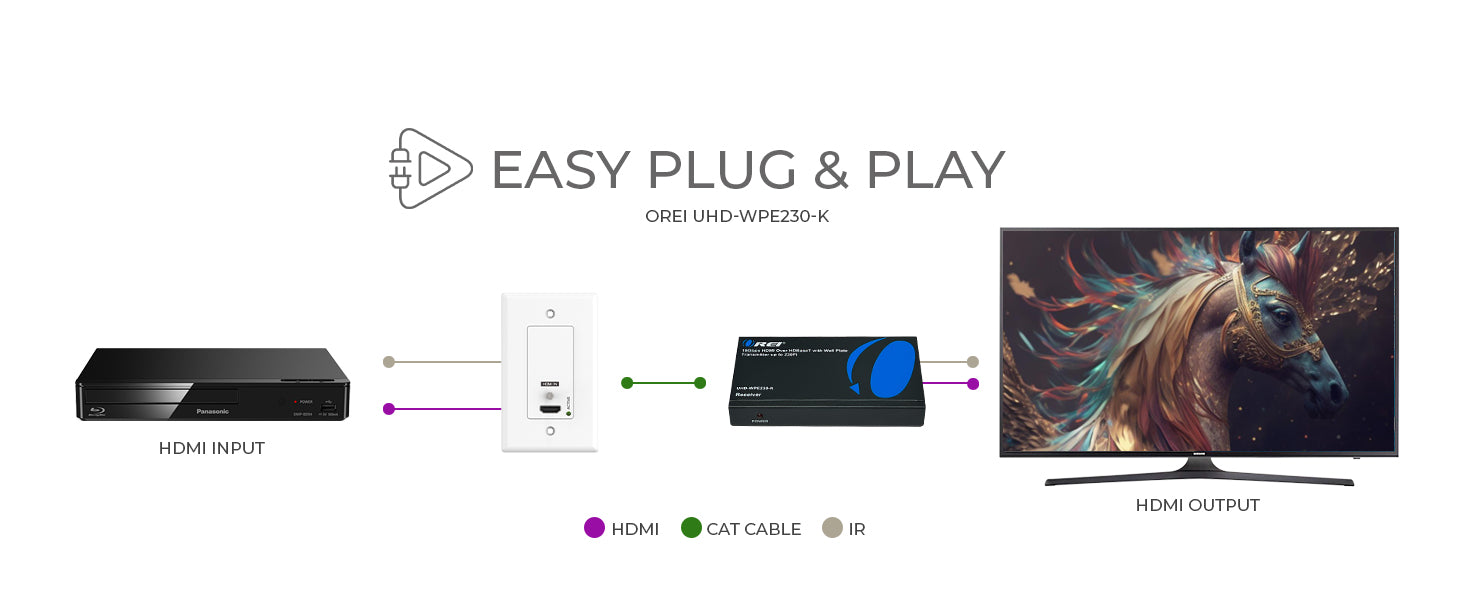

1. Extend 4K HDMI Over a Single Cable
The OREI UHD-WPE230-K allows you to transmit HDMI signals up to 230 feet using a single CAT 6/6a/7 cable—perfect for home theaters, classrooms, and conference rooms. It supports HDMI 2.0 and HDCP 2.2, ensuring seamless playback of modern 4K@60Hz (4:4:4) content with 18Gbps video bandwidth and zero compression.
2. Clean Wall Plate Design for Professional Installs
Designed with a US Decora-style wall plate, the transmitter fits flush into any standard wall junction box for a sleek, integrated look. Ideal for residential and commercial AV installations where aesthetics and reliability matter.
3. HDBaseT Technology for Reliable Long-Distance Transmission

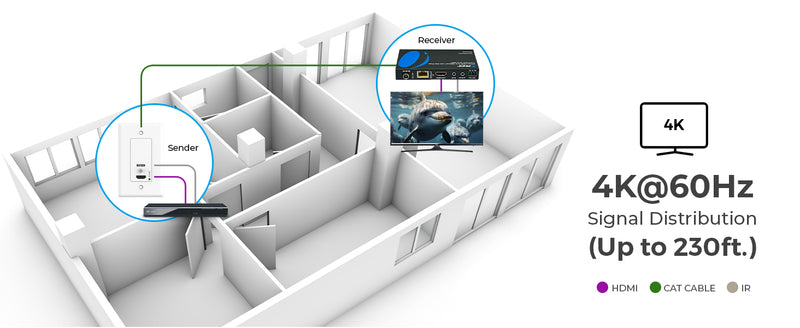

Equipped with HDBaseT, this extender ensures lossless, low-latency AV transmission over long distances—up to 130 feet at 4K@60Hz, or 230 feet at 1080p@60Hz. Whether you’re extending content in a smart home or a large meeting space, the signal remains crisp and stable.
4. PoC & Full System Control Built-In
With Power over Cable (PoC), only one power adapter is required—at either the transmitter or receiver—making installation simpler and more flexible. Plus, bi-directional IR and RS-232 pass-through allows complete control of your source or display from either location.

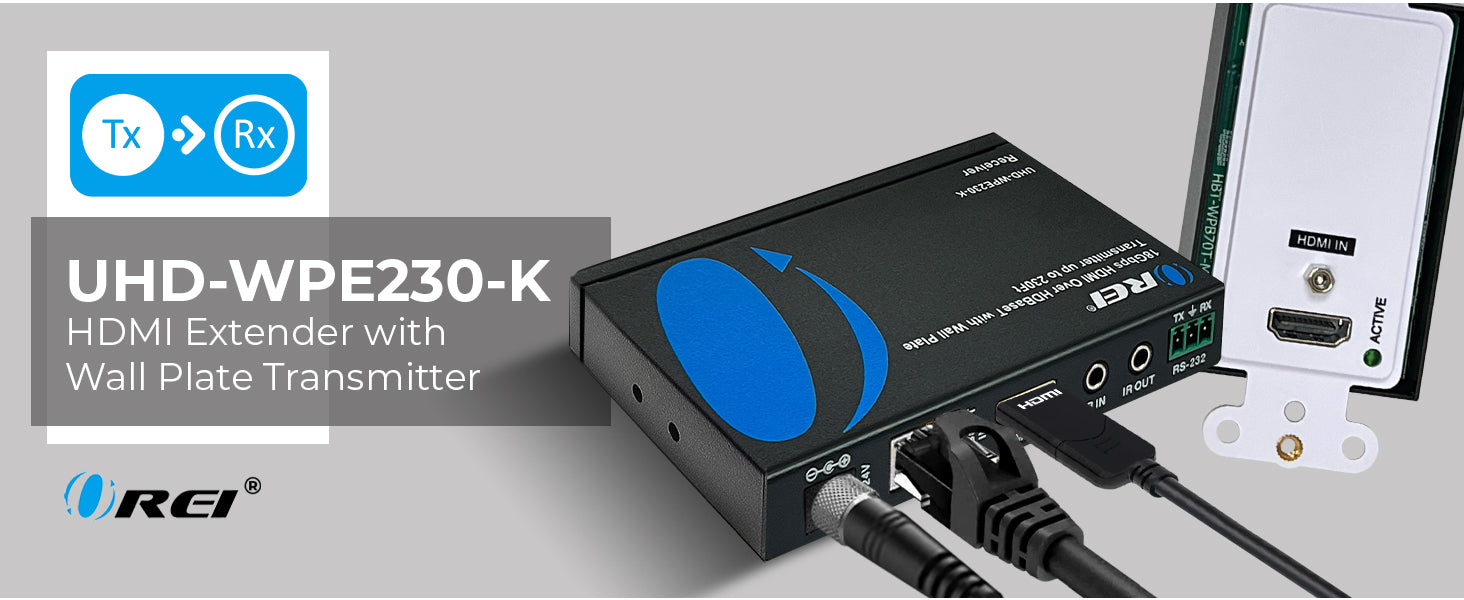

UHD-WPE230-K: 4K Wall Plate HDMI Extender over CAT 6/7 up to 230 feet with HDBaseT
Key Features:
- HDMI 2.0b and HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz and 2K@60Hz
- Extend audio/video signals up to 130 feet at 4K@60Hz and up to 230 feet at 1080p.
- 18Gbps video bandwidth
- Features HDBaseT technology for lossless transmission
- US Gang Decora Wall Plate Transmitter, fits into the wall providing easy integration
- Power over Cable function; requires only one power adapter to be connected at either end.
- Bi-directional IR pass-through & RS-232 control for enhanced control
- Perfect for commercial and personal setups
The UHD-WPE230-K HDBaseT Wall Plate Extender facilitates seamless video transmission, supporting up to 4K@60Hz (4:4:4) over a single CAT 6/6a/7 cable. Featuring a standard US wall plate transmitter, it integrates easily into home setups. It extends media at 4K@60Hz up to 130ft/40m or 1080p@60Hz up to 230ft/70m. With Power over Cable (PoC) functionality, it offers enhanced installation flexibility. It also enables two-way IR and RS-232 communication, providing comprehensive control capabilities. Ideal for streamlined video distribution and control in residential and commercial environments.
UHD-WPE230-K User Manual Download
UHD-WPE230-K Specifications Sheet
