4K HDMI™ & USB-C Extender with Wall Plate (TX) - 165ft (cat6)-UHD-WPE165-K
- Video resolution up to 4K@60Hz and 2K@60Hz
- HDMI and USB C input
- Automatic switching
- iPhone 15 with a USB C 3.1 cable can be used to send video output through the USB C port on the Transmitter
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability

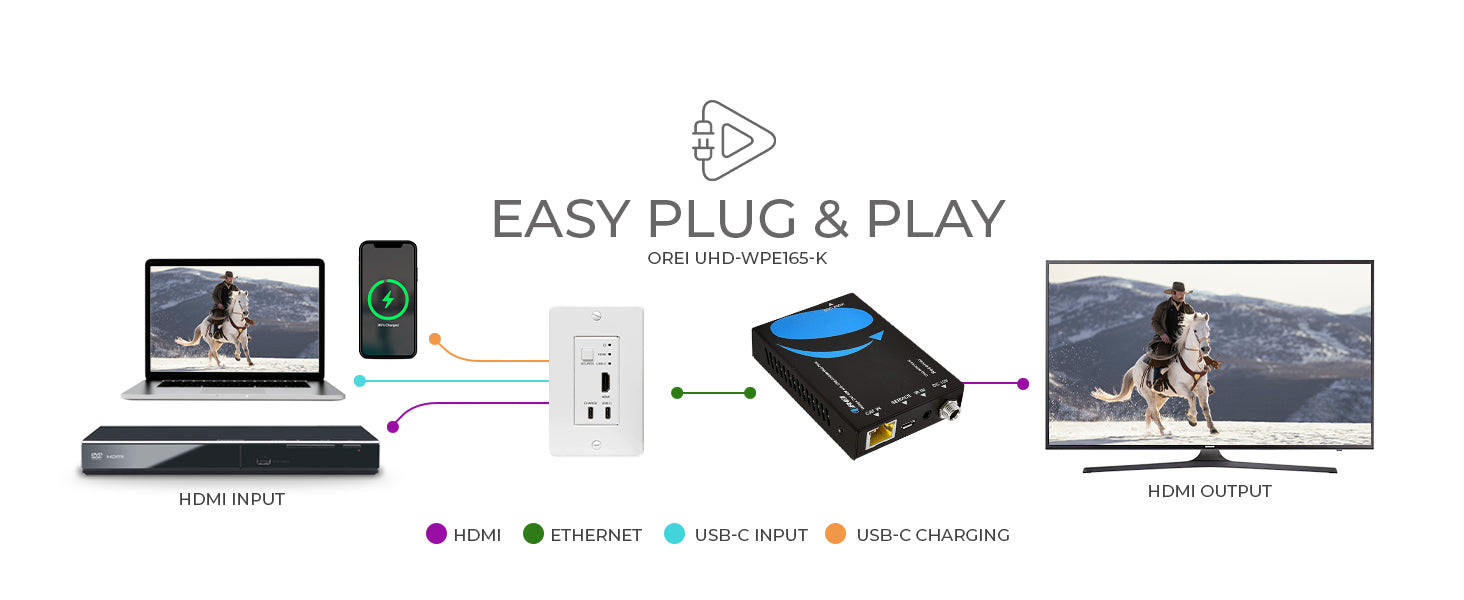

1. Extend HDMI & USB-C Video Up to 165 Feet
The OREI UHD-WPE165-K is a premium HDMI wall plate extender that supports both HDMI 2.0b and DisplayPort 1.2a (via USB-C), delivering 4K@60Hz ultra-HD resolution over a single CAT6/7 cable. Transmit clear, uncompressed audio and video signals up to 165 feet at 4K@24Hz and 115 feet at 4K@60Hz, making it ideal for home theaters and residential AV systems.
2. Dual Input Support with USB-C Charging
This advanced wall plate switcher includes both HDMI and USB-C inputs, allowing seamless connectivity for a wide range of devices—from set-top boxes to modern laptops. The USB-C port supports charging, enabling direct laptop connections without needing separate power cables, all through a streamlined wall-mounted solution.
3. Automatic & Manual Input Switching
Enjoy flexible control with auto-switching between HDMI and USB-C sources or use the manual selector button on the wall plate for instant source selection. With HDR10 and Dolby Vision pass-through, it ensures dynamic picture quality with enhanced contrast and color accuracy on compatible displays.
4. Simplified Installation with Power over Cable (PoC)
Featuring PoC technology, the system requires power at only the receiver end—eliminating the need for an extra power adapter at the wall plate. The US Decora wall plate design offers a sleek, low-profile look that blends easily with modern interiors, making it the ideal 4K HDMI wall outlet for clean, professional installs.
UHD-WPE165-K: 4K HDMI Extender Over CAT 6 with wall plate transmitter USB C input with charging up to 165 feet
- HDMI 2.0, HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz and 2K@60Hz
- 18Gbps video bandwidth
- Signal transmission up to 165 feet over a CAT 6/6 cable
- HDMI and USB C inputs
- Automatic switching or manual switching through the button on the wall plate
- USB C charge port to charge your laptop
- Power over Cable technology only requiring power adapter at the Receiver end
- US decora wall plate for easy integration in your home
UHD-WPE165-K User Manual Download
UHD-WPE165-K Specifications Sheet
