4K@60hz 4-port HDMI™ Seamless KVM Switch w/ Multi Viewer (Audio USB3.0)-UKM-401MV
- 4 Inputs - 1 output HDMI Multiviewer switch
- Video resolution up to 4K@60Hz, 2K@60Hz
- KVM functionality
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
1. Seamless 4K Multiview Control for Four Systems
The UKM-401MV combines powerful video processing with intuitive KVM functionality, allowing you to manage four computers using a single keyboard, mouse, and display. Supporting resolutions up to 4K@60Hz and delivering an 18Gbps video bandwidth, this HDMI 4K multiviewer ensures crisp, lag-free visuals—ideal for control rooms, security centers, and advanced workstations.
2. Versatile Multiview Modes with Smooth Switching
With seven display modes including quad-view, picture-in-picture, and full-screen, this multiviewer with KVM switch adapts to your workflow instantly. Enjoy seamless switching between connected systems using front panel buttons, keyboard hotkeys, or IR remote—perfect for multitasking across multiple devices without delay or screen blackout.
3. Integrated USB Hub and Audio Extraction
Beyond video, the UKM-401MV enhances connectivity with a built-in USB 3.1 Gen 1 hub, offering three high-speed ports for peripherals like flash drives, webcams, or external storage. For sound, it features audio extraction via Optical and L/R outputs, making it a reliable solution for routing audio to external speakers or AV systems.
4. Reliable Device Communication and Flexible Control
Equipped with EDID management and HDCP 2.2 compliance, this KVM switch HDMI ensures smooth communication between sources and displays. Control options include panel buttons, hotkeys, on-screen display (OSD), RS-232, and remote access—delivering unmatched flexibility in both commercial and personal setups.

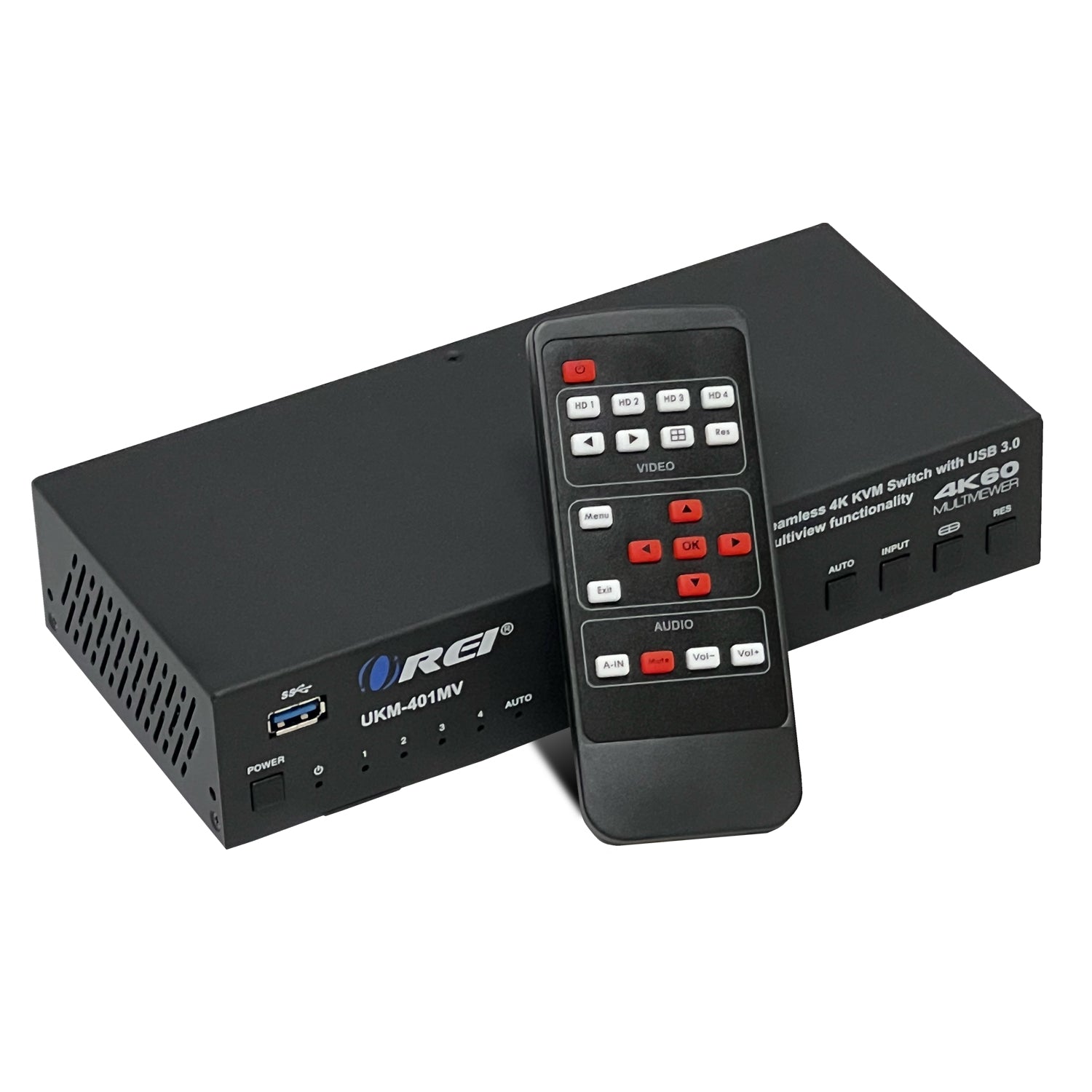

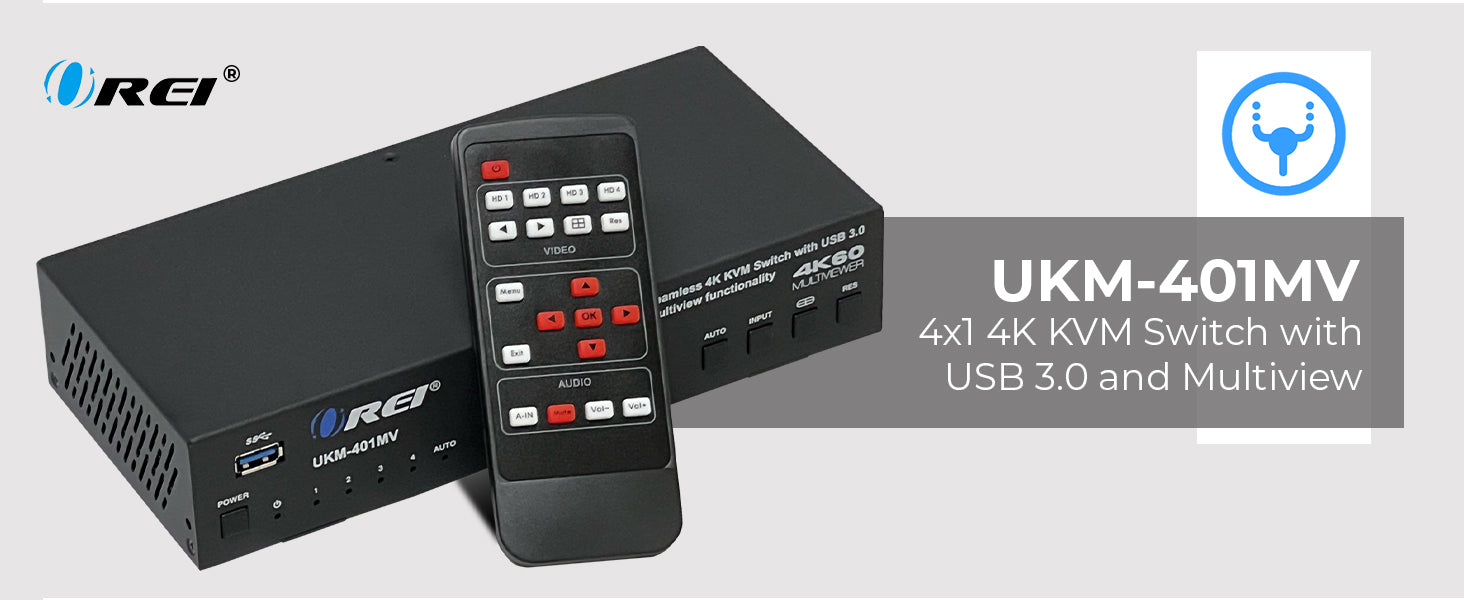

OREI UKM-401MV: 4x1 KVM Switch with Multiviewer
- HDMI 2.0b & HDCP 2.2 compliant
- Video resolution up to 4K@60Hz and 2K@60Hz
- 18Gbps video bandwidth

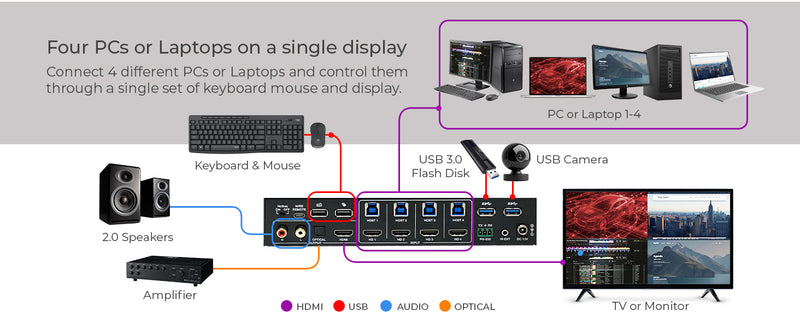

- Connect 4 computers and control them using a single set of Keyboard, mouse and display.
- Built-in 3-port USB 3.1 Gen 1 hub with SuperSpeed 5Gbps data transfer rates, allowing you to share USB peripherals like printer, scanner, webcam, and hard disk between computers
- Multiview functionality with 7 different modes
- Easily switch between PCs using the keyboard/mouse hotkeys
- Audio extraction through Optical and L/R outputs
- Select which input the audio comes from and control the volume as
well. - OSD navigation for advanced setting
- EDID management
- Control via front panel buttons, IR remote, keyboard/mouse hotkeys,
OSD menu navigation, control software, RS-232 commands - Compatible with Windows and MacOS
- No drivers required
- Compact design for easy and flexible installation
The UKM-401MV is a KVM Switch with 4 inputs, allowing you to access 4 computers using just one set of keyboard, mouse, and display. This device is HDMI 2.0b and HDCP 2.2 compliant, with a video bandwidth of 18Gbps and resolutions up to 4K@60Hz and 2K@60Hz. It also functions as a multi-viewer with 7 different display modes. Audio extraction is
available through its optical and L/R ports. It features a built-in 3-port USB 3.1 Gen 1 hub for super-fast data transfer rates up to 5Gbps. Control the device via panel buttons, an IR remote, Keyboard and Mouse hotkeys, the OSD menu, or RS-232 commands. This device is compatible with both Windows and Mac, with no additional drivers needed for a simple plug-and-play setup. Its compact design makes it perfect for both commercial and personal uses.
UKM-401MV User Manual Download
