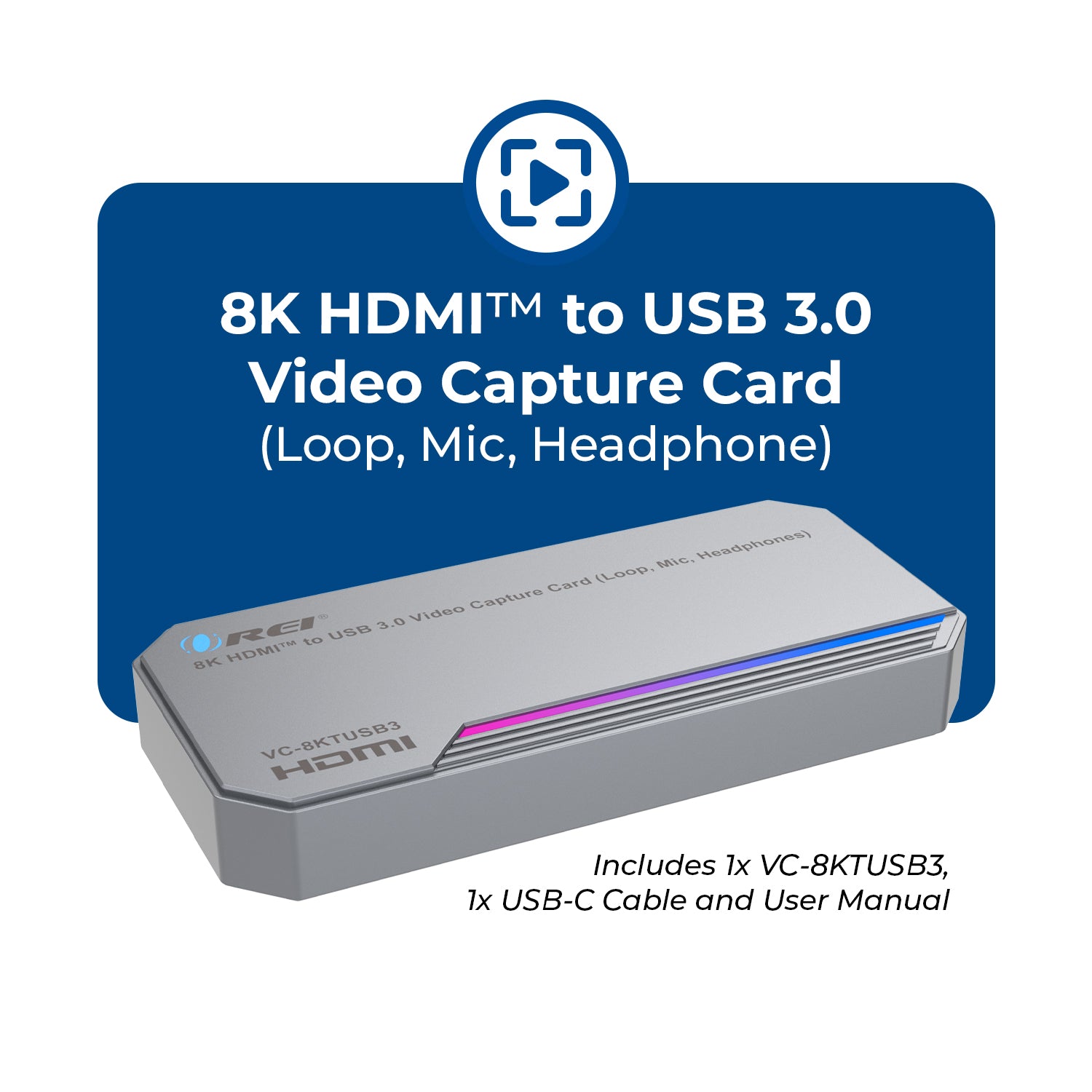

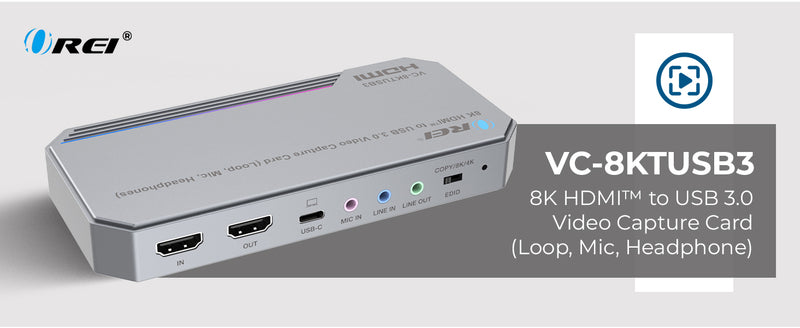

8K HDMI™ to USB 3.0 Video Capture Card (Loop, Mic, Headphones) - (VC-8KTUSB3)

VC-8KTUSB3: 8K HDMI™ TO USB 3.0 VIDEO CAPTURE CARD (LOOP, MIC, HEADPHONES)

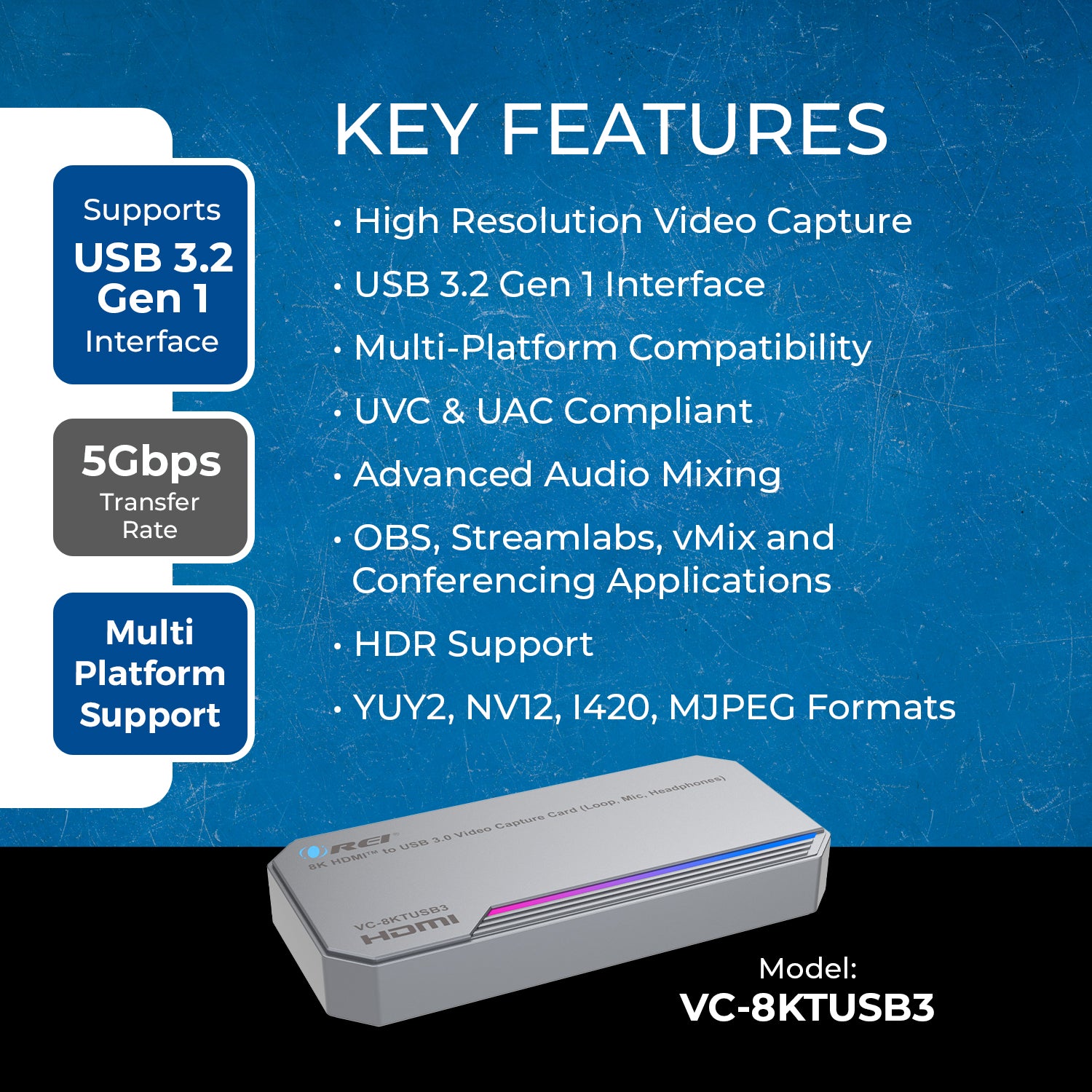

• High-Resolution Video Capture – Supports input up to 8K@60Hz and capture up to 4K@60fps.

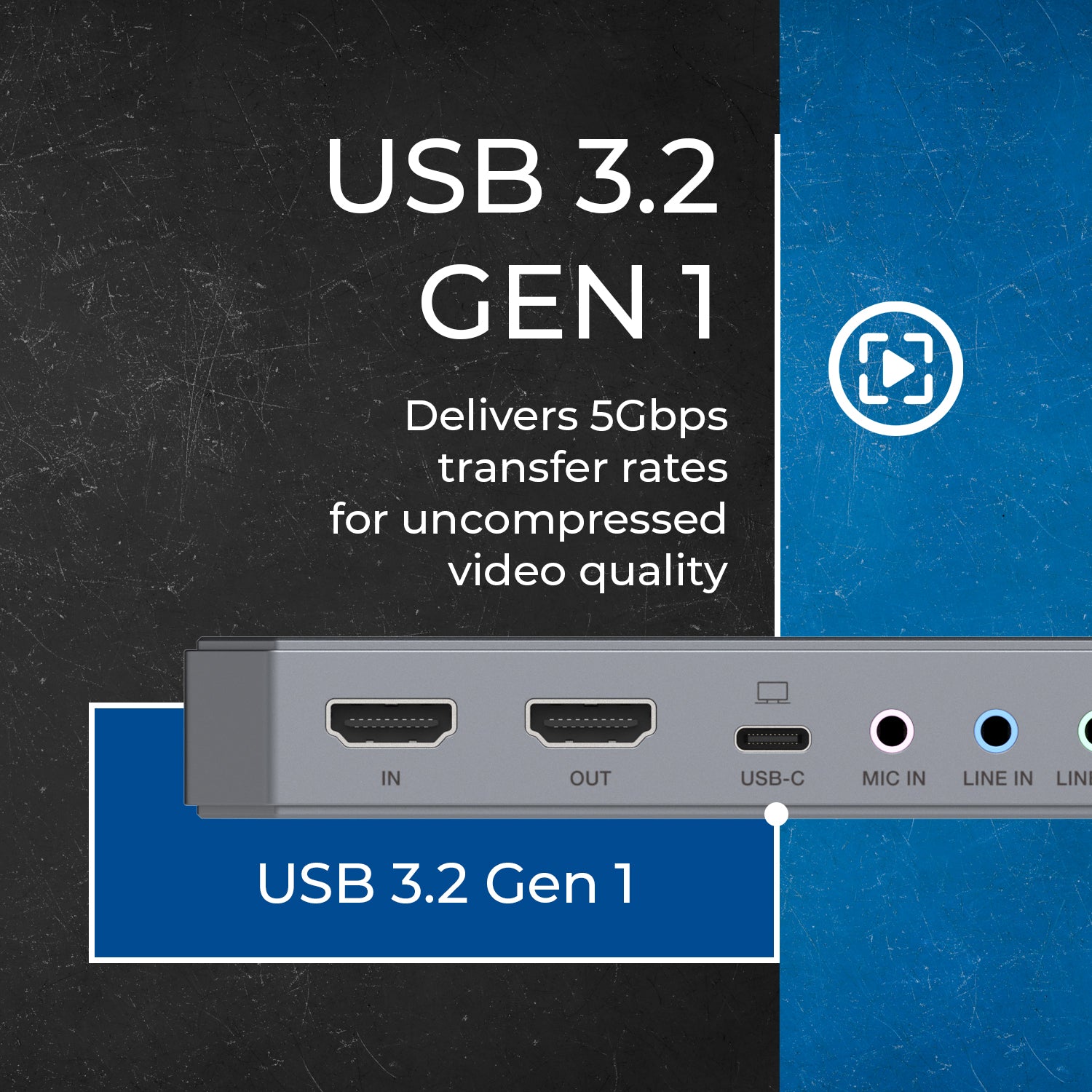

• USB 3.2 Gen 1 Interface – Delivers 5Gbps transfer rates for uncompressed video quality.

• Multi-Platform Compatibility – Works with Windows, Mac, and Linux operating systems.

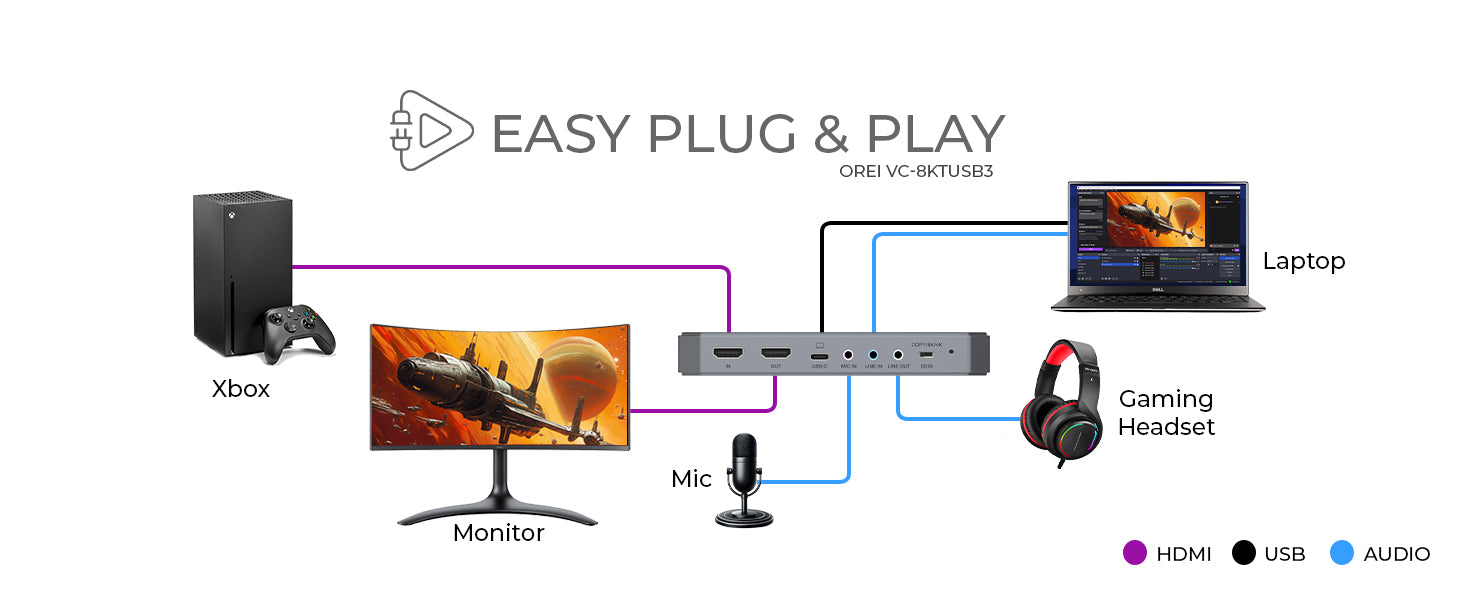

• UVC/UAC Compliant – Plug-and-play operation without additional drivers.

• Advanced Audio Mixing – Combines HDMI™ digital audio with analog microphone/line-in inputs.

• Professional Software Support – Compatible with OBS, Streamlabs, vMix, and conferencing applications.

• HDR Support – Maintains high dynamic range video quality throughout the capture process.

• Multiple Format Support – YUY2, NV12, I420, and MJPEG capture formats.

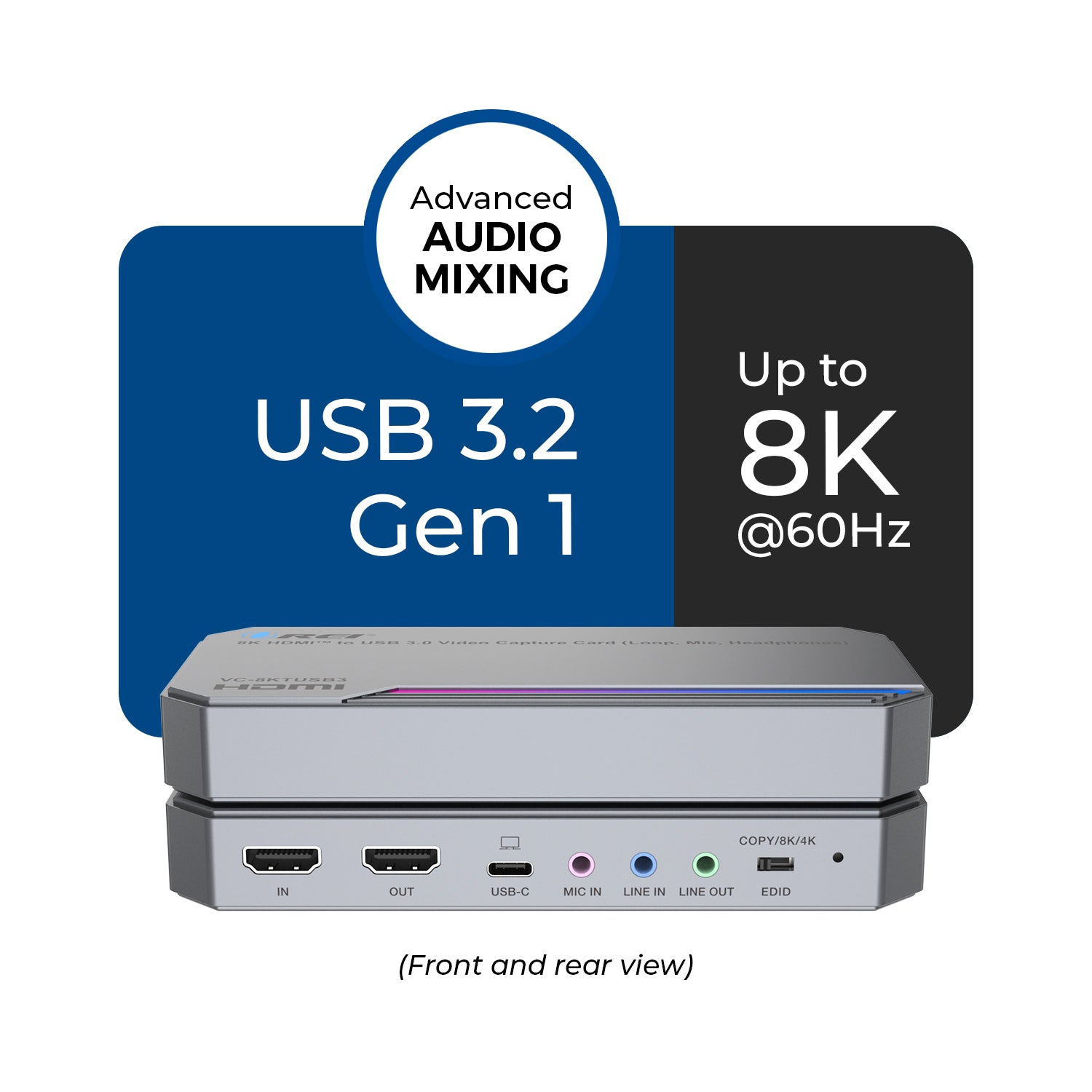

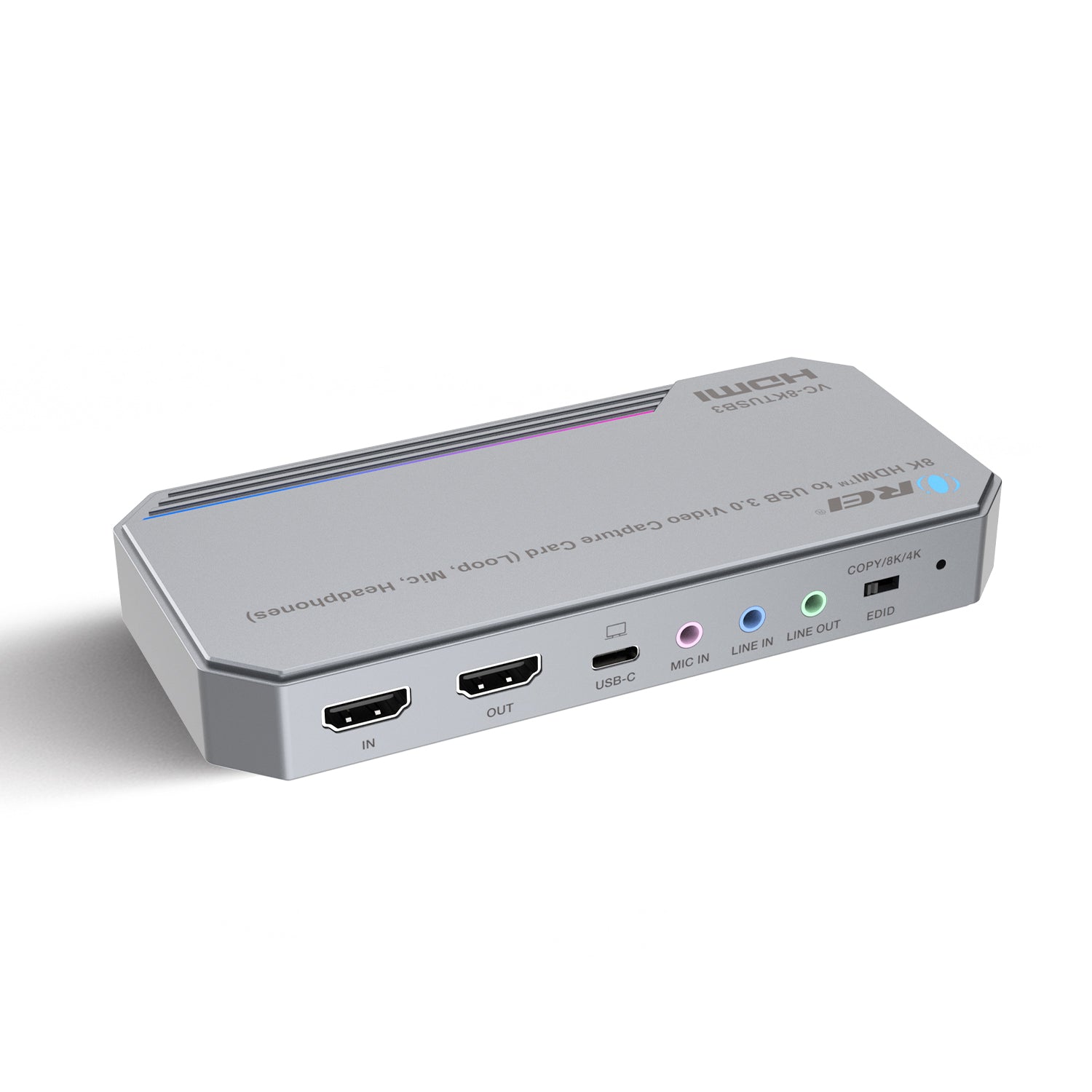

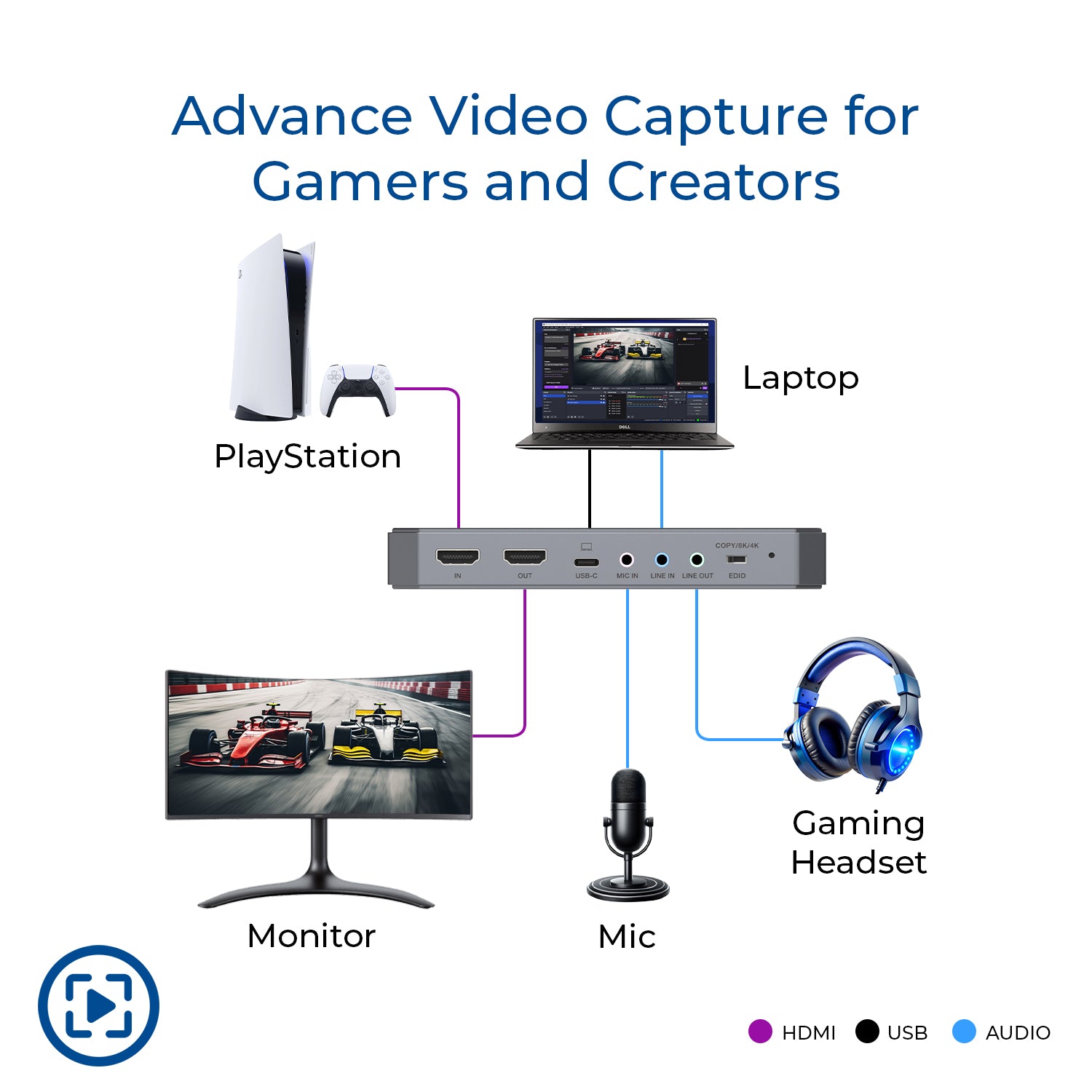

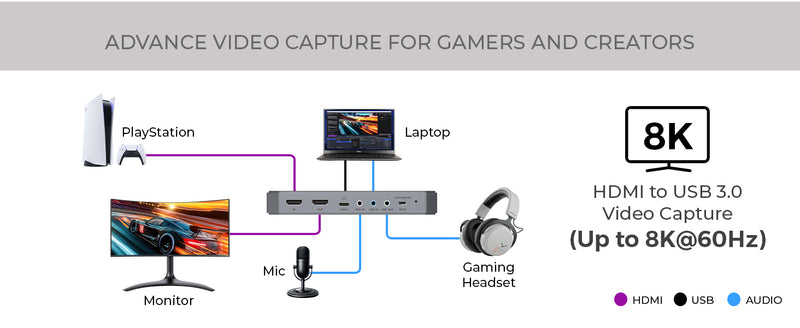

The VC-8KTUSB3 is a high-performance HDMI™ capture device designed for professional recording and streaming applications. It accepts HDMI™ input resolutions up to 8K@60Hz and 4K@144Hz, while delivering uncompressed capture resolutions up to 4K@60fps and 2560×1440@144fps. Featuring an HDMI™ loop-out, microphone input, and 3.5mm line-in and line-out ports, it offers flexible audio and video integration for advanced production setups.

Powered by USB 3.2 Gen 1 with up to 5Gbps bandwidth, the VC-8KTUSB3 ensures smooth, low-latency video transmission. It supports multiple capture formats including YUY2, NV12, I420, and MJPEG, making it suitable for a wide range of workflows. Fully compliant with UVC and UAC standards, the device requires no drivers and offers true plug-and-play operation. It is compatible with Windows 7/10/11, macOS, and Linux, and works seamlessly with popular software such as OBS, Streamlabs, vMix, Zoom, Microsoft Teams, and more.
