4K 8x8 HDMI Matrix Switcher Extender & HDBaseT Over CAT5e/6/7 Cable Up To 500 Feet (UHD88-EXB400R-K)

8% off

4K HDBaseT 8x8 HDMI™ Extender Matrix (Loop) - 400ft (cat6)-UHD88-EXB400R-K

$2,299.99 USD $2,499.99

SKU: UHD88-EXB400R-K

4K 8x8 HDMI Matrix Extender
Extends media up to 400 feet with resolutions up to 4K@60Hz and 2K@60Hz
Audio extraction via digital and analog outputs with Bi-directional IR, PoC & Downscale

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Add To Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

View details

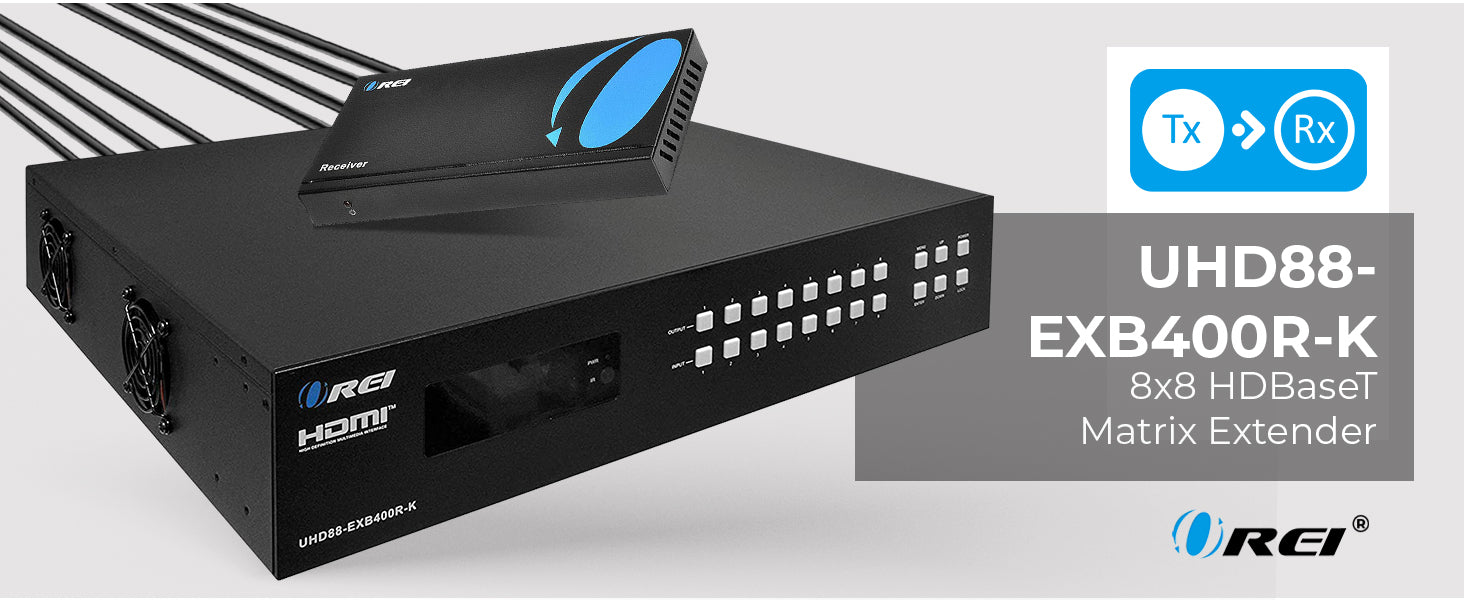

4K HDBaseT 8x8 HDMI™ Extender Matrix (Loop) - 400ft (cat6)-UHD88-EXB400R-K

1. High-Performance 8x8 HDMI Matrix with HDBaseT Mirrored Outputs

The 8x8 18Gbps HDMI Matrix with HDBaseT Outputs is a high-performance AV distribution system that connects up to eight HDMI sources to eight mirrored HDMI and HDBaseT outputs simultaneously—supporting up to 16 displays at once. Fully compliant with HDMI 2.0b, HDCP 2.2, and legacy HDCP 1.x standards, it delivers uncompressed video at resolutions up to 4K@60Hz 4:4:4. With a full 18Gbps bandwidth, this matrix switch ensures seamless content transmission with support for Dolby Vision, HDR10+, HDR10, and HLG, delivering lifelike visuals and dynamic color across modern and legacy displays.

2. Optimized Signal Distribution and Long-Distance Extension

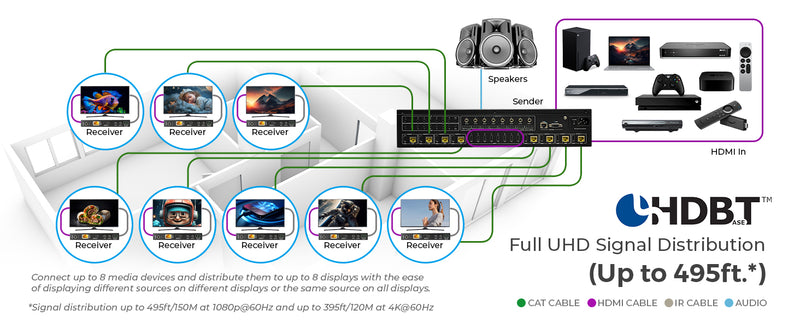

Ideal for mixed-resolution environments, this 4K HDMI matrix extender features independent 4K-to-1080p downscaling on each output, allowing you to connect both UHD and Full HD displays without compromise. Its HDBaseT outputs extend signals up to 150 meters (492 feet) at 1080p and 120 meters (394 feet) at 4K via a single CAT5e/6/7 cable, while Power over Cable (PoC) reduces the need for multiple power supplies. This streamlined setup is perfect for commercial applications like video walls, conference centers, classrooms, and large-scale digital signage networks.

3. Advanced Audio Capabilities and Device Compatibility

For complete audio flexibility, the matrix supports 7.1-channel audio pass-through formats including LPCM, Dolby TrueHD, and DTS-HD Master Audio, while offering audio de-embedding through analog RCA and coaxial outputs. The built-in IR matrix enables bi-directional IR routing, allowing remote control of source devices from display zones. Comprehensive EDID management and CEC pass-through further enhance device communication and integration, ensuring reliable signal negotiation across your entire AV setup.

4. Flexible Control Options and Professional-Grade Design

Control is flexible and user-friendly via front panel buttons with OLED display, IR remote, RS-232, LAN, or WebGUI. Designed with a 1U rack-mountable chassis, this HDMI matrix switch is built for 24/7 reliability in demanding environments. Whether you're managing a control room, outfitting a commercial AV installation, or upgrading a 4K matrix extender system, the UHD88-EXB230R-K offers scalable performance, robust feature support, and uncompromising signal quality.

OREI 8x8 4k HDMI Matrix Extender Up To 400 Feet- With Audio Extraction, Bi-directional IR, Power Over Cable & Downscale Feature

Key Features:

HDMI 2.0b and HDCP 2.2 compliant
Video resolutions up to 4K@60Hz and 2K@60Hz
18Gbps video bandwidth
8 HDMI inputs, 8 HDMI outputs, and 8 HDBaseT mirrored outputs
4K to 1080p downscale on all output ports
Extension of HDMI signals up to 400 feet at 4K@60Hz
HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
Audio (extraction) de-embedding through analog and coaxial outputs
Bi-directional IR support, with Advanced EDID management and CEC control
Power over cable on all HDBaseT outputs
Control via front panel buttons, IR remote, RS-232, LAN & WebGUI
Rack-mounted design for flexible installation

The UHD88-EXB400R-K is a 4K HDMI Matrix extender that distributes media signals from 8 inputs to 8 distant displays. It supports video resolutions up to 4K@60Hz and 2K@60Hz and is compliant with HDMI 2.0b and HDCP 2.2 standards. This matrix extender can extend HDMI signals up to 400 feet at 4K@60Hz 4:4:4. With a video bandwidth of 18Gbps, it also allows for seamless pass-through of HDR, HDR10, HDR10+, Dolby Vision, and HLG. For displays that don't support 4K resolution, this matrix extender can downscale the resolution to 1080p for any HDBaseT output ports. This matrix extender supports a wide range of audio formats up to 7.1 channels, including LPCM, Dolby TrueHD, and DTS-HD Master Audio, with audio de-embedding (audio extraction) through analog and coaxial outputs simultaneously. It is equipped with bi-directional IR control allowing the control of the source device from the receiver's location and vice versa. Its Power over cable technology enables powering up the setup through only one power adapter connected to the transmitter. The unit can be controlled via the front panel buttons, remote control, RS-232, LAN, or the WebGUI interface. With its rack-mounted design, integration into both residential and commercial setups becomes easy.

CONNECTIVITY

Transmitter:	INPUT:	8 × HDMI [Type A, 19-pin female]
	OUTPUT:	8 × HDBaseT [RJ45, 8-pin female]
		9 × Coaxial [3.5mm Stereo Mini-jack]
	CONTROL:	8 × Balanced Out [5-Pin Phoenix connector]
		9 × IR IN [3.5mm Stereo Mini-jack]
		9 × IR OUT [3.5mm Stereo Mini-jack]
		1 × TCP/IP [RJ45]
		1 × RS-232 [DB-9 Connector]
Receiver:	INPUT:	1 × HDBaseT [RJ45, 8-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
		1 × L/R [3.5mm Stereo Mini-jack]
	CONTROL:	1 × IR IN [3.5mm Stereo Mini-jack]
		1 × IR OUT [3.5mm Stereo Mini-jack]
		1 × RS-232 [3-Pin Phoenix Connector]
		1 × SERVICE [Micro-USB]

PACKAGE CONTENTS

1x Transmitter

8x HDBaseT Receivers

1x IR Remote Control

1x RS-232 Serial Cable

8x 3-pin Phoenix Connectors

8x 5-pin Phoenix Connectors

9x IR Blaster cable

9x IR Receiver cable

18 x Mounting Ear

1x Power Cable

User Manual

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@60Hz:

394 Feet

VIDEO OUTPUT

Video Bandwidth:	18Gbps
Video Resolutions:	Up to 4K@60Hz and 2K@60Hz

ADDITIONAL FEATURES

CEC:	Yes
ARC:	No
USB KVM:	No
PoC/PoE:	Yes
IR Control:	Yes
Downmix:	No
Downscale:	Yes
Over IP:	No
HDBaseT:	Yes
RS-232:	Yes

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	8

AUDIO SUPPORT

HDMI Audio Formats:	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Coaxial Audio Formats:	PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1
3.5mm Analog:	PCM 2.0CH

COMPLIANCES

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2

POWER

Power Consumption:	125W (Max)
Power Supply:	Input: AC 100-240V 50/60Hz

DIMENSIONS & WEIGHT

Transmitter:	Length:	440mm / 17.32in
	Width:	374mm / 14.72in
	Height:	88.6mm / 3.49in
	Weight:	6.54Kg/ 14.42lb
Receiver:	Length:	140mm / 5.11in
	Width:	65mm / 2.56in
	Height:	18mm / 0.71in
	Weight:	155g / 5.47oz

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

UHD88-EXB400R-K User Manual Download

UHD88-EXB400R-K Specifications Sheet

UHD88-EXB400R-K RS-232 Commands

UHD88-EXB400R-K IR Codes

UHD88-EXB400R-K Control 4 Driver

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

No, this product doesn't upscale/downscale the video resolutions.

You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

You can upgrade the firmware by connecting the PC & this device via RS-232 cable.

Please note that this product only supports the CEC function between HDMI input & HDMI output 1.

No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.

HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.

In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.

We recommend you using a shielded CAT6 cables for optimum performance.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
