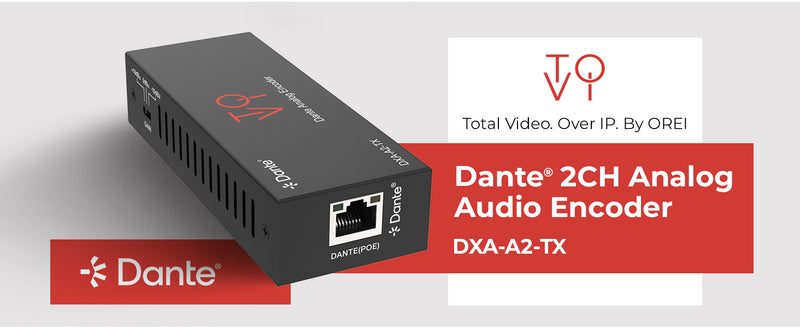

Dante 2CH Analog Audio Encoder with POE - (DXA-A2-TX)
- Dual-Mode Operation
- Network Flexibility

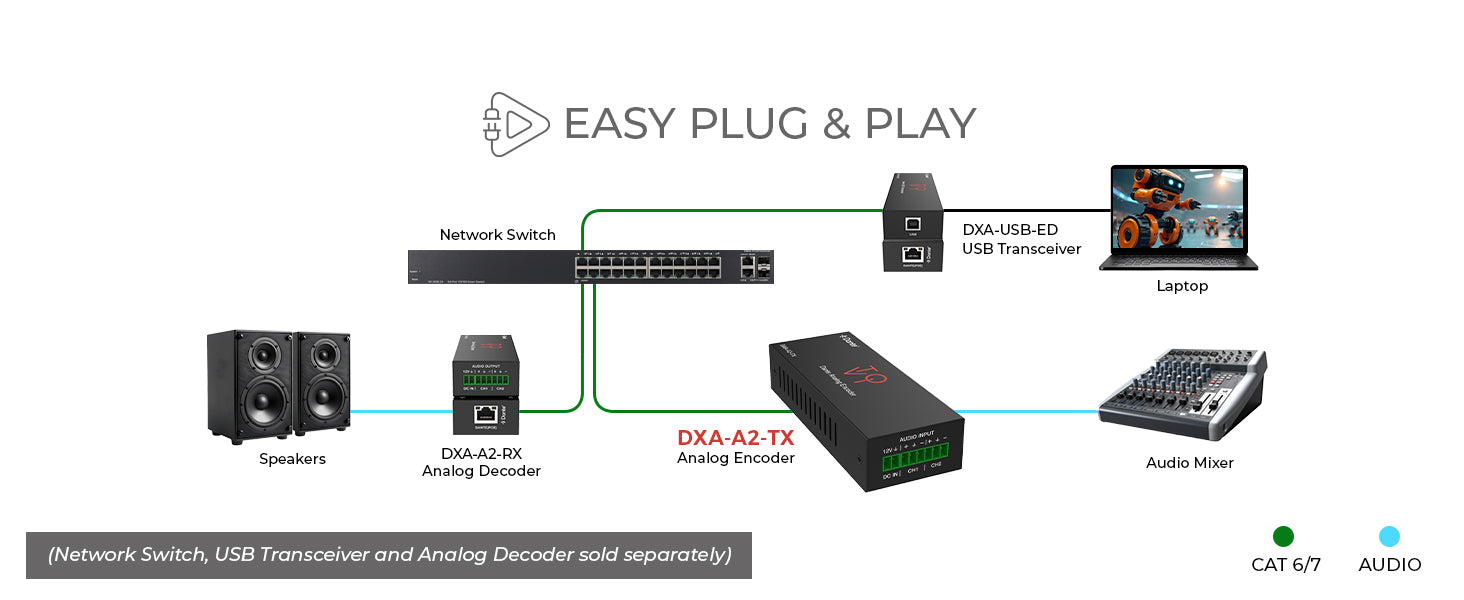

- Plug and Play Device
*Overnight shipping doesn't include Weekends, or any holidays.

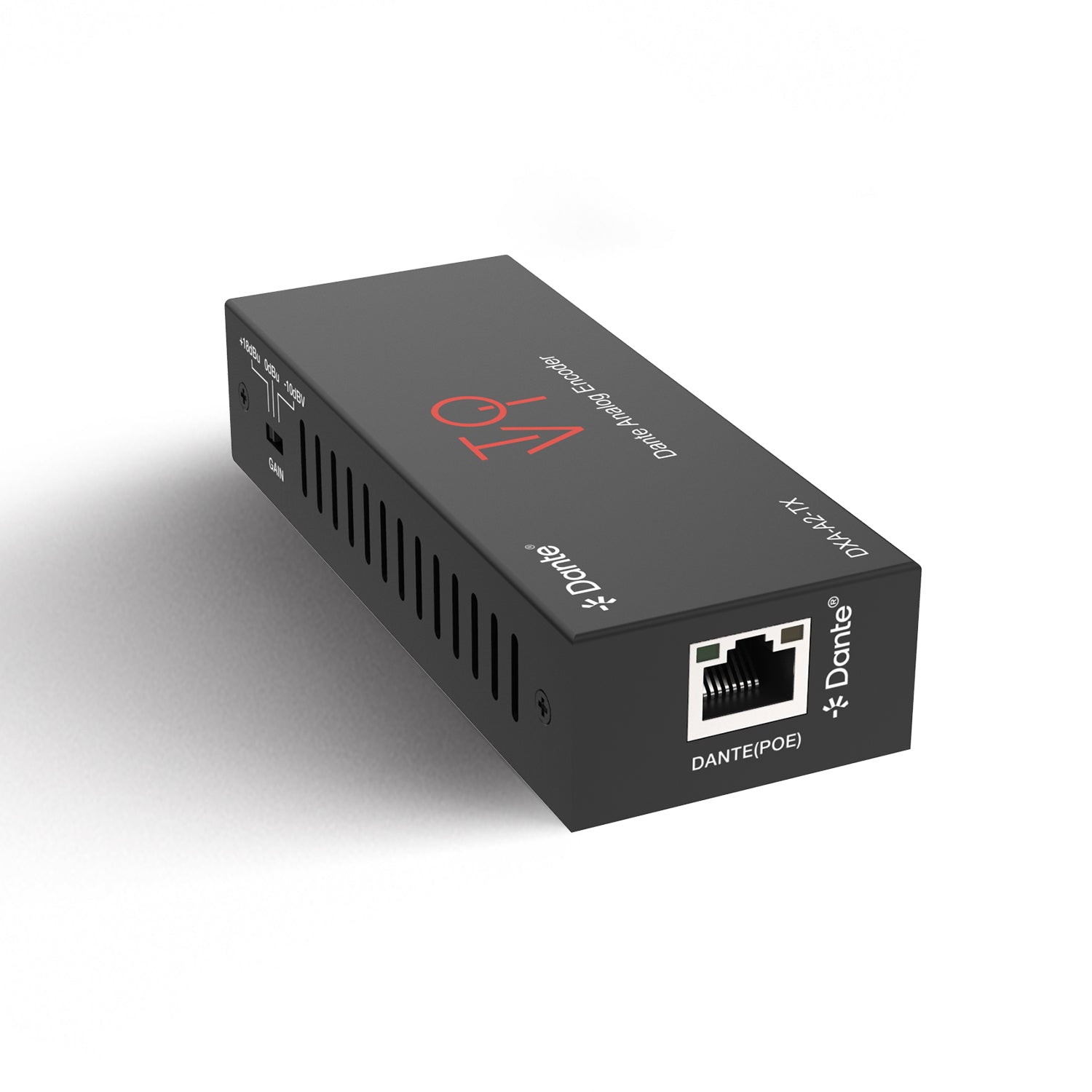

ToVi Dante 2CH Analog Audio Encoder with PoE – DXA-A2-TX

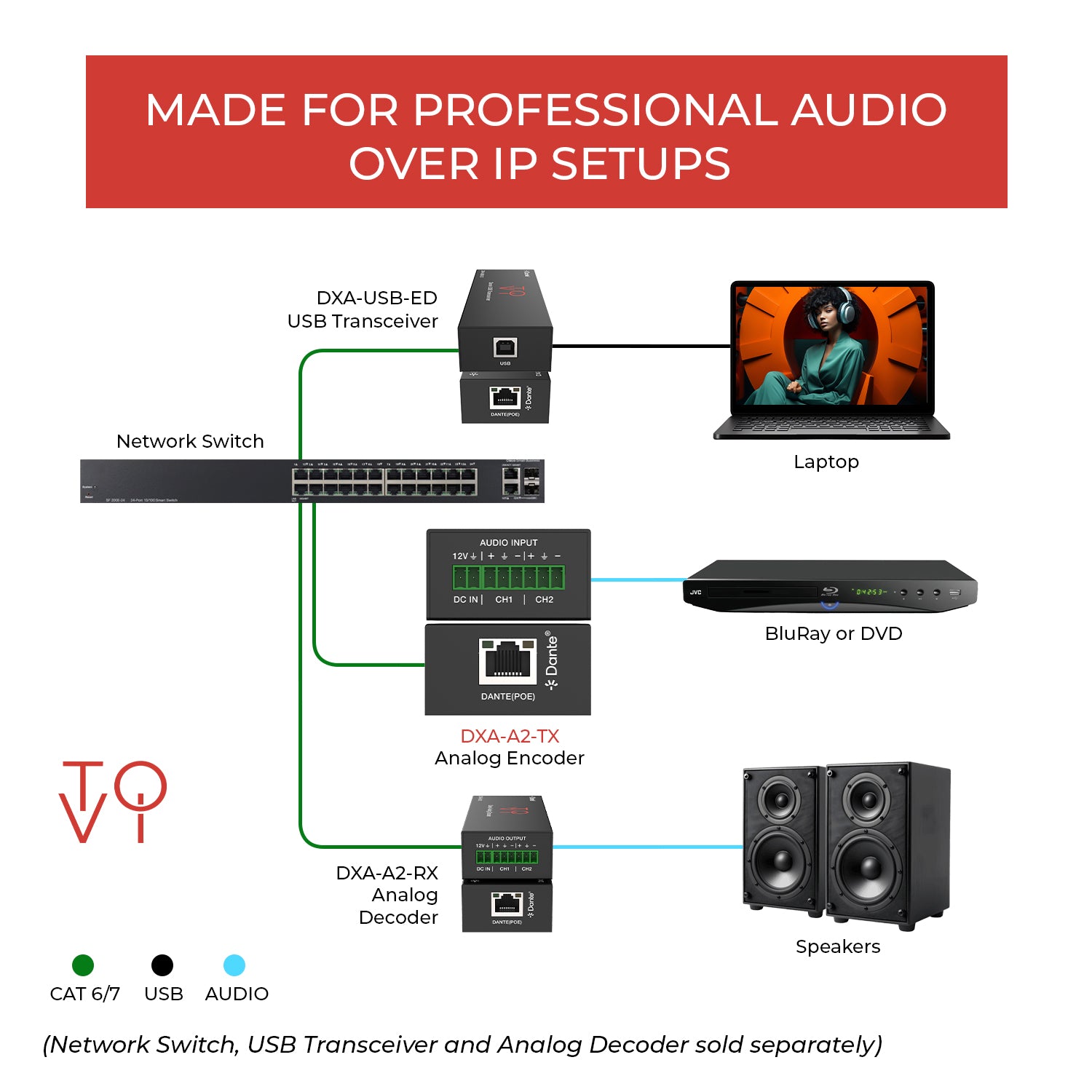

The ToVi DXA-A2-TX is a professional 2-channel Dante audio encoder designed to transmit high-quality analog audio over standard IP networks. Fully AES67 compatible, it enables seamless integration of analog audio sources into Dante-based audio-over-IP systems for commercial and professional AV environments.
High-Resolution Audio Performance
Supporting 24-bit audio at sampling rates of 44.1kHz, 48kHz, and 96kHz, the DXA-A2-TX delivers clean and accurate sound reproduction. Its high-resolution processing ensures dependable audio transmission for conferencing systems, broadcast setups, and installed sound applications.
Flexible Input & Gain Control Options
The encoder supports both balanced and unbalanced analog inputs, providing versatile connectivity for various audio sources. It features three selectable gain levels (+18dBu, 0dBu, and –10dBV), allowing precise signal matching to meet different installation requirements.
PoE Power & Compact Professional Design
Powered via PoE (IEEE 802.3af) or an optional 12V DC input, the DXA-A2-TX simplifies deployment with flexible power options. Its compact, space-saving enclosure and plug-and-play functionality make it ideal for racks, control rooms, and distributed audio systems requiring reliable analog-to-Dante conversion.
ToVi Dante 2CH Analog Audio Encoder with POE (DXA-A2-TX)
-

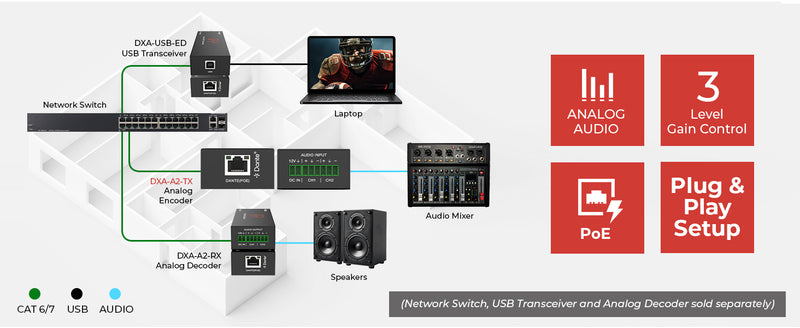

Dante Audio Encoder – Transfer analog audio over network
-
Balanced/Unbalanced Inputs – Flexible connectivity options
-
96kHz/24bit Hi-Res Audio – High-quality sound performance
-
3-Level Gain Control – +18dBu/0dBu/-10dBV settings
-

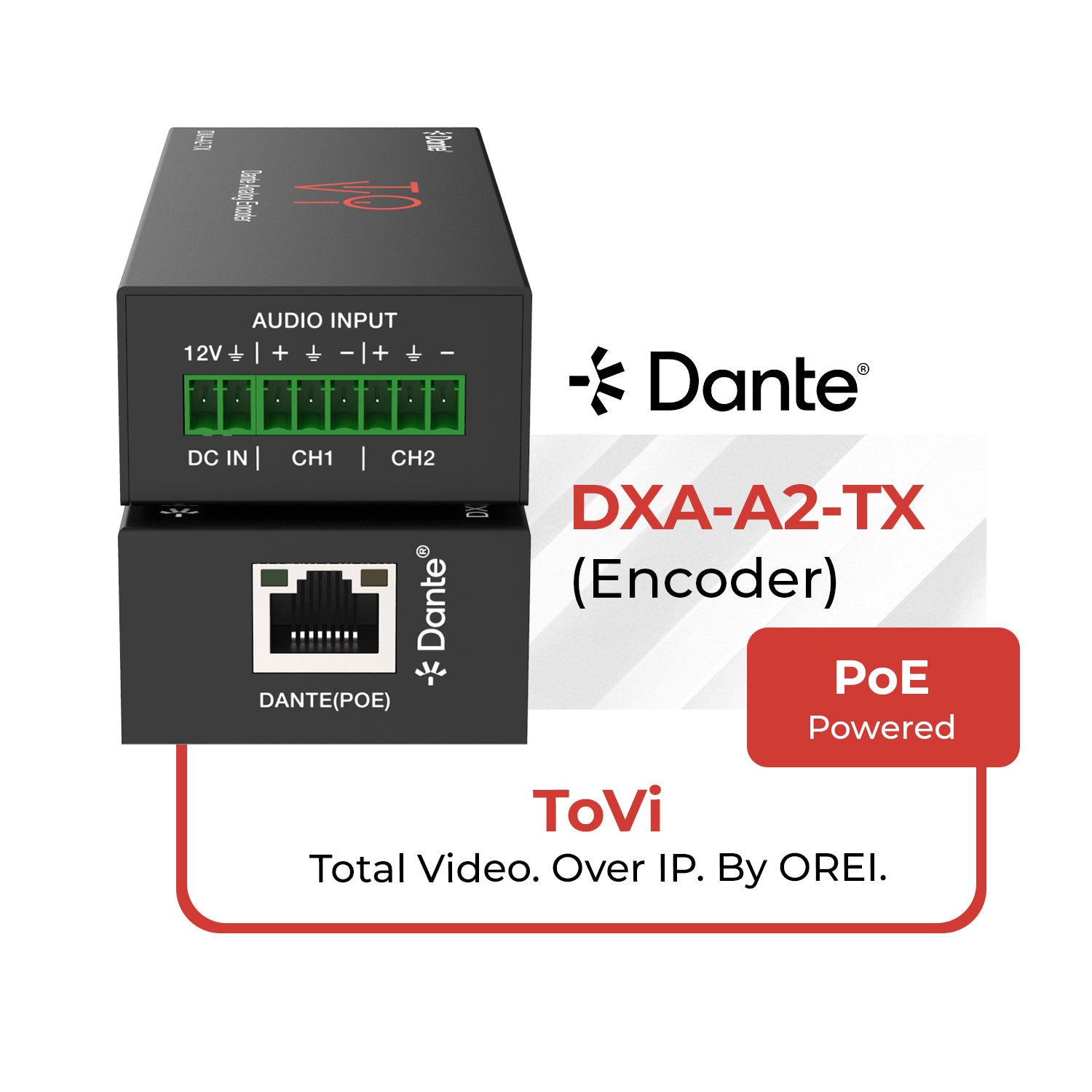

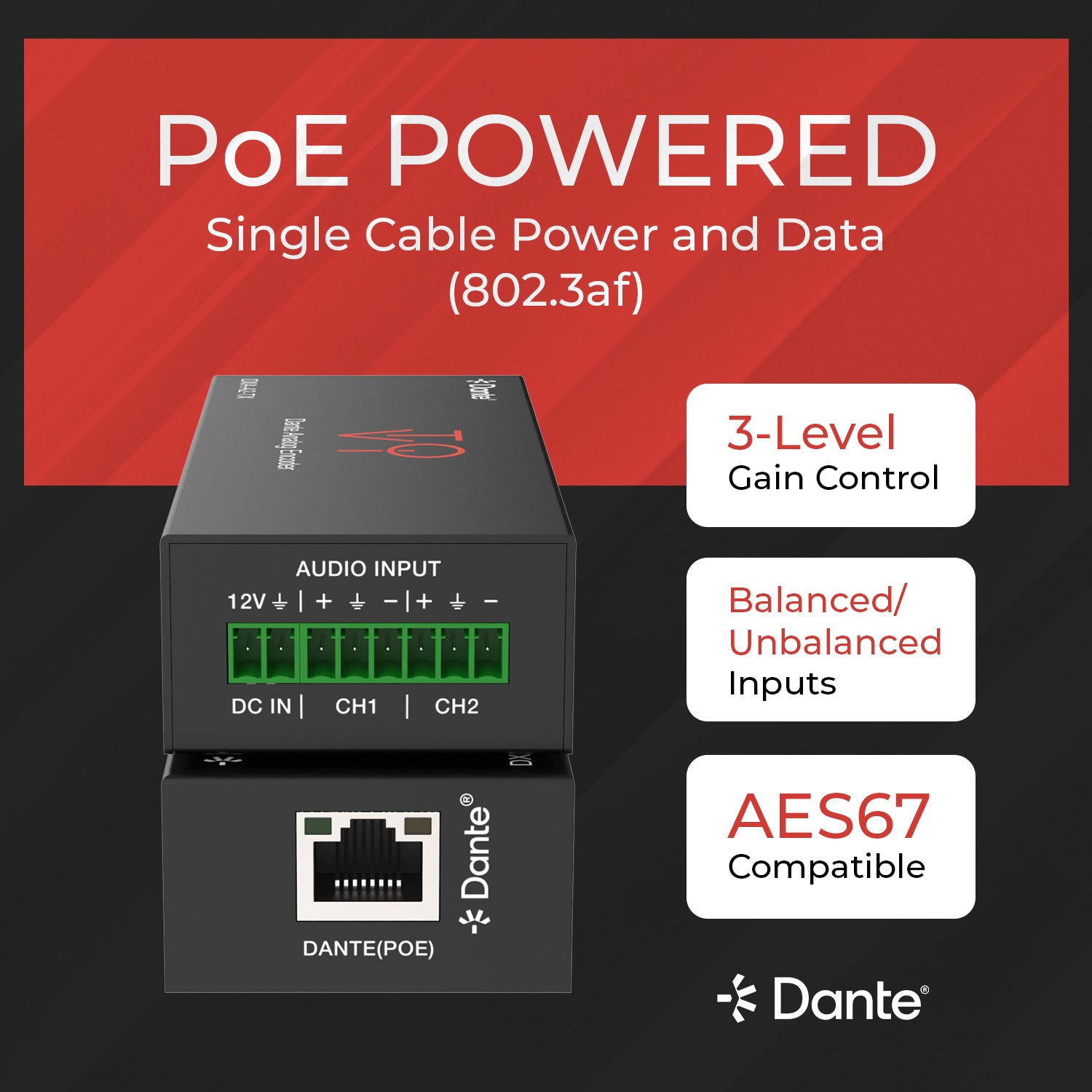

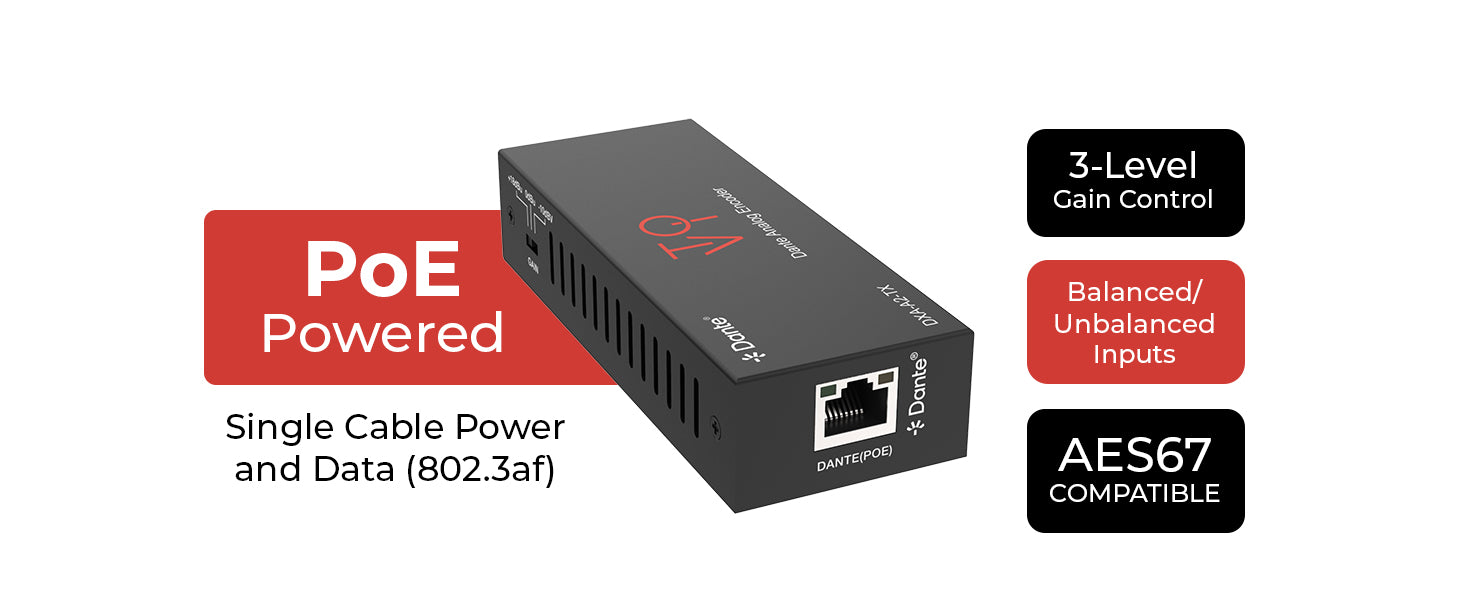

PoE Powered – Single-cable power and data (802.3af)
-
AES67 Compatible– Works with standard audio-over-IP systems
-

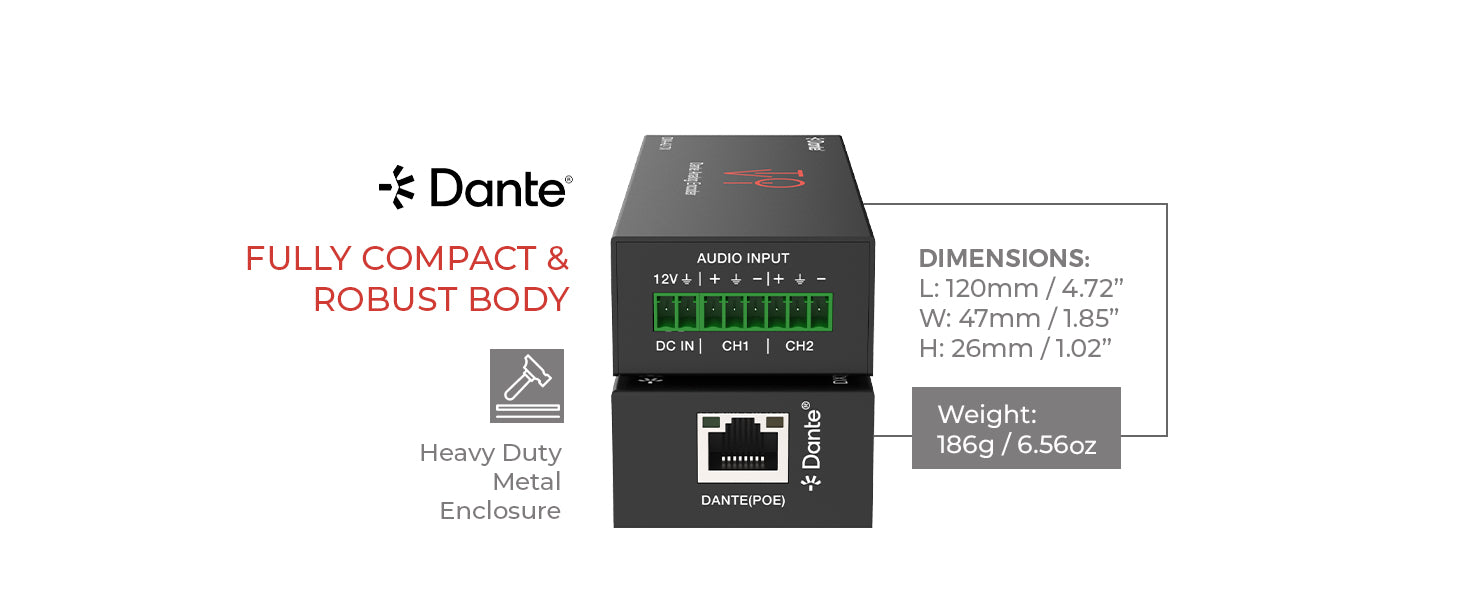

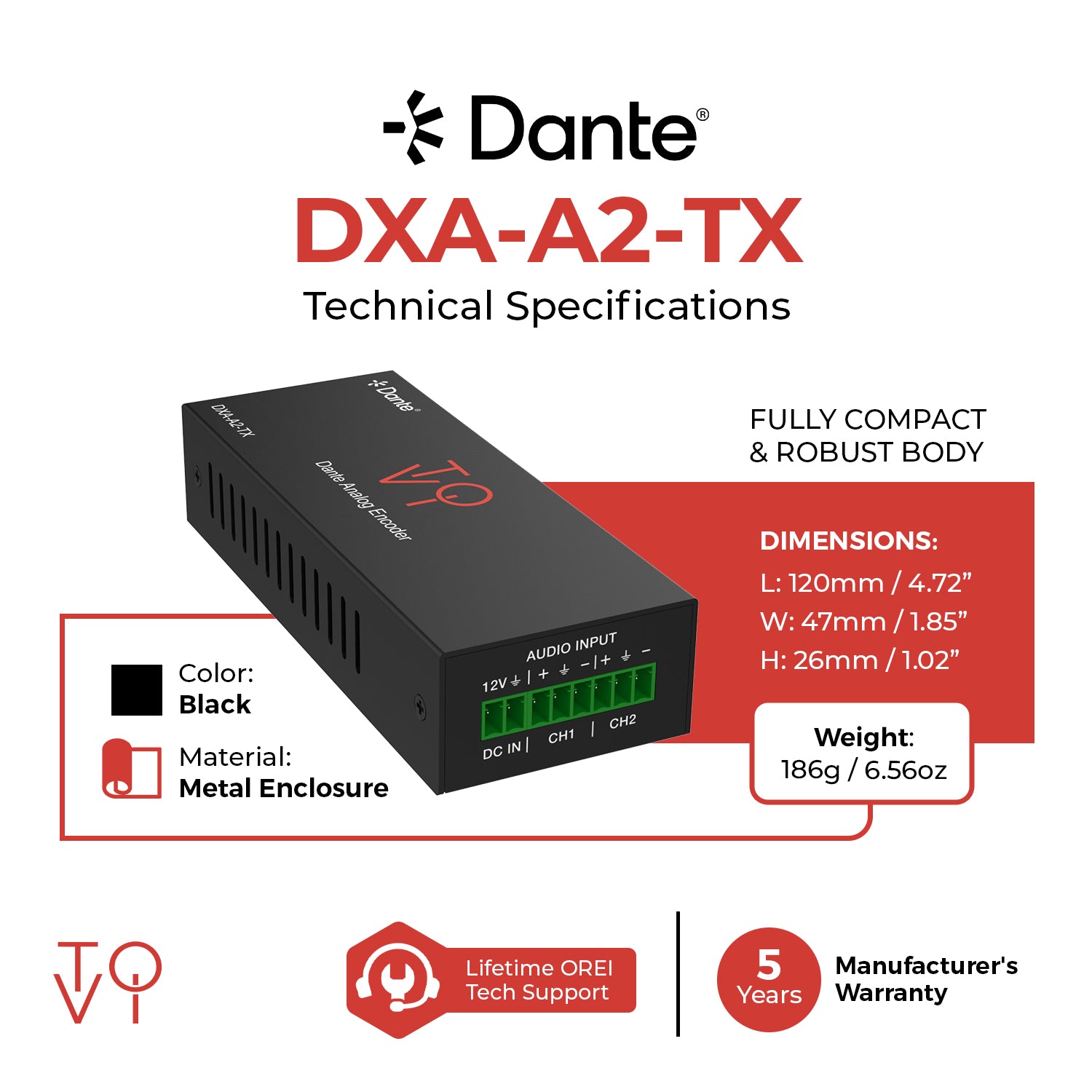

Compact Design – Space-saving professional installation
- Plug-and-Play – Easy setup and operation
The ToVi DXA-A2-TX is a 2-channel Dante analog audio encoder designed to transmit high-quality analog audio over standard IP networks with full AES67 compatibility. It supports both balanced and unbalanced audio inputs and offers three selectable gain levels (+18 dBu, 0 dBu, and –10 dBV) to accommodate different signal types and installation needs.

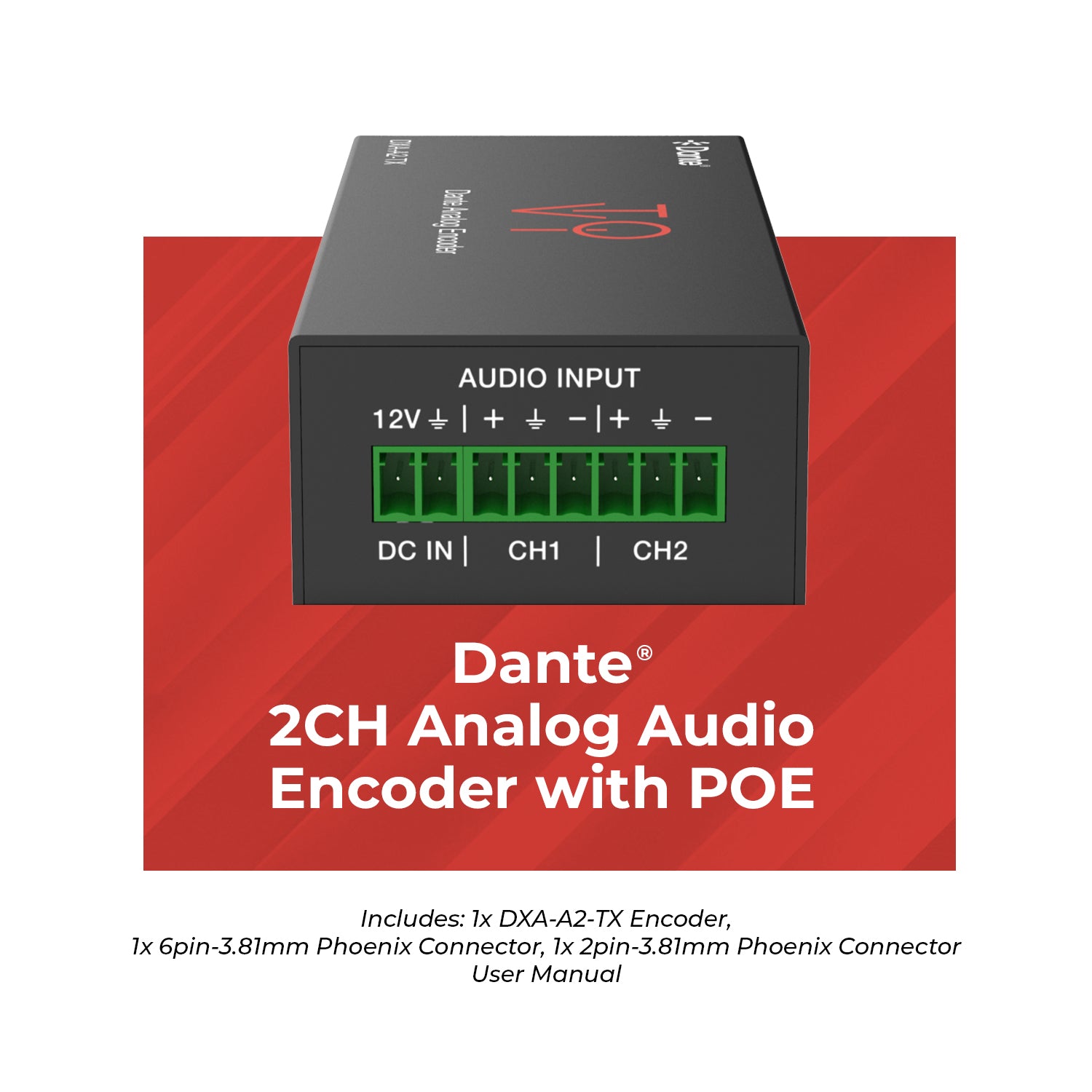

With support for 24-bit audio sampling at 44.1 kHz, 48 kHz, and 96 kHz, the DXA-A2-TX ensures clean, accurate audio delivery for professional AV environments. The unit can be powered via PoE (IEEE 802.3af Class 0) or through a 12V DC 2-pin phoenix connector, offering flexibility for diverse deployment setups.
