1080p HDMI™ Extender (Over IP, KVM) - 500ft (cat6)-EX-330-KVM
-
Over IP KVM and HDMI extender over ethernet up to 492 feet
-
Video resolutions up to 1080P@60Hz 4:4:4
-
Uni-directional IR functionality
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
1. HDMI over IP Distribution with H.265 Compression
This HDMI over IP Extender delivers high-definition video, audio, and control signals over long distances using efficient H.265 compression. Supporting input resolutions up to 1920×1200@60Hz and output at 1080p@60Hz, it ensures excellent image quality while optimizing for Full HD displays. Ideal for AV installations requiring flexibility and scale, the system transmits signals up to 150 meters (492 feet) via a single Cat5e/6 cable.
2. Reliable AV Transmission over Standard Networks
The system features HDCP 1.4 compliance, 6.75Gbps video bandwidth, and one-way IR control for seamless integration into modern AV setups. Compatible with standard 1G Ethernet switches, routers, and hubs, this HDMI over IP extender is perfect for commercial and residential applications alike. Its compact design allows for discreet mounting behind displays or within equipment racks.
3. USB KVM Functionality for Remote Device Control
In addition to HDMI over Ethernet transmission, this solution includes full USB KVM support, enabling users to operate remote PCs or media devices using a keyboard and mouse. This makes it ideal for classrooms, digital signage systems, and control room environments where long-distance access to computing devices is essential.
4. Efficient, Flexible, and Easy to Deploy
The extender uses advanced H.265 encoding and decoding to reduce network load while preserving high video quality. It works right out of the box with plug-and-play simplicity—no special configuration required. Whether you need a compact HDMI IP extender for a single display or a scalable system for multi-room AV distribution, this solution delivers performance, reliability, and versatility for all HDMI USB over Ethernet needs.
1080P Over IP KVM Extender over Ethernet up to 492 feet - With Uni-directional IR functionality (EX-330-KVM)
-
HDCP 1.4 Compliant – Ensures secure transmission of protected content across IP networks.
-
6.75Gbps Video Bandwidth – Provides stable, high-speed data throughput for smooth video performance.
-
Resolution Support up to 1920×1200@60Hz Input / 1080p@60Hz Output – Preserves image clarity while optimizing for Full HD displays.
-
Long-Distance Extension up to 150m (492ft) – Reliable transmission over a single Cat5e/6 cable.
-
H.265 Encoding/Decoding – Delivers efficient compression with reduced bandwidth requirements and excellent video quality.
-
1G Network Switch Compatible – Operates seamlessly with standard IP switches, routers, and hubs.
-
One-Way IR Control – Supports remote operation of source devices from the display location.
-
USB KVM Functionality – Allows keyboard and mouse control for remote device management.
-
Compact, Flexible Design – Simple to install in residential or commercial AV environments.
The HDMI over IP Extender with H.265 compression technology offers a cost-effective, high-performance solution for distributing HDMI signals across long distances via standard Ethernet networks. Supporting input resolutions up to 1920×1200@60Hz and output up to 1080p@60Hz, it delivers high-definition video over distances up to 150 meters (492 feet) using a single Cat5e/6 cable.

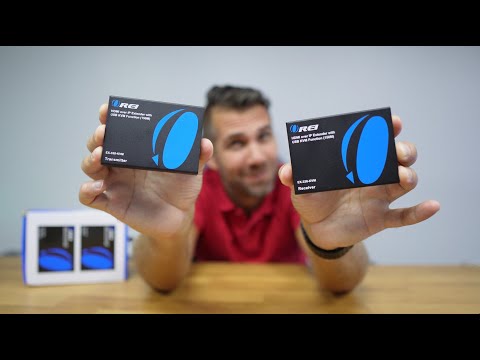

This system consists of an Encoder and Decoder pair. The Encoder captures the HDMI signal, compresses it using H.265 encoding, and transmits it over the network. The Decoder receives the signal, decodes it, and outputs the video to a connected HD display. It supports one-way IR pass-through for source device control and includes USB KVM functionality for remote device management.
Ideal for AV distribution in classrooms, retail displays, control rooms, and conference environments, the extender is plug-and-play, compact, and compatible with standard 1G IP switches—providing unmatched flexibility and efficiency in HDMI over IP applications.
EX-330-KVM User Manual Download
EX-330-KVM Specifications Sheet
