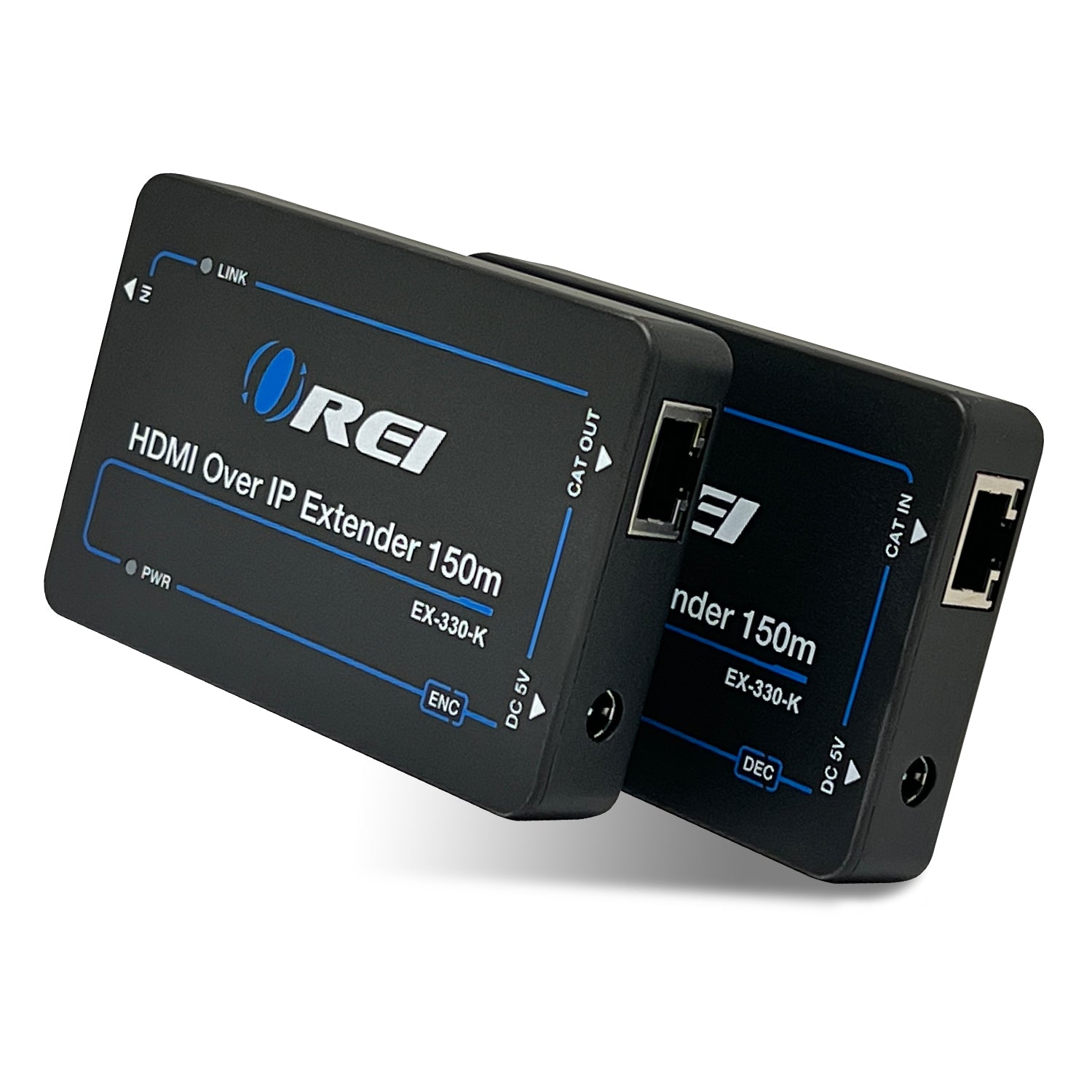

1080p HDMI™ Extender (Over IP) - 500ft (cat6)-EX-330-K

$69.99 USD $99.99

SKU: EX-330-K

Supports 1080p@60Hz up to 330 feet
Supports Over IP function
Supports IR Remote Control

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Style

Transmitter & Receiver Receiver Only

Product variants

Add To Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

View details

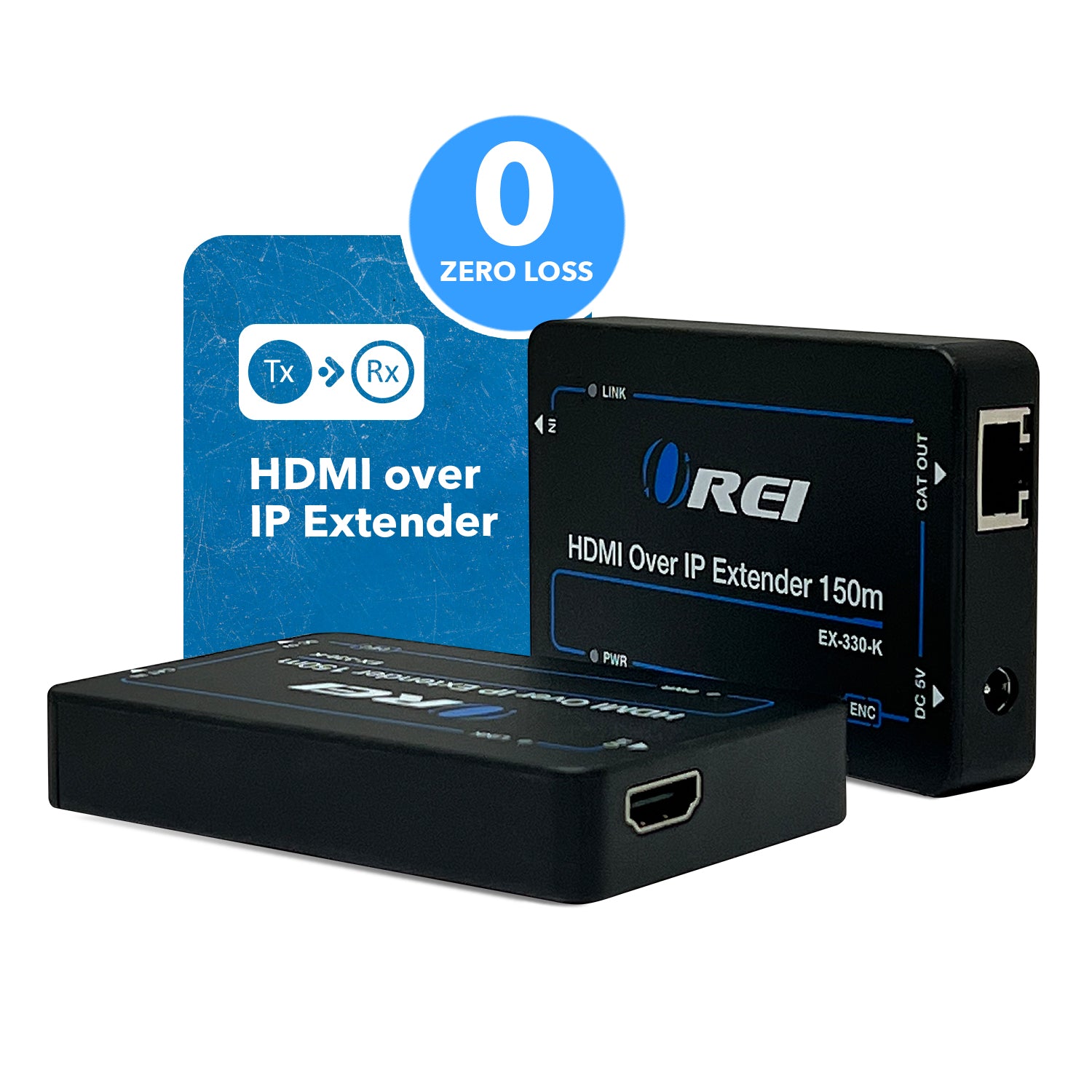

1080p HDMI™ Extender (Over IP) - 500ft (cat6)-EX-330-K

Transmitter & Receiver – Change

1. Full HD HDMI Extension Over Long Distances

The EX-330-K is a high-performance HDMI over IP extender that transmits 1080p@60Hz video up to 492 feet (150 meters) over a single CAT5e or CAT6 cable. It’s the ideal solution for reliable long-distance AV signal transmission, whether you're setting up HDMI through Ethernet in commercial, educational, or residential environments.

2. Efficient H.265 Compression for Smooth Streaming

Engineered with H.265 video compression technology, this HDMI over Cat 6 system delivers high-quality visuals while minimizing bandwidth usage. The result is a stable, clear image even over extended distances, making it ideal for HDMI over Ethernet 1080p installations that demand efficiency and performance.

3. Flexible IP-Based Distribution Options

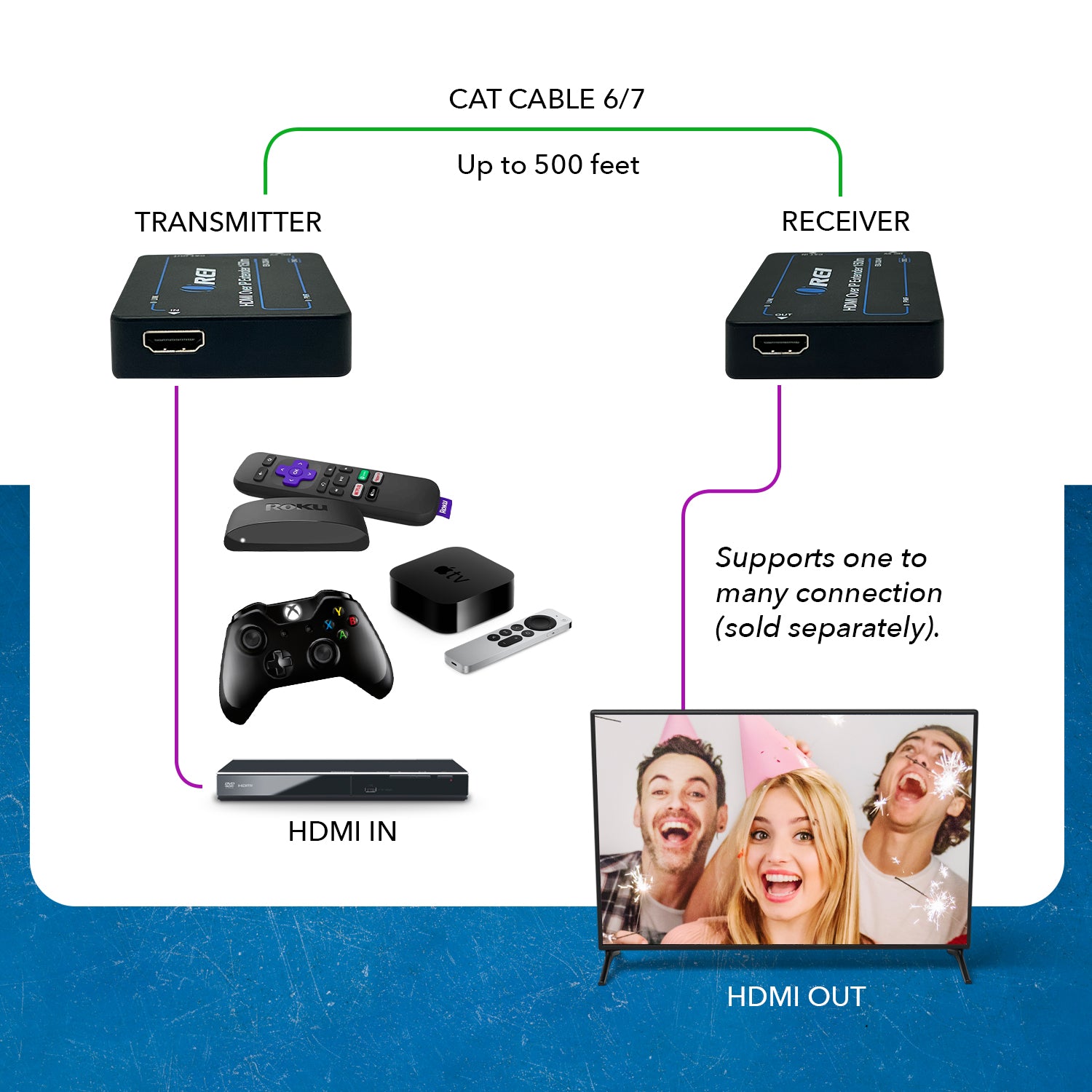

Designed for versatility, this HDMI IP extender supports both one-to-one and one-to-many setups, giving you complete control over your AV layout. It works seamlessly with standard 1G network switches, routers, or hubs—enabling scalable and cost-effective deployment across large spaces or multiple rooms.

4. Compact Design for Easy Integration

The compact form factor allows for easy installation in tight or concealed spaces, making this HDMI Cat6 extender perfect for clean, professional setups. Whether you're distributing signage content, extending a source across a venue, or creating a multi-display configuration, this cat 6 HDMI extender delivers dependable performance in a discreet design.

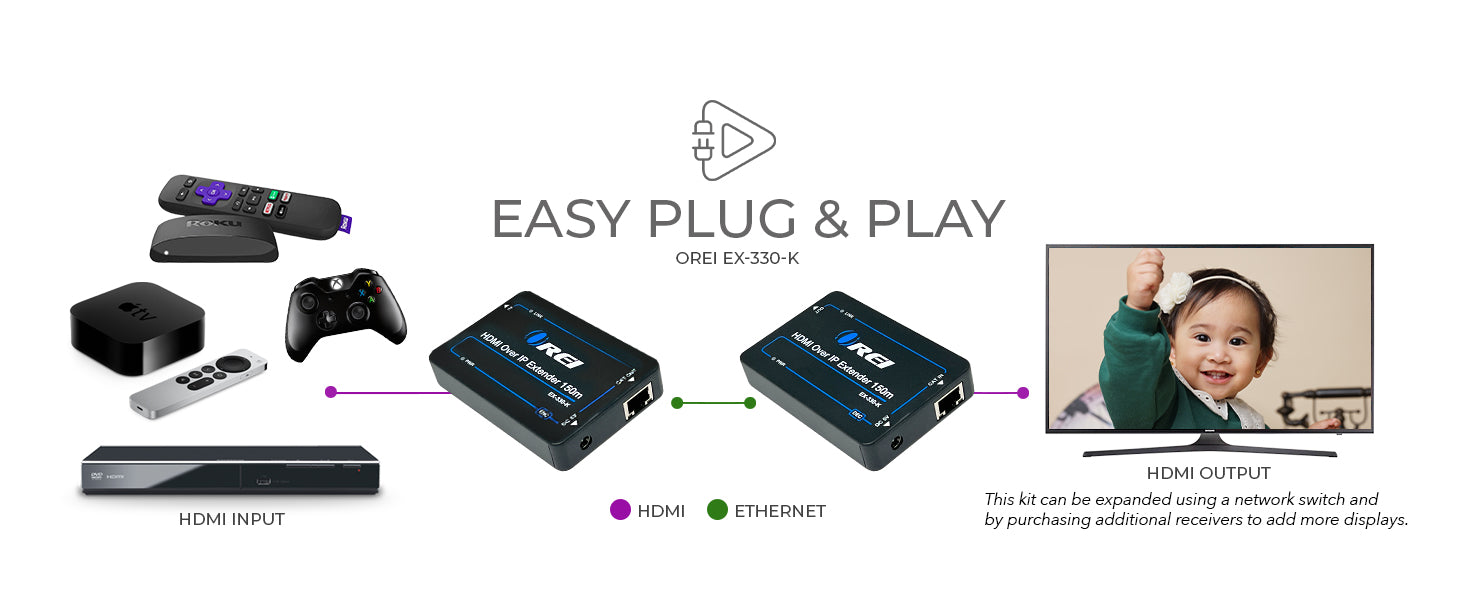

Setup

Compatibility

Dimensions

Includes

It can transmit HDMI 1080P signal to above 100M (330FT) by using UTP Cat5e6 Designed to convert HDMI signal to standard TCP/IP and transmit by internet cable or Lan.

With the advantage of TCP/IP standard Extend 120 meters more by adding one more Ethernet router.

Apply M-Jpeg technique to process image compressing and with little image quality loss Support HDMI 480i@60Hz, 480p@60Hz, 576i@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60HZ, 1080P@50/60Hz.

AUDIO AND VIDEO

Transmitter:	INPUT PORT: 1x HDMI Female port
	OUTPUT PORTS: 1 x CAT6
Receiver:	INPUT PORT: 1 x HDMI Female port
	OUTPUT PORTS: 1 x CAT6

COMPLIANCES

HDMI Compliance	HDMI 1.3
HDCP Compliance	HDCP 1.1
DVI Compliance:	DVI 1.1

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

1080p@60Hz:

330 Feet

VIDEO OUTPUT

Video Bandwidth:	2.25Gbps (single link)
Video Resolutions:	1080p@60Hz
Color Space:	YCbCr(4:2:2), YCbCr（4:4:4), RGB
Color Depth:	1080P/60Hz, YCbCr（4:2:2, 4:4:4, RGB 8\10\12bit)

CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT

CEC Function:	No
ARC Function:	No
USB KVM Function:	No
PoC/PoE Function:	No
IR Controller:	Yes
Downscaler Function:	No
Over Network/IP Function:	Yes
HDBaseT Function:	No
RS-232 Function:	No

Buttons

Reset:

This is factory reset button. When the Receiver system functions have been changed, pressing this button for 10seconds can realize factory reset

AUDIO OUTPUT

HDMI Audio Formats:

PCM 2.0@44.1KHz, 48KHz sampling bit is 16bit/20bit/24bit

SIGNALS

TMDS Signals:	3.3V
DDC Signals:	5V

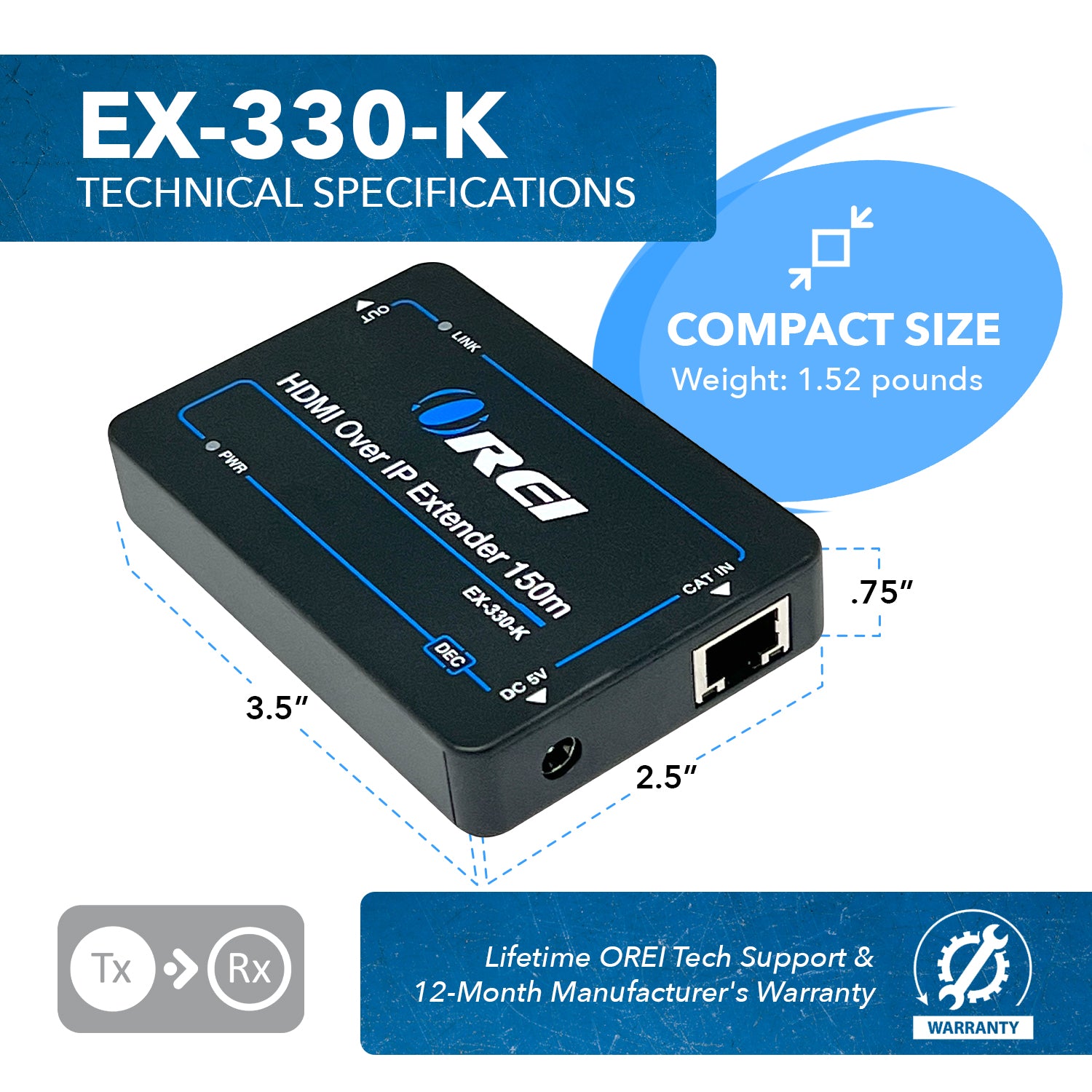

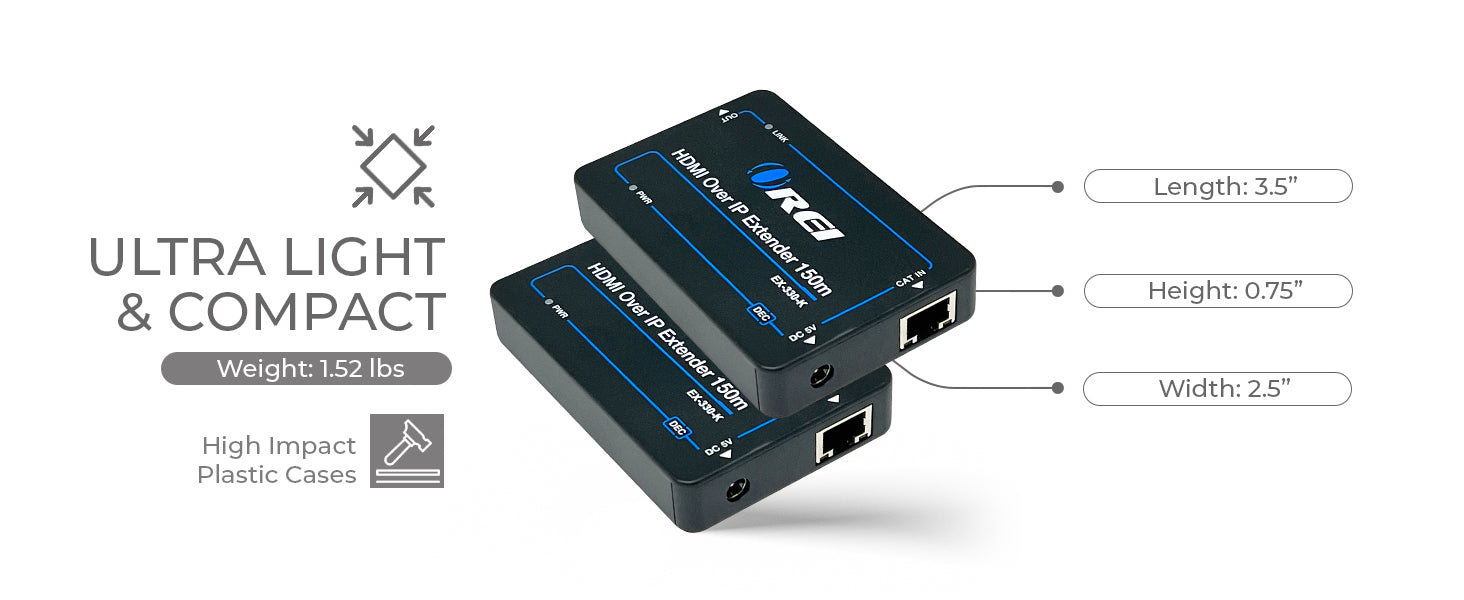

DIMENSIONS & WEIGHT

Height:	25mm
Width:	65mm
Depth:	100mm
Weight:	Transmitter: 125g
	Receiver: 125g

PROTECTION

Operation Temperature:	0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage temperature:	-20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity:	20~90% RH (non-condensing)
ESD Protection:	± 8kV (air-gap discharge), ± 4kV (contact discharge)
Electrostatic Protection of the whole Machine:	Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

RJ-45 CONNECTOR Type

WE/SS 8P8C

POWER

Power Consumption (Max):	Transmitter: 1.5W, 5V/0.3A
	Receiver: 1.25W, 5V/0.25A

Power Supply	DC 5V~12V

PHYSICAL PROPERTIES

Color:	Black
Housing:	PlasticEnclosure
Processing Technology:	Metal plate
Finishing:	Powder Spraying Technology Screen Printing

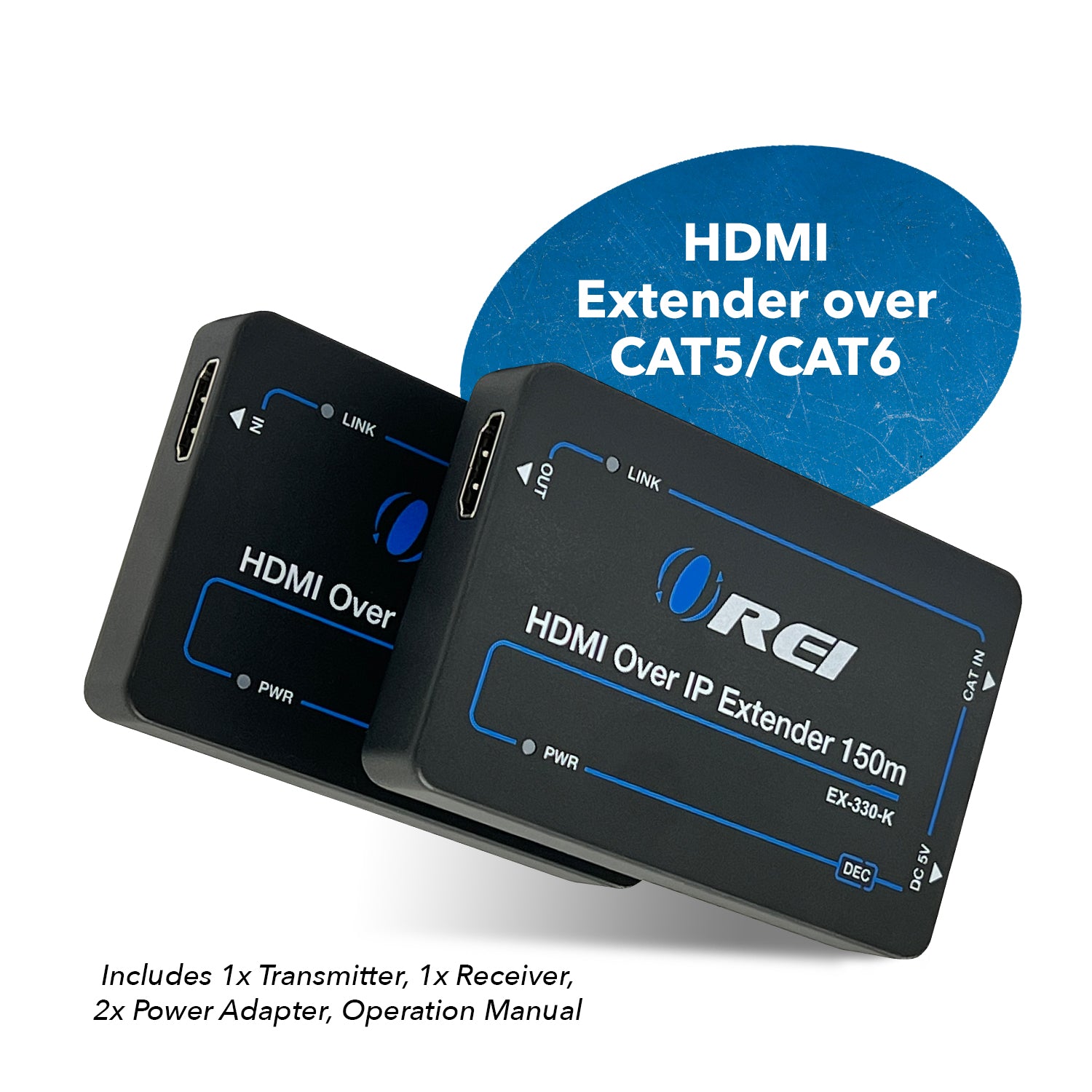

PACKAGE CONTENTS

1x HDMI Transmitter

1x HDMI Receiver

1x IR Transmitter

1x IR Receiver

2x 5V DC Power Supply adaptor

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

EX-330-K User Manual Download

EX-330-K Specifications Sheet

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

No, this product doesn't upscale/downscale the video resolutions.

You can extend the display devices up to 330 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

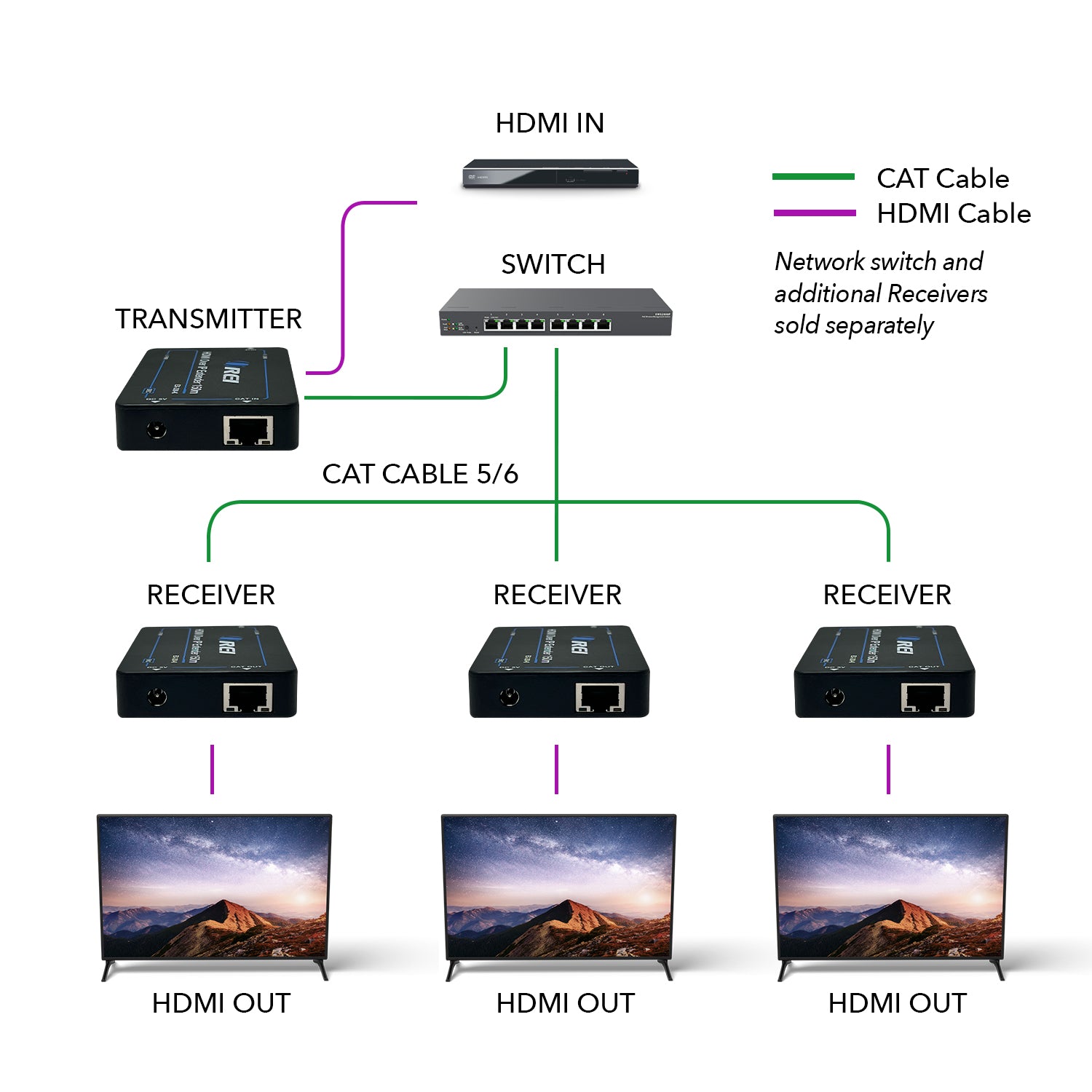

You can connect up to 253 additional receivers with this device using a network switch as a mediator.

Yes, this product supports Over IP function & you will be able to connect additional receivers via a network switch.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
