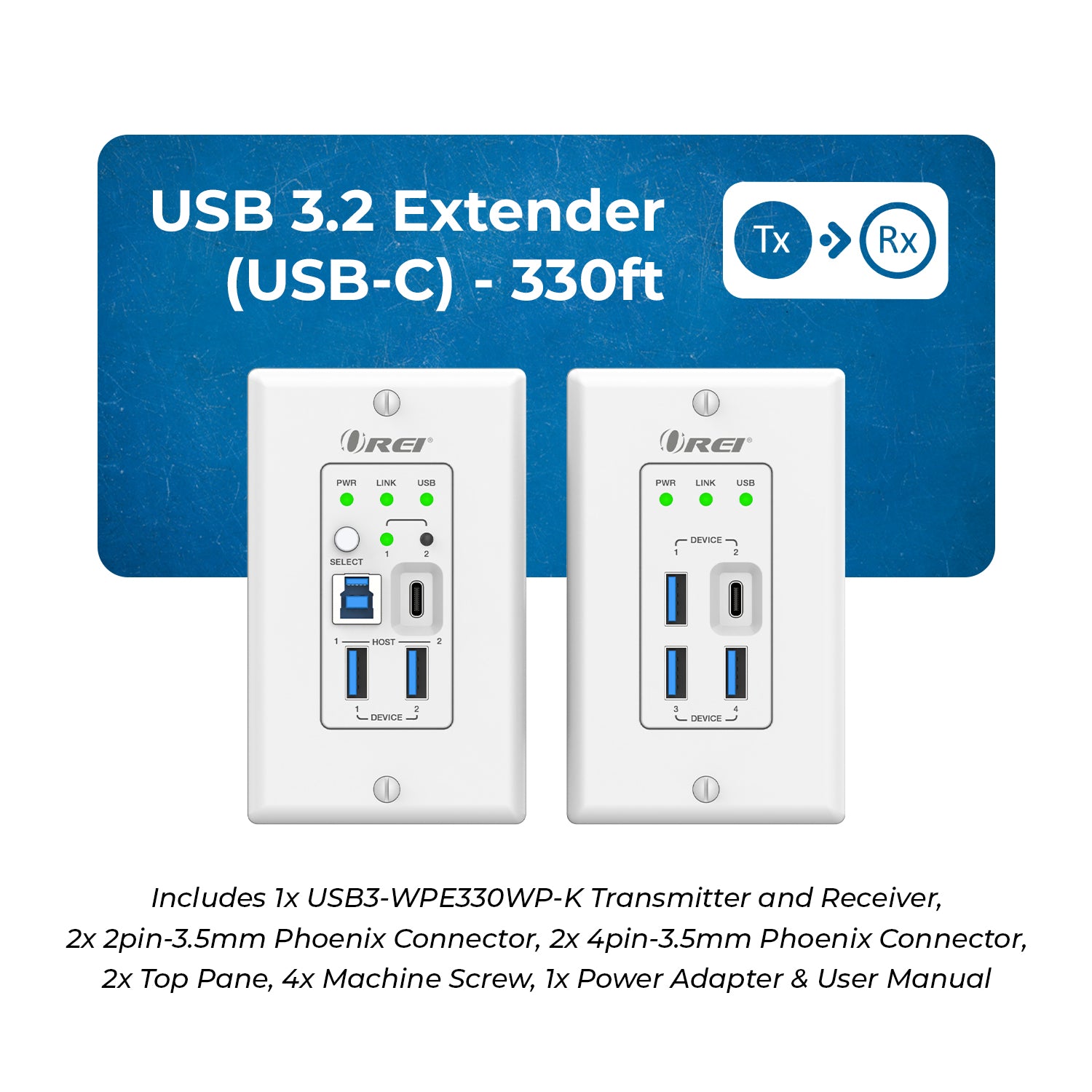

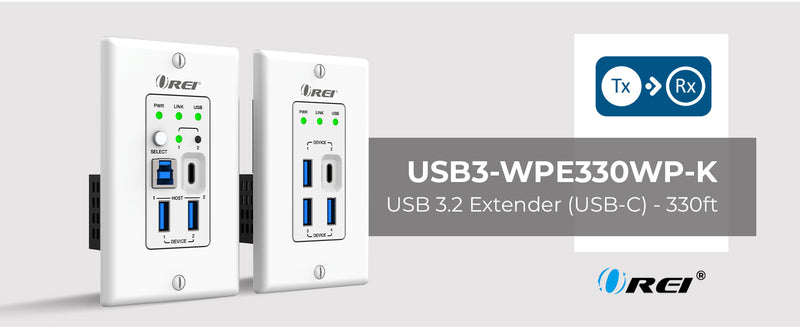

USB3.2 Extender (USB-C) - 330ft (Cat6) - USB3-WPE330WP-K

$399.00 USD
SKU: USB3-WPE330WP-K

  • USB 3.2 Gen 1 & USB 2.0 Compatible
  • Selectable Dual USB-C Host Ports
  • Auto & Manual Switching

Overnight shipping*:
Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Add To Wishlist
30 Days Return
30 Days Return
1 Year Warranty
1 Year Warranty
Free shipping in USA
Free shipping in USA
Product Image
View details

Long-Distance USB 3.2 Extension Solution

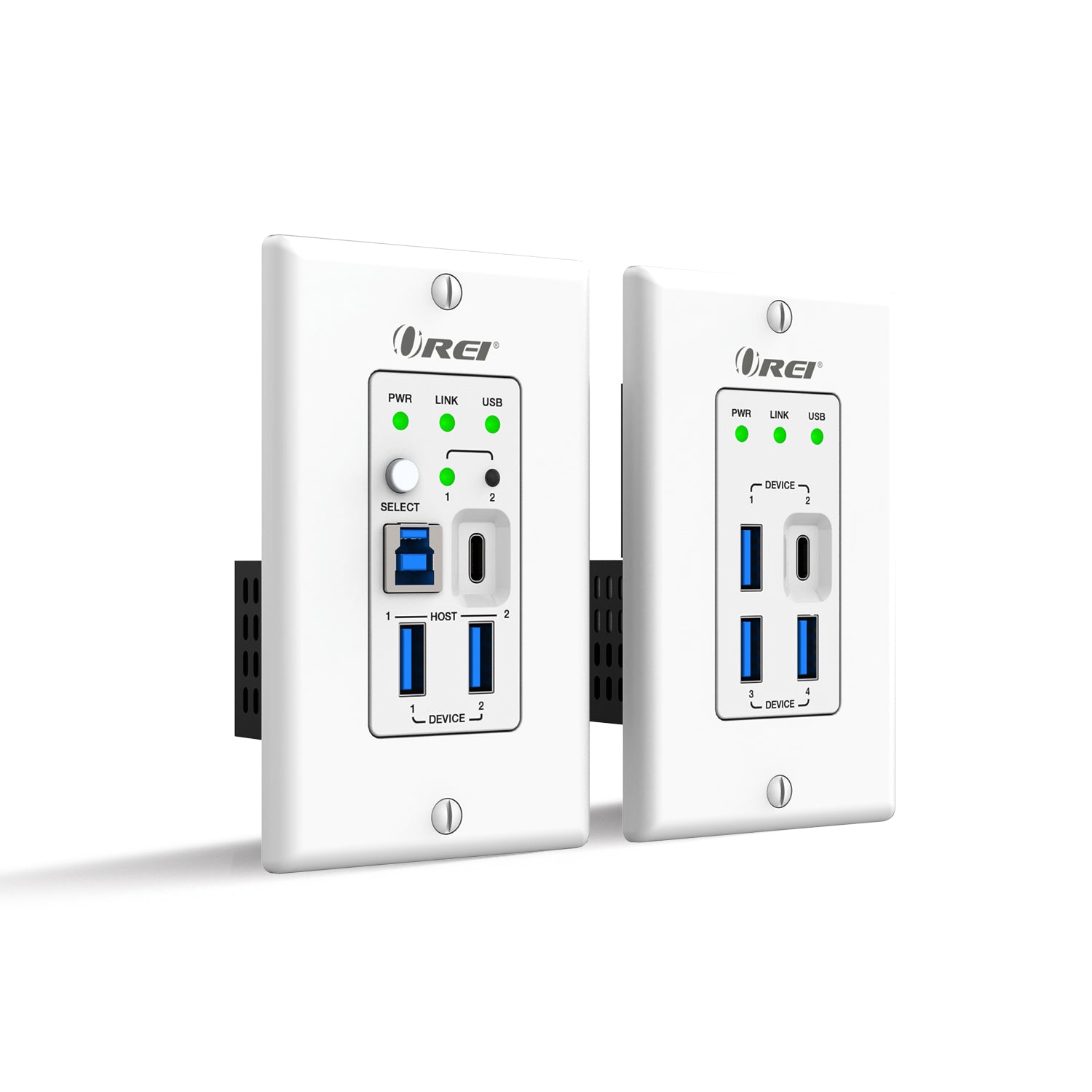

The USB3-WPE330WP-K is a professional-grade USB 3.2 extender designed for reliable long-distance USB connectivity in commercial and industrial environments. Using a single Cat6a cable, it extends USB 3.2 Gen 1 signals up to 100m (328ft) while maintaining a high-speed 5Gbps data transfer rate. Housed in a US 1-Gang standard Decora wall plate, it delivers a clean, permanent installation ideal for conference rooms, classrooms, and control systems.

High-Speed Performance & Device Compatibility

Supporting USB 3.2 Gen 1 with backward compatibility for USB 2.0 and USB 1.1, the extender ensures seamless operation with both modern and legacy USB devices. Hardware acceleration for isochronous and bulk data transfer optimizes performance for audio, video, and data-intensive applications. This makes it suitable for webcams, PTZ cameras, microphones, touch panels, storage devices, and other high-bandwidth peripherals.

Flexible Connectivity & System Control

The transmitter features selectable USB-C and USB-B inputs with auto-switching or manual selection, offering flexibility for different source devices. The receiver provides one USB-C and three USB-A output ports, supplying both data and power to connected devices. Additional features such as RS-232 pass-through, API control, and FSYNC GPIO support allow easy integration into advanced AV, automation, and industrial camera systems.

Simplified Installation with Power over Cable

Designed for ease of deployment, the USB3-WPE330WP-K supports bi-directional 24V Power over Cable (PoC), allowing the system to be powered from either the transmitter or receiver end. Plug-and-play operation requires no drivers or software, while the USB-C service port enables convenient firmware upgrades. This extender is a reliable, scalable solution for long-distance USB distribution in professional AV, education, and industrial environments.

OREI USB3-WPE330WP-K: USB 3.2 EXTENDER (DUAL USB-C) - 330FT (CAT6)

Key Features:

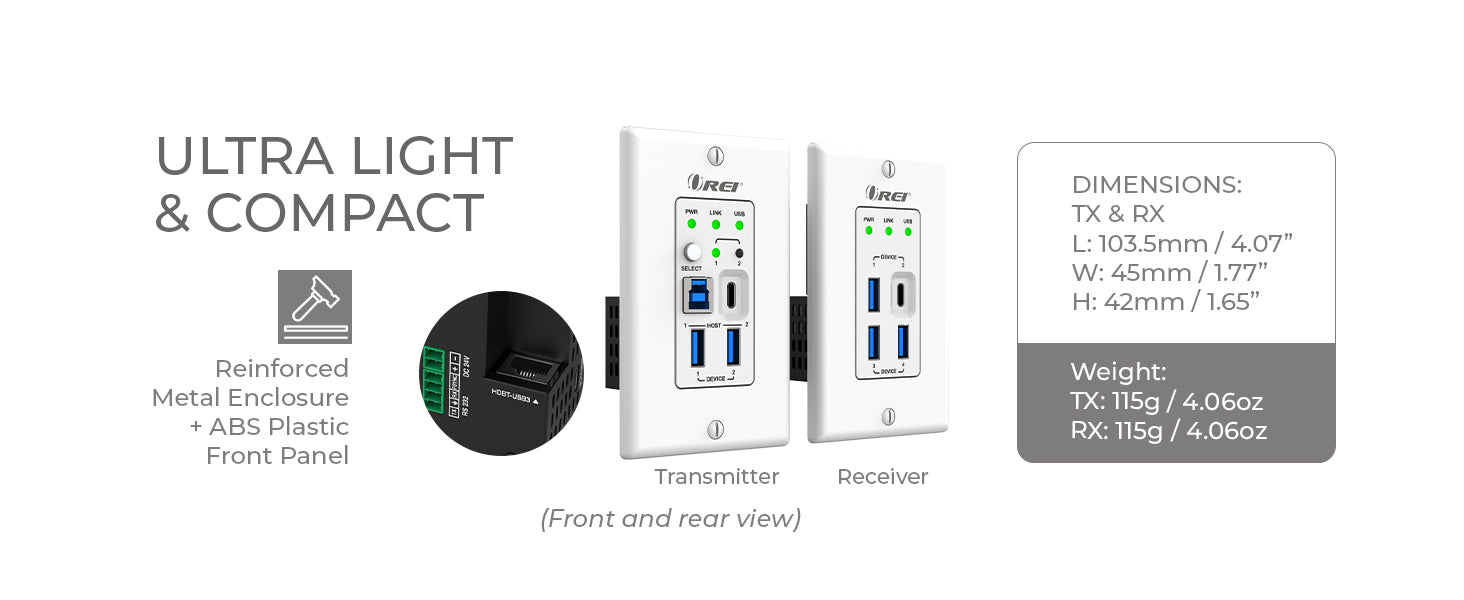

  • US 1-Gang Standard Decora Wall Plate Design – Provides a sleek, professional finish ideal for permanent installations.
  • USB 3.2 Gen 1 Extension up to 100m/328ft – Extends USB signals over a single Cat6a cable for reliable, high-speed transmission.
  • 5Gbps Data Transfer Rate – Ensures fast, stable performance for a wide range of USB devices.
  • Backwards Compatible with USB 2.0 and 1.1 – Supports legacy USB devices for maximum system flexibility.
  • Hardware Acceleration for Isochronous and Bulk Transfer – Optimizes performance for audio, video, and high-speed data applications.

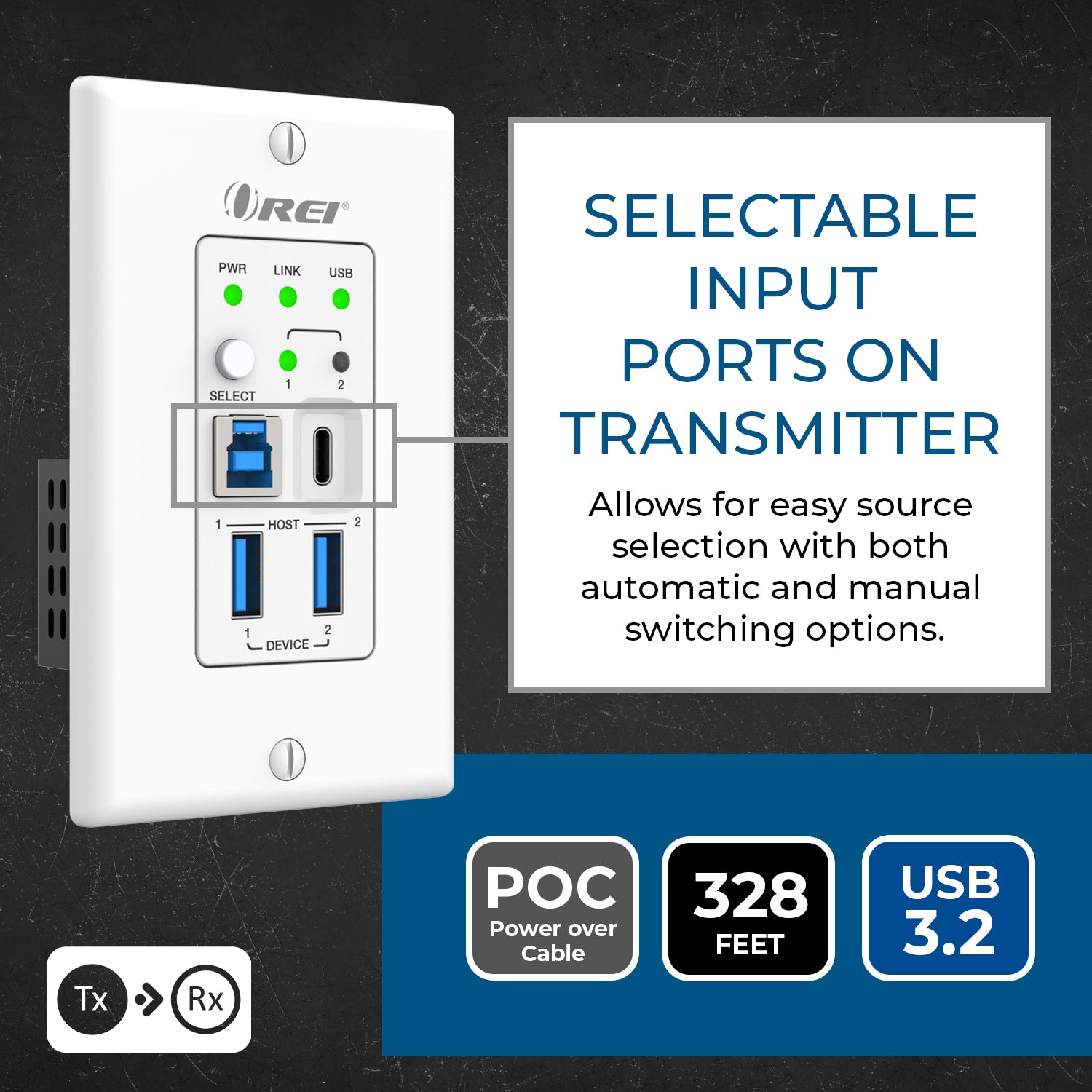

  • Selectable Input Ports on Transmitter – Offers one USB-B and one USB-C input with both auto-switching and manual selection modes.
  • RS-232 Pass-through and API Control – Enables system integration and external control for advanced installations.
  • Firmware Upgrade via USB-C Service Port – Provides convenient system updates for long-term functionality.
  • FSYNC GPIO Pass-through for Industrial Cameras – Supports synchronization of specialized camera systems.
  • Receiver with Multiple Device Ports – Includes one USB-C and three USB-A output ports (two 5V@1A, one 5V@1.5A) for flexible device connectivity and power supply.

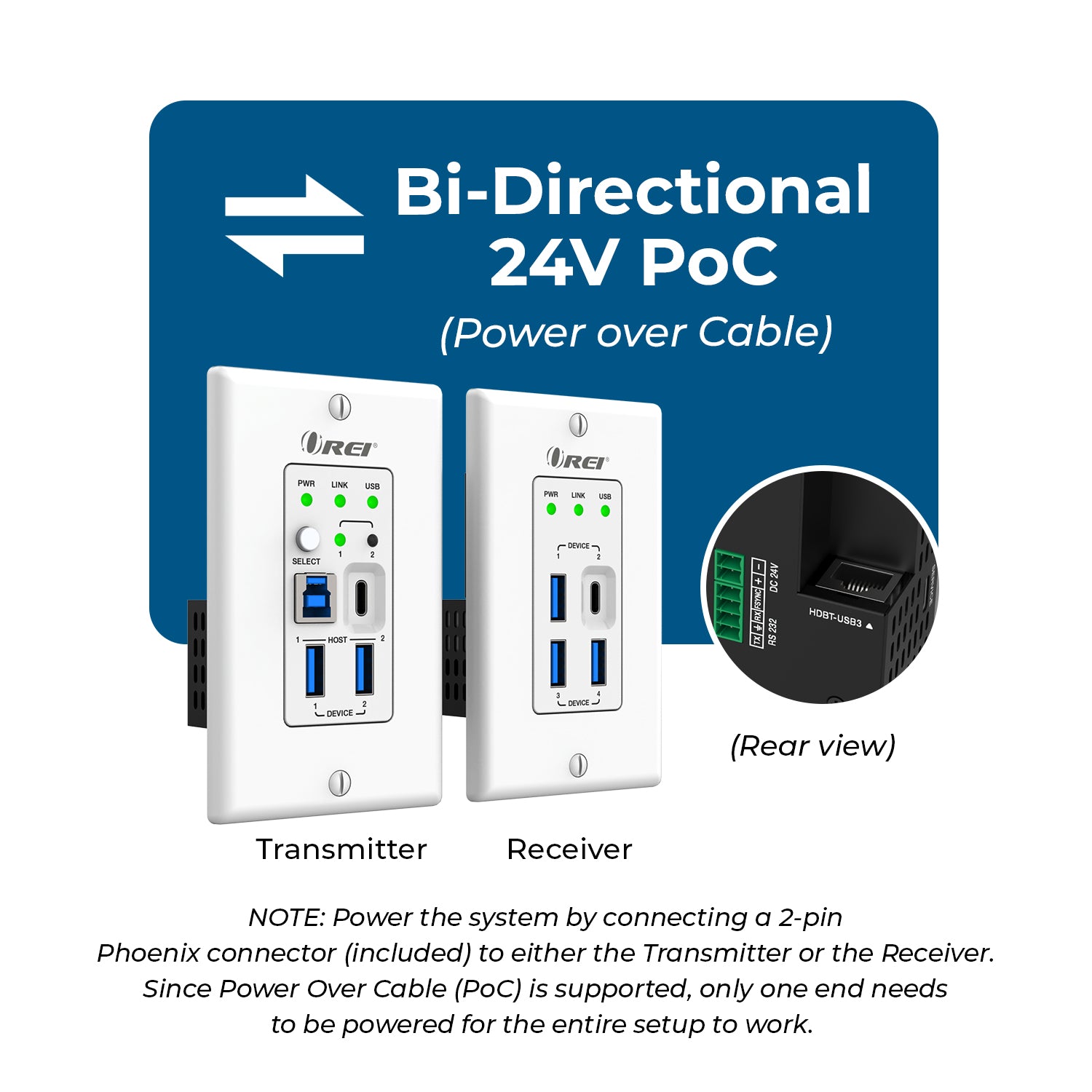

  • Bi-directional 24V PoC (Power over Cable) – Allows the system to operate with power supplied from either the transmitter or receiver, eliminating the need for additional power adapters.
  • Plug-and-Play Operation – Requires no drivers or software for quick and easy setup.

USB3-WPE330WP-K is a professional-grade solution for long-distance USB signal transmission, ideal for commercial, educational, and industrial environments. Designed in a US 1-Gang standard decora wall plate format, this system extends USB 3.2 Gen 1 signals up to 100m (328ft) over a single Cat6a cable, providing seamless connectivity for USB devices across large spaces.

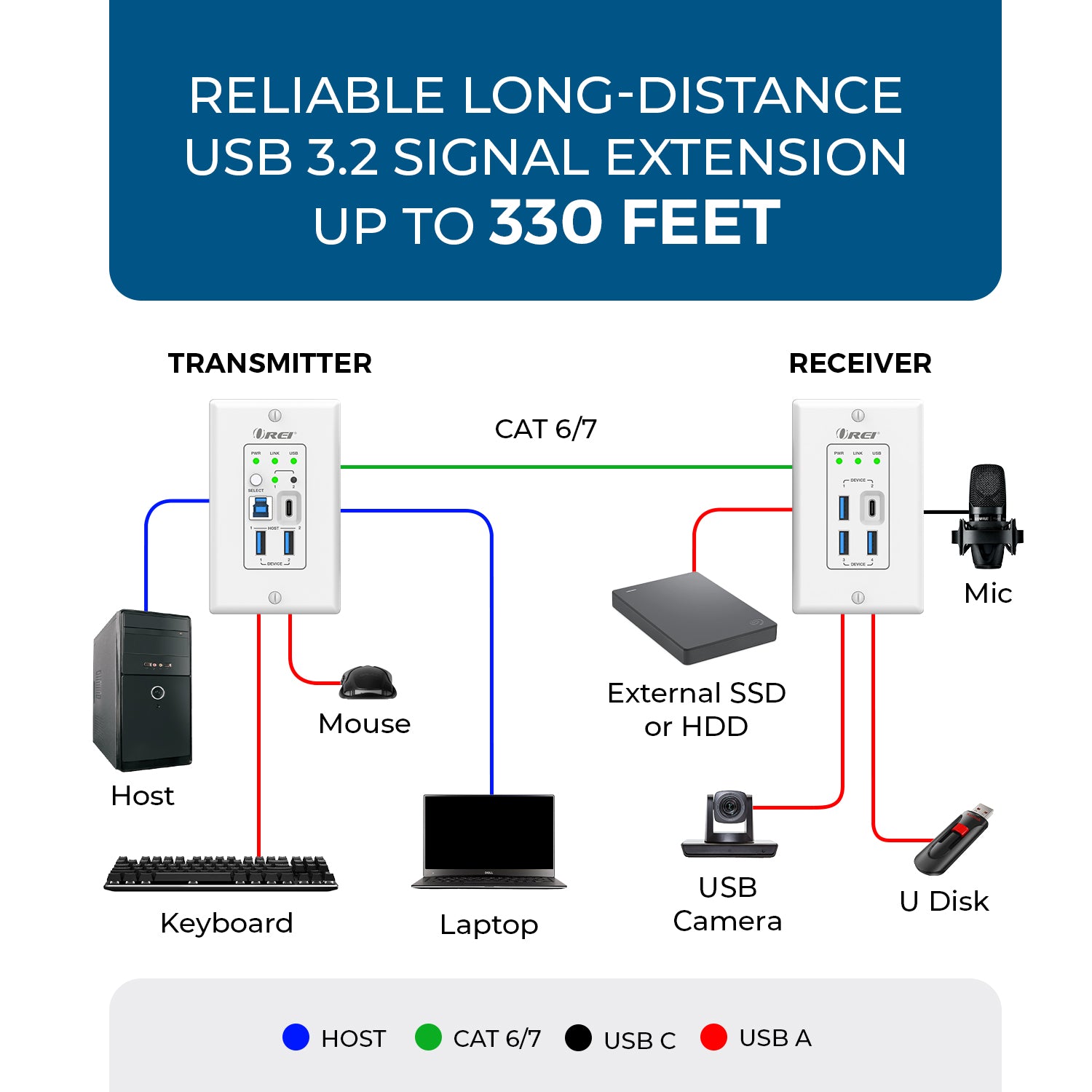

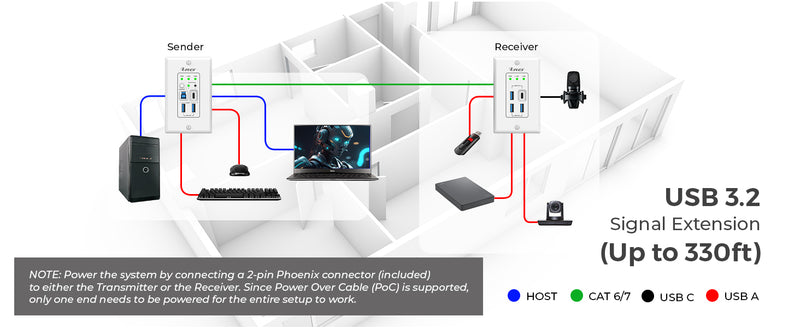

The transmitter offers one USB-C and one USB-B selectable input, along with two USB-A loop-out ports for convenient local device connection. The receiver provides one USB-C and three USB-A output ports, delivering both high-speed data and power to connected devices. Bi-directional 24V PoC (Power over Cable) simplifies installation by requiring power at only one end of the system.

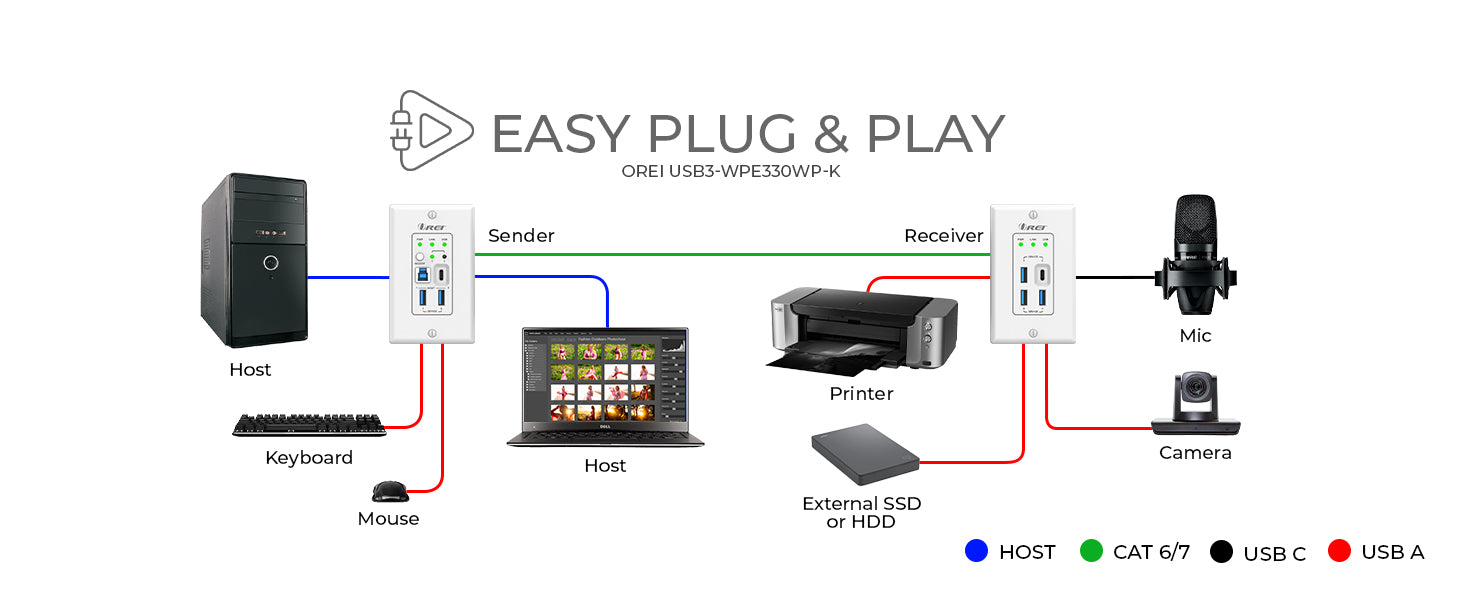

This extender is ideal for applications requiring reliable, long-distance USB transmission, including webcams, PTZ cameras, keyboard, mouse, USB microphones, printers, scanners, touch panels, and more.
