34% off

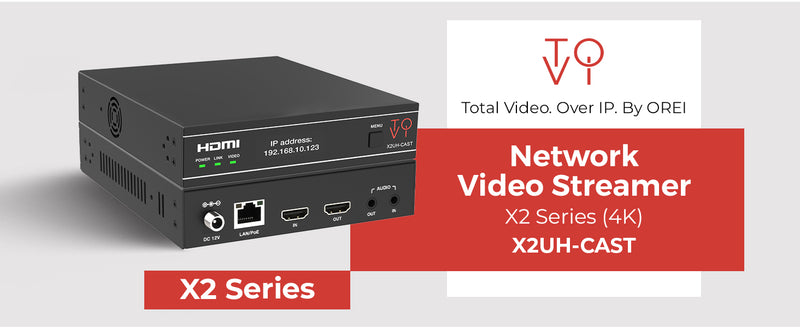

X2 4K Network Video Streamer - (X2UH-CAST)

$299.00 USD $449.99
SKU: X2UH-CAST

  • 4K@60Hz H.264/H.265 AV-over-IP Encoding
  • Triple-Stream Output with HDMI™ Loop-Out
  • PoE-Powered with Web GUI & API Control

Overnight shipping*:
Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Add To Wishlist
30 Days Return
30 Days Return
1 Year Warranty
1 Year Warranty
Free shipping in USA
Free shipping in USA
Product Image
View details

Professional AV-over-IP Encoder for 4K Streaming & Distribution

The X2UH-CAST is a high-performance AV-over-IP encoder designed for professional video streaming, signal distribution, and control applications. Using advanced H.264/H.265 (HEVC) compression, it delivers visually lossless 4K@60Hz (4:4:4) video over standard 100M/1G Ethernet networks, making it ideal for broadcast, control rooms, and large-scale AV deployments.

Multi-Stream Encoding & High-Bandwidth Video Support

This encoder supports triple simultaneous streams, including 4K@60Hz H.264/H.265, 1080P@30Hz H.264, and 720P JPEG, enabling flexible use for live streaming, monitoring, and preview applications. With support for HDMI™ 2.0b, up to 18Gbps video bandwidth, and HDMI™ loop-out, it ensures high-quality signal distribution without latency or degradation.

Flexible Streaming Protocols & Audio Integration

The X2UH-CAST supports a wide range of streaming protocols including RTSP (TCP/UDP), RTP, TS over UDP, and RTMP/RTMPS, allowing seamless integration into existing IP workflows. It offers unicast and multicast streaming, audio-only stream options, adjustable audio delay, and supports LPCM 2CH (48kHz) audio with analog audio embedding and extraction for professional AV flexibility.

Advanced Control, Security & Installation Ready Design

Designed for professional environments, the encoder features an intuitive Web GUI (HTTP/HTTPS) along with advanced API control via TELNET, SSH, and TCP socket. It supports PoE (802.3af), EDID management, device discovery with “SHOW ME” function, and 802.1X network security. Compact and 1U/6U V2 rack-compatible, the X2UH-CAST is a reliable, installation-ready solution for enterprise AV-over-IP systems.

Professional AV-over-IP Encoder for 4K Streaming, Distribution & Control

Key Features:

  • Video Resolutions – In addition to pristine 4K@60Hz (4:4:4), it supports high-refresh and multi-resolution formats such as 2560×1440@25/30/60Hz, and 4096×2160@25/30/60Hz.
  • Triple Stream Output – 4K@60Hz H.264/H.265 + 1080P@30 H.264 + 720P@5 JPEG.

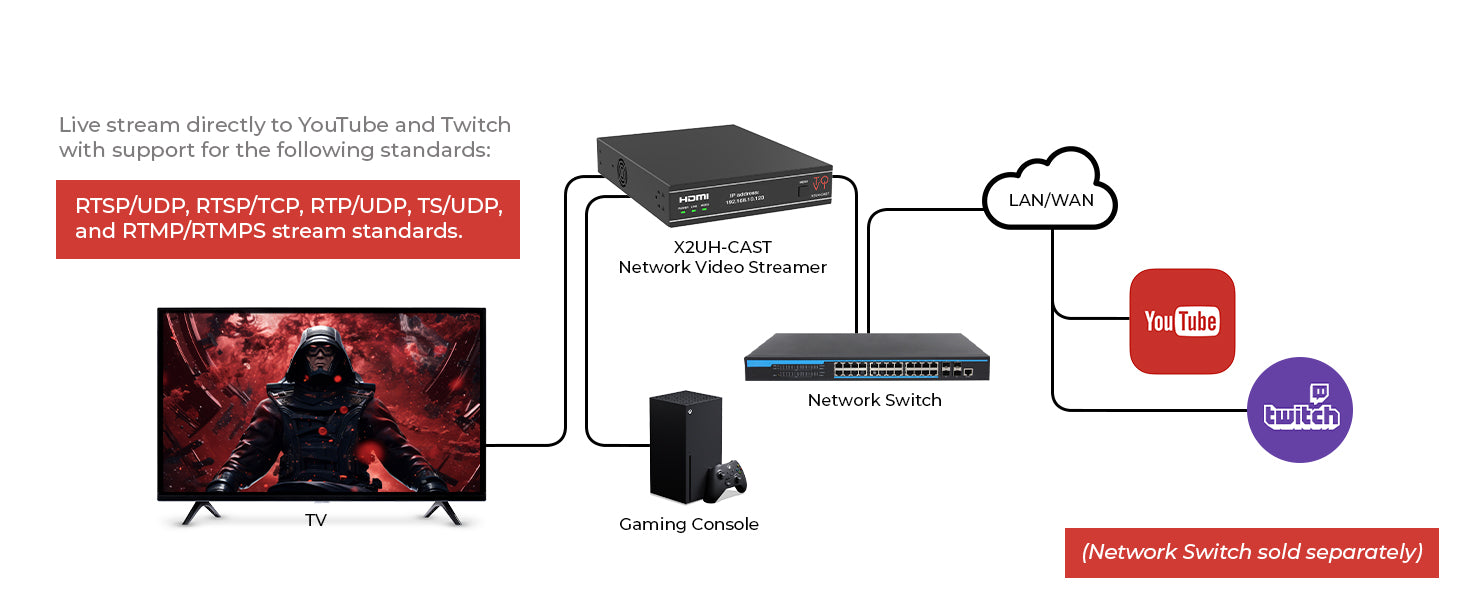

  • Streaming Protocols – RTSP/UDP, RTSP/TCP, RTP/UDP, TS/UDP, RTMP/RTMPS.
  • Flexible Streaming – Supports unicast, multicast, audio-only stream, and audio delay settings.
  • Audio Support – LPCM 2CH (48kHz), analog audio embedding & extraction.

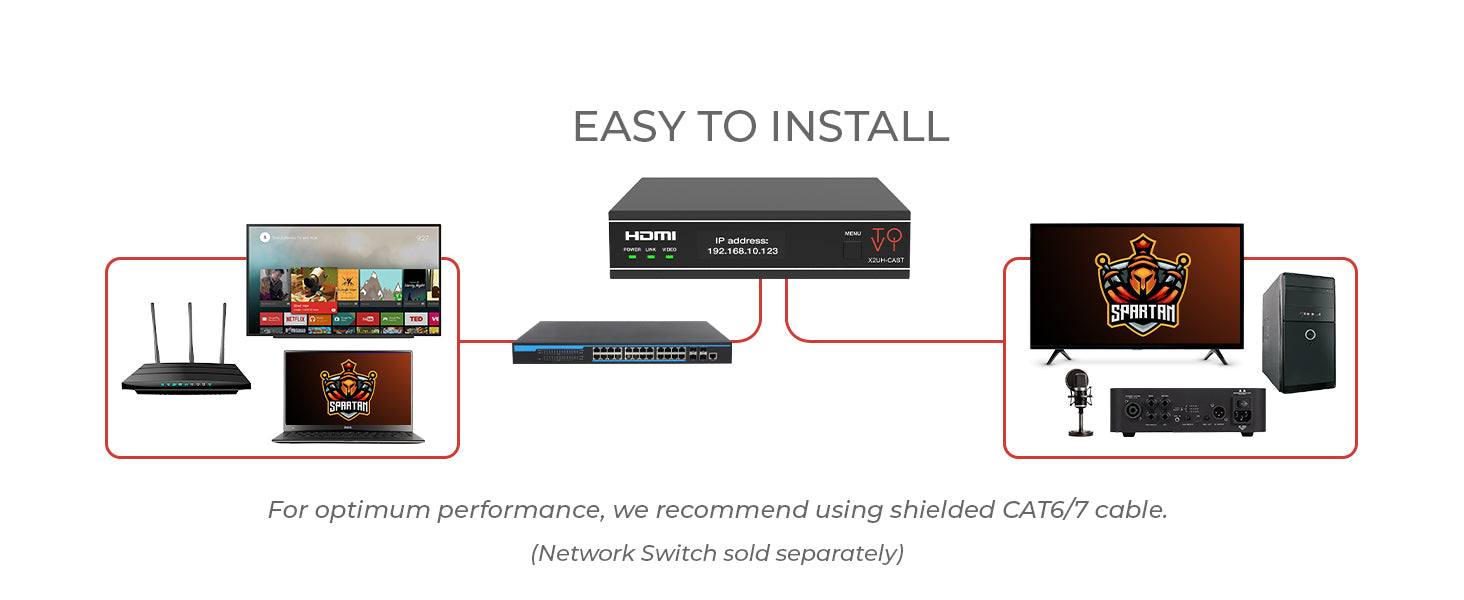

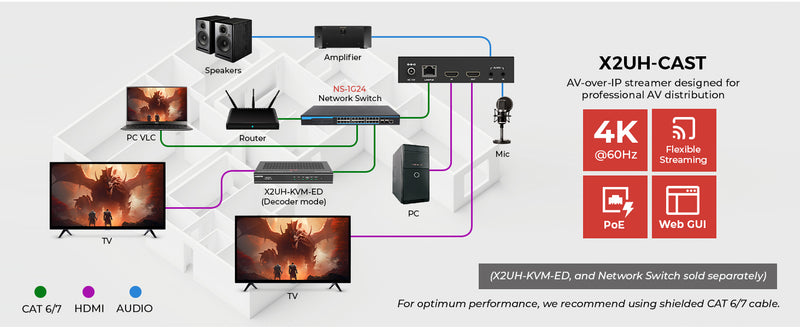

  • Signal Extension & Distribution – HDMI™ loop-out, image preview, point-to-point, and one-to-many distribution.
  • Advanced Control – Web GUI (HTTP/HTTPS), API via TELNET/SSH/TCP socket, stream control (play/pause/stop).
  • Network & Power – 100M/1G Ethernet port with PoE (802.3af) support.
  • Management & Security – Device Discovery “SHOW ME” function, EDID configuration, 802.1X protocol.

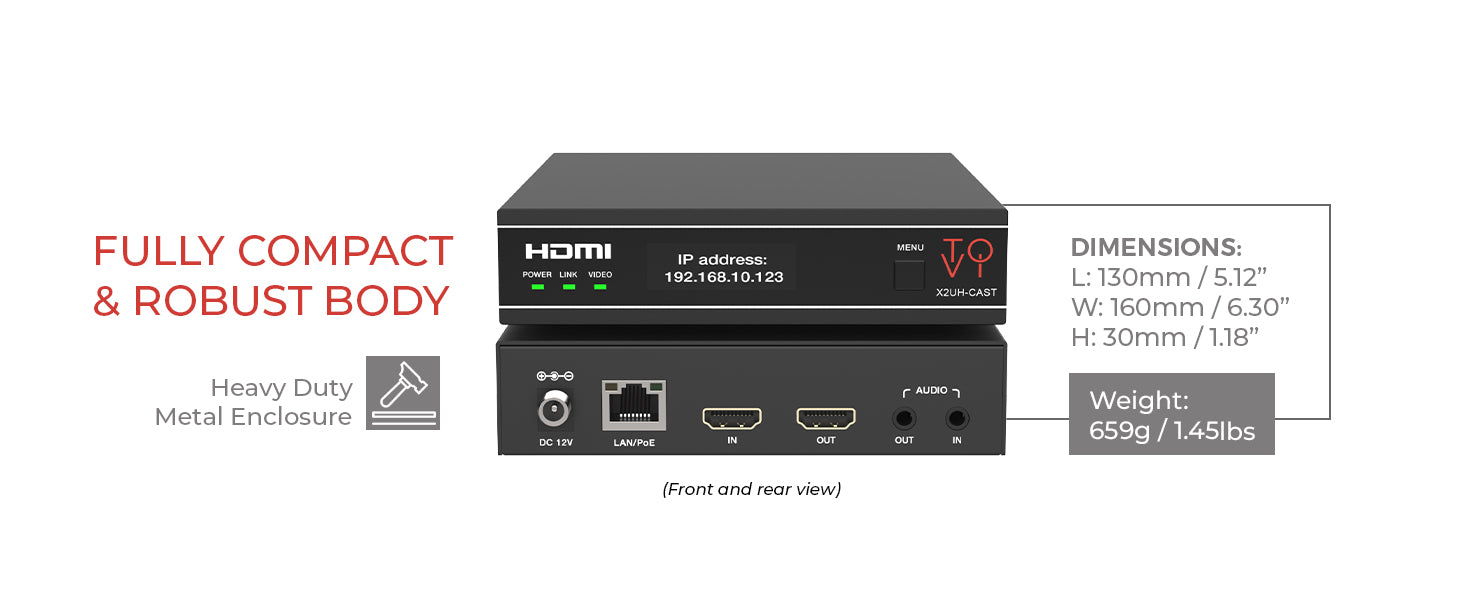

  • Installation Ready – Compatible with 1U/6U V2 rack installation

X2UH-CAST is a high-performance AV-over-IP encoder designed for professional AV distribution. Based on H.265/H.264 compression technology, it enables visually lossless 4K@60Hz (4:4:4) video transmission over a 100M/1G Ethernet network. Supporting three simultaneous streams (4K@60Hz H.264/H.265, 1080P@30Hz H.264, and 720P@50Hz JPEG), it ensures maximum flexibility for streaming, preview, and monitoring applications

With HDMI™ loop-out, analog audio embedding/extracting, and full compatibility with streaming standards like RTSP, RTP, TS, RTMP/RTMPS, this AV Streamer is a versatile solution for broadcasting, control rooms, and AV-over-IP installations. Its Web GUI offers intuitive setup and management, while advanced API controls allow seamless integration with third-party control systems. Compact and 1U/6U V2 rack-compatible, it supports PoE (802.3af), features an OLED display, and includes advanced functions like device discovery, unicast/multicast streaming, EDID configuration, and security with 802.1X protocol.

Note: The X2UH-CAST supports Unicast and Multicast RTSP stream with max resolution up to 4K@60Hz. The main and sub stream URL is mentioned below.

Unicast Main: rtsp://[Device IP]:554/live/main/unicast/av_stream
Unicast Sub: rtsp://[Device IP]:554/live/second/unicast/av_stream

Multicast Main: rtsp://[Device IP]:554/live/main/multicast/av_stream
Multicast Sub: rtsp://[Device IP]:554/live/second/multicast/av_stream
