4K@60Hz 16x16 HDMI™ Matrix (Audio Extract) (UHD-1616)

• HDMI™ 2.0b and HDCP 2.2 Compliant – Compatible with modern video and content protection standards.

• Video Resolutions up to 4K@60Hz – Delivers ultra-high-definition video on all HDMI™ ports.

• 18Gbps Video Bandwidth – Ensures smooth, uncompressed signal transmission with full color fidelity.

• HDR & Dolby Vision Support – Compatible with HDR10+, Dolby Vision, and HLG formats.

• 4K to 1080p Downscaling – Independent downscale on each HDMI™ output for flexible display compatibility.

• HD Audio Pass-through – Supports up to 7.1 channels of LPCM, Dolby TrueHD, and DTS-HD Master Audio.

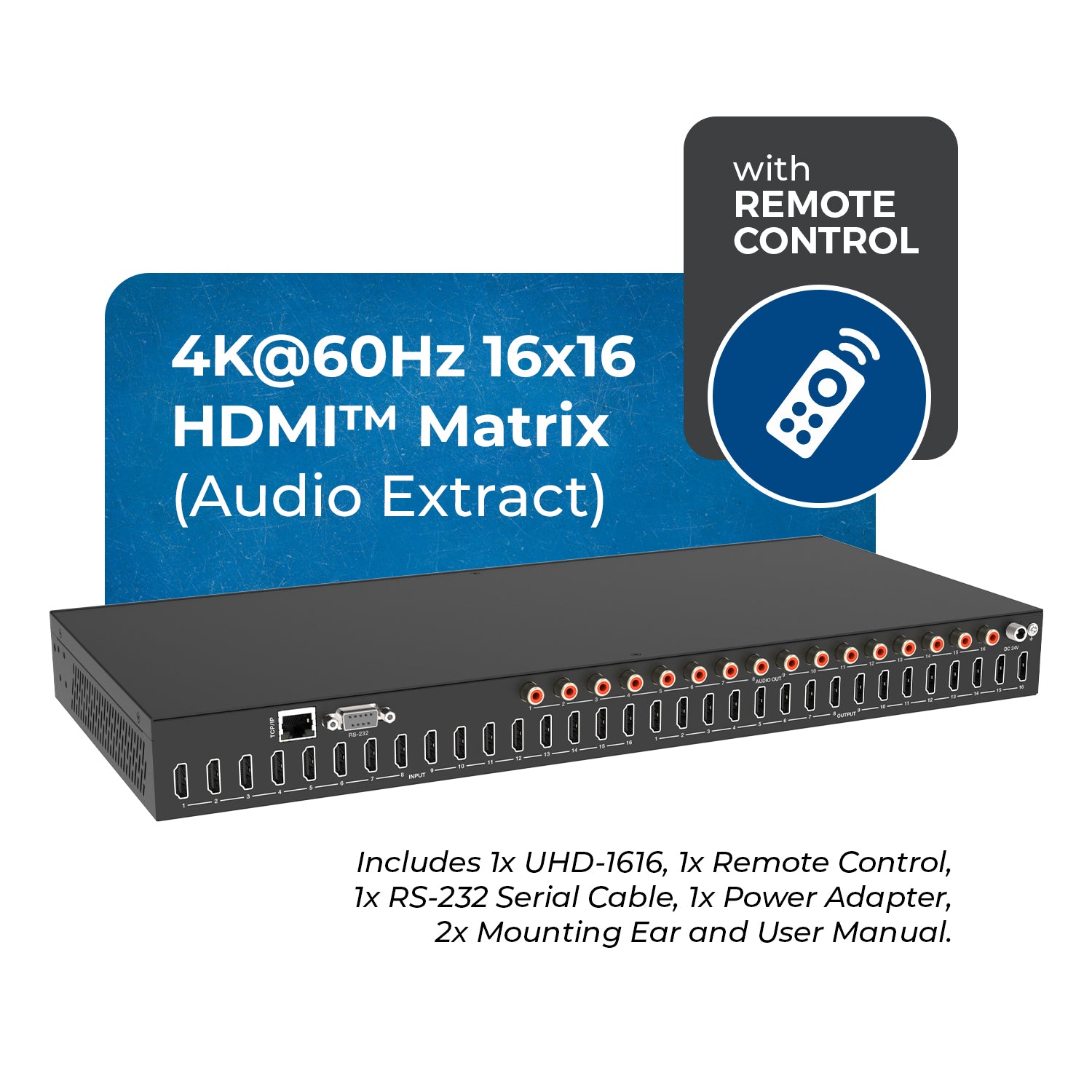

• Audio Extraction – Extracts audio via 16 coaxial ports from HDMI™ outputs for external audio systems.

• ARC and CEC Support – Enables ARC return from HDMI™ displays and supports full CEC device control.

• Smart EDID Management – Ensures optimal resolution and audio negotiation across all connected devices.

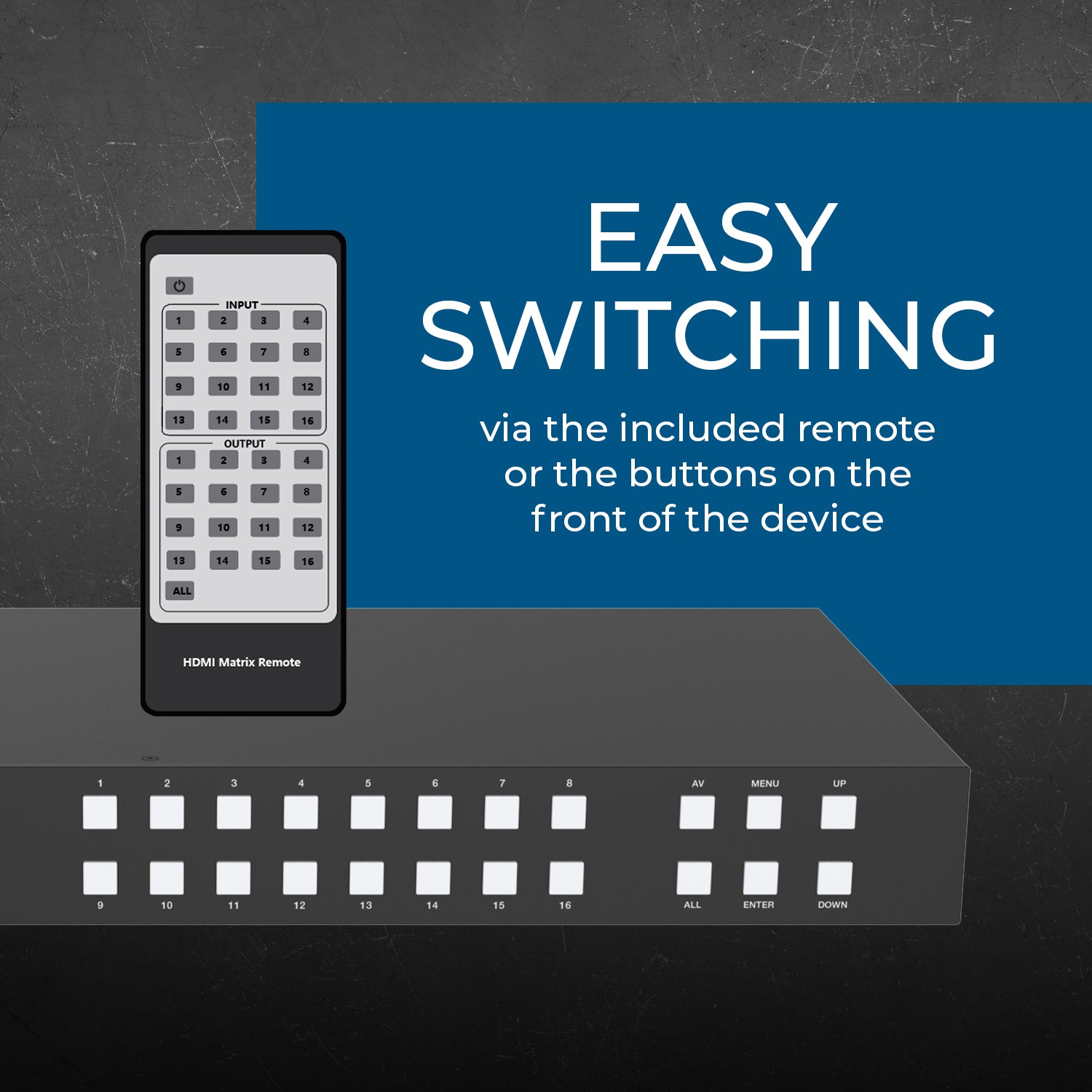

• Flexible Control Options – Operate via front panel buttons, IR remote, RS232, LAN, or built-in Web GUI.

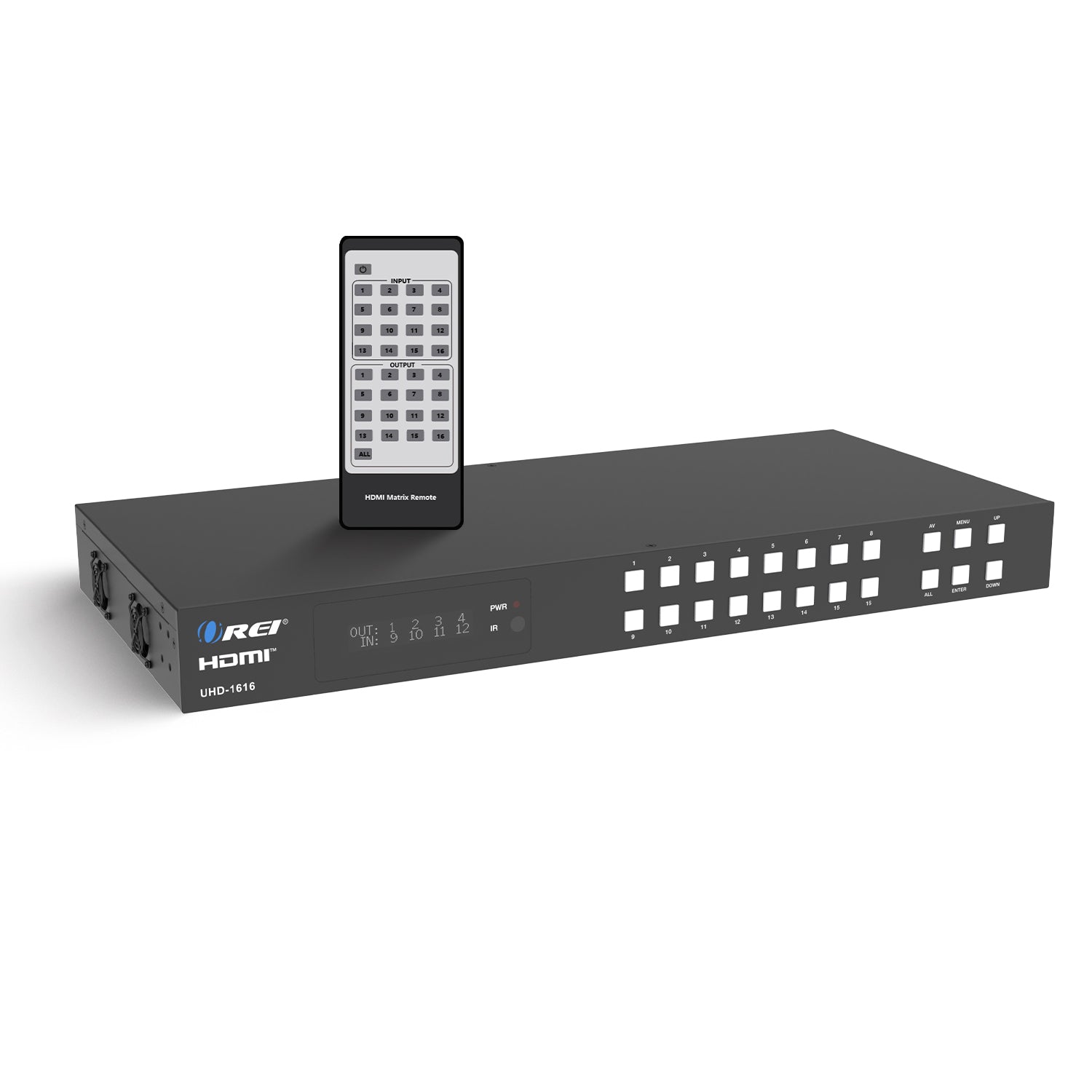

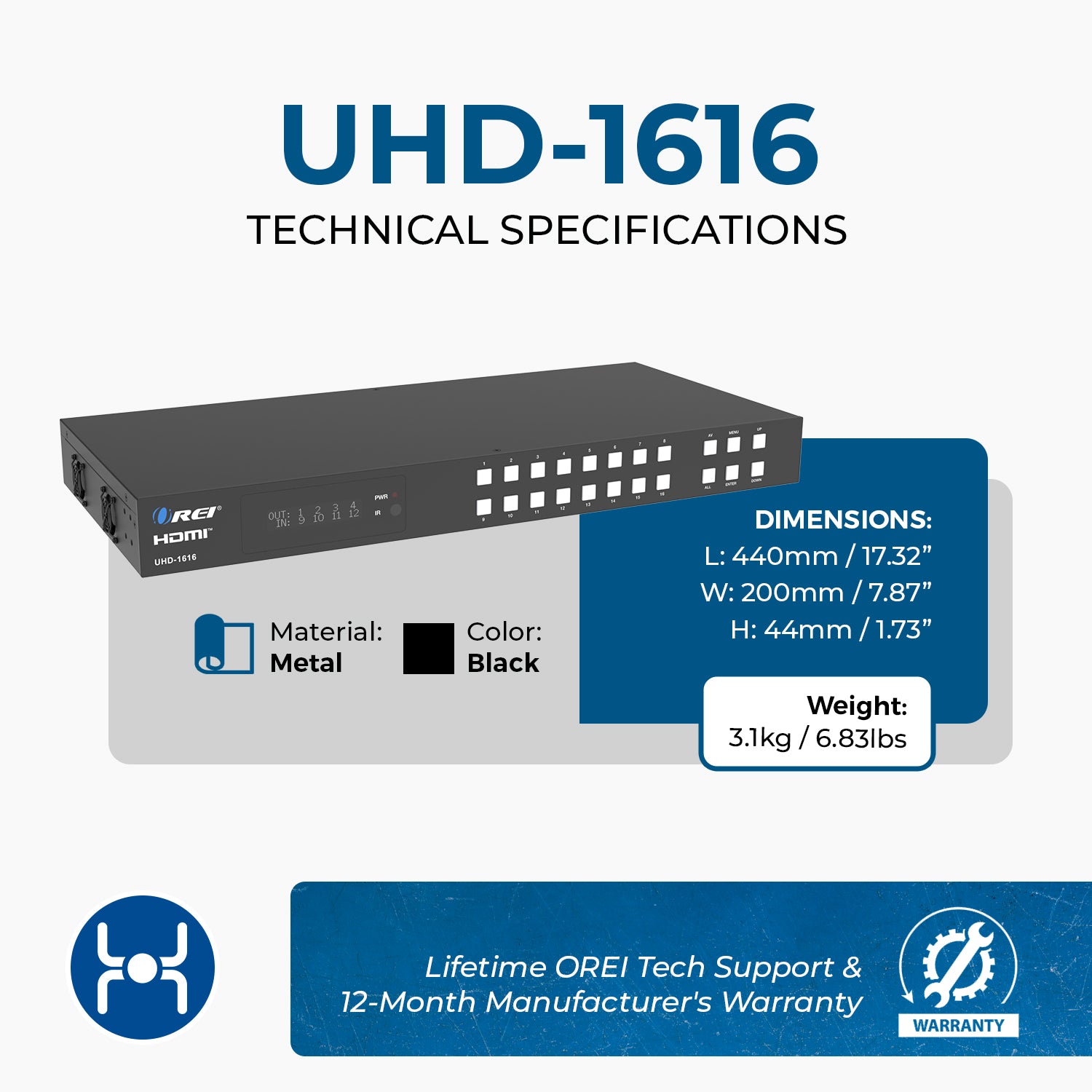

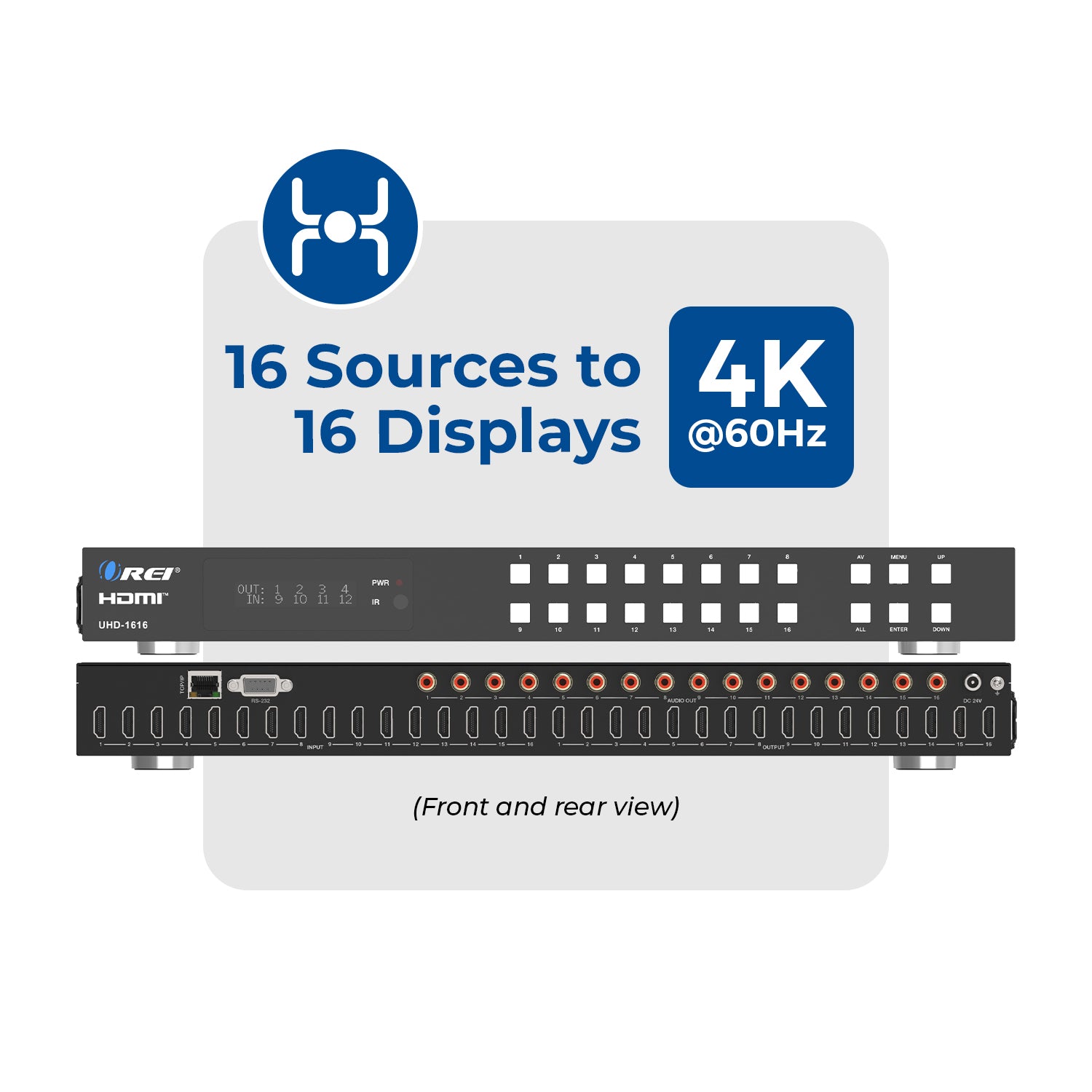

• 1U Rack-Mountable Design – Includes OLED front panel display for status and configuration visibility

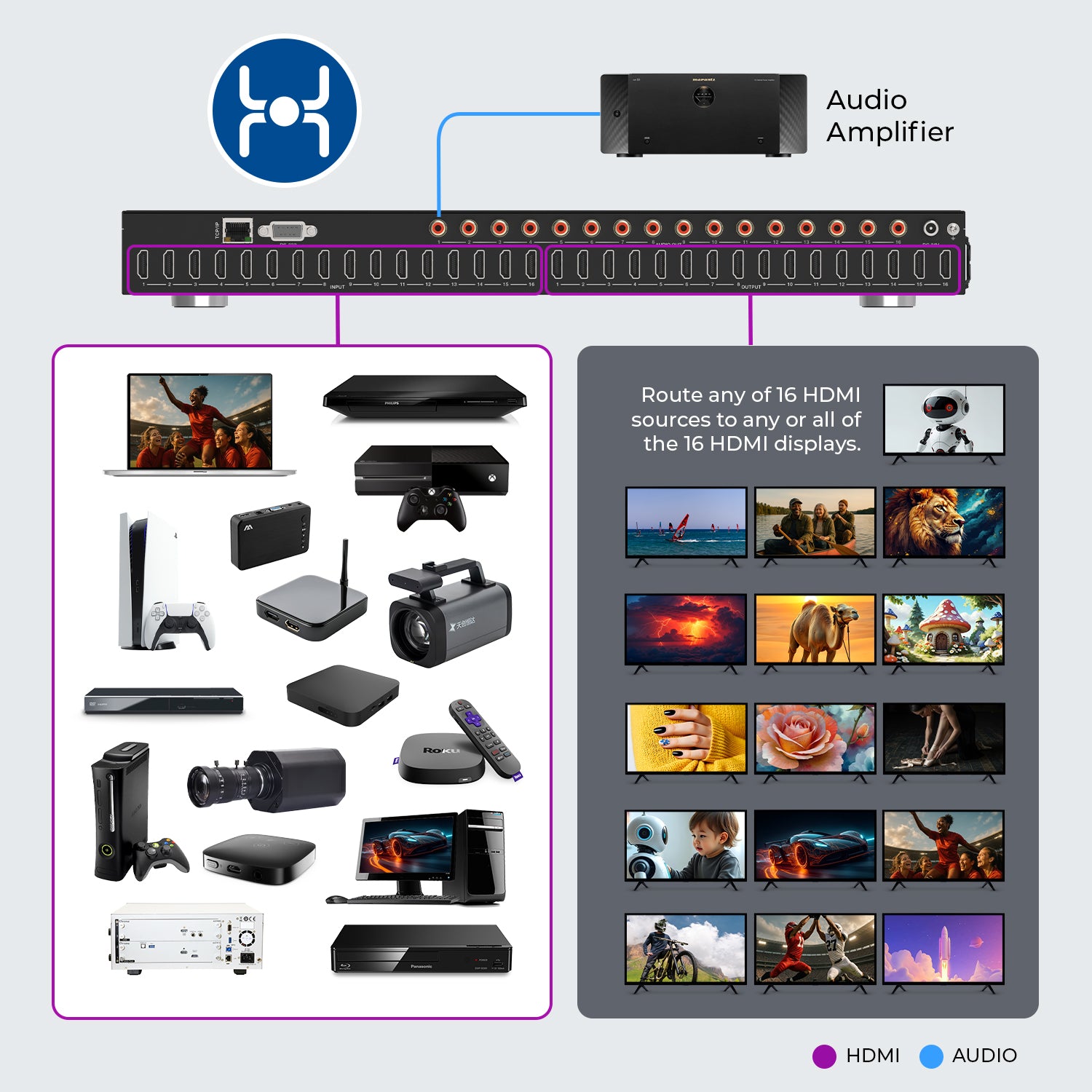

UHD-1616 is a professional-grade video distribution solution, designed to route ultra-high-definition video and digital audio from up to 16 HDMI™ sources to 16 HDMI™ displays simultaneously. Supporting resolutions up to 4K@60Hz (YUV 4:4:4) and featuring 18Gbps bandwidth, this matrix switch ensures uncompressed, high-performance signal delivery across all outputs. Each HDMI™ output supports independent downscaling from 4K to 1080p, allowing seamless integration with mixed-resolution displays. Built-in audio extraction provides a coaxial output for each HDMI™ output, and ARC (Audio Return Channel) functionality enables ARC audio extraction from compatible displays.

Ideal for control rooms, AV installations, and large-scale multimedia environments, the matrix offers flexible control options via front panel buttons, IR remote, RS-232, LAN, or intuitive Web GUI. Housed in a 1U rack-mountable chassis with an integrated OLED display, the system delivers enterprise-grade AV management in a compact form factor.
