4K@30Hz 8x16 HDMI™ Matrix (HDS-816)

• HDMI™ 1.4 and HDCP 2.2 Compliant – Compatible with a broad range of HDMI™ devices and protected content.
• Supports Video Resolutions up to 4K@30Hz – Delivers high-definition video across all outputs.
• 10.2Gbps Video Bandwidth – Ensures stable, high-quality AV transmission.

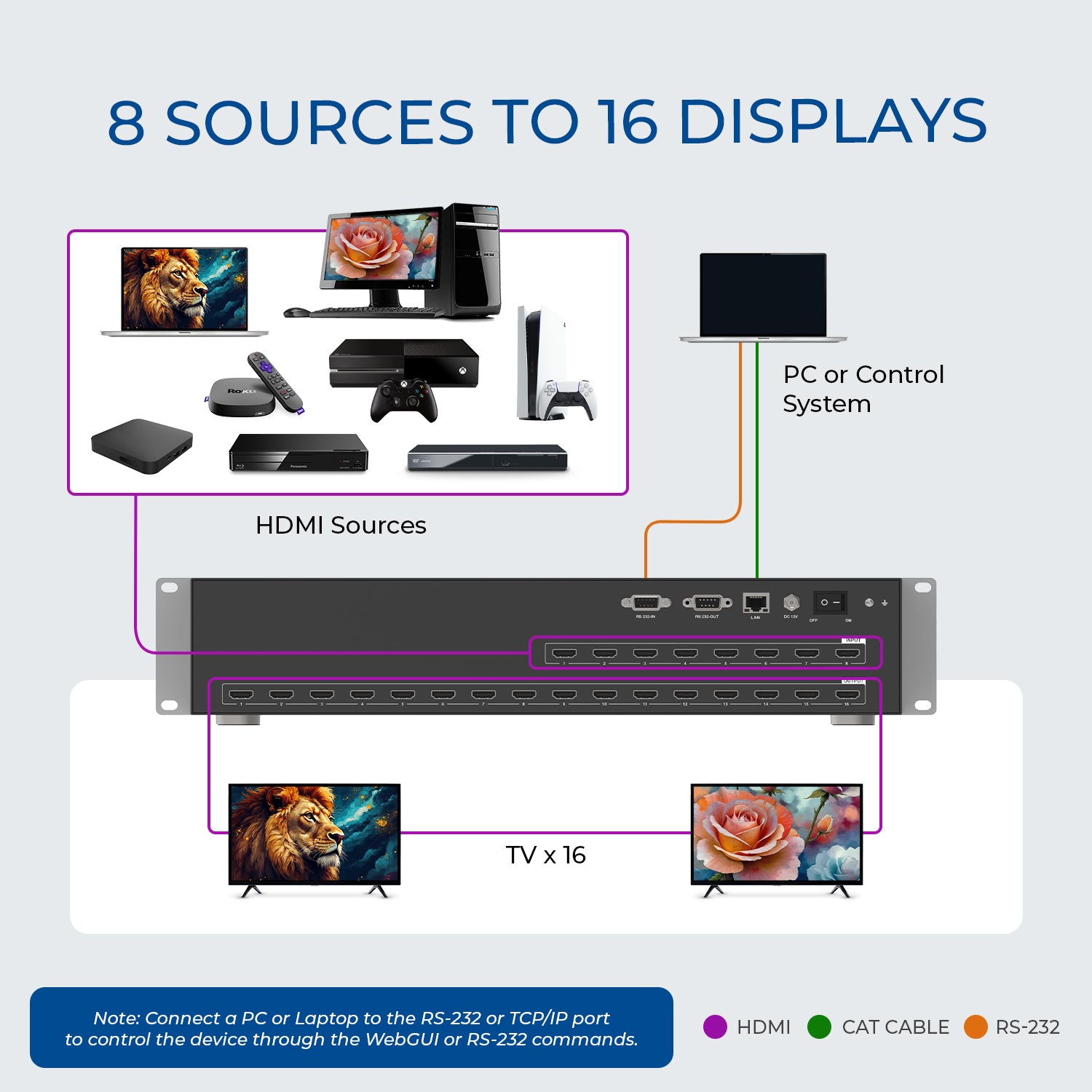

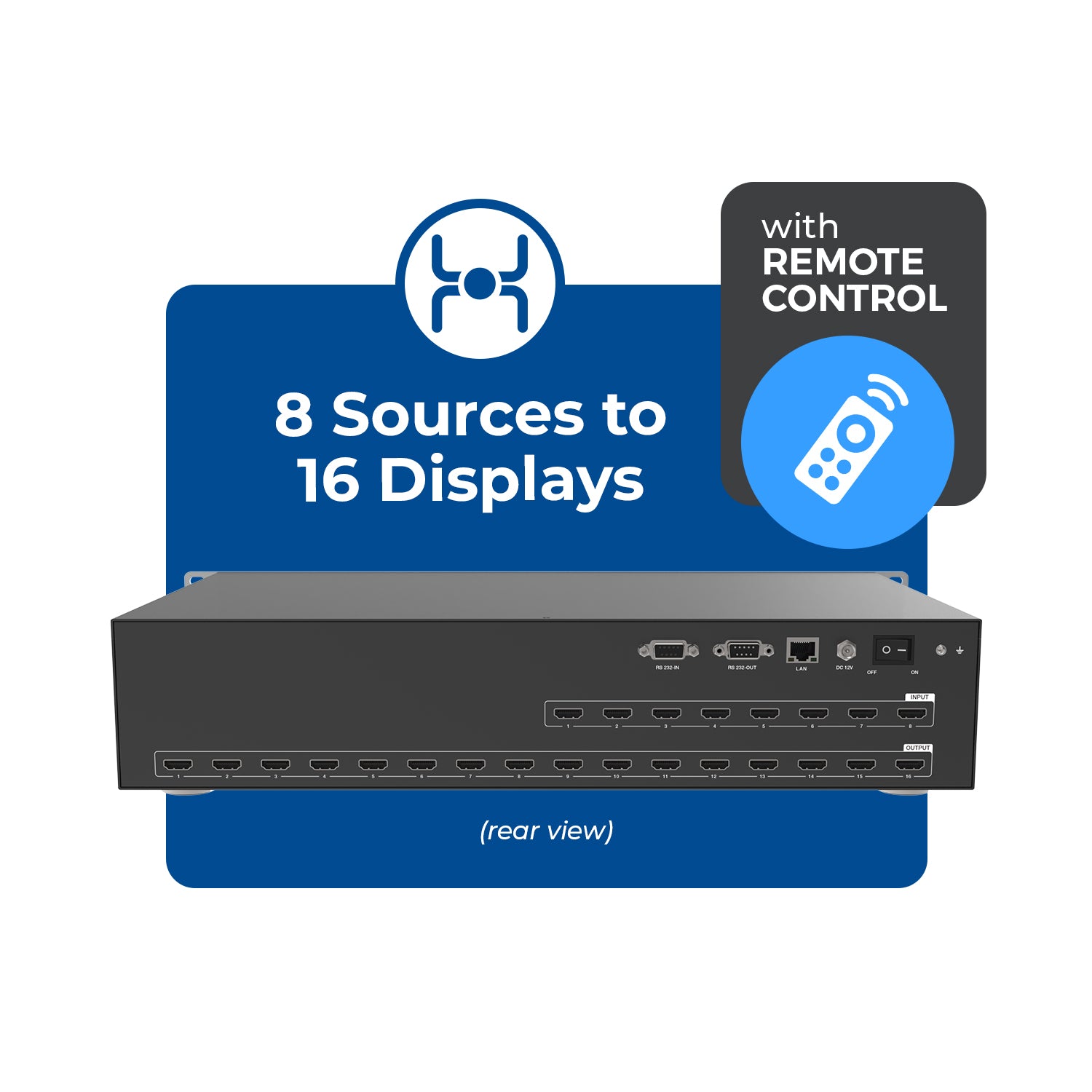

• 8x16 Matrix Switching – Distribute any of 8 HDMI™ sources to any or all of the 16 HDMI™ displays.
• Audio Format Support – Passes LPCM 2.0/5.1/7.1CH, Dolby Digital, Dolby Digital+, Dolby TrueHD, DTS 5.1, DTS-HD Master Audio, Dolby Atmos, and DTS:X via HDMI™.
• Advanced EDID Management – Allows fine-tuned compatibility settings between sources and displays.
• Scene Save and Recall – Store and retrieve up to 16 custom routing presets.
• Round-Robin Scene Switching – Automatically rotate through saved scenes at specified intervals.

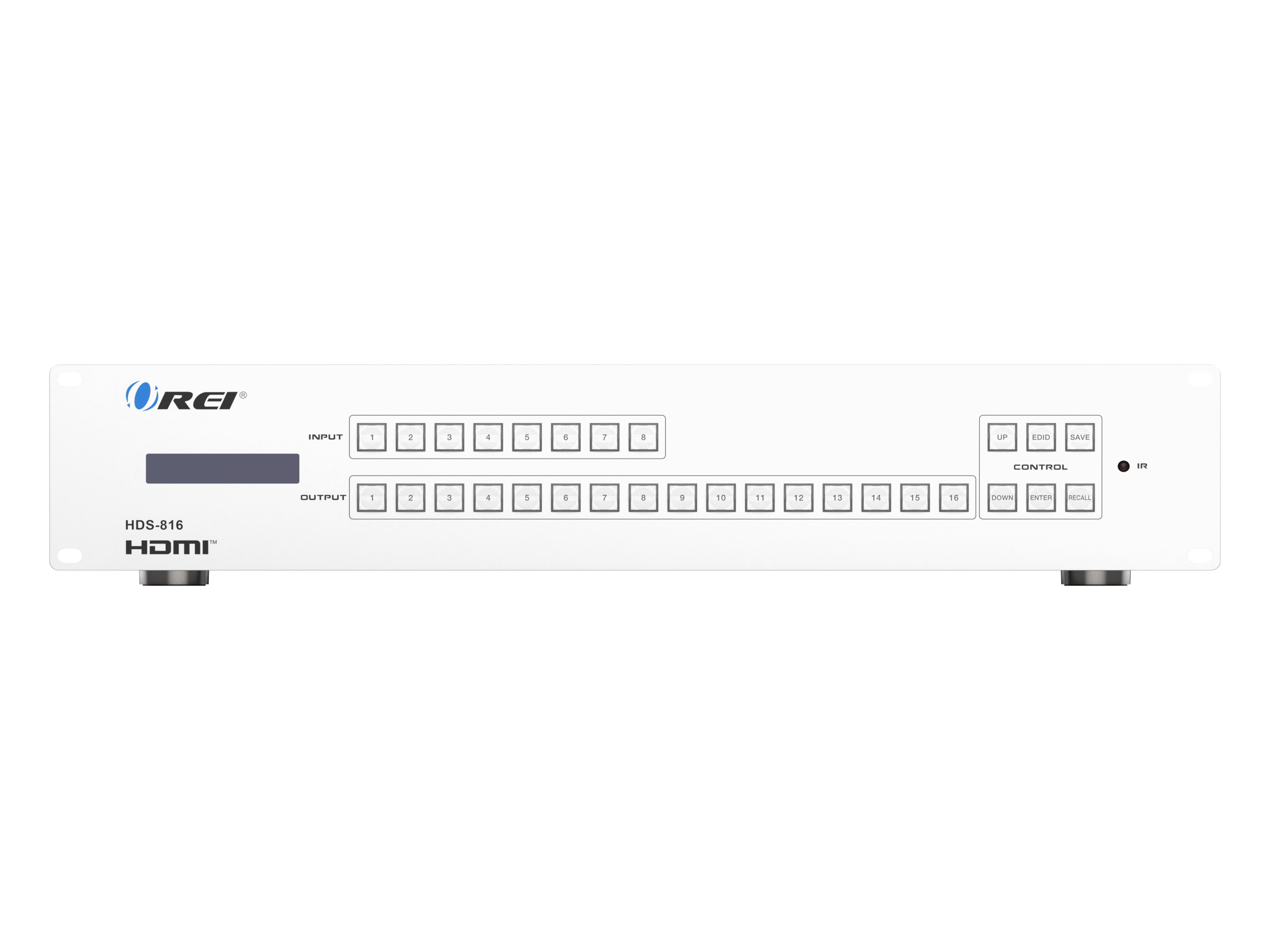

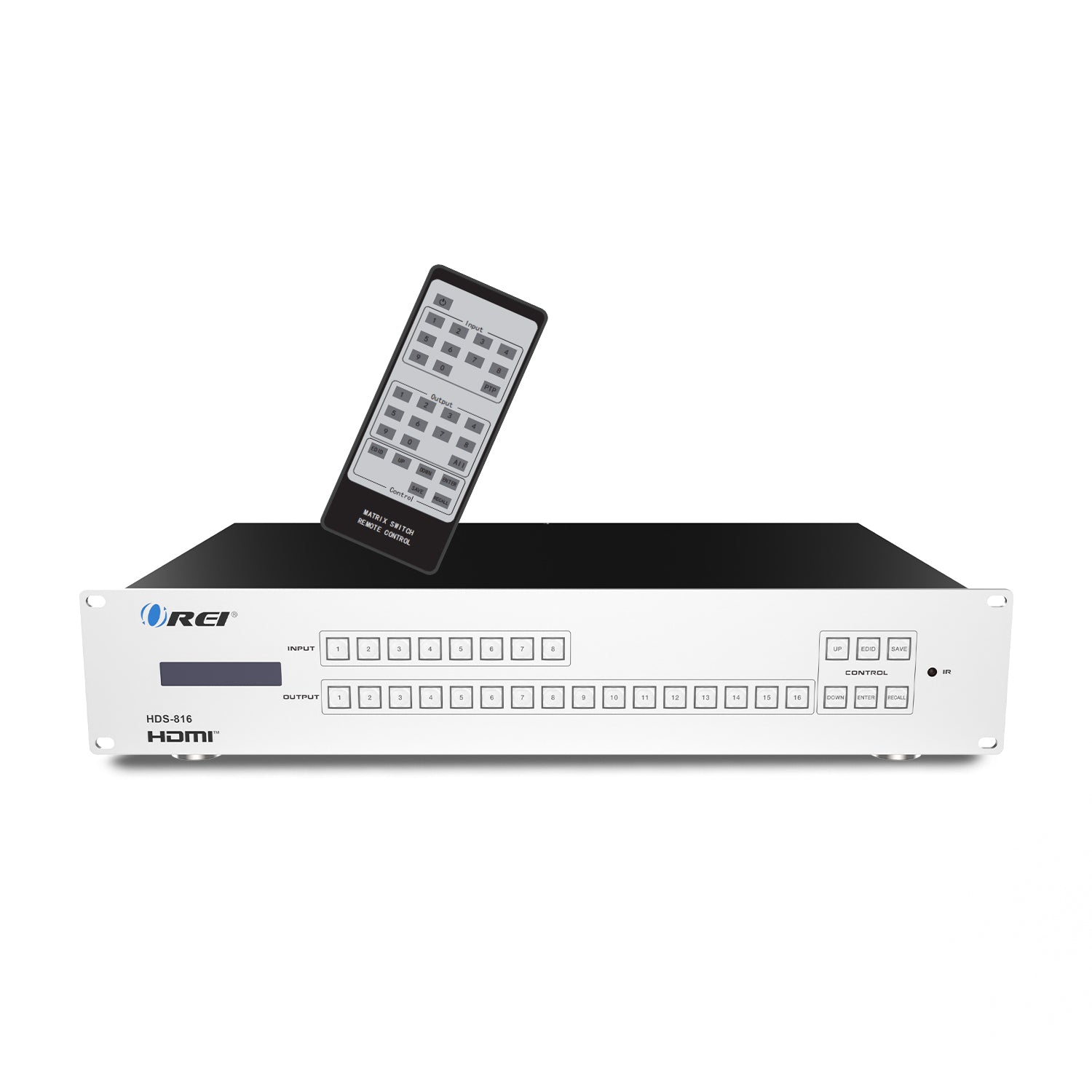

• Flexible Control Options – Operate via front panel buttons, IR remote, RS232 commands, or intuitive WebGUI.

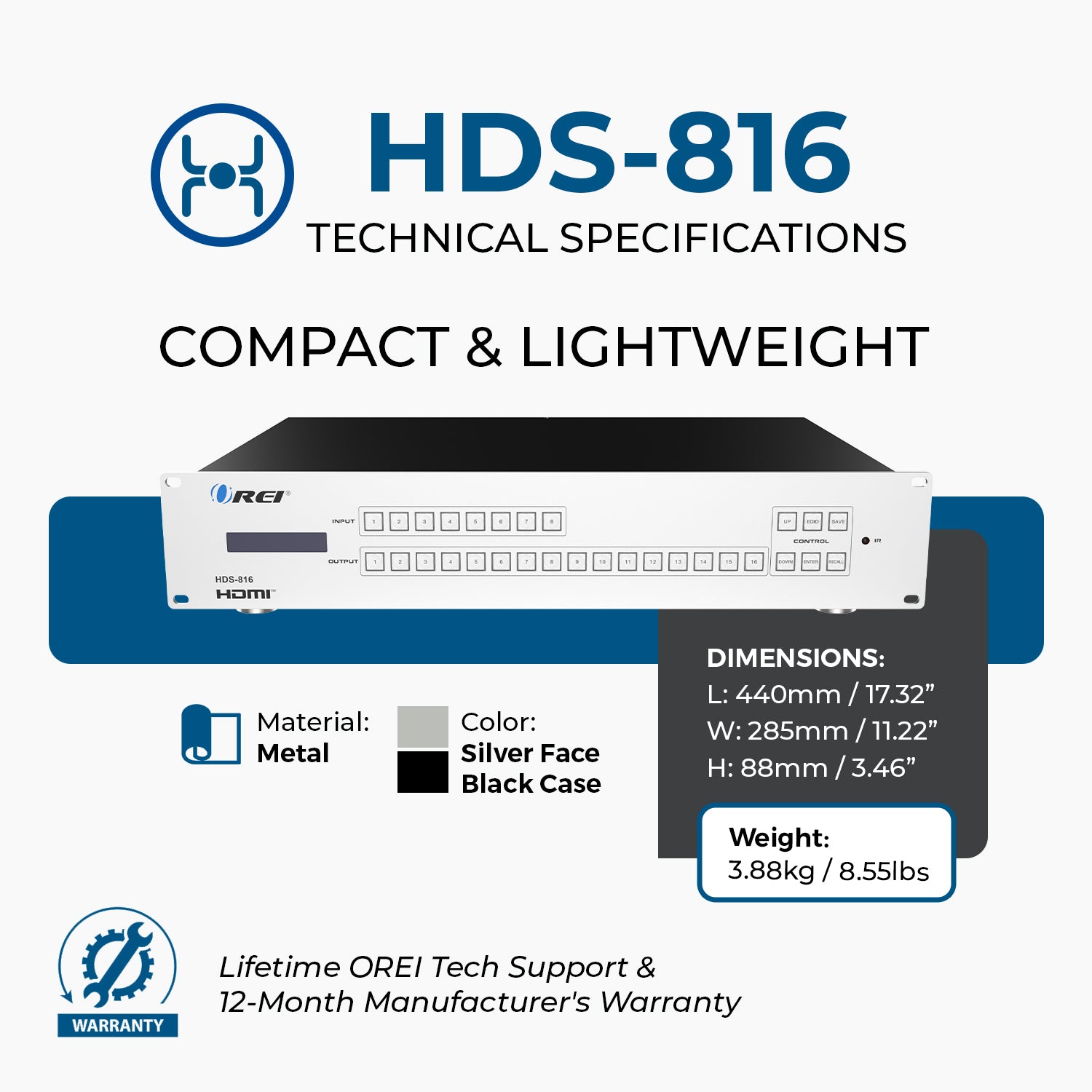

• 2U Rack-Mount Design – Durable and space-efficient for professional AV installations


The HDS-816 is a professional-grade 8x16 HDMI™ Matrix Switch designed for flexible signal routing in commercial AV environments. It enables seamless switching between 8 HDMI™ sources across 16 HDMI™ displays, making it ideal for video walls, digital signage, control rooms, and large-scale presentation systems.

With support for HDMI™ 1.4 and HDCP 2.2, the HDS-816 transmits video resolutions up to 4K@30Hz with a bandwidth of 10.2Gbps, while also supporting a wide range of audio formats—including Dolby Digital, DTS 5.1, Dolby Atmos, DTS:X, and LPCM up to 7.1CH—through HDMI™.

Advanced EDID management offers optimal device compatibility, and the system allows users to save and recall up to 16 custom switching scenes. The round-robin switching function automates scene cycling at defined intervals.

With control options via front panel, IR remote, RS-232, or WebGUI, and housed in a 2U rack-mount chassis, the HDS-816 is built for easy integration and dependable performance in any commercial setup.
