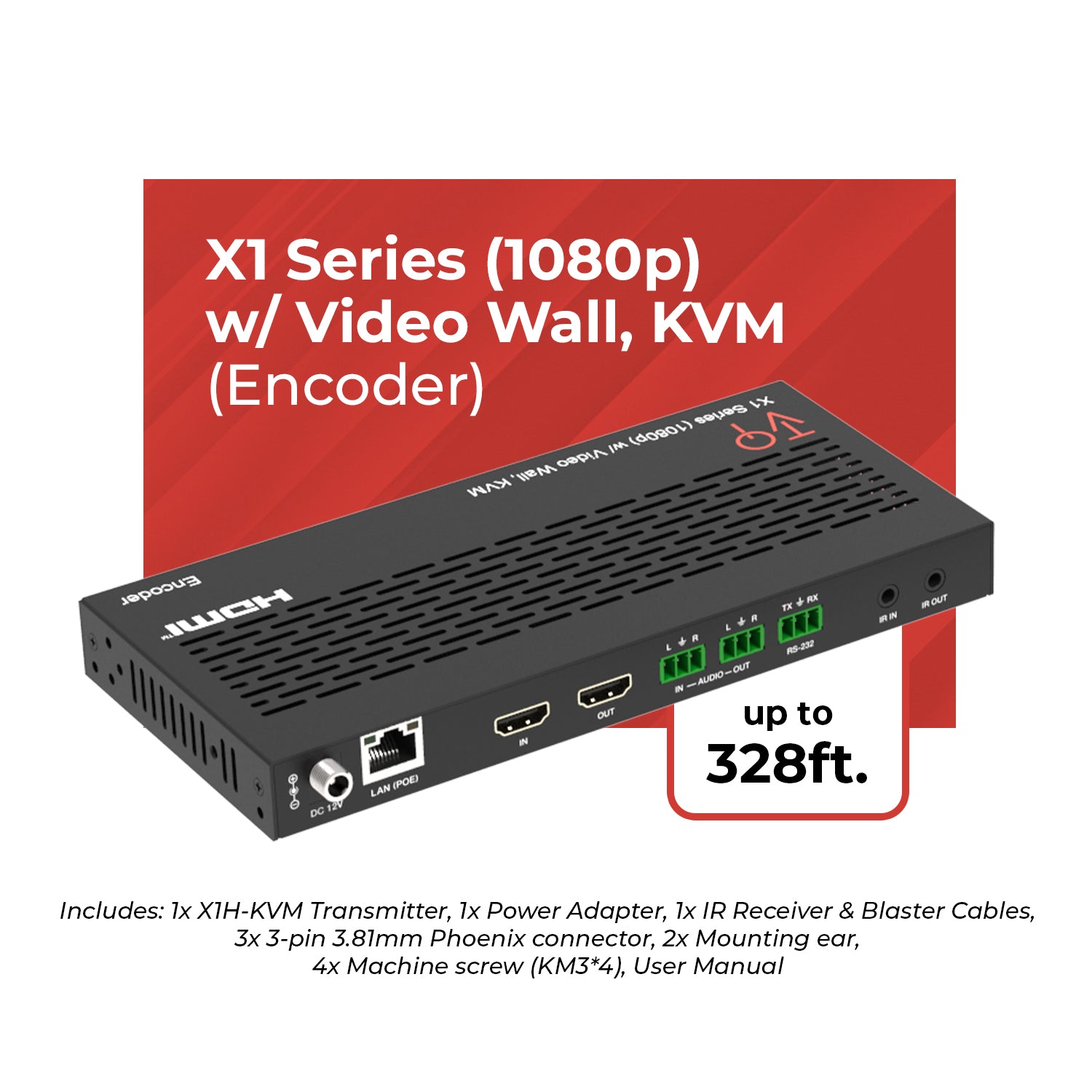

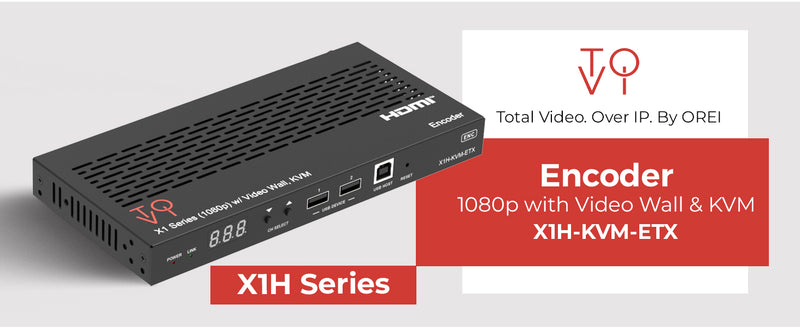

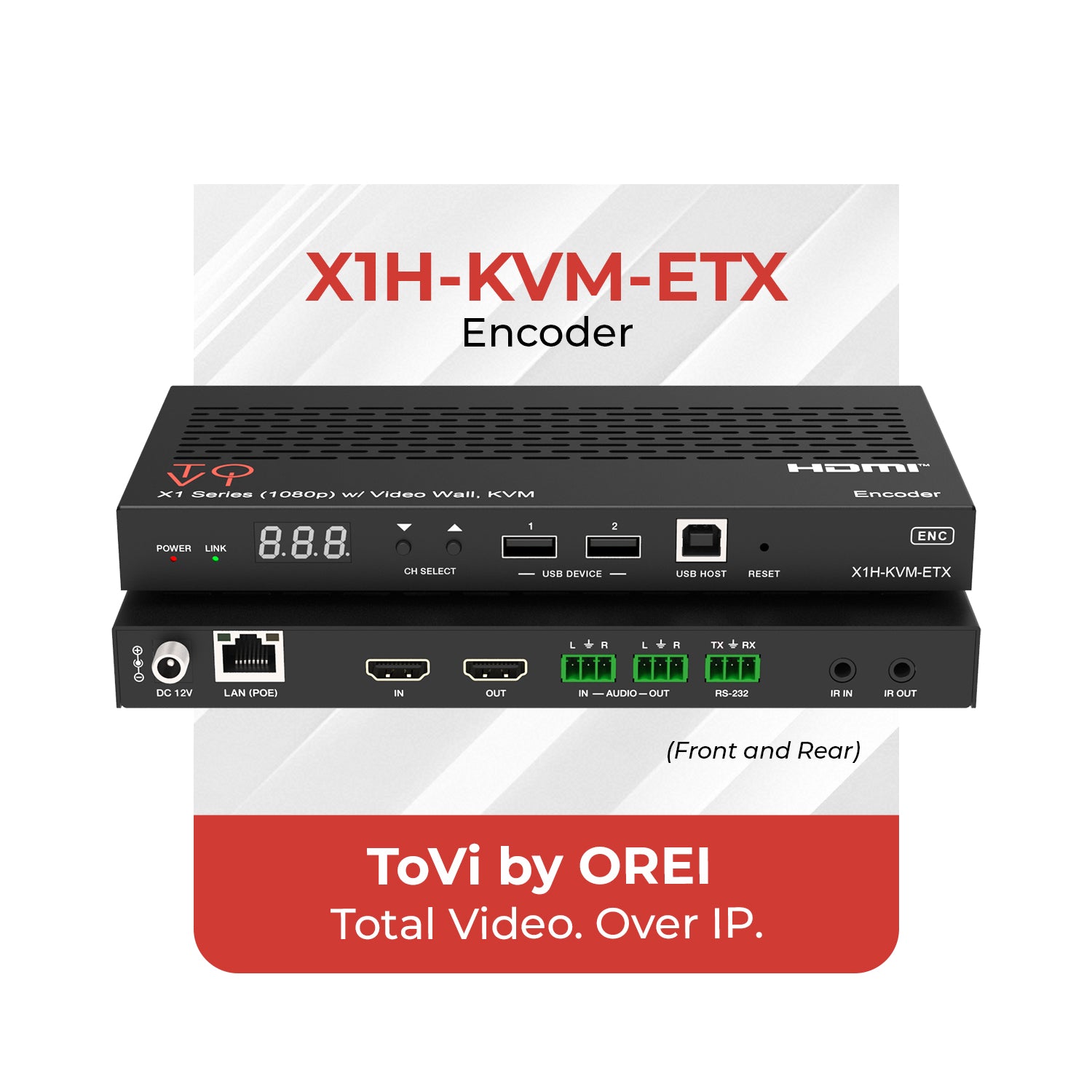

ToVi X1 1080p Encoder (Video Wall, KVM) - X1H-KVM-ETX

ToVi X1 Series (1080p) w/ Video Wall, KVM

• HDMI 1.3 and HDCP 1.4 Compliant – Ensures compatibility with a wide range of video sources and displays.

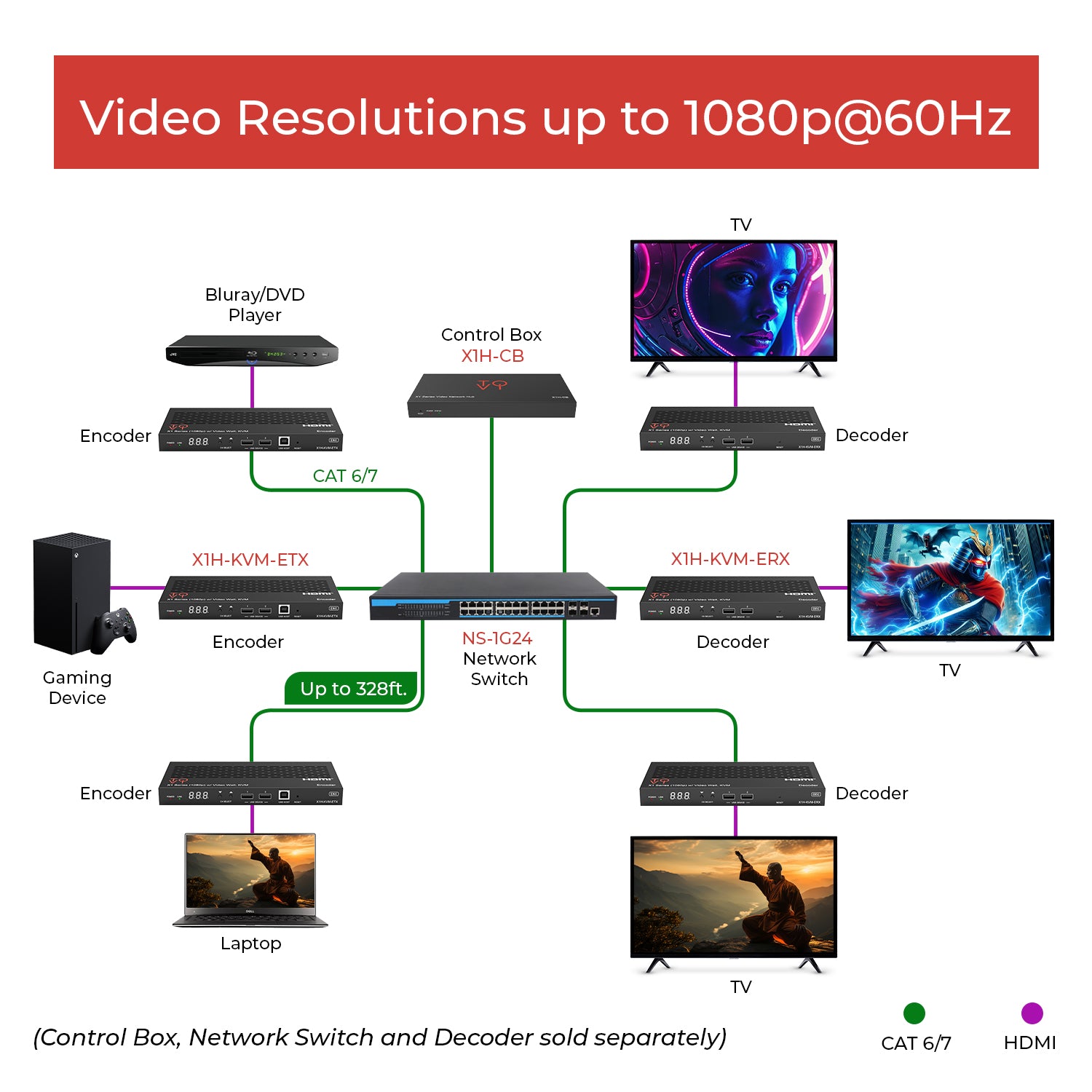

• Video Resolution up to 1920x1200@60Hz (4:4:4) – Delivers crisp, full HD content with vibrant color accuracy.
• 4.95Gbps Video Bandwidth – Supports smooth and stable AV transmission.

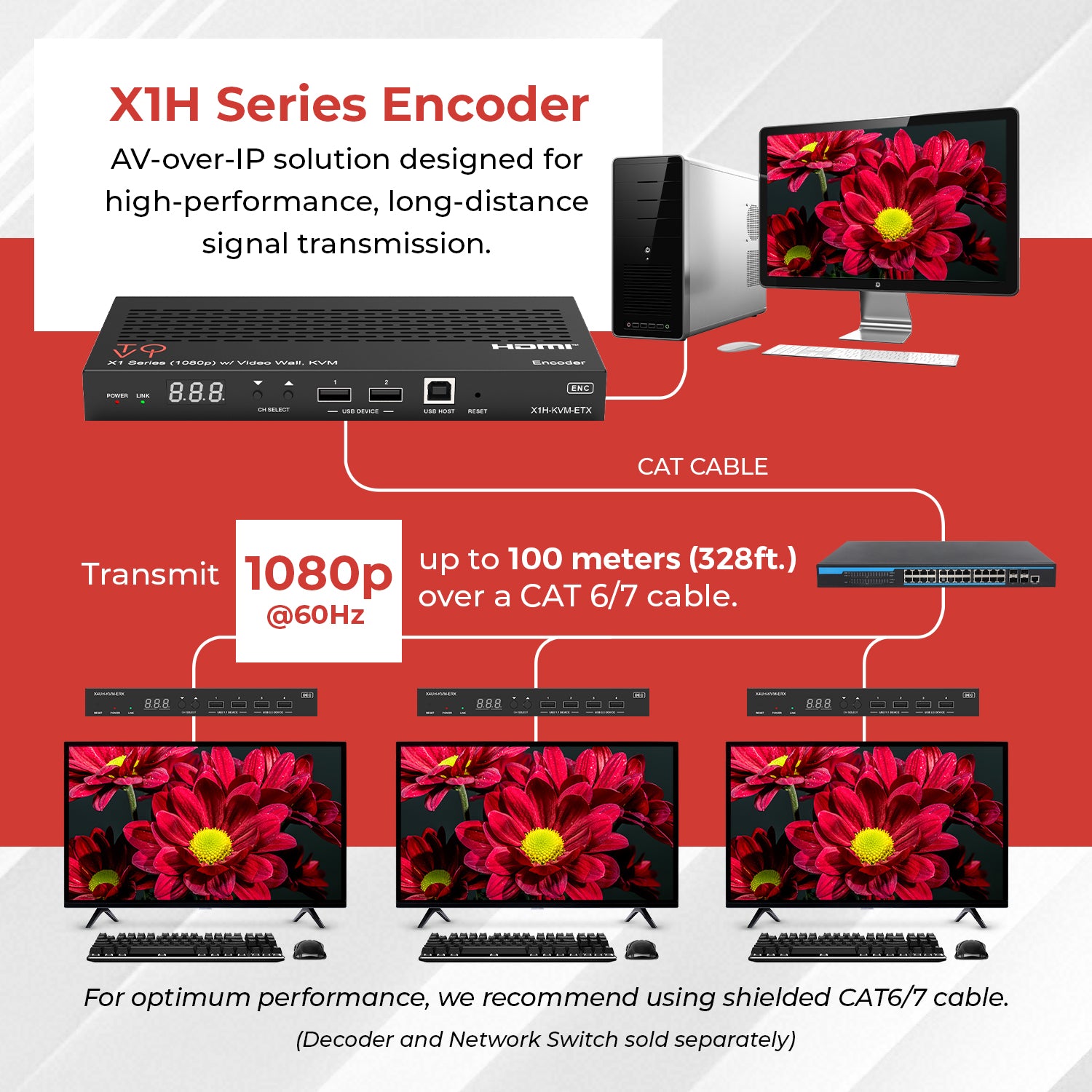

• Long-Distance Signal Extension – Transmit HDMI signals up to 328 ft (100 m) via CAT 6/6A/7 cables.

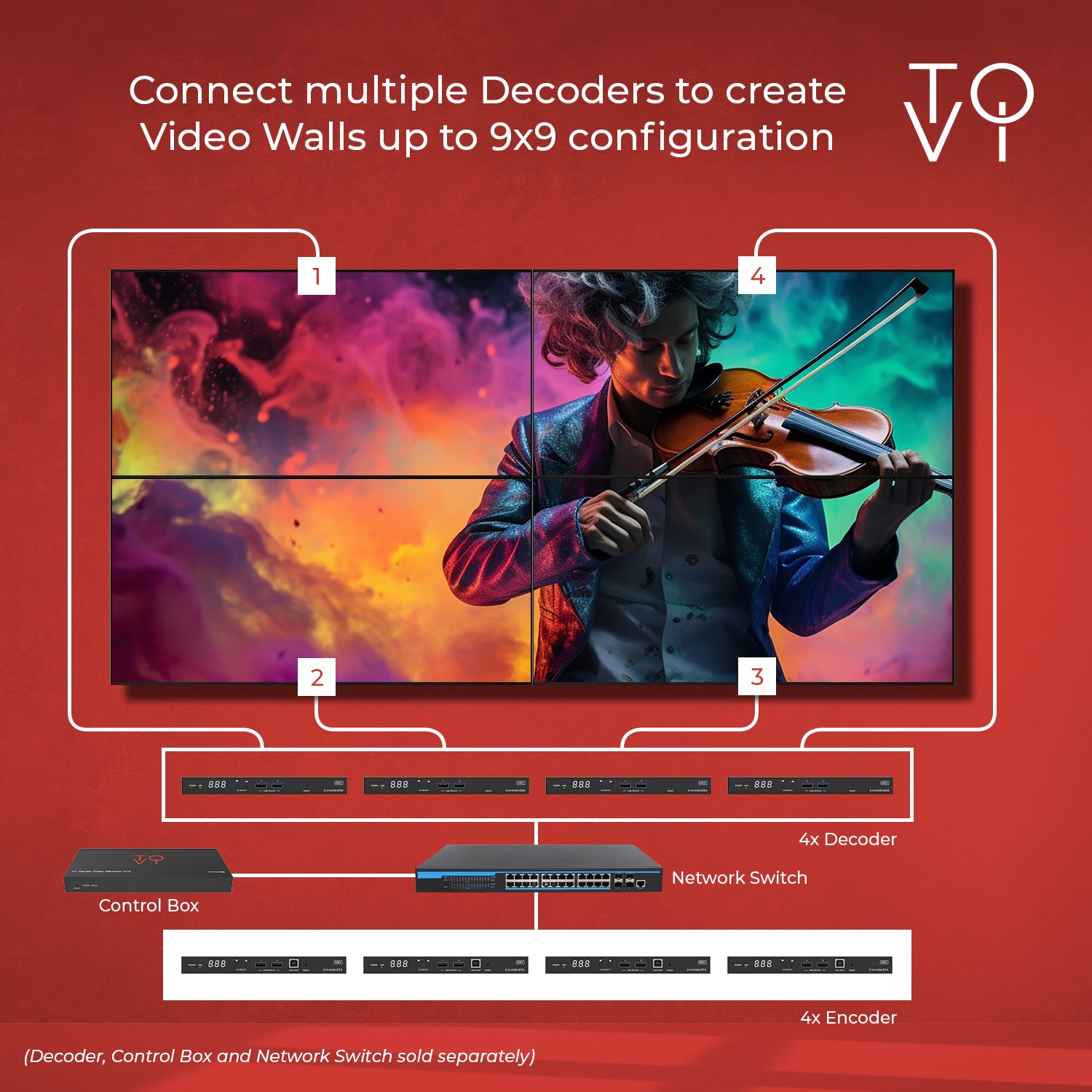

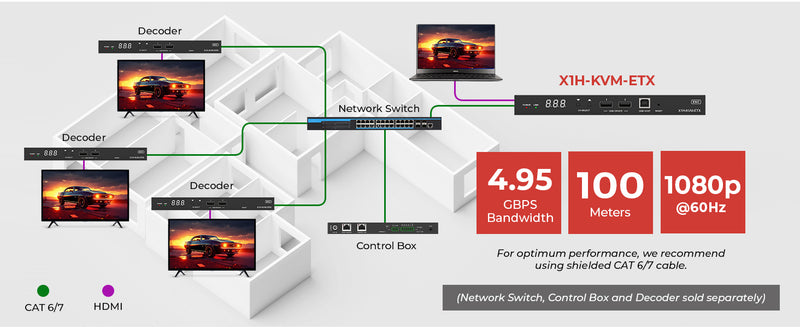

• Flexible Network-Based Deployment – Supports point-to-point, multicast, distributed matrix, and video wall (up to 9x9) functions over a 1G network switch.

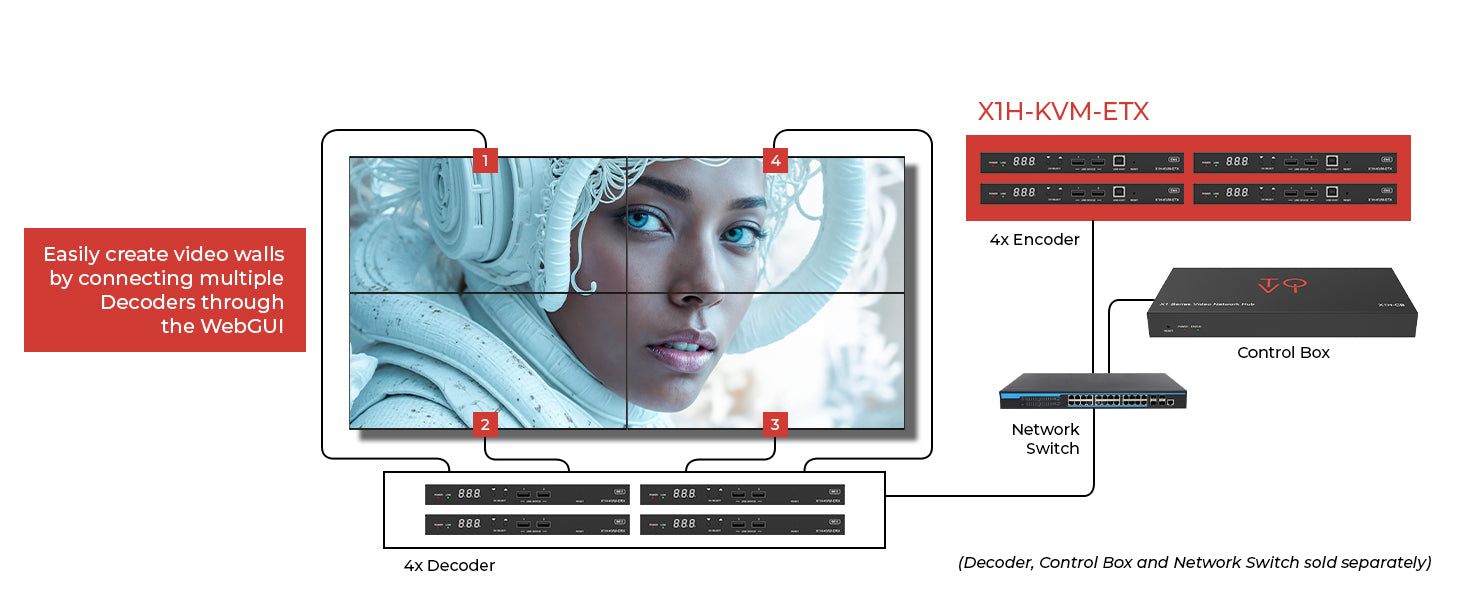

• Advanced Video Wall Management – Enables creative video wall layouts with intelligent display configuration.
• HDMI Local Loop Output – Allows real-time source monitoring at the encoder.
• Audio Embedding and Extraction – Offers flexible audio integration via analog inputs/outputs.

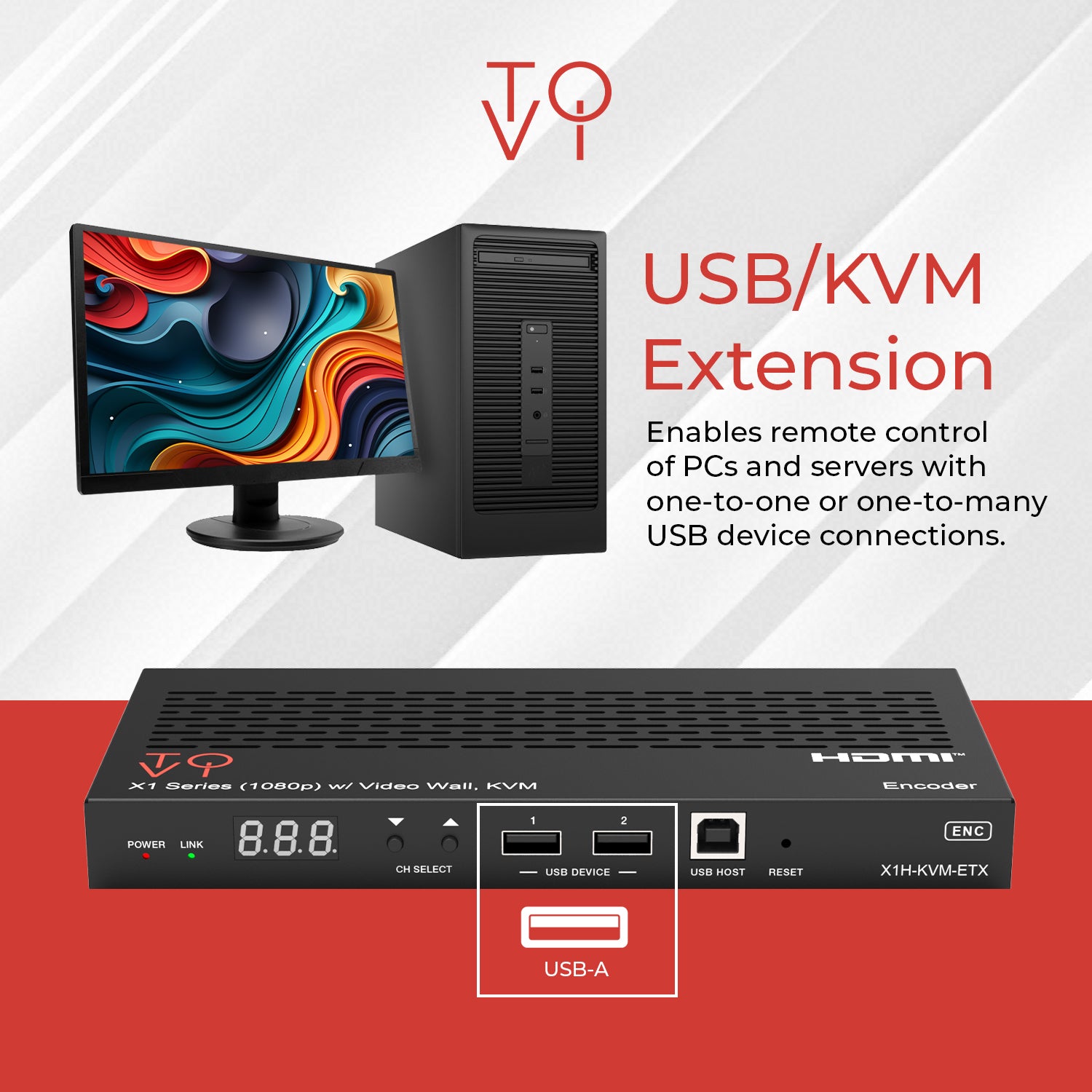

• USB/KVM Extension – Enables remote control of PCs and servers with one-to-one or one-to-many USB device connections.
• Bi-directional IR and RS-232 Pass-through – Supports full device control using local or remote interfaces.
• Dual Stream Encoding – Supports main and sub-stream configuration for optimized network performance.

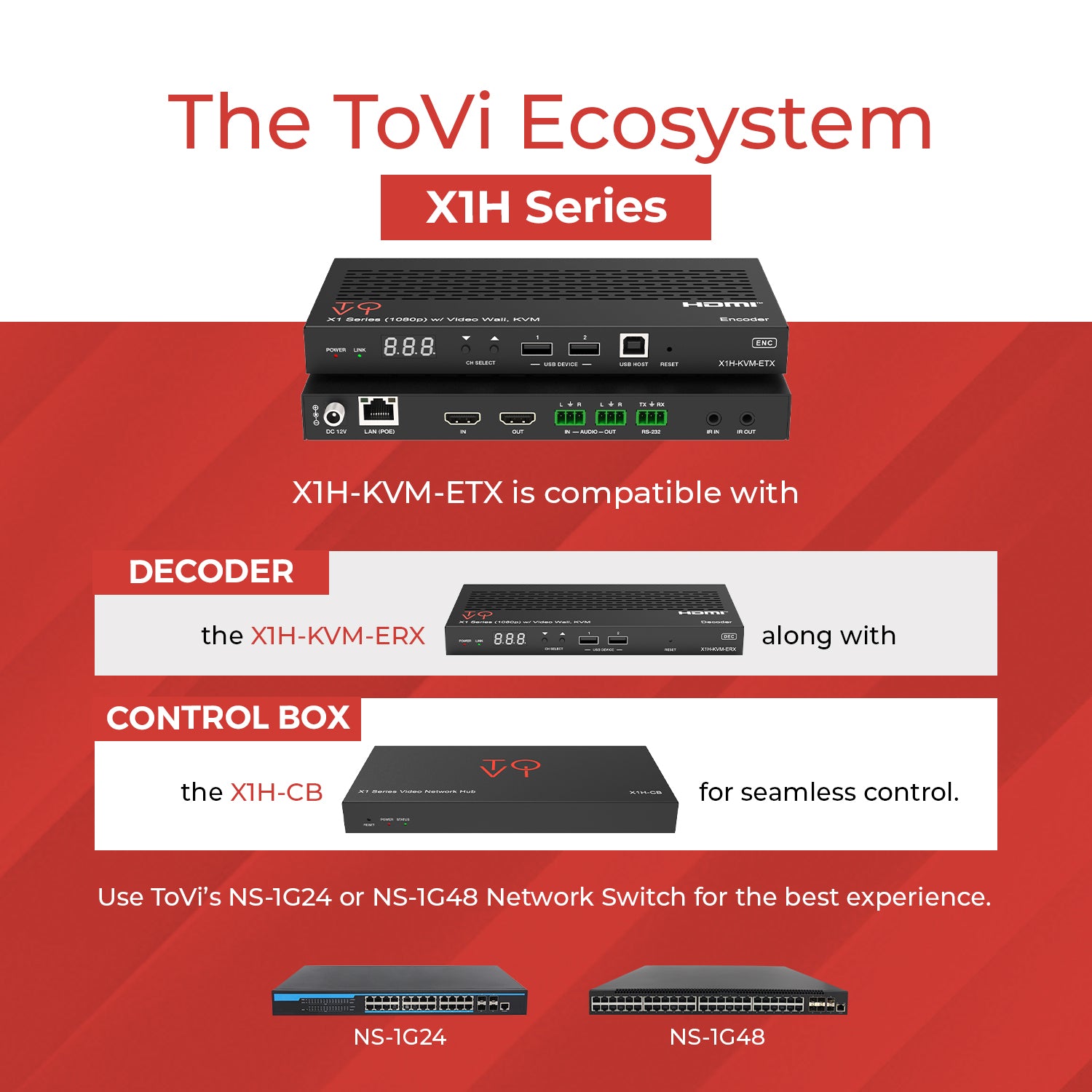

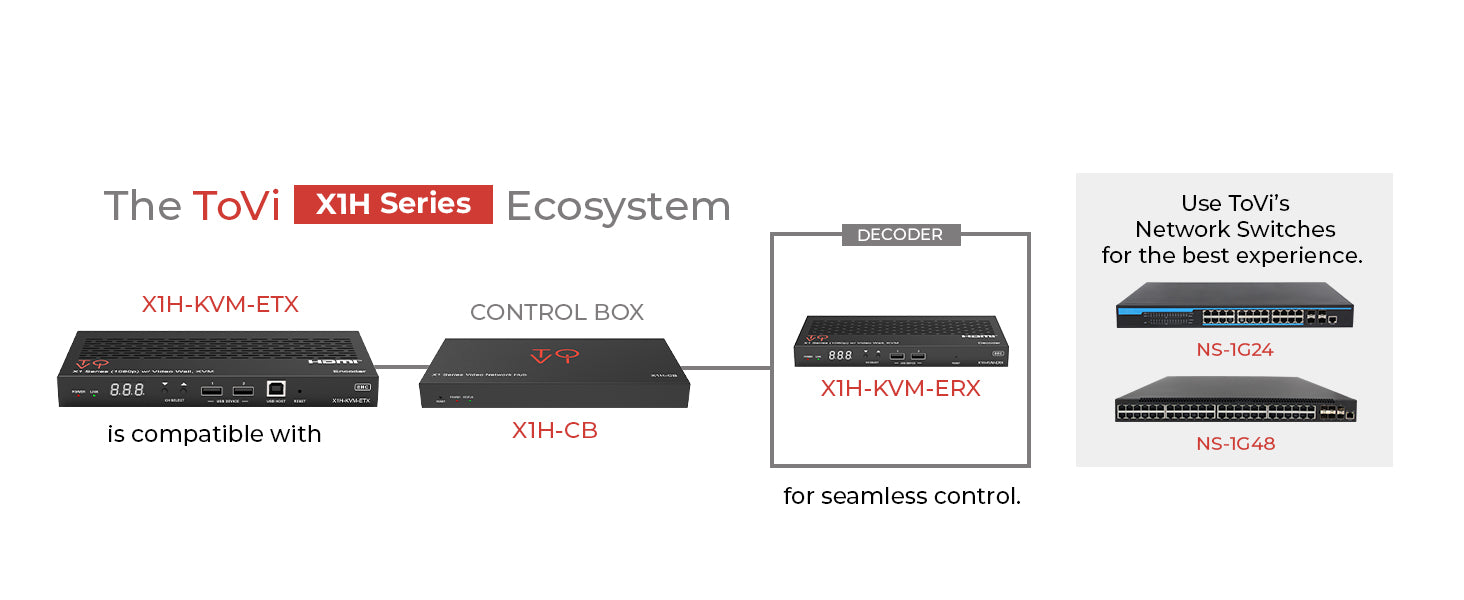

• Multiple Control Options – Operate the system using front panel buttons, IR, RS-232, TCP/IP, Web GUI, or an optional controller box (X1H-CB).

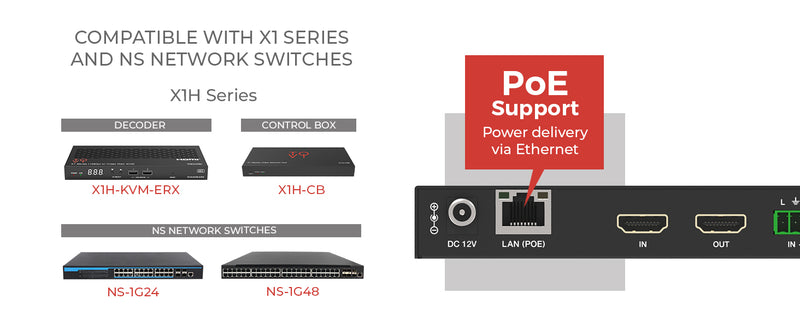

• PoE Support (802.3af, Class 3 PD Mode) – Simplifies installation by enabling power delivery via Ethernet.
• Smart Network Design – Allows for quick, flexible, and modular system integration across various applications.


The X1H-KVM-ETX is a professional AV over IP HDMI extender solution designed for scalable, high-quality content distribution across IP networks. It enables the transmission of multiple Full HD video sources to multiple display devices over a standard 1G network switch. Utilizing low-bandwidth H.265/H.264 configurable compression, the system supports resolutions up to 1920x1200@60Hz 4:4:4, while maintaining excellent visual fidelity.

This system supports signal transmission up to 328 feet (100 meters) over standard CAT 6/6A/7 cabling and includes an HDMI local loop output on the encoder. It also supports audio embedding and extraction, USB/KVM functionality, and bi-directional IR and RS-232 control with pass-through and guest modes.

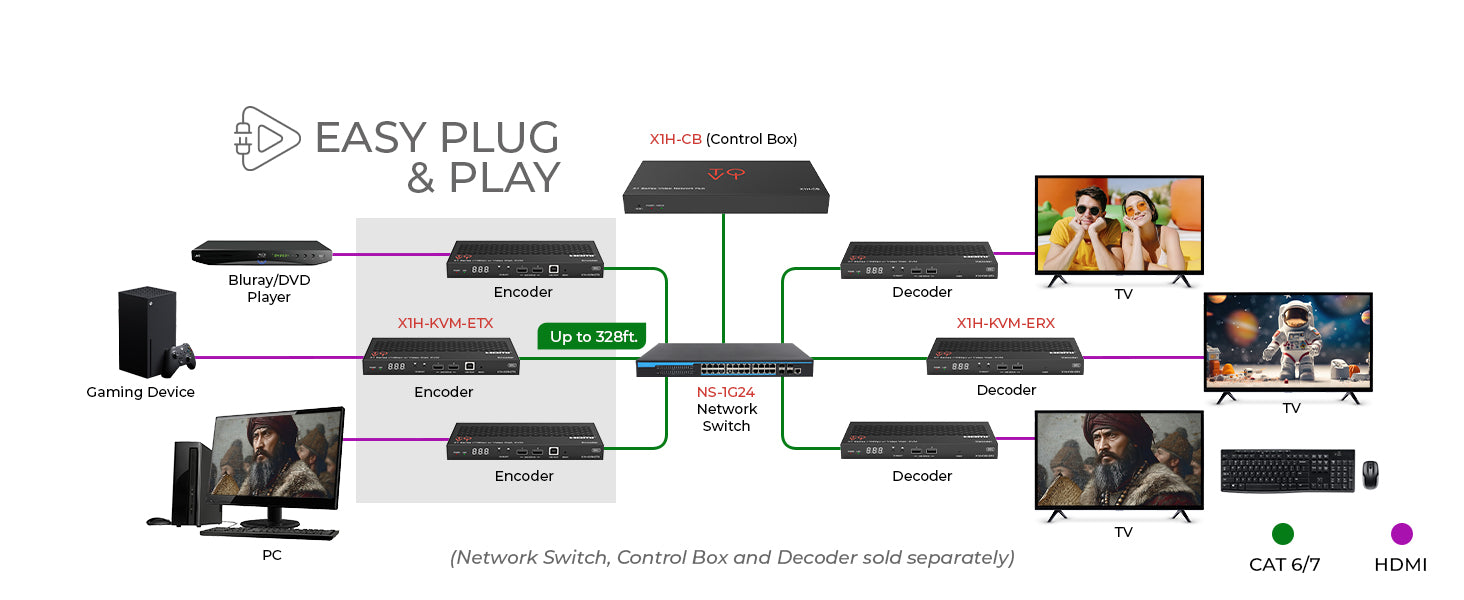

Designed for flexible deployment, it allows point-to-point extension, video distribution, matrix switching, and up to 9x9 video wall configurations. With support for panel buttons, IR, RS-232, TCP/IP, Web GUI, and controller box operation, this AV over IP system is ideal for professional AV, digital signage, command centers, and other multi-display environments.
