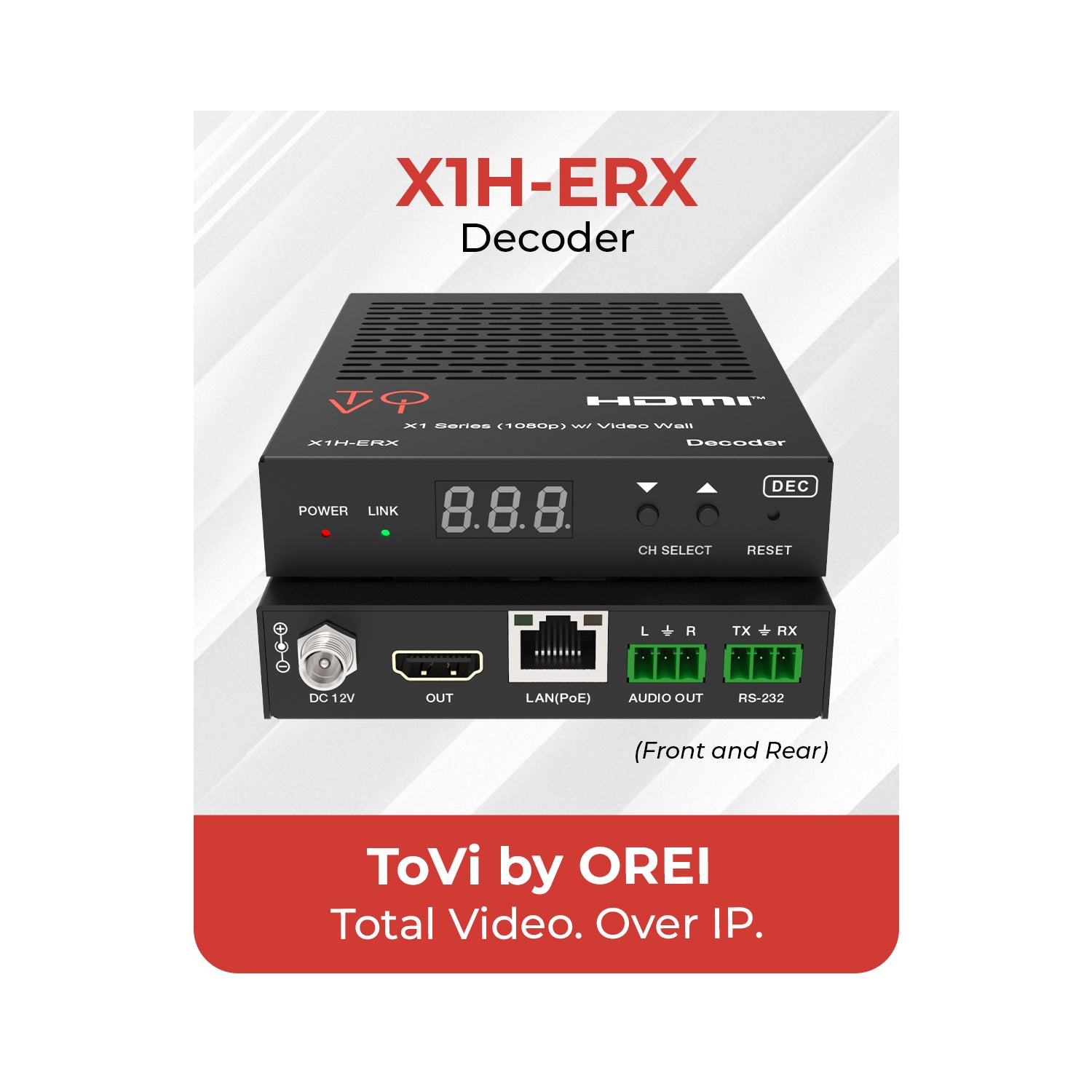

X1 1080p Decoder (Video Wall) - X1H-ERX
- Power over Ethernet (PoE)
- Up to 1080p@60Hz
- RS-232 Control
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
High-Definition AV Over IP Distribution

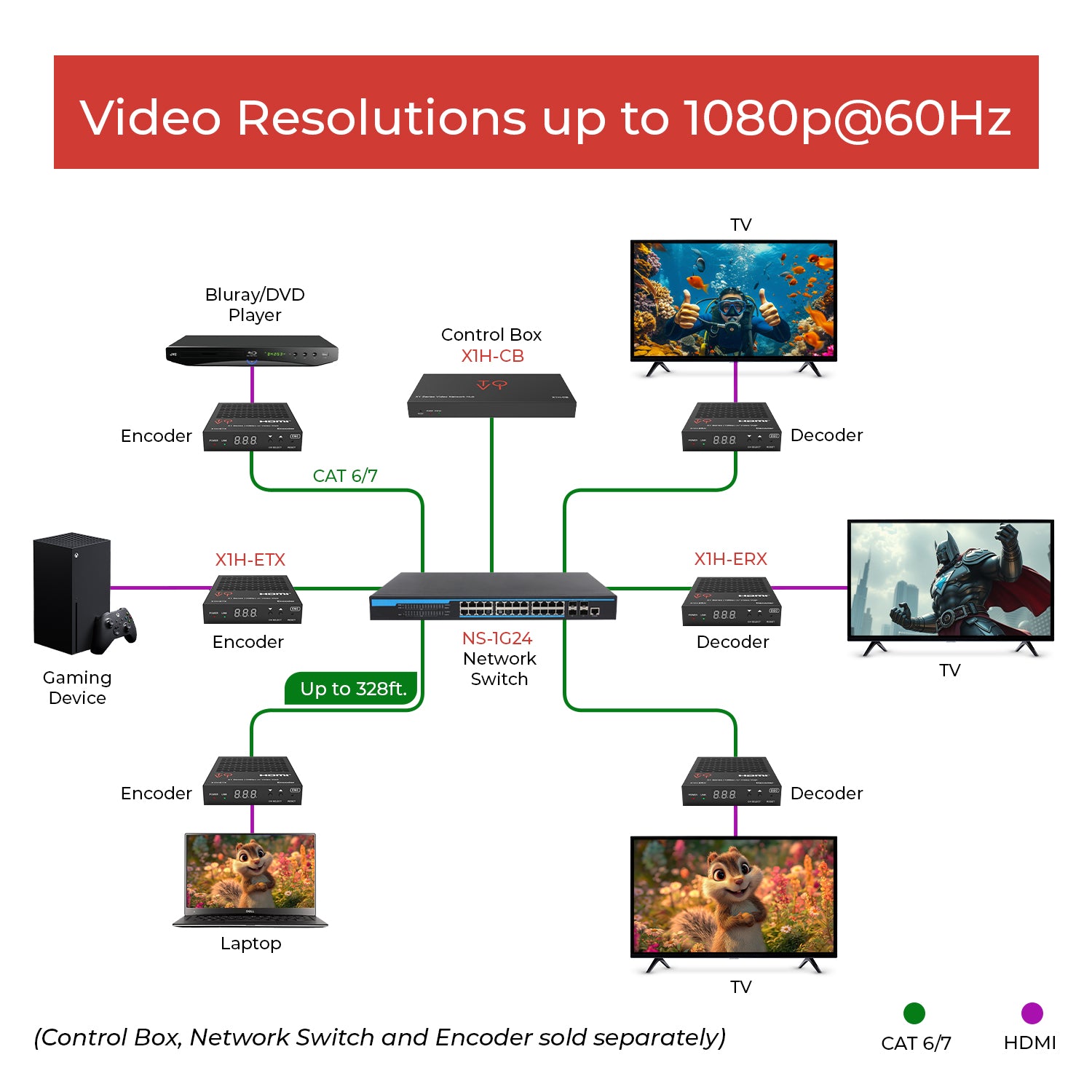

The ToVi X1H-ERX delivers high-quality video and audio across standard 100M/1G networks using H.264/H.265 AV over IP compression. Supporting resolutions up to 1920×1200@60Hz 4:4:4, it ensures crisp, vivid video with accurate colors and clear LPCM 2.0CH stereo audio, making it ideal for commercial AV, digital signage, and control room applications.

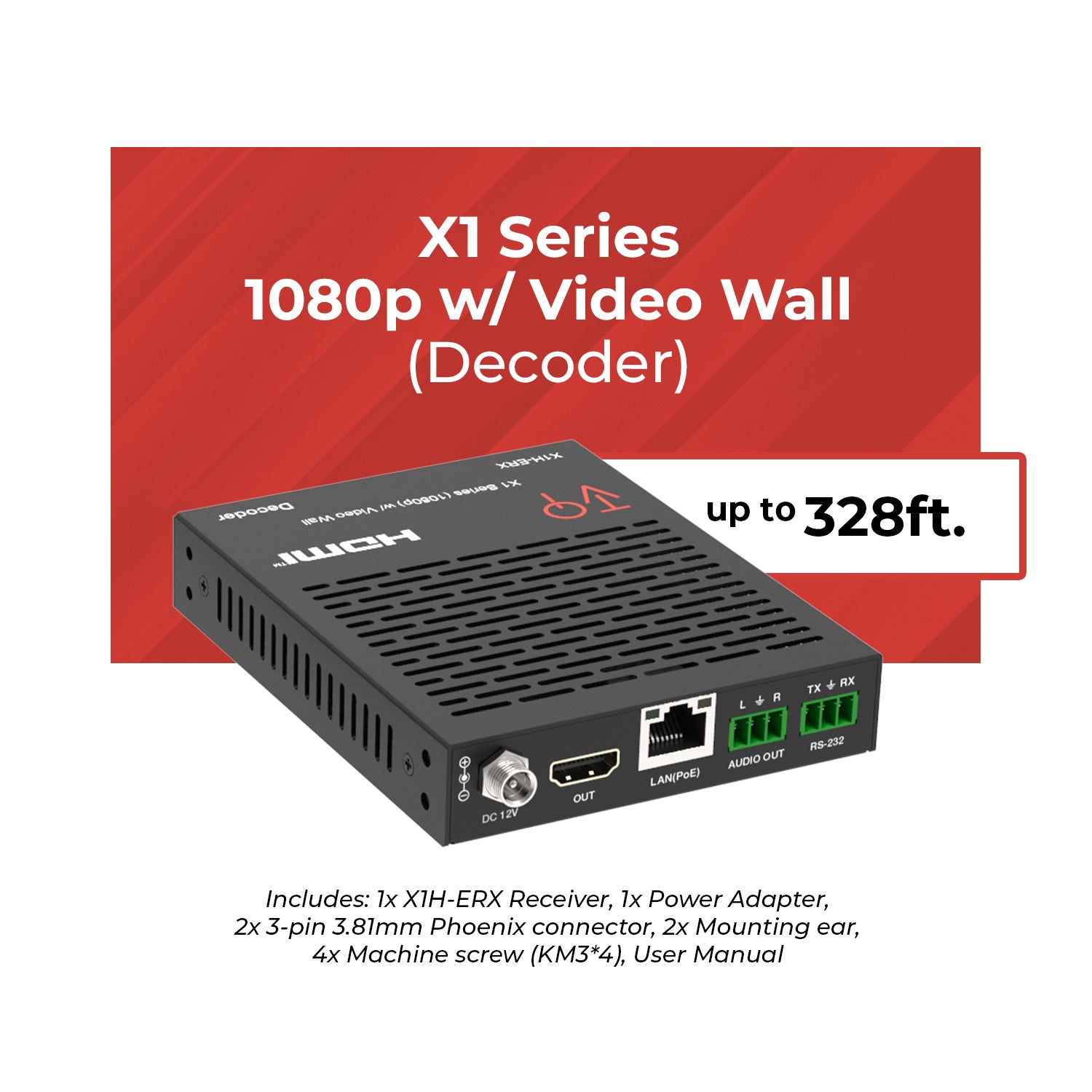

Long-Distance Signal Extension

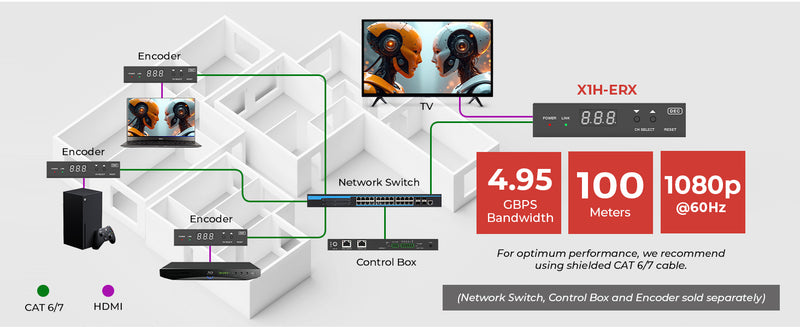

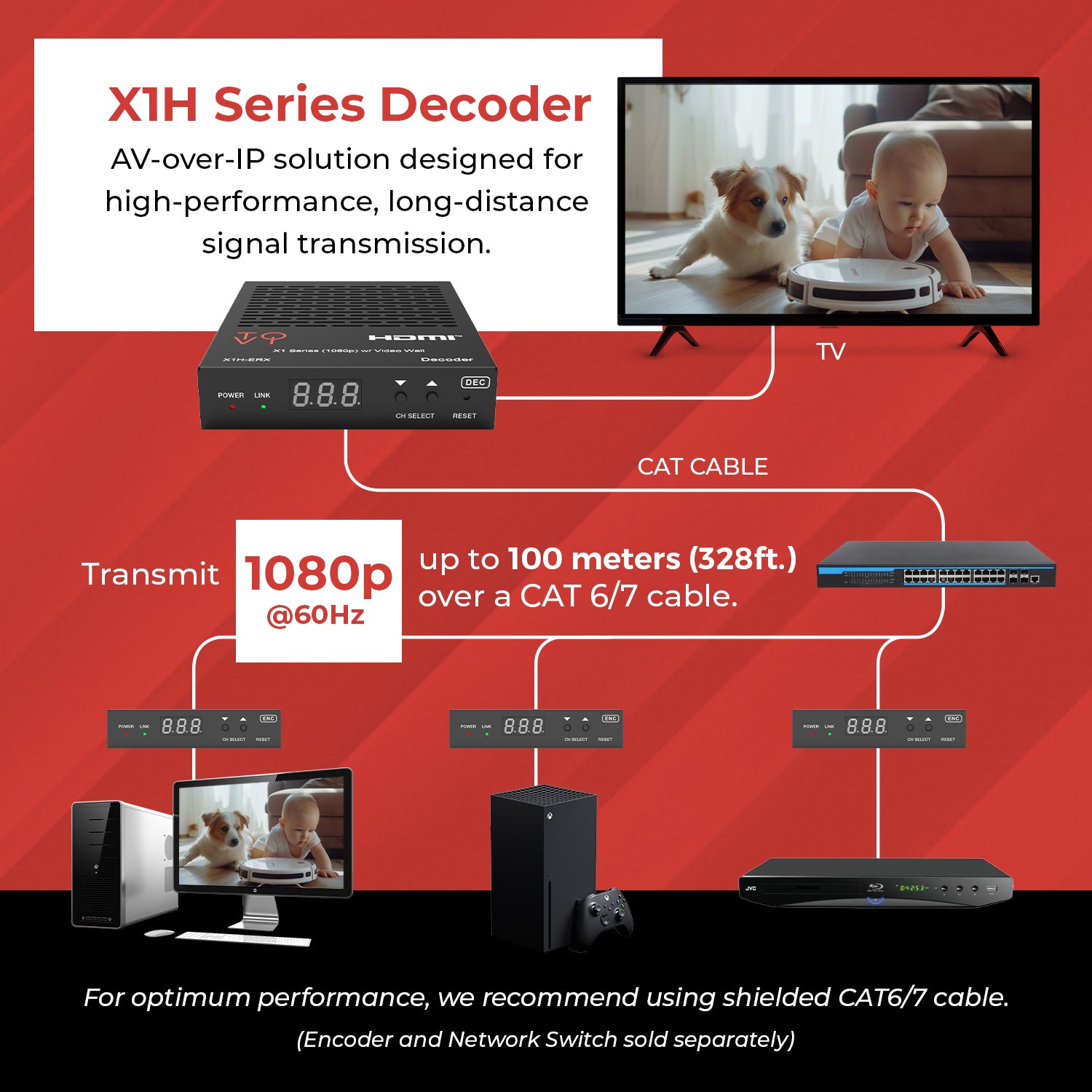

Extend HDMI signals up to 328ft (100m) over Cat5e/6/6a/7 cables without signal degradation. With 4.95Gbps video bandwidth, the X1H-ERX supports smooth and stable transmission, enabling reliable operation for large-scale and long-distance AV installations.

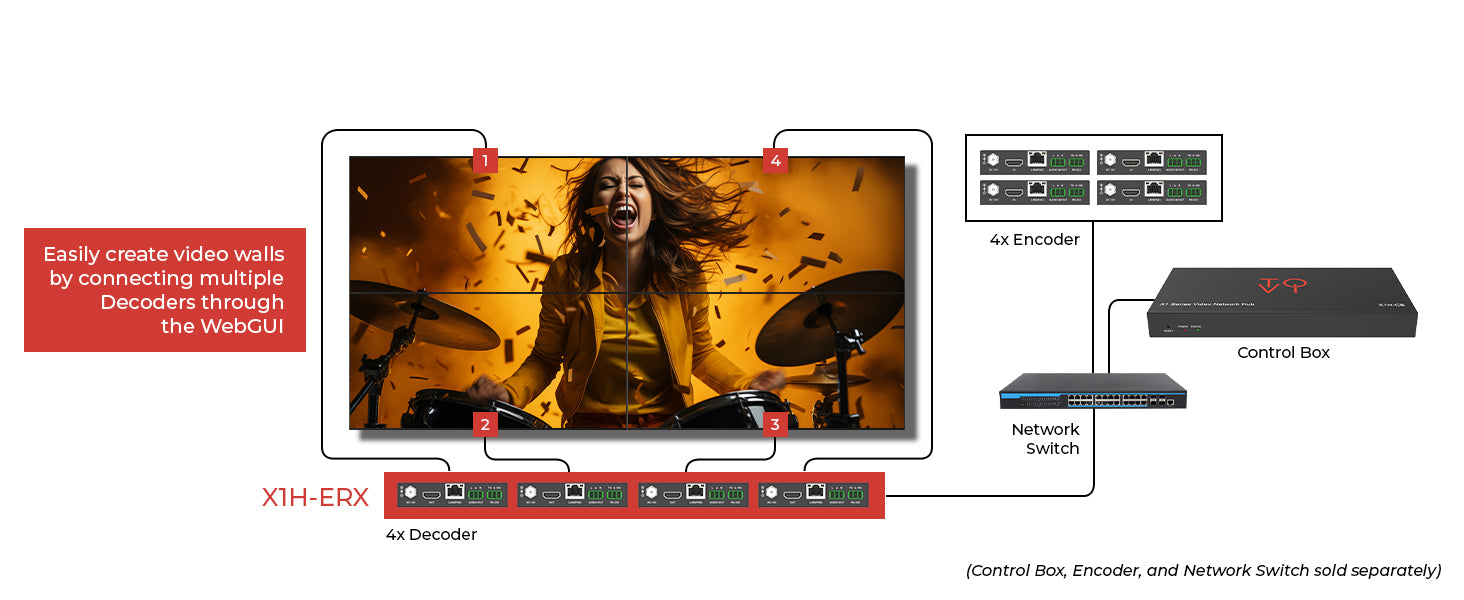

Flexible Control and Video Wall Management

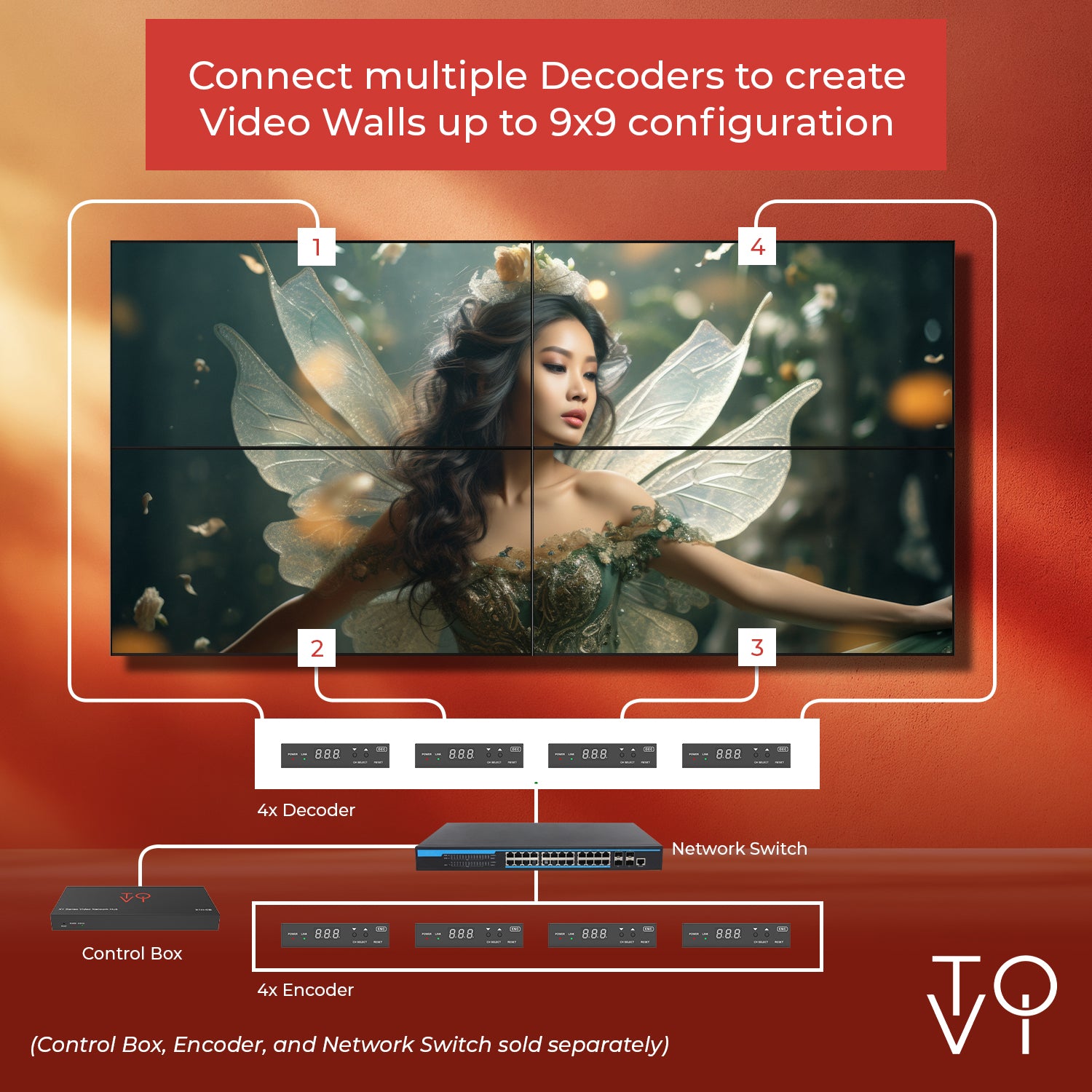

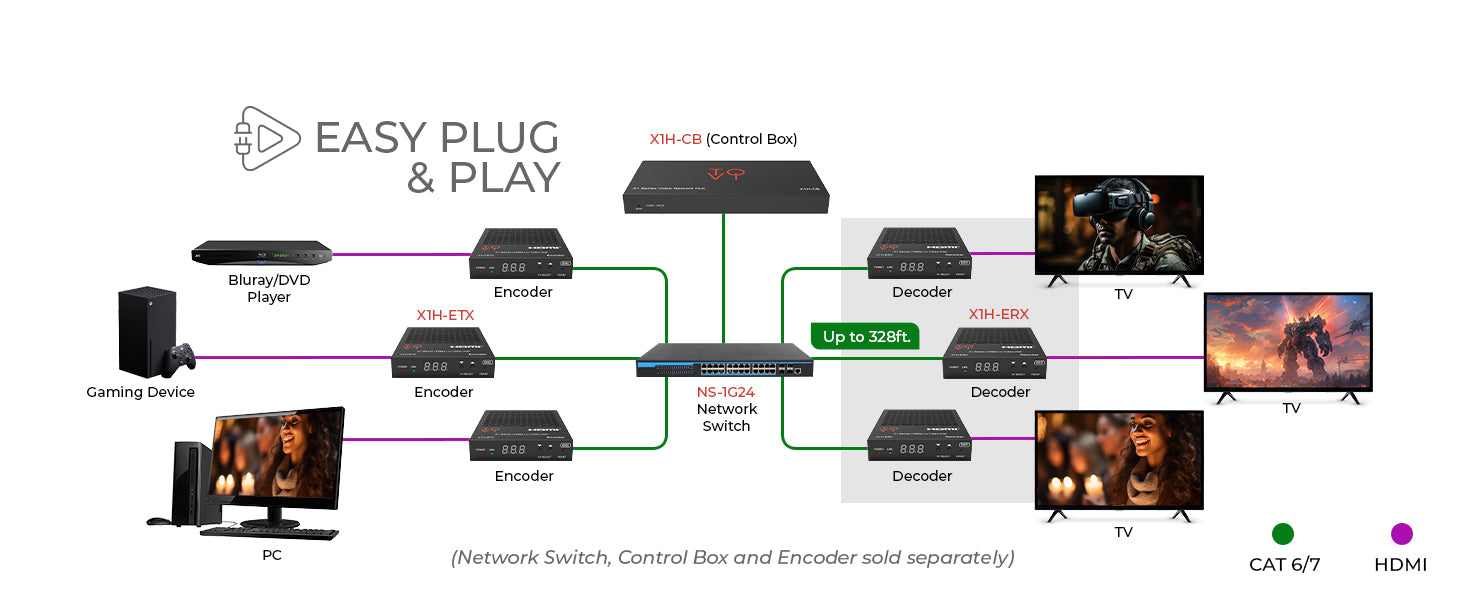

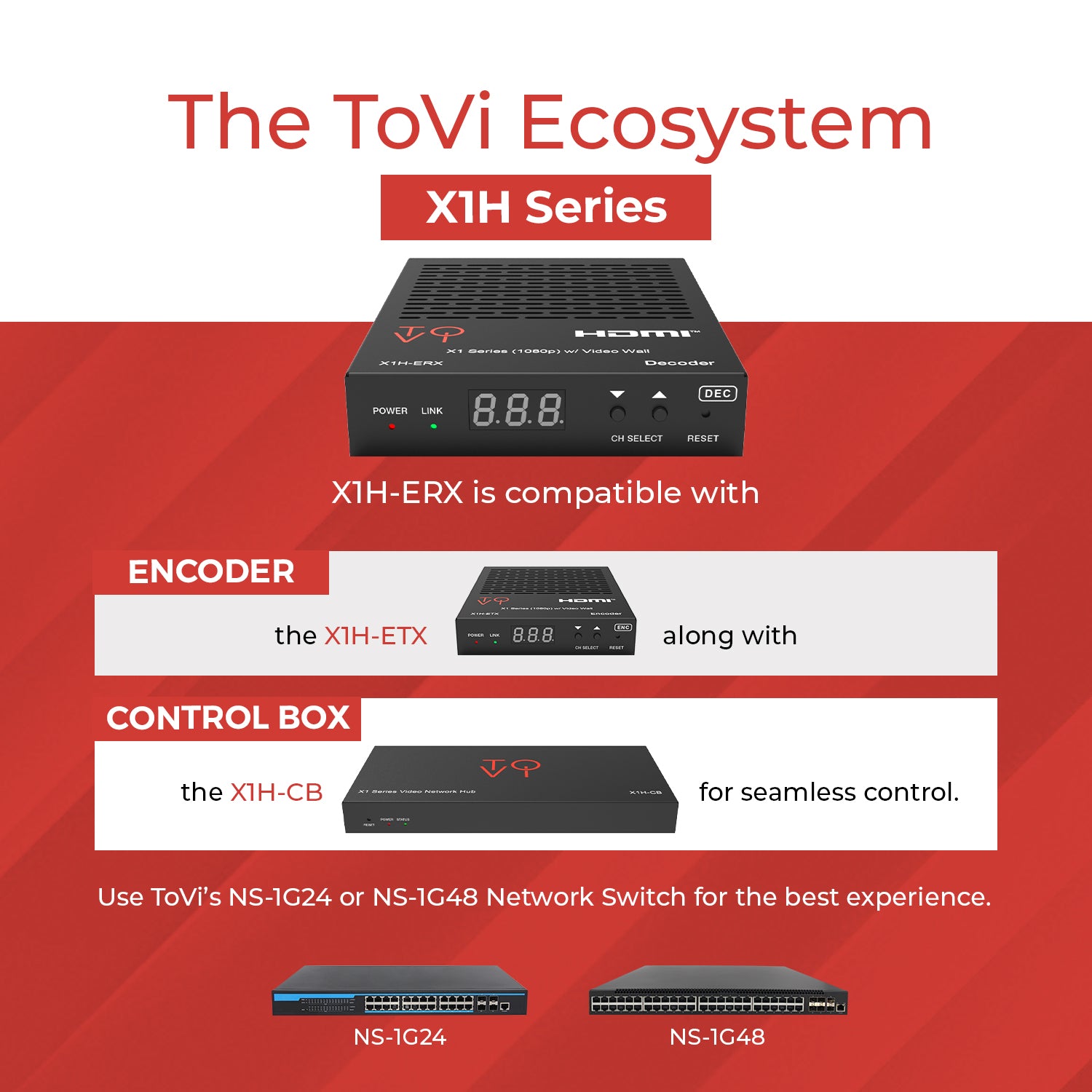

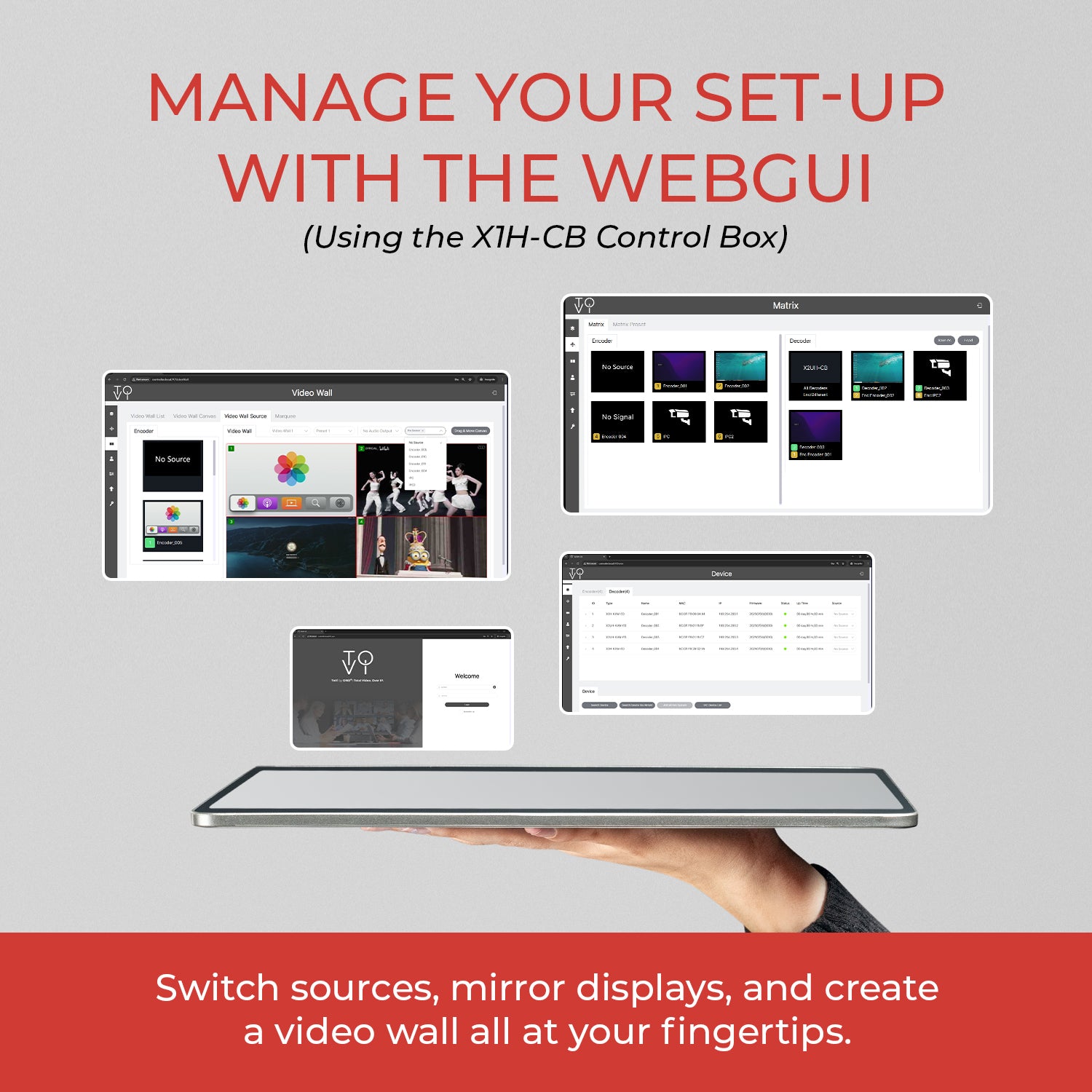

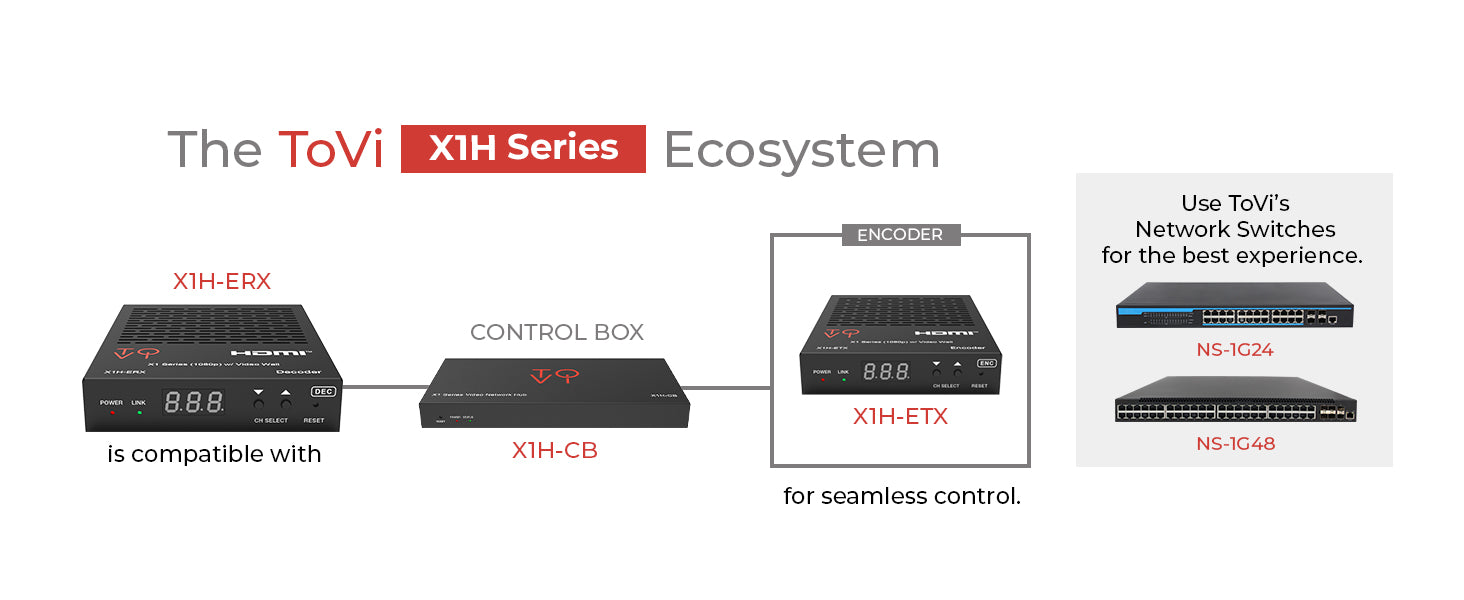

The X1H-ERX supports flexible AV distribution including multicast, matrix switching, and video wall layouts up to 9×9. With intelligent video wall management, audio embedding/extraction, RS-232 pass-through and main/sub-stream encoding, users can easily configure complex setups using the Web GUI or the X1H-CB control box. Multiple control options—including panel buttons, RS-232, TCP/IP, and Web GUI—ensure versatile operation across any AV system.
Simplified Installation and Smart Network Design

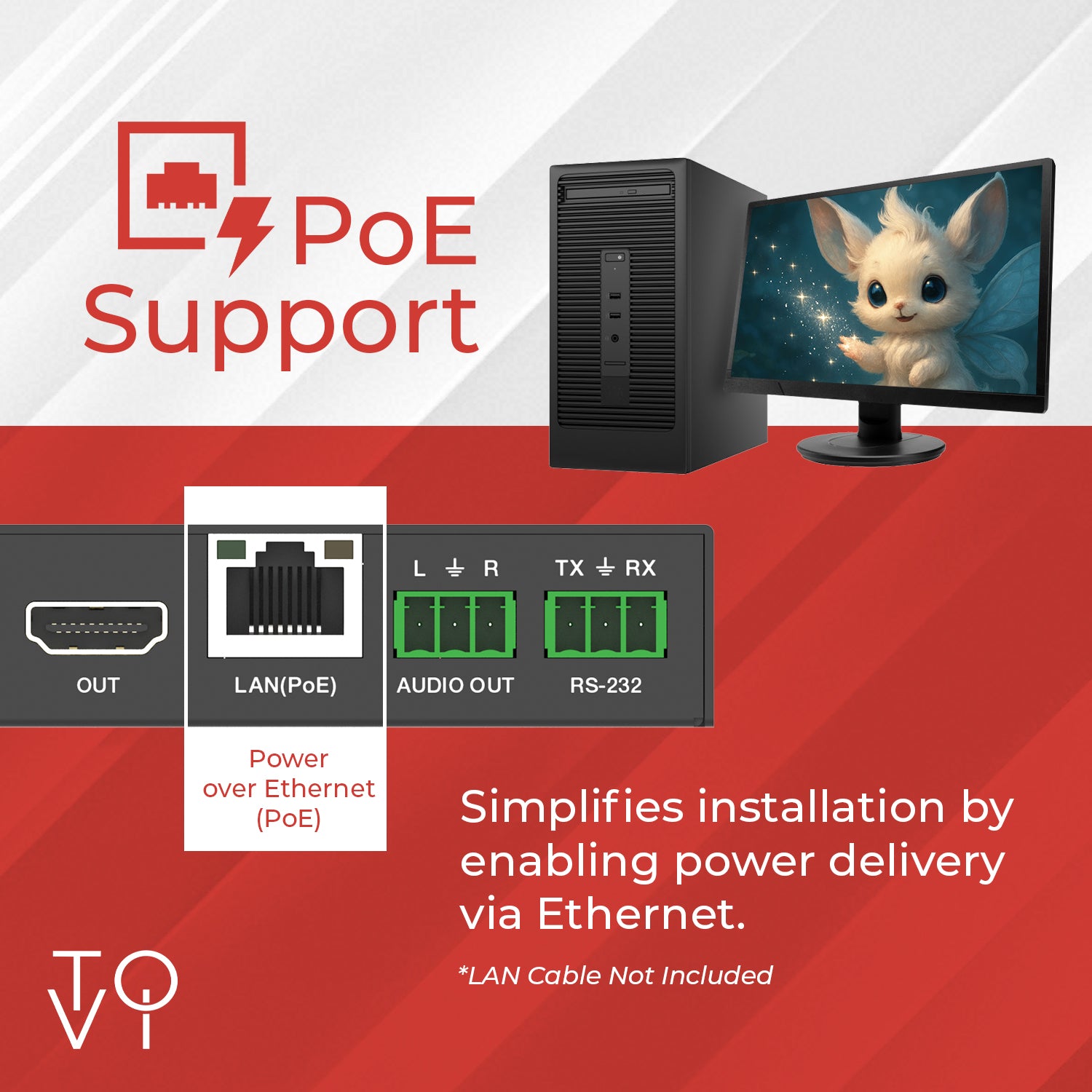

Power over Ethernet (PoE) allows single-cable power and data transmission, simplifying installation and reducing clutter. Combined with smart network design, the X1H-ERX delivers quick, scalable, and reliable setup for professional AV over IP deployments.
ToVi X1 Series (1080p) w/ Video Wall
- HDMI 1.3 & HDCP 1.4 Compliant – Ensures compatibility with standard HDMI sources and displays.
- 1920×1200@60Hz 4:4:4 Video Resolution – Delivers crisp, high-quality video with vivid color accuracy.
- 4.95Gbps Video Bandwidth – Supports smooth and stable signal transmission.
- 328ft/100m Signal Extension – Extend signals over Cat5e/6/6a/7 cables.
- Flexible AV Distribution – Supports multicast, matrix switching & video walls up to 9×9.
- Intelligent Video Wall Management – Allows custom layouts.
- LPCM 2.0CH Audio Support – Clear stereo sound.
- Audio Embedding & Extraction – Integrates or separates audio.
- RS-232 Control – Pass-through, guest mode & single-device control.
- Main & Sub Stream Encoding – Works on flexible bandwidth.
- Web GUI & Control Box Configuration – Easy setup.
- Multiple Control Options – RS-232, TCP/IP, Web GUI, Control Box.
- Power over Ethernet (PoE) – Single-cable installation.
- Smart Network Design – Fast and reliable setup.
The X1H-ERX distributes HD video/audio over 100M/1G networks using H.265/H.264 compression, supporting up to 1920×1200@60Hz. Supports long-distance extension (328ft), audio embedding/extraction, RS-232, and 9×9 video walls. Includes PoE, Web GUI, and X1H-CB control options.
