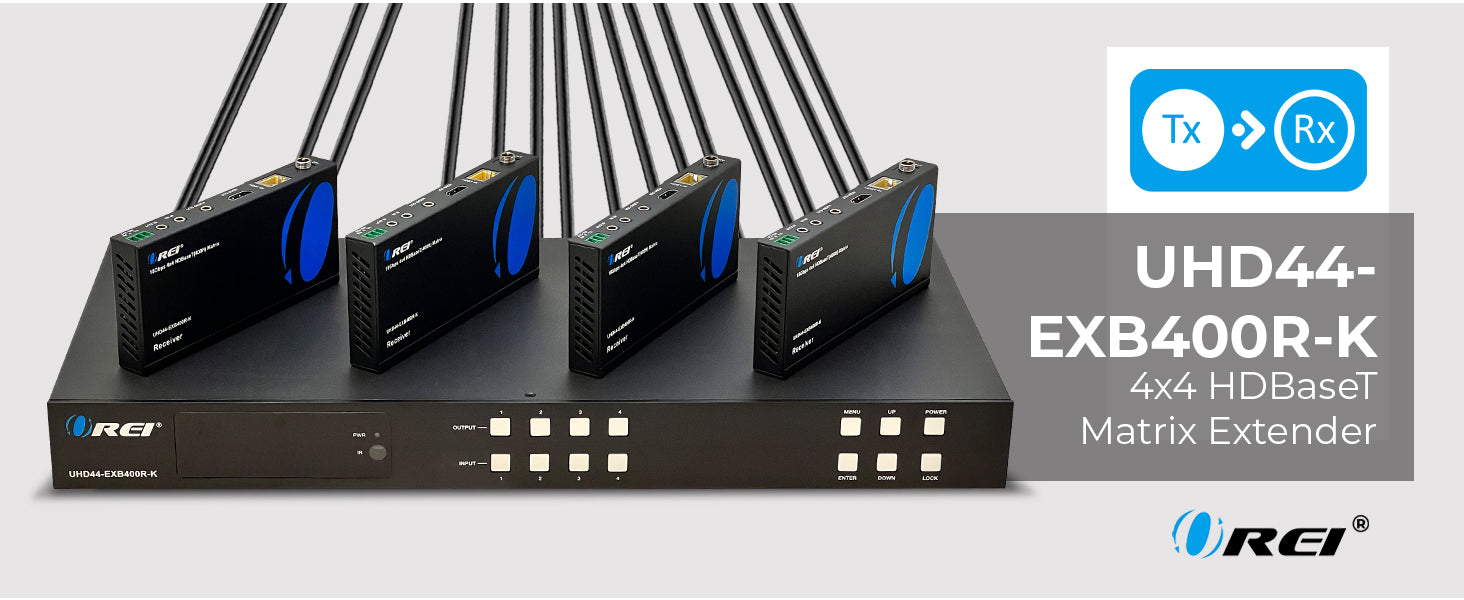

4K HDBaseT 4x4 HDMI™ Extender Matrix (Loop) - 400ft (cat6)-UHD44-EXB400R-K
- Video resolution up to 4K@60Hz and 2K@60Hz
- With bi-directional IR, RS-232, and CEC control
- HDR, HDR 10, HDR 10+, Dolby Vision, HLG
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability

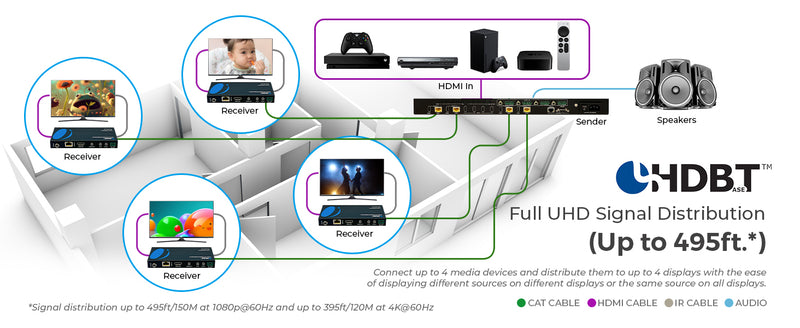

1. Seamless 4K Distribution Across 8 Displays
The UHD44-EXB400R-K is a professional-grade 4x4 HDMI matrix extender designed to route four HDMI sources to up to eight displays—four via HDMI and four via mirrored HDBaseT. This versatile HDMI matrix solution is perfect for professional AV installations that demand high performance, flexible routing, and extended reach without signal degradation.
2. Stunning UHD Video with HDR Support
Enjoy crystal-clear video at up to 4K@60Hz (4:4:4) on every output, with full support for HDR10, HDR10+, Dolby Vision, and HLG. Whether you're using it in a control room, digital signage setup, or home theater, this 4K HDMI matrix extender ensures vivid, lifelike visuals across all connected displays—HDMI or CAT-based.
3. Reliable Long-Distance Extension Over CAT Cable

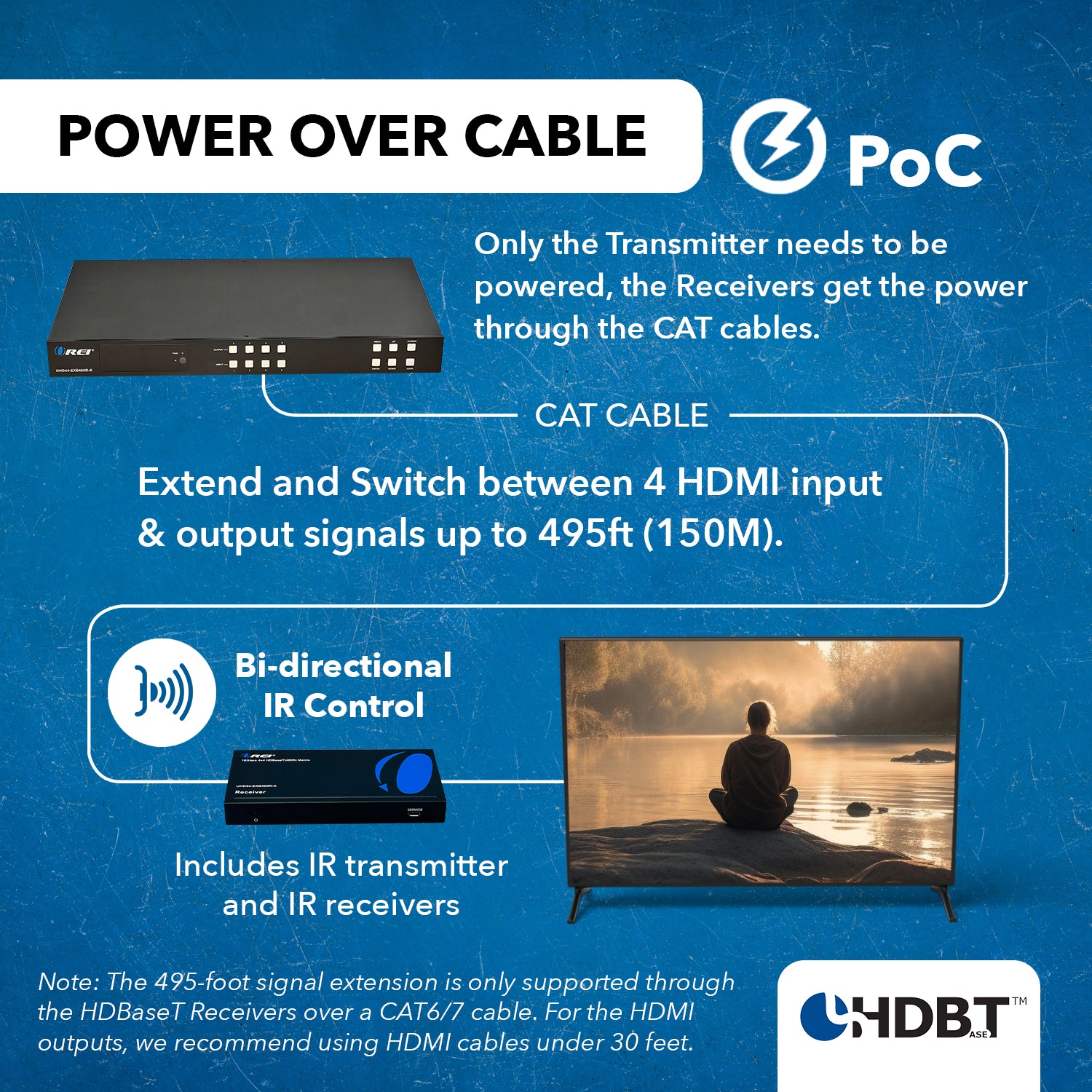

With HDBaseT outputs extending signals up to 150 meters at 1080p or 120 meters at 4K, this extender matrix is built for large spaces and multi-room AV environments. Thanks to 24V Power over Cable (PoC), each receiver can be powered directly through the CAT cable, greatly simplifying installation and reducing equipment clutter.
4. Advanced Audio Features & Control Flexibility
This matrix extender with remote supports full HDMI audio pass-through up to 7.1 channels and includes audio de-embedding via analog and coaxial outputs—ideal for integrating external sound systems. With bi-directional IR, EDID/CEC management, and control options via front panel, RS-232, LAN, or Web GUI, the UHD44-EXB400R-K offers complete control from any environment.
OREI UHD44-EXB400R-K: 4K HDBASET HDMI EXTENDER UPTO 400 FT
Key Features:
- HDMI 2.0b, HDCP 2.2, and HDCP 1 x compliant
- Video resolution up to 4K@60Hz and 2K@60Hz on all HDMI & HDBaseT ports

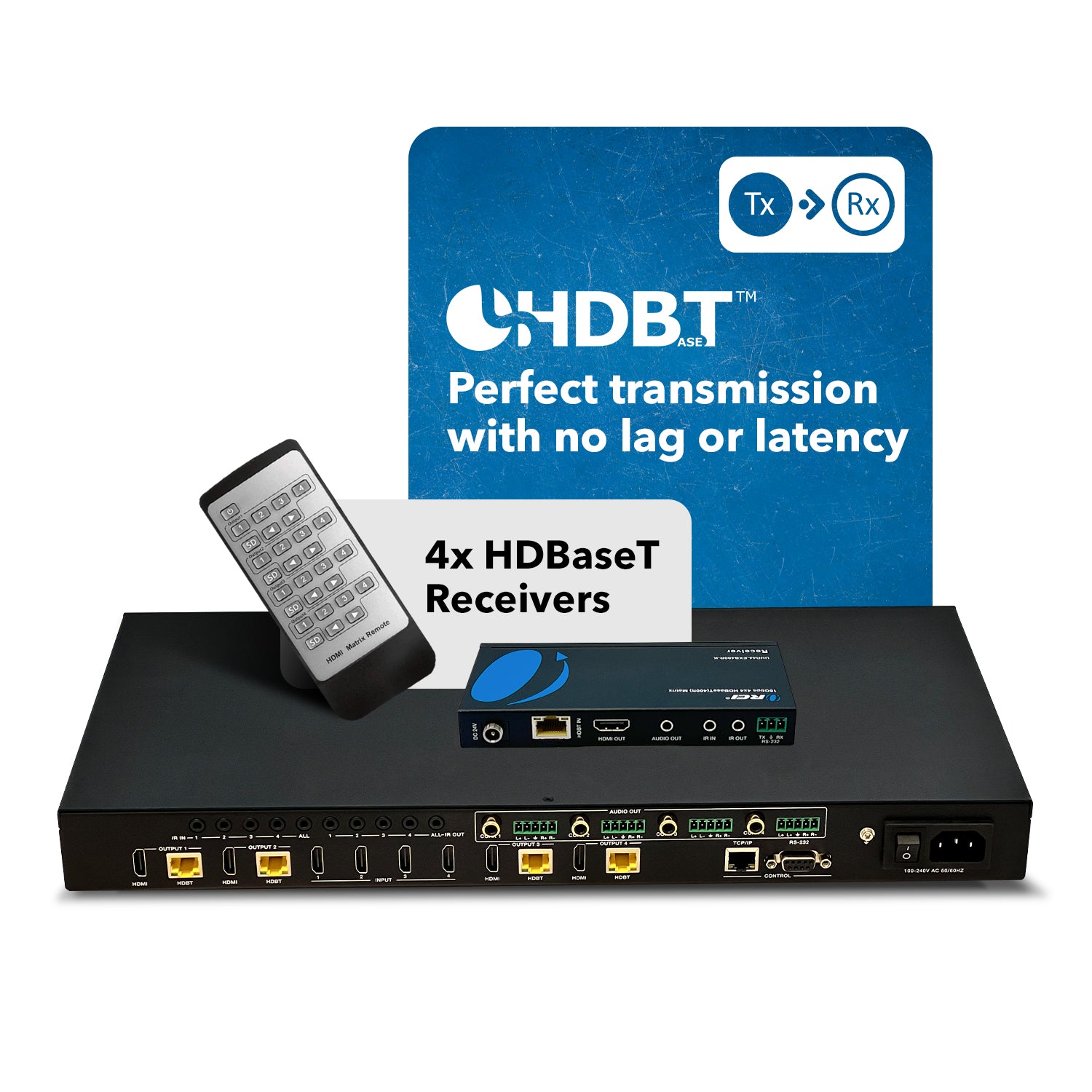

- 4 HDMI inputs, 4 HDMI & HDBaseT mirrored outputs
- HDMI ports transmit 18Gbps lossless uncompressed video bandwidth
- Supports 18Gbps lossless compressed HDBaseT signal transmission
- Supports 4K->1080P Down Scale function on each HDMI output port
- HDR, HDR 10, HDR 10+, Dolby Vision, and HLG are supported
- HDBaseT output can extend video transmission distance up to 492ft / 150m for 1080P or 394ft / 120m for 4K via a single Cat 5e/6/7 cable
- HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
- Supports Bi-Directional IR control
- Audio de-embedded output is supported via analog and coax ports
- Advanced EDID management and CEC control are supported
- 24V POC on all HDBaseT ports

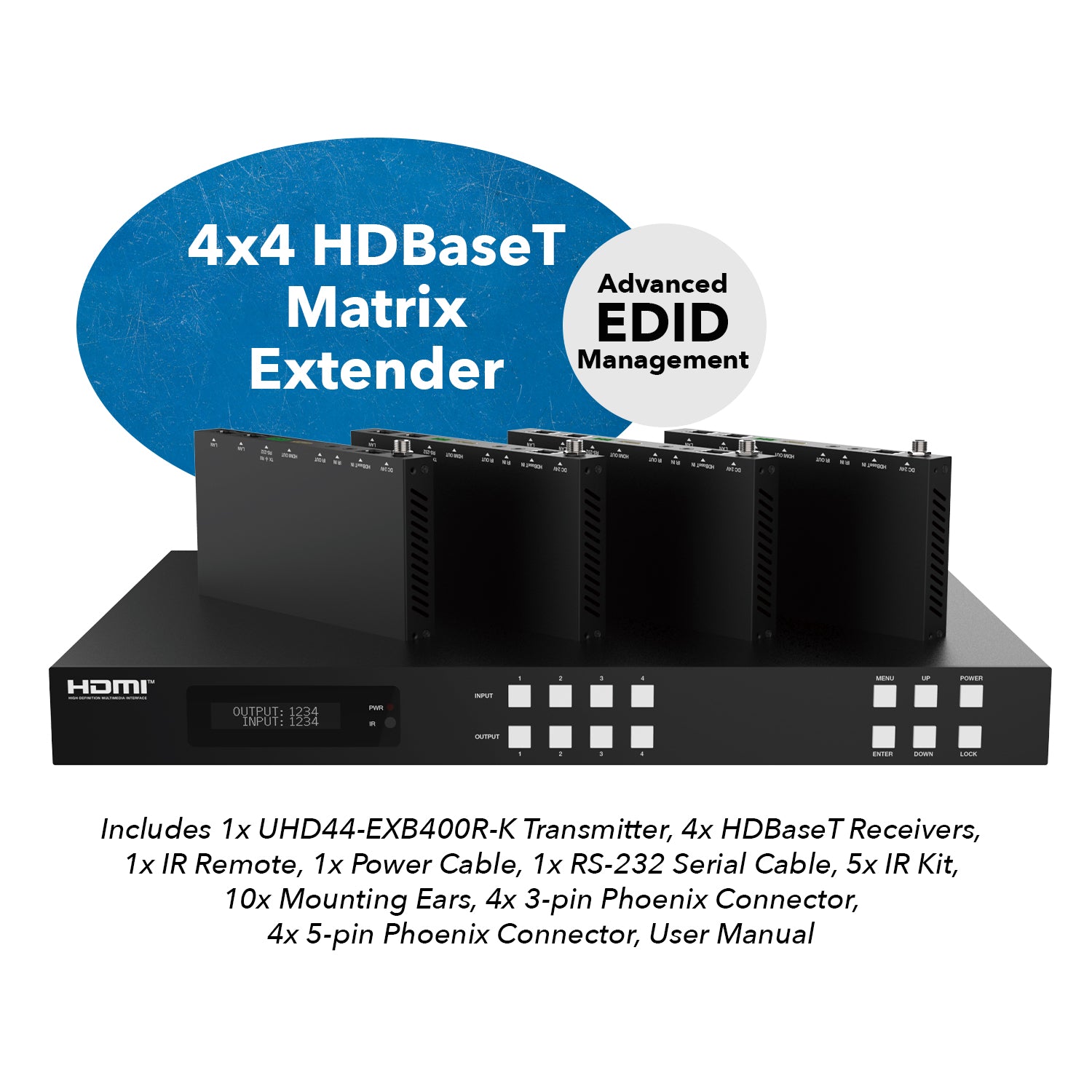

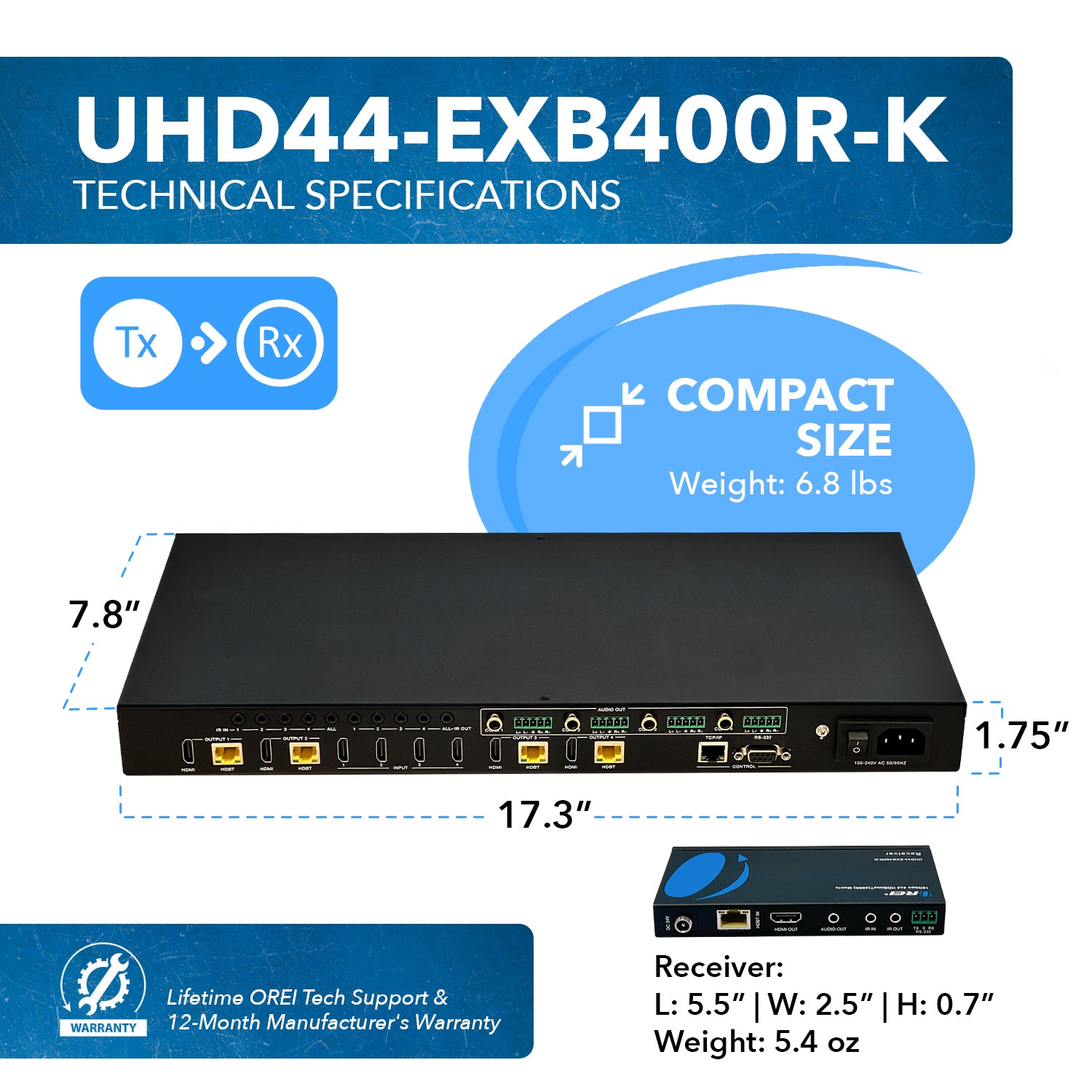

- 1U rack-mounted design with front panel OLED display
- Control via front panel buttons, IR remote, RS-232, LAN, and Web GUI
The UHD44-EXB400R-K can connect up to 4 HDMI sources and output to 8 displays. It features four HDMI outputs, and each HDMI output is mirrored to provide a CAT-Cable output that runs simultaneously.
It supports transmission of video with resolutions up to 4K@60Hz and 2K@60Hz. Audio de-embedded to analog and coaxial audio is supported. Each HDMI output supports a 4K to 1080P downscale function independently. HDBaseT output can extend video transmission distance up to 492ft/150m via a single Cat 5e/6/7 cable.
The product supports Bi-Directional IR control. The product provides an intuitive set of front panels with OLED screens and supports control via the front panel buttons, IR remote, RS-232, LAN, and Web GUI.
UHD44-EXB400R-K User Manual Download
UHD44-EXB400R-K Specifications Sheet
UHD44-EXB400R-K Control 4 Driver
