1080p HDBaseT HDMI™ Extender (Loop) - 500ft (cat6)-EX-500IR
- Bi-directional IR control
- Video resolutions up to 1080p@60Hz
- Loop output
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
1. Reliable 1080p HDMI Extension Up to 492 Feet
The OREI EX 500IR is a professional 1080p HDMI extender that transmits Full HD signals up to 492 feet (150 m) over a single CAT 6/7 cable. It’s an ideal solution for home AV systems, classrooms, and digital signage setups that require HDMI over Cat 6 extender performance with uncompromised clarity and range.
2. Crystal Clear Full HD Video & Audio Pass Through
Fully HDMI 1.4 and HDCP 1.4 compliant, this extender supports resolutions up to 1080p@60 Hz and pass through of popular surround sound formats like Dolby Digital, DTS, and LPCM 7.1. Experience smooth visuals and immersive audio in applications that demand dependable HDMI via Ethernet transmission.
3. HDMI Loop Out with Bi Directional IR & RS 232 Control

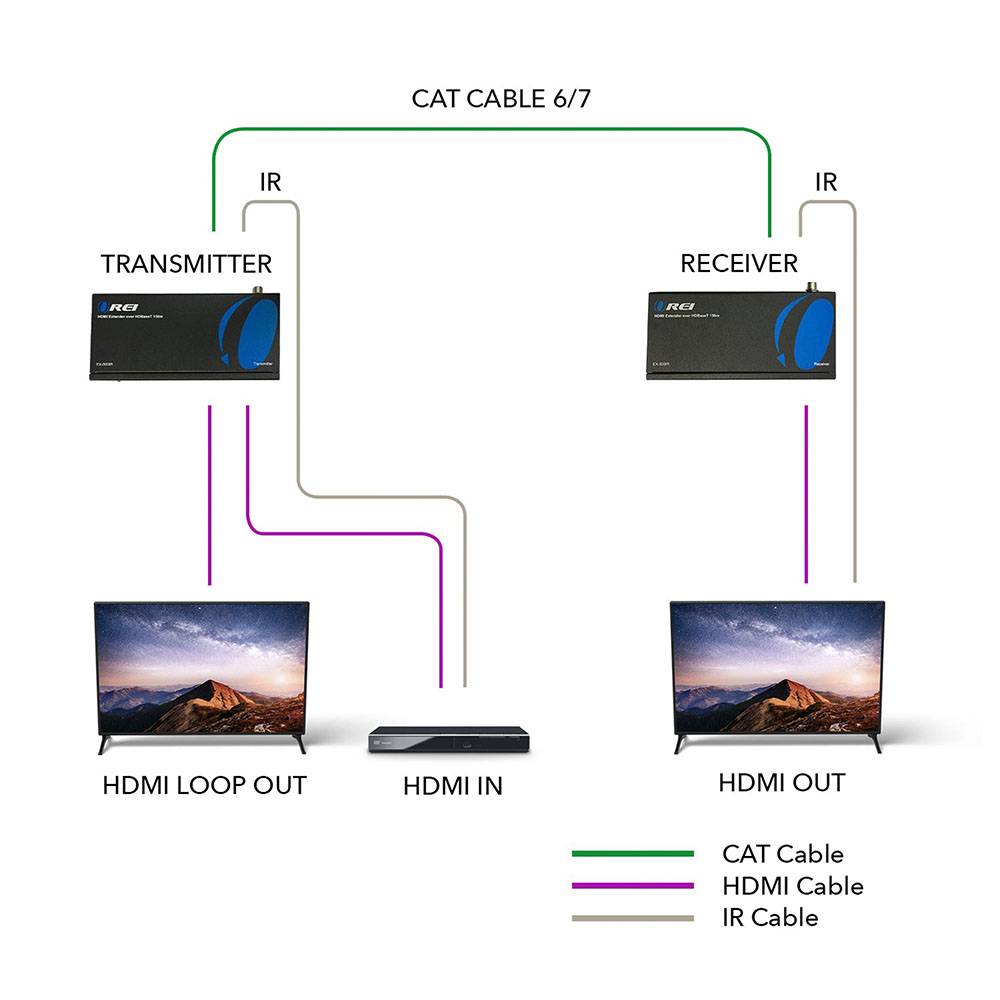

Use the HDMI loop out on the transmitter to connect a local display for confidence monitoring or control room viewing. Integrated bi directional IR allows remote control of your source device from the display end, while RS 232 pass through enables seamless integration with automation and control systems.
4. Single Power Source via PoC & Durable Build
Power over Cable (PoC) technology requires just one power adapter to drive both transmitter and receiver, simplifying installation. The unit's robust build ensures reliable long-term operation in demanding residential or commercial environments, all with an easy plug-and-play setup that cuts deployment time.

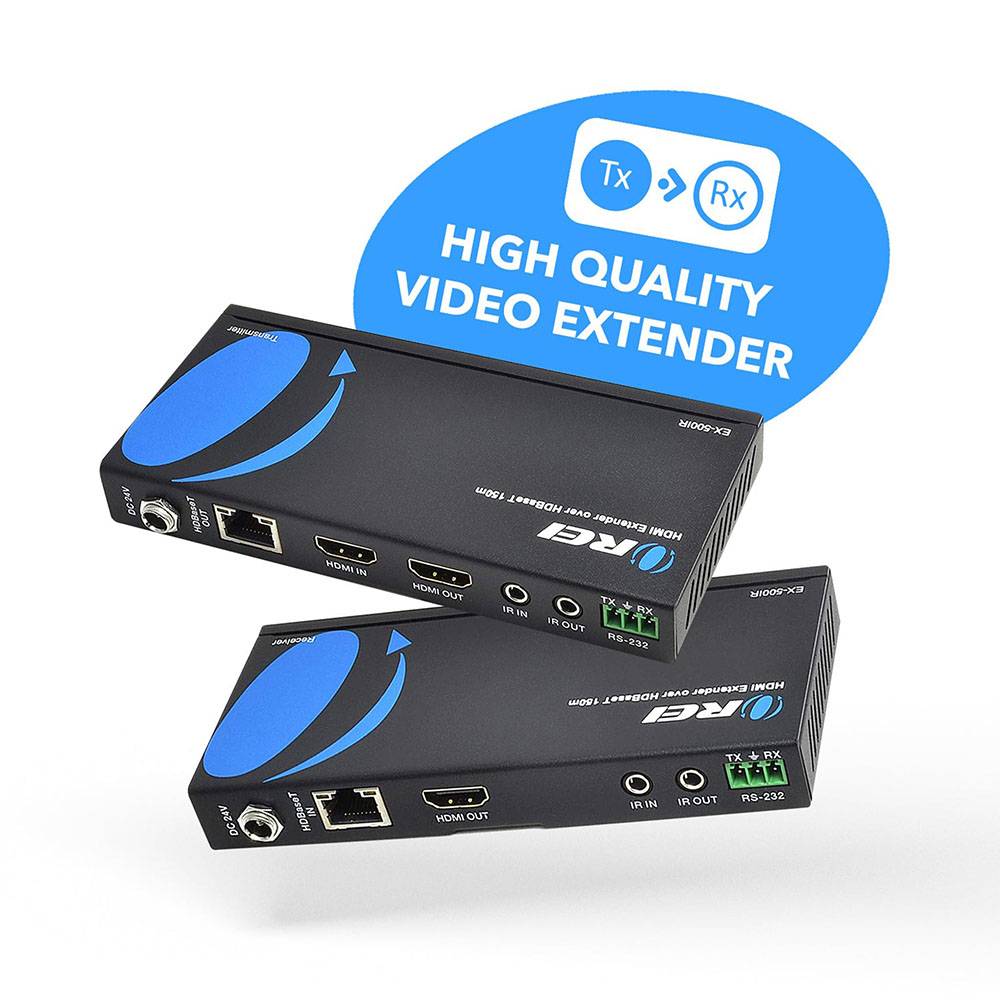

OREI EX-500IR: 1080p HDBaseT HDMI Extender up to 500 feet with POC, Bi- directional IR, RS-232
- HDMI 1.4 & HDCP 1.4 compliant
- Video resolutions up to 1080P@60Hz
- Signal transmission up to 492 feet at 1080P@60Hz over a CAT 6/7 cable
- Audio pass-through for formats like LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby True HD, DTS-HD Master Audio
- HDMI loop output to connect a display near the source.
- Bi-directional IR control
- PoC feature enables powering up the setup through only one power adapter
- RS-232 pass-through
- Easy installation and robust build
The EX-500IR HDMI extender is designed to transmit media signals to a display located up to 492 feet away. It supports video resolutions up to 1080p@60Hz and complies with HDMI 1.4 and HDCP 1.4 standards, with support for pass-through of audio formats like LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby True HD, DTS-HD Master Audio. The transmitter features an HDMI loop output, for connecting a display near the source. The EX-500IR has bi-directional IR functionality, enabling remote control of the source device from the receiver's location and vice versa. Additionally, the device also features RS-232 passthrough, and Power over Cable technology, requiring only one power adapter for the entire setup. This device is perfect for any residential or commercial setup.
Note: OREI HDBaseT models are designed to work only with their own matching transmitter and receiver. They are not interchangeable with other OREI HDBaseT models, nor compatible with HDBaseT devices from other brands, due to chipset differences.
For best results, always use the included or recommended pair from the same model.
EX-500IR User Manual Download

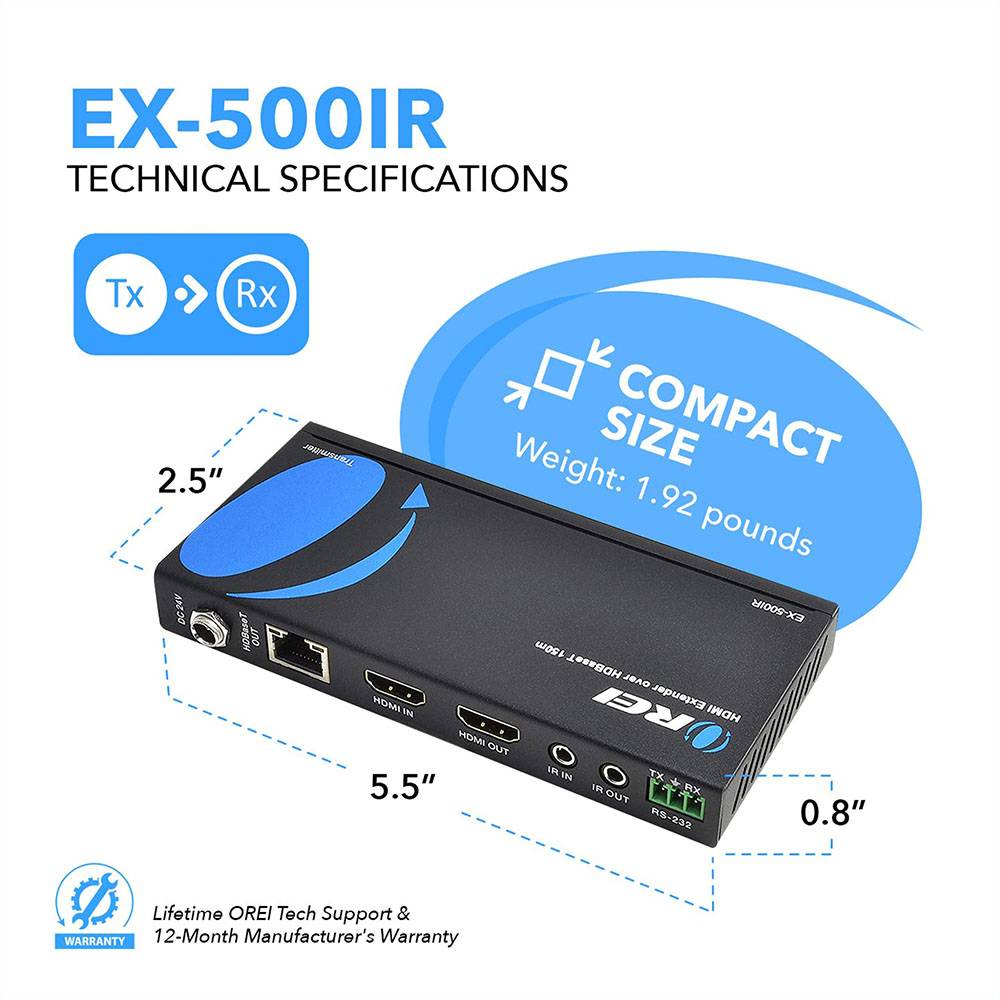

EX-500IR Specifications Sheet
