4K HDBaseT HDMI™ Extender (ARC, LAN & KVM) - 330ft (cat6)-UHD-EXB330AUR-K
-
KVM and HDMI extender
-
Video resolutions up to 4K@60Hz
-
Audio Extraction, Bi-directional IR, PoC & RS-232
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
1. Seamless 4K Video & Audio Transmission over Long Distances
This high-performance HDMI extender 4K solution delivers stunning ultra-high-definition video at up to 4K@60Hz (4:4:4), ensuring crystal-clear visuals with rich color depth. Supporting HDR10+, Dolby Vision, and HLG, it’s perfect for both professional and home setups. With HDMI over CAT6 4K capability, it extends signals up to 328ft (100m) using a single CAT6a/7 cable—no signal loss, no compression, just flawless transmission.
2. USB KVM Functionality for Remote Control
Thanks to integrated USB KVM over CAT6 support, this extender allows full control of connected computers using a remote keyboard and mouse. It’s an ideal KVM extender 4K solution for control rooms, data centers, or home offices that require both video transmission and input control over long distances. The extender KVM HDMI feature combines video, USB, and control in one reliable system.
3. Comprehensive Device Control & ARC Audio Return
Enjoy full bi-directional IR, RS-232, and CEC pass-through, enabling seamless control of both the source and display devices across the HDMI link. With built-in ARC (Audio Return Channel), the extender sends audio from your display back to your AV receiver or amplifier—eliminating the need for separate audio cabling. This makes it a powerful choice for high-end AV installations.
4. Compact, Efficient, and Easy to Install
Designed for convenience, this 4K HDMI and USB over Ethernet extender features a compact form factor and flexible mounting options. Power over Cable (PoC) means you only need one power supply at either the Transmitter or Receiver end, streamlining installation. Whether you’re setting up an HDMI USB over Ethernet connection in a commercial venue or building a KVM over CAT6 system at home, it’s built for simplicity and reliability.
OREI 4K KVM Extender over Cat6/7 up to 330 feet - With Audio Extraction, Bi-directional IR, RS-232, & PoC
- HDMI 2.0 and HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz and 2K@60Hz
- 18 Gbps Video Bandwidth
- HDR10+, Dolby Vision, and HLG pass-through
- Extend HDMI signals to up to 328 Feet or 100 meters
- Audio Extraction through Optical and L/R outputs
- USB KVM function allows you to control a PC remotely using a keyboard and mouse
- ARC/eARC support allows you to extract audio from the TV and send it back to an AVR/Soundbar
- Bi-directional IR, RS-232 and CEC support
- Power over cable technology; requires one power adapter that can be connected on either end
- Durable build and flexible installation

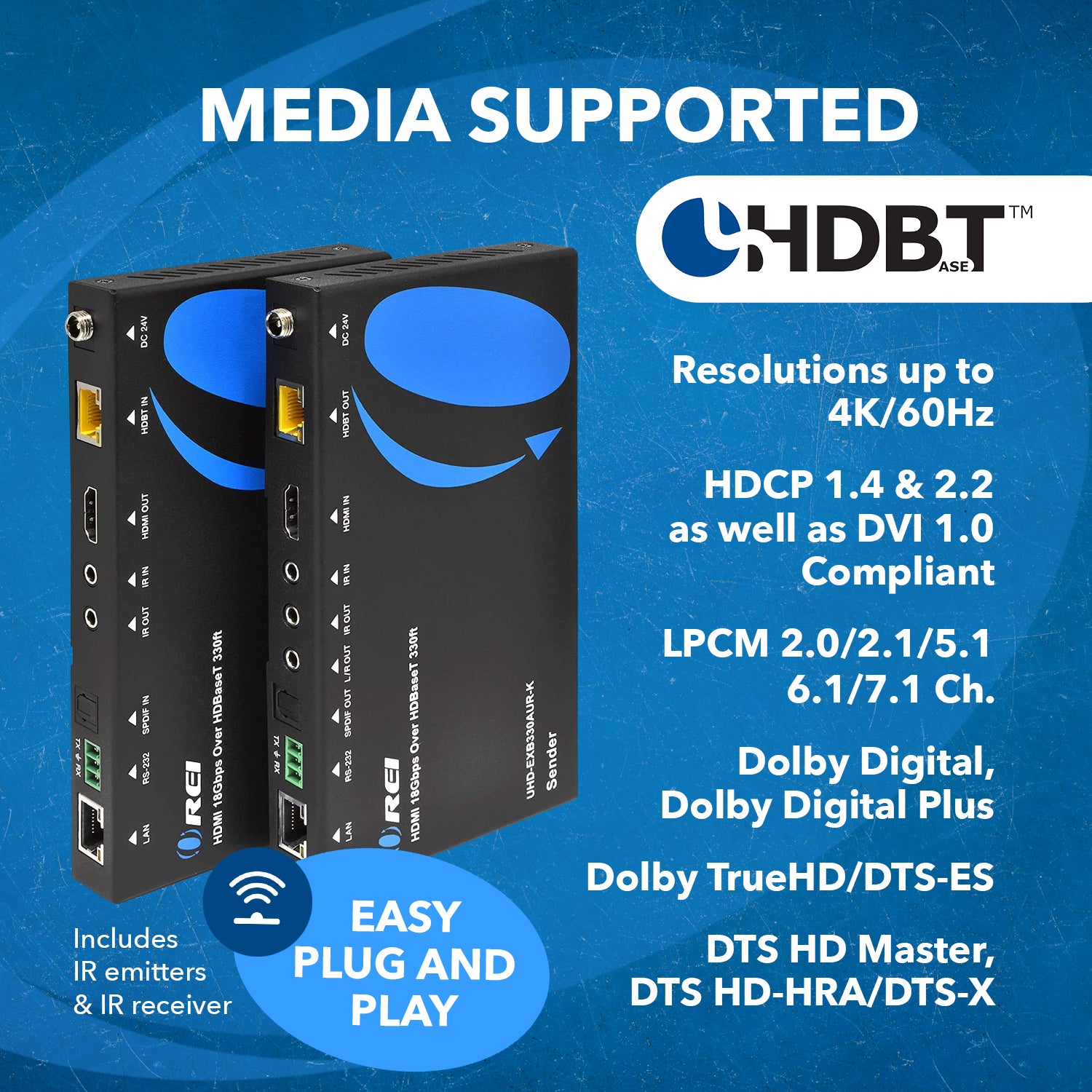

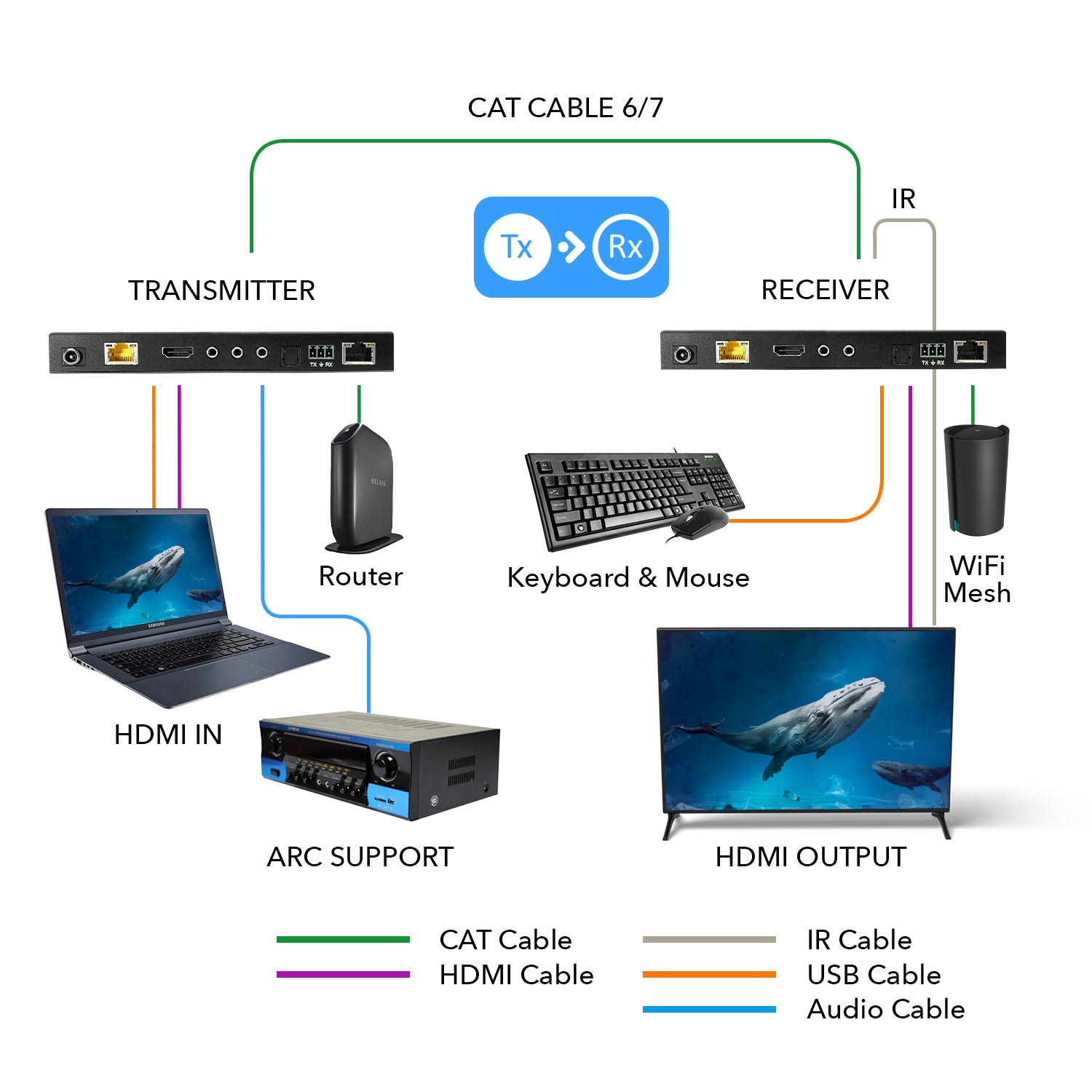

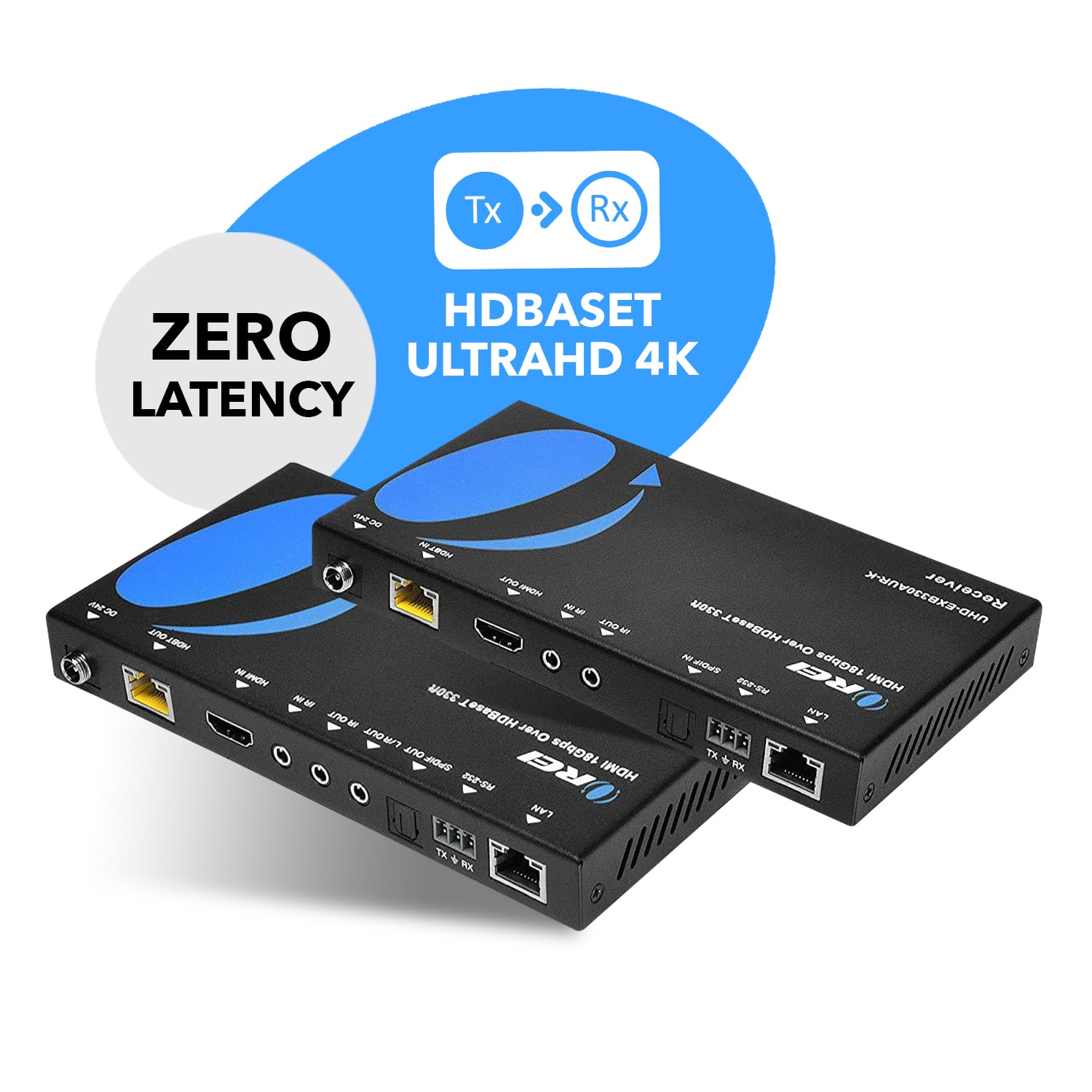

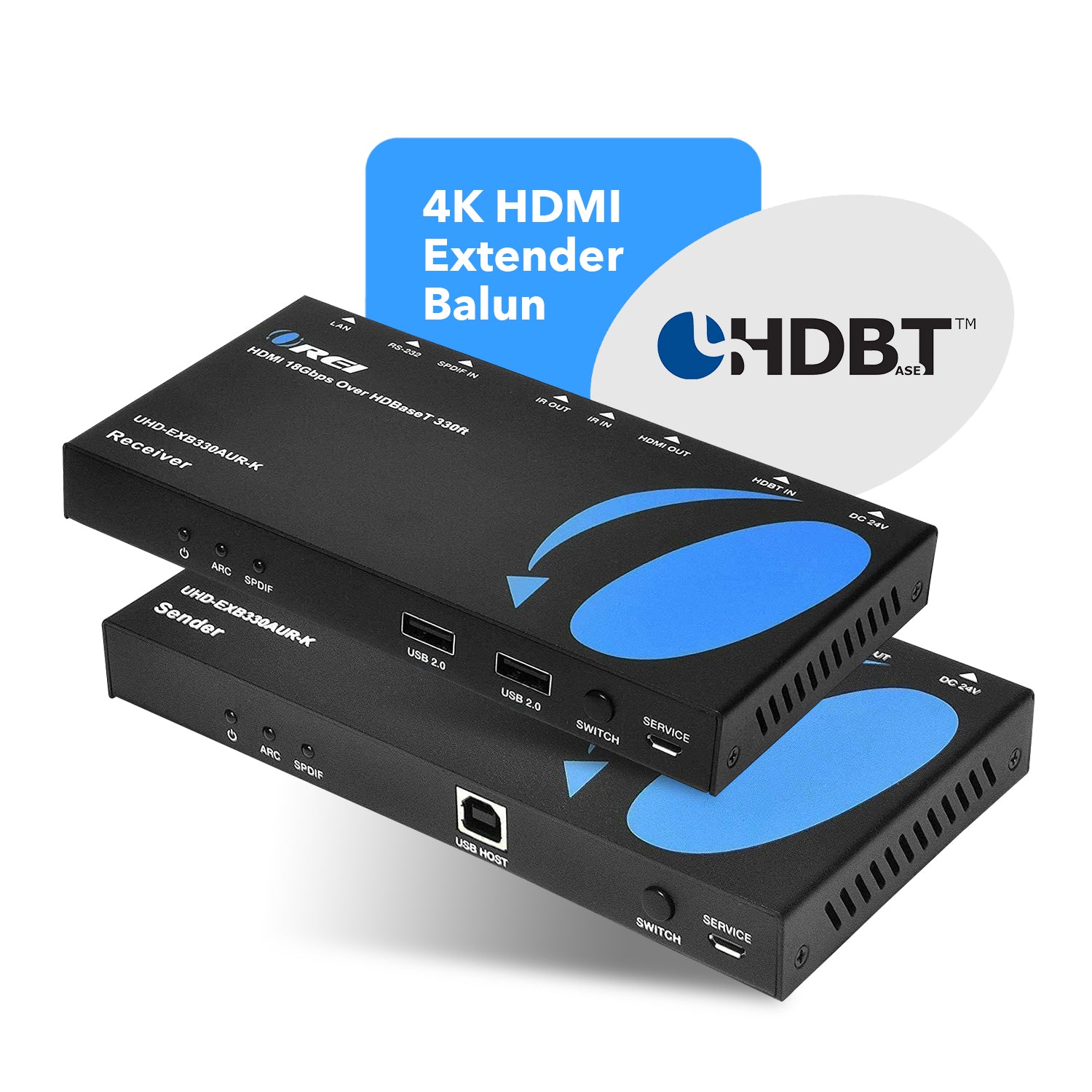

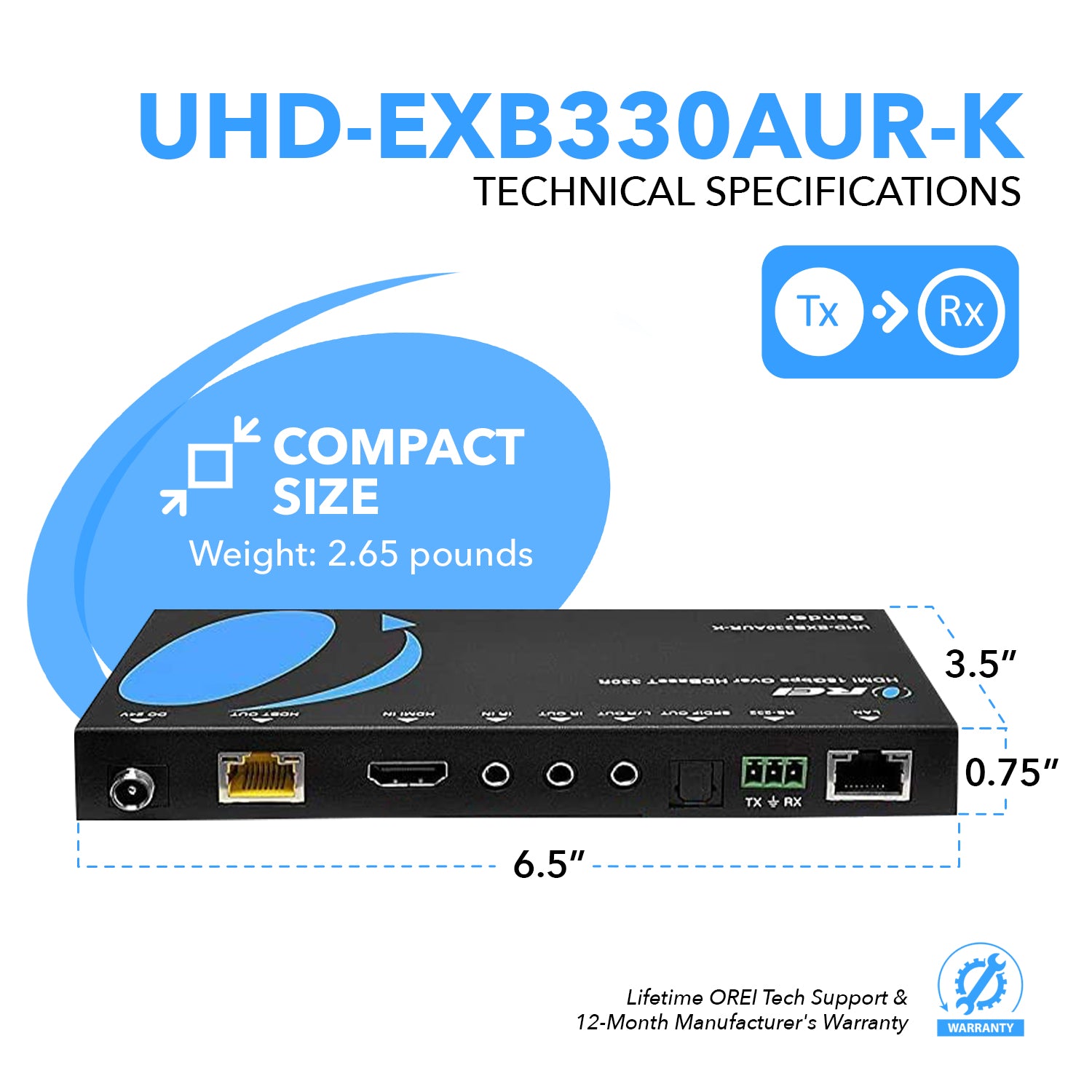

The UHD-EXB330AUR-K is a USB KVM extender that can extend USB & HDMI signals up to 330 feet (100 meters). It is HDMI 2.0 and HDCP 2.2 compliant, supporting video resolutions up to 4K@60Hz and 2K@60Hz with an 18Gbps video bandwidth, and pass-through for Dolby Vision, HDR10+, and HLG. It can also extract audio from the HDMI source or an ARC TV, providing audio output through optical and L/R (aux) ports. The transmitter features a USB-B port to connect the host, while the receiver has 2 USB 2.0 ports for USB devices. Bi-directional IR, Power over Cable (PoC), and RS-232 pass-through enhance control and simplify setup, requiring only a single power adapter to power up both units. Compact design with plug-and-play installation. Ideal for both personal and commercial use.
Note: OREI HDBaseT models are designed to work only with their own matching transmitter and receiver. They are not interchangeable with other OREI HDBaseT models, nor compatible with HDBaseT devices from other brands, due to chipset differences.
For best results, always use the included or recommended pair from the same model.
UHD-EXB330AUR-K User Manual Download
UHD-EXB330AUR-K Specifications Sheet
