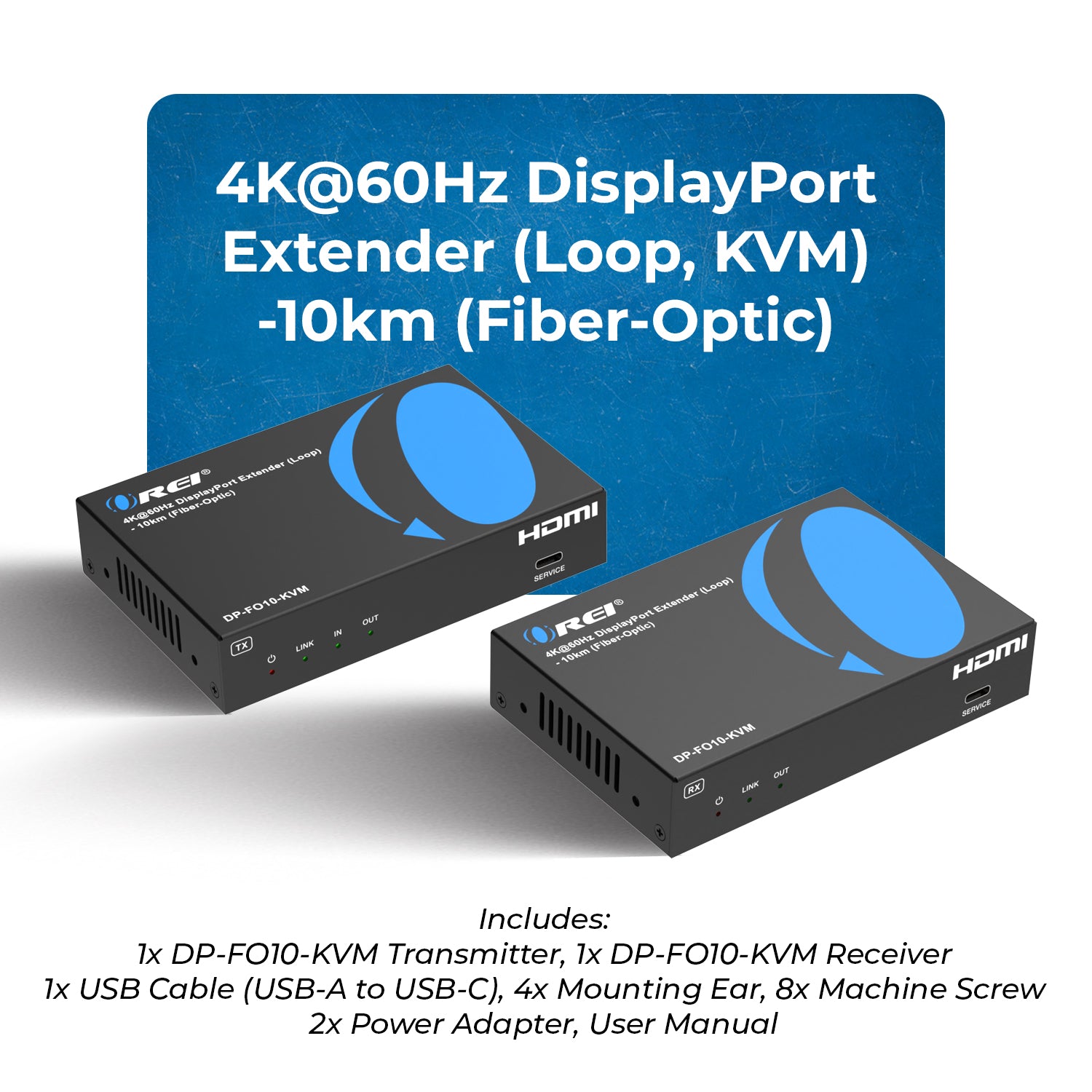

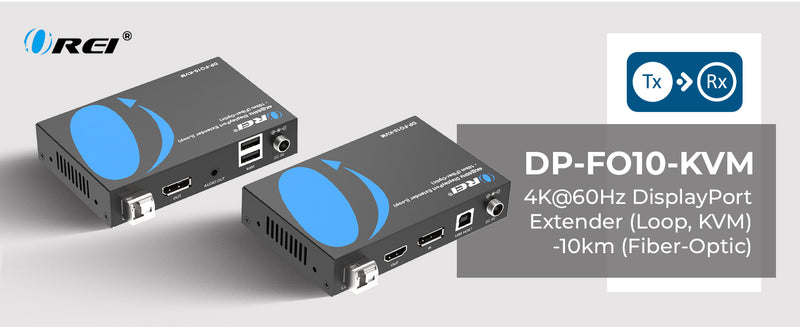

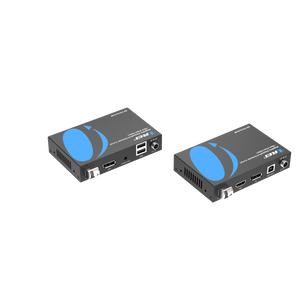

4K@60Hz DisplayPort Extender (Loop) - 10km (Fiber-Optic) - (DP-FO10-KVM)
- Video resolutions is up to 4K@60Hz
- Compliant with VESA Displayport 1.4a
- USB 1.1 KVM Support
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
Ultra-Long Distance 4K DisplayPort Extension

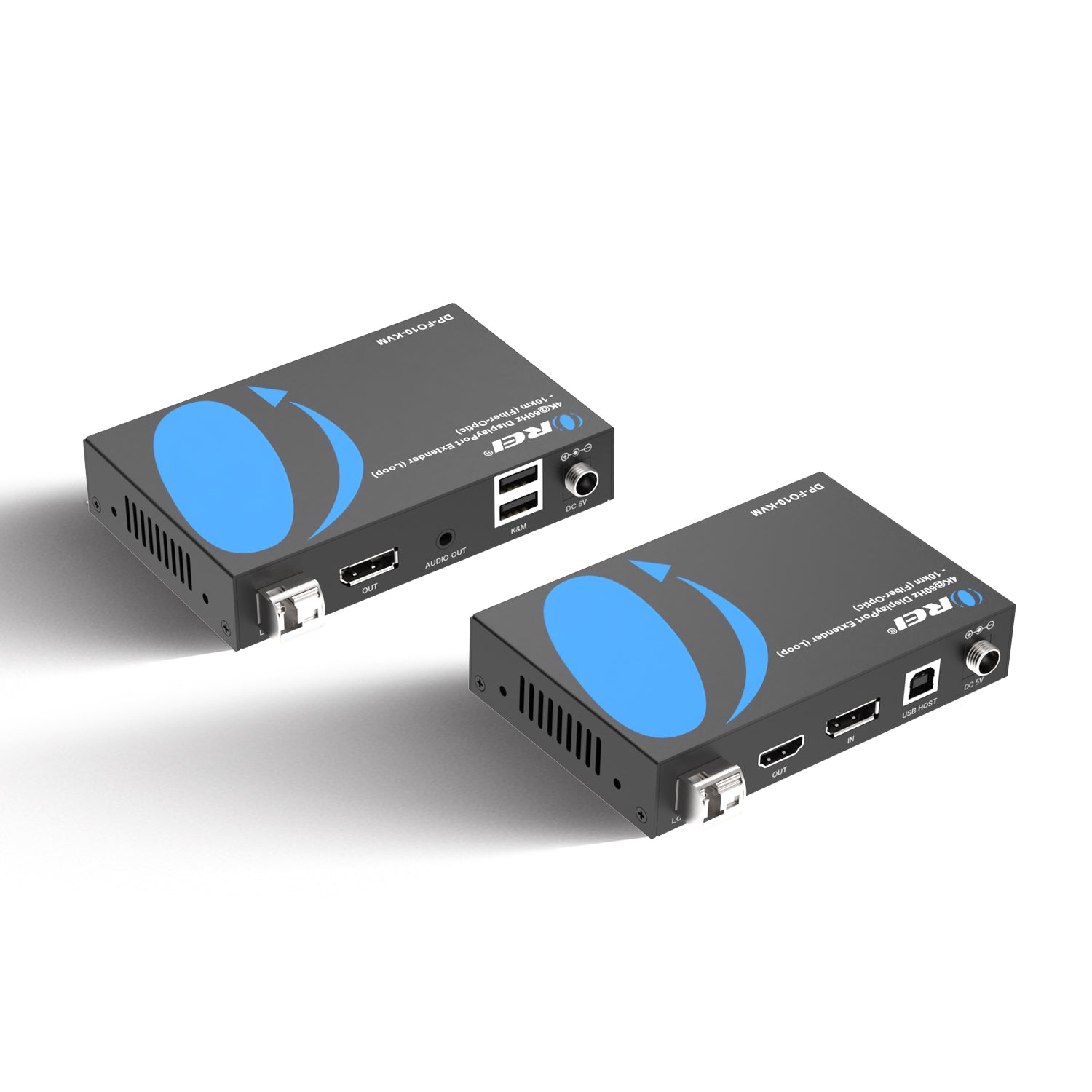

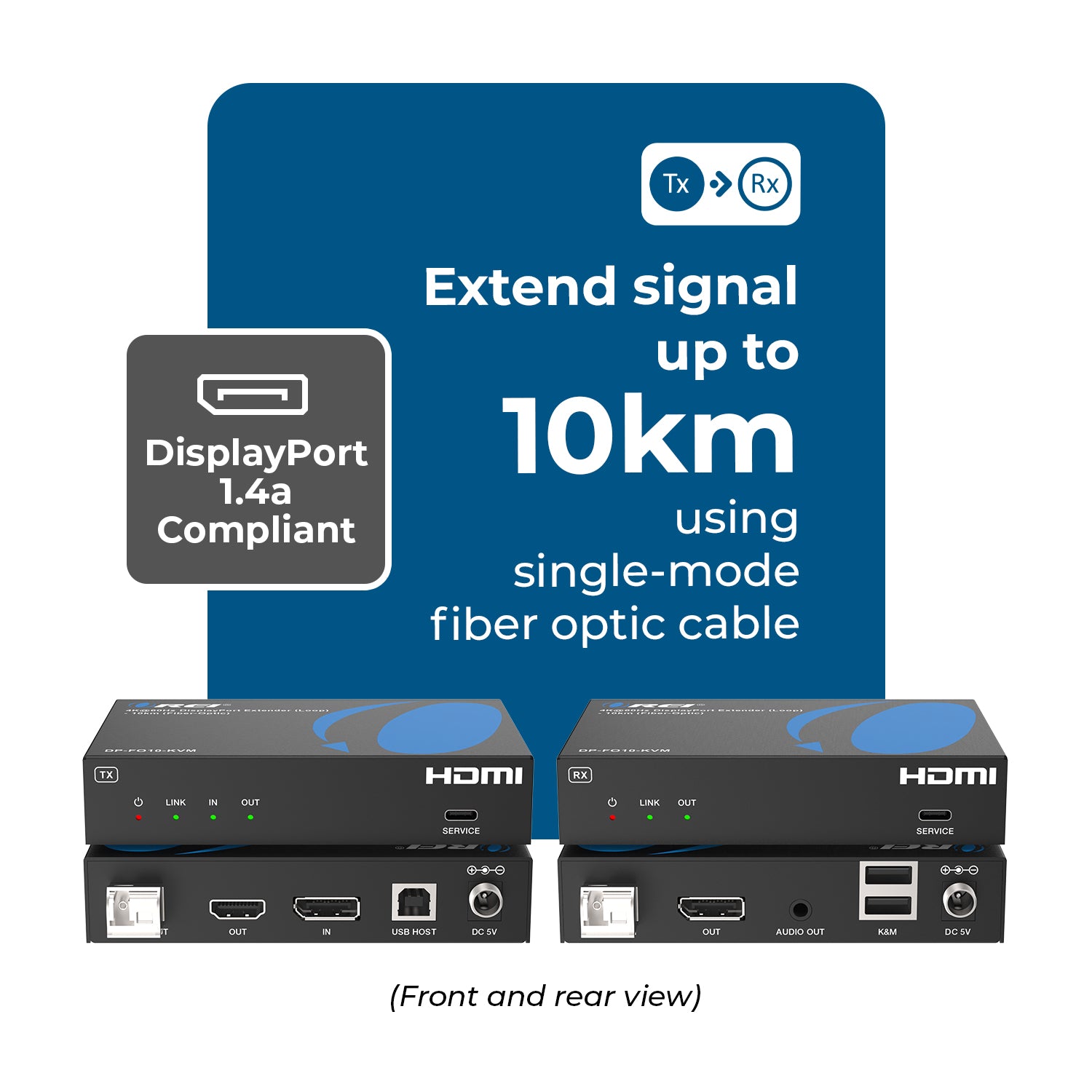

The DP-FO10-KVM is a high-performance DisplayPort over fiber-optic extender engineered for ultra-long-distance, lossless AV transmission. Supporting DisplayPort 1.4a and HDCP 2.3, it delivers stunning 4K@50/60Hz 4:4:4 video with full color depth and clarity. Using single-mode fiber, the system extends DisplayPort signals up to 10km, making it ideal for large-scale professional AV installations where signal integrity is critical.
High-Bandwidth Video & HDR Performance
Designed to handle demanding video applications, the extender supports HBR3, HBR2, HBR, and RBR bandwidths up to 8.1Gbps, ensuring smooth transmission of high-resolution content. It is compatible with all VESA standard resolutions and supports 3D video along with advanced HDR formats including HDR, HDR10, HDR10+, Dolby Vision, and HLG, delivering lifelike visuals for control rooms, broadcast environments, and premium AV systems.
Integrated Audio & KVM Functionality

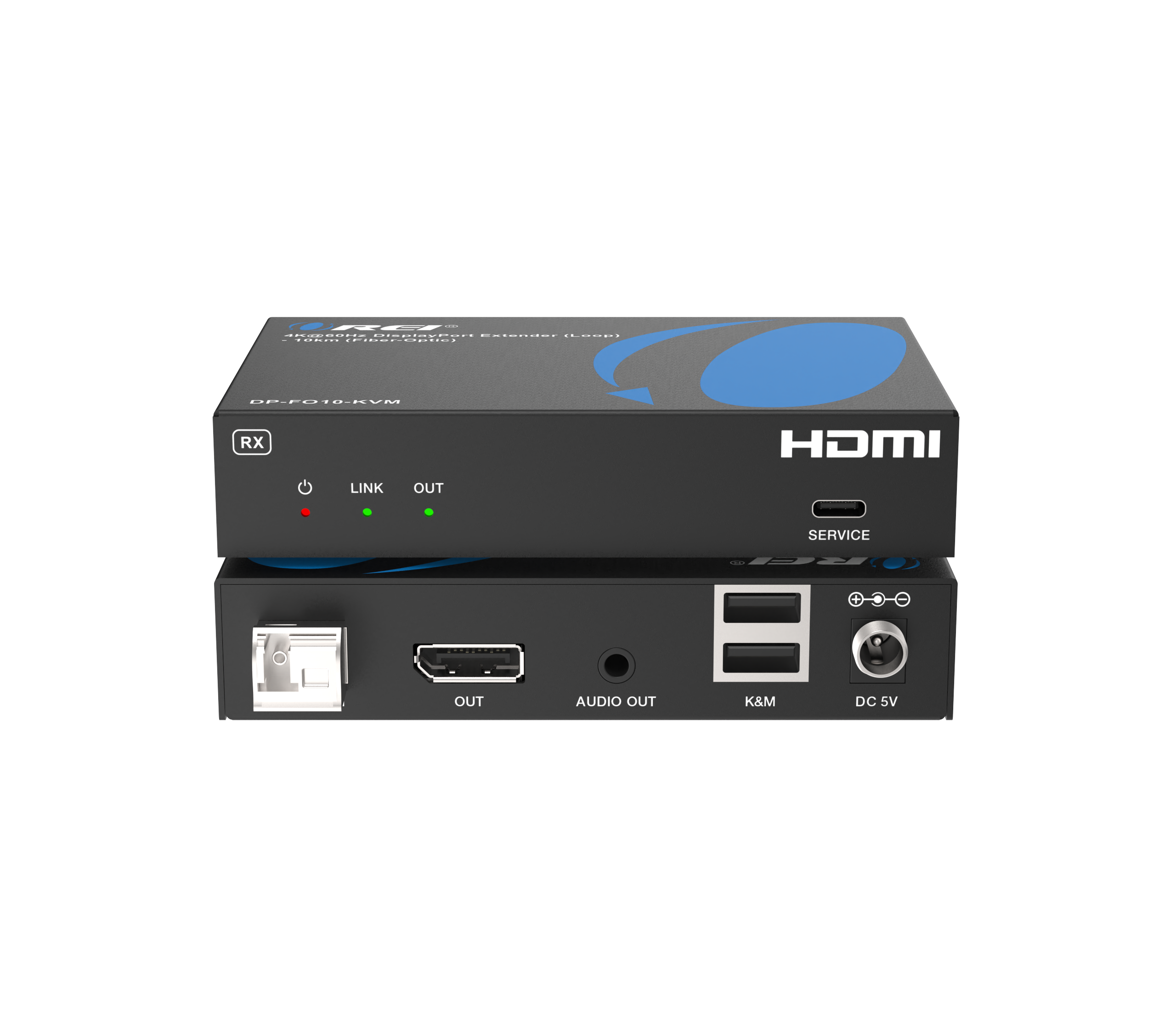

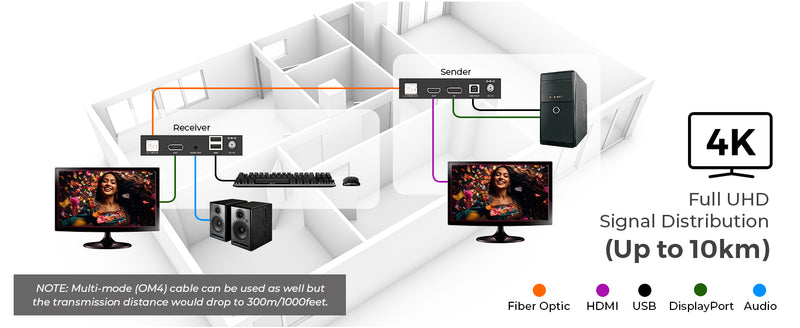

For flexible system integration, the DP-FO10-KVM features an HDMI loop output on the transmitter side for convenient local display monitoring. The receiver includes audio de-embedding, allowing direct connection to external audio systems. Built-in USB 1.1 KVM support enables remote keyboard and mouse control of a connected PC from the receiver end, making it well-suited for centralized equipment rooms and remote workstations.
Compact Design for Professional Installations

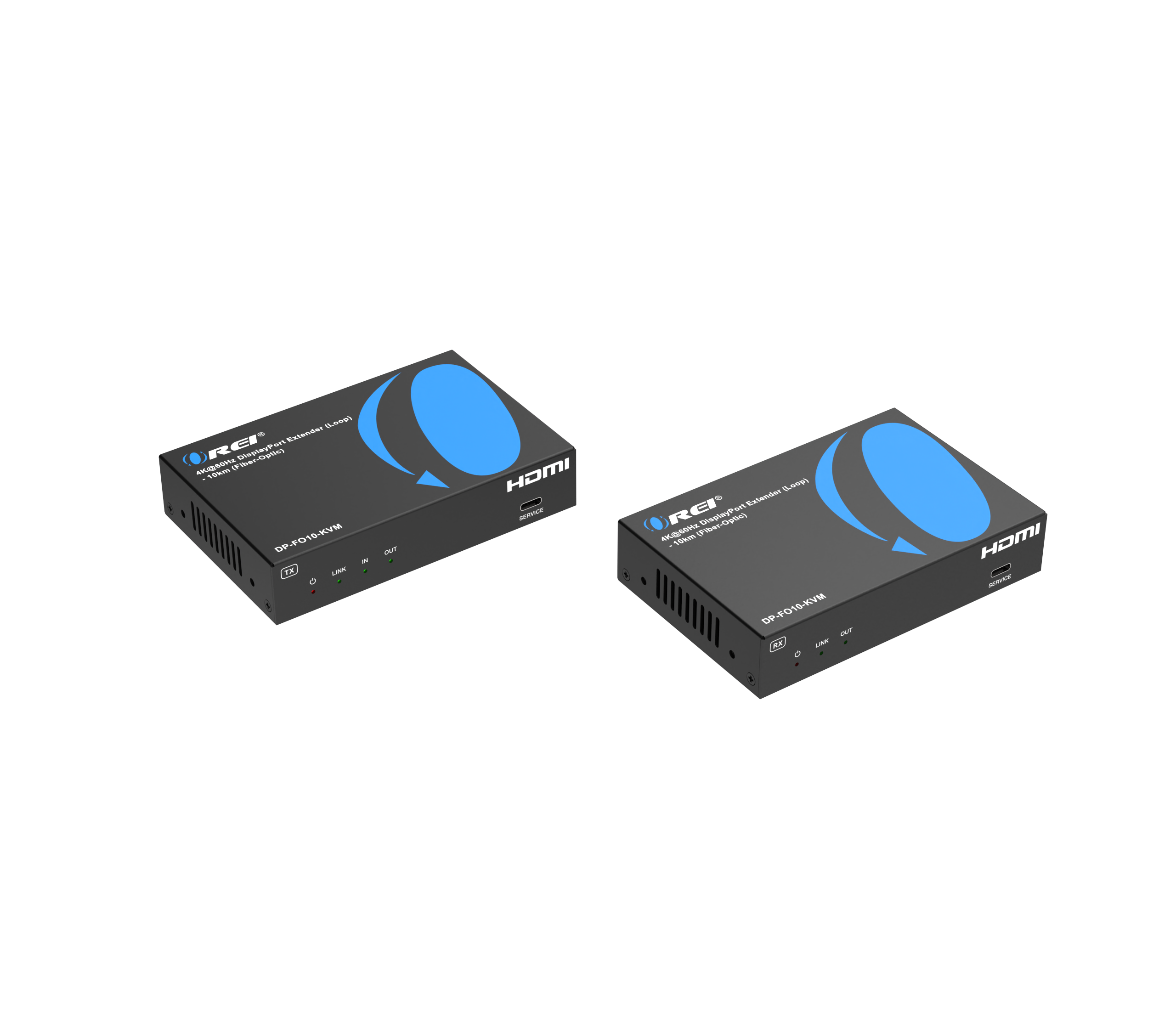

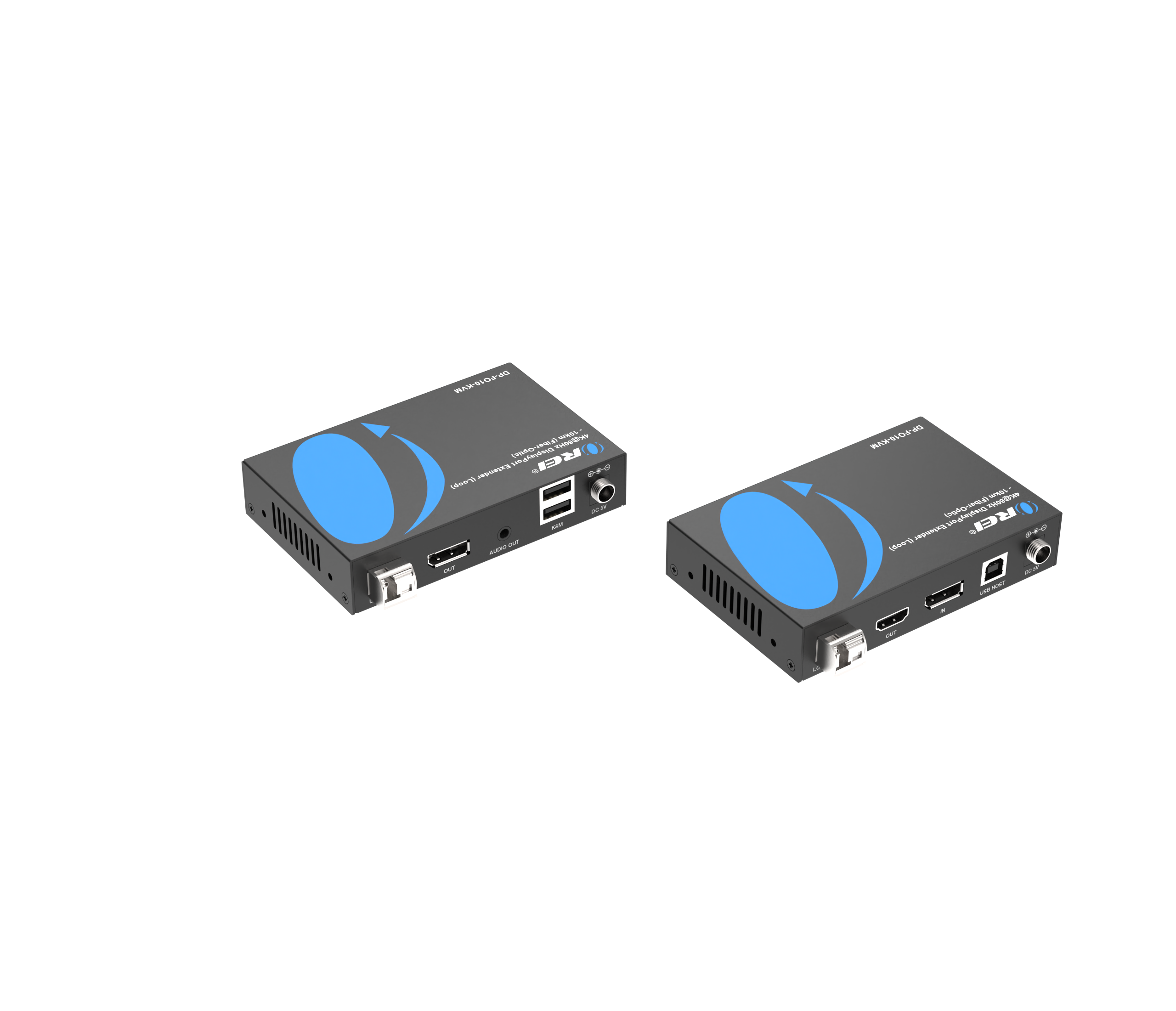

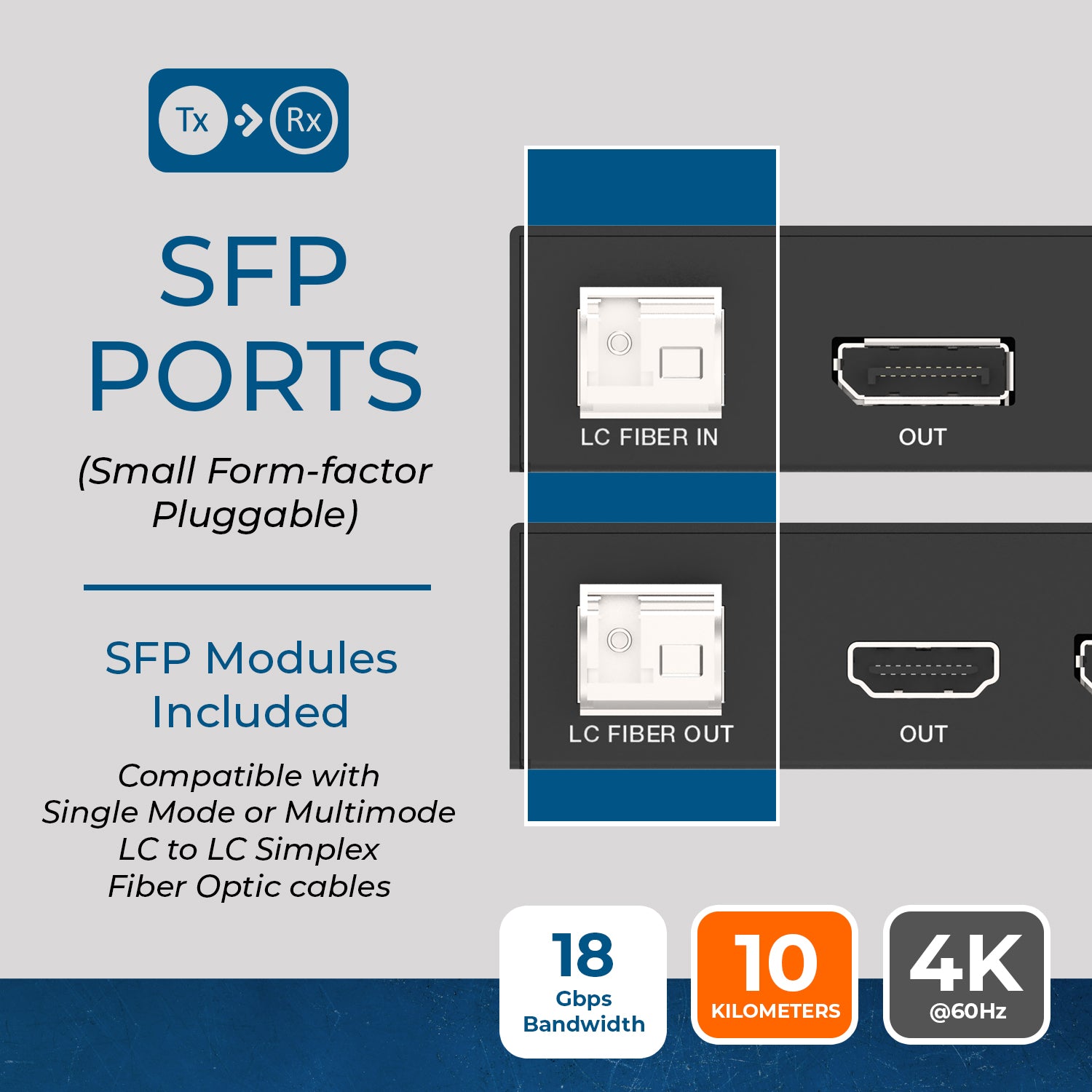

Built with a compact, lightweight form factor, this extender is easy to mount and ideal for space-constrained environments. Optional SFP modules allow multi-mode fiber operation up to 300m over OM4, providing added deployment flexibility. With strong anti-interference performance and reliable fiber-optic transmission, the DP-FO10-KVM is a dependable solution for mission-critical AV, control centers, and high-end DisplayPort applications.
OREI DP-FO10-KVM: 4K@60HZ DisplayPort Extender - 10KM (FIBER-OPTIC)
- DisplayPort 1.4a Compliant – Ensures compatibility with modern DP devices and formats.
- HDCP 2.3 Support – Works seamlessly with protected content.
- High Video Bandwidth – Supports HBR3, HBR2, HBR, and RBR rates (8.1 / 5.4 / 2.7 / 1.62Gbps).
- 4K@50/60Hz 4:4:4 Video – Transmits ultra-clear, uncompressed video over long distances.
- Flexible Resolution Support – Works with any VESA standard resolution.

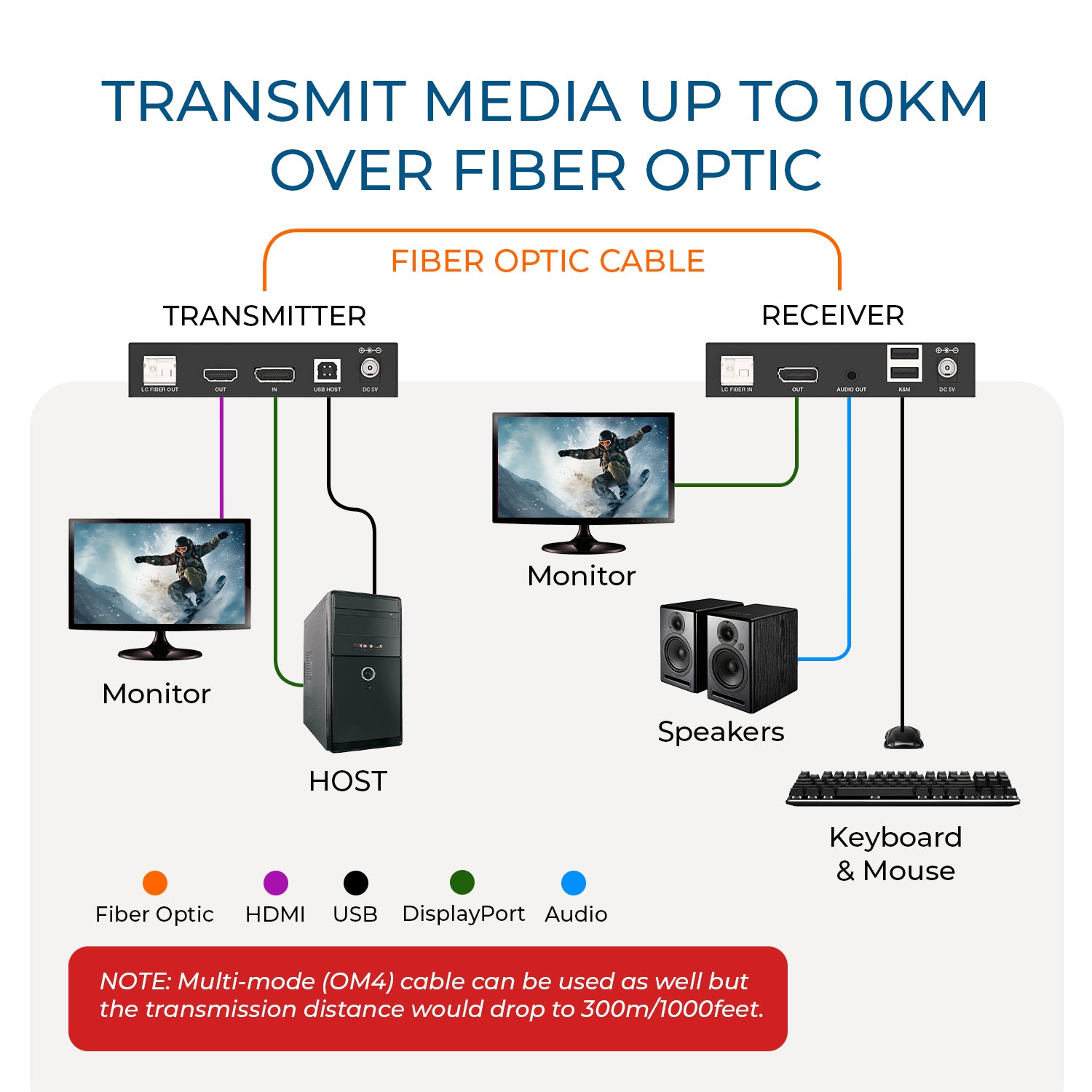

- Ultra-Long Transmission – Up to 10km over single-mode fiber; up to 300m over OM4 multi-mode fiber (via SFP modules).
- 3D & HDR Formats – Pass-through for HDR, HDR10, HDR10+, Dolby Vision, and HLG.
- Wide Audio Compatibility – LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio.

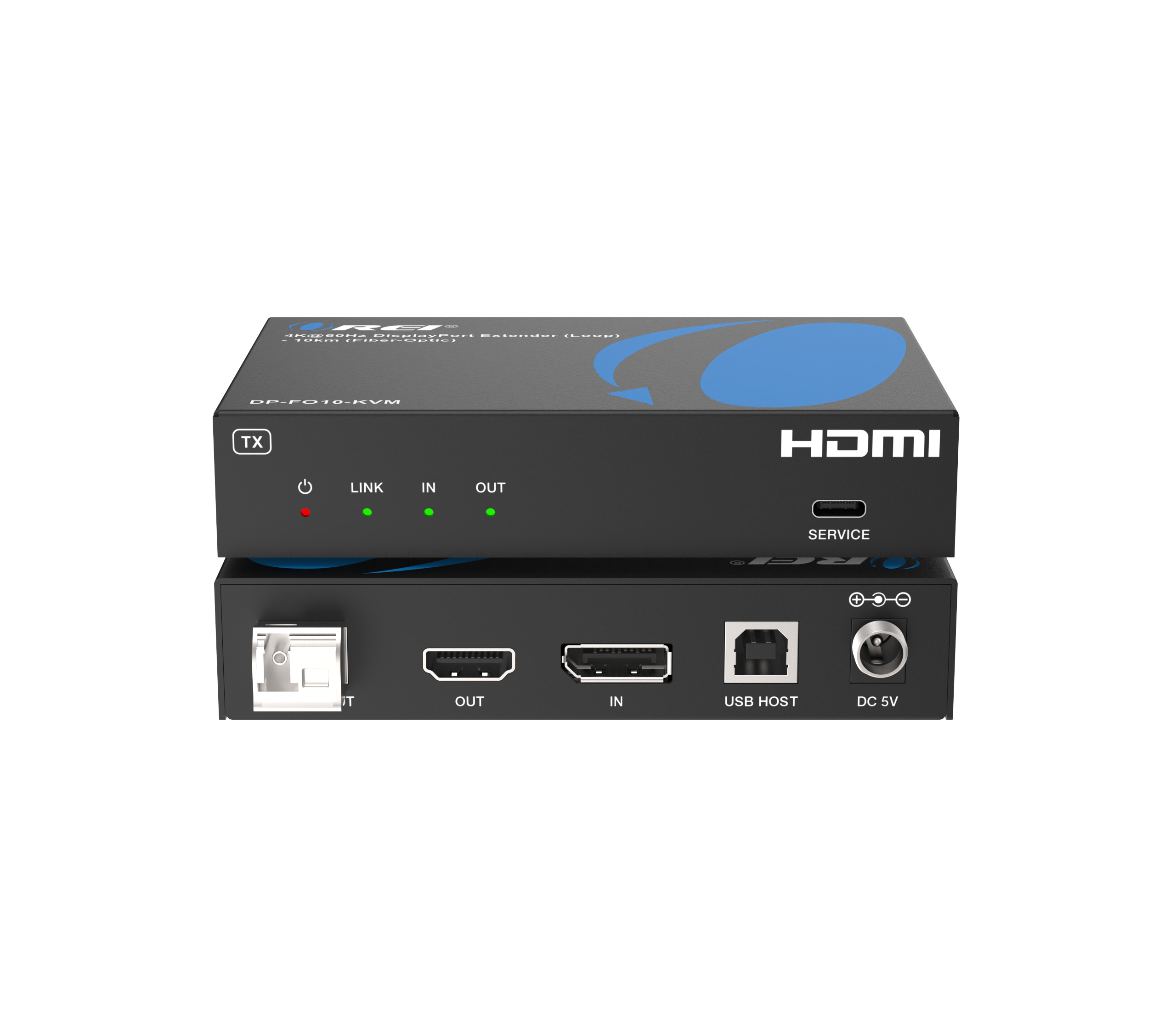

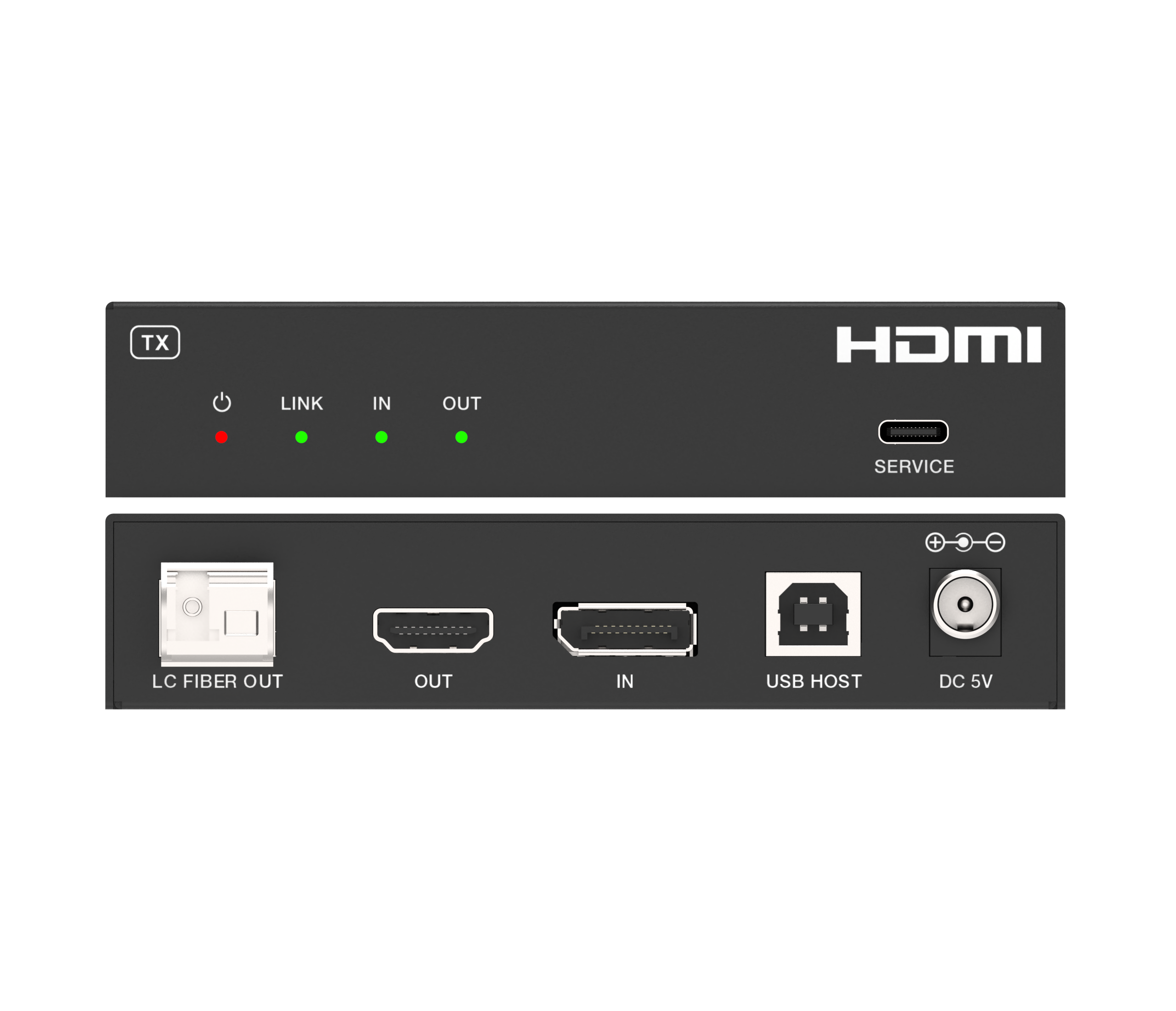

- HDMI Loop Output – Local display monitoring from the transmitter side.

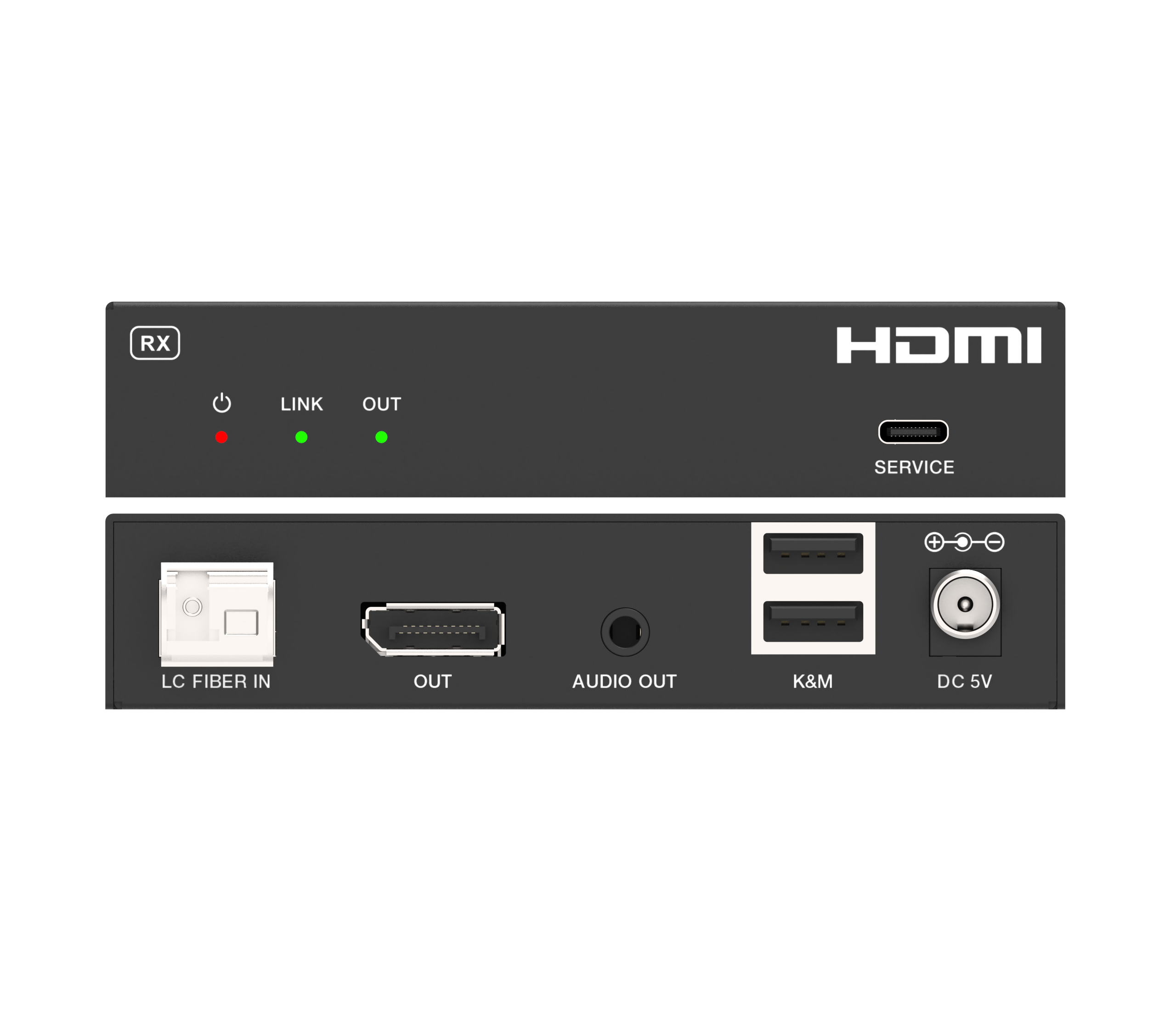

- Audio De-embedding – Extracts audio on the receiver side.
- USB 1.1 KVM Functionality – Remote control a PC from the Receiver end.
-

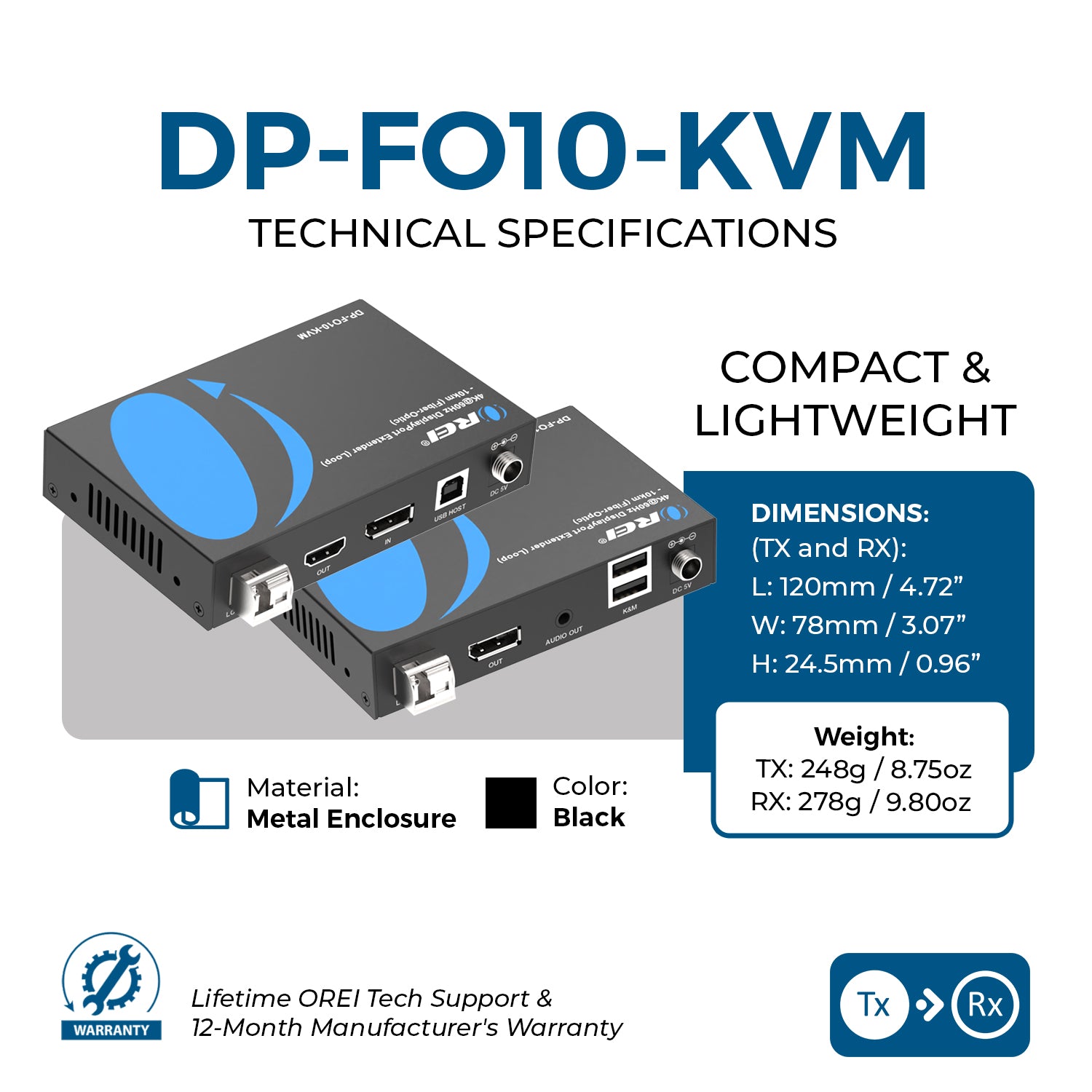

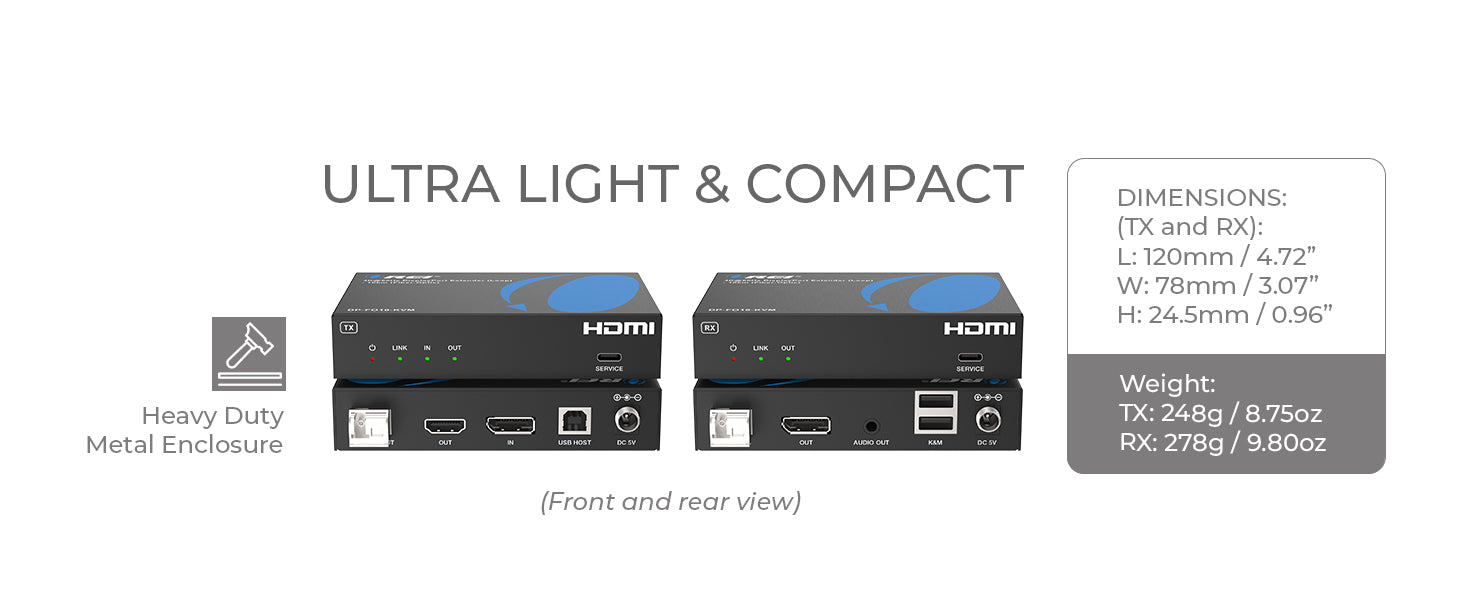

Compact, Lightweight Design – Easy to mount and ideal for space-constrained installations.

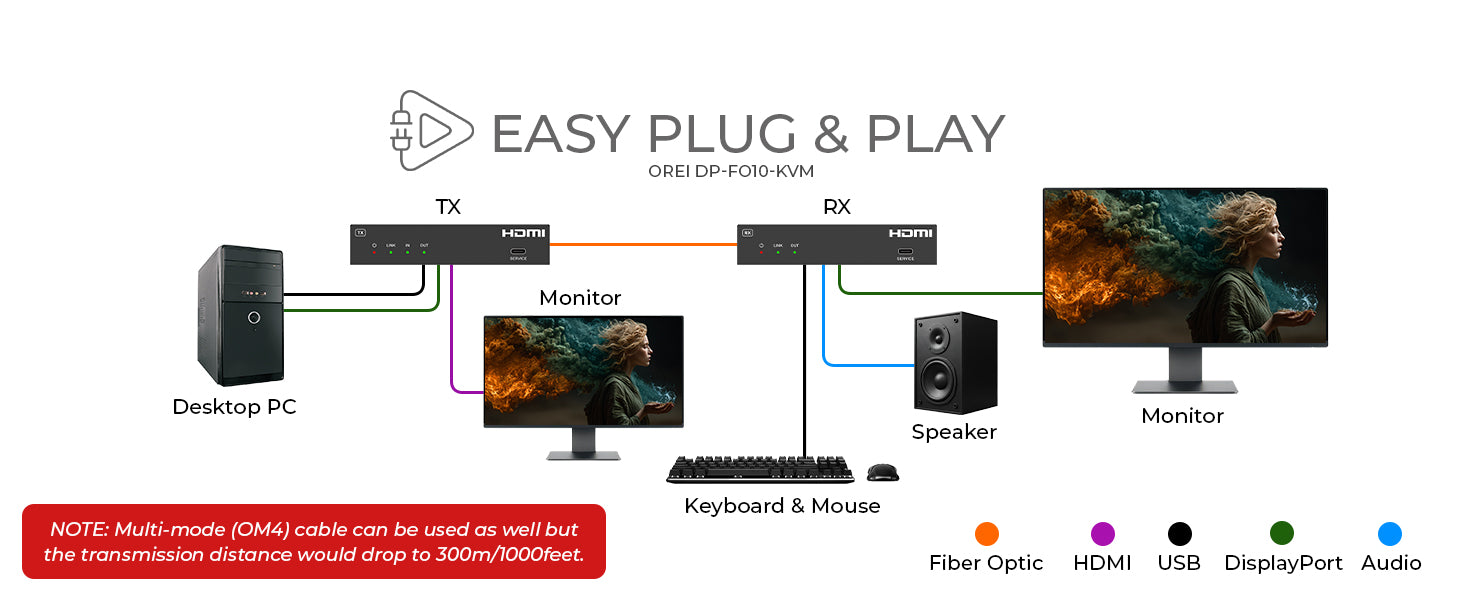

DP-FO10-KVM is a high-performance DisplayPort over fiber optic extender, designed for ultra-long-distance, lossless AV transmission. Supporting DisplayPort 1.4a and HDCP up to version 2.3, it delivers crystal-clear video at resolutions up to 4K@60Hz 4:4:4 with full HDR support. Using single-mode fiber, it extends signals up to 10km, while optional SFP modules allow multi-mode fiber extension up to 300m over OM4.
Equipped with an HDMI™ loop output on the transmitter for local monitoring and audio de-embedding on the receiver, the system ensures versatile integration into professional AV setups. Built-in USB 1.1 KVM support enables remote control of a PC from the Receiver end using a keyboard and mouse.
Engineered with strong anti-interference capability, high security, compact design, and lightweight construction, the DP-FO10-KVM is ideal for mission-critical applications, control rooms, and high-end AV environments requiring stable, long-distance DisplayPort signal delivery.
DP-FO10-KVM User Manual Download
