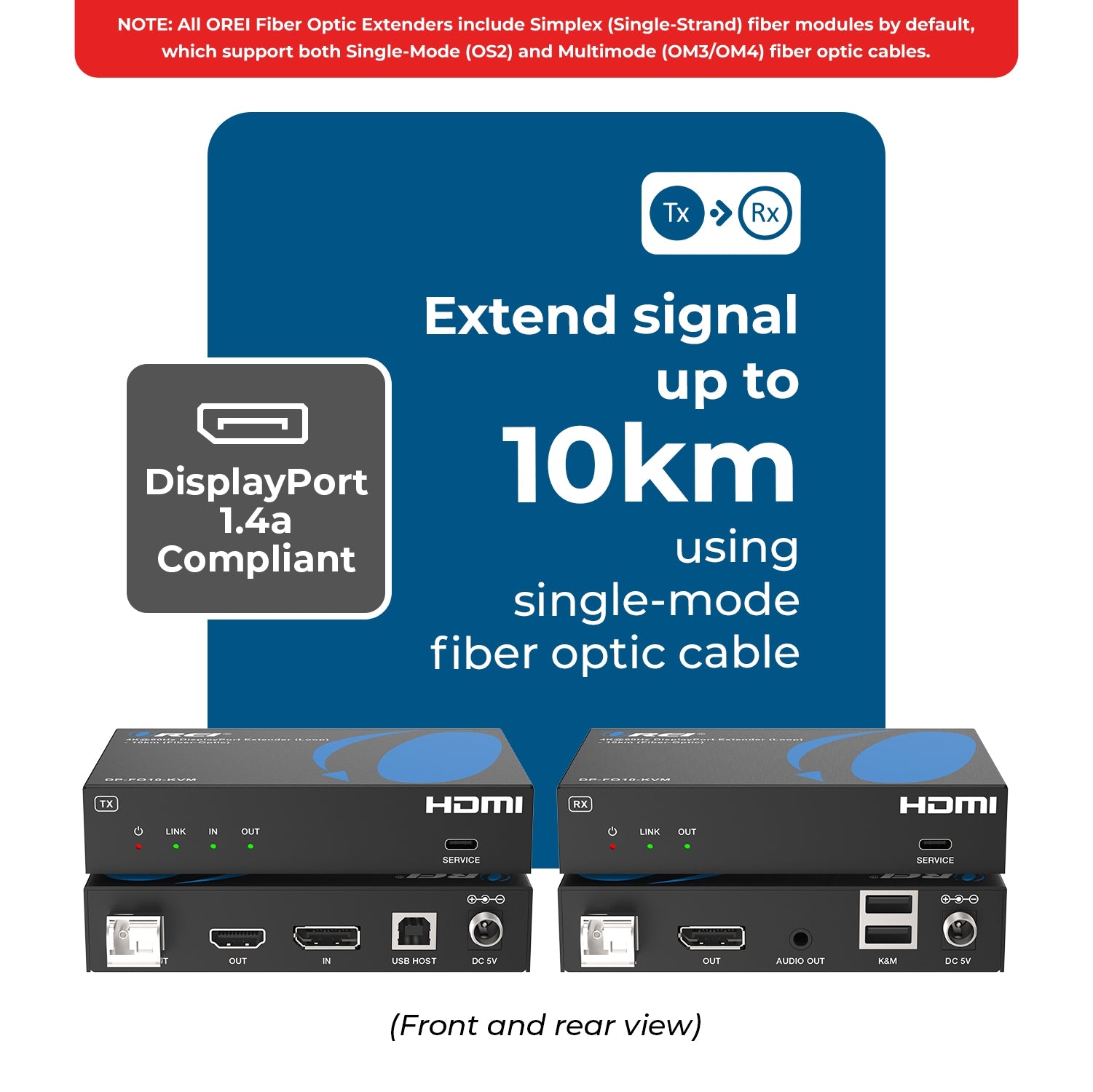

4K@60Hz DisplayPort Extender (Loop) - 10km (Fiber-Optic) - (DP-FO10-KVM)

• DisplayPort 1.4a Compliant – Ensures compatibility with modern DP devices and formats.
• HDCP 2.3 Support – Works seamlessly with protected content.
• High Video Bandwidth – Supports HBR3, HBR2, HBR, and RBR rates (8.1 / 5.4 / 2.7 / 1.62Gbps).
• 4K@50/60Hz 4:4:4 Video – Transmits ultra-clear, uncompressed video over long distances.
• Flexible Resolution Support – Works with any VESA standard resolution.
• Ultra-Long Transmission – Up to 10km over single-mode fiber; up to 300m over OM4 multi-mode fiber (via SFP modules).
• 3D & HDR Formats – Pass-through for HDR, HDR10, HDR10+, Dolby Vision, and HLG.
• Wide Audio Compatibility – LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio.
• HDMI Loop Output – Local display monitoring from the transmitter side.
• Audio De-embedding – Extracts audio on the receiver side.
• USB 1.1 KVM Functionality – Remote control a PC from the Receiver end.
• Compact, Lightweight Design – Easy to mount and ideal for space-constrained installations.


DP-FO10-KVM is a high-performance DisplayPort over fiber optic extender, designed for ultra-long-distance, lossless AV transmission. Supporting DisplayPort 1.4a and HDCP up to version 2.3, it delivers crystal-clear video at resolutions up to 4K@60Hz 4:4:4 with full HDR support. Using single-mode fiber, it extends signals up to 10km, while optional SFP modules allow multi-mode fiber extension up to 300m over OM4.

Equipped with an HDMI™ loop output on the transmitter for local monitoring and audio de-embedding on the receiver, the system ensures versatile integration into professional AV setups. Built-in USB 1.1 KVM support enables remote control of a PC from the Receiver end using a keyboard and mouse.

Engineered with strong anti-interference capability, high security, compact design, and lightweight construction, the DP-FO10-KVM is ideal for mission-critical applications, control rooms, and high-end AV environments requiring stable, long-distance DisplayPort signal delivery.
