4K@60hz HDMI™ Extender (Loop, Bi-IR) - 10km (fiber-optic)-UHD-FO10-K
- Extend 4K@60Hz Signals up to 10Km(~33000 ft.)
- HDMI 2.0b, HDCP 2.2, and DVI 1.0 compliant
- Features Bi-directional IR and RS-232 Pass through
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
1. Ultra Long-Distance 4K HDMI Over Fiber

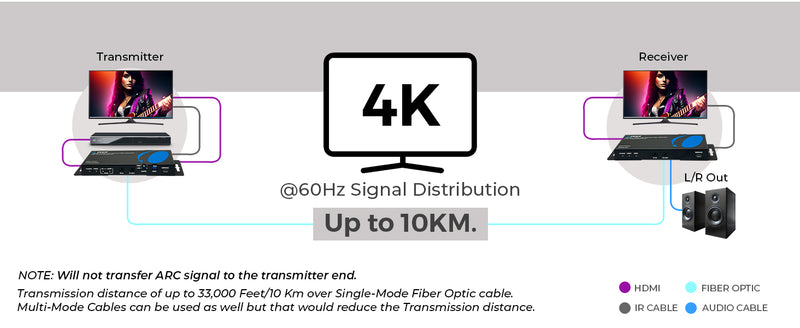

This professional HDMI extender transmits uncompressed 4K@60Hz 4:4:4 video and multi-channel audio up to 10km (33,000 feet) over a single-mode fiber optic cable. Fully compliant with HDMI 2.0b, HDCP 2.2, and DVI 1.0, it supports seamless compatibility with modern AV systems for long-range, high-bandwidth applications
2. Exceptional Video and Audio Quality
With 18Gbps bandwidth and support for resolutions up to 4K@60Hz (4:4:4), this HDMI over fiber solution delivers pristine image quality with vibrant color depth and clarity. It supports advanced audio formats including Dolby TrueHD, DTS-HD Master Audio, DSD, and LPCM 7.1, providing an immersive AV experience for professional installations.
3. Flexible Control and Audio Management
The transmitter features an HDMI loop-out for local monitoring and supports audio embedding into the fiber signal. The receiver offers audio de-embedding, enabling connection to external audio systems. Bi-directional IR and RS-232 pass-through functions make it easy to control source or display devices remotely across the fiber link.
4. Compact, Versatile, and Reliable
Designed for demanding AV environments such as control rooms, conference centers, stadiums, and large venues, this 4K HDMI fiber extender combines compact size with powerful performance. Its plug-and-play setup, durable build, and ultra-long-distance transmission make it the ideal choice for fiber-based AV deployments.
OREI 4K HDMI Extender Balun up to 10 KM
- HDMI 2.0b, HDCP 2.2, and DVI 1.0 compliant.
- 18Gbps video bandwidth.
- Video resolution up to 4K@50/60Hz and 2K@60Hz
- HDMI audio formats: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD.
- 3D and HDR video support.
- Transmission distance up to 33000 feet/10km (over single-mode fiber cable).*It is possible to use multi-mode fiber with these SFP modules but the distance can not be guaranteed.
- Bi-directional IR enables control to and from the Transmitter and Receiver.
- RS-232 pass-through and EDID management for simple and convenient control.

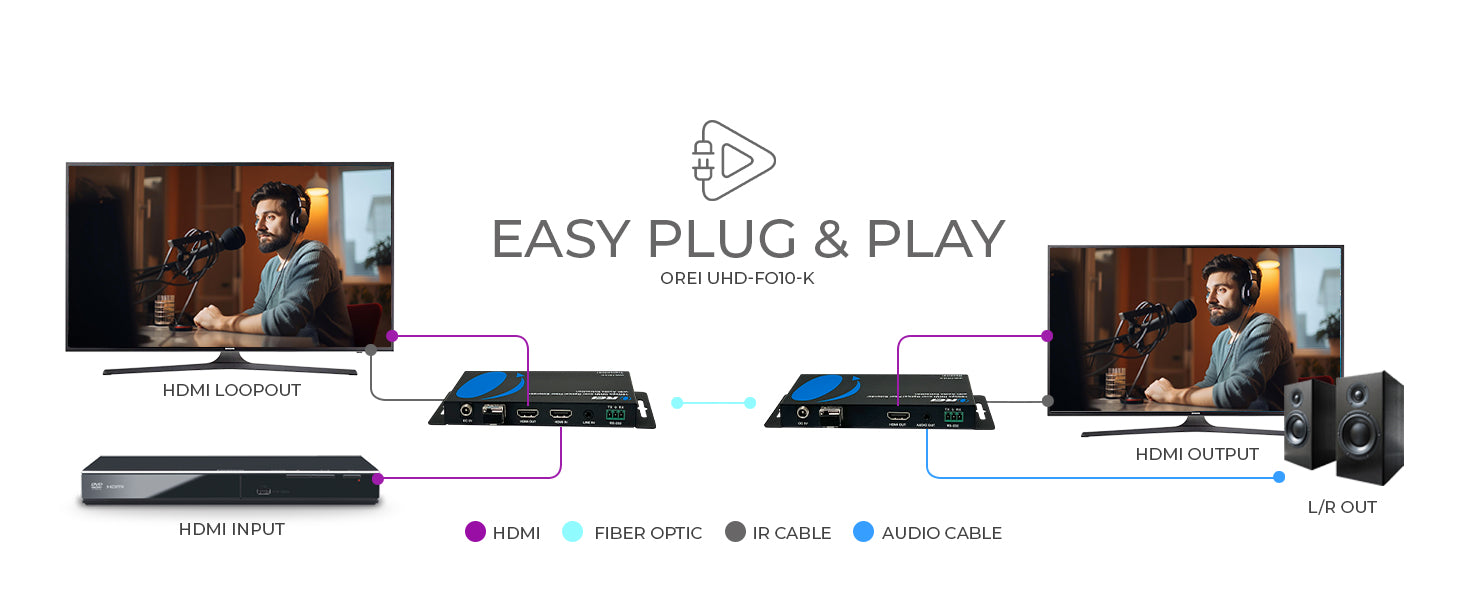

- The transmitter features an HDMI loop output to connect a display near the source.
- Audio Extraction through 3.5mm output on the Receiver end.
- Compact design for easy and flexible installation.
Description:

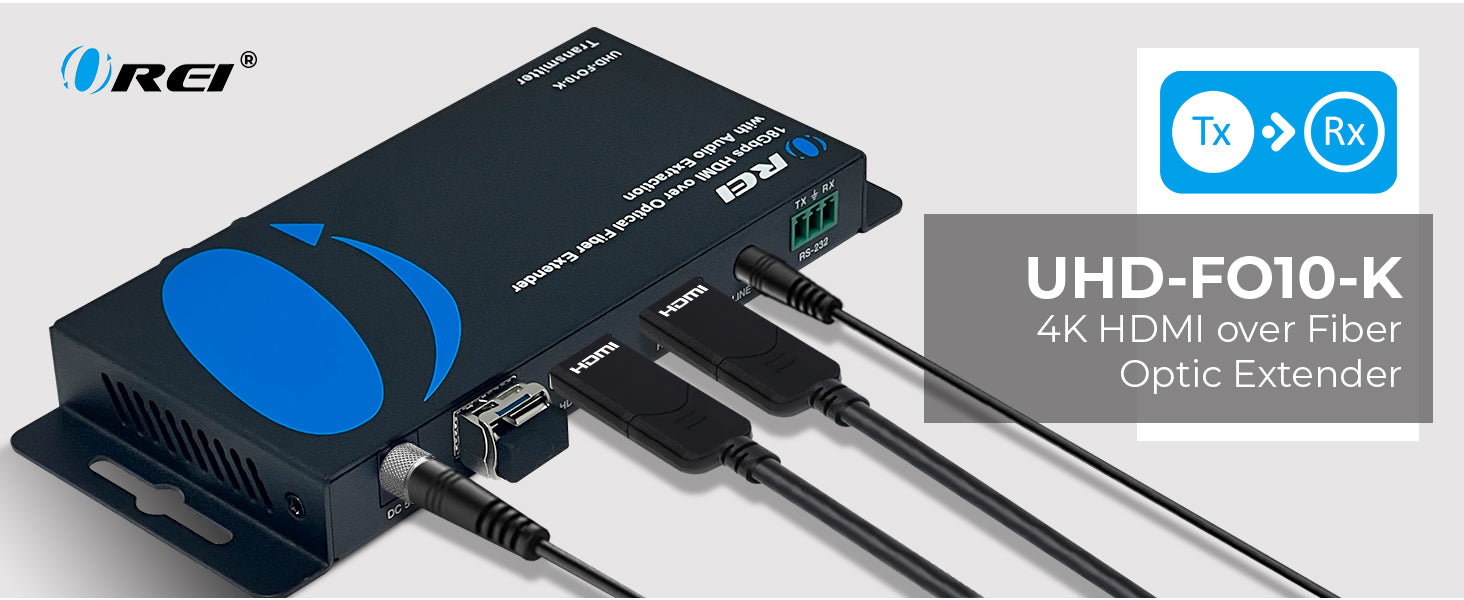

The UHD-FO10-K can extend an HDMI signal up to 33000 feet/10km over single-mode fiber cable. It supports video resolution up to 4K@60Hz and 2K@60Hz with 18Gbps video bandwidth. The transmitter features an HDMI loop output to connect a display near the source. EDID Management through the switches on the Transmitter. Audio Extraction through 3.5mm output on the Receiver end. It features Bi-directional IR which enables control to and from the Transmitter and Receiver. RS-232 pass-through. Metal enclosure for durability and heat dissipation.
Package Includes UHD-FO10-K(Transmitter and Receiver), 1x IR Kit(Blaster and Receiver), 2x Power Adapter,2 × 3-pin 3.81mm Phoenix Connector, and User Manual.
UHD-FO10-K User Manual Download
UHD-FO10-K Specifications Sheet
