4K@60hz 1x2 HDMI™ Extender Splitter (IR) - 230ft (Cat6) - (UHD12-EX230-K)
- HDCP 2.2 compliant
- Video resolution up to 4K@60Hz
- Advanced EDID management
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
1. High-Performance 1x2 HDMI Splitter & Extender

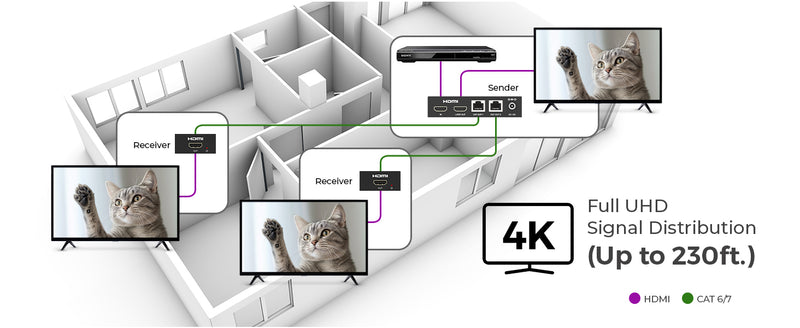

The UHD12-EX230-K combines the functionality of a 1x2 HDMI splitter over CAT6 with long-range transmission capabilities. It extends uncompressed 4K@60Hz video and audio signals up to 230ft (70m) over a single CAT6/7 cable—ideal for hdmi over ethernet 4K AV setups in commercial, retail, or residential environments.
2. Stunning 4K Video Quality Without Compression
Delivering 18Gbps of video bandwidth, this HDMI cat extender ensures ultra-clear visuals at resolutions up to 3840x2160@60Hz. The system is HDCP 2.2 compliant, ensuring compatibility with modern content-protected devices such as streaming players, Blu-ray systems, and set-top boxes.
3. Local Display Loop-Out & Power over Cable

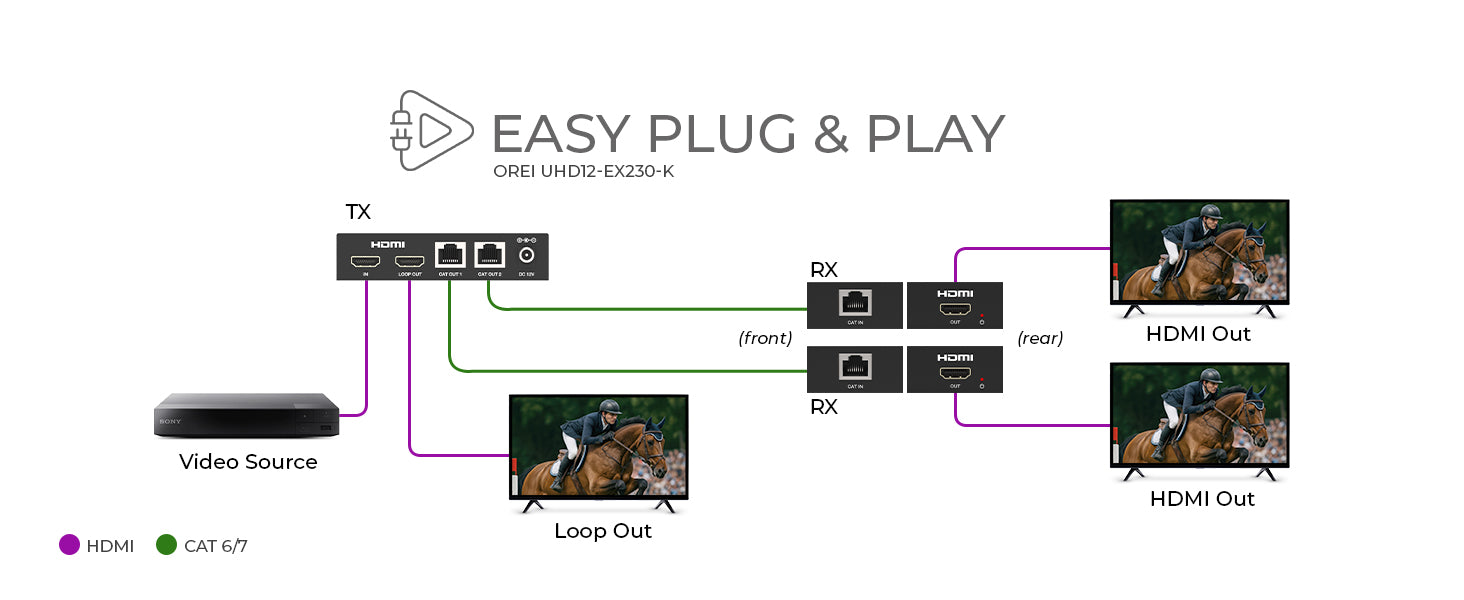

A convenient HDMI loop output at the transmitter allows for real-time local monitoring without the need for extra splitters. Power over Cable (PoC) functionality reduces wiring clutter—only the transmitter requires power, making it ideal for tidy installations in offices or digital signage networks.
4. Compact, Plug-and-Play Convenience
Built for ease of use, this splitter HDMI extender features a lightweight, compact design and requires no drivers for installation. Whether you're deploying splitter CAT6 solutions, building a hdmi extender splitter 1x2 system, or extending HDMI over CAT6 4K, the UHD12-EX230-K offers unmatched flexibility and reliability.

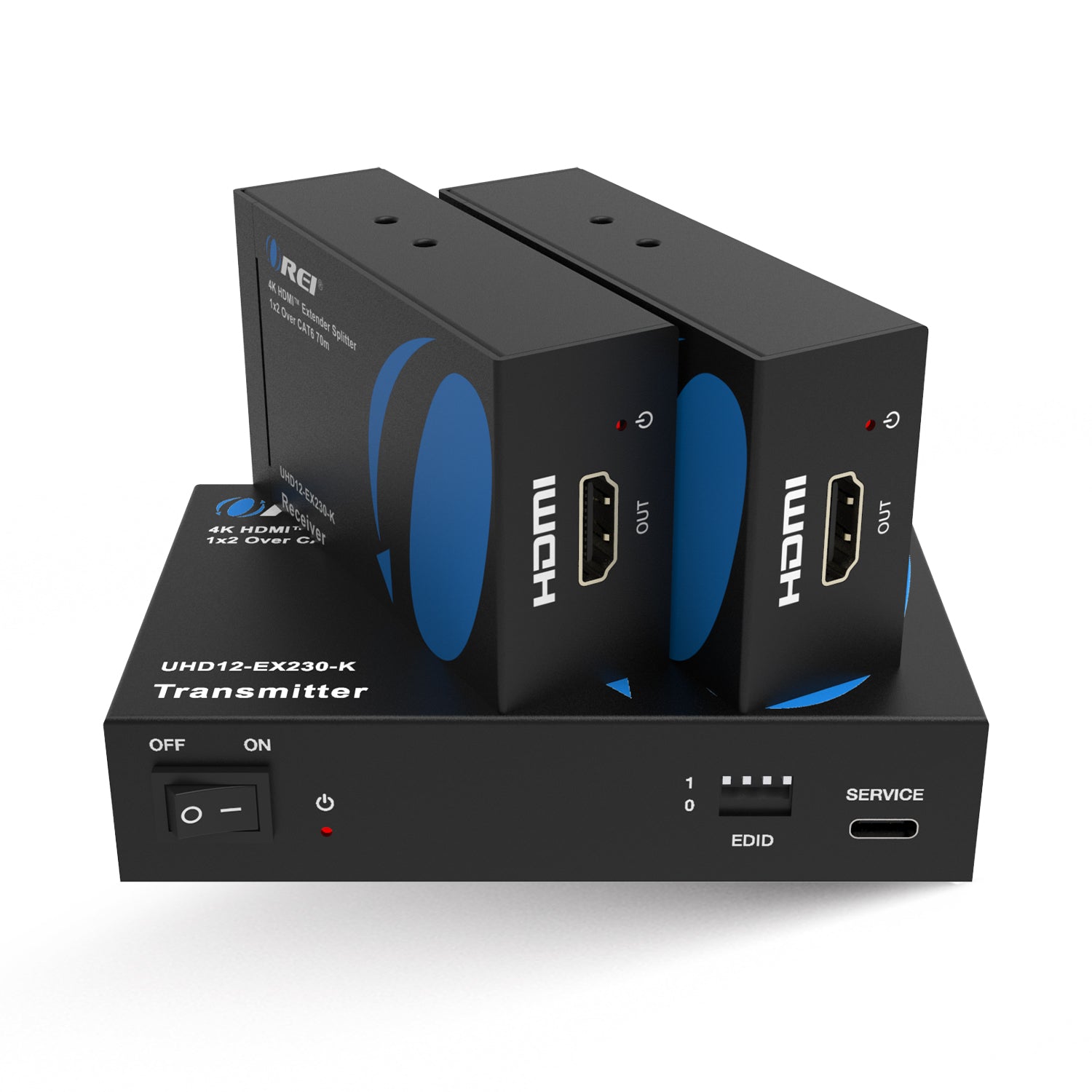

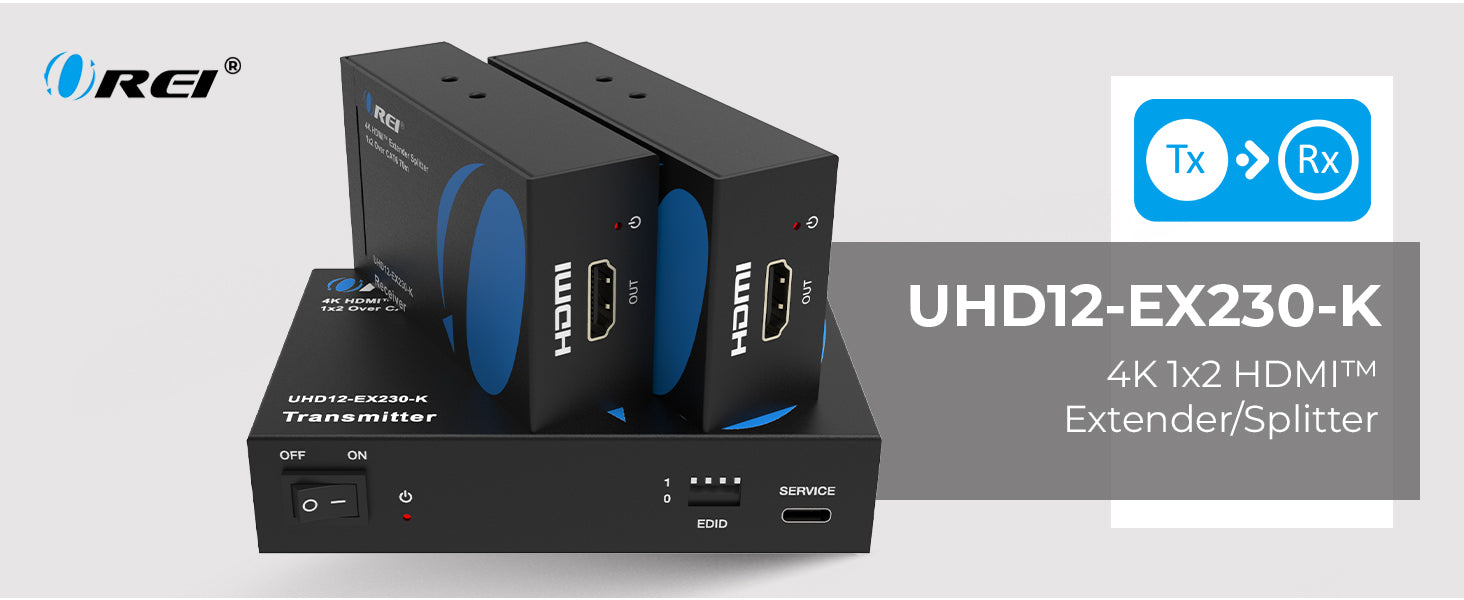

OREI UHD12-EX230-K : 4K HDMI™ EXTENDER SPLITTER 1X2 OVER CAT6 70M

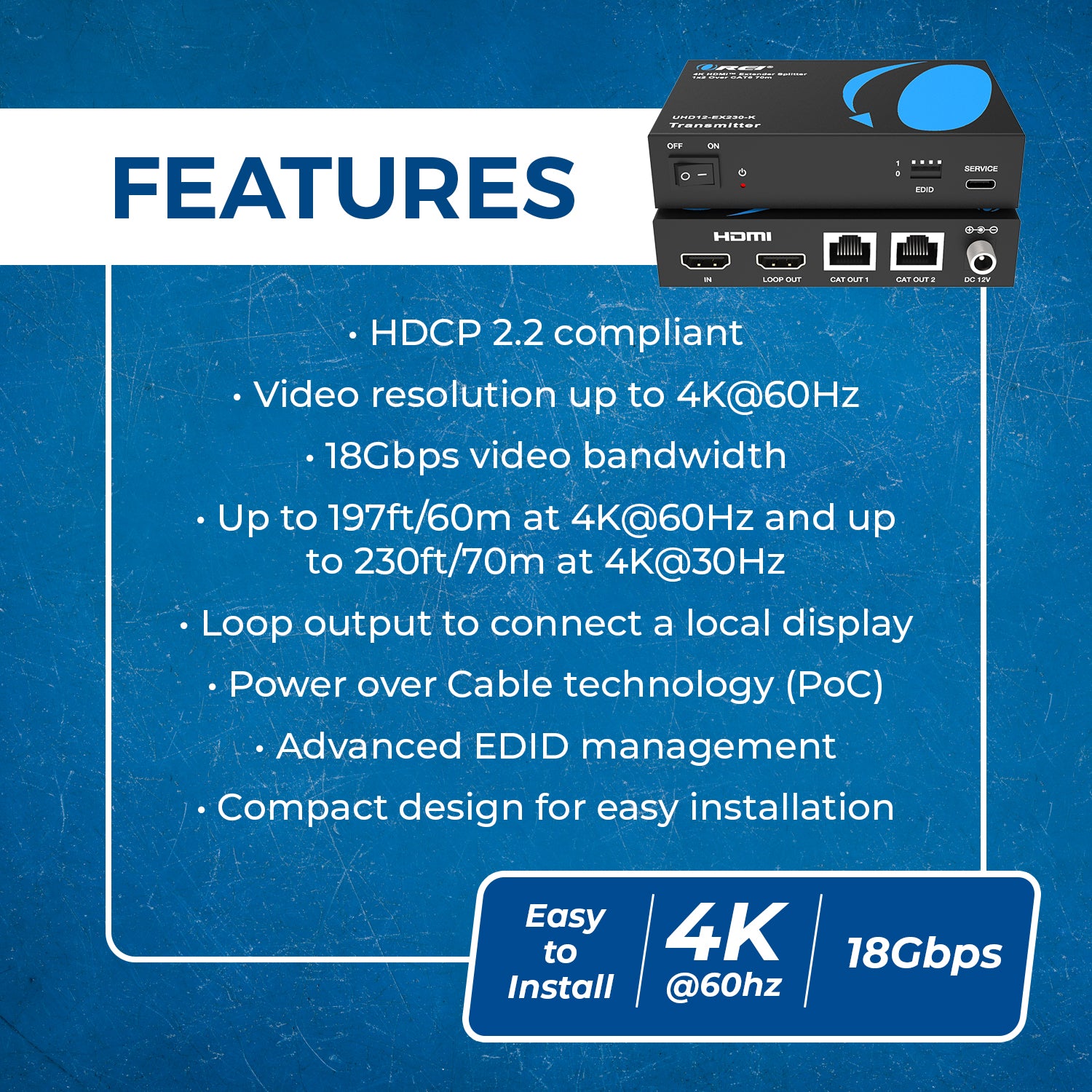

Key Features:
- HDCP 2.2 compliant
- Video resolution up to 4K@60Hz
- 18 Gbps video bandwidth
- Extend media up to 197ft/60m at 4K@60Hz and up to 230ft/70m at 4K@30Hz

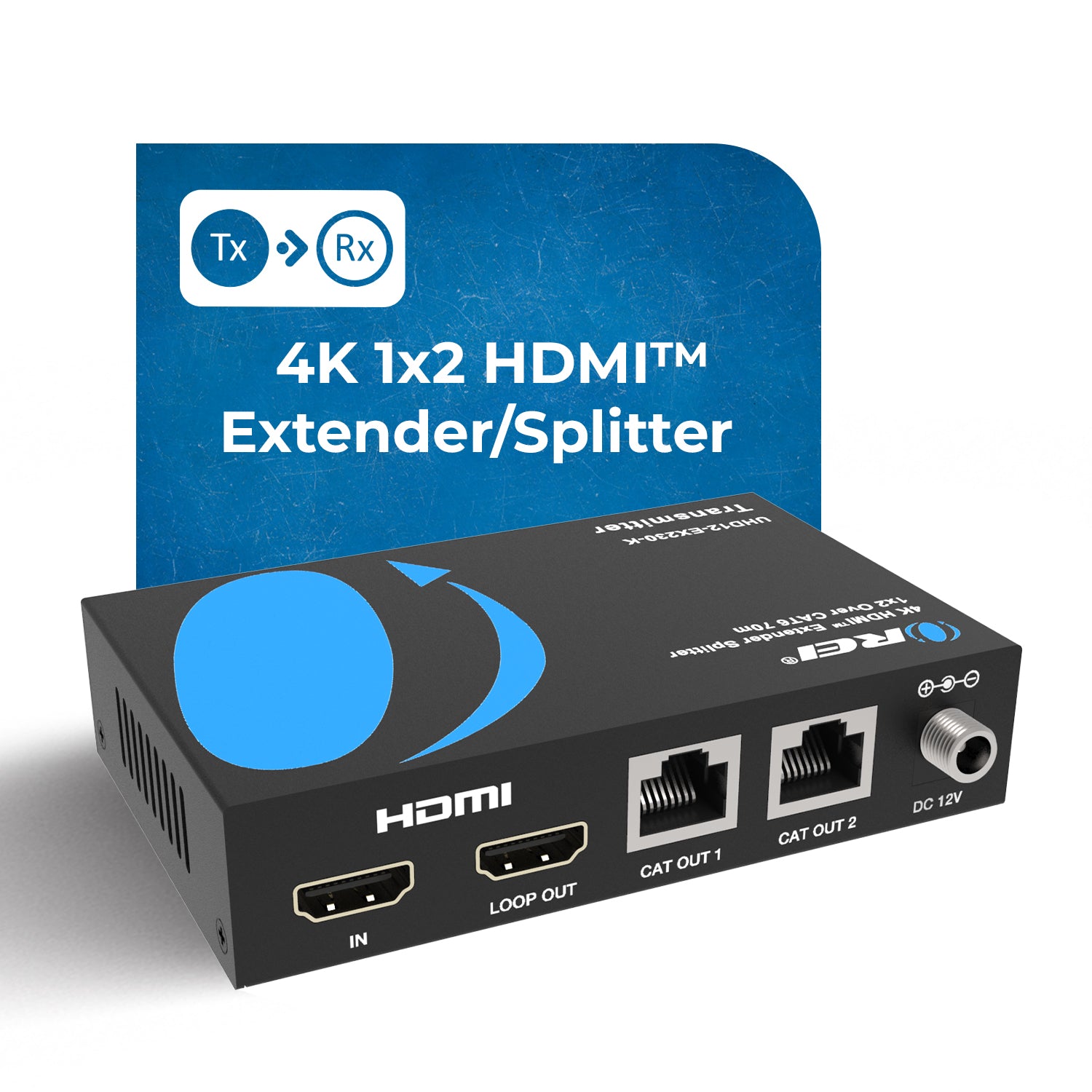

- Loop output to connect a local display
- Power over Cable technology only requires a power adapter at the Transmitter end
- Advanced EDID management

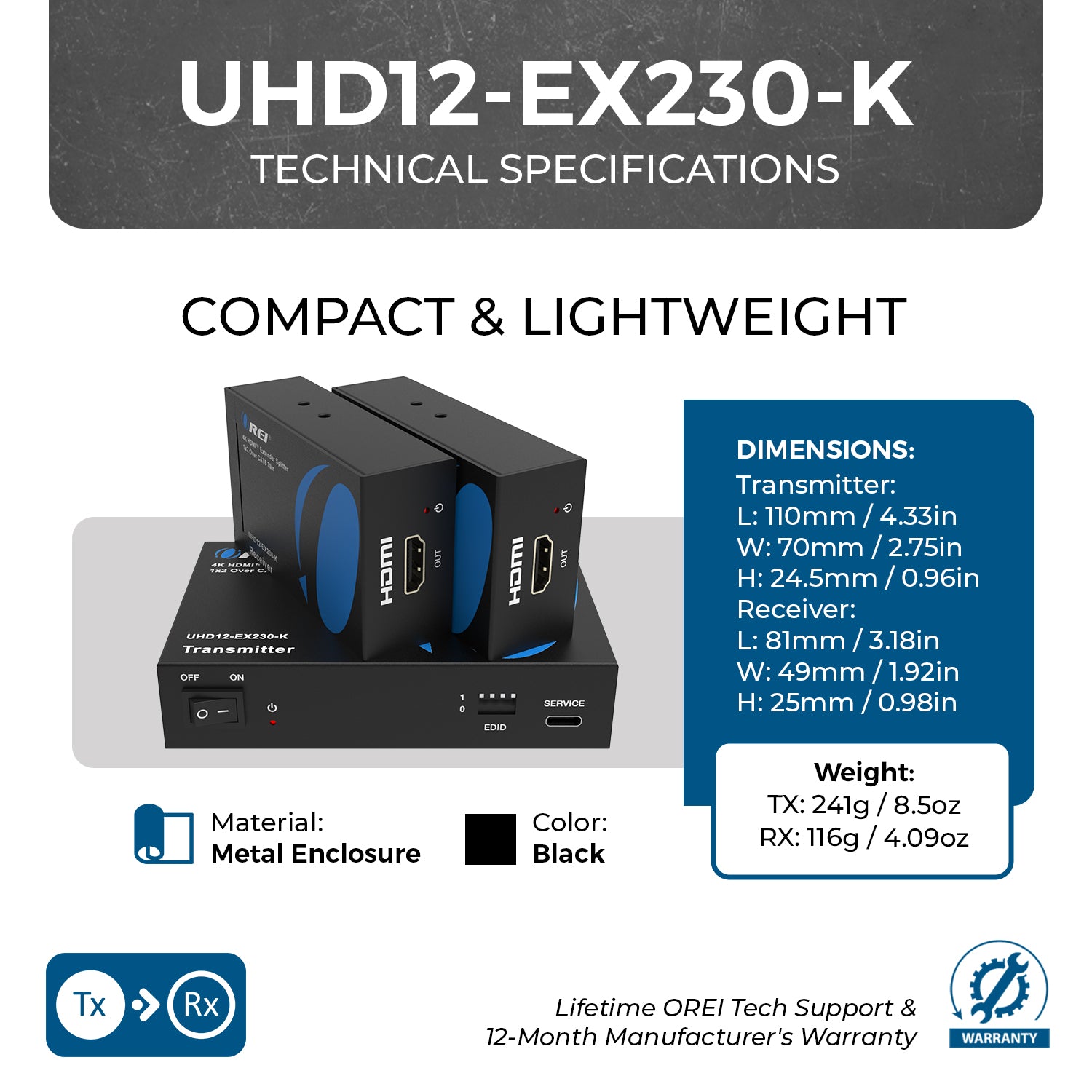

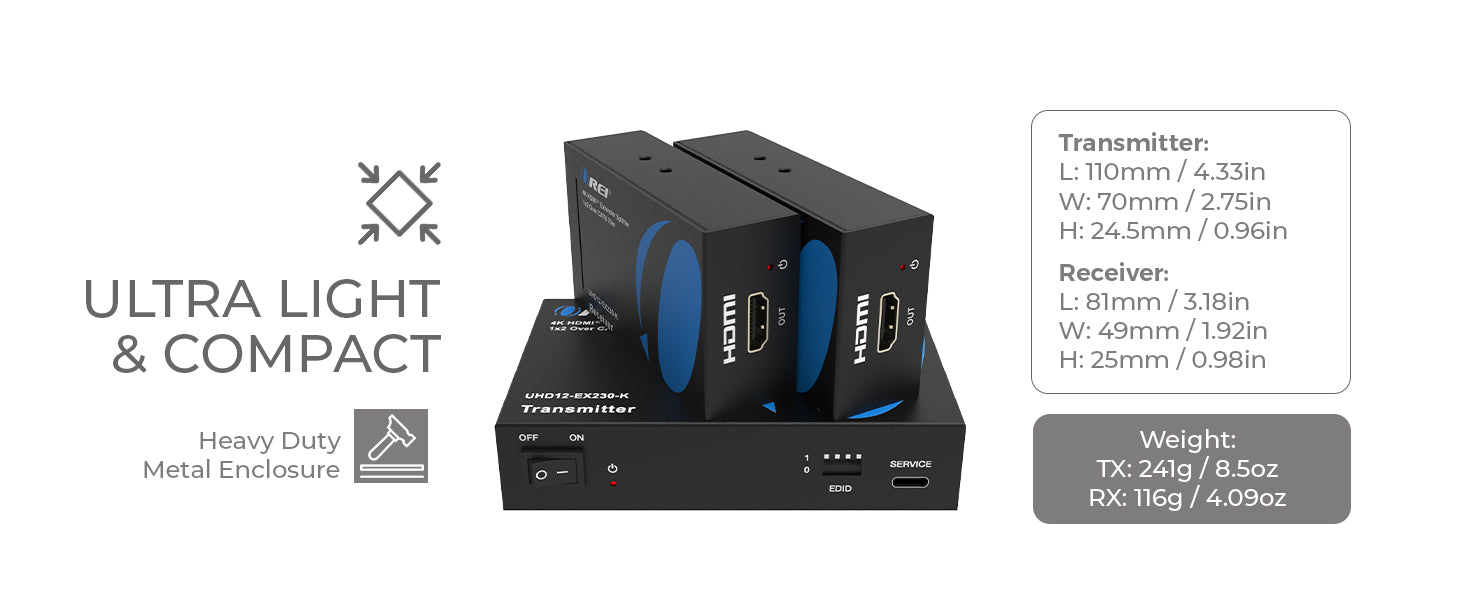

- Compact design for easy installation

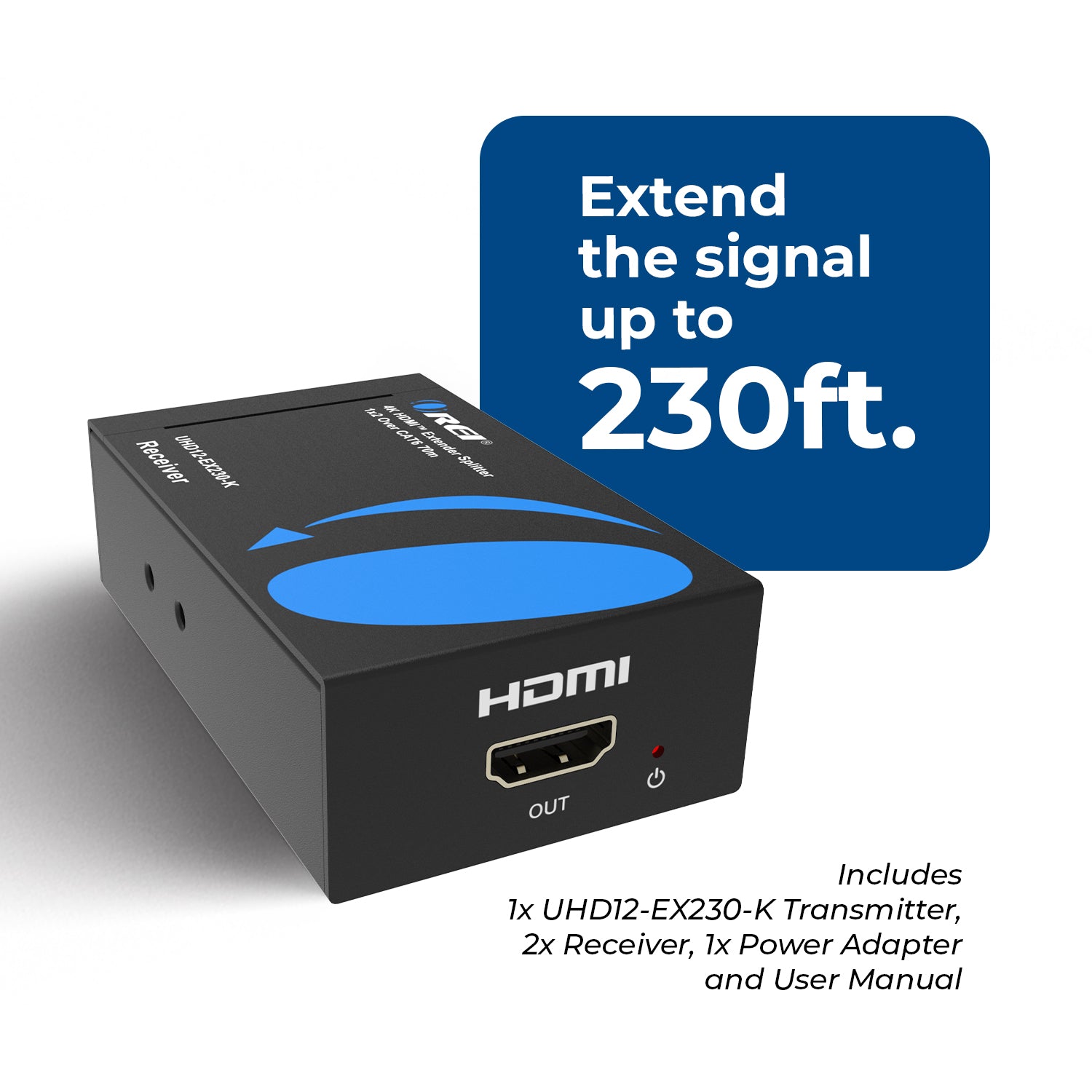

The UHD12-EX230-K HDMI Extender Splitter allows you to send media up to 230ft away at 4K resolution over CAT6/7 cables. It is HDCP 2.2 compliant with 18 Gbps video bandwidth. Extend media up to 230ft/70m at 4K@30Hz and 197ft/60m at 4K@60Hz. HDMI loop output at the Transmitter allows you to connect a display near the source. Advanced EDID management allows better compatibility. Power over cable technology simplifies installation as only one power adapter is needed, which connects to the Transmitter. Its compact design makes it ideal for any personal or commercial setup.
UHD12-EX230-K User Manual Download
