Power over Cable technology; only requires a power adapter at the Transmitter end
Advanced EDID management

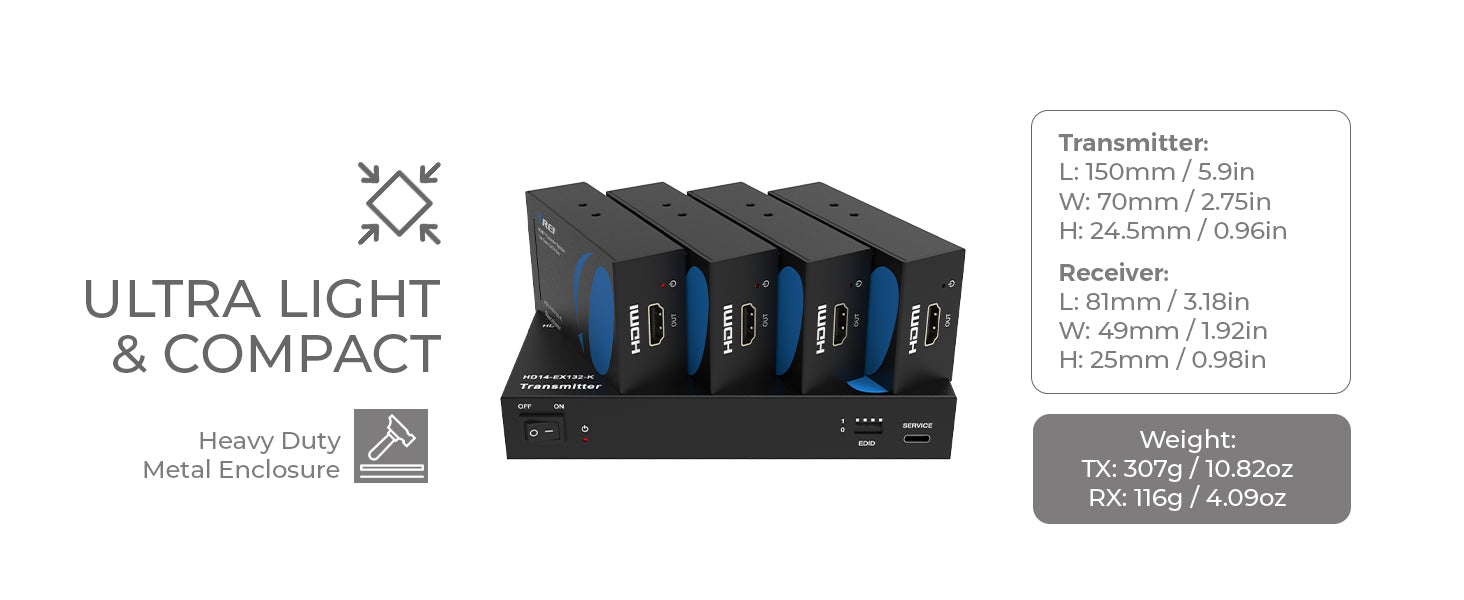

Compact design for easy and flexible installation

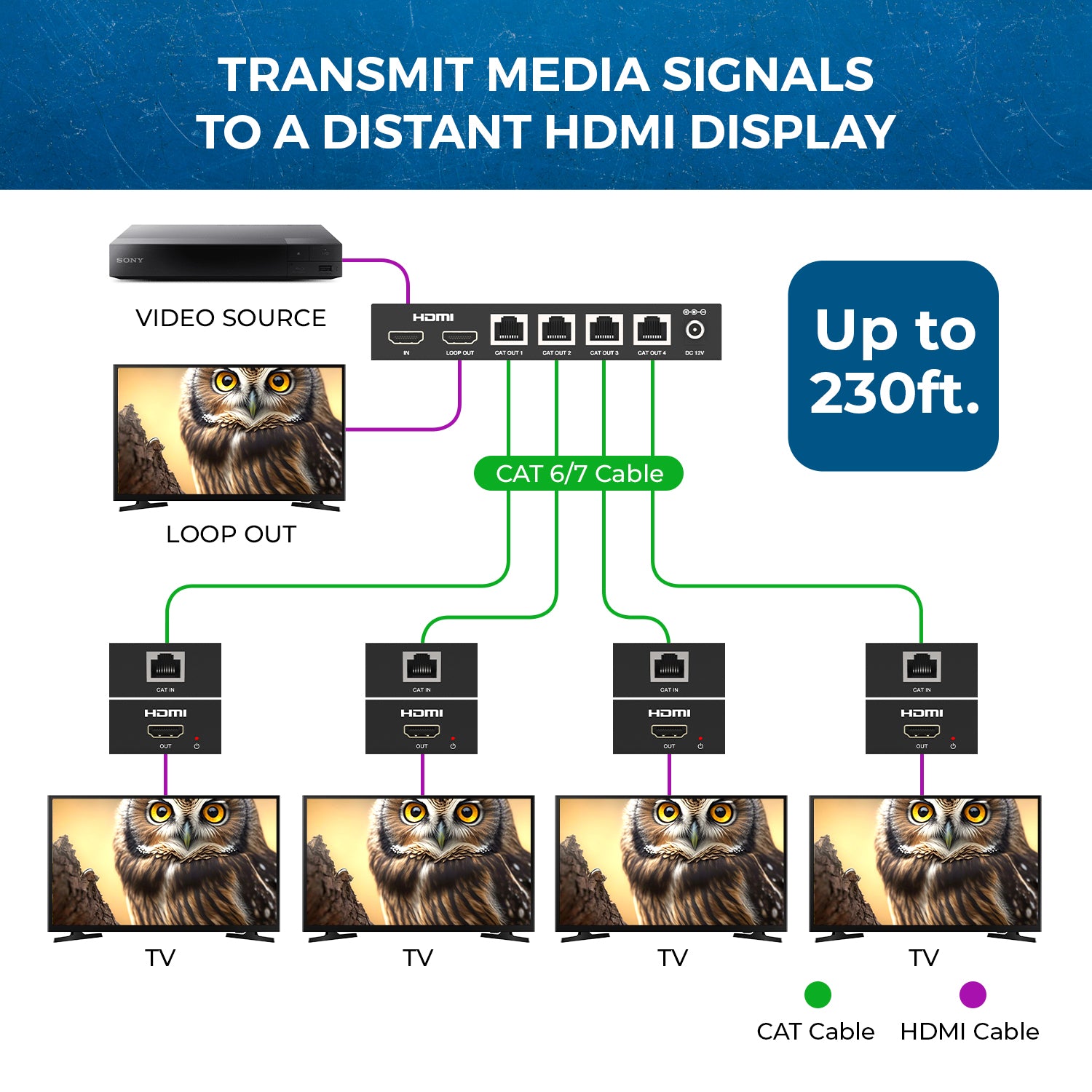

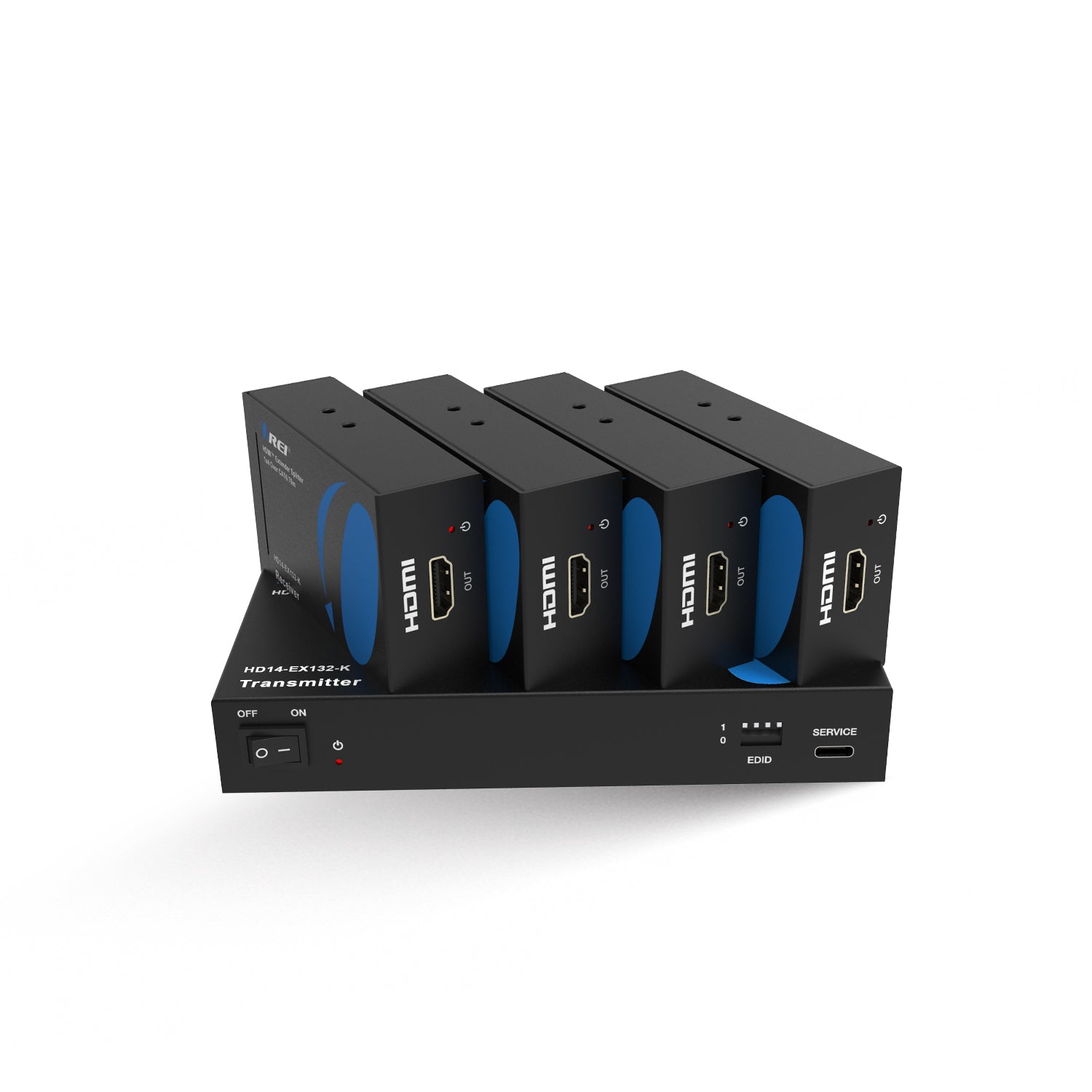

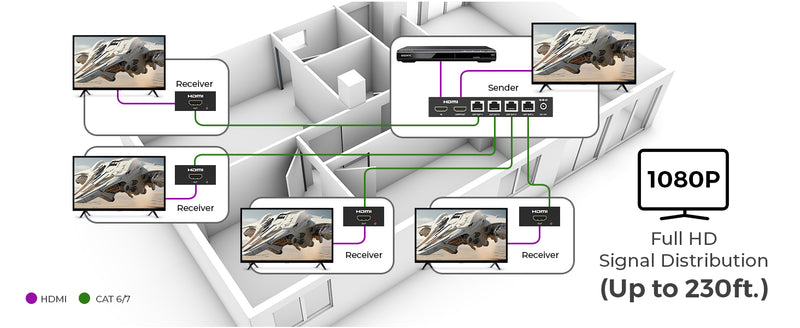

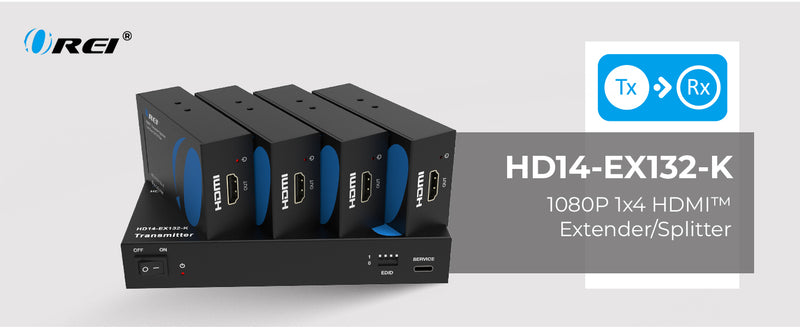

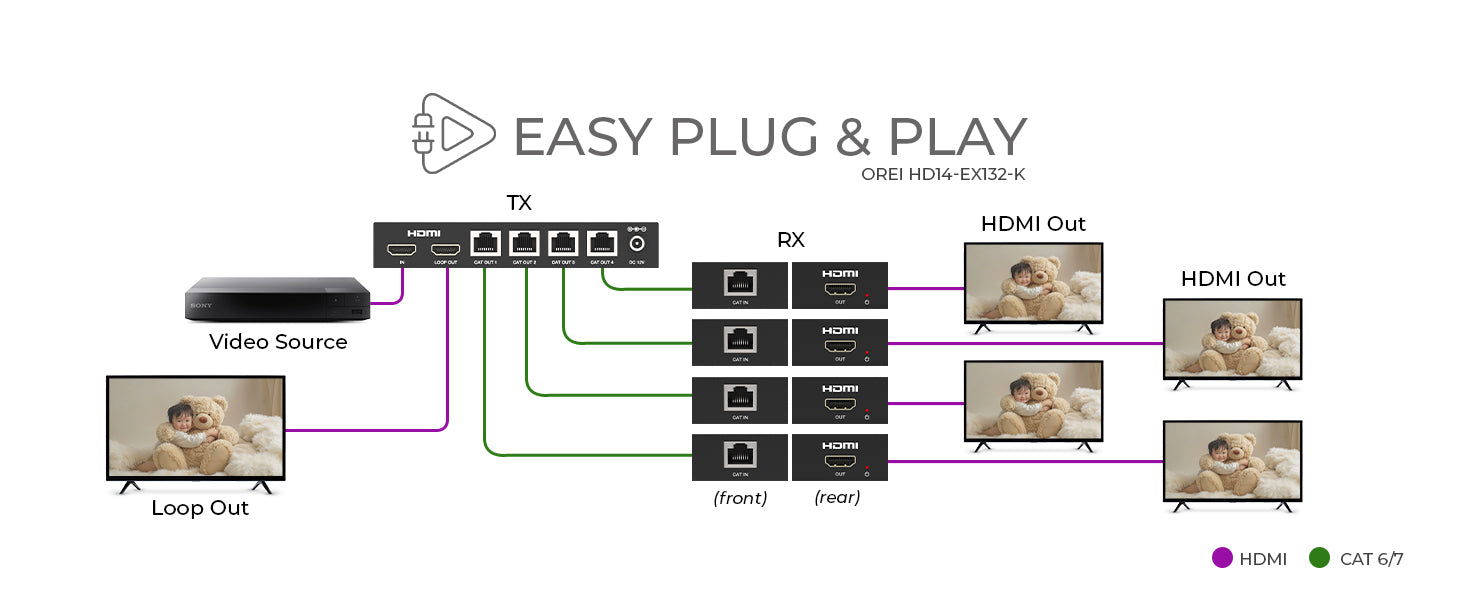

The HD14-EX132-K HDMI Extender Splitter is ideal for transmitting media signals over CAT 6/7 cables to multiple displays across long distances. Compliant with HDCP 1.4, it delivers 4.95Gbps video bandwidth and supports resolutions up to 1080p@60Hz. It can extend(duplicate) media to four displays located up to 230ft/70m away, with an HDMI output on the Transmitter for a nearby display. It supports up to LPCM 7.1CH audio with Dolby and DTS audio formats. Featuring Power over Cable technology, the entire kit requires just one power adapter for operation. Its compact design makes it ideal for home use or smaller commercial applications.
AUDIO AND VIDEO
Transmitter:
INPUT PORTS:
1x HDMI
OUTPUT PORTS:
4x RJ45
Receiver:
INPUT PORTS:
1x RJ45
OUTPUT PORTS:
1x HDMI
COMPLIANCES
HDMI Compliance:
HDMI 1.3
HDCP Compliance:
HDCP 1.2
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
1080p@60Hz:
Full HD resolution 1080p@60Hz up to 40 meters via CAT6 cable
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 132 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
HD14-EX132-K User Manual Download
