4K@60hz 1x2 HDMI™ Extender Splitter - 115ft (cat6)-UHD12-EX115-K
- Power over Cable technology

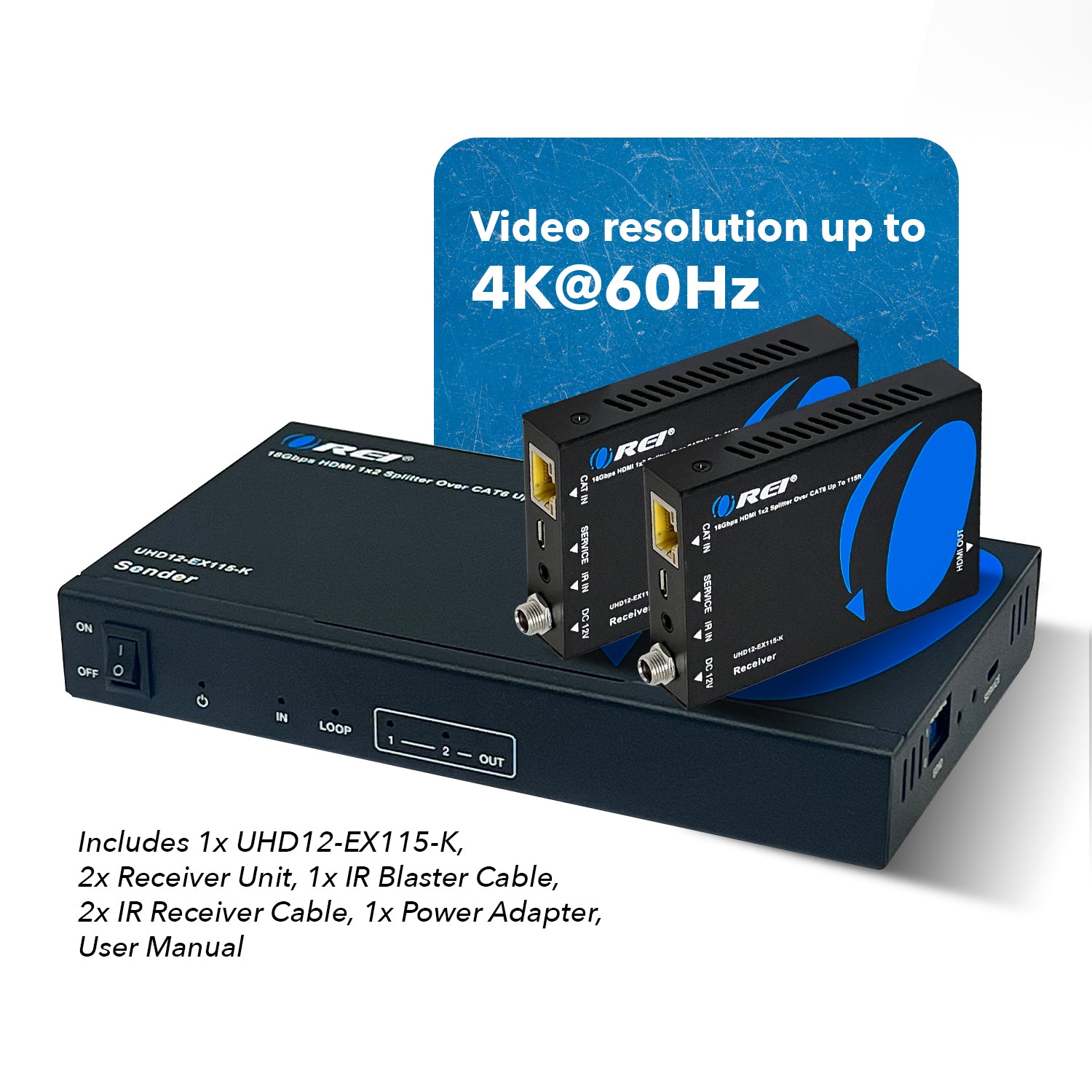

- Video resolutions up to 4K@60Hz and 2K@60Hz
- One-way IR control
*Overnight shipping doesn't include Weekends, or any holidays.
Extend HDMI Over Long Distances Without Compromise

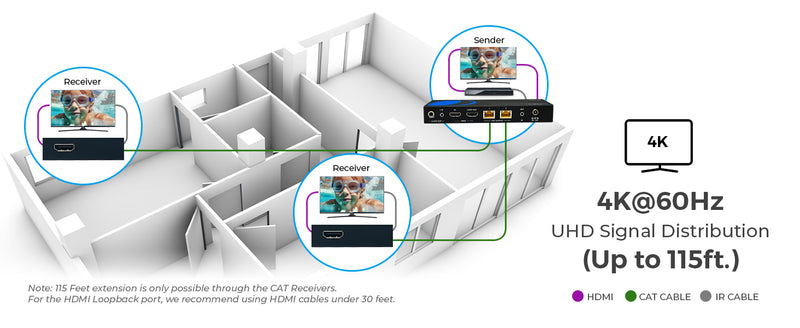

The UHD12-EX115-K HDMI extender splitter transmits high-resolution signals over CAT6/6a/7 cables—up to 115ft at 4K@60Hz and 197ft at 1080p. Whether you’re using it in a classroom, digital signage setup, or a conference room, this HDMI extension solution ensures stable, crystal-clear transmission across extended distances without lag or signal degradation.
Pristine 4K HDR Video with Full Chroma Support
Experience true-to-life visuals with support for 4K@60Hz 4:4:4 resolution and wide HDR formats including HDR10+, Dolby Vision, and HLG. This HDMI extender 4K system delivers ultra-high-definition clarity and vibrant color performance for professional AV environments or premium home theater setups.
Built-In Audio De-Embedding for Flexible Sound Options
The transmitter side features coaxial and analog L/R outputs, allowing independent audio routing to external sound systems while preserving 7.1CH HD audio over HDMI. Perfect for installations where audio needs to be distributed separately, this cat6 extender ensures high-quality sound and flexibility in complex AV configurations.

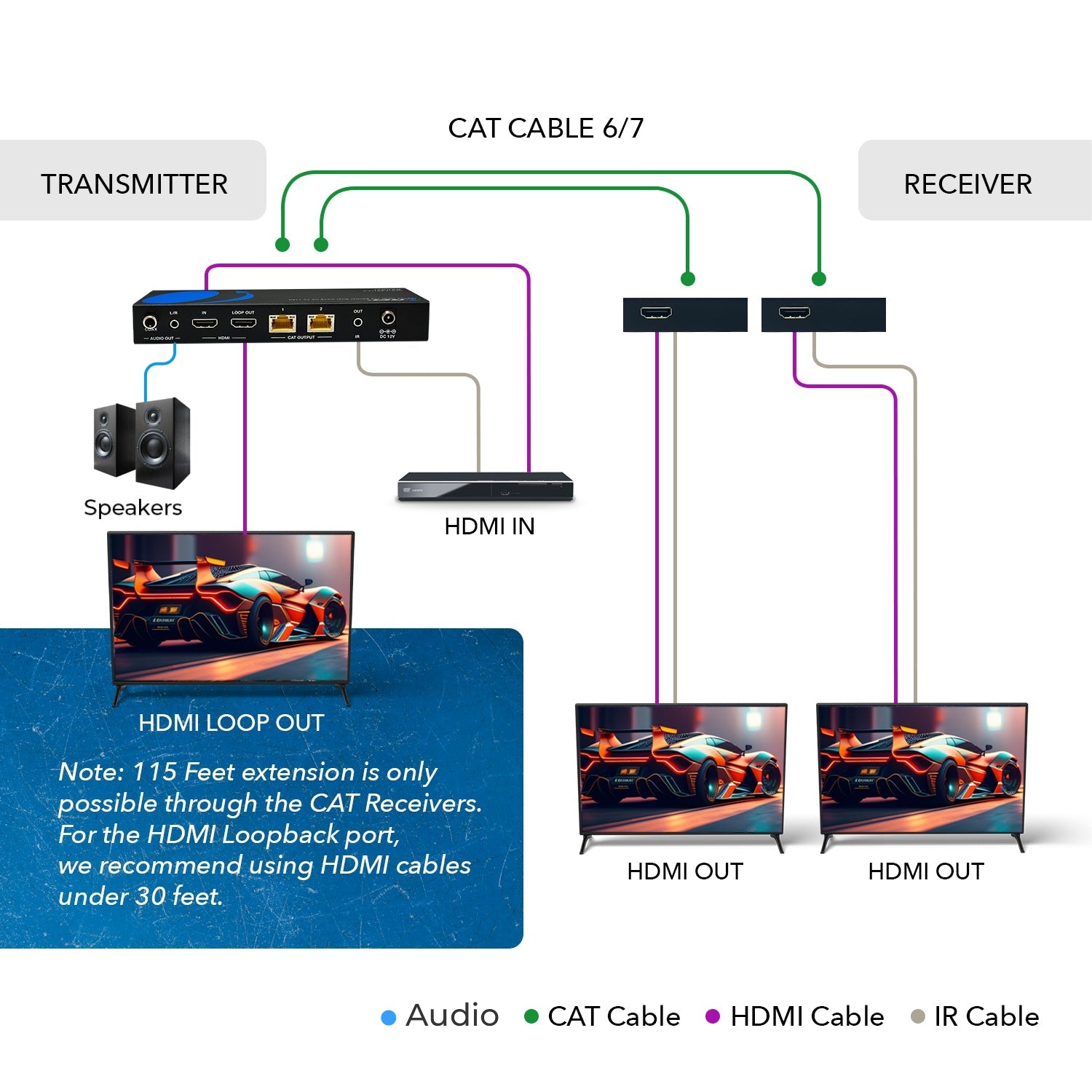

Local HDMI Loop-Out & Remote Control Functionality
A convenient HDMI loop-out lets you connect a local display near the source for on-site monitoring or dual viewing. With one-way IR control, users can operate the HDMI source from the receiver side—making this HDMI screen extender ideal for remote-control classrooms, conference spaces, and retail displays.

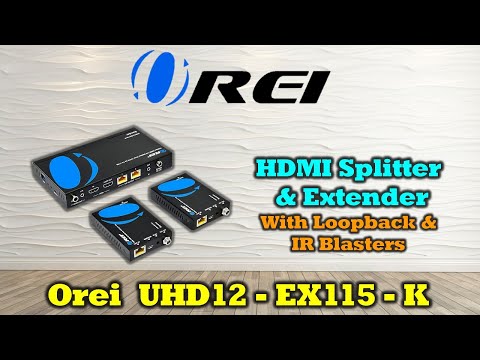

OREI UHD12-EX115-K: 4K 1x2 HDMI Extender Splitter over CAT 6 up to 115 feet with one-way IR control
Key Features:
-
HDMI 2.0b, HDCP 2.2 & 1.x Compliant – Compatible with the latest and legacy HDMI standards for broad device support.
-
18Gbps Video Bandwidth – Ensures high-speed, uncompressed 4K signal transmission.
-
Supports 4K@60Hz 4:4:4 Resolution – Delivers crisp, true-to-life UHD visuals with full chroma sampling.
-
HDR Formats Supported – Compatible with HDR, HDR10+, Dolby Vision, and HLG for enhanced color and contrast.
-
7.1CH HD Audio Pass-through – Preserves surround sound formats over HDMI for immersive audio.
-

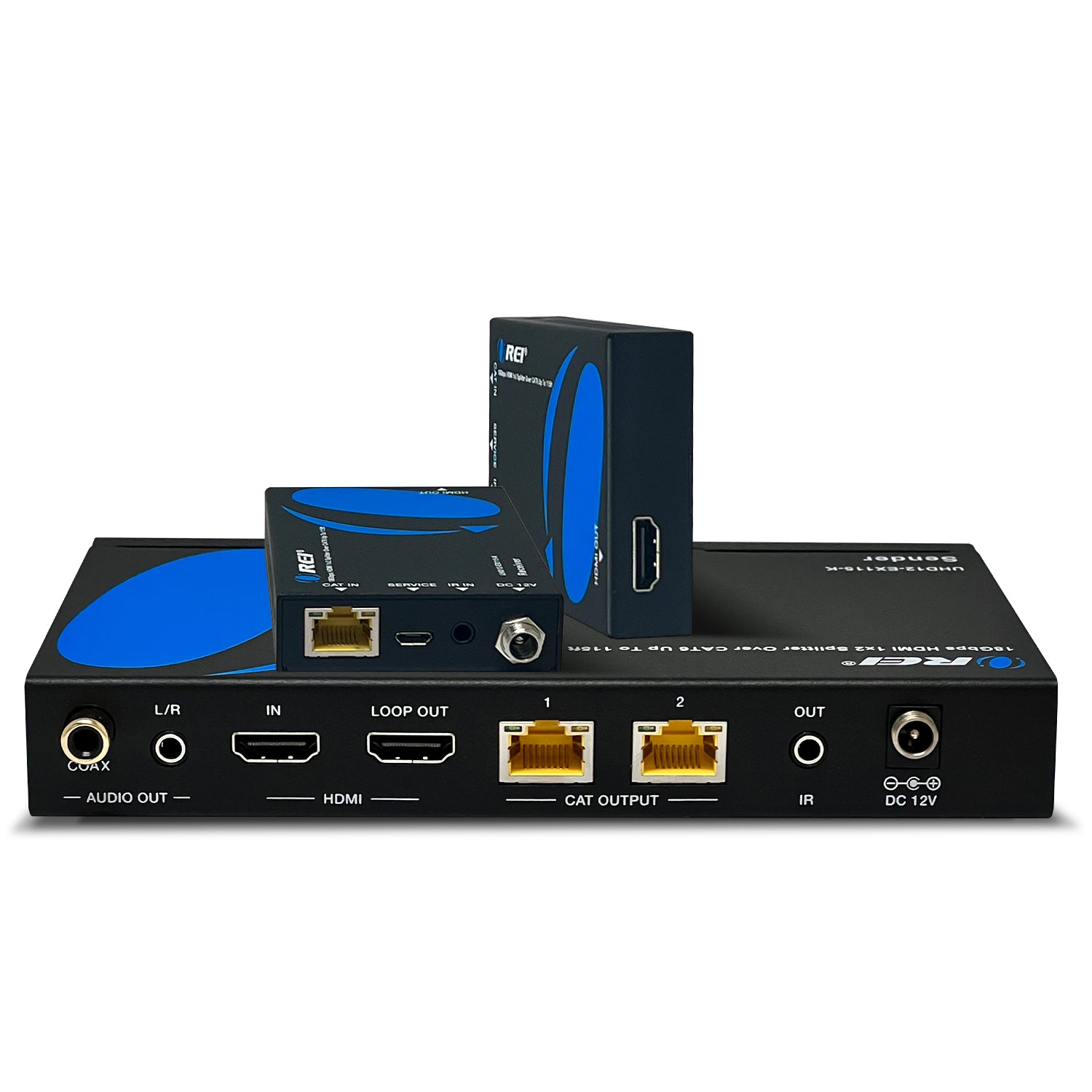

Audio De-embedding (TX Side) – Coaxial and analog L/R outputs allow independent audio routing from the source.
-
Long-Distance Signal Extension – Transmits HDMI over CAT6/6a/7 cable:
-
Up to 115ft (35m) at 4K@60Hz
-
Up to 164ft (50m) at 4K@30Hz
-
Up to 197ft (60m) at 1080P@60Hz
-
-

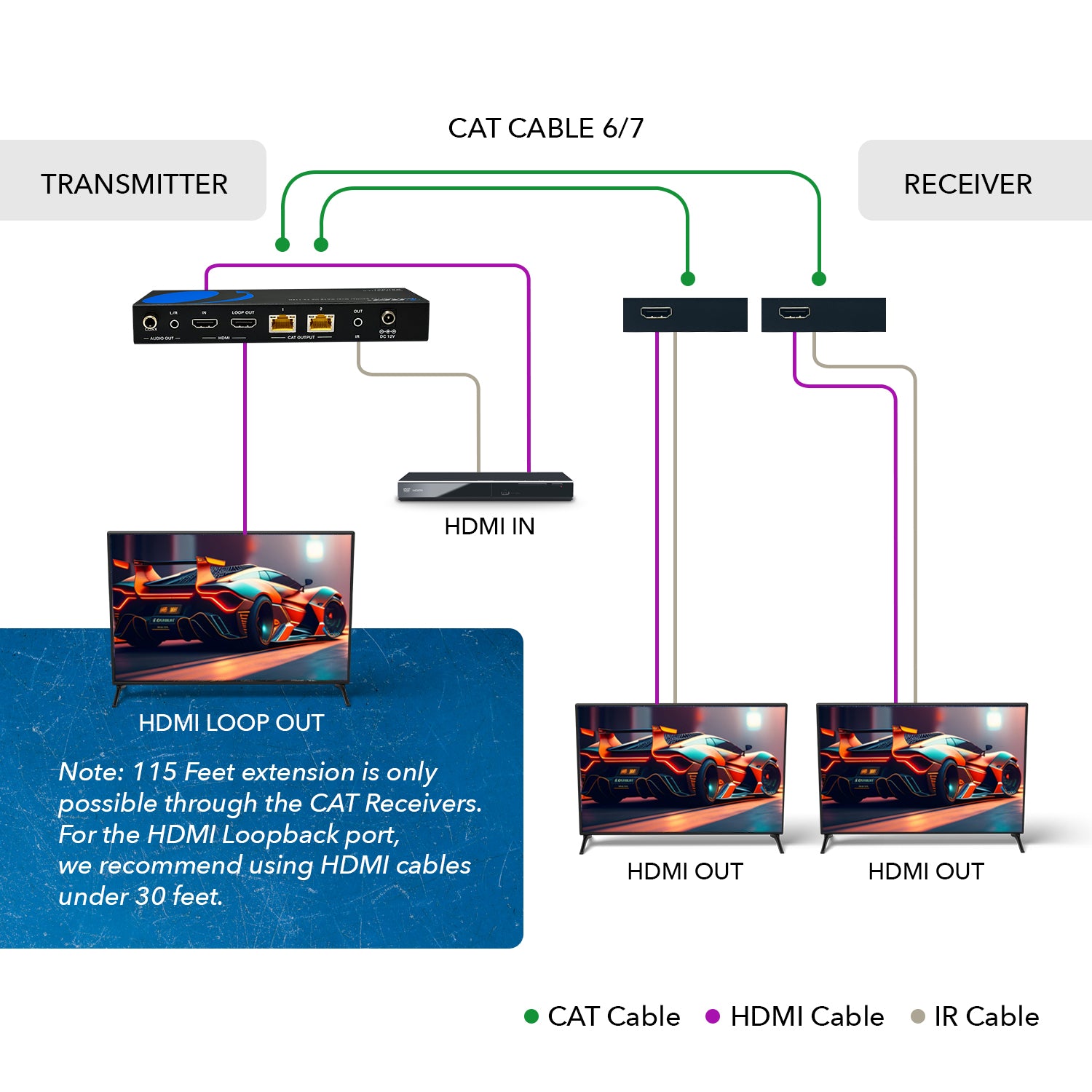

HDMI Loop-Out – Connect a local display near the source for monitoring or dual viewing.
-
One-Way IR Control – Control the source device remotely from the Receiver side.
-

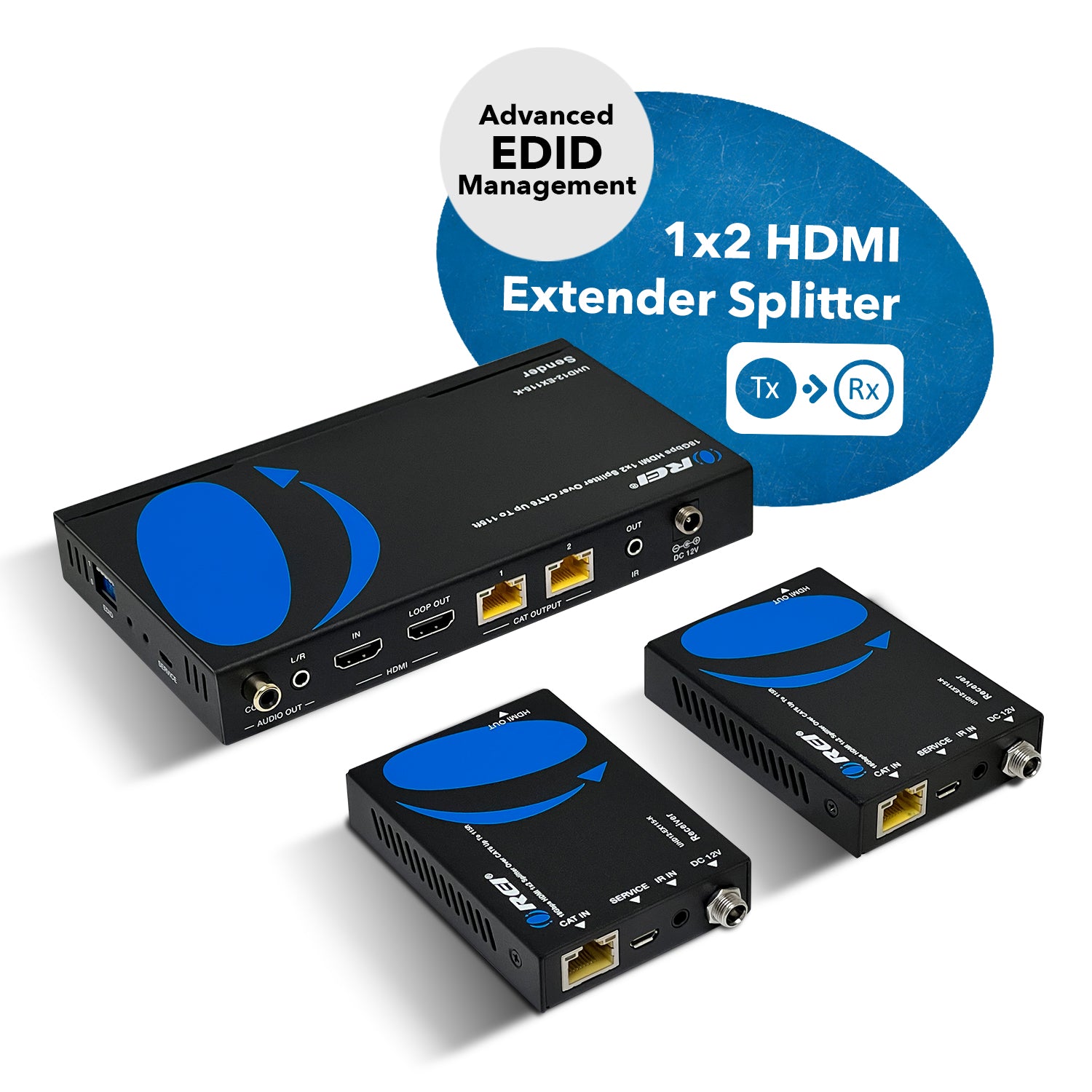

Advanced EDID Management – DIP switches on the transmitter ensure stable handshakes with any display.
-

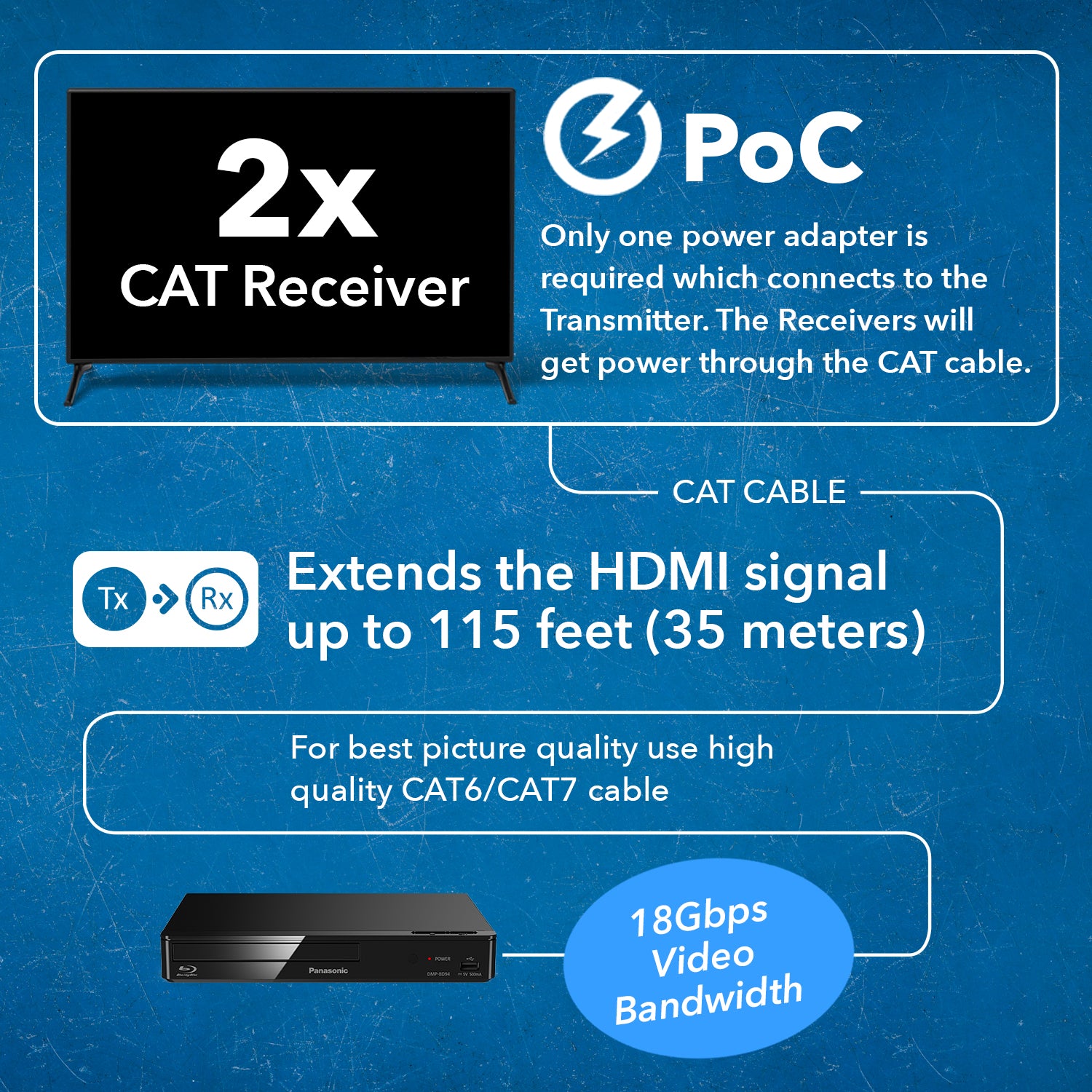

One-Way Power Over Cable (POC) – Power only needed at the Transmitter side, simplifying setup.

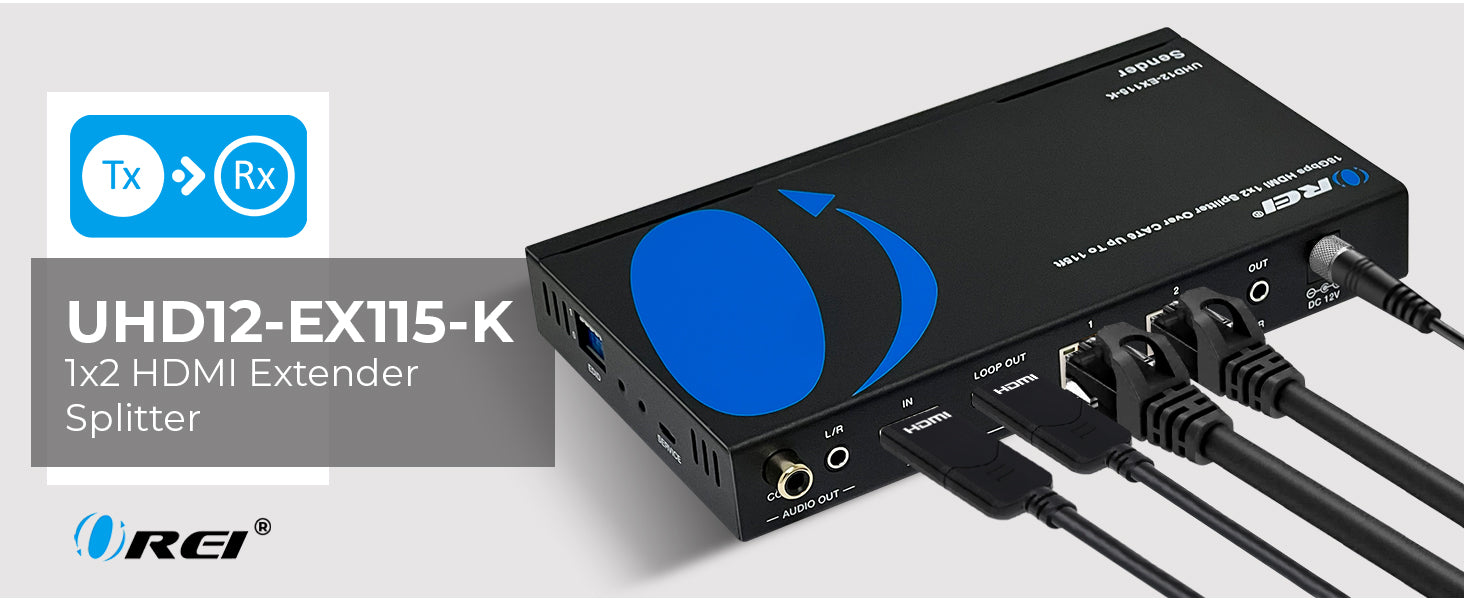

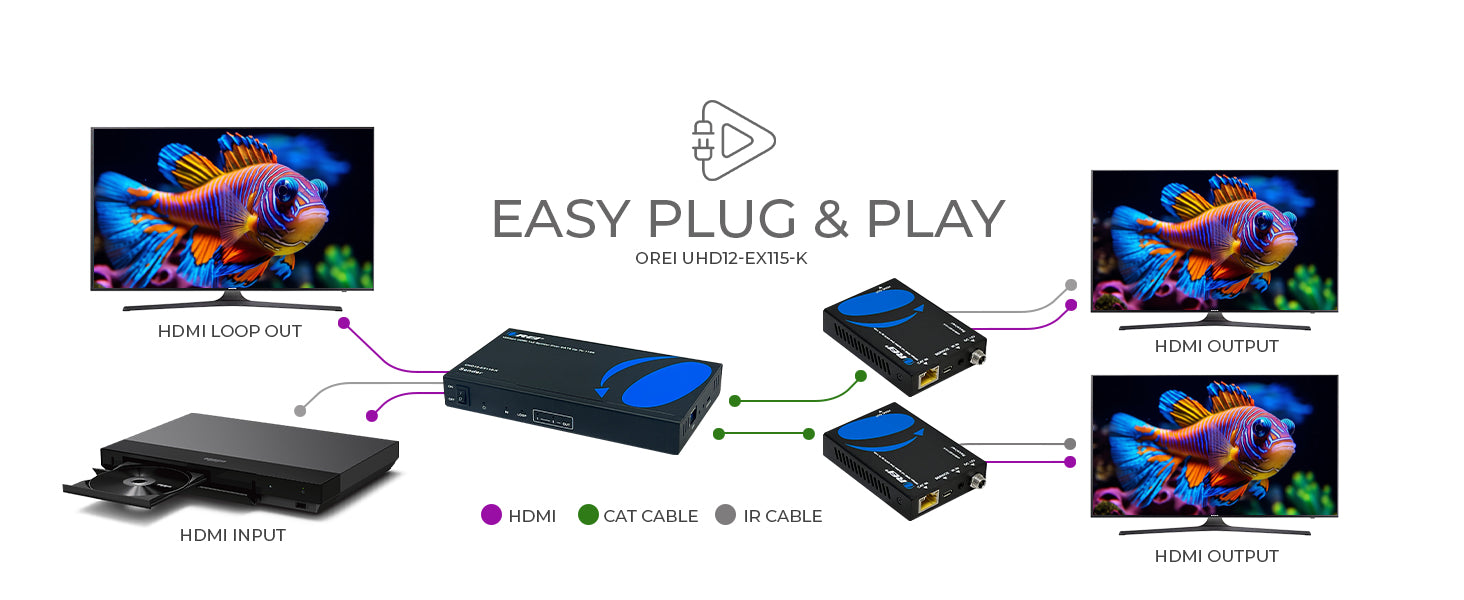

The UHD12-EX115-K HDMI Extender Splitter Kit is a high-performance 1x2 solution that distributes a single HDMI source to two remote displays over long distances via CAT6/6a/7 cable. Supporting resolutions up to 4K@60Hz 4:4:4, this system maintains pristine video quality while offering flexible audio options with coaxial and analog L/R de-embedding at the transmitter.
With HDR, Dolby Vision, and HLG pass-through support, it ensures dynamic color performance across various content types. The HDMI loop-out provides a convenient way to connect a local monitor near the source, while the one-way IR control enables remote operation of the HDMI source from the receiver location.
Designed for simple installation, the kit features Power over Cable (POC), requiring only one power adapter at the transmitter end. It’s perfect for digital signage, conference rooms, classrooms, or any setup requiring HDMI distribution with audio extraction and control flexibility.
UHD12-EX115-K User Manual Download
UHD12-EX115-K Specifications Sheet
