4K@30hz HDMI™ Extender (IR) - 130ft (cat6)-EX-230PRO

$49.99 USD $69.99

SKU: EX-230PRO

HDMI extender over ethernet up to 230 feet
Video resolutions up to 4K@30Hz 4:4:4
Uni-directional IR pass-through & EDID

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Add To Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

View details

4K@30hz HDMI™ Extender (IR) - 130ft (cat6)-EX-230PRO

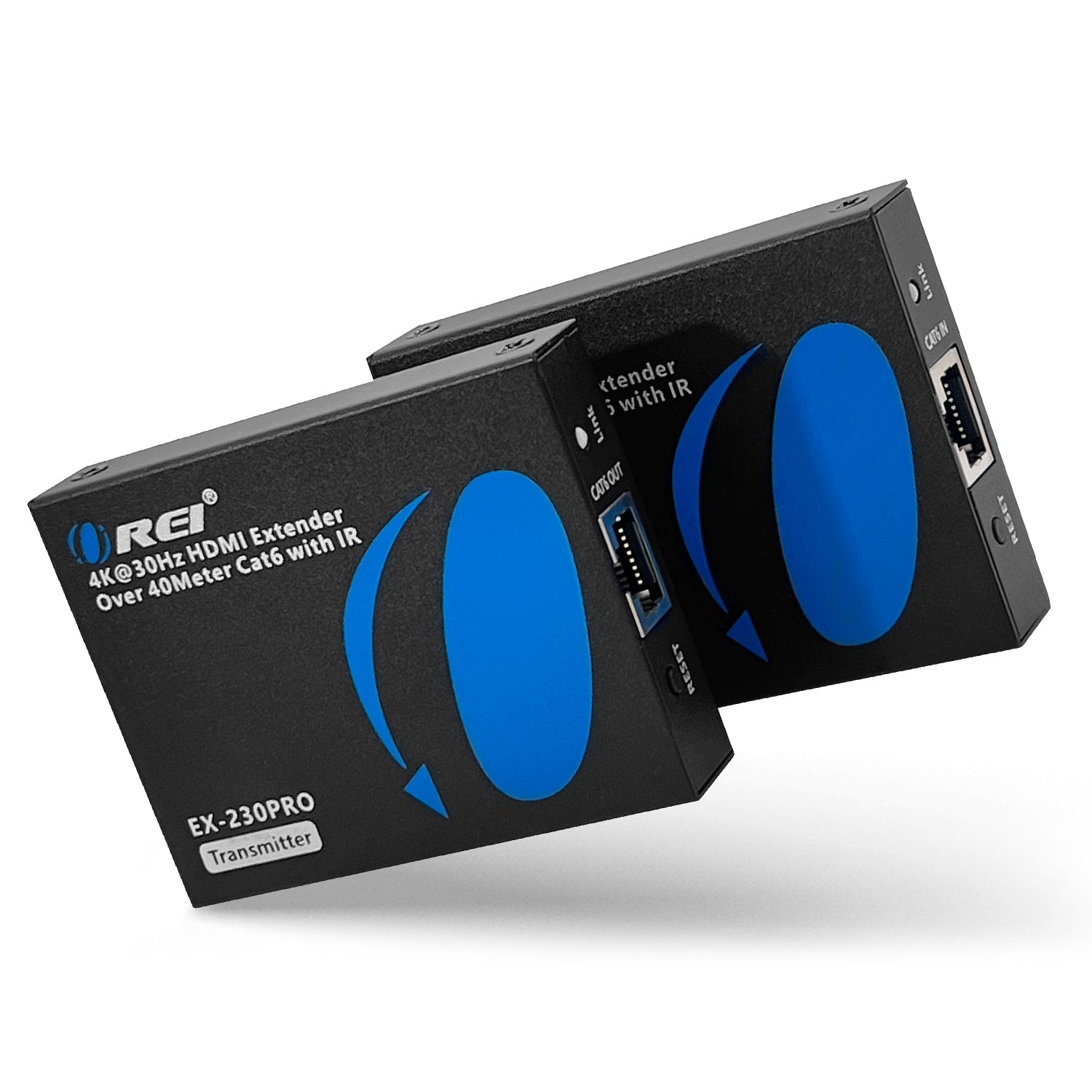

OREI EX-230PRO 4K HDMI Extender up to 230Ft

Key Features:

HDMI 1.4 and HDCP 1.4 compliant – Ensures compatibility with standard HDMI devices and protected content.
Supports up to 4K@30Hz video resolution – Enables high-definition signal transmission with enhanced clarity.
Extension up to 230 feet at 1080p – Transmits HDMI signals up to 230ft at 1080p@60Hz and 131ft at 4K@30Hz over a CAT6 cable.
HDR pass-through – Maintains vibrant color and contrast in supported video formats. · Uni-directional IR control – Allows source device control from the receiver’s location.
EDID pass-through – Ensures seamless communication between connected devices.
Compact design – Small footprint for easy and flexible installations.
Plug-and-play setup – No driver installation required, simplifying deployment.

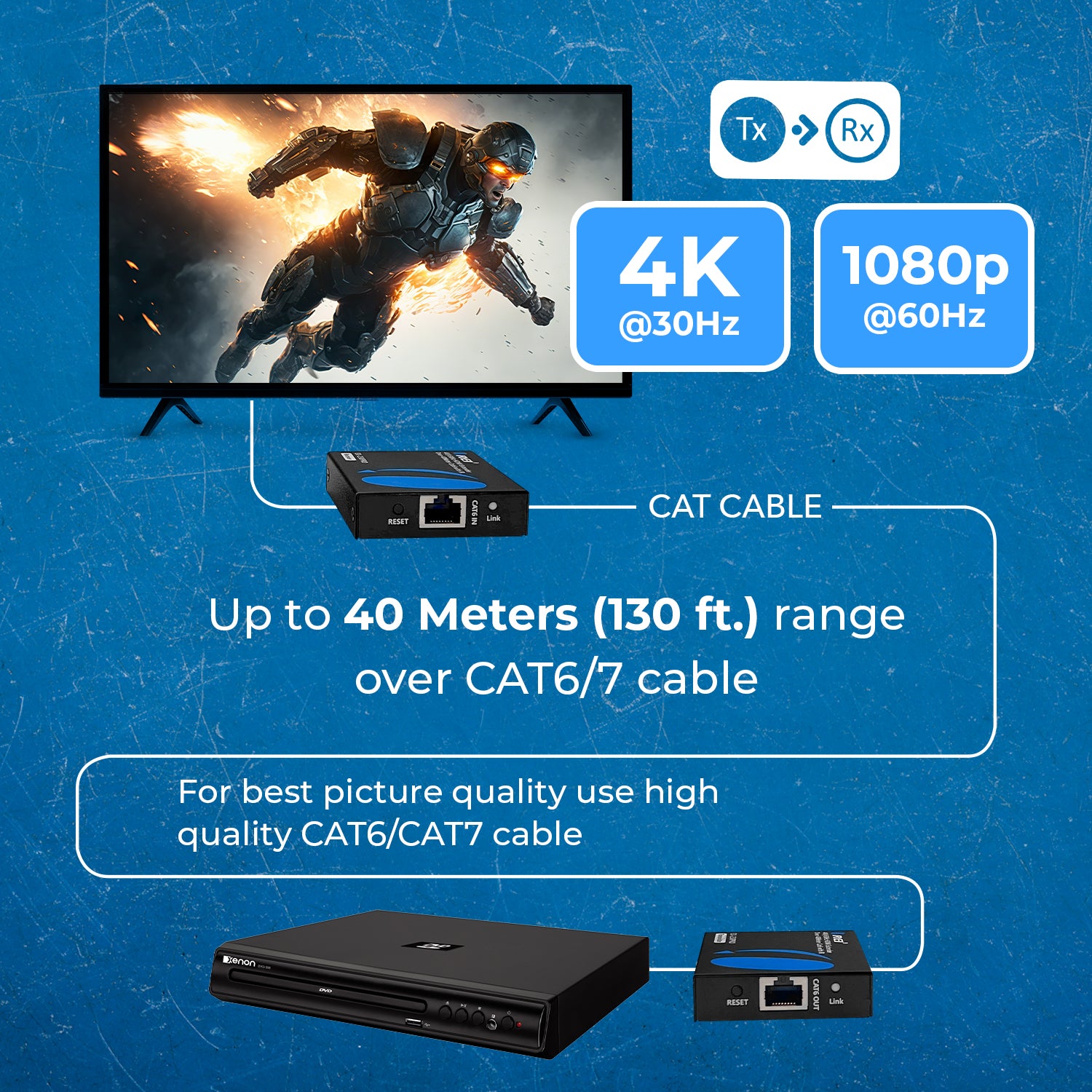

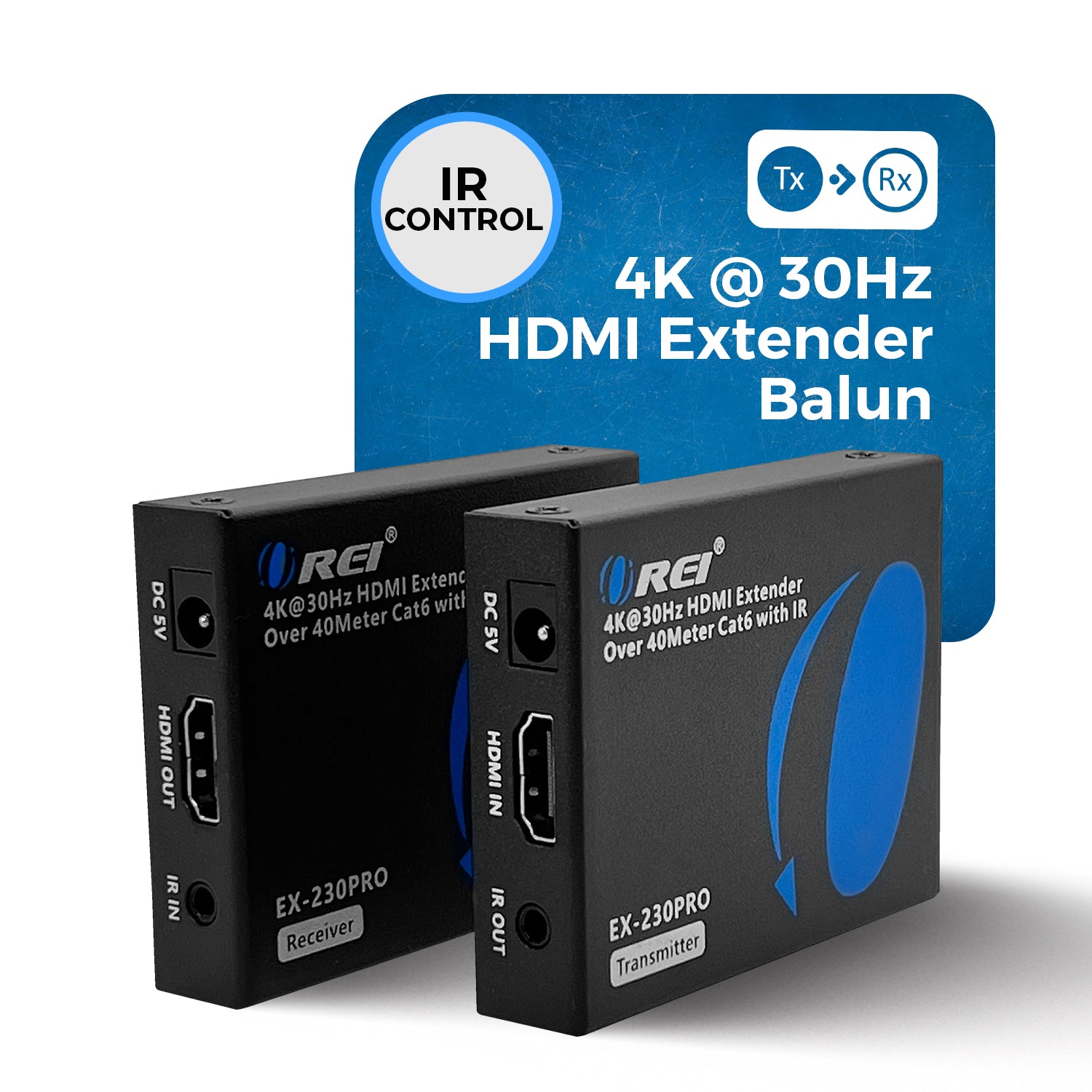

The EX-230PRO is an HDMI extender designed to transmit high-definition video signals over long distances using a single CAT6 cable. Supporting video resolutions up to 4K@30Hz, it extends signals up to 131 feet (40 meters) at 4K and up to 230 feet (70 meters) at 1080p@60Hz.

This unit is HDMI 1.4 and HDCP 1.4 compliant with support for HDR pass-through, ensuring vivid color quality and detail. It features uni-directional IR pass-through, allowing users to control the HDMI source device from the receiver’s location. With a compact design and plug-and-play setup, the EX-230PRO is ideal for personal and commercial AV installations.

CONNECTIVITY

Transmitter:	INPUT:	1 × HDMI [Type A, 19-pin female]
	OUTPUT:	1 × CAT [RJ45, 8-pin female]
	CONTROL:	1 × I/R OUT [3.5mm Stereo Mini-jack]
Receiver:	INPUT:	1 × CAT [RJ45, 8-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
	CONTROL:	1 × I/R IN [3.5mm Stereo Mini-jack]

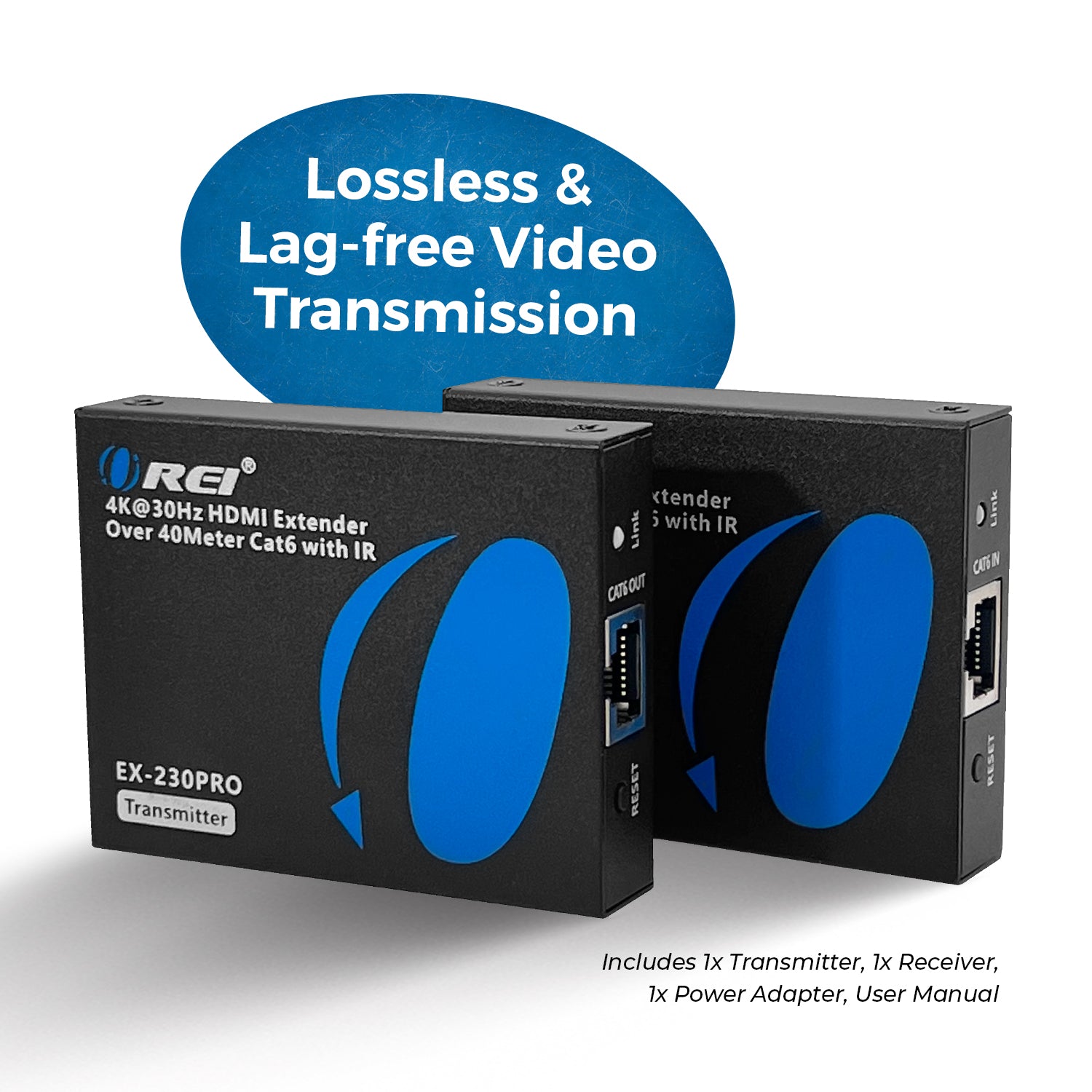

PACKAGE CONTENTS

1x Transmitter

1x Receiver

1x IR Blaster cable

1x IR Receiver cable

2x Power Adapters

User Manual

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@30Hz:	131 Feet
1080P@60Hz:	230 Feet

VIDEO OUTPUT

Video Bandwidth:	10.2Gbps
Video Resolutions:	Up to 4K@30Hz 4:4:4

ADDITIONAL FEATURES

CEC:	No
ARC:	No
USB KVM:	No
PoC/PoE:	No
IR Control:	Yes
Downmix:	No
Downscale:	No
Over IP:	No
HDBaseT:	No
RS-232:	No

LOOP-OUT/LOCAL PORT

Has loop out port:	No
Number of Loop out ports:	0

AUDIO SUPPORT

HDMI Audio Formats:

PCM, LPCM, DTS-HD, DTS-AUDIO, DOLBY DIGITAL 5.1

COMPLIANCES

HDMI Compliance	HDMI 1.4
HDCP Compliance	HDCP 1.4

POWER

Power Consumption:	TX: 1.5W (Max) & RX: 1.5W (Max)
Power Supply:	Input: AC 100-240V 50/60Hz
	Output: DC 5V/0.5A

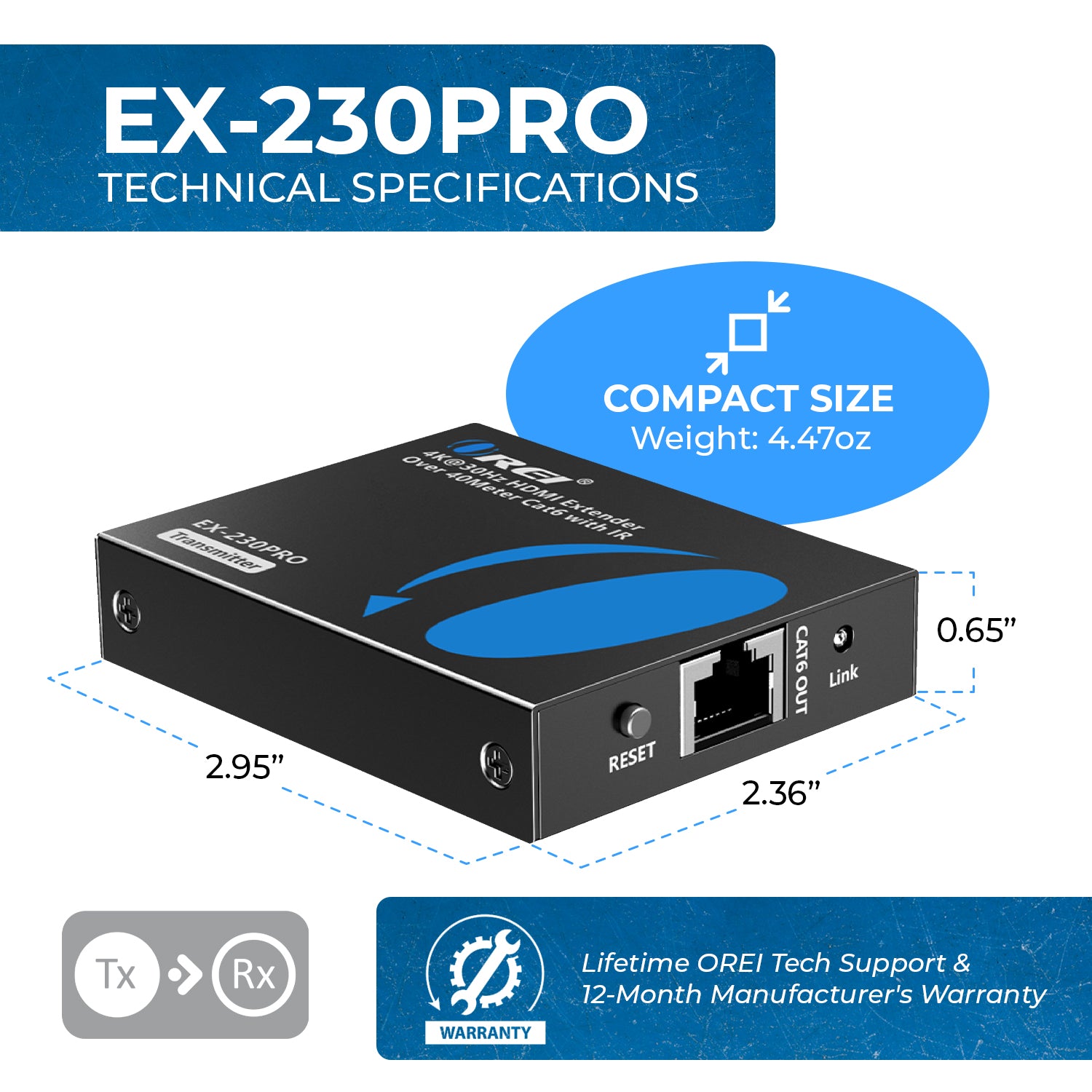

DIMENSIONS & WEIGHT

Transmitter:	Length:	75mm / 2.95in
	Width:	60mm / 2.36in
	Height:	16.5mm / 0.65in
	Weight:	127g / 4.48oz
Receiver:	Length:	75mm / 2.95in
	Width:	60mm / 2.36in
	Height:	16.5mm / 0.65in
	Weight:	127g / 4.48oz

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

EX-230PRO User Manual Download

EX-230PRO Specifications Sheet

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

No, this product doesn't upscale/downscale the video resolutions.

You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

You can upgrade the firmware by connecting the PC & this device via RS-232 cable.

Please note that this product only supports the CEC function between HDMI input & HDMI output 1.

No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.

HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.

In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.

We recommend you using a shielded CAT6 cables for optimum performance.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

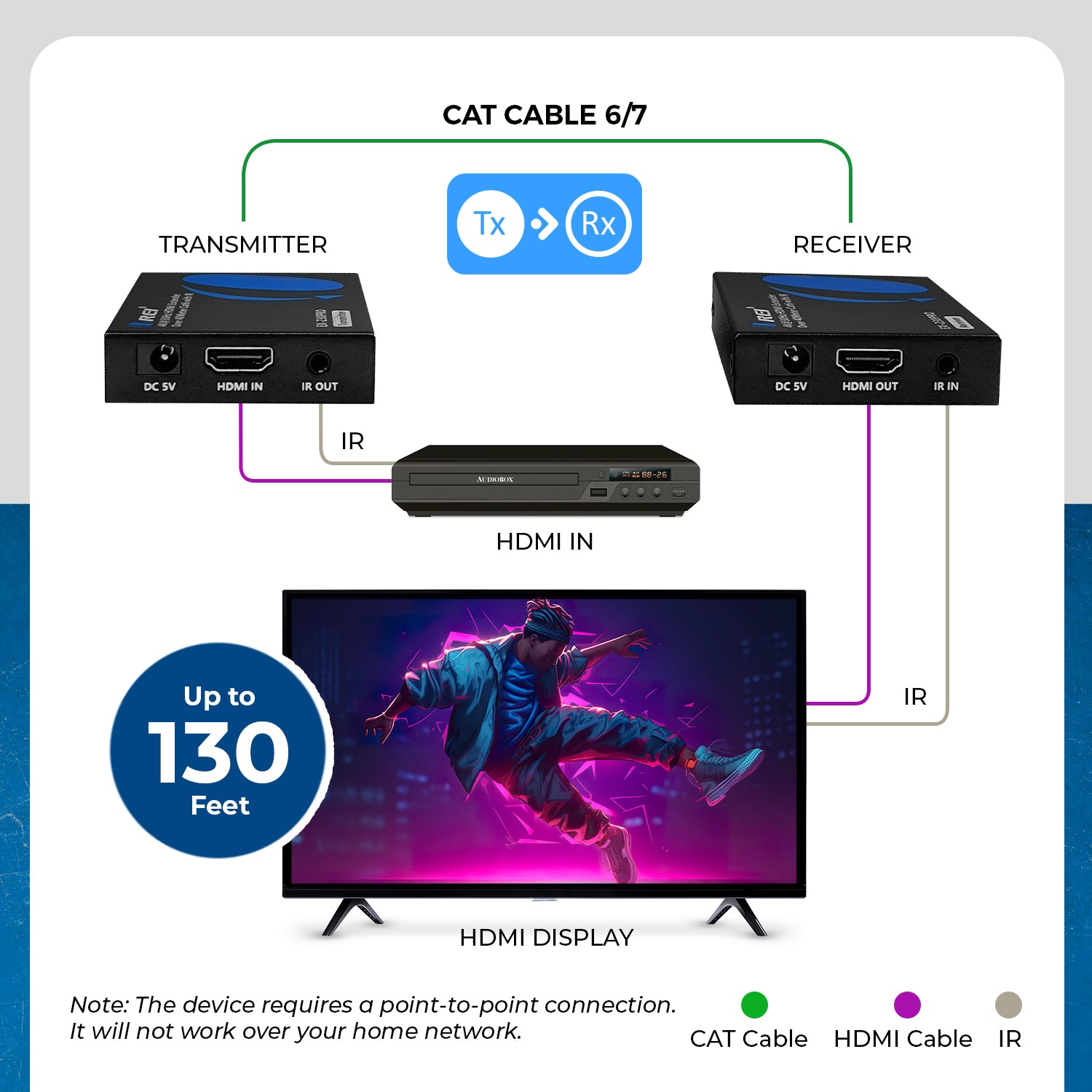

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
